2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#70090) — 54 parça

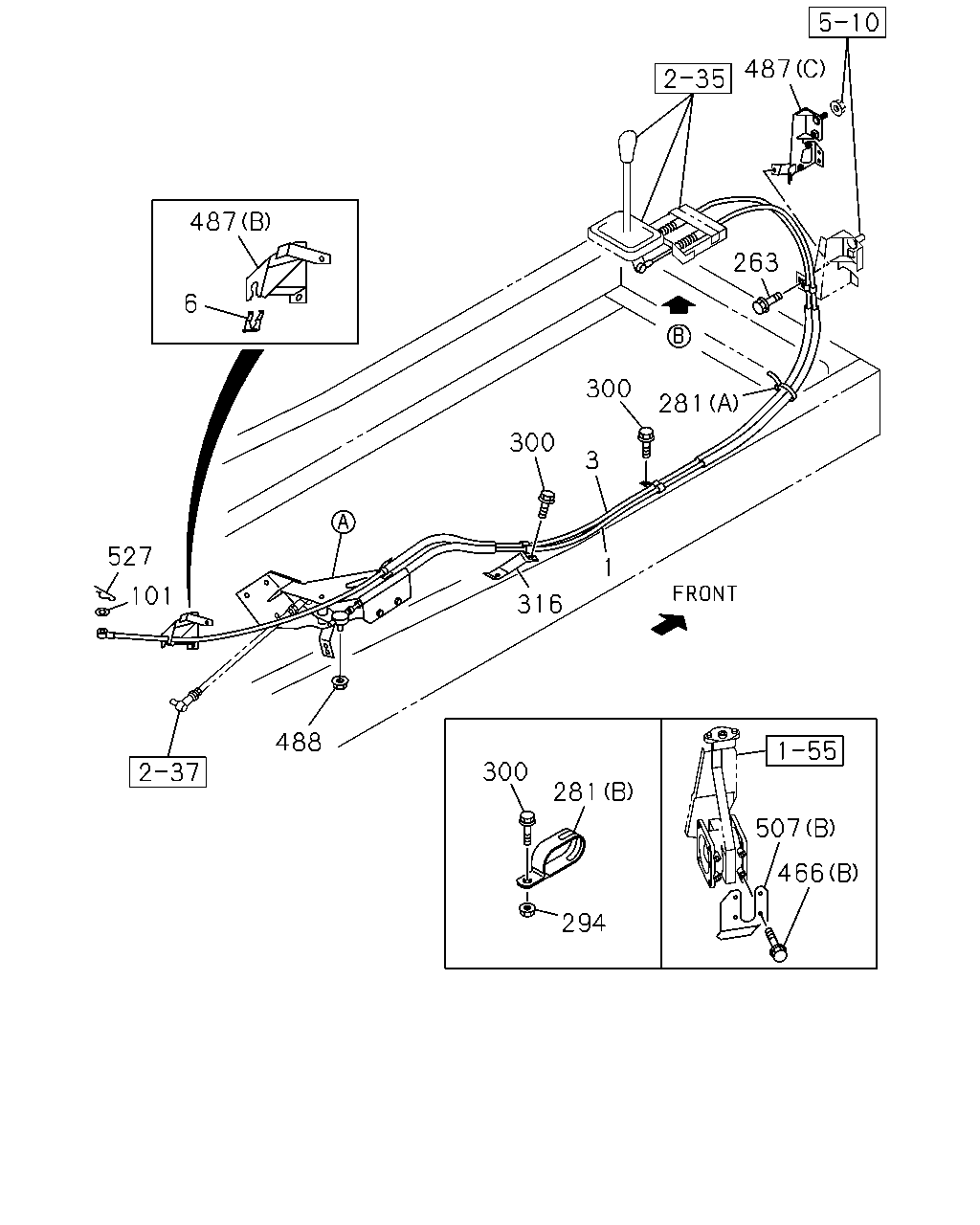

çizim 113825
300 281 294 507 466 316 300 300 3 1 281 263 487 488 101 527 6 487
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION CONTROL CABLE TYPE(C1A) L=2788 		8-98084-024-0 01 1 1009-1302
1 CABLE; SHIFT,TRANS CONT
MJT7S M/T(Y3E) L=2776 		8-98216-275-2 01 1 1303-
3 CABLE; SELECT,TRANS CONT
TRANSMISSION CONTROL CABLE TYPE(C1A) L=3375 		8-98084-029-0 01 1 1009-1302
3 CABLE; SELECT,TRANS CONT
MJT7S M/T(Y3E) L=3394 		8-98222-466-2 01 1 1303-
6 CLIP; CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=22.2 		1-09701-209-1 02 1 1009-
101 WASHER; PL
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=8.4 OD=16 		0-91610-508-0 01 1 1009-1302
101 WASHER; PL
MJT7S M/T(Y3E) ID=8.4 OD=16 		0-91610-508-0 01 1 1303-
263 BOLT; CLIP,TRANS CONT WIRE
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X16 FLANGE 		0-28050-816-0 01 1 1009-1302
263 BOLT; CLIP,TRANS CONT WIRE
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X16 FLANGE 		0-28050-816-0 02 1 1303-
281 CLIP; BAND
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=13 & 13 L=32 		8-97389-264-0 01 1 1303-
281 CLIP; BAND
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) L=350 		1-09707-183-0 01 1 1009-
294 NUT; CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE 		0-91180-108-0 01 1 1303-
300 BOLT; CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X20 FLANGE 		0-28050-820-0 03 1 1009-
316 BRACKET; CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33657-870-2 01 1 1009-1302
316 BRACKET; CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98150-331-0 01 1 1303-
466 BOLT; FIX
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M6X16 FLANGE 		0-28050-616-0 04 1 1303-
466 BOLT; FIX
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10X20 FLANGE 		0-28651-020-0 01 1 1009-
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. FULL FLOATING CAB(W16) (C) 		8-98131-521-2 01 1 1412-
487 BRACKET; CONT CABLE
MJT7S M/T(Y3E) (B) 		1-33657-872-2 01 1 1009-
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		8-98049-854-0 01 1 1009-
488 NUT; CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE 		1-09440-056-0 01 1 1009-
507 PROTECTOR; HEAT
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-98151-604-0 01 1 1303-
507 PROTECTOR; HEAT
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-14181-357-1 01 1 1009-1302
507 PROTECTOR; HEAT
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		8-98171-722-0 01 1 1303-
527 PIN; SNAP
TRANSMISSION CONTROL CABLE TYPE(C1A) L=23 		8-94170-378-0 01 1 1009-1302
527 PIN; SNAP
MJT7S M/T(Y3E) L=23 		8-94170-378-0 01 1 1303-

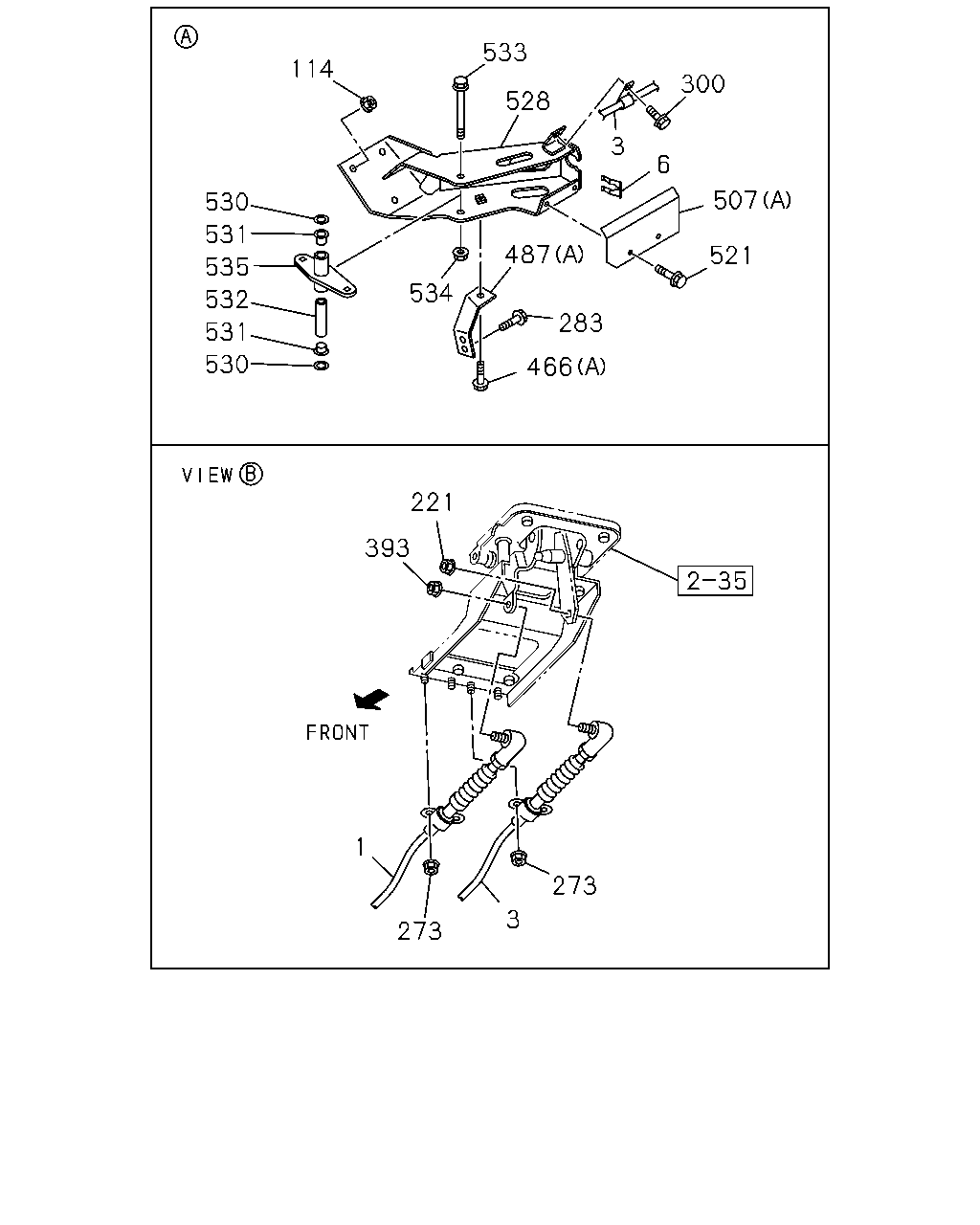

çizim 114073
466 283 221 393 273 3 273 1 530 531 532 535 531 530 114 533 300 6 3 507 521 487 528 534
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION CONTROL CABLE TYPE(C1A) L=2788 		8-98084-024-0 01 1 1009-1302
1 CABLE; SHIFT,TRANS CONT
MJT7S M/T(Y3E) L=2776 		8-98216-275-2 01 1 1303-
3 CABLE; SELECT,TRANS CONT
TRANSMISSION CONTROL CABLE TYPE(C1A) L=3375 		8-98084-029-0 01 1 1009-1302
3 CABLE; SELECT,TRANS CONT
MJT7S M/T(Y3E) L=3394 		8-98222-466-2 01 1 1303-
6 CLIP; CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=22.2 		1-09701-209-1 02 1 1009-
114 NUT; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) M12 FLANGE 		0-91180-112-0 03 1 1009-1302
114 NUT; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) M12 FLANGE 		0-91180-212-0 03 1 1303-
221 NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE 		1-09440-061-0 01 1 1009-
273 NUT; CONT CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE 		0-91180-110-0 04 1 1009-
283 BOLT; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) M10X20 FLANGE 		0-28151-020-0 02 1 1009-
300 BOLT; CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X20 FLANGE 		0-28050-820-0 03 1 1009-
393 NUT; SELECT CABLE,CAB
TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE 		1-09440-062-1 01 1 1009-
466 BOLT; FIX
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M6X16 FLANGE 		0-28050-616-0 04 1 1303-
466 BOLT; FIX
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10X20 FLANGE 		0-28651-020-0 01 1 1009-
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. FULL FLOATING CAB(W16) (C) 		8-98131-521-2 01 1 1412-
487 BRACKET; CONT CABLE
MJT7S M/T(Y3E) (B) 		1-33657-872-2 01 1 1009-
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		8-98049-854-0 01 1 1009-
507 PROTECTOR; HEAT
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-98151-604-0 01 1 1303-
507 PROTECTOR; HEAT
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-14181-357-1 01 1 1009-1302
507 PROTECTOR; HEAT
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		8-98171-722-0 01 1 1303-
521 BOLT; PROTECTOR
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X20 FLANGE 		0-28050-820-0 02 1 1009-
528 BRACKET; LOWER,RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98049-809-1 01 1 1009-
530 RING; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-09623-636-0 02 1 1009-
531 BUSHING; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-09330-119-0 02 1 1009-
532 COLLAR; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98049-429-0 01 1 1009-
533 BOLT; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) M10X100 FLANGE 		0-28051-000-0 01 1 1009-
534 NUT; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE 		1-09440-056-0 01 1 1009-
535 LEVER; RELAY,SHIFT
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98049-430-0 01 1 1009-
