◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11292 - EXR RHD EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#70089) — 108 parça

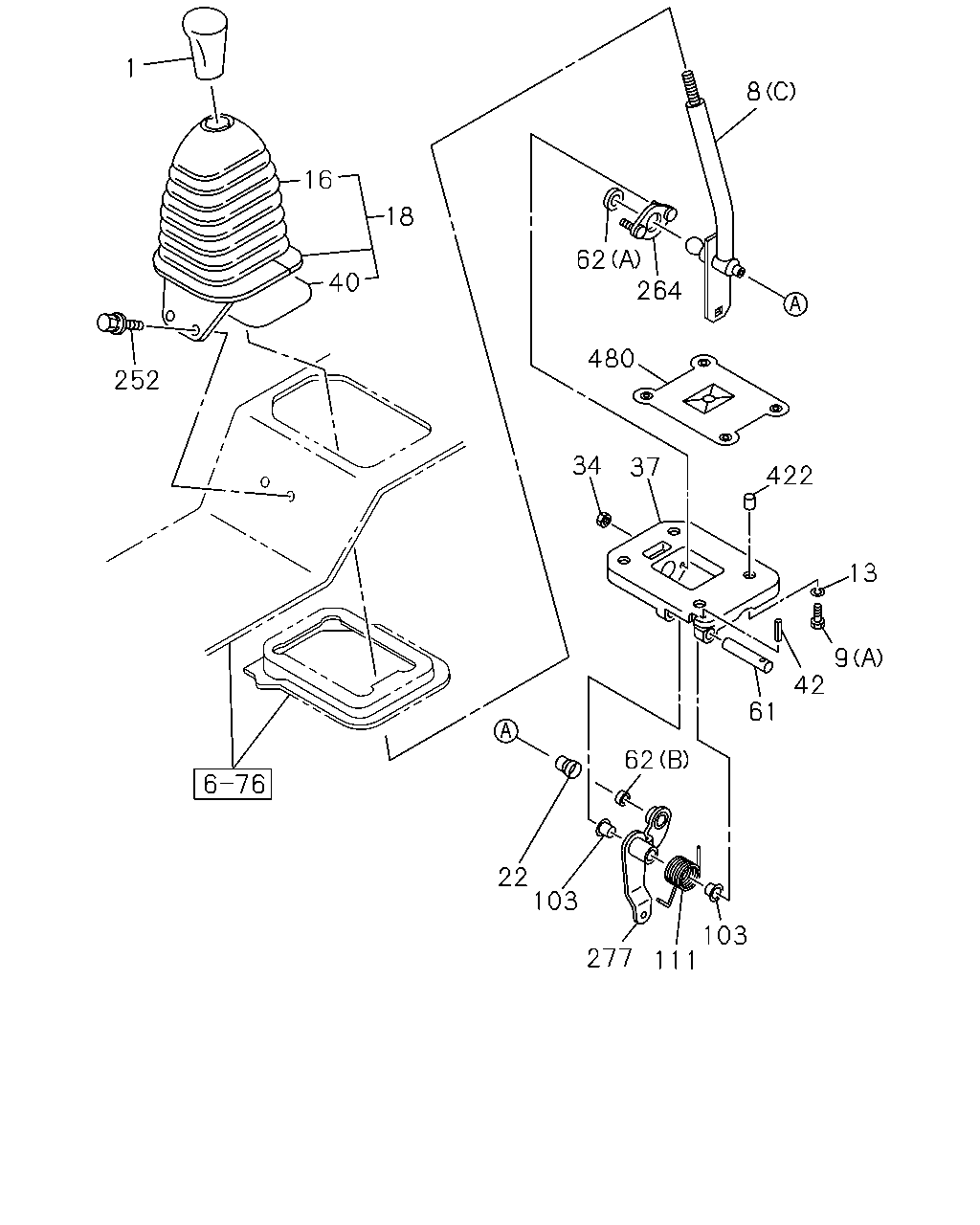

çizim 113814
1 16 40 18 252 8 62 480 37 34 422 13 9 42 61 62 22 103 277 103 111 264
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) 		8-98152-481-0 01 1 1009-1010
1 KNOB; CHANGE LEVER
MJT7S M/T(Y3E) 		1-33611-082-1 01 1 1009-
8 LEVER; CHANGE
MJX12P M/T SMOOTHER-G(Y4S) (A) 		1-33620-114-2 01 1 1009-1010
8 LEVER; CHANGE
MJX12P M/T SMOOTHER-G(Y4S) (B) 		8-98181-427-0 01 1 1011-1302
8 LEVER; CHANGE
SMOOTHER-G(C1W) (B) 		8-98181-427-0 01 1 1303-1401
8 LEVER; CHANGE
SMOOTHER-G(C1W) (B) 		8-98149-127-1 01 1 1402-
8 LEVER; CHANGE
MJT7S M/T(Y3E) (C) 		1-33613-344-0 01 1 1009-
9 BOLT; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (C) 		1-33619-798-0 08 1 1009-1010
9 BOLT; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1009-1302
9 BOLT; CHANGE LEVER
SMOOTHER-G(C1W) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1303-
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M8X25 FLANGE 		0-28650-825-0 04 1 1009-
13 WASHER; PL,SUPER SHIFT LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=8.4 OD=22 		0-91610-708-0 04 1 1009-
16 BOOT; CHANGE LEVER
MJT7S M/T(Y3E) 		1-79996-688-0 01 1 1009-
16 BOOT; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) 		1-33614-145-0 01 1 1009-1010
18 BOOT; CHANGE LEVER
MJT7S M/T(Y3E) 		1-79996-686-0 01 1 1009-
22 COVER; DUST,CHANGE LEVER
MJT7S M/T(Y3E) 		1-33619-573-0 01 1 1009-
34 NUT
MJT7S M/T(Y3E) M6 FLANGE 		0-91180-106-0 02 1 1009-
37 BRACKET; CHANGE LEVER SUPPORT
MJT7S M/T(Y3E) 		8-98100-876-1 01 1 1009-
40 SEAL; BOOT HOLDER CHANGE LEVER
MJT7S M/T(Y3E) 		1-79996-345-0 01 1 1009-
42 PIN; SPRING,SELECT LEVER PIN
MJT7S M/T(Y3E) D=5 L=28 		8-94252-581-0 01 1 1009-
61 PIN; SELECT LEVER
MJT7S M/T(Y3E) 		1-33619-470-0 01 1 1009-
62 SEAT; BALL,CHANGE LEVER
MJT7S M/T(Y3E) (A) 		1-33619-427-0 01 1 1009-
62 SEAT; BALL,CHANGE LEVER
MJT7S M/T(Y3E) (B) 		8-97011-900-0 01 1 1009-
103 BUSHING; RELAY LEVER
MJT7S M/T(Y3E) ID=14 OD=16 		8-94252-671-0 02 1 1009-
111 SPRING
MJT7S M/T(Y3E) 		1-09585-142-1 01 1 1009-
252 BOLT; COVER,CHANGE LEVER
MJT7S M/T(Y3E) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1009-1302
252 BOLT; COVER,CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1303-
264 PLATE; COVER
MJT7S M/T(Y3E) 		1-33619-469-0 01 1 1009-
277 LEVER; RELAY
MJT7S M/T(Y3E) 		1-33651-636-1 01 1 1009-
422 BUSHING; CHANGE LEVER
MJT7S M/T(Y3E) 		8-97091-427-0 04 1 1009-
480 RUBBER; COVER
MJT7S M/T(Y3E) 		8-98119-365-0 01 1 1009-

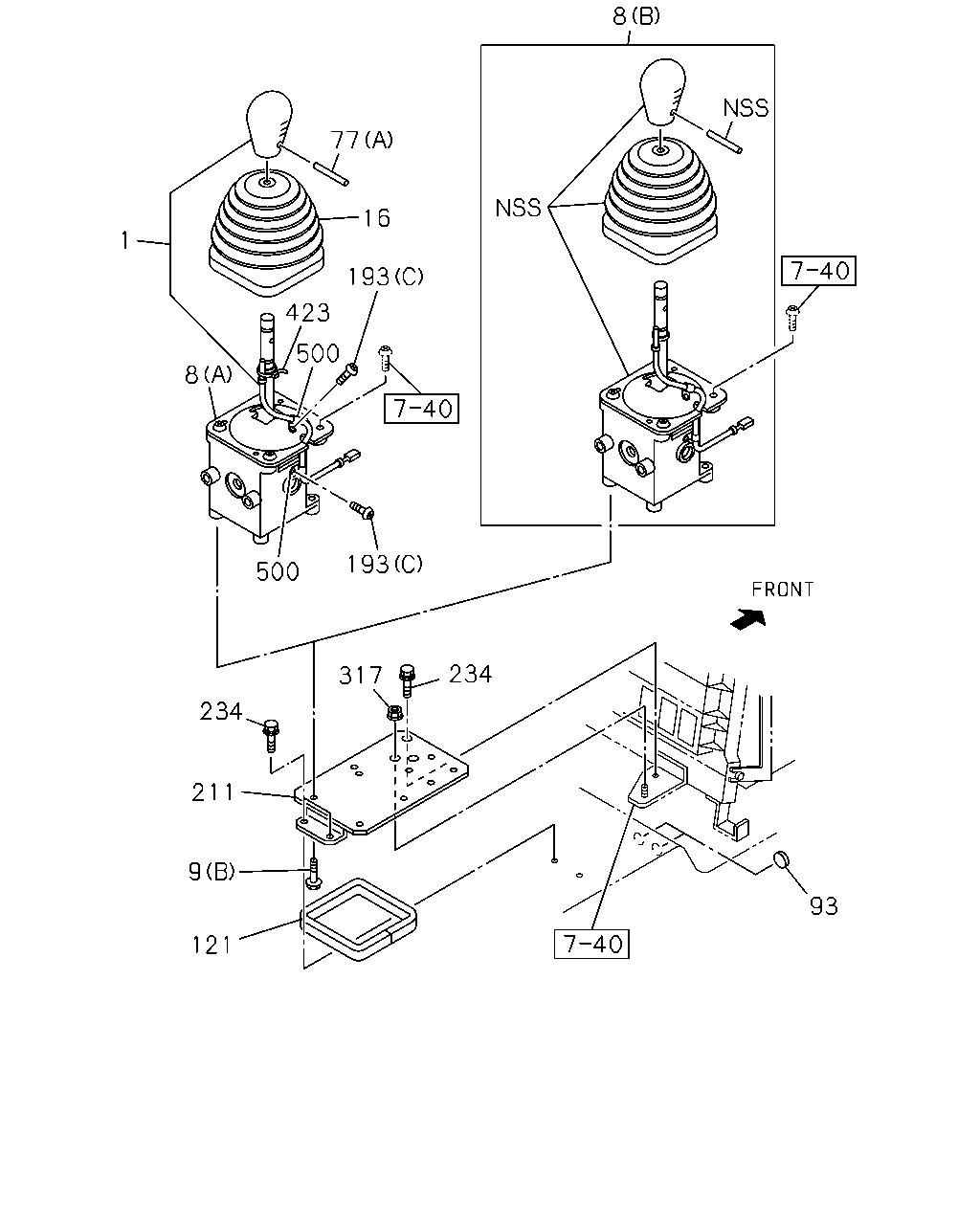

çizim 113823
8 93 121 9 211 234 317 234 193 193 16 77 1 8 423 500 500
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) 		8-98152-481-0 01 1 1009-1010
1 KNOB; CHANGE LEVER
MJT7S M/T(Y3E) 		1-33611-082-1 01 1 1009-
8 LEVER; CHANGE
MJX12P M/T SMOOTHER-G(Y4S) (A) 		1-33620-114-2 01 1 1009-1010
8 LEVER; CHANGE
MJX12P M/T SMOOTHER-G(Y4S) (B) 		8-98181-427-0 01 1 1011-1302
8 LEVER; CHANGE
SMOOTHER-G(C1W) (B) 		8-98181-427-0 01 1 1303-1401
8 LEVER; CHANGE
SMOOTHER-G(C1W) (B) 		8-98149-127-1 01 1 1402-
8 LEVER; CHANGE
MJT7S M/T(Y3E) (C) 		1-33613-344-0 01 1 1009-
9 BOLT; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (C) 		1-33619-798-0 08 1 1009-1010
9 BOLT; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1009-1302
9 BOLT; CHANGE LEVER
SMOOTHER-G(C1W) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1303-
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M8X25 FLANGE 		0-28650-825-0 04 1 1009-
16 BOOT; CHANGE LEVER
MJT7S M/T(Y3E) 		1-79996-688-0 01 1 1009-
16 BOOT; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) 		1-33614-145-0 01 1 1009-1010
77 PIN; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (A) 		1-33619-780-0 01 1 1009-1010
77 PIN; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (B) 		1-33619-795-0 01 1 1009-1010
93 SEAL; HOLE COVER,GEAR CONT
MJX12P M/T SMOOTHER-G(Y4S) OD=25 BLACK 		1-76798-019-0 01 1 1009-1302
93 SEAL; HOLE COVER,GEAR CONT
SMOOTHER-G(C1W) OD=25 BLACK 		1-76798-019-0 01 1 1303-
93 SEAL; HOLE COVER,GEAR CONT
OD=25 BLACK 		1-76798-019-0 02 1 1009-1302
93 SEAL; HOLE COVER,GEAR CONT
OD=25 BLACK 		1-76798-019-0 02 1 1303-
121 SEAL; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) 		1-79997-354-0 01 1 1009-1302
121 SEAL; CHANGE LEVER
SMOOTHER-G(C1W) 		1-79997-354-0 01 1 1303-
193 SCREW; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (C) M5X12 W/LK WASHER 		0-36220-512-0 02 1 1009-1010
193 SCREW; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (B) M4X8 W/LK WASHER 		9-03910-408-0 04 1 1009-1010
193 SCREW; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (A) M5X12 W/LK WASHER 		9-03910-512-0 04 1 1009-1010
211 BRACKET; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) 		1-79907-115-1 01 1 1009-1302
211 BRACKET; CHANGE LEVER
SMOOTHER-G(C1W) 		1-79907-115-1 01 1 1303-
234 BOLT; BRKT
MJX12P M/T SMOOTHER-G(Y4S) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1009-1302
234 BOLT; BRKT
SMOOTHER-G(C1W) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1303-
234 BOLT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X25 FLANGE 		0-28650-825-0 02 1 1009-
317 NUT; BRKT
MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE 		0-91180-108-0 01 1 1009-1302
317 NUT; BRKT
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 1303-
317 NUT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1009-
423 CLIP; BAND
MJX12P M/T SMOOTHER-G(Y4S) 		8-97138-392-0 01 1 1009-1010
500 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) ID=9 L=16 		9-09524-822-0 02 1 1009-1010

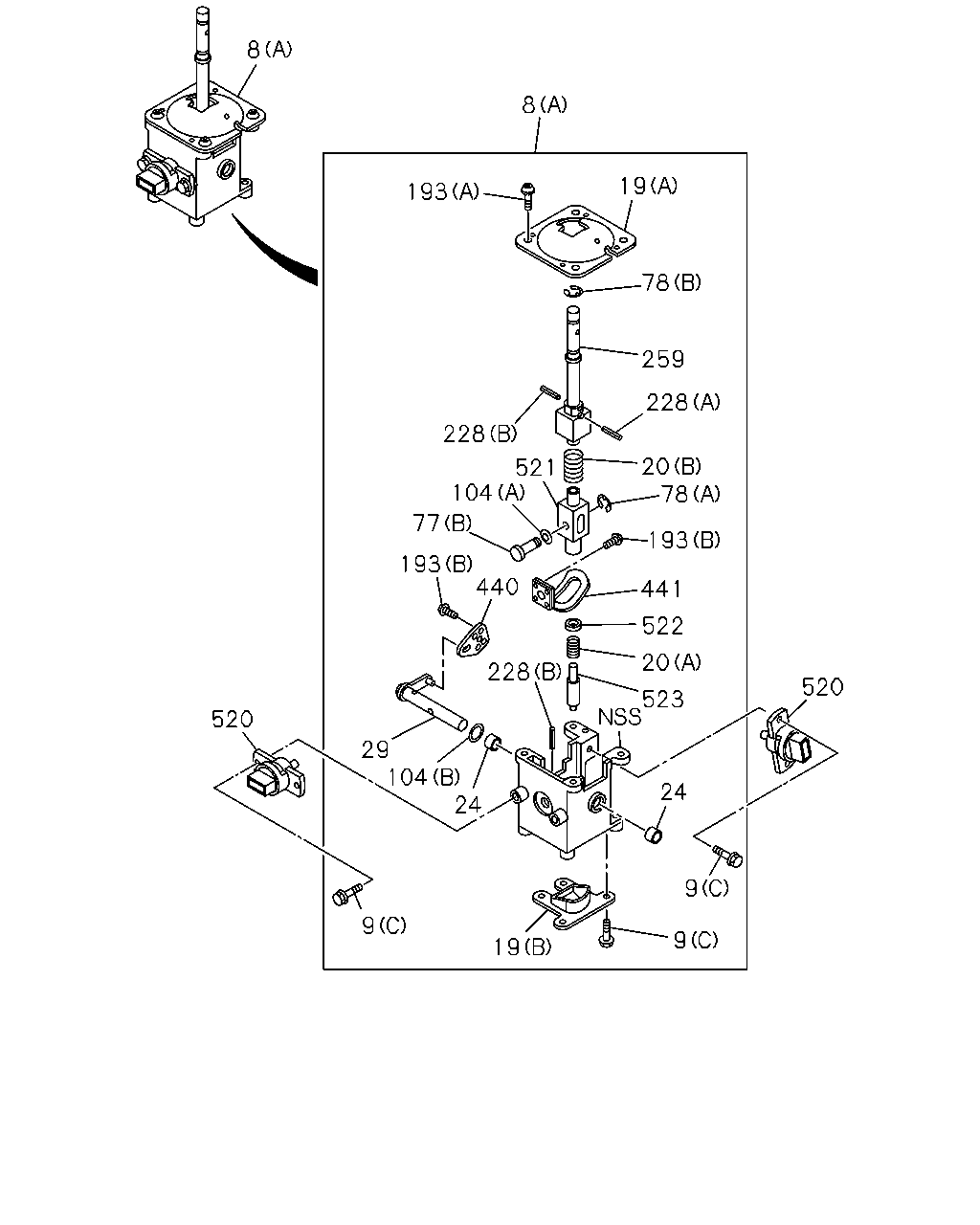

çizim 113976
9 9 24 520 523 20 522 441 193 78 20 228 259 78 19 8 8 193 228 521 104 77 193 440 228 520 29 104 24 9 19
BalonParca AdiParca NoAdetTipApplied Date
8 LEVER; CHANGE
MJX12P M/T SMOOTHER-G(Y4S) (A) 		1-33620-114-2 01 1 1009-1010
8 LEVER; CHANGE
MJX12P M/T SMOOTHER-G(Y4S) (B) 		8-98181-427-0 01 1 1011-1302
8 LEVER; CHANGE
SMOOTHER-G(C1W) (B) 		8-98181-427-0 01 1 1303-1401
8 LEVER; CHANGE
SMOOTHER-G(C1W) (B) 		8-98149-127-1 01 1 1402-
8 LEVER; CHANGE
MJT7S M/T(Y3E) (C) 		1-33613-344-0 01 1 1009-
9 BOLT; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (C) 		1-33619-798-0 08 1 1009-1010
9 BOLT; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1009-1302
9 BOLT; CHANGE LEVER
SMOOTHER-G(C1W) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1303-
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M8X25 FLANGE 		0-28650-825-0 04 1 1009-
19 COVER; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (A) 		1-33619-790-0 01 1 1009-1010
19 COVER; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (B) 		1-33619-791-0 01 1 1009-1010
20 SPRING; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (A) 		1-33619-786-0 01 1 1009-1010
20 SPRING; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (B) 		1-33619-787-0 01 1 1009-1010
24 BUSHING; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) 		1-33619-797-0 02 1 1009-1010
29 SHAFT
MJX12P M/T SMOOTHER-G(Y4S) 		1-33619-792-0 01 1 1009-1010
77 PIN; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (A) 		1-33619-780-0 01 1 1009-1010
77 PIN; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (B) 		1-33619-795-0 01 1 1009-1010
78 RING; SNAP,CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (A) ID=4 		9-09185-404-0 01 1 1009-1010
78 RING; SNAP,CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (B) ID=9 		9-09185-409-0 01 1 1009-1010
104 WASHER; WAVED
MJX12P M/T SMOOTHER-G(Y4S) (A) 		1-33619-788-0 01 1 1009-1010
104 WASHER; WAVED
MJX12P M/T SMOOTHER-G(Y4S) (B) 		1-33619-789-0 01 1 1009-1010
193 SCREW; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (C) M5X12 W/LK WASHER 		0-36220-512-0 02 1 1009-1010
193 SCREW; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (B) M4X8 W/LK WASHER 		9-03910-408-0 04 1 1009-1010
193 SCREW; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (A) M5X12 W/LK WASHER 		9-03910-512-0 04 1 1009-1010
228 PIN; SPR,CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (A) 		1-33619-505-0 01 1 1009-1010
228 PIN; SPR,CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) (B) 		1-33619-796-0 02 1 1009-1010
259 LEVER; CHANGE,UPR
MJX12P M/T SMOOTHER-G(Y4S) 		1-33619-782-0 01 1 1009-1010
440 LEVER; SHIFT
MJX12P M/T SMOOTHER-G(Y4S) 		1-33619-794-0 01 1 1009-1010
441 LEVER; SELECT
MJX12P M/T SMOOTHER-G(Y4S) 		1-33619-793-0 01 1 1009-1010
520 SENSOR; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) 		1-81541-113-0 02 1 1009-1010
521 LEVER; CHANGE,LOW
MJX12P M/T SMOOTHER-G(Y4S) 		1-33619-783-0 01 1 1009-1010
522 GUIDE; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) 		1-33619-784-0 01 1 1009-1010
523 PLUNGER; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) 		1-33619-785-0 01 1 1009-1010

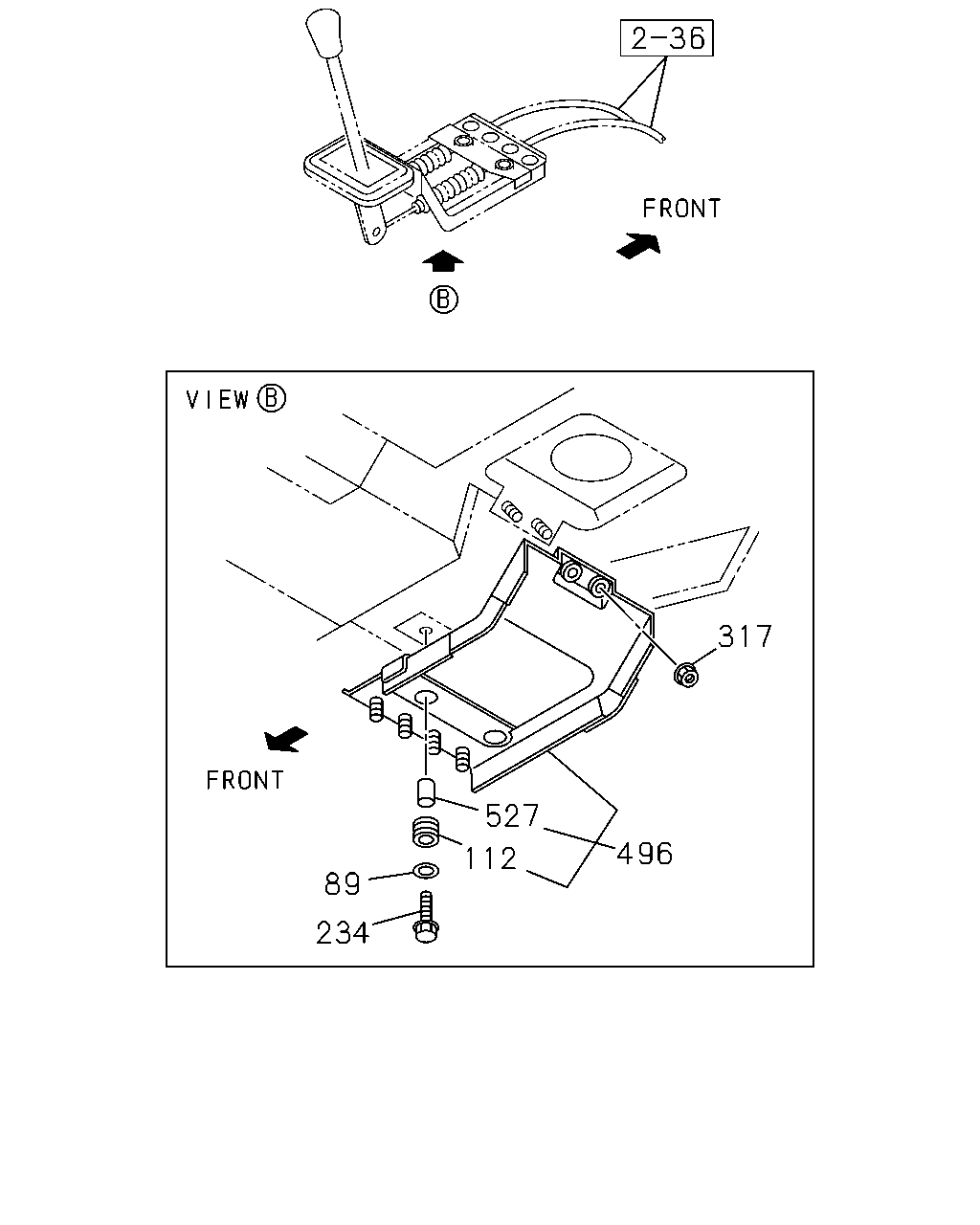

çizim 188573
89 234 112 496 527 317
BalonParca AdiParca NoAdetTipApplied Date
89 WASHER; PL,LWR SUPPORT BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=8.4 OD=22 		0-91610-708-0 02 1 1009-
112 RUBBER; CUSHION
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33619-442-0 04 1 1009-
234 BOLT; BRKT
MJX12P M/T SMOOTHER-G(Y4S) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1009-1302
234 BOLT; BRKT
SMOOTHER-G(C1W) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1303-
234 BOLT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X25 FLANGE 		0-28650-825-0 02 1 1009-
317 NUT; BRKT
MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE 		0-91180-108-0 01 1 1009-1302
317 NUT; BRKT
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 1303-
317 NUT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1009-
496 BRACKET ASM; T/M CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33657-852-2 01 1 1009-
527 COLLAR; DIST,T/M CABLE BRACKET
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33619-443-0 04 1 1009-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
