Isuzu WW
▶
TRUCKS
▶
EXR
▶
11292 - EXR RHD EURO5
▶
2 - Clutch, Transmission, Trans Axle
▶
2-30 - GEAR SHIFTER AND QUADRANT BOX
▶
2-30 — GEAR SHIFTER AND QUADRANT BOX
(#70087) — 326 parça
Tümü
A - MJT7S M/T
B - MJX12P M/T SMOOTHER-G
◀
[230A] MJX;SWITCH (15 parça)
[230A] MJT;UPPER (42 parça)
[230A] MJX;VALVE AND OTHER PARTS (42 parça)
[230A] MJX;OTHER PARTS (27 parça)
[230A] MJX;ROD AND ARM (79 parça)
[230A] MJX;OTHER PARTS FIXING (1 parça)
[230A] MJX;VALVE (42 parça)
[230A] MJT;LOWER (78 parça)
▶

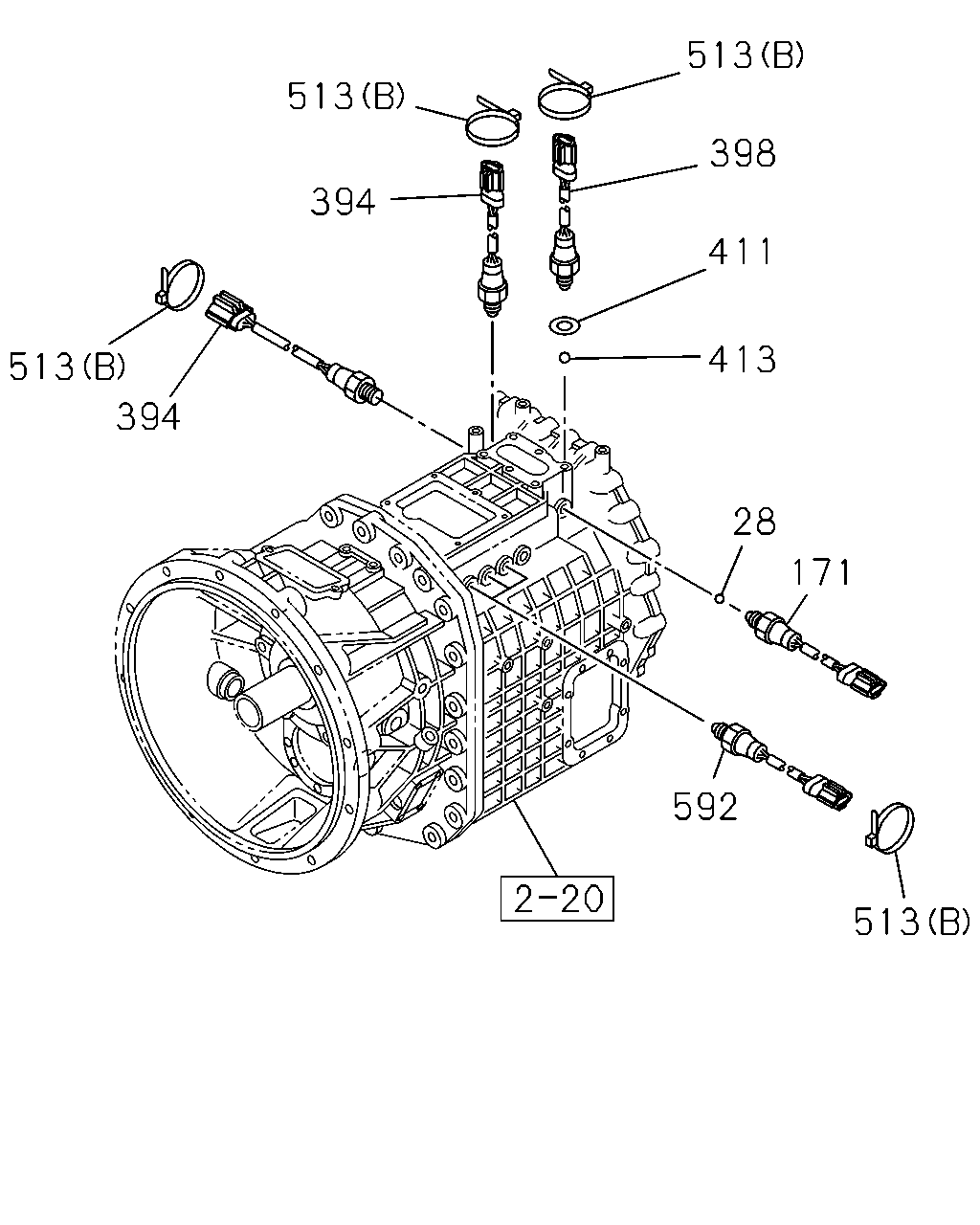

513
592
171
28
413
411
398
513
513
394
394
513
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
28
BALL; INTER LK
9-00097-501-0
04
1
1009-
●
28
BALL; INTER LK
9-00097-501-0
01
1
1009-
●
171
SWITCH; NEUTRAL
8-98166-989-0
01
1
1009-1109
●
●
171
SWITCH; NEUTRAL
8-97640-725-0
01
1
1110-
●
●
394
SWITCH; RANGE CHANGE
8-98042-854-0
02
1
1009-1209
●
394
SWITCH; RANGE CHANGE
8-98228-481-0
02
1
1210-
●
398
SWITCH; REV LAMP
8-98042-853-0
01
1
1009-1209
●
●
398
SWITCH; REV LAMP
8-98228-482-0
01
1
1210-
●
●
411
GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2
8-94462-114-0
01
1
1009-
●
●
413
BALL; BACK SW
9-00097-013-0
01
1
1009-
●
●
513
CLIP; BAND
(A) L=250
5-09707-030-1
11
1
1009-
●
513
CLIP; BAND
(B) L=140
5-09707-031-1
04
1
1009-
●
513
CLIP; BAND
(B) L=140
5-09707-031-1
02
1
1303-
●
592
SWITCH; POSITION
8-98042-854-0
03
1
1009-1209
●
592
SWITCH; POSITION
8-98228-481-0
03
1
1210-
●

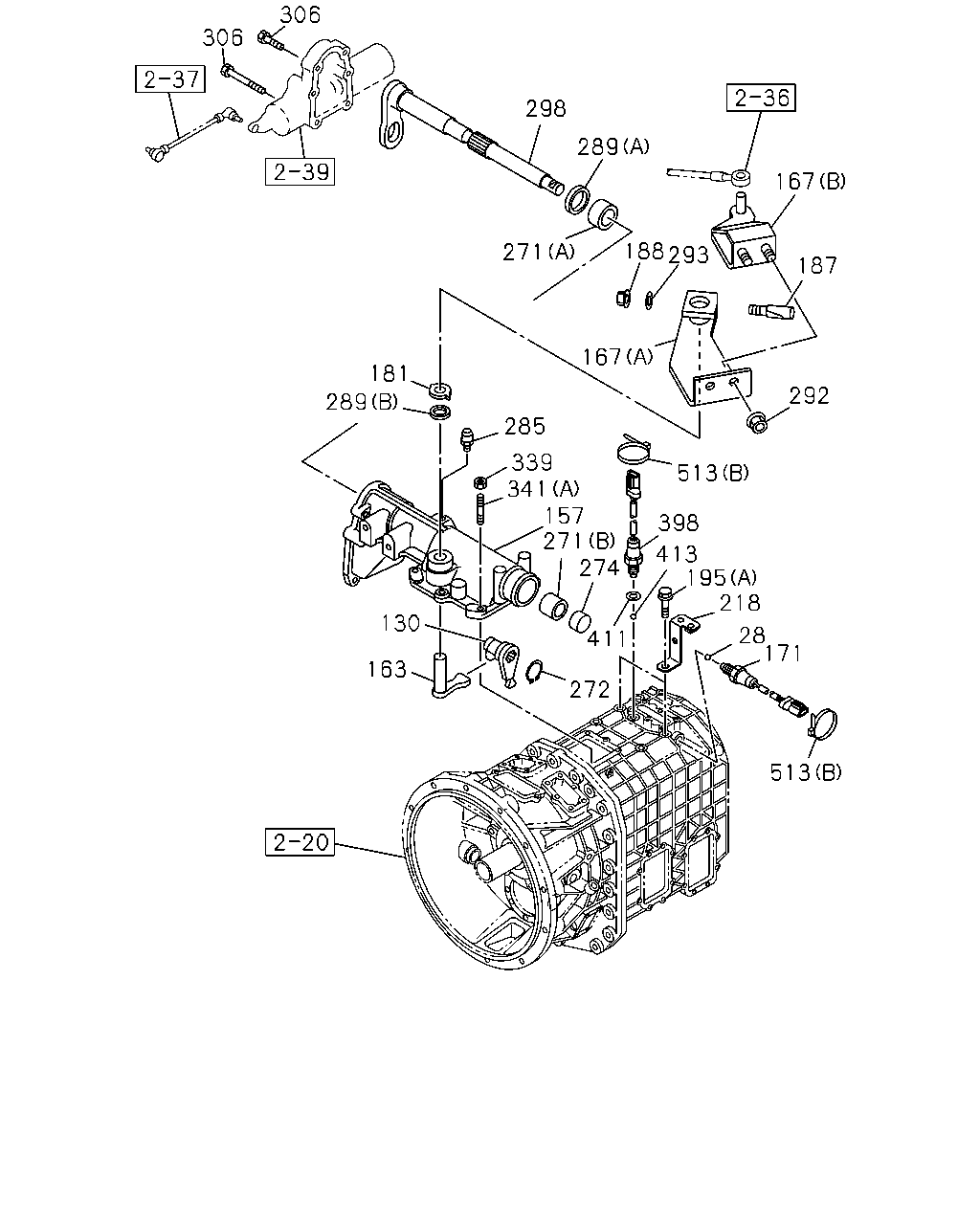

513
171
218
28
195
413
513
271
274
411
272
163
130
157
341
339
285
289
181
398
292
187
167
188
167
293
271
289
298
306
306
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
28
BALL; INTER LK
9-00097-501-0
04
1
1009-
●
28
BALL; INTER LK
9-00097-501-0
01
1
1009-
●
130
LEVER; SHIFT,INTERNAL
1-33521-124-0
01
1
1009-
●
157
BOX; QUAD,TRANS
1-33541-507-3
01
1
1009-1311
●
157
BOX; QUAD,TRANS
8-98231-390-0
01
1
1312-
●
163
LEVER; SELECT,INTERNAL
1-33522-201-0
01
1
1009-
●
167
LEVER; SELECT,EXTERNAL
(A)
1-33521-192-1
01
1
1009-
●
167
LEVER; SELECT,EXTERNAL
(B)
1-33521-193-1
01
1
1009-
●
171
SWITCH; NEUTRAL
8-98166-989-0
01
1
1009-1109
●
●
171
SWITCH; NEUTRAL
8-97640-725-0
01
1
1110-
●
●
181
WASHER; PL,SELECT LEVER
OD=40
1-09532-008-0
01
1
1009-
●
187
BOLT; SELECT LEVER
M8X42
1-33659-045-0
01
1
1009-
●
188
NUT; SELECT LEVER
M8 FLANGE
1-09440-062-1
01
1
1009-
●
195
BOLT
(A) M10X25 FLANGE
0-28751-025-0
02
1
1009-
●
195
BOLT
(B) M8X16 FLANGE
0-28050-816-0
02
1
1009-
●
195
BOLT
(A) M10X25 FLANGE
0-28751-025-0
03
1
1009-
●
218
BRACKET; HARNESS CLIP,QUAD BOX
1-82699-639-1
02
1
1009-1302
●
218
BRACKET; HARNESS CLIP,QUAD BOX
8-98133-847-0
02
1
1303-
●
271
BUSHING; QUAD BOX
(B) ID=20 OD=23
1-33549-016-0
01
1
1009-
●
271
BUSHING; QUAD BOX
(A) ID=28 OD=32
1-33549-104-0
01
1
1009-
●
272
RING; SNAP,QUAD BOX
1-09588-175-0
01
1
1009-
●
274
COVER; SHAFT,QUAD BOX
9-33545-017-1
01
1
1009-
●
285
BREATHER; AIR,QUAD BOX
1-33149-008-0
01
1
1009-
●
289
SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30
1-09625-386-0
01
1
1009-
●
289
SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41
1-09625-647-0
01
1
1009-
●
292
NUT; LINK ROD
M8 FLANGE
0-91180-108-0
02
1
1009-
●
293
WASHER; PL,TAPER BOLT
ID=8.4 OD=22
0-91610-708-0
01
1
1009-
●
298
SHAFT; SHIFT LEVER
1-33522-180-0
01
1
1009-
●
306
BOLT; SHIFT ASSISTOR
M10X45 FLANGE
0-28151-045-0
02
1
1009-
●
306
BOLT; SHIFT ASSISTOR
M10X80 FLANGE
0-28151-080-0
04
1
1009-
●
339
NUT; QUAD BOX
M10 FLANGE
0-91180-210-0
06
1
1009-
●
339
NUT; QUAD BOX
M10 FLANGE
0-91180-210-0
05
1
1009-
●
341
STUD; QUAD BOX
(A) M10X25 L=40
0-44011-025-0
06
1
1009-
●
341
STUD; QUAD BOX
(B) M10X35 L=50
0-44011-035-0
04
1
1009-
●
341
STUD; QUAD BOX
(C) M10X81.5 L=96.5
8-98019-465-0
01
1
1009-
●
398
SWITCH; REV LAMP
8-98042-853-0
01
1
1009-1209
●
●
398
SWITCH; REV LAMP
8-98228-482-0
01
1
1210-
●
●
411
GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2
8-94462-114-0
01
1
1009-
●
●
413
BALL; BACK SW
9-00097-013-0
01
1
1009-
●
●
513
CLIP; BAND
(A) L=250
5-09707-030-1
11
1
1009-
●
513
CLIP; BAND
(B) L=140
5-09707-031-1
04
1
1009-
●
513
CLIP; BAND
(B) L=140
5-09707-031-1
02
1
1303-
●

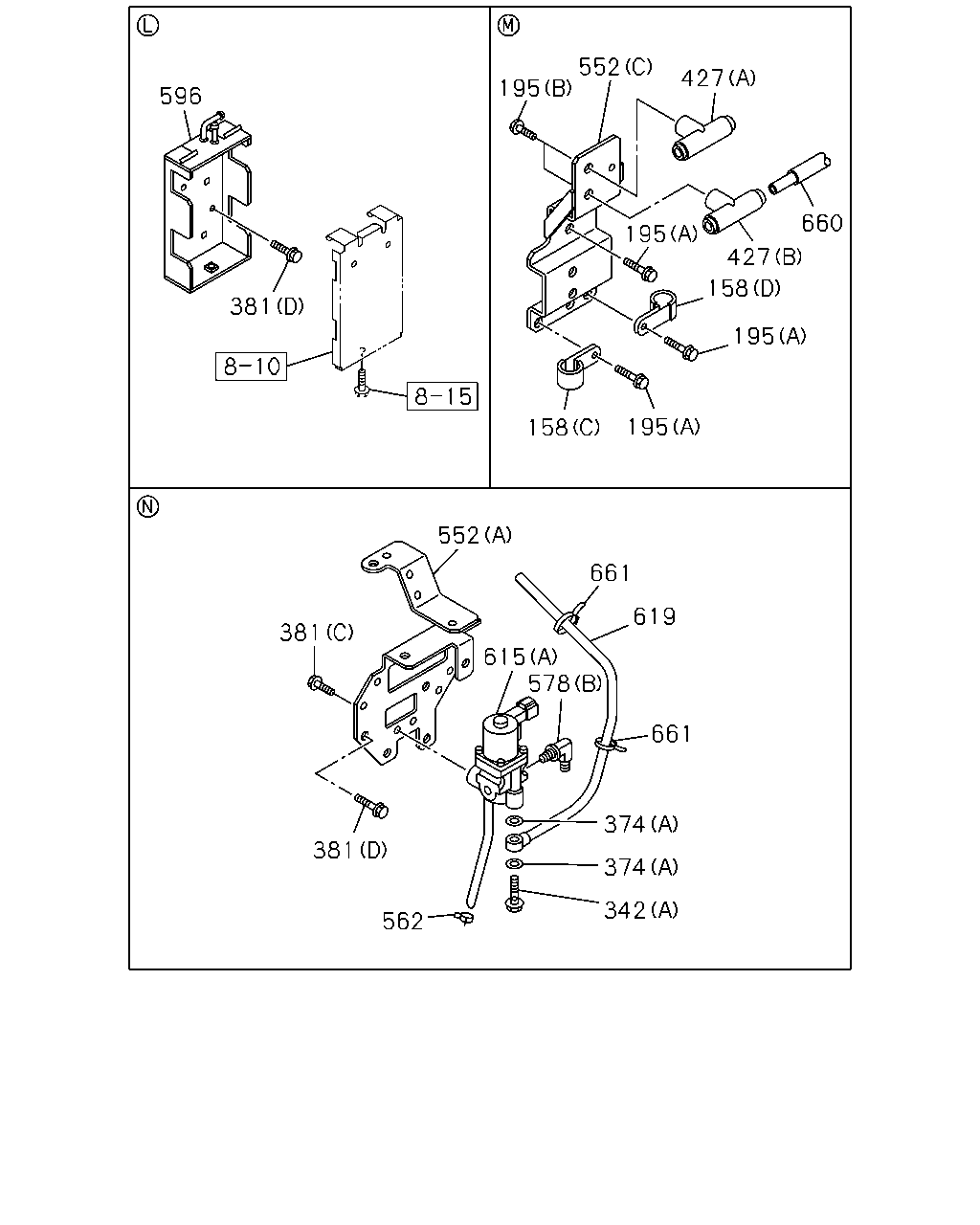

195
552
427
596
381
158
195
195
158
195
427
660
661
619
661
552
381
615
374
374
342
562
381
578
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
158
CLIP; HARNESS
(B) ID=19 L=60
0-95235-896-0
02
1
1009-
●
158
CLIP; HARNESS
(C) ID=19 L=25
1-09700-515-1
01
1
1009-
●
158
CLIP; HARNESS
(D) ID=28 L=30
1-09700-607-1
01
1
1009-
●
158
CLIP; HARNESS
(A) L=150
1-82569-328-0
08
1
1009-
●
158
CLIP; HARNESS
(E) L=36
8-94224-891-1
02
1
1009-
●
158
CLIP; HARNESS
(F) ID=13X2 L=25
9-09916-814-0
02
1
1009-
●
195
BOLT
(A) M10X25 FLANGE
0-28751-025-0
02
1
1009-
●
195
BOLT
(B) M8X16 FLANGE
0-28050-816-0
02
1
1009-
●
195
BOLT
(A) M10X25 FLANGE
0-28751-025-0
03
1
1009-
●
342
BOLT
(B) M14X27 FLANGE
1-09675-086-0
01
1
1009-
●
342
BOLT
(A) M12X27 EYE-BOLT W/FLANGE
8-98037-826-0
07
1
1009-
●
342
BOLT
(C) M14X43 EYE-BOLT
8-98037-829-0
01
1
1009-
●
374
GASKET
ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2
1-09630-084-0
14
1
1009-1312
●
374
GASKET
ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2
8-98251-344-0
14
1
1401-
●
374
GASKET
ALSO INCLUDED IN GASKET SET(M/T). (B) ID=14.2 OD=19.2
1-09630-085-0
05
1
1009-1312
●
374
GASKET
ALSO INCLUDED IN GASKET SET(M/T). (B) ID=14.2 OD=19.2
8-98251-345-0
05
1
1401-
●
374
GASKET
ALSO INCLUDED IN GASKET SET(M/T). (C) ID=16.8
9-09565-117-0
02
1
1009-
●
381
BOLT
(A) M10X35 FLANGE
0-28751-035-0
01
1
1009-
●
●
381
BOLT
(B) M10X34 FLANGE REAMER
1-09040-091-1
02
1
1009-
●
●
381
BOLT
(E) M6X50 FLANGE
0-28050-650-0
02
1
1009-
●
381
BOLT
(C) M8X16 FLANGE
0-28050-816-0
02
1
1009-
●
381
BOLT
(F) M8X20 FLANGE
0-28050-820-0
05
1
1009-
●
381
BOLT
(D) M10X25 FLANGE
0-28751-025-0
14
1
1009-
●
427
CONNECTOR; NYLON TUBE
(C) DIN6 & R1/4 ELBOW
1-09660-707-1
03
1
1009-
●
427
CONNECTOR; NYLON TUBE
(A) DIN8X2 & M8 2WAY
1-09661-133-0
01
1
1009-
●
427
CONNECTOR; NYLON TUBE
(B) 2WAY
1-09661-518-0
01
1
1009-
●
552
BRACKET
(B)
1-82569-397-1
01
1
1009-
●
552
BRACKET
(C)
1-82698-607-0
01
1
1009-
●
552
BRACKET
(A)
8-98148-167-0
01
1
1009-1302
●
552
BRACKET
(A)
8-98197-639-0
01
1
1303-
●
562
CLAMP; LOCKING
ID=7.8
8-94246-958-0
05
1
1009-
●
578
CONNECTOR
(A) DIN6 & R1/4 ELBOW
1-09660-707-1
02
1
1009-
●
578
CONNECTOR
(B) DIN6 & R3/8 ELBOW
1-09661-234-0
01
1
1009-
●
596
BOX; CONNECTOR
8-98160-716-1
01
1
1009-
●
615
VALVE; MAGNETIC
(B) M12
1-82560-342-0
01
1
1009-
●
615
VALVE; MAGNETIC
(A) M12 & PT3/8
1-82560-451-0
01
1
1009-
●
615
VALVE; MAGNETIC
(D) M12 & M14
1-82560-459-0
02
1
1009-
●
615
VALVE; MAGNETIC
(C) M12 & PT1/4
1-82560-460-0
01
1
1009-
●
619
TUBE; NYLON
L=690
1-09377-332-0
01
1
1009-1302
●
619
TUBE; NYLON
L=630
8-98074-302-0
01
1
1303-
●
660
PROTECTOR; NYLON TUBE
1-09377-341-0
01
1
1009-
●
661
CLIP
L=150
1-82569-328-0
02
1
1009-
●

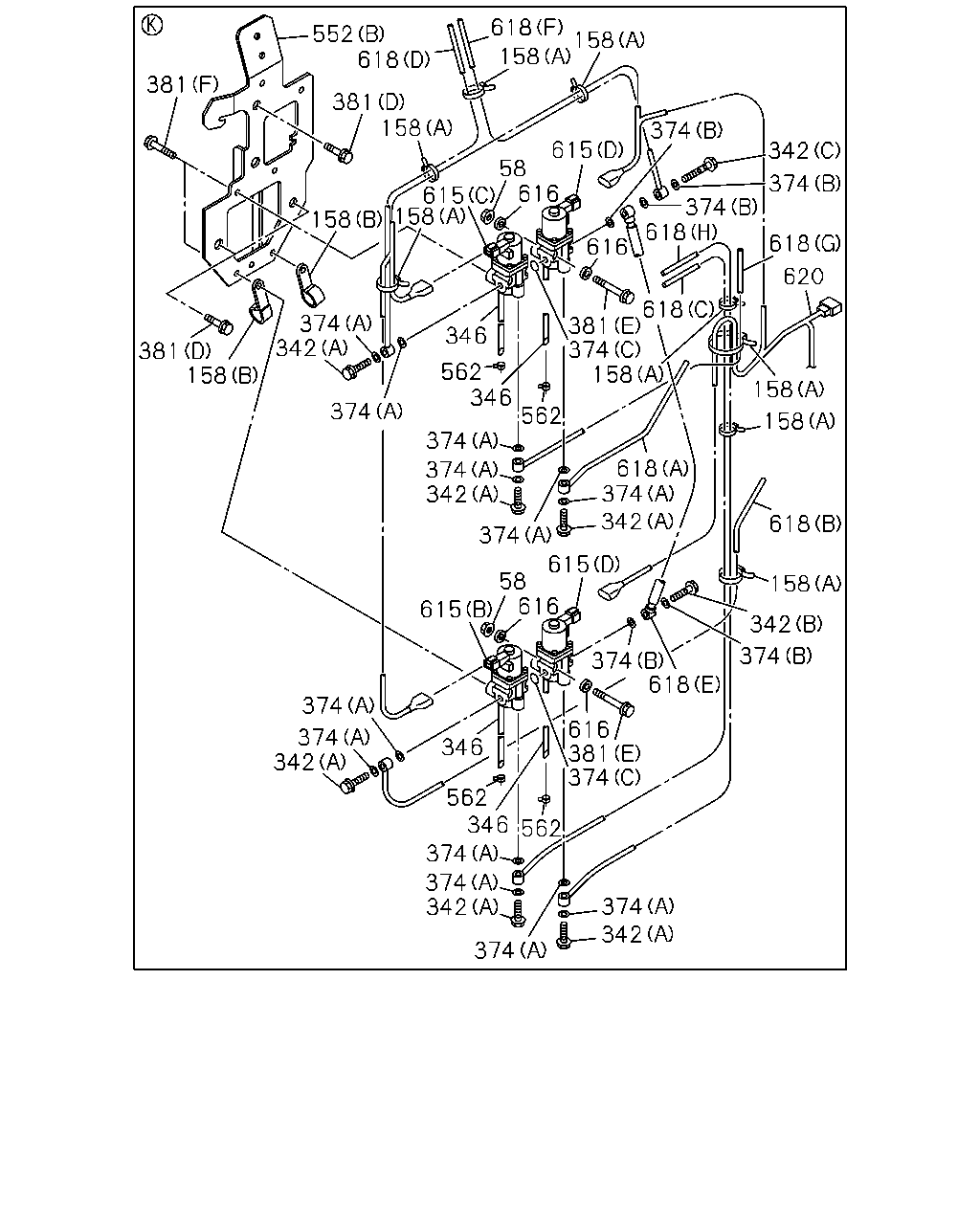

381
158
512
443
578
339
341
339
341
158
341
339
427
513
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
158
CLIP; HARNESS
(B) ID=19 L=60
0-95235-896-0
02
1
1009-
●
158
CLIP; HARNESS
(C) ID=19 L=25
1-09700-515-1
01
1
1009-
●
158
CLIP; HARNESS
(D) ID=28 L=30
1-09700-607-1
01
1
1009-
●
158
CLIP; HARNESS
(A) L=150
1-82569-328-0
08
1
1009-
●
158
CLIP; HARNESS
(E) L=36
8-94224-891-1
02
1
1009-
●
158
CLIP; HARNESS
(F) ID=13X2 L=25
9-09916-814-0
02
1
1009-
●
339
NUT; QUAD BOX
M10 FLANGE
0-91180-210-0
06
1
1009-
●
339
NUT; QUAD BOX
M10 FLANGE
0-91180-210-0
05
1
1009-
●
341
STUD; QUAD BOX
(A) M10X25 L=40
0-44011-025-0
06
1
1009-
●
341
STUD; QUAD BOX
(B) M10X35 L=50
0-44011-035-0
04
1
1009-
●
341
STUD; QUAD BOX
(C) M10X81.5 L=96.5
8-98019-465-0
01
1
1009-
●
381
BOLT
(A) M10X35 FLANGE
0-28751-035-0
01
1
1009-
●
●
381
BOLT
(B) M10X34 FLANGE REAMER
1-09040-091-1
02
1
1009-
●
●
381
BOLT
(E) M6X50 FLANGE
0-28050-650-0
02
1
1009-
●
381
BOLT
(C) M8X16 FLANGE
0-28050-816-0
02
1
1009-
●
381
BOLT
(F) M8X20 FLANGE
0-28050-820-0
05
1
1009-
●
381
BOLT
(D) M10X25 FLANGE
0-28751-025-0
14
1
1009-
●
427
CONNECTOR; NYLON TUBE
(C) DIN6 & R1/4 ELBOW
1-09660-707-1
03
1
1009-
●
427
CONNECTOR; NYLON TUBE
(A) DIN8X2 & M8 2WAY
1-09661-133-0
01
1
1009-
●
427
CONNECTOR; NYLON TUBE
(B) 2WAY
1-09661-518-0
01
1
1009-
●
443
BOLT; CLIP
M10X25 FLANGE
0-28751-025-0
02
1
1009-
●
512
CLIP; PIPE
ID=13X2 L=25
9-09916-814-0
02
1
1009-
●
513
CLIP; BAND
(A) L=250
5-09707-030-1
11
1
1009-
●
513
CLIP; BAND
(B) L=140
5-09707-031-1
04
1
1009-
●
513
CLIP; BAND
(B) L=140
5-09707-031-1
02
1
1303-
●
578
CONNECTOR
(A) DIN6 & R1/4 ELBOW
1-09660-707-1
02
1
1009-
●
578
CONNECTOR
(B) DIN6 & R3/8 ELBOW
1-09661-234-0
01
1
1009-
●
354
381
368
44
52
354
445
359
361
363
359
44
29
381
579
52
26
30
603
381
44
52
44
52
561
30
44
52
54
17
2
25
607
607
10
521
10
7
347
7
521
10
610
489
359
354
605
356
359
648
611
609
613
583
580
582
121
39
38
186
38
39
39
150
121
54
352
488
356
1

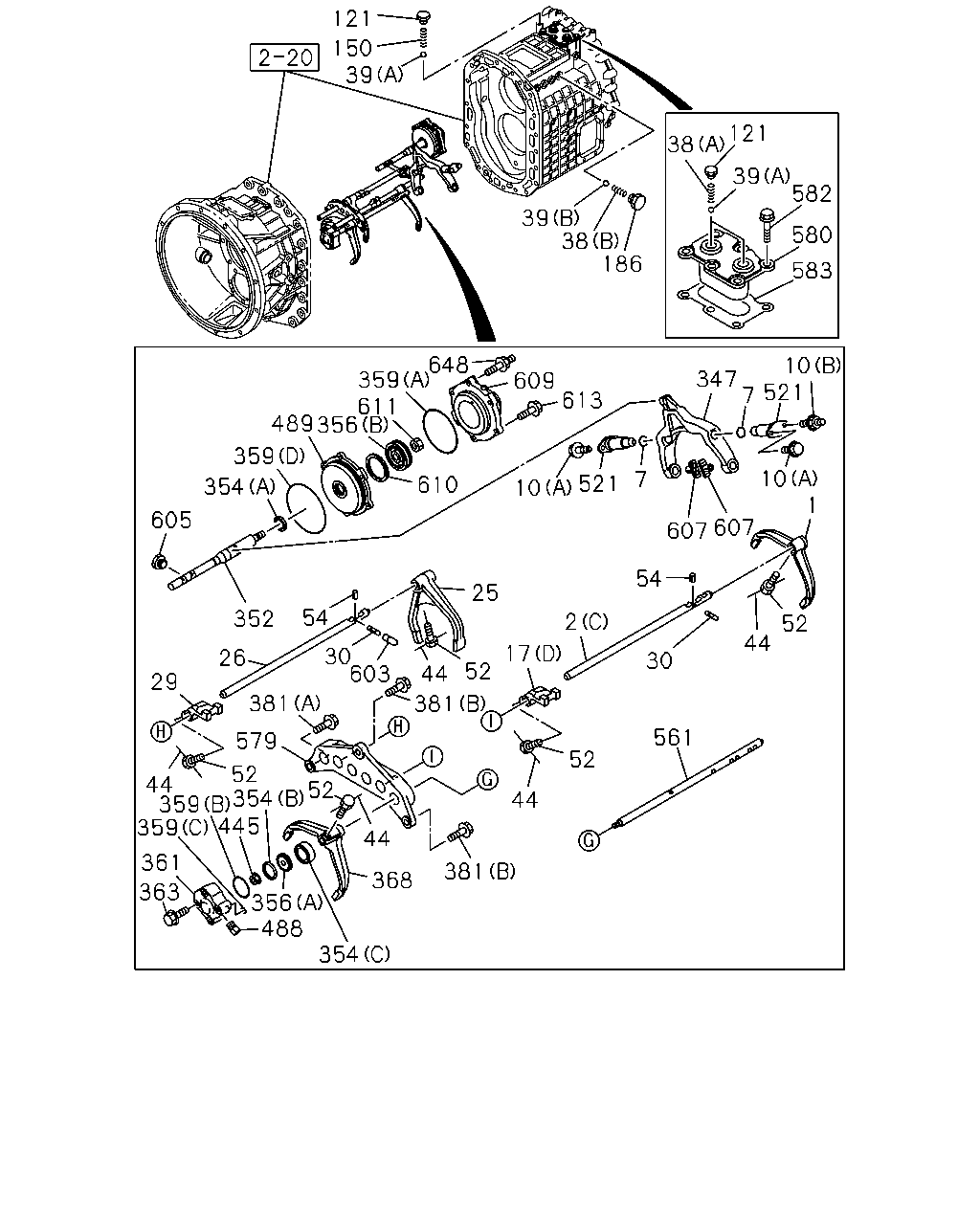

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
ARM; SHIFT,1ST & REV
1-33511-579-0
01
1
1009-
●
1
ARM; SHIFT,1ST & REV
1-33511-618-0
01
1
1009-
●
2
ROD; SHIFT,1ST & REV
(A)
1-33531-438-0
01
1
1009-
●
2
ROD; SHIFT,1ST & REV
(B)
1-33531-456-0
01
1
1009-
●
2
ROD; SHIFT,1ST & REV
(C)
1-33531-470-0
01
1
1009-
●
7
GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4
1-09623-057-0
02
1
1009-
●
10
BOLT; SPINDLE
(A) M10X30 FLANGE
0-28751-030-0
03
1
1009-1302
●
10
BOLT; SPINDLE
(A) M10X30 FLANGE
0-28751-030-0
04
1
1303-
●
10
BOLT; SPINDLE
(B) M10X20,M10X26 L=56
8-98010-334-0
01
1
1009-1302
●
17
BLOCK; SHIFT,1ST & REV
(A)
1-33511-202-3
01
1
1009-
●
17
BLOCK; SHIFT,1ST & REV
(B)
1-33511-552-1
01
1
1009-
●
17
BLOCK; SHIFT,1ST & REV
(C)
1-33511-557-0
02
1
1009-
●
17
BLOCK; SHIFT,1ST & REV
(D)
8-98044-038-0
01
1
1009-
●
25
ARM; SHIFT,2ND & 3RD
1-33511-435-0
01
1
1009-
●
25
ARM; SHIFT,2ND & 3RD
1-33511-586-0
01
1
1009-
●
26
ROD; SHIFT,2ND & 3RD
1-33531-440-1
01
1
1009-
●
26
ROD; SHIFT,2ND & 3RD
1-33531-471-0
01
1
1009-
●
29
BLOCK; SHIFT,2ND & 3RD
1-33511-376-1
01
1
1009-
●
29
BLOCK; SHIFT,2ND & 3RD
8-98044-038-0
01
1
1009-
●
30
PIN; INTER LK
9-33534-003-0
03
1
1009-
●
30
PIN; INTER LK
9-33534-003-0
02
1
1009-
●
38
SPRING; DETENT
(A)
1-09580-379-0
04
1
1009-
●
38
SPRING; DETENT
(B)
1-09580-374-0
01
1
1009-
●
38
SPRING; DETENT
(A)
1-09580-379-0
02
1
1009-
●
39
BALL; DETENT
(A)
1-09843-012-0
04
1
1009-
●
39
BALL; DETENT
(A)
1-09843-012-0
03
1
1009-
●
39
BALL; DETENT
(B)
9-00097-013-0
01
1
1009-
●
44
WIRE; LK
L=180
1-09780-024-0
10
1
1009-
●
44
WIRE; LK
L=200
9-08351-020-0
02
1
1009-
●
44
WIRE; LK
L=200
9-08351-020-0
05
1
1009-
●
52
BOLT; SHIFT ARM
M12X20 W/HOLE
1-09052-038-0
12
1
1009-
●
52
BOLT; SHIFT ARM
M12X20 W/HOLE
1-09052-038-0
05
1
1009-
●
54
PIN; SPR,SHIFT BLOCK
1-09748-014-0
03
1
1009-
●
54
PIN; SPR,SHIFT BLOCK
1-09748-014-0
02
1
1009-
●
121
PLUG; DETENT SPR
M16X12
0-92002-416-0
03
1
1009-
●
150
SPRING; DETENT BALL
1-09580-379-0
01
1
1009-
●
186
PLUG; SHIFTER ROD
M16X12
0-92002-416-0
01
1
1009-
●
347
ARM; SHIFT,RANGE CHANGE
1-33511-585-0
01
1
1009-
●
352
ROD; SHIFT,RANGE CHANGE
1-33531-486-0
01
1
1009-
●
354
SEAL; AIR CYL
(A)
1-19387-056-0
01
1
1009-
●
354
SEAL; AIR CYL
(B)
1-33739-978-0
01
1
1009-
●
354
SEAL; AIR CYL
(C)
1-33739-981-0
01
1
1009-
●
356
PISTON; AIR CYL
(A)
1-33551-017-0
01
1
1009-
●
356
PISTON; AIR CYL
(B)
1-33551-025-0
01
1
1009-
●
359
GASKET; AIR CYL
(A) ID=124.6
1-09623-468-0
01
1
1009-
●
359
GASKET; AIR CYL
(B) ID=55.6
8-98075-598-0
01
1
1009-
●
359
GASKET; AIR CYL
(C) ID=6.8
9-09565-107-0
01
1
1009-
●
359
GASKET; AIR CYL
(D) ID=144.4
9-09920-735-0
01
1
1009-
●
361
CYLINDER; AIR,SHIFT
1-33561-019-0
01
1
1009-
●
363
BOLT; AIR CYL
M10X60 FLANGE
8-98169-763-0
04
1
1009-
●
368
ARM; SHIFT,SPLITTER GEAR
1-33511-588-0
01
1
1009-1510
●
368
ARM; SHIFT,SPLITTER GEAR
8-98318-482-0
01
1
1511-
●
381
BOLT
(A) M10X35 FLANGE
0-28751-035-0
01
1
1009-
●
●
381
BOLT
(B) M10X34 FLANGE REAMER
1-09040-091-1
02
1
1009-
●
●
381
BOLT
(E) M6X50 FLANGE
0-28050-650-0
02
1
1009-
●
381
BOLT
(C) M8X16 FLANGE
0-28050-816-0
02
1
1009-
●
381
BOLT
(F) M8X20 FLANGE
0-28050-820-0
05
1
1009-
●
381
BOLT
(D) M10X25 FLANGE
0-28751-025-0
14
1
1009-
●
445
NUT; SHIFT CYL
M12 LOCK NUT FLANGE
0-91380-012-0
01
1
1009-
●
488
PLUG; AIR CYL
9-09204-510-0
01
1
1009-
●
489
COVER; AIR CYL
1-33569-052-0
01
1
1009-
●
521
SPINDLE; 6TH
1-33519-131-0
02
1
1009-
●
561
ROD; SHIFT
1-33531-485-0
01
1
1009-
●
579
BLOCK; SHIFT,ROD GUIDE
1-33539-065-1
01
1
1009-
●
579
BLOCK; SHIFT,ROD GUIDE
1-33539-066-2
01
1
1009-
●
580
BLOCK; INTERLOCK
1-33539-064-1
01
1
1009-
●
580
BLOCK; INTERLOCK
1-33539-079-0
01
1
1009-
●
582
BOLT; SPRING GUIDE
M10X35 FLANGE
0-28151-035-0
06
1
1009-
●
582
BOLT; SPRING GUIDE
M10X25
1-09049-006-1
06
1
1009-
●
583
GASKET; SPRING GUIDE
1-33142-047-0
02
1
1009-
●
583
GASKET; SPRING GUIDE
1-33142-047-0
01
1
1009-
●
603
ROD; INTER LK
L=82
1-33534-011-0
01
1
1009-
●
605
PLUG; INTER LK
M18X12
0-92002-418-0
01
1
1009-
●
607
PIECE; SHIFT
1-33518-010-0
02
1
1009-
●
609
BODY; AIR,CYL
1-33561-018-0
01
1
1009-
●
610
SEAL; PISTON
1-33738-054-0
01
1
1009-
●
611
NUT; SHAFT
8-97324-304-0
01
1
1009-
●
613
BOLT; AIR CYL
M10X45 FLANGE
0-28151-045-0
03
1
1009-
●
648
STUD; AIR CYL
M10X20,M10X45 L=75
8-98010-335-0
03
1
1009-
●
660

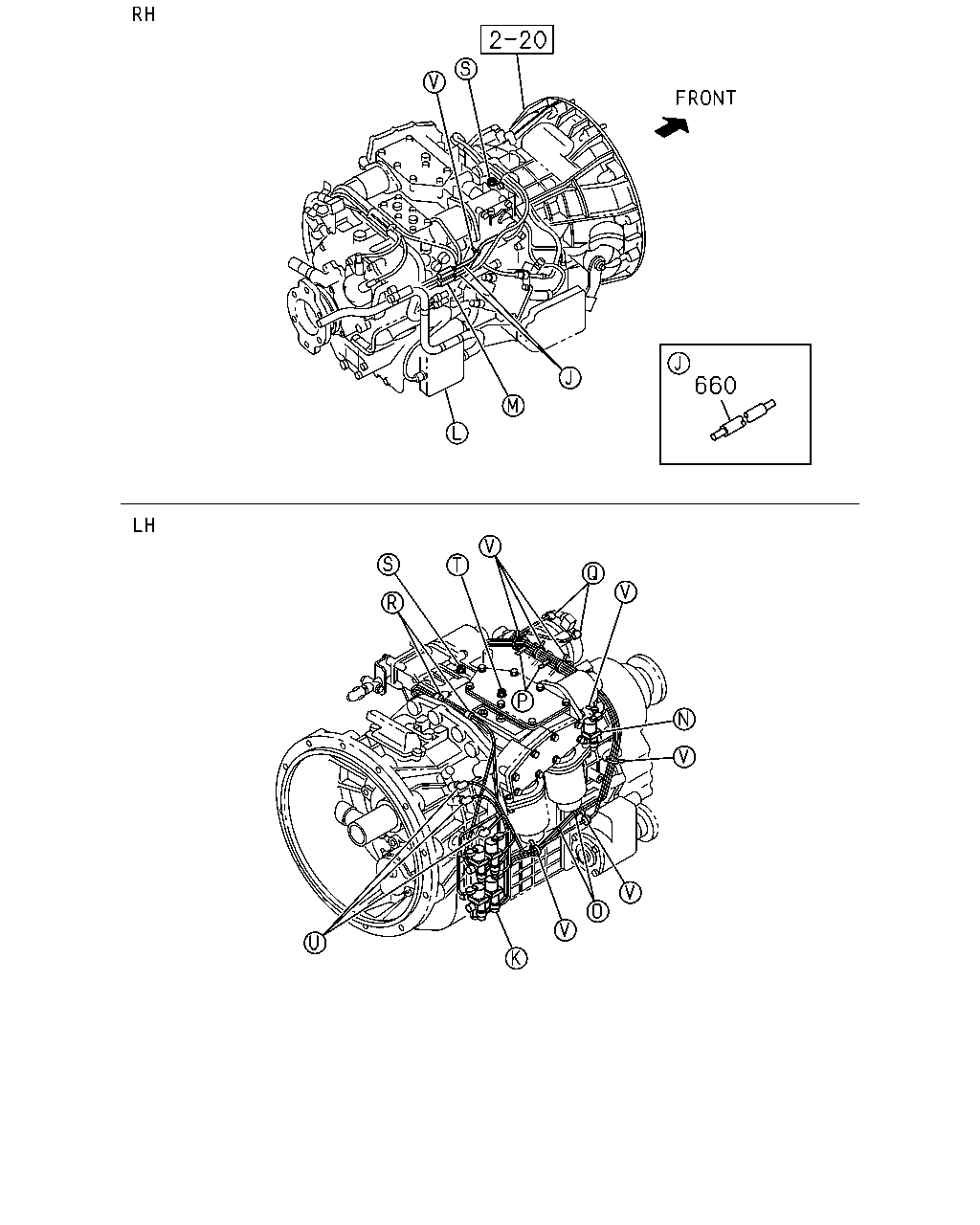

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
660
PROTECTOR; NYLON TUBE
1-09377-341-0
01
1
1009-
●
552
381
381
158
381
158
342
374
374
562
346
346
374
374
342
374
615
616
58
615
342
374
618
618
158
342
374
618
374
616
381
374
346
562
346
562
374
374
342
374
374
342
158
158
158
374
381
618
158
158
158
615
618
616
618
618
374
342
374
615
58
616
374
374
342
618
562
158
374
620
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
58
NUT
M12 FLANGE
0-91180-212-0
01
1
1009-
●
58
NUT
M6 FLANGE
0-91180-106-0
02
1
1009-
●
158
CLIP; HARNESS
(B) ID=19 L=60
0-95235-896-0
02
1
1009-
●
158
CLIP; HARNESS
(C) ID=19 L=25
1-09700-515-1
01
1
1009-
●
158
CLIP; HARNESS
(D) ID=28 L=30
1-09700-607-1
01
1
1009-
●
158
CLIP; HARNESS
(A) L=150
1-82569-328-0
08
1
1009-
●
158
CLIP; HARNESS
(E) L=36
8-94224-891-1
02
1
1009-
●
158
CLIP; HARNESS
(F) ID=13X2 L=25
9-09916-814-0
02
1
1009-
●
342
BOLT
(B) M14X27 FLANGE
1-09675-086-0
01
1
1009-
●
342
BOLT
(A) M12X27 EYE-BOLT W/FLANGE
8-98037-826-0
07
1
1009-
●
342
BOLT
(C) M14X43 EYE-BOLT
8-98037-829-0
01
1
1009-
●
346
HOSE; AIR
ID=6 OD=9 L=150
1-33739-872-0
04
1
1009-
●
374
GASKET
ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2
1-09630-084-0
14
1
1009-1312
●
374
GASKET
ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2
8-98251-344-0
14
1
1401-
●
374
GASKET
ALSO INCLUDED IN GASKET SET(M/T). (B) ID=14.2 OD=19.2
1-09630-085-0
05
1
1009-1312
●
374
GASKET
ALSO INCLUDED IN GASKET SET(M/T). (B) ID=14.2 OD=19.2
8-98251-345-0
05
1
1401-
●
374
GASKET
ALSO INCLUDED IN GASKET SET(M/T). (C) ID=16.8
9-09565-117-0
02
1
1009-
●
381
BOLT
(A) M10X35 FLANGE
0-28751-035-0
01
1
1009-
●
●
381
BOLT
(B) M10X34 FLANGE REAMER
1-09040-091-1
02
1
1009-
●
●
381
BOLT
(E) M6X50 FLANGE
0-28050-650-0
02
1
1009-
●
381
BOLT
(C) M8X16 FLANGE
0-28050-816-0
02
1
1009-
●
381
BOLT
(F) M8X20 FLANGE
0-28050-820-0
05
1
1009-
●
381
BOLT
(D) M10X25 FLANGE
0-28751-025-0
14
1
1009-
●
552
BRACKET
(B)
1-82569-397-1
01
1
1009-
●
552
BRACKET
(C)
1-82698-607-0
01
1
1009-
●
552
BRACKET
(A)
8-98148-167-0
01
1
1009-1302
●
552
BRACKET
(A)
8-98197-639-0
01
1
1303-
●
562
CLAMP; LOCKING
ID=7.8
8-94246-958-0
05
1
1009-
●
615
VALVE; MAGNETIC
(B) M12
1-82560-342-0
01
1
1009-
●
615
VALVE; MAGNETIC
(A) M12 & PT3/8
1-82560-451-0
01
1
1009-
●
615
VALVE; MAGNETIC
(D) M12 & M14
1-82560-459-0
02
1
1009-
●
615
VALVE; MAGNETIC
(C) M12 & PT1/4
1-82560-460-0
01
1
1009-
●
616
COLLAR
1-82569-266-0
04
1
1009-
●
618
TUBE; NYLON
(A) L=1250
1-09377-331-0
01
1
1009-
●
618
TUBE; NYLON
(B) L=810
1-09377-333-0
01
1
1009-
●
618
TUBE; NYLON
(D) L=1030
1-09377-336-0
01
1
1009-
●
618
TUBE; NYLON
(E) L=140
1-09377-337-0
01
1
1009-
●
618
TUBE; NYLON
(F) L=680
1-09377-338-0
01
1
1009-
●
618
TUBE; NYLON
(G) L=400
1-09377-339-0
01
1
1009-
●
618
TUBE; NYLON
(H) L=630
8-98074-302-0
01
1
1009-
●
618
TUBE; NYLON
(C) L=600
8-98081-864-0
01
1
1009-
●
620
HARNESS
1-82678-032-1
01
1
1009-
●
516
515
254
243
520
44
514
38
30
54
39
38
39
44
52
44
52
17
44
17
227
192
254
58
52
52
381
381
52
49
54
28
4
518
30
11
12
52
44
243
71
381
4
50
70
44
517
52
579
52
152
44
26
44
2
44
17
44
243
243
22
11
2
15
38
17
44
28
38
25
52
30
52
1
39
54
28
15
20
52
18
13
39
29
44
35
583
580
583
581
582
52

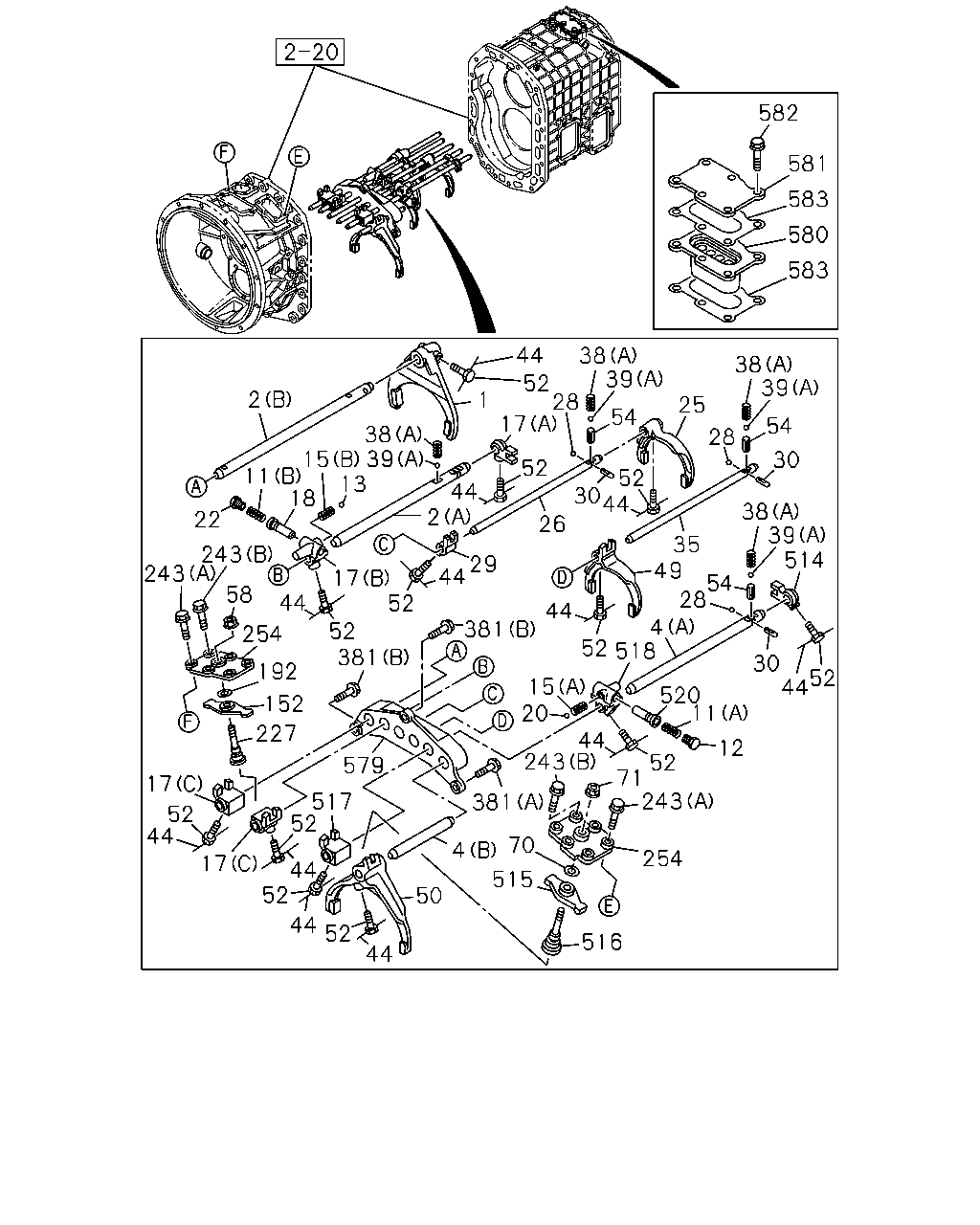

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
ARM; SHIFT,1ST & REV
1-33511-579-0
01
1
1009-
●
1
ARM; SHIFT,1ST & REV
1-33511-618-0
01
1
1009-
●
2
ROD; SHIFT,1ST & REV
(A)
1-33531-438-0
01
1
1009-
●
2
ROD; SHIFT,1ST & REV
(B)
1-33531-456-0
01
1
1009-
●
2
ROD; SHIFT,1ST & REV
(C)
1-33531-470-0
01
1
1009-
●
4
ROD; SHIFT,6TH
(A)
1-33531-443-1
01
1
1009-
●
4
ROD; SHIFT,6TH
(B)
1-33531-445-0
01
1
1009-
●
11
SPRING; RETURN,SHIFT SLEEVE
(B)
1-09580-444-0
01
1
1009-
●
11
SPRING; RETURN,SHIFT SLEEVE
(A)
9-09941-160-0
01
1
1009-1510
●
11
SPRING; RETURN,SHIFT SLEEVE
(A)
8-98294-206-0
01
1
1511-
●
12
CAP; RETURN SPR,SHIFT BLOCK
1-33516-039-1
01
1
1009-
●
13
BALL; LK,SHIFT SLEEVE
9-00097-509-0
01
1
1009-
●
15
SPRING; LK,SHIFT SLEEVE
(B)
1-09580-439-0
01
1
1009-
●
15
SPRING; LK,SHIFT SLEEVE
(A)
9-09941-007-0
01
1
1009-
●
17
BLOCK; SHIFT,1ST & REV
(A)
1-33511-202-3
01
1
1009-
●
17
BLOCK; SHIFT,1ST & REV
(B)
1-33511-552-1
01
1
1009-
●
17
BLOCK; SHIFT,1ST & REV
(C)
1-33511-557-0
02
1
1009-
●
17
BLOCK; SHIFT,1ST & REV
(D)
8-98044-038-0
01
1
1009-
●
18
SLEEVE; 1ST & REV,SHIFT BLOCK
1-33516-022-1
01
1
1009-
●
20
BALL; DETENT SLEEVE
9-00097-509-0
01
1
1009-
●
22
CAP; RETURN SPR,SHIFT BLOCK
1-33516-039-1
01
1
1009-
●
25
ARM; SHIFT,2ND & 3RD
1-33511-435-0
01
1
1009-
●
25
ARM; SHIFT,2ND & 3RD
1-33511-586-0
01
1
1009-
●
26
ROD; SHIFT,2ND & 3RD
1-33531-440-1
01
1
1009-
●
26
ROD; SHIFT,2ND & 3RD
1-33531-471-0
01
1
1009-
●
28
BALL; INTER LK
9-00097-501-0
04
1
1009-
●
28
BALL; INTER LK
9-00097-501-0
01
1
1009-
●
29
BLOCK; SHIFT,2ND & 3RD
1-33511-376-1
01
1
1009-
●
29
BLOCK; SHIFT,2ND & 3RD
8-98044-038-0
01
1
1009-
●
30
PIN; INTER LK
9-33534-003-0
03
1
1009-
●
30
PIN; INTER LK
9-33534-003-0
02
1
1009-
●
35
ROD; SHIFT,4TH & 5TH BLOCK
1-33531-442-1
01
1
1009-
●
38
SPRING; DETENT
(A)
1-09580-379-0
04
1
1009-
●
38
SPRING; DETENT
(B)
1-09580-374-0
01
1
1009-
●
38
SPRING; DETENT
(A)
1-09580-379-0
02
1
1009-
●
39
BALL; DETENT
(A)
1-09843-012-0
04
1
1009-
●
39
BALL; DETENT
(A)
1-09843-012-0
03
1
1009-
●
39
BALL; DETENT
(B)
9-00097-013-0
01
1
1009-
●
44
WIRE; LK
L=180
1-09780-024-0
10
1
1009-
●
44
WIRE; LK
L=200
9-08351-020-0
02
1
1009-
●
44
WIRE; LK
L=200
9-08351-020-0
05
1
1009-
●
49
ARM; SHIFT,4TH & 5TH
1-33511-466-1
01
1
1009-
●
50
ARM; SHIFT,6TH
1-33511-550-0
01
1
1009-
●
52
BOLT; SHIFT ARM
M12X20 W/HOLE
1-09052-038-0
12
1
1009-
●
52
BOLT; SHIFT ARM
M12X20 W/HOLE
1-09052-038-0
05
1
1009-
●
54
PIN; SPR,SHIFT BLOCK
1-09748-014-0
03
1
1009-
●
54
PIN; SPR,SHIFT BLOCK
1-09748-014-0
02
1
1009-
●
58
NUT
M12 FLANGE
0-91180-212-0
01
1
1009-
●
58
NUT
M6 FLANGE
0-91180-106-0
02
1
1009-
●
70
WASHER; PL,SHIFT LEVER
ID=16.5
9-09857-042-0
01
1
1009-
●
71
NUT; SHIFT LEVER
M12 FLANGE
0-91180-212-0
01
1
1009-
●
152
LEVER; RELAY,SELECT
1-33511-560-1
01
1
1009-
●
192
WASHER; PL
ID=16.5
9-09857-042-0
01
1
1009-
●
227
SPINDLE; 1ST & REV
1-33519-104-0
01
1
1009-
●
243
BOLT; COVER
(A) M10X30 FLANGE
0-28151-030-0
08
1
1009-
●
243
BOLT; COVER
(B) M10X28 FLANGE REAMER
8-97365-375-0
04
1
1009-
●
254
COVER; LEVER
1-33141-054-0
02
1
1009-
●
381
BOLT
(A) M10X35 FLANGE
0-28751-035-0
01
1
1009-
●
●
381
BOLT
(B) M10X34 FLANGE REAMER
1-09040-091-1
02
1
1009-
●
●
381
BOLT
(E) M6X50 FLANGE
0-28050-650-0
02
1
1009-
●
381
BOLT
(C) M8X16 FLANGE
0-28050-816-0
02
1
1009-
●
381
BOLT
(F) M8X20 FLANGE
0-28050-820-0
05
1
1009-
●
381
BOLT
(D) M10X25 FLANGE
0-28751-025-0
14
1
1009-
●
514
BLOCK; 6-7 SETTING
1-33511-605-0
01
1
1009-
●
515
LEVER; SHIFT,6TH & 7TH
1-33511-560-1
01
1
1009-
●
516
SPINDLE; 6TH & 7TH
1-33519-104-0
01
1
1009-
●
517
BLOCK; SHIFT,6TH & 7TH
1-33511-557-0
01
1
1009-
●
518
BLOCK ASM; SHIFT,6TH & 7TH
1-33511-558-1
01
1
1009-
●
520
SLEEVE; 6TH & 7TH
1-33516-022-1
01
1
1009-
●
579
BLOCK; SHIFT,ROD GUIDE
1-33539-065-1
01
1
1009-
●
579
BLOCK; SHIFT,ROD GUIDE
1-33539-066-2
01
1
1009-
●
580
BLOCK; INTERLOCK
1-33539-064-1
01
1
1009-
●
580
BLOCK; INTERLOCK
1-33539-079-0
01
1
1009-
●
581
COVER; BLOCK
1-33141-056-0
01
1
1009-
●
582
BOLT; SPRING GUIDE
M10X35 FLANGE
0-28151-035-0
06
1
1009-
●
582
BOLT; SPRING GUIDE
M10X25
1-09049-006-1
06
1
1009-
●
583
GASKET; SPRING GUIDE
1-33142-047-0
02
1
1009-
●
583
GASKET; SPRING GUIDE
1-33142-047-0
01
1
1009-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
