2-20 — MANUAL TRANSMISSION ASM AND CASE (#70084) — 291 parça

271 526 520 520 522 520 236 439 353 265

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
236	BOLT; VALVE BRKT M8X30 FLANGE	0-28650-830-0	02	1	1009-	●
265	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1009-	●
265	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	04	1	1009-	●
271	NUT; CLIP M8 FLANGE	0-91180-108-0	05	1	1009-	●
353	CLIP; NYLON TUBE (A) ID=20 H=23 L=27	1-09700-861-0	03	1	1009-	●
353	CLIP; NYLON TUBE (C) ID=18 L=28	1-09701-067-0	01	1	1009-	●
353	CLIP; NYLON TUBE (D) L=350	1-09707-183-0	04	1	1009-1302	●
353	CLIP; NYLON TUBE (D) L=350	1-09707-183-0	05	1	1303-	●
353	CLIP; NYLON TUBE (B) ID=21 L=24	8-94176-807-1	01	1	1009-	●
439	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	02	1	1009-	●
439	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1009-	●
520	CONNECTOR (A) R1/4 & M16	0-92306-008-0	02	1	1009-	●
520	CONNECTOR (B) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	1009-	●
522	VALVE ASM; REDUCING	1-48410-531-1	01	1	1009-	●
526	BRACKET; VALVE	1-47479-582-0	01	1	1009-	●

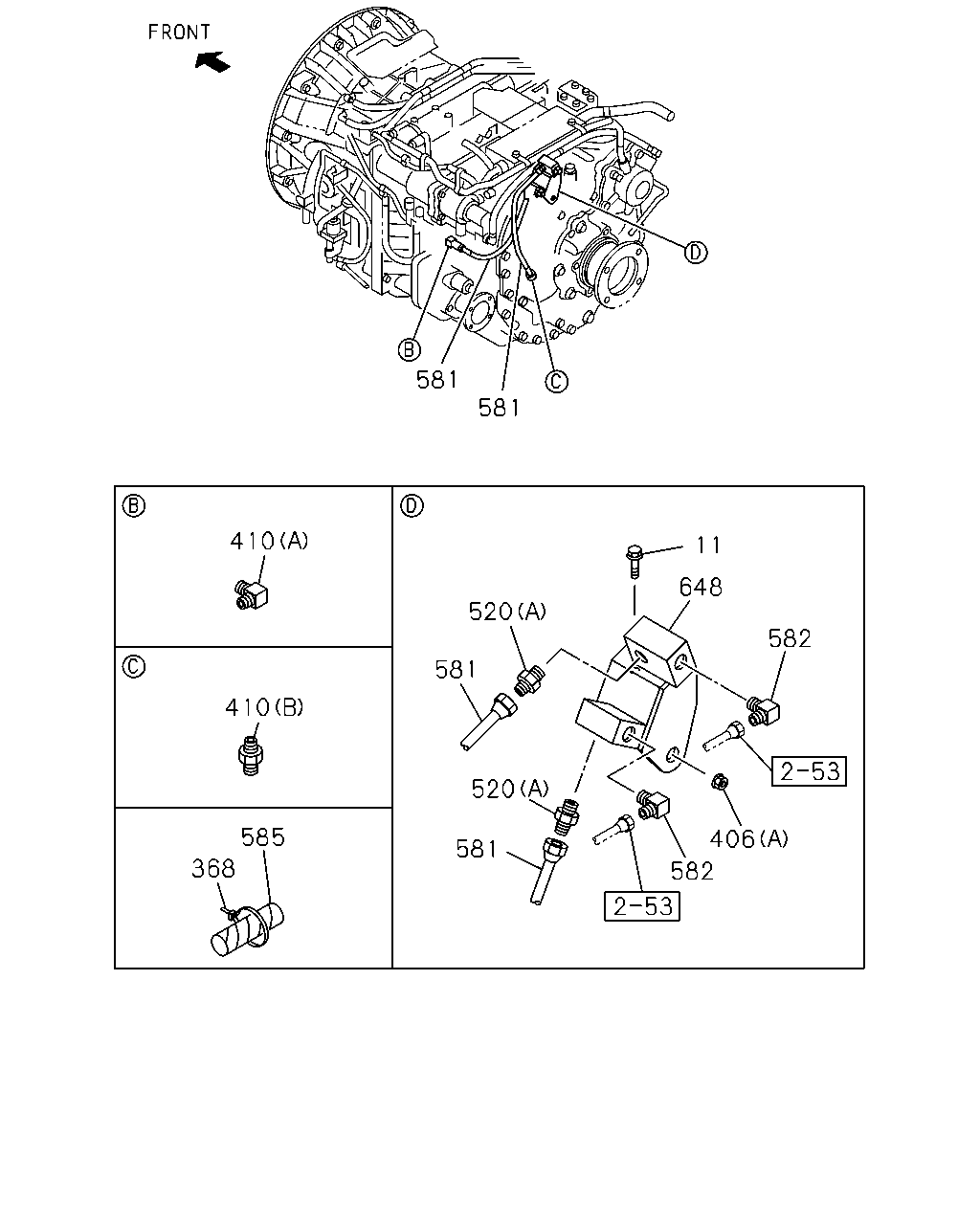

581 581 410 410 585 368 581 520 581 520 582 406 582 11 648

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	01	1	1009-	●
368	CLIP; BAND,CABLE L=250	1-09707-126-0	01	1	1009-	●
406	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	1009-	●
406	NUT; BRKT (A) M10 FLANGE	0-91180-110-0	01	1	1009-	●
406	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	1009-	●
410	UNION; OIL PIPE (A) R1/4 & M16 ELBOW	1-09660-800-1	02	1	1009-		●
410	UNION; OIL PIPE (B) R1/4 & M16	0-92306-008-0	01	1	1009-	●
410	UNION; OIL PIPE (A) R1/4 & M16 ELBOW	1-09660-800-1	01	1	1009-	●
520	CONNECTOR (A) R1/4 & M16	0-92306-008-0	02	1	1009-	●
520	CONNECTOR (B) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	1009-	●
581	HOSE; OIL COOLER L=370	8-98065-298-0	02	1	1009-1302	●
581	HOSE; OIL COOLER L=360	1-09365-234-0	02	1	1303-	●
582	NIPPLE; ELBOW R3/8 & M22 ELBOW	1-09660-612-1	02	1	1009-	●
585	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1009-	●
648	UNION ASM	1-47470-670-0	01	1	1009-1302	●
648	UNION ASM	8-98131-605-2	01	1	1303-	●

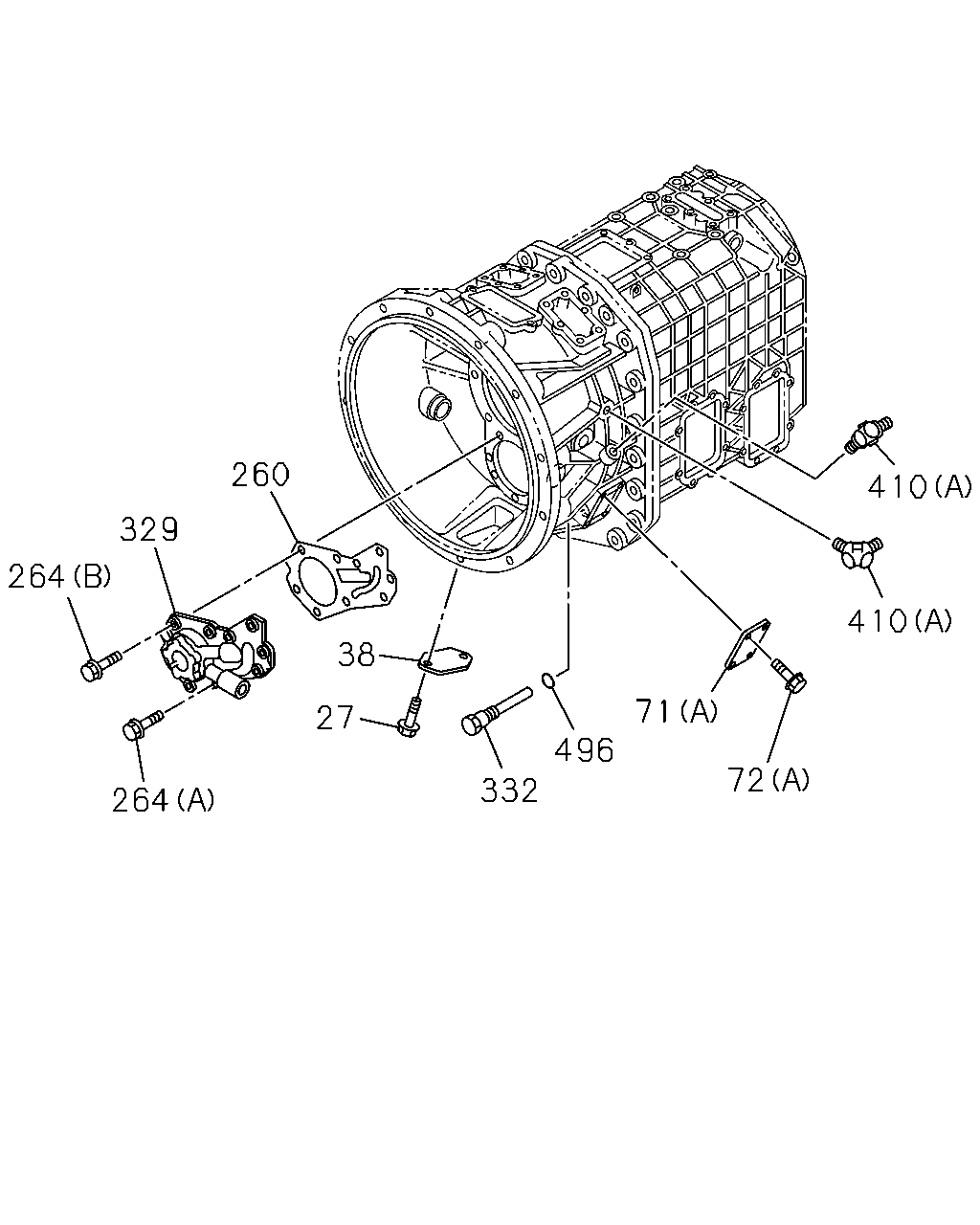

332 72 71 496 410 410 27 264 38 260 329 264

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	1009-	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	1009-	●	●
71	COVER; SIDE,TRANS CASE (A)	1-33141-058-0	01	1	1009-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-044-1	01	1	1009-1302		●
71	COVER; SIDE,TRANS CASE (B)	1-33141-044-1	01	1	1303-		●
71	COVER; SIDE,TRANS CASE (C)	1-33141-057-1	01	1	1009-1302		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	1-33141-057-1	01	1	1303-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (D)	1-33141-066-0	01	1	1009-	●
72	BOLT; SIDE COVER (A) M10X30 FLANGE	0-28151-030-0	04	1	1009-		●
72	BOLT; SIDE COVER (E) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	1009-1302		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (E) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	1303-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X30 FLANGE	0-28751-230-0	08	1	1009-1302		●
72	BOLT; SIDE COVER (B) M12X30 FLANGE	0-28751-230-0	08	1	1303-		●
72	BOLT; SIDE COVER (C) M12X40 FLANGE	0-28151-240-0	07	1	1009-1302		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) M12X40 FLANGE	0-28151-240-0	07	1	1303-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (D) M10X35 FLANGE	0-28751-035-0	08	1	1009-	●
260	GASKET; OIL PUMP	1-34142-031-0	01	1	1009-		●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	0-28151-040-0	09	1	1009-1211		●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	8-98230-249-0	09	1	1212-		●
264	BOLT; OIL PUMP (A) M10X70 FLANGE	0-28151-070-0	01	1	1009-		●
264	BOLT; OIL PUMP (C) M8X65	0-10805-865-0	02	1	1009-	●
264	BOLT; OIL PUMP (C) M8X50	0-10855-850-0	02	1	1009-	●
329	PUMP ASM; OIL	1-34150-112-0	01	1	1009-		●
329	PUMP ASM; OIL	1-34150-117-0	01	1	1009-1408	●
329	PUMP ASM; OIL	8-98283-996-0	01	1	1409-	●
332	FILTER; OIL	1-34159-050-1	01	1	1009-		●
410	UNION; OIL PIPE (A) R1/4 & M16 ELBOW	1-09660-800-1	02	1	1009-		●
410	UNION; OIL PIPE (B) R1/4 & M16	0-92306-008-0	01	1	1009-	●
410	UNION; OIL PIPE (A) R1/4 & M16 ELBOW	1-09660-800-1	01	1	1009-	●
496	GASKET; OIL FILTER ID=24.2	1-09630-090-0	01	1	1009-		●

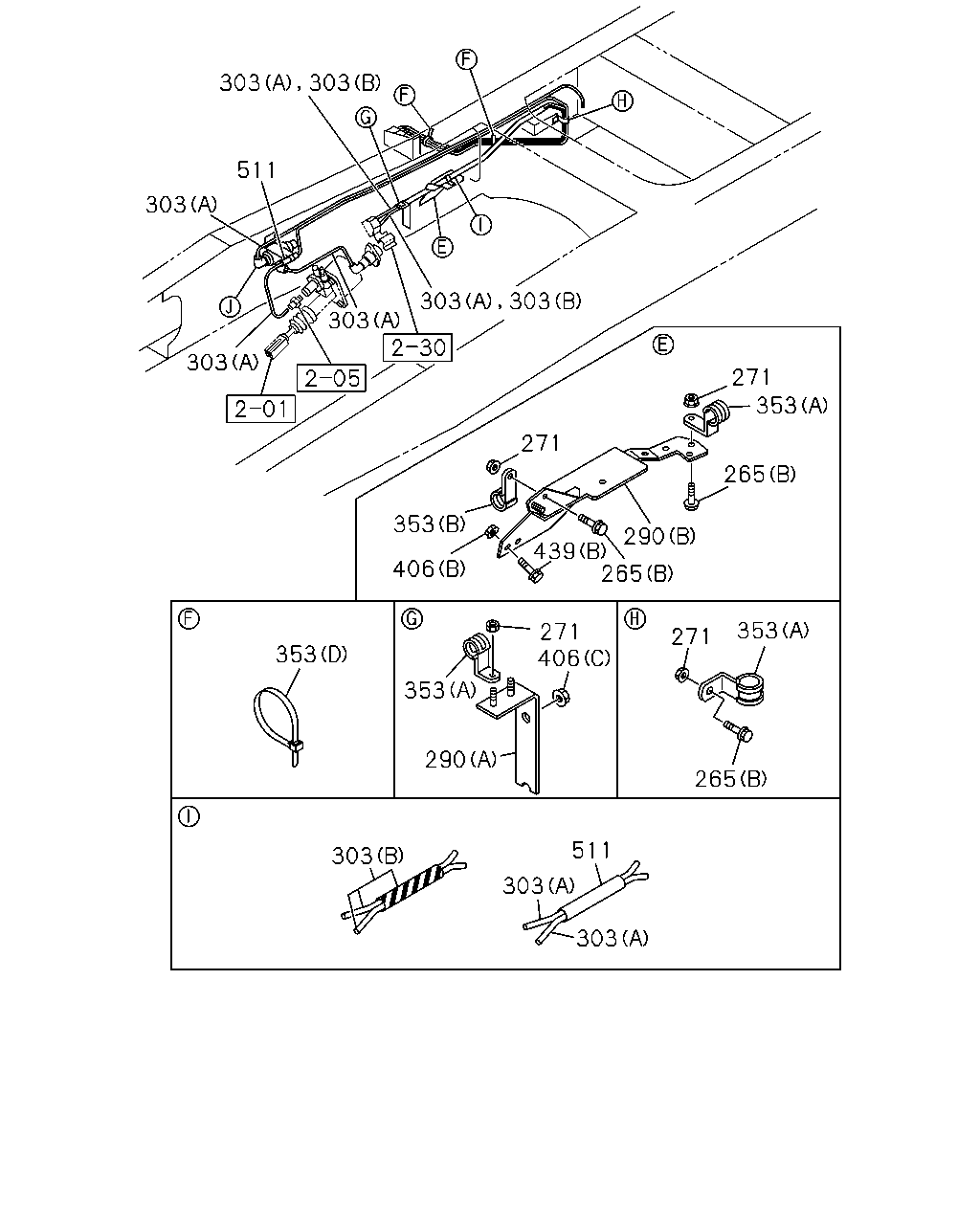

303 303 511 303 303 303 303 303 353 271 271 265 353 290 265 439 406 353 353 271 406 290 271 353 265 511 303 303 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
265	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1009-	●
265	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	04	1	1009-	●
271	NUT; CLIP M8 FLANGE	0-91180-108-0	05	1	1009-	●
290	BRACKET; CLIP (A)	8-97611-316-1	01	1	1009-	●
290	BRACKET; CLIP (B)	8-98119-208-0	01	1	1009-	●
303	TUBE; NYLON (B)	1-49222-415-0	01	1	1009-1302	●
303	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1303-	●
303	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	06	1	1009-1302	●
303	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	07	1	1303-	●
303	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	1009-	●
353	CLIP; NYLON TUBE (A) ID=20 H=23 L=27	1-09700-861-0	03	1	1009-	●
353	CLIP; NYLON TUBE (C) ID=18 L=28	1-09701-067-0	01	1	1009-	●
353	CLIP; NYLON TUBE (D) L=350	1-09707-183-0	04	1	1009-1302	●
353	CLIP; NYLON TUBE (D) L=350	1-09707-183-0	05	1	1303-	●
353	CLIP; NYLON TUBE (B) ID=21 L=24	8-94176-807-1	01	1	1009-	●
406	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	1009-	●
406	NUT; BRKT (A) M10 FLANGE	0-91180-110-0	01	1	1009-	●
406	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	1009-	●
439	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	02	1	1009-	●
439	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1009-	●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	02	1	1009-	●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	01	1	1009-1302	●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	02	1	1303-	●

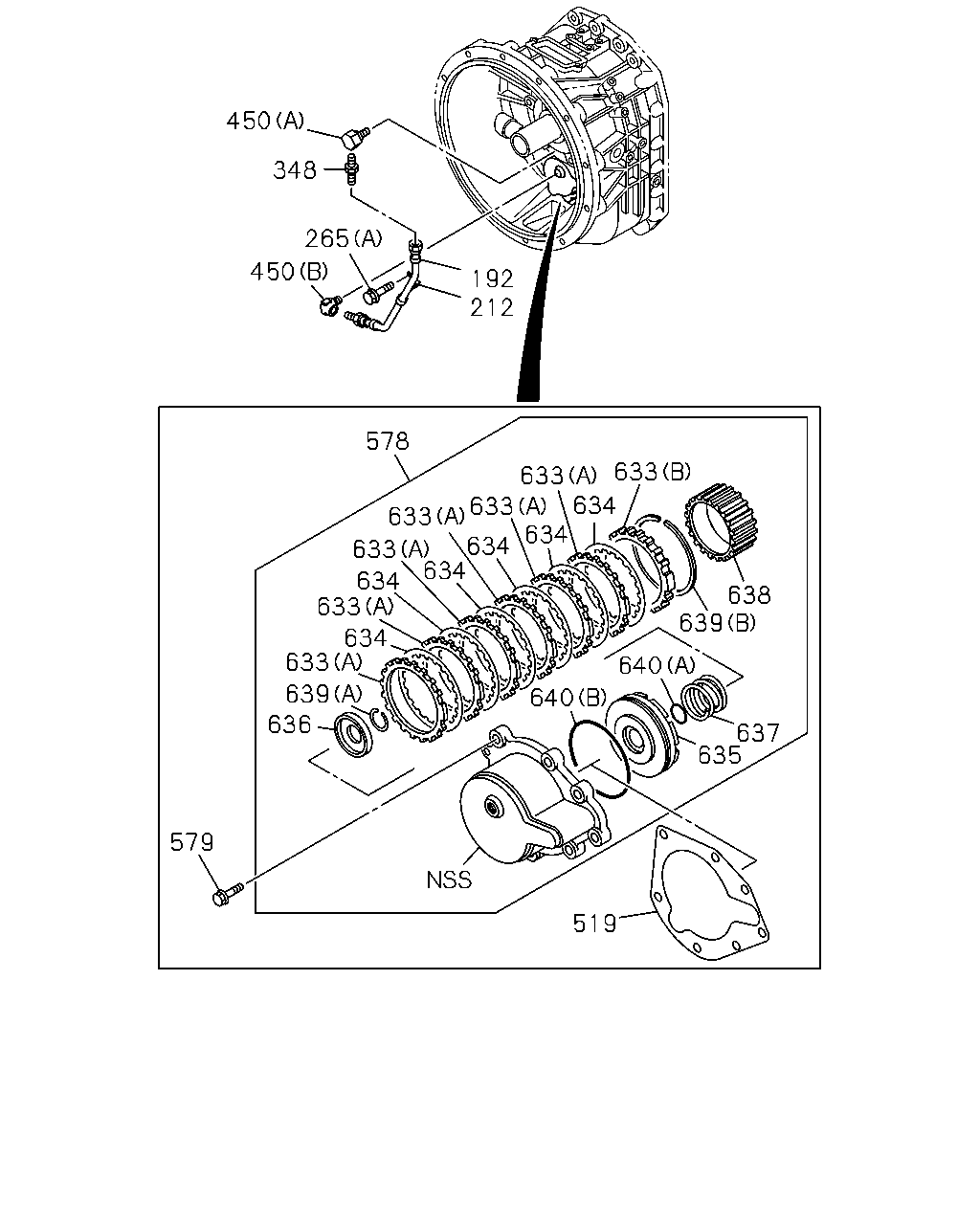

450 450 192 212 265 348 578 633 638 639 640 640 635 637 519 579 636 633 633 633 634 634 634 633 634 634 633 634 633 639

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
192	HOSE; FLEX,TRANS L=252	1-09365-062-0	01	1	1009-	●
212	CLIP; FLEX HOSE ID=9 H=20 L=25	1-09701-073-0	01	1	1009-	●
265	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1009-	●
265	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	04	1	1009-	●
348	NIPPLE; GREASE,SHAFT	9-09902-299-0	01	1	1009-	●
450	ADAPTER; OIL (A)	1-09660-012-0	01	1	1009-	●
450	ADAPTER; OIL (B) PT1/8 ELBOW	8-94338-418-1	01	1	1009-	●
519	GASKET; SHAFT	1-34142-034-0	01	1	1009-	●
578	BRAKE; COUNTER SHAFT	1-33316-006-1	01	1	1009-	●
579	BOLT; COUNTER SHAFT M10X30 FLANGE	0-28151-030-0	07	1	1009-	●
633	PLATE; SEPARATE,BRAKE (A)	1-33319-208-0	06	1	1009-	●
633	PLATE; SEPARATE,BRAKE (B) T=3.6	1-33319-209-0	01	1	1009-	●
633	PLATE; SEPARATE,BRAKE (B) T=3.8	1-33319-210-0	01	1	1009-	●
633	PLATE; SEPARATE,BRAKE (B) T=4.0	1-33319-211-0	01	1	1009-	●
633	PLATE; SEPARATE,BRAKE (B) T=4.2	1-33319-212-0	01	1	1009-	●
634	PLATE; FRICTION,BRAKE	1-33319-207-0	06	1	1009-	●
635	PISTON; BRAKE T=4.80	1-33319-231-0	01	1	1009-	●
636	PLATE; PRESSURE,BRAKE	1-33319-213-1	01	1	1009-	●
637	SPRING; BRAKE	1-33319-215-0	01	1	1009-	●
638	HUB; BRAKE	1-33319-220-0	01	1	1009-	●
639	RING; BRAKE (A)	1-33319-216-0	01	1	1009-	●
639	RING; BRAKE (B)	1-33319-217-0	01	1	1009-	●
640	GASKET; BRAKE (A)	1-33319-218-0	01	1	1009-	●
640	GASKET; BRAKE (B)	1-33319-225-0	01	1	1009-	●

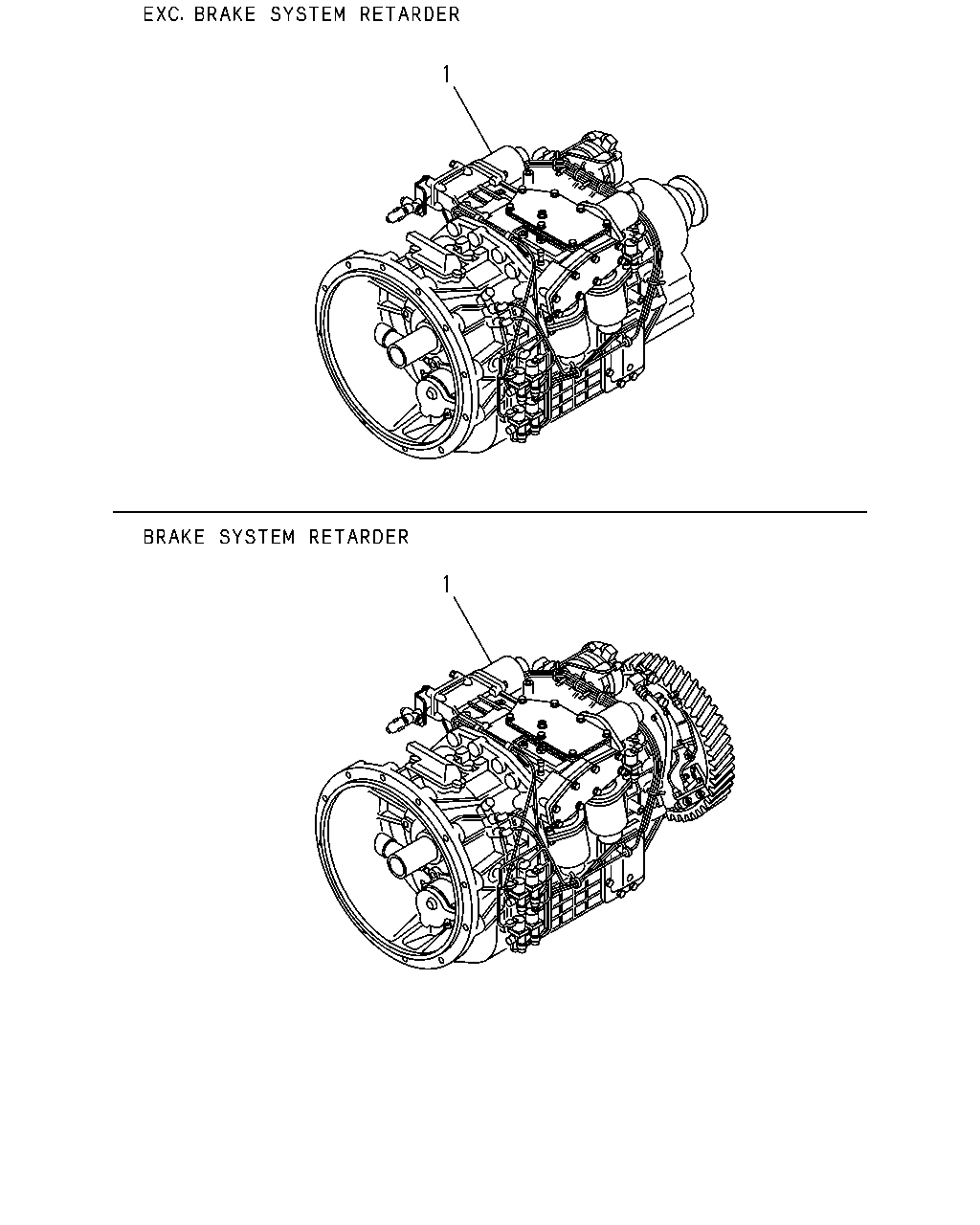

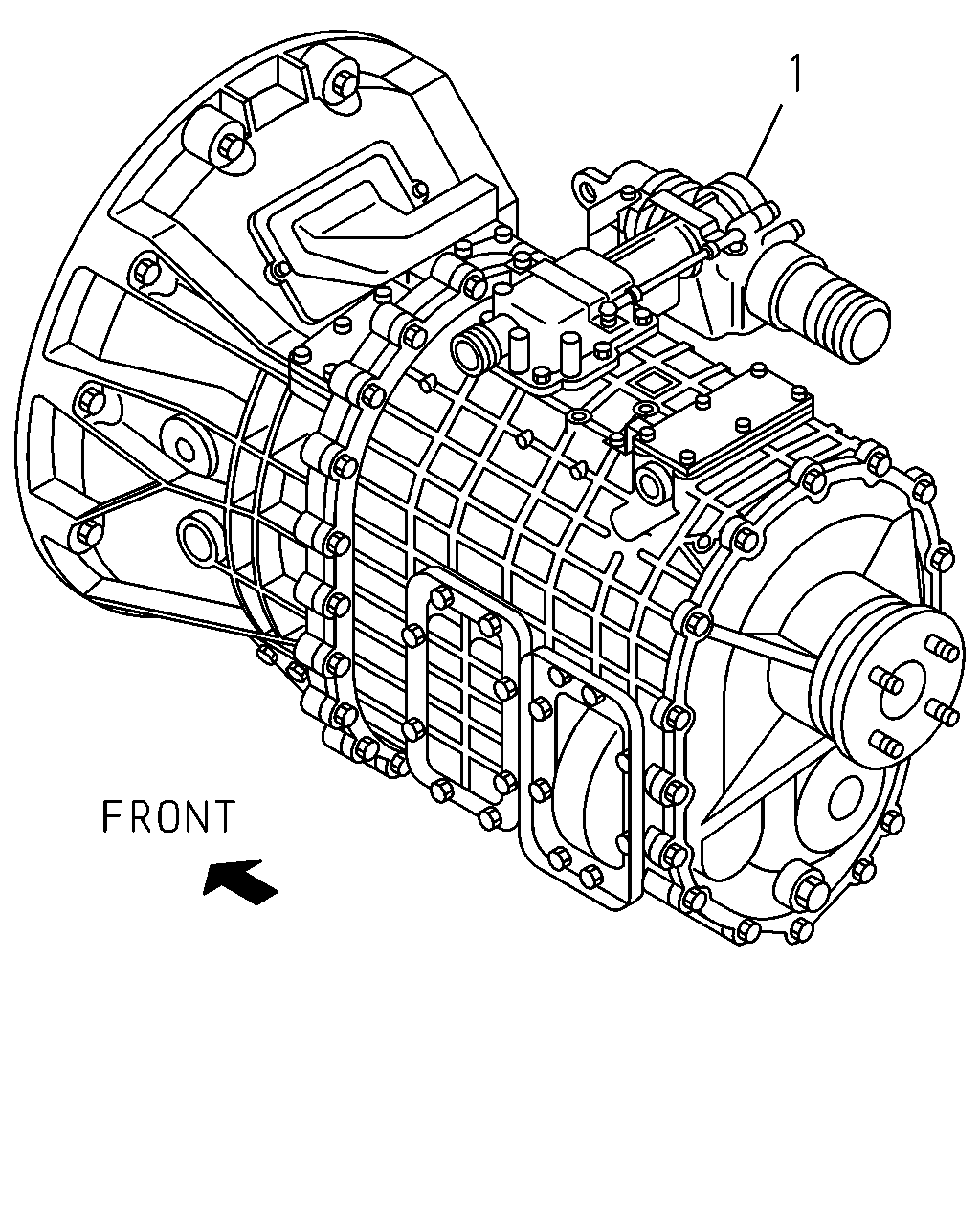

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-370-0	01	1	1009-1302		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33044-650-0	01	1	1303-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-370-0	01	1	1009-1302		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33044-650-0	01	1	1303-		●
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-33044-060-0	01	1	1009-1302	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2>	1-33044-060-0	01	1	1009-1302	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2>	1-33044-058-0	01	1	1009-1302	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-33044-443-0	01	1	1303-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>	1-33044-058-0	01	1	1009-1302	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-33044-443-0	01	1	1303-	●

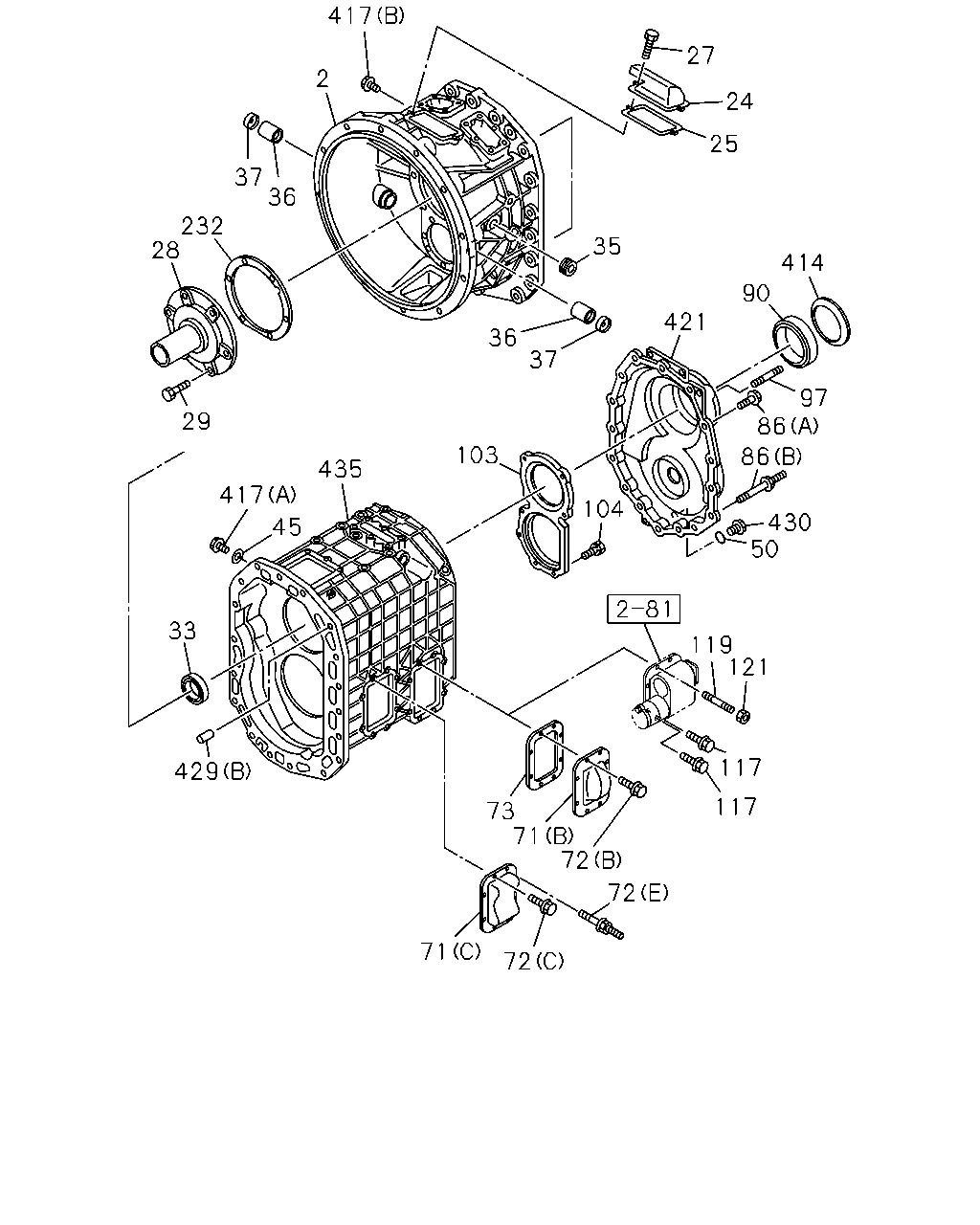

71 72 72 72 71 73 117 117 121 119 50 430 86 86 97 414 90 421 103 104 435 417 45 33 429 29 28 232 36 37 2 417 35 36 37 25 24 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; CLU	8-98077-167-1	01	1	1009-		●
2	HOUSING; CLU	8-98168-736-0	01	1	1009-	●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	1009-	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	1009-1406	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1407-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	1009-	●	●
28	COVER; FRT,TRANS CASE	1-33121-158-3	01	1	1009-	●	●
29	BOLT; FRT COVER M10X40 FLANGE	0-28161-040-0	06	1	1009-1211	●	●
29	BOLT; FRT COVER M10X40 FLANGE	8-98230-249-0	06	1	1212-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	1009-	●	●
35	GROMMET; CLU HSG OD=31	9-09575-796-0	01	1	1009-		●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	1009-	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	1009-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	1009-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1009-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1009-		●
71	COVER; SIDE,TRANS CASE (A)	1-33141-058-0	01	1	1009-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-044-1	01	1	1009-1302		●
71	COVER; SIDE,TRANS CASE (B)	1-33141-044-1	01	1	1303-		●
71	COVER; SIDE,TRANS CASE (C)	1-33141-057-1	01	1	1009-1302		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	1-33141-057-1	01	1	1303-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (D)	1-33141-066-0	01	1	1009-	●
72	BOLT; SIDE COVER (A) M10X30 FLANGE	0-28151-030-0	04	1	1009-		●
72	BOLT; SIDE COVER (E) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	1009-1302		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (E) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	1303-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X30 FLANGE	0-28751-230-0	08	1	1009-1302		●
72	BOLT; SIDE COVER (B) M12X30 FLANGE	0-28751-230-0	08	1	1303-		●
72	BOLT; SIDE COVER (C) M12X40 FLANGE	0-28151-240-0	07	1	1009-1302		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) M12X40 FLANGE	0-28151-240-0	07	1	1303-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (D) M10X35 FLANGE	0-28751-035-0	08	1	1009-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-041-0	01	1	1009-1302		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-041-0	01	1	1303-		●
86	BOLT; RR COVER (A) M12X40 FLANGE	0-28151-240-0	14	1	1009-		●
86	BOLT; RR COVER (B) M10X16,M12X40 L=67.7	1-09029-082-0	02	1	1009-		●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	06	1	1009-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	1009-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-625-0	01	1	1009-	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	1009-		●
97	STUD; PARKING BRK BRAKE SYSTEM RETARDER<RE2> M16X45 L=69	9-04411-645-0	04	1	1009-1302	●
103	RETAINER; BRG	1-33151-059-0	01	1	1009-		●
103	RETAINER; BRG	1-33151-060-1	01	1	1009-	●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	1009-	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X35 FLANGE	0-28151-235-0	02	1	1009-1302		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X45 FLANGE	0-28151-245-0	04	1	1303-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X130 FLANGE	0-28166-213-0	02	1	1009-1302		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10X28 FLANGE	8-98044-944-0	02	1	1009-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	0-44011-225-0	04	1	1009-1302		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X35 L=63	1-09302-178-0	04	1	1303-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10X25 L=40	0-44011-025-0	06	1	1009-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91180-212-0	04	1	1009-1302		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12 FLANGE	0-91180-212-0	04	1	1303-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10 FLANGE	0-91180-210-0	06	1	1009-	●
232	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33142-051-1	01	1	1009-	●	●
414	COVER; DUST,RR COVER	1-33139-011-1	01	1	1009-1211		●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	1009-		●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	1009-	●	●
421	COVER; RR,TRANS	8-98077-636-0	01	1	1009-1110		●
421	COVER; RR,TRANS	8-98191-936-1	01	1	1111-1502		●
421	COVER; RR,TRANS	8-98304-558-0	01	1	1503-		●
421	COVER; RR,TRANS BRAKE SYSTEM RETARDER<RE2>	1-33131-256-0	01	1	1009-1302	●
421	COVER; RR,TRANS EXC. BRAKE SYSTEM RETARDER<RE2>	1-33131-238-0	01	1	1009-1302	●
421	COVER; RR,TRANS	1-33131-238-0	01	1	1303-	●
429	PIN; STRAIGHT (B) OD=10 L=18	9-08151-018-0	06	1	1009-	●	●
429	PIN; STRAIGHT (A) OD=12 L=32	9-08161-232-0	01	1	1009-	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	1009-		●
435	CASE; TRANS	8-98132-970-0	01	1	1009-		●
435	CASE; TRANS	1-33111-351-1	01	1	1009-1502	●
435	CASE; TRANS	8-98249-273-0	01	1	1503-	●

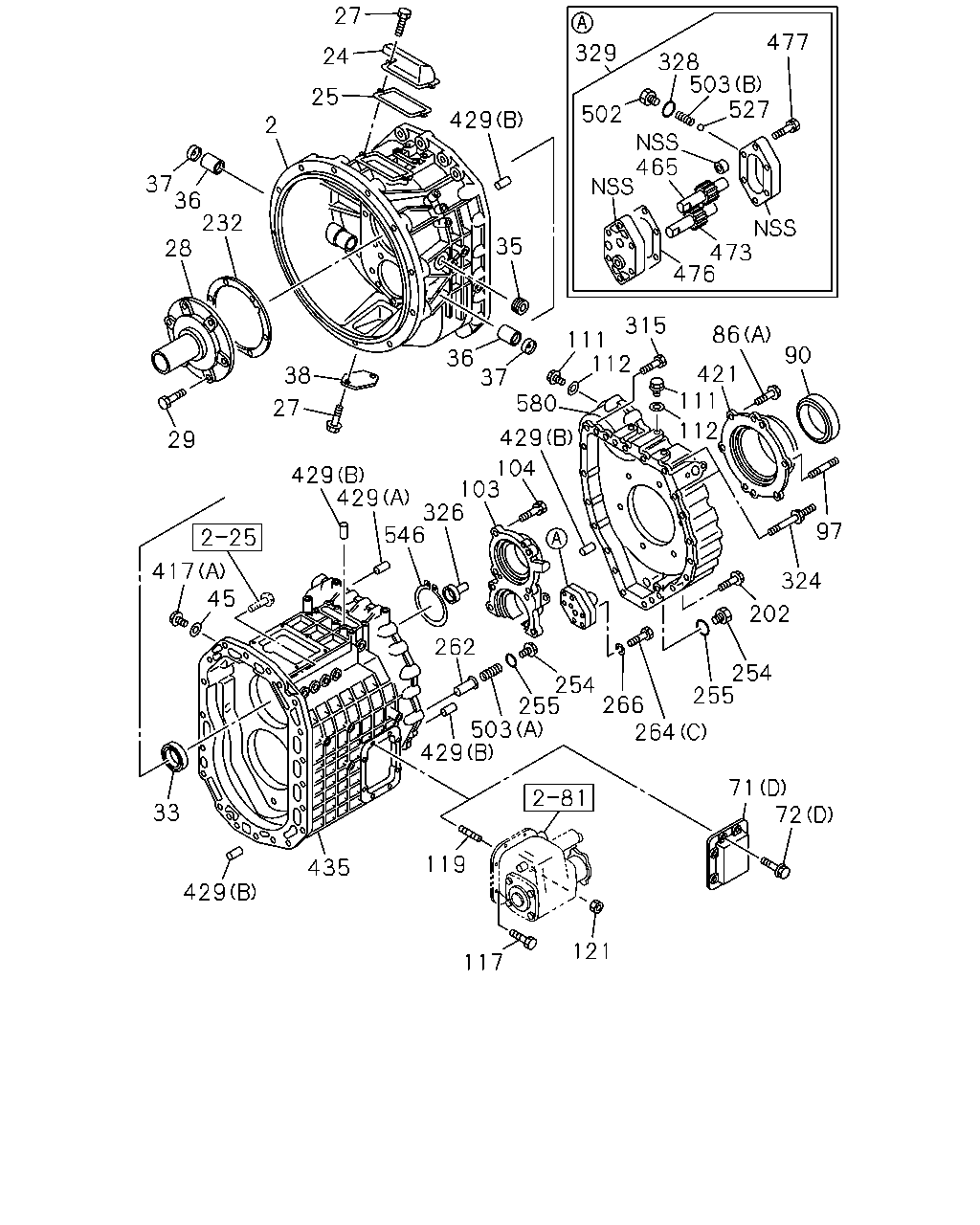

121 117 119 435 429 33 417 45 429 72 71 29 27 38 429 429 36 37 103 326 546 104 429 111 315 421 86 90 97 324 202 254 255 266 264 503 255 254 262 112 111 112 28 232 36 37 2 25 24 27 429 35 502 329 328 503 477 527 473 465 476 580

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; CLU	8-98077-167-1	01	1	1009-		●
2	HOUSING; CLU	8-98168-736-0	01	1	1009-	●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	1009-	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	1009-1406	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1407-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	1009-	●	●
28	COVER; FRT,TRANS CASE	1-33121-158-3	01	1	1009-	●	●
29	BOLT; FRT COVER M10X40 FLANGE	0-28161-040-0	06	1	1009-1211	●	●
29	BOLT; FRT COVER M10X40 FLANGE	8-98230-249-0	06	1	1212-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	1009-	●	●
35	GROMMET; CLU HSG OD=31	9-09575-796-0	01	1	1009-		●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	1009-	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	1009-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	1009-	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	1009-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1009-	●	●
71	COVER; SIDE,TRANS CASE (A)	1-33141-058-0	01	1	1009-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-044-1	01	1	1009-1302		●
71	COVER; SIDE,TRANS CASE (B)	1-33141-044-1	01	1	1303-		●
71	COVER; SIDE,TRANS CASE (C)	1-33141-057-1	01	1	1009-1302		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	1-33141-057-1	01	1	1303-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (D)	1-33141-066-0	01	1	1009-	●
72	BOLT; SIDE COVER (A) M10X30 FLANGE	0-28151-030-0	04	1	1009-		●
72	BOLT; SIDE COVER (E) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	1009-1302		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (E) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	1303-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X30 FLANGE	0-28751-230-0	08	1	1009-1302		●
72	BOLT; SIDE COVER (B) M12X30 FLANGE	0-28751-230-0	08	1	1303-		●
72	BOLT; SIDE COVER (C) M12X40 FLANGE	0-28151-240-0	07	1	1009-1302		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) M12X40 FLANGE	0-28151-240-0	07	1	1303-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (D) M10X35 FLANGE	0-28751-035-0	08	1	1009-	●
86	BOLT; RR COVER (A) M12X40 FLANGE	0-28151-240-0	14	1	1009-		●
86	BOLT; RR COVER (B) M10X16,M12X40 L=67.7	1-09029-082-0	02	1	1009-		●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	06	1	1009-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	1009-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-625-0	01	1	1009-	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	1009-		●
97	STUD; PARKING BRK BRAKE SYSTEM RETARDER<RE2> M16X45 L=69	9-04411-645-0	04	1	1009-1302	●
103	RETAINER; BRG	1-33151-059-0	01	1	1009-		●
103	RETAINER; BRG	1-33151-060-1	01	1	1009-	●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	1009-	●	●
111	PLUG; DRAIN FILLER M24X17 FLANGE	1-09604-022-0	02	1	1009-	●
112	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	02	1	1009-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X35 FLANGE	0-28151-235-0	02	1	1009-1302		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X45 FLANGE	0-28151-245-0	04	1	1303-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X130 FLANGE	0-28166-213-0	02	1	1009-1302		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10X28 FLANGE	8-98044-944-0	02	1	1009-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	0-44011-225-0	04	1	1009-1302		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X35 L=63	1-09302-178-0	04	1	1303-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10X25 L=40	0-44011-025-0	06	1	1009-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91180-212-0	04	1	1009-1302		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12 FLANGE	0-91180-212-0	04	1	1303-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10 FLANGE	0-91180-210-0	06	1	1009-	●
202	BOLT; PLATE M12X35 FLANGE	0-28751-235-0	09	1	1009-	●
232	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33142-051-1	01	1	1009-	●	●
254	PLUG; DRAIN,OIL M24X17 FLANGE	1-09604-023-0	02	1	1009-	●
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	02	1	1009-	●
262	STRAINER; OIL PUMP	1-41383-003-0	01	1	1009-	●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	0-28151-040-0	09	1	1009-1211		●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	8-98230-249-0	09	1	1212-		●
264	BOLT; OIL PUMP (A) M10X70 FLANGE	0-28151-070-0	01	1	1009-		●
264	BOLT; OIL PUMP (C) M8X65	0-10805-865-0	02	1	1009-	●
264	BOLT; OIL PUMP (C) M8X50	0-10855-850-0	02	1	1009-	●
266	WASHER; LK ID=8.2	0-91510-508-0	04	1	1009-	●
315	BOLT; CASE M12X50 FLANGE	0-28151-250-0	11	1	1009-	●
315	BOLT; CASE M12X110 FLANGE	0-28156-211-0	05	1	1009-	●
315	BOLT; CASE M12X35 FLANGE	0-28751-235-0	02	1	1009-	●
324	STUD; RR COVER M10X18,M12X110 L=139.5	1-09049-033-1	02	1	1009-	●
326	NOZZLE; OIL,OUTLET	1-33219-272-0	01	1	1009-	●
328	GASKET; PLUG	1-34159-100-0	01	1	1009-	●
329	PUMP ASM; OIL	1-34150-112-0	01	1	1009-		●
329	PUMP ASM; OIL	1-34150-117-0	01	1	1009-1408	●
329	PUMP ASM; OIL	8-98283-996-0	01	1	1409-	●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	1009-		●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	1009-	●	●
421	COVER; RR,TRANS	8-98077-636-0	01	1	1009-1110		●
421	COVER; RR,TRANS	8-98191-936-1	01	1	1111-1502		●
421	COVER; RR,TRANS	8-98304-558-0	01	1	1503-		●
421	COVER; RR,TRANS BRAKE SYSTEM RETARDER<RE2>	1-33131-256-0	01	1	1009-1302	●
421	COVER; RR,TRANS EXC. BRAKE SYSTEM RETARDER<RE2>	1-33131-238-0	01	1	1009-1302	●
421	COVER; RR,TRANS	1-33131-238-0	01	1	1303-	●
429	PIN; STRAIGHT (B) OD=10 L=18	9-08151-018-0	06	1	1009-	●	●
429	PIN; STRAIGHT (A) OD=12 L=32	9-08161-232-0	01	1	1009-	●
435	CASE; TRANS	8-98132-970-0	01	1	1009-		●
435	CASE; TRANS	1-33111-351-1	01	1	1009-1502	●
435	CASE; TRANS	8-98249-273-0	01	1	1503-	●
465	GEAR; IDLE,OIL PUMP	1-34151-013-0	01	1	1009-1408	●
473	GEAR; OUTPUT,OIL PUMP	1-34151-012-0	01	1	1009-1408	●
476	GASKET; COVER,OIL PUMP	1-34159-099-0	01	1	1009-	●
477	BOLT; OIL PUMP M8X32 W/LK WASHER	9-01900-832-0	02	1	1009-1408	●
502	PLUG; OIL PUMP	1-34159-101-0	01	1	1009-	●
503	SPRING; OIL PUMP (A)	1-09580-504-0	01	1	1009-	●
503	SPRING; OIL PUMP (B)	1-34159-102-0	01	1	1009-	●
527	BALL; OIL PUMP	9-00097-531-0	01	1	1009-	●
546	RING; SNAP,BRG T=2.00	1-09588-150-1	01	1	1009-	●
580	CASE; RANGE	1-33115-052-0	01	1	1009-	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-370-0	01	1	1009-1302		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33044-650-0	01	1	1303-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-370-0	01	1	1009-1302		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33044-650-0	01	1	1303-		●
1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-33044-060-0	01	1	1009-1302	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2>	1-33044-060-0	01	1	1009-1302	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2>	1-33044-058-0	01	1	1009-1302	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-33044-443-0	01	1	1303-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>	1-33044-058-0	01	1	1009-1302	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-33044-443-0	01	1	1303-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
