2-07 — CLUTCH BOOSTER; MINIPACK (#70081) — 203 parça

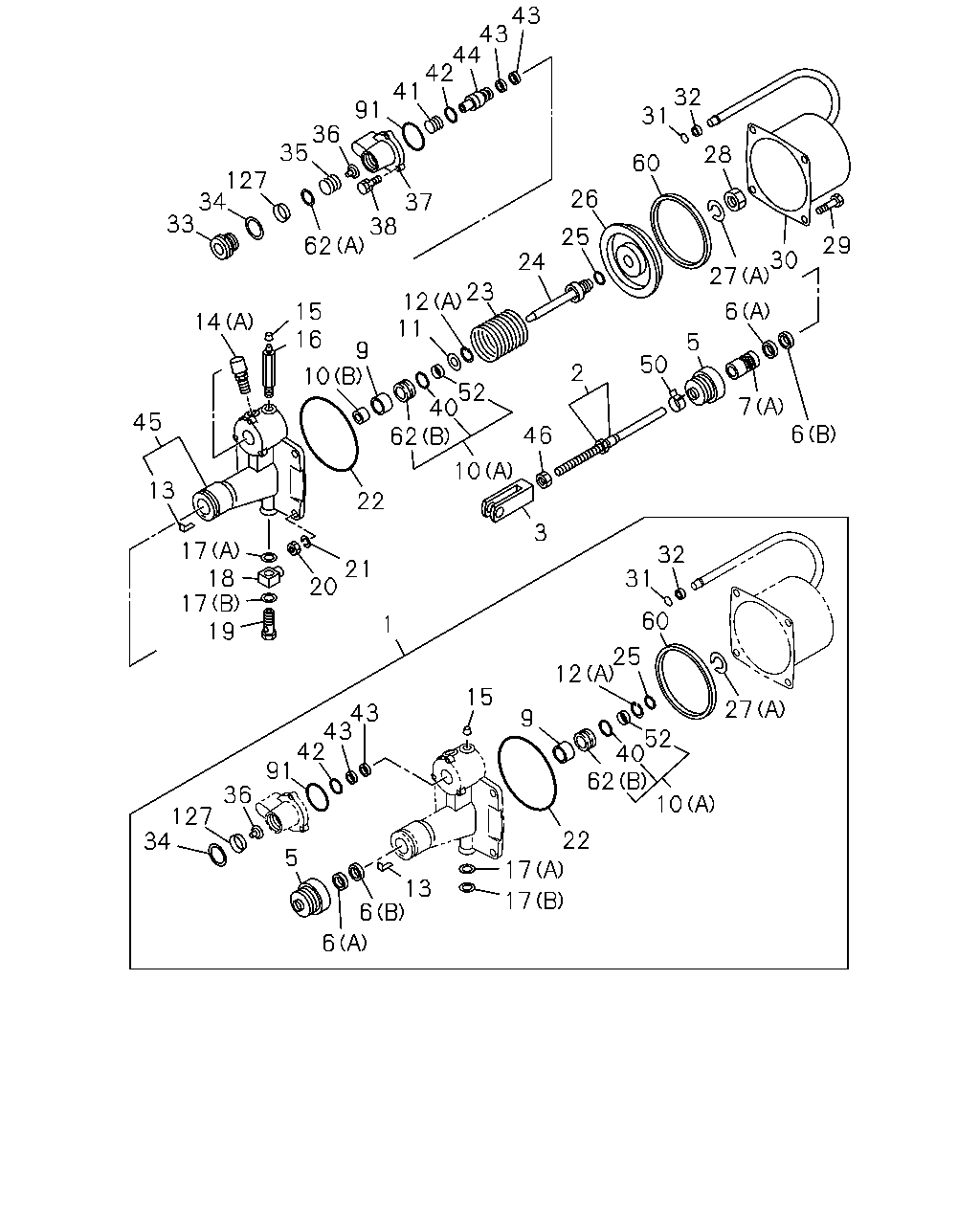

çizim 188568
33 34 127 35 36 91 41 42 44 43 43 37 38 62 14 15 16 12 23 24 25 26 60 31 32 28 29 30 27 6 5 50 7 6 2 52 46 11 9 10 22 62 40 10 3 45 13 17 18 17 19 20 21 1 34 127 36 91 42 43 43 15 5 6 6 13 17 17 22 9 62 10 40 52 12 25 60 31 32 27
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-507-0 01 1 1009-1105 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-620-0 01 1 1106- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-570-0 01 1 1009- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-213-0 01 1 1009-1105 ●
2 ROD; PUSH,CLU BOOSTER 1-31824-256-0 01 1 1106- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-253-0 01 1 1009- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 1009-1105 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-619-0 01 1 1009-1105 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-619-0 01 1 1106- ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-486-0 01 1 1009-1105 ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-626-0 01 1 1106- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-282-0 01 1 1009- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-283-0 01 1 1009- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-284-0 01 1 1009- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(C) 		1-31829-441-0 01 1 1009- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(D) 		1-31829-442-0 01 1 1009- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(E) 		1-31829-443-0 01 1 1009- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(F) 		1-31829-444-0 01 1 1009- ●
7 PISTON; CLU BOOSTER
(A) 		1-31821-047-0 01 1 1009- ●
7 PISTON; CLU BOOSTER
(B) 		1-31821-068-0 01 1 1009- ●
7 PISTON; CLU BOOSTER
(C) 		1-31821-081-0 01 1 1009- ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 1009- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 1009- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 1009- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1009- ● ●
12 RING; RET,CLU BOOSTER
(C) 		1-31829-446-0 01 1 1009- ●
12 RING; RET,CLU BOOSTER
(B) 		1-31829-511-0 01 1 1009-1105 ●
12 RING; RET,CLU BOOSTER
(B) 		1-31829-621-0 01 1 1106- ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 1009- ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 02 1 1009- ●
13 PIN; SPR 1-31829-109-0 01 1 1009- ●
14 COVER; EXH,CLU BOOSTER
(A) 		1-31829-564-0 01 1 1009- ●
14 COVER; EXH,CLU BOOSTER
(C) 		1-31829-365-0 01 1 1009- ●
14 COVER; EXH,CLU BOOSTER
(B) 		1-31829-366-0 01 1 1009- ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1009- ● ●
16 PLUG; END PLATE,CLU BOOSTER 1-31829-351-0 01 1 1009- ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1009- ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1009- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1009- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1009- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1009- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1009-1105 ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 1-31829-624-0 04 1 1009-1105 ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 1-31829-624-0 04 1 1106- ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1009- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 1009- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-295-0 01 1 1009- ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-506-0 01 1 1009- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-121-0 01 1 1009- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-211-0 01 1 1009- ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 1009- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 1009- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-080-0 01 1 1009- ●
27 SPRING; CLU BOOSTER
(A) 		1-31829-291-0 01 1 1009- ● ●
27 SPRING; CLU BOOSTER
(B) 		1-31829-505-0 01 1 1009- ●
27 SPRING; CLU BOOSTER
(C) 		1-31829-510-0 01 1 1009- ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 1009- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-02041-045-0 04 1 1009-1105 ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-078-0 04 1 1106- ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 1009- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-134-0 01 1 1009- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-120-0 01 1 1009- ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1009- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1009- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 1009- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1009- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1009- ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 1009- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1009- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 1009- ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 1009- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1009- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1009- ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 1009- ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-288-0 01 1 1009- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 1009- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 1009- ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1009- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-049-0 01 1 1009-1105 ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 1106- ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 1009- ●
45 PLATE; END,CLU BOOSTER 1-31811-080-1 01 1 1009- ●
45 PLATE; END,CLU BOOSTER 1-31811-119-0 01 1 1009- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1009-1105 ●
46 NUT; PUSH ROD,CLU BOOSTER 1-31829-625-0 01 1 1009-1105 ●
46 NUT; PUSH ROD,CLU BOOSTER 1-31829-625-0 01 1 1106- ● ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-063-0 01 1 1009- ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 1009- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 1009- ● ●
62 RETAINER; POPPET
(B) 		1-31829-357-0 01 1 1009- ●
62 RETAINER; POPPET
(A) 		1-31829-489-0 01 1 1009- ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1009- ● ●
127 FILTER; POPPET 1-31829-488-0 01 1 1009- ● ●

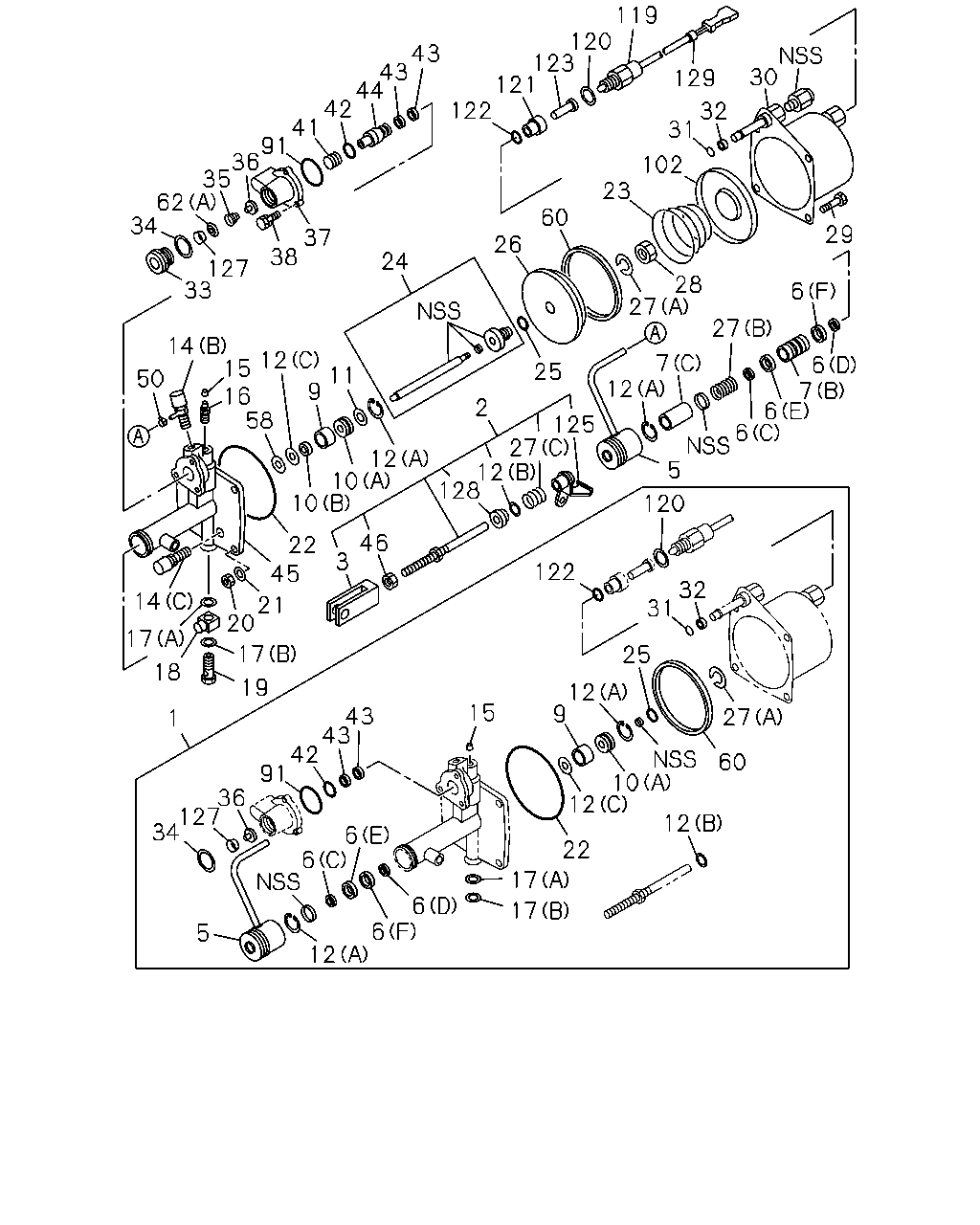

çizim 188570
43 43 44 42 41 91 36 35 62 34 33 127 38 37 14 50 15 58 16 12 10 10 12 11 9 3 22 45 21 20 17 19 1 18 17 46 14 43 43 42 91 36 127 34 5 6 6 6 6 12 17 22 17 12 15 9 25 12 10 60 12 27 31 32 120 122 27 12 128 2 25 27 12 125 7 27 6 29 6 7 6 6 5 28 23 102 31 32 129 30 60 26 122 121 123 120 119 24
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-507-0 01 1 1009-1105 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-620-0 01 1 1106- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-570-0 01 1 1009- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-213-0 01 1 1009-1105 ●
2 ROD; PUSH,CLU BOOSTER 1-31824-256-0 01 1 1106- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-253-0 01 1 1009- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 1009-1105 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-619-0 01 1 1009-1105 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-619-0 01 1 1106- ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-486-0 01 1 1009-1105 ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-626-0 01 1 1106- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-282-0 01 1 1009- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-283-0 01 1 1009- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-284-0 01 1 1009- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(C) 		1-31829-441-0 01 1 1009- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(D) 		1-31829-442-0 01 1 1009- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(E) 		1-31829-443-0 01 1 1009- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(F) 		1-31829-444-0 01 1 1009- ●
7 PISTON; CLU BOOSTER
(A) 		1-31821-047-0 01 1 1009- ●
7 PISTON; CLU BOOSTER
(B) 		1-31821-068-0 01 1 1009- ●
7 PISTON; CLU BOOSTER
(C) 		1-31821-081-0 01 1 1009- ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 1009- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 1009- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 1009- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1009- ● ●
12 RING; RET,CLU BOOSTER
(C) 		1-31829-446-0 01 1 1009- ●
12 RING; RET,CLU BOOSTER
(B) 		1-31829-511-0 01 1 1009-1105 ●
12 RING; RET,CLU BOOSTER
(B) 		1-31829-621-0 01 1 1106- ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 1009- ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 02 1 1009- ●
14 COVER; EXH,CLU BOOSTER
(A) 		1-31829-564-0 01 1 1009- ●
14 COVER; EXH,CLU BOOSTER
(C) 		1-31829-365-0 01 1 1009- ●
14 COVER; EXH,CLU BOOSTER
(B) 		1-31829-366-0 01 1 1009- ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1009- ● ●
16 PLUG; END PLATE,CLU BOOSTER 1-31829-351-0 01 1 1009- ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1009- ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1009- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1009- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1009- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1009- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1009-1105 ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 1-31829-624-0 04 1 1009-1105 ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 1-31829-624-0 04 1 1106- ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1009- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 1009- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-295-0 01 1 1009- ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-506-0 01 1 1009- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-121-0 01 1 1009- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-211-0 01 1 1009- ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 1009- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 1009- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-080-0 01 1 1009- ●
27 SPRING; CLU BOOSTER
(A) 		1-31829-291-0 01 1 1009- ● ●
27 SPRING; CLU BOOSTER
(B) 		1-31829-505-0 01 1 1009- ●
27 SPRING; CLU BOOSTER
(C) 		1-31829-510-0 01 1 1009- ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 1009- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-02041-045-0 04 1 1009-1105 ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-078-0 04 1 1106- ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 1009- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-134-0 01 1 1009- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-120-0 01 1 1009- ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1009- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1009- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 1009- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1009- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1009- ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 1009- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1009- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 1009- ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 1009- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1009- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 1009- ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-288-0 01 1 1009- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 1009- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 1009- ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1009- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-049-0 01 1 1009-1105 ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 1106- ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 1009- ●
45 PLATE; END,CLU BOOSTER 1-31811-080-1 01 1 1009- ●
45 PLATE; END,CLU BOOSTER 1-31811-119-0 01 1 1009- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1009-1105 ●
46 NUT; PUSH ROD,CLU BOOSTER 1-31829-625-0 01 1 1009-1105 ●
46 NUT; PUSH ROD,CLU BOOSTER 1-31829-625-0 01 1 1106- ● ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-063-0 01 1 1009- ●
58 WASHER; PISTON,CLU BOOSTER 1-31829-294-0 01 1 1009- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 1009- ● ●
62 RETAINER; POPPET
(B) 		1-31829-357-0 01 1 1009- ●
62 RETAINER; POPPET
(A) 		1-31829-489-0 01 1 1009- ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1009- ● ●
102 PLATE; BOOSTER 1-31829-508-0 01 1 1009- ●
119 SWITCH; CLU BOOSTER 1-31824-178-0 01 1 1009- ●
120 GASKET; SWITCH 1-31829-361-0 01 1 1009- ●
121 GUIDE; ROD 1-31824-165-0 01 1 1009- ●
122 GASKET; ROD 1-31829-360-0 01 1 1009- ●
123 ROD; SWITCH
L=23.2 		1-31824-167-0 01 1 1009-1105 ●
123 ROD; SWITCH
L=23.2 		1-31824-167-0 AR 1 1106- ●
123 ROD; SWITCH
L=24.0 		1-31824-168-0 01 1 1009-1105 ●
123 ROD; SWITCH
L=24.0 		1-31824-168-0 AR 1 1106- ●
123 ROD; SWITCH
L=22.5 		1-31824-176-0 01 1 1009-1105 ●
123 ROD; SWITCH
L=22.5 		1-31824-176-0 AR 1 1106- ●
123 ROD; SWITCH
L=24.5 		1-31824-189-0 01 1 1009-1105 ●
123 ROD; SWITCH
L=24.5 		1-31824-189-0 AR 1 1106- ●
123 ROD; SWITCH
L=25.0 		1-31824-212-0 01 1 1009-1105 ●
123 ROD; SWITCH
L=25.0 		1-31824-212-0 AR 1 1106- ●
125 BRACKET; CLU BOOSTER 1-31829-512-0 01 1 1009-1105 ●
125 BRACKET; CLU BOOSTER 1-31829-622-0 01 1 1106- ●
127 FILTER; POPPET 1-31829-488-0 01 1 1009- ● ●
128 COLLAR; ROD,CLU BOOSTER 1-31829-509-0 01 1 1009-1105 ●
129 CONNECTOR ASM; CLU BOOSTER 1-09656-753-0 01 1 1009- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
