2-05 — CLUTCH PIPING (#70080) — 125 parça

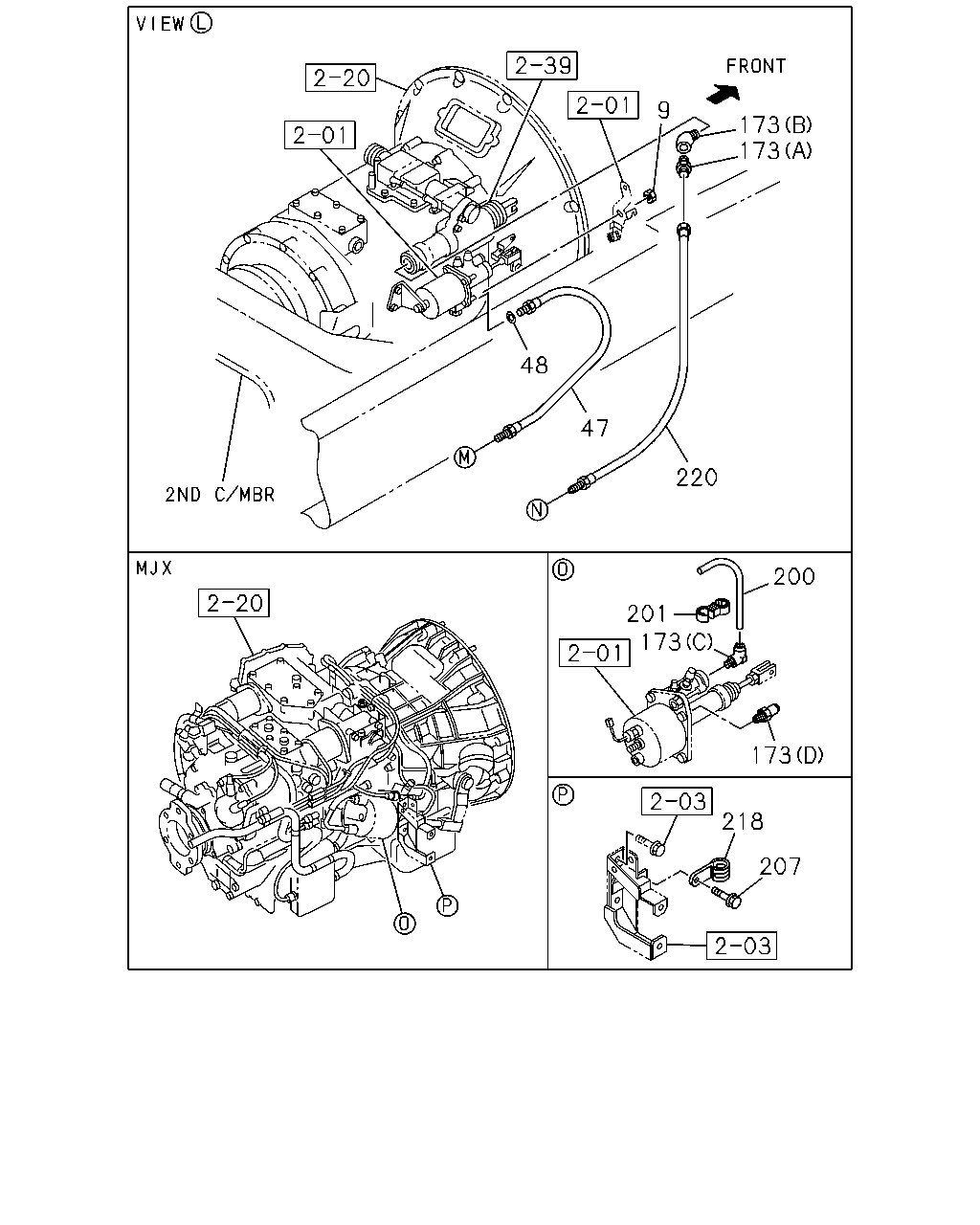

çizim 102032
48 47 220 173 173 201 200 173 173 218 207 9
BalonParca AdiParca NoAdetTipApplied Date
9 NUT; BRKT,FLEX HOSE
MJT7S M/T(Y3E) M10 FLANGE 		0-91180-210-0 02 1 1009-
47 HOSE; FLEX,CLU CONT
MJT7 M/T<Y9E> L=700 		1-09364-456-0 01 1 1009-1302
47 HOSE; FLEX,CLU CONT
MJT7S M/T(Y3E) L=700 		1-09364-456-0 01 1 1303-
47 HOSE; FLEX,CLU CONT
MJX12P M/T SMOOTHER-G(Y4S) L=600 		1-09364-705-0 01 1 1009-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 1009-
173 CONNECTOR
MJT7S M/T(Y3E) (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1009-
173 CONNECTOR
MJT7S M/T(Y3E) (B) R1/4 & RC1/4 		1-09664-211-0 01 1 1009-
173 CONNECTOR
MJX12P M/T SMOOTHER-G(Y4S) (C) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 1009-
173 CONNECTOR
MJX12P M/T SMOOTHER-G(Y4S) (D) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 1009-
200 TUBE; NYLON
MJX12P M/T SMOOTHER-G(Y4S) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 1009-
201 CLIP; NYLON TUBE
MJX12P M/T SMOOTHER-G(Y4S) ID=6.35 & 12 		1-09709-275-1 01 1 1009-
207 BOLT; CLIP
MJX12P M/T SMOOTHER-G(Y4S) M8X16 FLANGE 		0-28050-816-0 01 1 1009-
218 CLIP
MJX12P M/T SMOOTHER-G(Y4S) ID=11 L=20 		0-95235-035-0 01 1 1009-
220 HOSE; FLEX,POWER ASSIST
MJT7 M/T<Y9E> L=360 		1-09363-823-0 01 1 1009-1302
220 HOSE; FLEX,POWER ASSIST
MJT7S M/T(Y3E) L=360 		1-09363-823-0 01 1 1303-
çizim 102190
29 26 28 30 29 25 28 27 27 28 25 29 30 34 35 33 42 44 46 45 116 43 115 44 43 116 42 115 106 117 37 36 4 37 36 4 117
BalonParca AdiParca NoAdetTipApplied Date
4 CLIP; FLEX HOSE,CLU CONT
ID=16 H=25 L=25 		1-09701-162-0 01 1 1009-
25 BRACKET; OIL PIPE
(B) 		1-47479-482-0 01 1 1303-
25 BRACKET; OIL PIPE
(A) 		1-46147-101-0 01 1 1009-
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 02 1 1009-1302
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 01 1 1303-
27 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1009-1302
27 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1303-
27 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1009-
27 NUT; BRKT
M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 1009-
28 CLIP; OIL PIPE
(B) ID=9 L=20 		0-95234-835-0 02 1 1009-
28 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 01 1 1009-
29 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 02 1 1009-
29 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28650-830-0 01 1 1009-1302
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 1303-
30 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 1009-1302
30 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1303-
33 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 04 1 1009-
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 04 1 1009-
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 04 1 1009-
36 BRACKET; CLIP
(A) 		1-71117-191-1 01 1 1009-
36 BRACKET; CLIP
MJT7S M/T(Y3E) (B) 		1-47475-689-0 01 1 1009-
36 BRACKET; CLIP
MJX12P M/T SMOOTHER-G(Y4S) (C) 		8-97610-103-0 01 1 1009-
37 BOLT; CLIP BRKT
MJT7S M/T(Y3E) M10X20 FLANGE 		0-28151-020-0 01 1 1009-
37 BOLT; CLIP BRKT
MJX12P M/T SMOOTHER-G(Y4S) M8X16 FLANGE 		0-28050-816-0 01 1 1009-
42 BRACKET; FLEX HOSE,CLU CONT
MJT7S M/T(Y3E) (A) 		1-47471-203-0 01 1 1009-
42 BRACKET; FLEX HOSE,CLU CONT
MJX12P M/T SMOOTHER-G(Y4S) (B) 		1-47479-650-0 01 1 1009-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X35 FLANGE 		0-28650-835-0 02 1 1009-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 1009-
45 NUT; FLEX HOSE,CLU CONT
MJT7S M/T(Y3E) M12 		9-09840-280-0 01 1 1009-
46 WASHER; LK,FLEX HOSE,CLU CONT
MJT7S M/T(Y3E) ID=12.2 		0-91510-512-0 01 1 1009-
106 UNION; OIL PIPE
M14 STRAIGHT 		0-92113-008-0 01 1 1009-
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 1009-
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 1009-
117 BOLT; CLIP,FLEX HOSE
M8X16 FLANGE 		0-28050-816-0 01 1 1009-

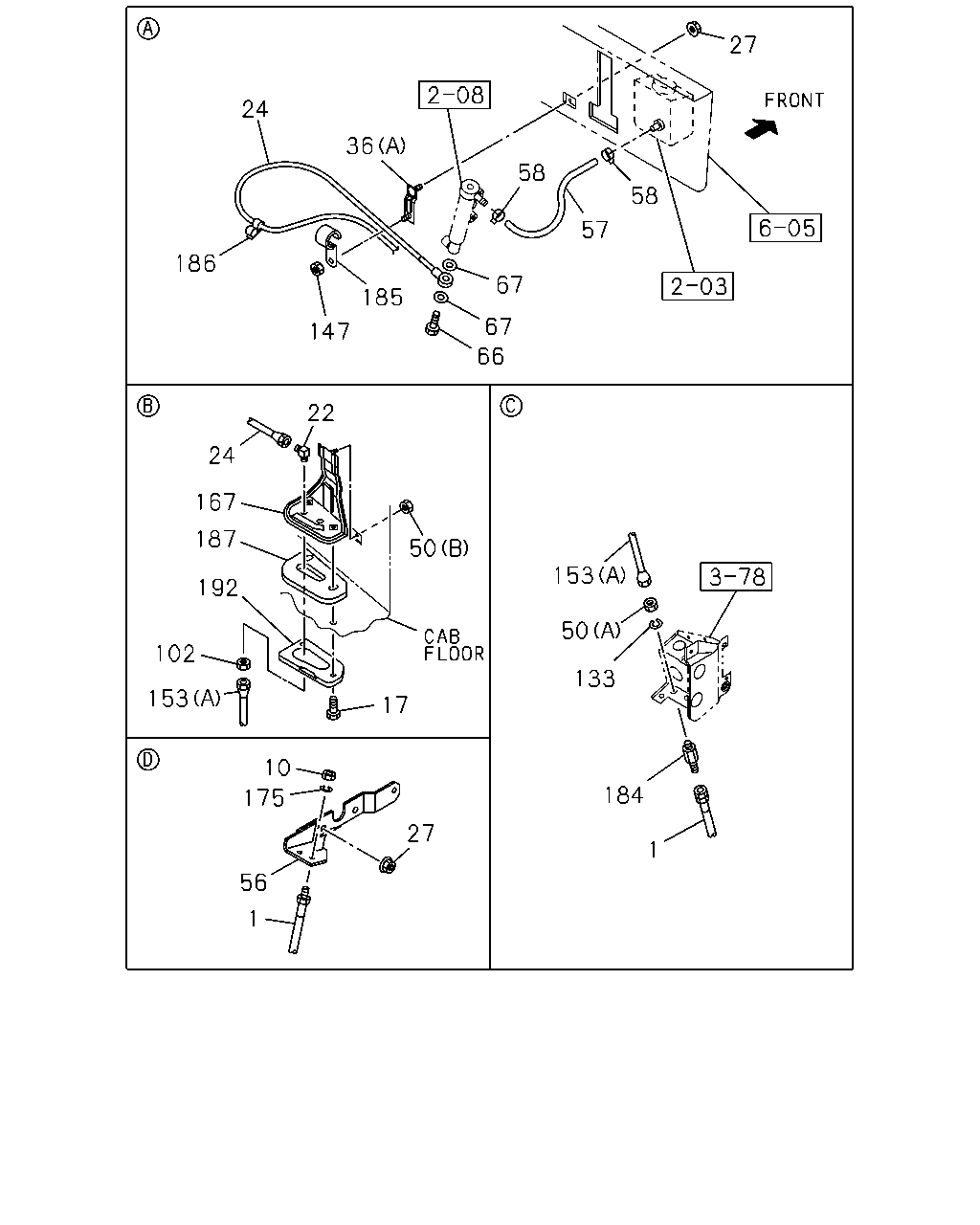

çizim 102417
24 186 36 147 185 67 66 67 57 58 58 27 153 50 133 184 1 1 27 56 175 153 10 17 50 22 24 167 192 187 102
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,CLU CONT
L=520 		8-98072-340-0 01 1 1009-1302
1 HOSE; FLEX,CLU CONT
L=620 		8-98072-333-0 01 1 1303-
10 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 1009-
17 BOLT; BRKT
M8X20 W/LK&PL WASHER 		8-94279-216-0 02 1 1009-
22 UNION; CLU PIPE
M14 ELBOW 		0-92125-208-0 01 1 1009-
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 1009-
27 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1009-1302
27 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1303-
27 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1009-
27 NUT; BRKT
M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 1009-
36 BRACKET; CLIP
(A) 		1-71117-191-1 01 1 1009-
36 BRACKET; CLIP
MJT7S M/T(Y3E) (B) 		1-47475-689-0 01 1 1009-
36 BRACKET; CLIP
MJX12P M/T SMOOTHER-G(Y4S) (C) 		8-97610-103-0 01 1 1009-
50 NUT; UNION
(A) M14 		0-91111-514-0 01 1 1009-1302
50 NUT; UNION
(A) M14 		0-91111-514-0 01 1 1303-
50 NUT; UNION
(B) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1009-1302
50 NUT; UNION
(B) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1303-
56 BRACKET; FLEX HOSE
HONG KONG EQUIPMENT(PQ1) 		8-98151-406-1 01 1 1009-1302
56 BRACKET; FLEX HOSE 8-98151-406-1 01 1 1303-
56 BRACKET; FLEX HOSE
EXC. HONG KONG EQUIPMENT(PQ1) 		1-47471-200-0 01 1 1009-1302
57 HOSE; CLU M/CYL TO OIL TANK 1-47424-533-0 01 1 1009-
58 CLIP; RUBBER HOSE TO M/CYL
ID=14 		8-94238-572-0 02 1 1009-
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		8-98037-827-0 01 1 1009-
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		1-09630-085-0 02 1 1009-1312
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
102 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 1009-
133 WASHER; LK,UNION
ID=14.2 		0-91510-514-0 01 1 1009-
147 NUT; CLIP FIX
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 1009-
153 PIPE ASM; CLU,UNION TO FLEX
MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1) (B) L=2052 SERVICED BY L=2150 		1-47428-770-0 01 1 1412-1412
153 PIPE ASM; CLU,UNION TO FLEX
MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=2052 SERVICED BY L=2150 		1-47428-770-0 01 1 1412-
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=537 		8-98085-164-0 01 1 1009-
153 PIPE ASM; CLU,UNION TO FLEX
MJT7 M/T<Y9E> (B) L=2041 SERVICED BY L=2150 		1-47428-770-0 01 1 1009-1302
153 PIPE ASM; CLU,UNION TO FLEX
MJT7S M/T(Y3E) (B) L=2041 SERVICED BY L=2150 		1-47428-770-0 01 1 1303-1411
153 PIPE ASM; CLU,UNION TO FLEX
MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1) (B) L=2041 SERVICED BY L=2150 		1-47428-770-0 01 1 1412-1412
153 PIPE ASM; CLU,UNION TO FLEX
MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=2041 SERVICED BY L=2150 		1-47428-770-0 01 1 1412-
153 PIPE ASM; CLU,UNION TO FLEX
SMOOTHER-G(C1W) (B) L=2055 SERVICED BY L=2150 		1-47428-770-0 01 1 1009-1302
153 PIPE ASM; CLU,UNION TO FLEX
MJX12P M/T SMOOTHER-G(Y4S) (B) L=2055 SERVICED BY L=2150 		1-47428-770-0 01 1 1303-
167 BRACKET; UNION 1-71117-183-3 01 1 1009-
175 WASER; LK,FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 1009-
184 UNION; FLEX HOSE
STRAIGHT 		1-09654-435-0 01 1 1009-
185 CLIP; BRKT
ID=9 L=20 		0-95405-308-0 01 1 1009-
186 HOLDER; CLIP 8-94107-710-0 02 1 1009-
187 SEAL; BRKT 1-71117-222-0 01 1 1009-
192 PLATE 1-71117-221-0 01 1 1009-
çizim 188565
24 153 167 56 104 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,CLU CONT
L=520 		8-98072-340-0 01 1 1009-1302
1 HOSE; FLEX,CLU CONT
L=620 		8-98072-333-0 01 1 1303-
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 1009-
56 BRACKET; FLEX HOSE
HONG KONG EQUIPMENT(PQ1) 		8-98151-406-1 01 1 1009-1302
56 BRACKET; FLEX HOSE 8-98151-406-1 01 1 1303-
56 BRACKET; FLEX HOSE
EXC. HONG KONG EQUIPMENT(PQ1) 		1-47471-200-0 01 1 1009-1302
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1424 SERVICED BY L=1550 		1-47428-766-0 01 1 1009-1302
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1363 SERVICED BY L=1400 		1-47428-765-0 01 1 1303-
153 PIPE ASM; CLU,UNION TO FLEX
MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1) (B) L=2052 SERVICED BY L=2150 		1-47428-770-0 01 1 1412-1412
153 PIPE ASM; CLU,UNION TO FLEX
MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=2052 SERVICED BY L=2150 		1-47428-770-0 01 1 1412-
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=537 		8-98085-164-0 01 1 1009-
153 PIPE ASM; CLU,UNION TO FLEX
MJT7 M/T<Y9E> (B) L=2041 SERVICED BY L=2150 		1-47428-770-0 01 1 1009-1302
153 PIPE ASM; CLU,UNION TO FLEX
MJT7S M/T(Y3E) (B) L=2041 SERVICED BY L=2150 		1-47428-770-0 01 1 1303-1411
153 PIPE ASM; CLU,UNION TO FLEX
MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1) (B) L=2041 SERVICED BY L=2150 		1-47428-770-0 01 1 1412-1412
153 PIPE ASM; CLU,UNION TO FLEX
MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=2041 SERVICED BY L=2150 		1-47428-770-0 01 1 1412-
153 PIPE ASM; CLU,UNION TO FLEX
SMOOTHER-G(C1W) (B) L=2055 SERVICED BY L=2150 		1-47428-770-0 01 1 1009-1302
153 PIPE ASM; CLU,UNION TO FLEX
MJX12P M/T SMOOTHER-G(Y4S) (B) L=2055 SERVICED BY L=2150 		1-47428-770-0 01 1 1303-
167 BRACKET; UNION 1-71117-183-3 01 1 1009-

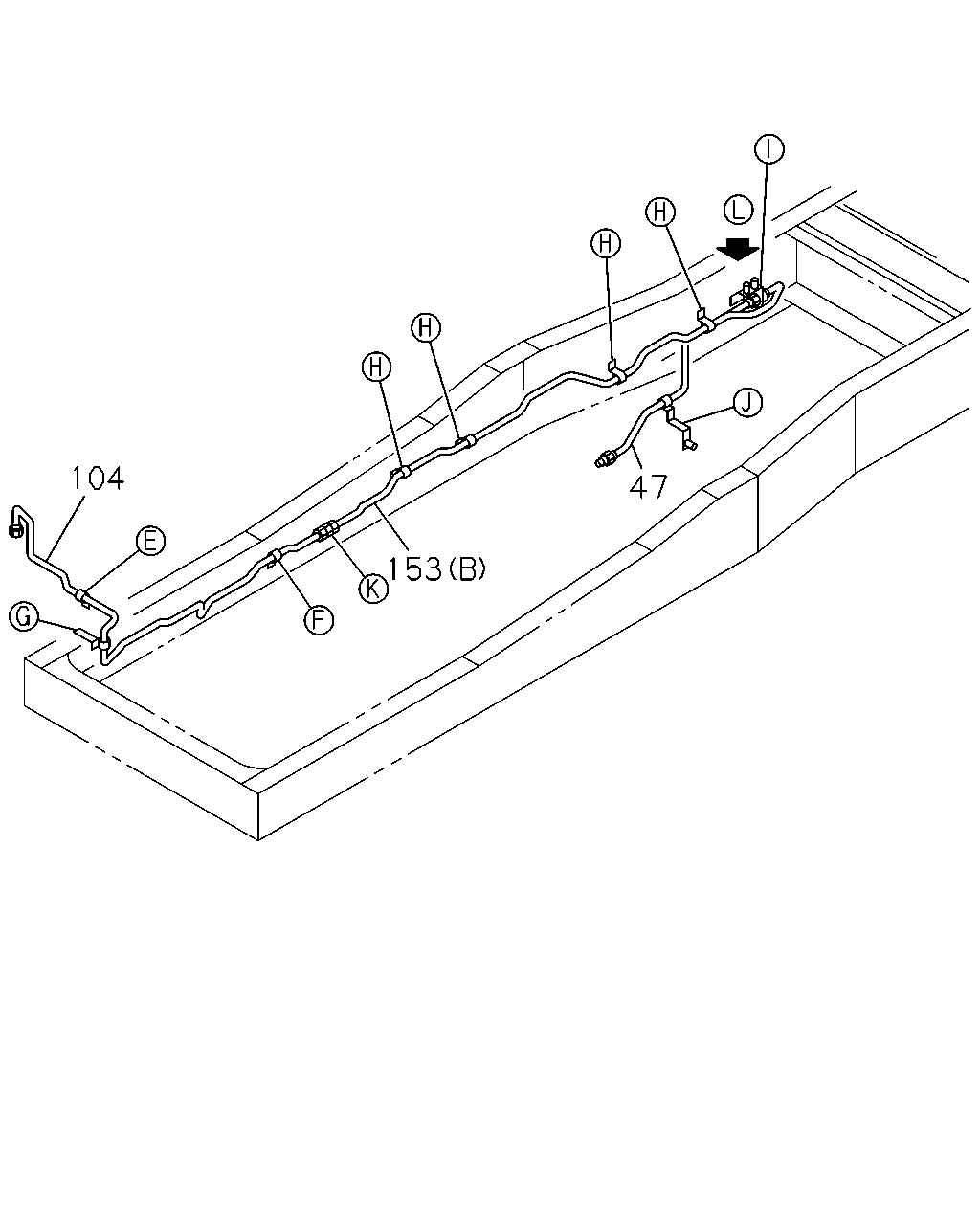

çizim 188567
47 153 104
BalonParca AdiParca NoAdetTipApplied Date
47 HOSE; FLEX,CLU CONT
MJT7 M/T<Y9E> L=700 		1-09364-456-0 01 1 1009-1302
47 HOSE; FLEX,CLU CONT
MJT7S M/T(Y3E) L=700 		1-09364-456-0 01 1 1303-
47 HOSE; FLEX,CLU CONT
MJX12P M/T SMOOTHER-G(Y4S) L=600 		1-09364-705-0 01 1 1009-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1424 SERVICED BY L=1550 		1-47428-766-0 01 1 1009-1302
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1363 SERVICED BY L=1400 		1-47428-765-0 01 1 1303-
153 PIPE ASM; CLU,UNION TO FLEX
MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1) (B) L=2052 SERVICED BY L=2150 		1-47428-770-0 01 1 1412-1412
153 PIPE ASM; CLU,UNION TO FLEX
MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=2052 SERVICED BY L=2150 		1-47428-770-0 01 1 1412-
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=537 		8-98085-164-0 01 1 1009-
153 PIPE ASM; CLU,UNION TO FLEX
MJT7 M/T<Y9E> (B) L=2041 SERVICED BY L=2150 		1-47428-770-0 01 1 1009-1302
153 PIPE ASM; CLU,UNION TO FLEX
MJT7S M/T(Y3E) (B) L=2041 SERVICED BY L=2150 		1-47428-770-0 01 1 1303-1411
153 PIPE ASM; CLU,UNION TO FLEX
MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1) (B) L=2041 SERVICED BY L=2150 		1-47428-770-0 01 1 1412-1412
153 PIPE ASM; CLU,UNION TO FLEX
MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=2041 SERVICED BY L=2150 		1-47428-770-0 01 1 1412-
153 PIPE ASM; CLU,UNION TO FLEX
SMOOTHER-G(C1W) (B) L=2055 SERVICED BY L=2150 		1-47428-770-0 01 1 1009-1302
153 PIPE ASM; CLU,UNION TO FLEX
MJX12P M/T SMOOTHER-G(Y4S) (B) L=2055 SERVICED BY L=2150 		1-47428-770-0 01 1 1303-
