2-03 — CLUTCH PEDAL AND CONTROL (#70079) — 119 parça

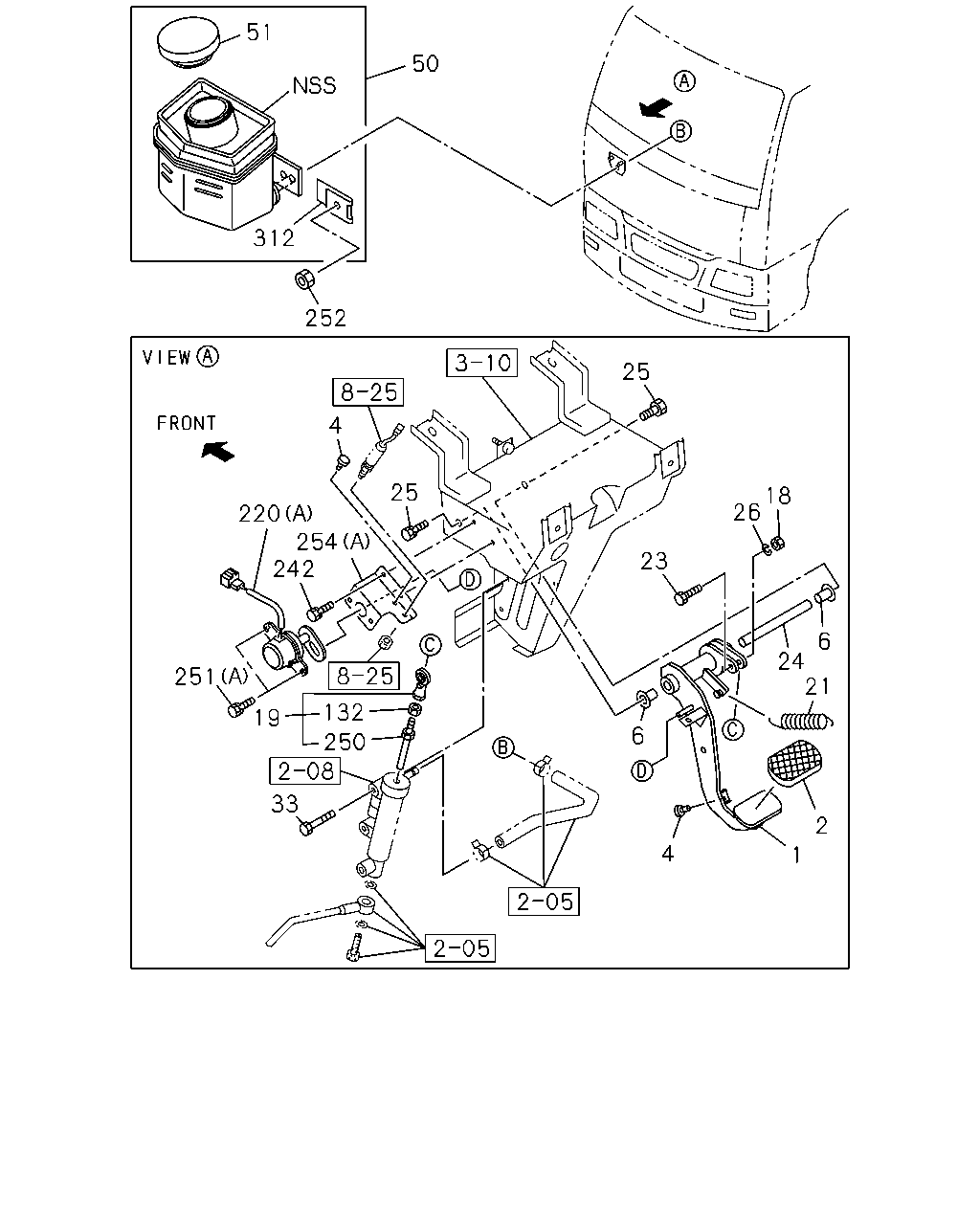

51 50 312 252 25 4 25 26 18 23 220 254 242 251 19 132 250 33 4 1 2 6 21 6 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PEDAL; CLU MJT7S M/T(Y3E) EXC. AIR BAG(TFQ)	1-73907-321-4	01	1	1412-
1	PEDAL; CLU AIR BAG(TFQ)	1-73907-474-1	01	1	1009-1302
1	PEDAL; CLU	1-73907-474-1	01	1	1303-1411
1	PEDAL; CLU AIR BAG(TFQ)	1-73907-474-1	01	1	1412-
1	PEDAL; CLU EXC. AIR BAG(TFQ)	1-73907-321-4	01	1	1009-1302
2	COVER; CLU PEDAL	8-97893-618-1	01	1	1009-1411
2	COVER; CLU PEDAL AIR BAG(TFQ)	8-97893-618-1	01	1	1412-
2	COVER; CLU PEDAL MJT7S M/T(Y3E) EXC. AIR BAG(TFQ)	8-97893-618-1	01	1	1412-
4	STOPPER; CLU PEDAL	1-47319-014-1	04	1	1009-1411
4	STOPPER; CLU PEDAL AIR BAG(TFQ)	1-47319-014-1	04	1	1412-
4	STOPPER; CLU PEDAL MJT7S M/T(Y3E) EXC. AIR BAG(TFQ)	1-47319-014-1	04	1	1412-
6	BUSHING; CLU PEDAL	1-09330-045-0	02	1	1009-1411
6	BUSHING; CLU PEDAL AIR BAG(TFQ)	1-09330-045-0	02	1	1412-
6	BUSHING; CLU PEDAL MJT7S M/T(Y3E) EXC. AIR BAG(TFQ)	1-09330-045-0	02	1	1412-
18	NUT; PUSH ROD M8	0-91110-508-0	01	1	1009-1411
18	NUT; PUSH ROD AIR BAG(TFQ) M8	0-91110-508-0	01	1	1412-
18	NUT; PUSH ROD MJT7S M/T(Y3E) EXC. AIR BAG(TFQ) M8	0-91110-508-0	01	1	1412-
19	ROD ASM; PUSH,CLU	1-73907-320-1	01	1	1009-1411
19	ROD ASM; PUSH,CLU AIR BAG(TFQ)	1-73907-320-1	01	1	1412-
19	ROD ASM; PUSH,CLU MJT7S M/T(Y3E) EXC. AIR BAG(TFQ)	1-73907-320-1	01	1	1412-
21	SPRING; RETURN,CLU PEDAL	1-73908-265-0	01	1	1009-1411
21	SPRING; RETURN,CLU PEDAL AIR BAG(TFQ)	1-73908-265-0	01	1	1412-
21	SPRING; RETURN,CLU PEDAL MJT7S M/T(Y3E) EXC. AIR BAG(TFQ)	1-73908-265-0	01	1	1412-
23	BOLT; PUSH ROD M8X39.7	1-09009-150-0	01	1	1009-1411
23	BOLT; PUSH ROD AIR BAG(TFQ) M8X39.7	1-09009-150-0	01	1	1412-
23	BOLT; PUSH ROD MJT7S M/T(Y3E) EXC. AIR BAG(TFQ) M8X39.7	1-09009-150-0	01	1	1412-
24	SHAFT; CLU PEDAL MJT7S M/T(Y3E) EXC. AIR BAG(TFQ)	1-73998-936-1	01	1	1412-
24	SHAFT; CLU PEDAL AIR BAG(TFQ)	1-73908-195-1	01	1	1009-1302
24	SHAFT; CLU PEDAL	1-73908-195-1	01	1	1303-1411
24	SHAFT; CLU PEDAL AIR BAG(TFQ)	1-73908-195-1	01	1	1412-
24	SHAFT; CLU PEDAL EXC. AIR BAG(TFQ)	1-73998-936-1	01	1	1009-1302
25	BOLT; PEDAL MJT7S M/T(Y3E) EXC. AIR BAG(TFQ) M10X25 W/LK WASHER	0-50051-025-0	02	1	1412-
25	BOLT; PEDAL AIR BAG(TFQ) M10X35 W/LK WASHER	0-50051-035-0	02	1	1009-1302
25	BOLT; PEDAL M10X35 W/LK WASHER	0-50051-035-0	02	1	1303-1411
25	BOLT; PEDAL AIR BAG(TFQ) M10X35 W/LK WASHER	0-50051-035-0	02	1	1412-
25	BOLT; PEDAL EXC. AIR BAG(TFQ) M10X25 W/LK WASHER	0-50051-025-0	02	1	1009-1302
26	WASHER; LK,PUSH ROD ID=8.2	0-91510-608-0	01	1	1009-1411
26	WASHER; LK,PUSH ROD AIR BAG(TFQ) ID=8.2	0-91510-608-0	01	1	1412-
26	WASHER; LK,PUSH ROD MJT7S M/T(Y3E) EXC. AIR BAG(TFQ) ID=8.2	0-91510-608-0	01	1	1412-
33	BOLT; CLU M/CYL TO BRKT M10X60 FLANGE	0-28051-060-0	02	1	1303-
50	TANK; OIL,CLU	1-47530-182-0	01	1	1009-
51	CAP; OIL TANK,CLU	8-94136-483-1	01	1	1009-
132	NUT; LK,PUSH ROD M8	0-91110-508-0	01	1	1009-1411
132	NUT; LK,PUSH ROD AIR BAG(TFQ) M8	0-91110-508-0	01	1	1412-
132	NUT; LK,PUSH ROD MJT7S M/T(Y3E) EXC. AIR BAG(TFQ) M8	0-91110-508-0	01	1	1412-
220	SENSOR; CLUTCH SMOOTHER-G(C1W) (B)	1-81541-109-0	01	1	1009-1302
220	SENSOR; CLUTCH SMOOTHER-G(C1W) (B)	8-98123-908-0	01	1	1303-
220	SENSOR; CLUTCH MJX12P M/T SMOOTHER-G(Y4S) (A)	1-80250-014-0	01	1	1009-1302
220	SENSOR; CLUTCH SMOOTHER-G(C1W) (A)	1-80250-014-0	01	1	1303-
242	BOLT; BRKT,CLUTCH MJT7S M/T(Y3E) EXC. AIR BAG(TFQ) M6X16 W/LK WASHER	0-50040-616-0	02	1	1412-
242	BOLT; BRKT,CLUTCH AIR BAG(TFQ) M6X16 W/LK WASHER	0-50040-616-0	04	1	1009-1302
242	BOLT; BRKT,CLUTCH M6X16 W/LK WASHER	0-50040-616-0	04	1	1303-1411
242	BOLT; BRKT,CLUTCH AIR BAG(TFQ) M6X16 W/LK WASHER	0-50040-616-0	04	1	1412-
242	BOLT; BRKT,CLUTCH EXC. AIR BAG(TFQ) M6X16 W/LK WASHER	0-50040-616-0	02	1	1009-1302
250	ROD; PUSH,CLU	1-73996-219-0	01	1	1009-1411
250	ROD; PUSH,CLU AIR BAG(TFQ)	1-73996-219-0	01	1	1412-
250	ROD; PUSH,CLU MJT7S M/T(Y3E) EXC. AIR BAG(TFQ)	1-73996-219-0	01	1	1412-
251	BOLT; SENSOR MJX12P M/T SMOOTHER-G(Y4S) (C) M6X16 FLANGE	0-28650-616-0	02	1	1009-1302
251	BOLT; SENSOR SMOOTHER-G(C1W) (C) M6X16 FLANGE	0-28650-616-0	02	1	1303-
251	BOLT; SENSOR MJX12P M/T SMOOTHER-G(Y4S) (B) M10X25 FLANGE	0-28751-025-0	02	1	1009-
251	BOLT; SENSOR MJX12P M/T SMOOTHER-G(Y4S) (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1009-1302
251	BOLT; SENSOR SMOOTHER-G(C1W) (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1303-
252	NUT; OIL TANK M8 FLANGE W/RUBBER	1-09984-176-0	02	1	1009-
254	BRACKET; CLU SENSOR (A)	1-73998-979-5	01	1	1009-1411
254	BRACKET; CLU SENSOR AIR BAG(TFQ) (A)	1-73998-979-5	01	1	1412-
254	BRACKET; CLU SENSOR MJT7S M/T(Y3E) EXC. AIR BAG(TFQ) (A)	1-73998-979-5	01	1	1412-
254	BRACKET; CLU SENSOR MJX12P M/T SMOOTHER-G(Y4S) (B)	1-31349-076-1	01	1	1009-
312	PLATE; OIL TANK,CLU	1-21249-007-1	01	1	1009-

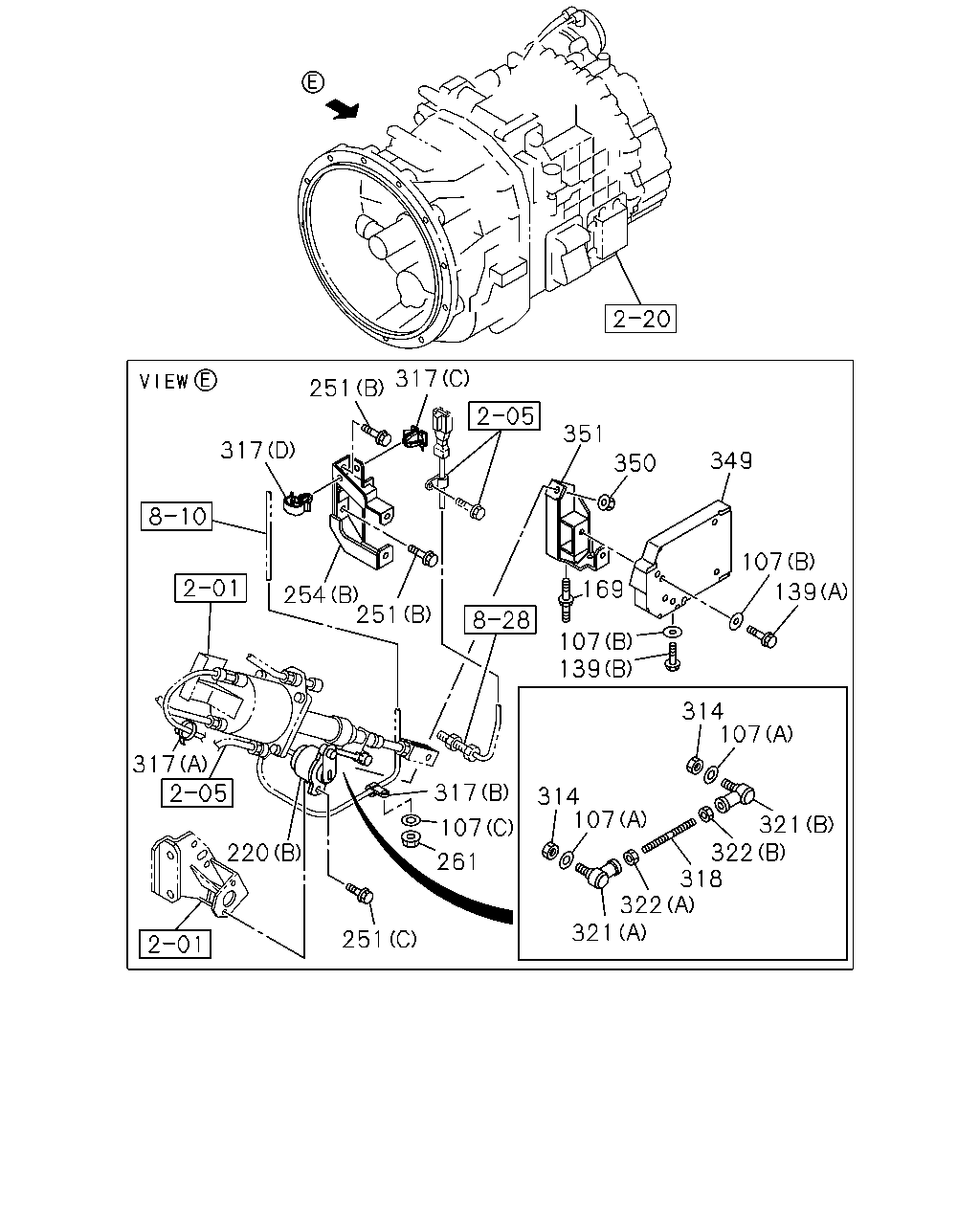

251 317 317 351 350 349 254 251 169 107 139 107 139 317 317 220 107 261 251 314 107 107 321 322 318 322 321 314

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
107	WASHER; PL MJX12P M/T SMOOTHER-G(Y4S) (C) ID=8.4 OD=16	0-91610-508-0	01	1	1009-1302
107	WASHER; PL SMOOTHER-G(C1W) (C) ID=8.4 OD=16	0-91610-508-0	01	1	1303-
107	WASHER; PL MJX12P M/T SMOOTHER-G(Y4S) (B) ID=8.4 OD=22	0-91610-708-0	06	1	1009-1302
107	WASHER; PL SMOOTHER-G(C1W) (B) ID=8.4 OD=22	0-91610-708-0	06	1	1303-
107	WASHER; PL MJX12P M/T SMOOTHER-G(Y4S) (A) ID=5.3 OD=16	0-91614-705-0	02	1	1009-1302
107	WASHER; PL SMOOTHER-G(C1W) (A) ID=5.3 OD=16	0-91614-705-0	02	1	1303-
139	BOLT; COVER MJX12P M/T SMOOTHER-G(Y4S) (A) M8X16 FLANGE	0-28050-816-0	05	1	1009-1302
139	BOLT; COVER SMOOTHER-G(C1W) (A) M8X16 FLANGE	0-28050-816-0	05	1	1303-
139	BOLT; COVER MJX12P M/T SMOOTHER-G(Y4S) (B) M8X35 FLANGE	0-28650-835-0	01	1	1009-1302
139	BOLT; COVER SMOOTHER-G(C1W) (B) M8X35 FLANGE	0-28650-835-0	01	1	1303-
169	BOLT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8X15,M8X17 L=40	8-98009-913-0	01	1	1009-1302
169	BOLT; CLIP SMOOTHER-G(C1W) M8X15,M8X17 L=40	8-98009-913-0	01	1	1303-
220	SENSOR; CLUTCH SMOOTHER-G(C1W) (B)	1-81541-109-0	01	1	1009-1302
220	SENSOR; CLUTCH SMOOTHER-G(C1W) (B)	8-98123-908-0	01	1	1303-
220	SENSOR; CLUTCH MJX12P M/T SMOOTHER-G(Y4S) (A)	1-80250-014-0	01	1	1009-1302
220	SENSOR; CLUTCH SMOOTHER-G(C1W) (A)	1-80250-014-0	01	1	1303-
251	BOLT; SENSOR MJX12P M/T SMOOTHER-G(Y4S) (C) M6X16 FLANGE	0-28650-616-0	02	1	1009-1302
251	BOLT; SENSOR SMOOTHER-G(C1W) (C) M6X16 FLANGE	0-28650-616-0	02	1	1303-
251	BOLT; SENSOR MJX12P M/T SMOOTHER-G(Y4S) (B) M10X25 FLANGE	0-28751-025-0	02	1	1009-
251	BOLT; SENSOR MJX12P M/T SMOOTHER-G(Y4S) (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1009-1302
251	BOLT; SENSOR SMOOTHER-G(C1W) (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1303-
254	BRACKET; CLU SENSOR (A)	1-73998-979-5	01	1	1009-1411
254	BRACKET; CLU SENSOR AIR BAG(TFQ) (A)	1-73998-979-5	01	1	1412-
254	BRACKET; CLU SENSOR MJT7S M/T(Y3E) EXC. AIR BAG(TFQ) (A)	1-73998-979-5	01	1	1412-
254	BRACKET; CLU SENSOR MJX12P M/T SMOOTHER-G(Y4S) (B)	1-31349-076-1	01	1	1009-
261	NUT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	01	1	1009-1302
261	NUT; CLIP SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	01	1	1303-
314	NUT; ROD MJX12P M/T SMOOTHER-G(Y4S) M5	0-91110-505-0	02	1	1009-1302
314	NUT; ROD SMOOTHER-G(C1W) M5	0-91110-505-0	02	1	1303-
317	CLIP; CABLE MJX12P M/T SMOOTHER-G(Y4S) (B) ID=11 L=32	0-95235-065-0	01	1	1009-1302
317	CLIP; CABLE SMOOTHER-G(C1W) (B) ID=11 L=32	0-95235-065-0	01	1	1303-
317	CLIP; CABLE MJX12P M/T SMOOTHER-G(Y4S) (A) L=180	1-09707-162-1	01	1	1009-1302
317	CLIP; CABLE SMOOTHER-G(C1W) (A) L=180	1-09707-162-1	01	1	1303-
317	CLIP; CABLE MJX12P M/T SMOOTHER-G(Y4S) (C) OD=9 H=6	1-09709-178-0	01	1	1009-1302
317	CLIP; CABLE SMOOTHER-G(C1W) (C) OD=9 H=6	1-09709-178-0	01	1	1303-
317	CLIP; CABLE MJX12P M/T SMOOTHER-G(Y4S) (D) ID=5-12 L=14.5	1-09987-221-0	01	1	1009-1302
317	CLIP; CABLE SMOOTHER-G(C1W) (D) ID=5-12 L=14.5	1-09987-221-0	01	1	1303-
318	ROD; CLU MJX12P M/T SMOOTHER-G(Y4S)	0-84100-506-0	01	1	1009-1302
318	ROD; CLU SMOOTHER-G(C1W)	0-84100-506-0	01	1	1303-
321	END; ROD MJX12P M/T SMOOTHER-G(Y4S) (A)	1-09760-103-2	01	1	1009-1302
321	END; ROD SMOOTHER-G(C1W) (A)	1-09760-103-2	01	1	1303-
321	END; ROD MJX12P M/T SMOOTHER-G(Y4S) (B)	1-09760-104-2	01	1	1009-1302
321	END; ROD SMOOTHER-G(C1W) (B)	1-09760-104-2	01	1	1303-
322	NUT; ROD END MJX12P M/T SMOOTHER-G(Y4S) (A) M5	0-91110-505-0	01	1	1009-1302
322	NUT; ROD END SMOOTHER-G(C1W) (A) M5	0-91110-505-0	01	1	1303-
322	NUT; ROD END MJX12P M/T SMOOTHER-G(Y4S) (B) M5 LH THREAD	9-09840-277-0	01	1	1009-1302
322	NUT; ROD END SMOOTHER-G(C1W) (B) M5 LH THREAD	9-09840-277-0	01	1	1303-
349	COVER; SENSOR SMOOTHER-G(C1W)	1-31349-077-0	01	1	1009-
350	NUT; COVER MJX12P M/T SMOOTHER-G(Y4S) M10 FLANGE	0-91180-210-0	01	1	1009-1302
350	NUT; COVER SMOOTHER-G(C1W) M10 FLANGE	0-91180-210-0	01	1	1303-
351	BRACKET; COVER SMOOTHER-G(C1W)	1-31349-078-1	01	1	1009-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
