◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11292 - EXR RHD EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#70077) — 6 parça

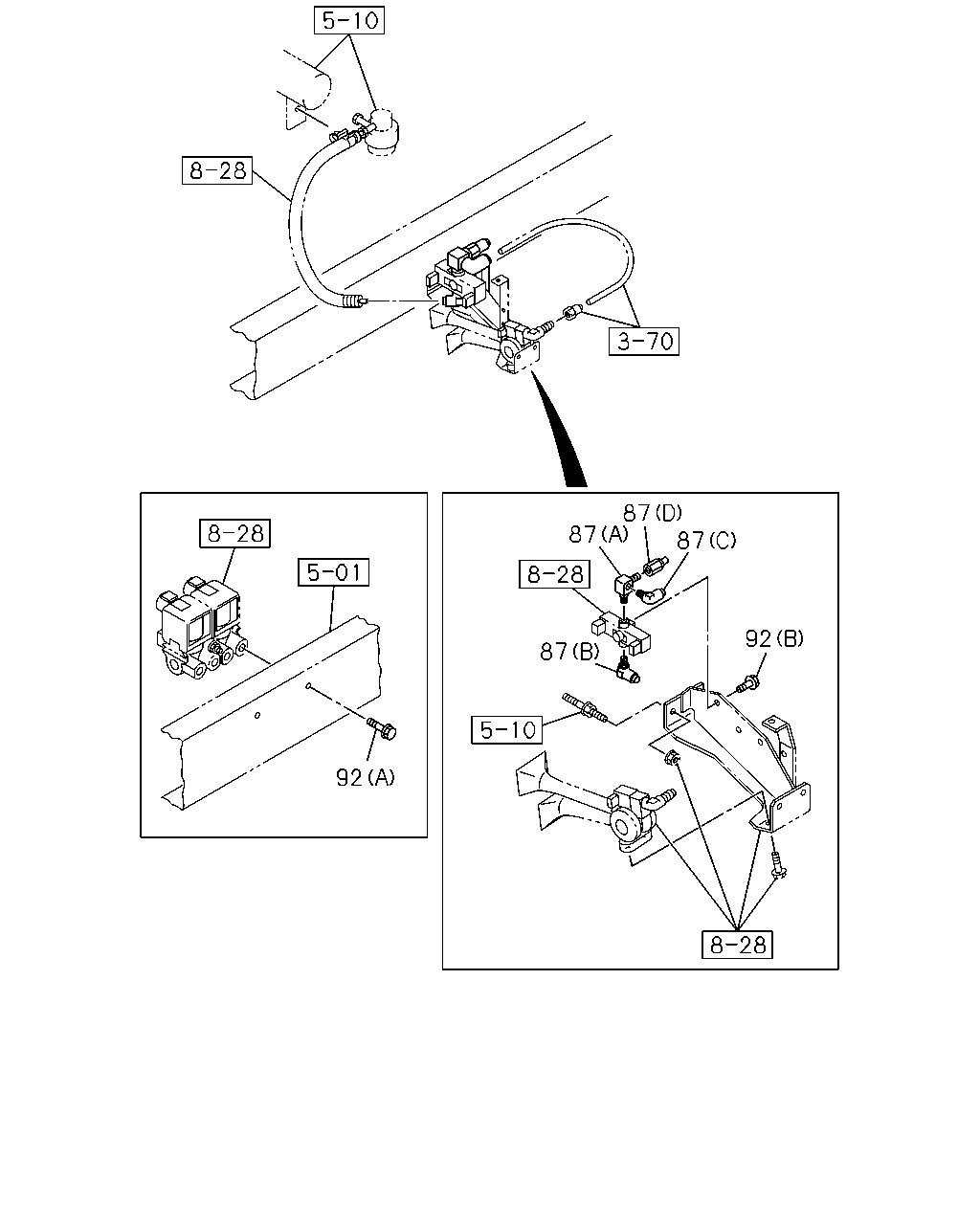

çizim 97178
87 87 87 87 92 92
BalonParca AdiParca NoAdetTipApplied Date
87 CONNECTOR
FULL FLOATING CAB(W16) (A) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 1009-1302
87 CONNECTOR
FULL FLOATING CAB(W16) (B) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 1009-1302
87 CONNECTOR
FULL FLOATING CAB(W16) (C) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1009-1302
87 CONNECTOR
FULL FLOATING CAB(W16) (D) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1009-1302
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> (A) M8X30 FLANGE 		0-28650-830-0 02 1 1009-1302
92 BOLT; MAG VLV
FULL FLOATING CAB(W16) (B) M8X16 FLANGE 		0-28050-816-0 01 1 1009-1302
