◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11292 - EXR RHD EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-55 - EXHAUST BRAKE VALVE AND CONTROL CYLINDER ▶
1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#70076) — 8 parça

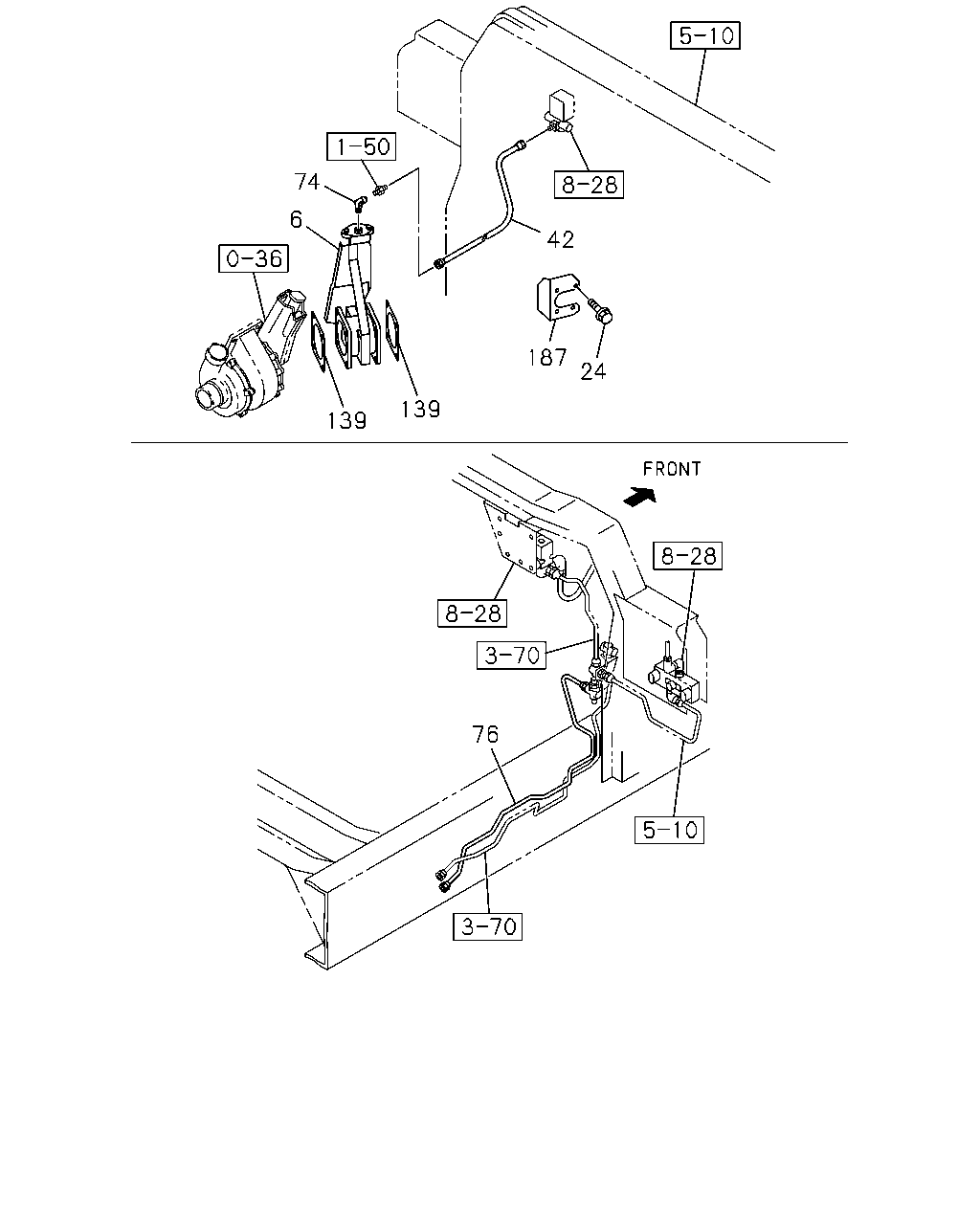

çizim 97169
74 6 42 187 24 139 139 76
BalonParca AdiParca NoAdetTipApplied Date
6 VALVE; EXH BRAKE 8-97629-737-3 01 1 1009-
24 BOLT; COVER
TRANSMISSION CONTROL CABLE TYPE(C1A) M6X16 FLANGE 		0-28050-616-0 04 1 1009-1302
42 HOSE; FLEX,EXH BRK
L=400 		1-09363-743-0 01 1 1009-
74 CONNECTOR; EXH BRK VLV
R1/4 & RC1/4 		1-09664-211-0 01 1 1009-
76 PIPE ASM; AIR UNION TO UNION
L=795 SERVICED BY L=800 		1-47428-812-0 01 1 1009-1302
76 PIPE ASM; AIR UNION TO UNION
L=498 		8-98152-426-0 01 1 1303-
139 GASKET; EXH BRK VLV
ID=100 		1-14145-175-0 02 1 1009-
187 PROTECTOR; EXH BRK VLV
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98121-246-0 01 1 1009-1302
