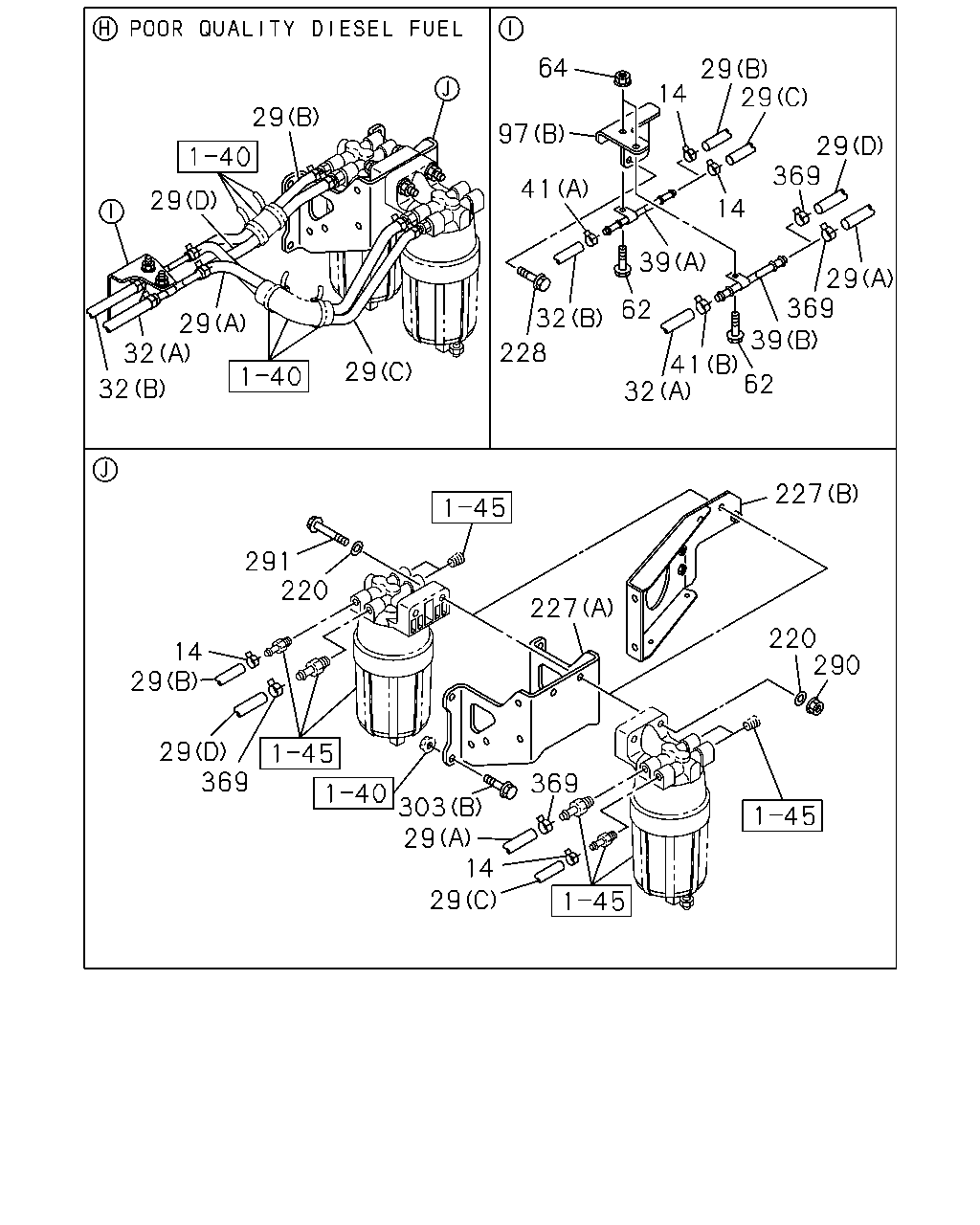

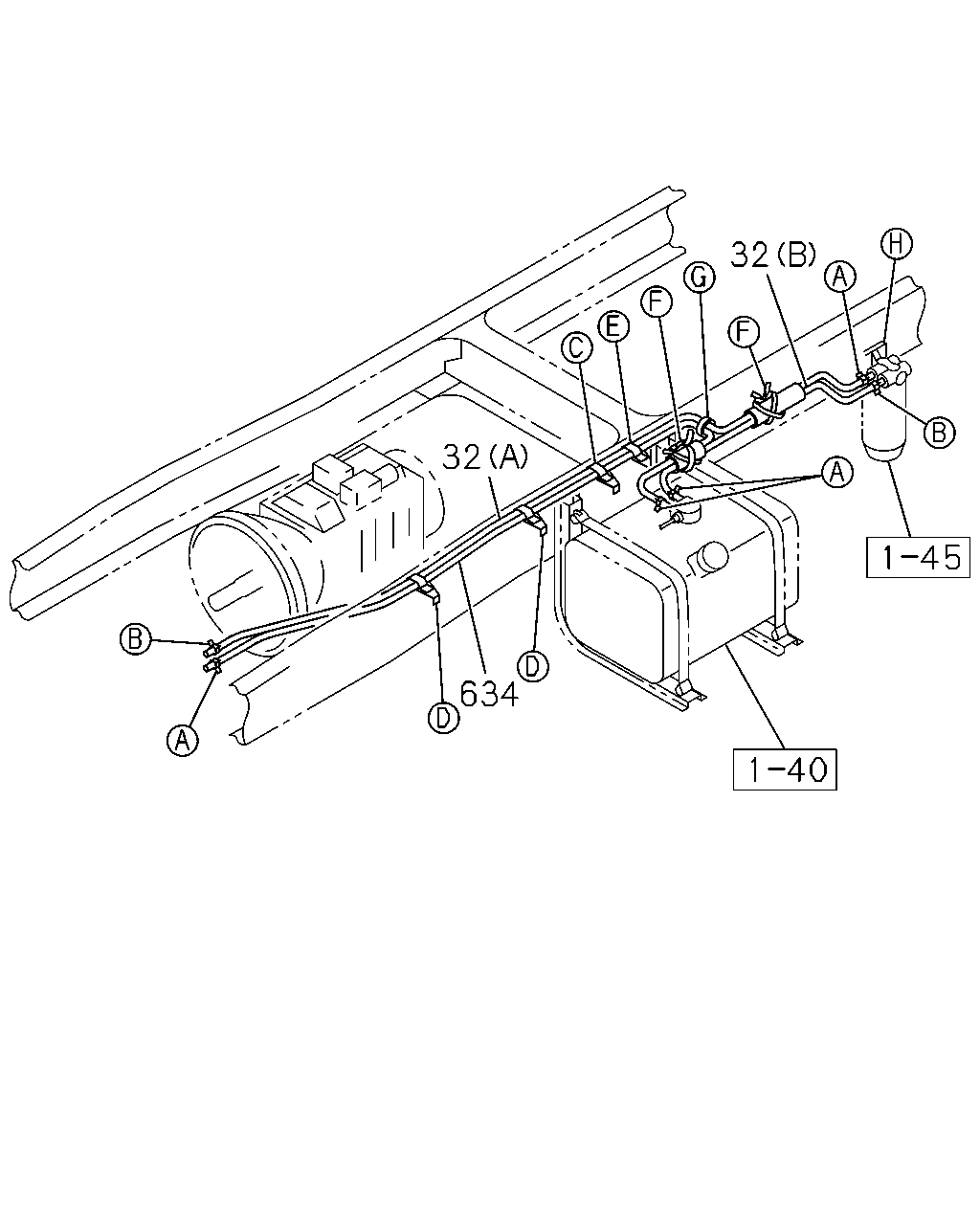

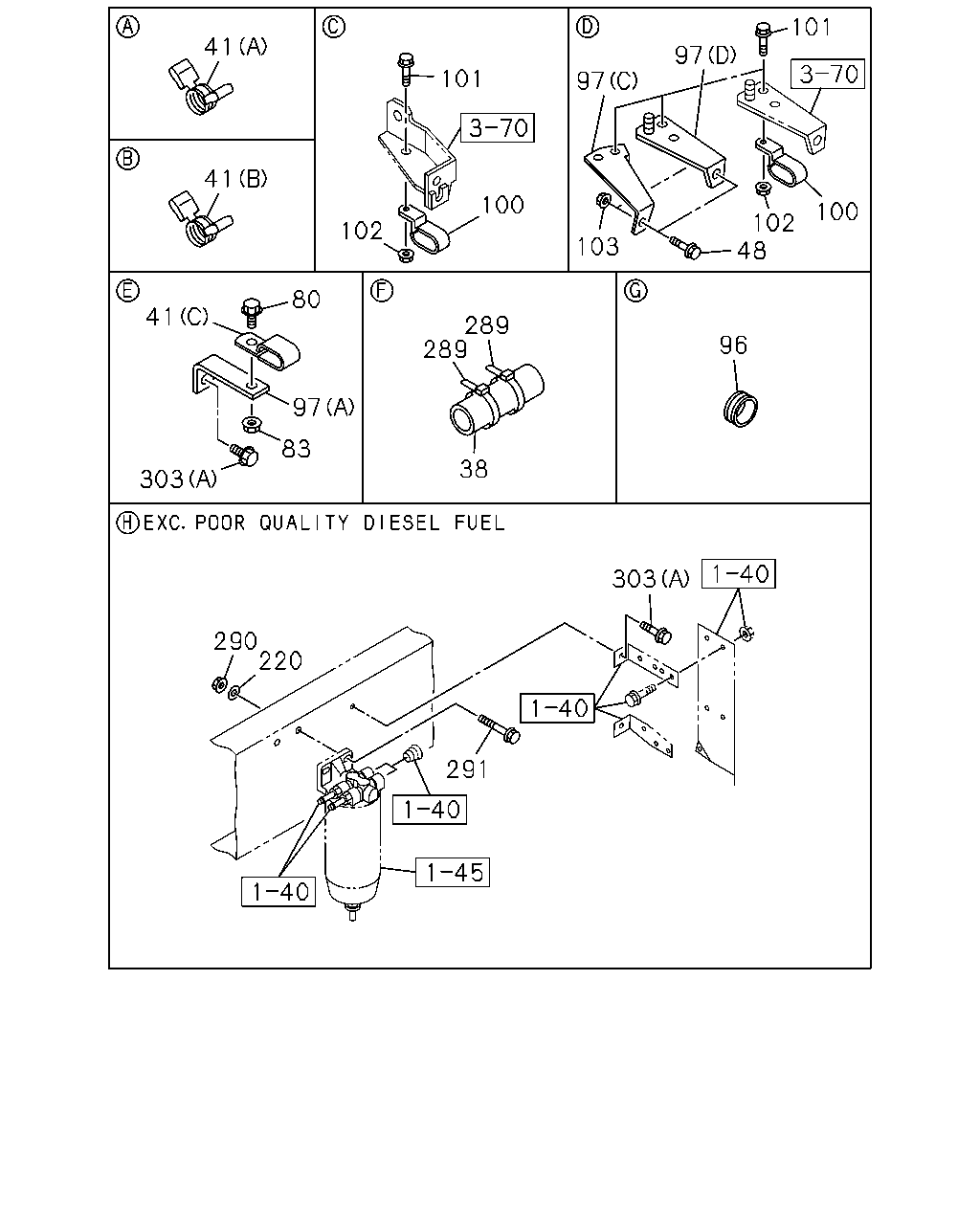

1-41 — FUEL PIPING; CHASSIS (#70073) — 152 parça

41 41 101 97 97 101 102 100 96 48 103 100 102 289 289 38 41 80 97 83 303 290 220 291 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	SLEEVE; RUBBER,RUBBER HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1103-1302
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1009-1102
38	SLEEVE; RUBBER,RUBBER HOSE POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1103-1302
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1303-1411
38	SLEEVE; RUBBER,RUBBER HOSE POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1412-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1009-1302
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1303-1411
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1412-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	1009-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	1009-
48	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1303-1411
48	BOLT; BRKT FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	03	1	1412-
80	BOLT; CLIP,FUEL TANK M8X25 FLANGE	0-28650-825-0	01	1	1009-1302
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	1303-1411
80	BOLT; CLIP,FUEL TANK FUEL TANK 400L<SDH> M8X20 FLANGE	0-28650-820-0	01	1	1412-
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	1009-1411
83	NUT; CLIP,FUEL TANK FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1412-
96	GROMMET; PIPE,FUEL TANK ID=32 OD=40 T=18	1-09891-003-0	01	1	1009-1302
96	GROMMET; PIPE,FUEL TANK ID=39 OD=45 T=19	1-09332-077-0	01	1	1303-
97	BRACKET; CLIP (C)	1-47471-283-0	01	1	1303-
97	BRACKET; CLIP (D)	8-98172-058-0	02	1	1303-1411
97	BRACKET; CLIP FUEL TANK 400L<SDH> (D)	8-98172-058-0	02	1	1412-
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> (B)	8-98186-869-0	01	1	1103-1302
97	BRACKET; CLIP (B)	8-98186-869-0	01	1	1303-1411
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> (B)	8-98186-869-0	01	1	1412-
97	BRACKET; CLIP (A)	1-47475-927-0	01	1	1009-1010
97	BRACKET; CLIP (A) L=68	1-47475-525-0	01	1	1011-1411
97	BRACKET; CLIP FUEL TANK 400L<SDH> (A) L=68	1-47475-525-0	01	1	1412-
100	CLIP; FUEL PIPE ID=19X32 H=17.5 L=22.5	1-09701-315-0	03	1	1009-1411
100	CLIP; FUEL PIPE FUEL TANK 400L<SDH> ID=19X32 H=17.5 L=22.5	1-09701-315-0	03	1	1412-
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28650-825-0	03	1	1009-1302
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28650-820-0	01	1	1303-
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	03	1	1009-1411
102	NUT; CLIP,FUEL PIPE FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	03	1	1412-
103	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1303-
220	WASHER; PL EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	1412-
220	WASHER; PL POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	04	1	1103-1302
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	04	1	1303-1411
220	WASHER; PL POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	04	1	1412-
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	02	1	1009-1102
220	WASHER; PL EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	1103-1302
289	CLIP; BAND,HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	04	1	1103-1302
289	CLIP; BAND,HOSE L=250	5-09707-030-1	04	1	1009-1102
289	CLIP; BAND,HOSE POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	02	1	1103-1302
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	1303-1411
289	CLIP; BAND,HOSE POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	02	1	1412-
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	1009-
291	BOLT; FILER TO BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> M10X60 FLANGE	0-28051-060-0	02	1	1412-
291	BOLT; FILER TO BRKT POOR QUALITY DIESEL FUEL<KF0> M10X90 FLANGE	0-28051-090-0	02	1	1103-1302
291	BOLT; FILER TO BRKT M10X90 FLANGE	0-28051-090-0	02	1	1303-1411
291	BOLT; FILER TO BRKT POOR QUALITY DIESEL FUEL<KF0> M10X90 FLANGE	0-28051-090-0	02	1	1412-
291	BOLT; FILER TO BRKT M10X60 FLANGE	0-28051-060-0	02	1	1009-1102
291	BOLT; FILER TO BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> M10X60 FLANGE	0-28051-060-0	02	1	1103-1302
291	BOLT; FILER TO BRKT POOR QUALITY DIESEL FUEL<KF0> M10X90 FLANGE	0-28051-090-0	02	1	1103-
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10X30 FLANGE	0-28051-030-0	04	1	1103-1302
303	BOLT; BRKT (B) M10X30 FLANGE	0-28051-030-0	04	1	1303-1411
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10X30 FLANGE	0-28051-030-0	04	1	1412-
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1009-1411
303	BOLT; BRKT FUEL TANK 400L<SDH> (A) M8X30 FLANGE	0-28650-830-0	01	1	1412-
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	1009-1102
303	BOLT; BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> (A) M8X30 FLANGE	0-28650-830-0	02	1	1103-1302

32 634 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) L=520 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1302
32	PIPE; DELIVERY,FUEL TANK (B) L=520 SERVICED BY L=3000	0-01260-300-0	01	1	1303-
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A) L=1500 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1302
32	PIPE; DELIVERY,FUEL TANK (A) L=1500 SERVICED BY L=3000	0-01262-300-0	01	1	1303-
32	PIPE; DELIVERY,FUEL TANK (B) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1102
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1302
32	PIPE; DELIVERY,FUEL TANK (A) L=1850 SERVICED BY L=3000	0-01262-300-0	01	1	1009-1102
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=1850 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1302
634	HOSE; RUBBER RETURN L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1411
634	HOSE; RUBBER RETURN FUEL TANK 400L<SDH> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1412-

29 29 29 32 32 29 291 220 14 29 29 369 303 29 14 29 369 227 220 290 227 228 32 62 32 41 39 62 369 39 41 97 64 14 29 14 369 29 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; HOSE POOR QUALITY DIESEL FUEL<KF0> ID=14	1-09704-102-0	04	1	1103-1302
14	CLIP; HOSE ID=14	1-09704-102-0	04	1	1303-1411
14	CLIP; HOSE POOR QUALITY DIESEL FUEL<KF0> ID=14	1-09704-102-0	04	1	1412-
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> (A)	8-98186-821-0	01	1	1103-1302
29	HOSE; FUEL (A)	8-98186-821-0	01	1	1303-1411
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> (A)	8-98186-821-0	01	1	1412-
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> (B) L=310 OD=14.5	8-98188-443-0	01	1	1103-1302
29	HOSE; FUEL (B) L=310 OD=14.5	8-98188-443-0	01	1	1303-1411
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> (B) L=310 OD=14.5	8-98188-443-0	01	1	1412-
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> (D)	8-98188-460-0	01	1	1103-1302
29	HOSE; FUEL (D)	8-98188-460-0	01	1	1303-1411
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> (D)	8-98188-460-0	01	1	1412-
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> (C) L=430 OD=14.5	8-98188-469-0	01	1	1103-1302
29	HOSE; FUEL (C) L=430 OD=14.5	8-98188-469-0	01	1	1303-1411
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> (C) L=430 OD=14.5	8-98188-469-0	01	1	1412-
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) L=520 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1302
32	PIPE; DELIVERY,FUEL TANK (B) L=520 SERVICED BY L=3000	0-01260-300-0	01	1	1303-
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A) L=1500 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1302
32	PIPE; DELIVERY,FUEL TANK (A) L=1500 SERVICED BY L=3000	0-01262-300-0	01	1	1303-
32	PIPE; DELIVERY,FUEL TANK (B) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1102
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1302
32	PIPE; DELIVERY,FUEL TANK (A) L=1850 SERVICED BY L=3000	0-01262-300-0	01	1	1009-1102
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=1850 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1302
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (A)	8-98186-862-1	01	1	1103-1302
39	PIPE; FUEL (A)	8-98186-862-1	01	1	1303-1411
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (A)	8-98186-862-1	01	1	1412-
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (B)	8-98186-864-1	01	1	1103-1302
39	PIPE; FUEL (B)	8-98186-864-1	01	1	1303-1411
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (B)	8-98186-864-1	01	1	1412-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1009-1302
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1303-1411
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1412-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	1009-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	1009-
62	BOLT; CLIP FIX POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE	0-28650-820-0	02	1	1103-1302
62	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	02	1	1303-1411
62	BOLT; CLIP FIX POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE	0-28650-820-0	02	1	1412-
64	NUT; CLIP POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE	0-91180-108-0	02	1	1103-1302
64	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1303-1411
64	NUT; CLIP POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE	0-91180-108-0	02	1	1412-
97	BRACKET; CLIP (C)	1-47471-283-0	01	1	1303-
97	BRACKET; CLIP (D)	8-98172-058-0	02	1	1303-1411
97	BRACKET; CLIP FUEL TANK 400L<SDH> (D)	8-98172-058-0	02	1	1412-
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> (B)	8-98186-869-0	01	1	1103-1302
97	BRACKET; CLIP (B)	8-98186-869-0	01	1	1303-1411
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> (B)	8-98186-869-0	01	1	1412-
97	BRACKET; CLIP (A)	1-47475-927-0	01	1	1009-1010
97	BRACKET; CLIP (A) L=68	1-47475-525-0	01	1	1011-1411
97	BRACKET; CLIP FUEL TANK 400L<SDH> (A) L=68	1-47475-525-0	01	1	1412-
220	WASHER; PL EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	1412-
220	WASHER; PL POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	04	1	1103-1302
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	04	1	1303-1411
220	WASHER; PL POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	04	1	1412-
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	02	1	1009-1102
220	WASHER; PL EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	1103-1302
227	BRACKET; FUEL SEDIMENTER EXC. POOR QUALITY DIESEL FUEL<KF0> (B)	8-98144-957-0	01	1	1412-
227	BRACKET; FUEL SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> (A)	8-98184-813-0	01	1	1103-1302
227	BRACKET; FUEL SEDIMENTER (A)	8-98184-813-0	01	1	1303-1411
227	BRACKET; FUEL SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> (A)	8-98184-813-0	01	1	1412-
228	BOLT; BRKT,SEDIMENTER EXC. POOR QUALITY DIESEL FUEL<KF0> M10X30 FLANGE	0-28051-030-0	02	1	1412-
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> M8X35 FLANGE	0-28650-835-0	02	1	1103-1302
228	BOLT; BRKT,SEDIMENTER M8X35 FLANGE	0-28650-835-0	02	1	1303-1411
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> M8X35 FLANGE	0-28650-835-0	02	1	1412-
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	1009-
291	BOLT; FILER TO BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> M10X60 FLANGE	0-28051-060-0	02	1	1412-
291	BOLT; FILER TO BRKT POOR QUALITY DIESEL FUEL<KF0> M10X90 FLANGE	0-28051-090-0	02	1	1103-1302
291	BOLT; FILER TO BRKT M10X90 FLANGE	0-28051-090-0	02	1	1303-1411
291	BOLT; FILER TO BRKT POOR QUALITY DIESEL FUEL<KF0> M10X90 FLANGE	0-28051-090-0	02	1	1412-
291	BOLT; FILER TO BRKT M10X60 FLANGE	0-28051-060-0	02	1	1009-1102
291	BOLT; FILER TO BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> M10X60 FLANGE	0-28051-060-0	02	1	1103-1302
291	BOLT; FILER TO BRKT POOR QUALITY DIESEL FUEL<KF0> M10X90 FLANGE	0-28051-090-0	02	1	1103-
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10X30 FLANGE	0-28051-030-0	04	1	1103-1302
303	BOLT; BRKT (B) M10X30 FLANGE	0-28051-030-0	04	1	1303-1411
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10X30 FLANGE	0-28051-030-0	04	1	1412-
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1009-1411
303	BOLT; BRKT FUEL TANK 400L<SDH> (A) M8X30 FLANGE	0-28650-830-0	01	1	1412-
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	1009-1102
303	BOLT; BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> (A) M8X30 FLANGE	0-28650-830-0	02	1	1103-1302
369	CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> ID=19	8-94238-569-0	04	1	1103-1302
369	CLAMP; HOSE,FUEL ID=19	8-94238-569-0	04	1	1303-1411
369	CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> ID=19	8-94238-569-0	04	1	1412-
