1 |

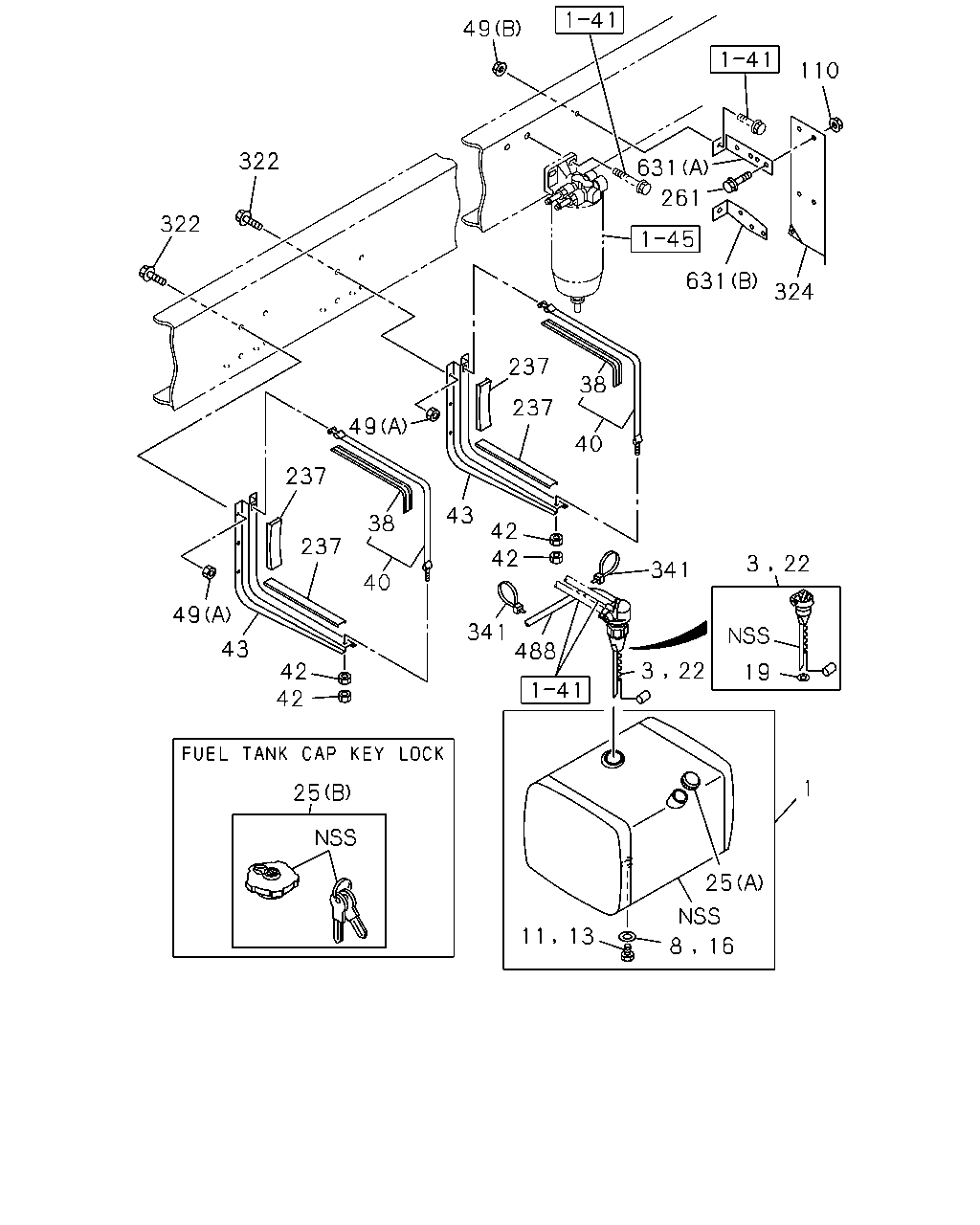

TANK; FUEL
1050X680X625 400L
|
1-87411-699-1 |
01 |
1 |
1009-1109 |
| |
1 |
TANK; FUEL
1050X680X625 400L
|
1-87411-788-3 |
01 |
1 |
1110-1411 |
| |
1 |
TANK; FUEL
FUEL TANK 400L<SDH>
1050X680X625 400L
|
1-87411-788-3 |
01 |
1 |
1412- |
| |
3 |
UNIT; FUEL TANK,SUB
|
8-98217-749-0 |
01 |
1 |
1211-1411 |
| |
3 |
UNIT; FUEL TANK,SUB
FUEL TANK 400L<SDH>
|
8-98217-749-0 |
01 |
1 |
1412- |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
ID=18.2 T=1.6
|
8-98030-453-0 |
01 |
1 |
1211-1411 |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 400L<SDH>
ID=18.2 T=1.6
|
8-98030-453-0 |
01 |
1 |
1412- |
| |
11 |
PLUG; DRAIN,FUEL TANK
M18X12
|
0-92002-418-0 |
01 |
1 |
1211-1411 |
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 400L<SDH>
M18X12
|
0-92002-418-0 |
01 |
1 |
1412- |
| |
13 |
PLUG; SCREW,SUB TANK JOINT
M18X12
|
0-92002-418-0 |
01 |
1 |
1009-1210 |
| |
16 |
GASKET; PLUG
ID=18.2 T=1.6
|
8-98030-453-0 |
01 |
1 |
1009-1210 |
| |
19 |
GASKET; FUEL TANK UNIT
ID=54.5
|
8-98299-580-0 |
01 |
1 |
1303-1411 |
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 400L<SDH>
ID=54.5
|
8-98299-580-0 |
01 |
1 |
1412- |
| |
19 |
GASKET; FUEL TANK UNIT
ID=58
|
1-83149-005-0 |
01 |
1 |
1009-1210 |
| |
22 |
UNIT; FUEL TANK
|
1-83141-132-0 |
01 |
1 |
1009-1210 |
| |
25 |
CAP; FILLER,FUEL TANK
(A)
|
8-98115-780-0 |
01 |
1 |
1009-1109 |
| |
25 |
CAP; FILLER,FUEL TANK
(A)
|
8-98182-306-0 |
01 |
1 |
1110-1411 |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 400L<SDH>
(A)
|
8-98182-306-0 |
01 |
1 |
1412- |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK CAP KEY LOCK<N05>
(B)
|
8-98108-595-0 |
01 |
1 |
1009-1302 |
| |
25 |
CAP; FILLER,FUEL TANK
(B)
|
8-98108-595-0 |
01 |
1 |
1303- |
| |
38 |
INSULATION; SUPPORT BELT
L=1156
|
1-22553-039-1 |
02 |
1 |
1009-1411 |
| |
38 |
INSULATION; SUPPORT BELT
FUEL TANK 400L<SDH>
L=1156
|
1-22553-039-1 |
02 |
1 |
1412- |
| |
40 |
BELT; SUPPORT,FUEL TANK
L=1210
|
1-22550-261-0 |
02 |
1 |
1009-1110 |
| |
40 |
BELT; SUPPORT,FUEL TANK
L=1210
|
8-98202-448-0 |
02 |
1 |
1111-1411 |
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 400L<SDH>
L=1210
|
8-98202-448-0 |
02 |
1 |
1412- |
| |
42 |
NUT; SUPPORT BELT
M10
|
0-91110-510-0 |
04 |
1 |
1009-1411 |
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 400L<SDH>
M10
|
0-91110-510-0 |
04 |
1 |
1412- |
| |
43 |
BRACKET; FUEL TANK
|
1-53461-525-1 |
02 |
1 |
1009-1411 |
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 400L<SDH>
|
1-53461-525-1 |
02 |
1 |
1412- |
| |
49 |
NUT; BRKT
POOR QUALITY DIESEL FUEL<KF0>
(C)
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1103-1302 |
| |
49 |
NUT; BRKT
(C)
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1303-1411 |
| |
49 |
NUT; BRKT
POOR QUALITY DIESEL FUEL<KF0>
(C)
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1412- |
| |
49 |
NUT; BRKT
(A)
M12
|
0-91110-512-0 |
12 |
1 |
1009-1302 |
| |
49 |
NUT; BRKT
(A)
M12
|
0-91110-512-0 |
08 |
1 |
1303-1411 |
| |
49 |
NUT; BRKT
FUEL TANK 400L<SDH>
(A)
M12
|
0-91110-512-0 |
08 |
1 |
1412- |
| |
49 |
NUT; BRKT
(B)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1009-1102 |
| |
49 |
NUT; BRKT
EXC. POOR QUALITY DIESEL FUEL<KF0>
(B)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1103-1302 |
| |
110 |
NUT; PROTECTOR
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
1009-1102 |
| |
110 |
NUT; PROTECTOR
EXC. POOR QUALITY DIESEL FUEL<KF0>
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
1103-1302 |
| |
237 |
GASKET; BRKT TO FUEL TANK
|
1-22553-037-1 |
04 |
1 |
1009-1411 |
| |
237 |
GASKET; BRKT TO FUEL TANK
FUEL TANK 400L<SDH>
|
1-22553-037-1 |
04 |
1 |
1412- |
| |
261 |
BOLT; PROTECTOR
EXC. POOR QUALITY DIESEL FUEL<KF0>
M8X20 FLANGE
|
0-28050-820-0 |
03 |
1 |
1412- |
| |
261 |
BOLT; PROTECTOR
M8X20 FLANGE
|
0-28650-820-0 |
04 |
1 |
1009-1102 |
| |
261 |
BOLT; PROTECTOR
EXC. POOR QUALITY DIESEL FUEL<KF0>
M8X20 FLANGE
|
0-28650-820-0 |
04 |
1 |
1103-1302 |
| |
322 |
BOLT; BRKT FIX
M12X40 FLANGE
|
0-28051-240-0 |
12 |
1 |
1009-1411 |
| |
322 |
BOLT; BRKT FIX
FUEL TANK 400L<SDH>
M12X40 FLANGE
|
0-28051-240-0 |
12 |
1 |
1412- |
| |
324 |

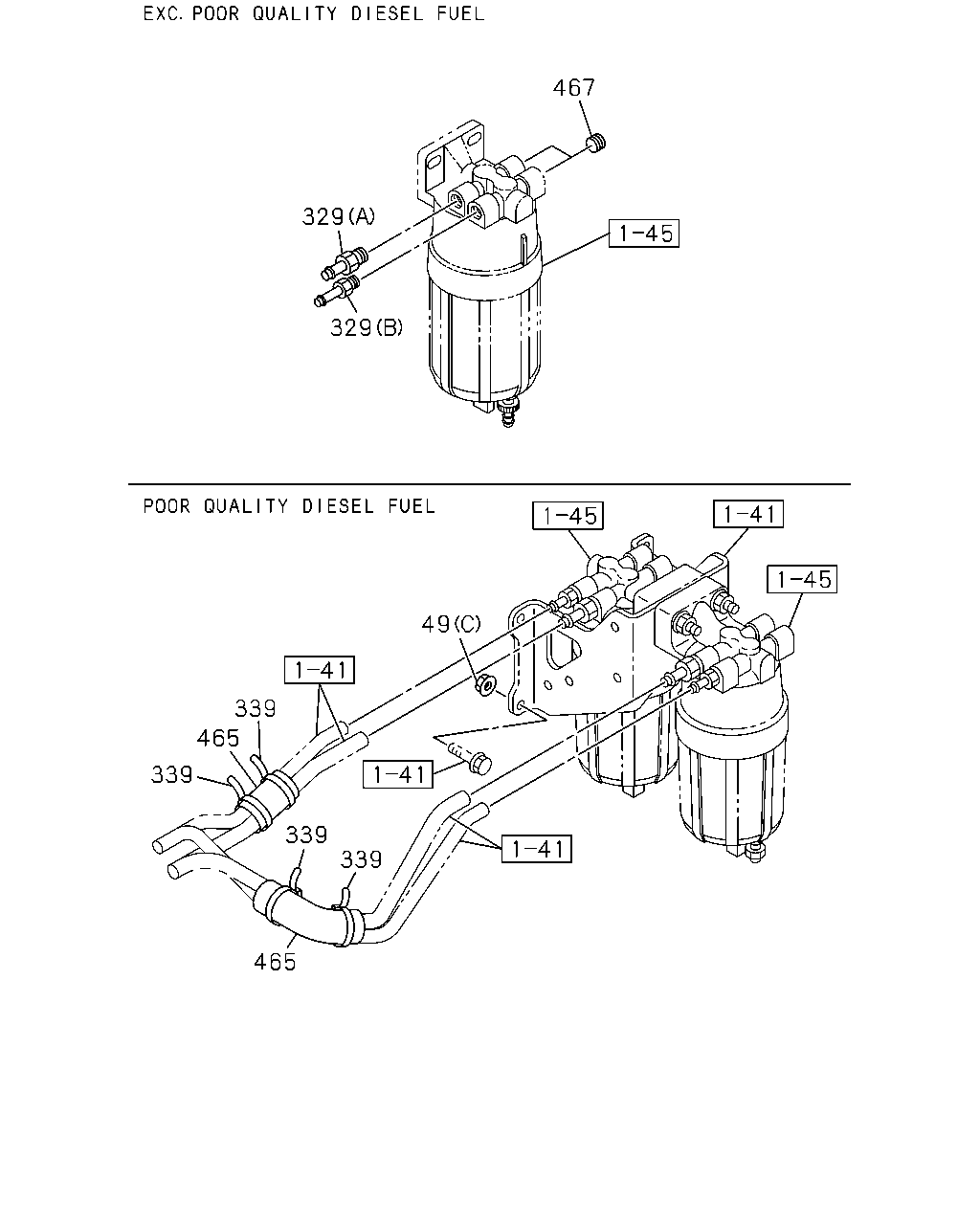

PROTECTOR; FUEL SEDIMENTER
EXC. POOR QUALITY DIESEL FUEL<KF0>
|
8-98147-923-1 |
01 |
1 |
1412- |
| |
324 |
PROTECTOR; FUEL SEDIMENTER
|
1-47471-216-0 |
01 |
1 |
1009-1102 |
| |
324 |
PROTECTOR; FUEL SEDIMENTER
EXC. POOR QUALITY DIESEL FUEL<KF0>
|
1-47471-216-0 |
01 |
1 |
1103-1302 |
| |
341 |
CLIP; BAND,RUBBER HOSE
L=350
|
1-09707-183-0 |
02 |
1 |
1303- |
| |
488 |
HOSE; RUBBER
|
8-98134-936-0 |
01 |
1 |
1303-1411 |
| |
488 |
HOSE; RUBBER
FUEL TANK 400L<SDH>
|
8-98134-936-0 |
01 |
1 |
1412- |
| |
631 |
BRACKET; PROTECTOR
(A)
|
1-82698-358-0 |
01 |
1 |
1009-1102 |
| |
631 |
BRACKET; PROTECTOR
EXC. POOR QUALITY DIESEL FUEL<KF0>
(A)
|
1-82698-358-0 |
01 |
1 |
1103-1302 |
| |
631 |
BRACKET; PROTECTOR
(B)
|
1-82698-625-0 |
01 |
1 |
1009-1102 |
| |
631 |
BRACKET; PROTECTOR
EXC. POOR QUALITY DIESEL FUEL<KF0>
(B)
|
1-82698-625-0 |
01 |
1 |
1103-1302 |
