Isuzu WW
▶
TRUCKS
▶
EXR
▶
11292 - EXR RHD EURO5
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶

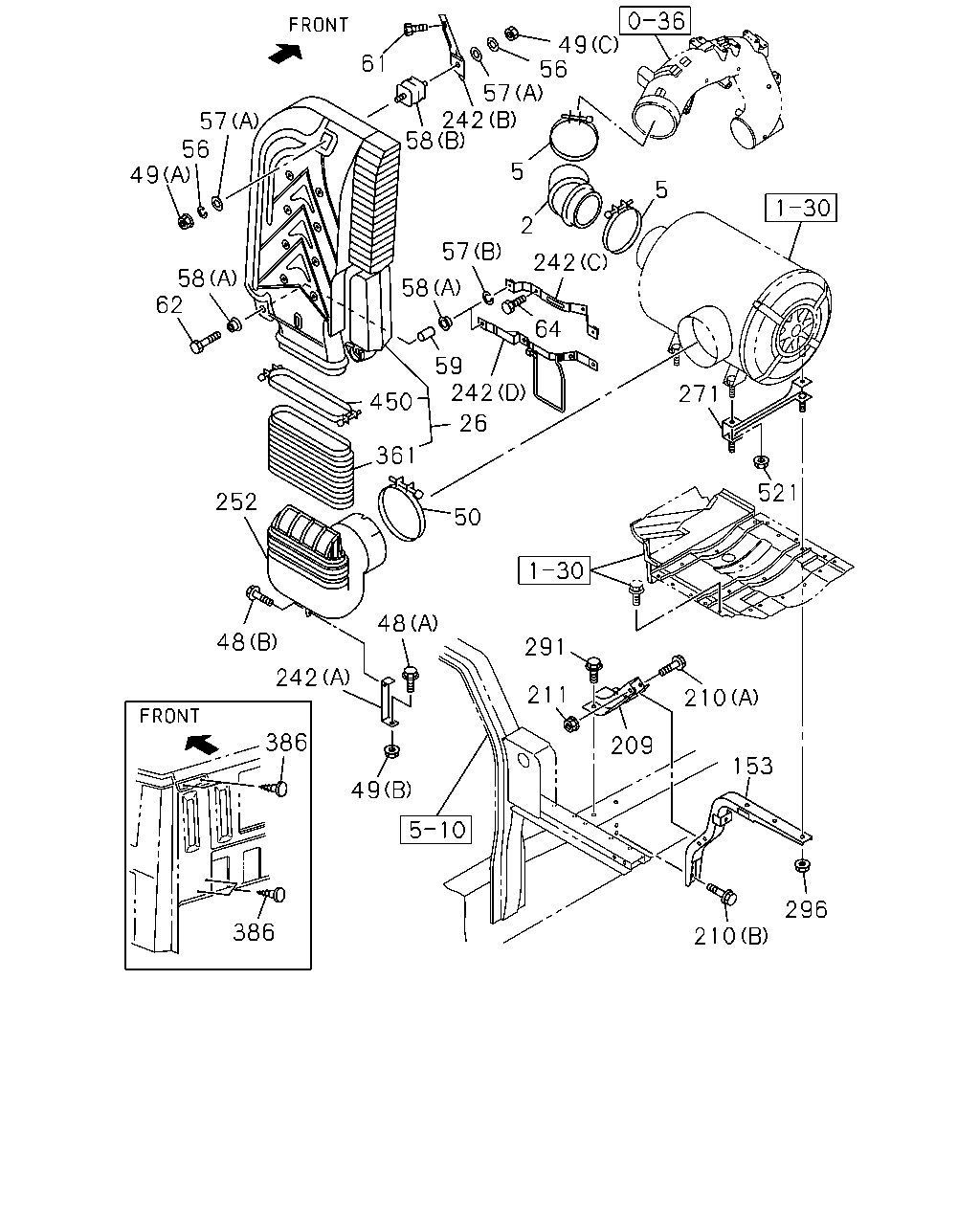

1-31 — AIR DUCT
(#70070) — 39 parça
61
57
56
49
58
62
57
242
58
56
49
5
5
2
57
242
64
58
59
450
361
50
252
48
242
48
49
386
386
210
153
296
210
209
211
291
521
271
26
242
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOSE; ACL
8-98168-974-0
01
1
1009-
5
CLIP; AIR DUCT
ID=130-169
1-09707-157-0
02
1
1009-
26
DUCT; AIR INT
8-98122-904-2
01
1
1009-
48
BOLT; AIR DUCT
(B) M8X25 FLANGE
0-28650-825-0
01
1
1009-
48
BOLT; AIR DUCT
(A) M10X25 FLANGE
0-28651-025-0
01
1
1009-
49
NUT; AIR DUCT
(B) M10 FLANGE
0-91180-210-0
01
1
1009-
49
NUT; AIR DUCT
(C) M8 FLANGE
1-09984-122-0
01
1
1009-
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-126-0
01
1
1009-
50
CLIP; JOINT HOSE
ID=183.5
1-09707-098-2
01
1
1009-
56
WASHER; LK,AIR INT DUCT
ID=8.2
1-09985-177-0
02
1
1009-
57
WASHER; PL,AIR INT DUCT
(A) ID=8.4 OD=22
1-09985-188-0
02
1
1009-
57
WASHER; PL,AIR INT DUCT
GRIP OUT SIDE<W52> (B) ID=10.5 OD=26 T=2.6
1-09985-184-0
02
1
1009-1302
57
WASHER; PL,AIR INT DUCT
(B) ID=10.5 OD=26 T=2.6
1-09985-184-0
02
1
1303-
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
1009-
58
SUPPORT; AIR INL DUCT
GRIP OUT SIDE<W52> (B)
8-98125-944-1
01
1
1009-1302
58
SUPPORT; AIR INL DUCT
(B)
8-98125-944-1
01
1
1303-
58
SUPPORT; AIR INL DUCT
EXC. GRIP OUT SIDE<W52> (B)
8-97080-149-0
01
1
1009-1302
59
TUBE; DIST,AIR INT DUCT
1-79998-228-0
02
1
1009-
61
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
8-98074-570-0
02
1
1009-
62
BOLT; AIR INT DUCT
M10X60
1-09030-044-1
02
1
1009-
64
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
8-98074-570-0
02
1
1009-
153
BRACKET; ACL,FRT
1-53419-299-0
01
1
1009-
209
BRACKET; ACL
1-53419-276-0
01
1
1009-
210
BOLT; ACL BRKT
(A) M8X70 FLANGE
0-28050-870-0
02
1
1009-
210
BOLT; ACL BRKT
(B) M12X30 FLANGE
0-28051-230-0
01
1
1009-
211
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1009-
242
BRACKET; AIR DUCT
(A)
1-23957-006-0
01
1
1009-
242
BRACKET; AIR DUCT
(B)
1-53419-325-1
01
1
1009-
242
BRACKET; AIR DUCT
GRIP OUT SIDE<W52> (C)
8-98113-588-1
01
1
1009-1302
242
BRACKET; AIR DUCT
(C)
8-98113-588-1
01
1
1303-
242
BRACKET; AIR DUCT
EXC. GRIP OUT SIDE<W52> (D)
8-98041-993-1
01
1
1009-1302
252
DUCT; AIR INT
1-14230-194-0
01
1
1009-
271
SPACER; BRKT,ACL
1-53419-343-1
02
1
1009-
291
BOLT; ACL
M12X30 FLANGE
0-28051-230-0
02
1
1009-
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
1009-
361
RUBBER; CUSHION,AIR DUCT
1-14230-149-2
01
1
1009-
386
PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5
1-76378-157-0
04
1
1009-
450
CLAMP; HOSE
1-14239-237-0
01
1
1009-
521
NUT; SPACER
M8 FLANGE
0-91180-108-0
04
1
1009-
