Sayfa 0-61 - Isuzu EPC

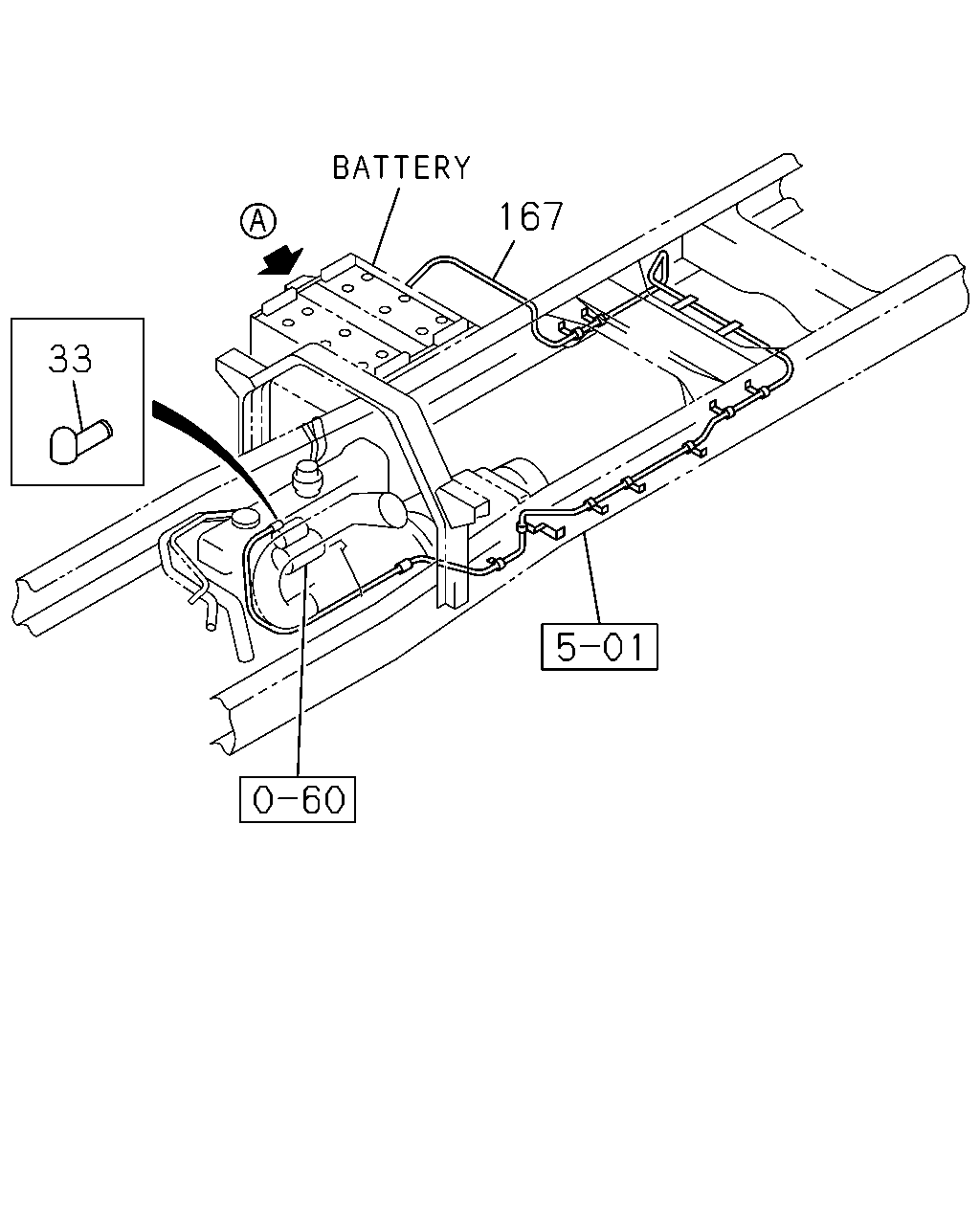

33 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	CAP; INSULATOR	8-97181-965-0	01	1	1009-
167	CABLE; BATTERY RELAY TO STARTER SMOOTHER-G(C1W) BRAKE SYSTEM RETARDER<RE2>	8-97632-938-0	01	1	1009-1302
167	CABLE; BATTERY RELAY TO STARTER	8-98233-073-0	01	1	1303-
167	CABLE; BATTERY RELAY TO STARTER SMOOTHER-G(C1W) EXC. BRAKE SYSTEM RETARDER<RE2>	8-97632-936-0	01	1	1009-1302
167	CABLE; BATTERY RELAY TO STARTER EXC. SMOOTHER-G(C1W)	8-97632-937-0	01	1	1009-1302

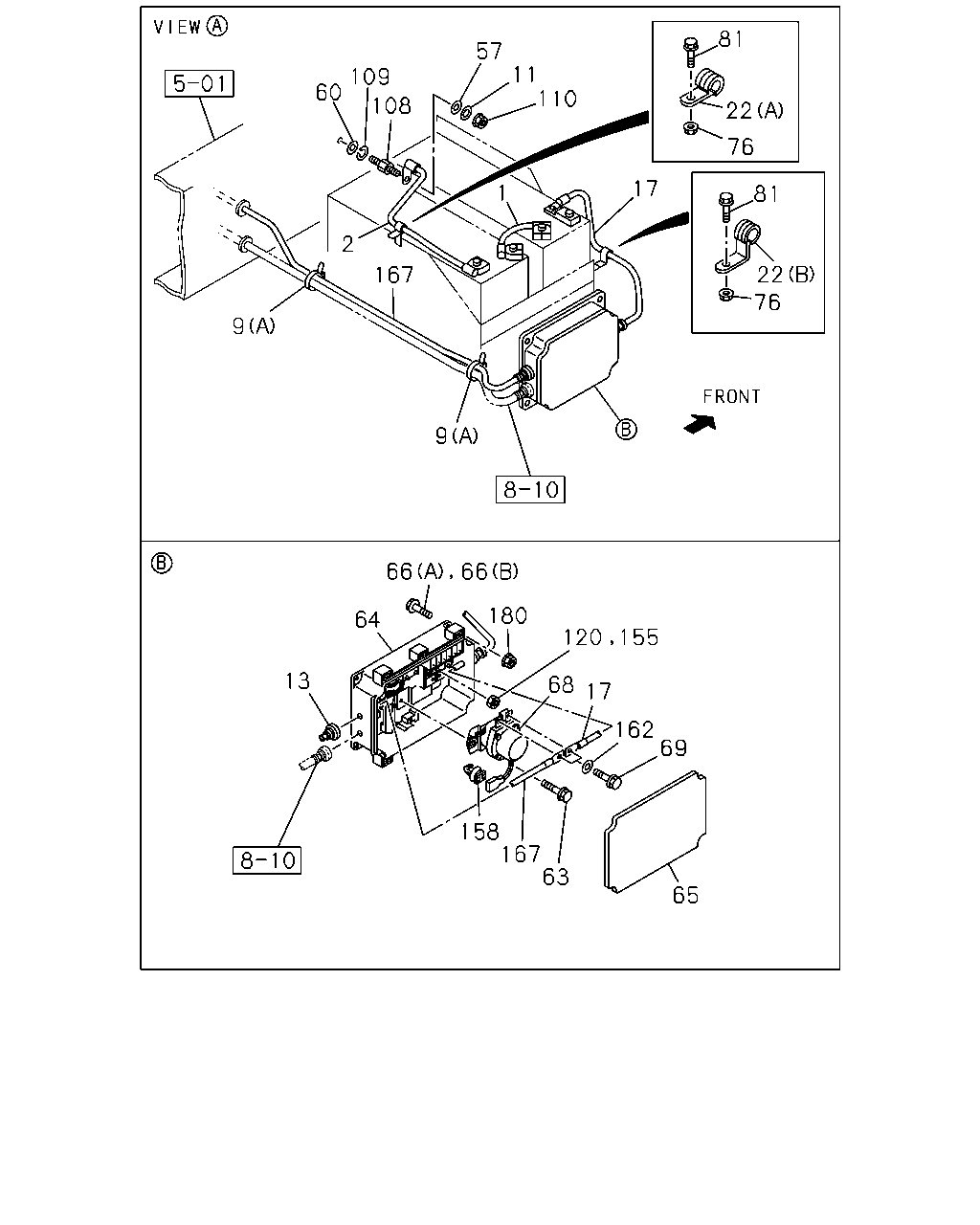

60 109 57 110 11 17 81 22 76 81 22 76 9 9 167 2 108 66 66 180 120 155 162 69 65 63 167 158 68 17 64 13 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; BATTERY BATTERY CABLE W/TERMINAL CAP<ECQ> BATTERY 115F51 N120<SJ3> L=265	1-82650-390-1	01	1	1009-1302
1	CABLE; BATTERY L=265	1-82650-390-1	01	1	1303-
1	CABLE; BATTERY BATTERY CABLE W/TERMINAL CAP<ECQ> BATTERY 145G51 N150<SJ8> L=450	1-82650-391-1	01	1	1009-1302
1	CABLE; BATTERY BATTERY 115F51 N120<SJ3> EXC. BATTERY CABLE W/TERMINAL CAP<ECQ> L=265	1-82650-388-1	01	1	1009-1302
1	CABLE; BATTERY BATTERY 145G51 N150<SJ8> EXC. BATTERY CABLE W/TERMINAL CAP<ECQ> L=450	1-82650-389-1	01	1	1009-1302
2	CABLE; BATTERY BATTERY CABLE W/TERMINAL CAP<ECQ> L=720	1-82650-386-1	01	1	1009-1302
2	CABLE; BATTERY L=710	8-98228-697-0	01	1	1303-
2	CABLE; BATTERY EXC. BATTERY CABLE W/TERMINAL CAP<ECQ> L=720	1-82650-384-1	01	1	1009-1302
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	01	1	1009-
9	CLIP; BATTERY CABLE (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-1302
9	CLIP; BATTERY CABLE BRAKE SYSTEM RETARDER<RE2> (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-1302
9	CLIP; BATTERY CABLE (B) ID=21 L=30 H=40	1-09700-991-1	01	1	1009-
9	CLIP; BATTERY CABLE (D) ID=18 L=28	1-09701-067-0	02	1	1009-
9	CLIP; BATTERY CABLE (F) ID=21 L=24	8-94176-807-1	02	1	1009-
9	CLIP; BATTERY CABLE BRAKE SYSTEM RETARDER<RE2> (E) ID=18 L=28 H=30	1-09701-110-0	02	1	1009-1302
9	CLIP; BATTERY CABLE (E) ID=18 L=28 H=30	1-09701-110-0	03	1	1303-
9	CLIP; BATTERY CABLE EXC. BRAKE SYSTEM RETARDER<RE2> (E) ID=18 L=28 H=30	1-09701-110-0	03	1	1009-1302
9	CLIP; BATTERY CABLE (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1303-
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	1009-
13	GROMMET; BATTERY CABLE ID=26	1-09333-140-0	01	1	1009-
17	CABLE; BATTERY (+) TO RELAY BATTERY CABLE W/TERMINAL CAP<ECQ> L=640	1-82652-762-3	01	1	1009-1302
17	CABLE; BATTERY (+) TO RELAY L=480	8-98228-696-0	01	1	1303-1303
17	CABLE; BATTERY (+) TO RELAY L=480	8-98239-411-0	01	1	1303-
17	CABLE; BATTERY (+) TO RELAY EXC. BATTERY CABLE W/TERMINAL CAP<ECQ> L=640	1-82652-760-3	01	1	1009-1302
22	CLIP; BATTERY CABLE (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-
22	CLIP; BATTERY CABLE (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1009-1302
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	1009-1302
22	CLIP; BATTERY CABLE (C) ID=11 & 13 H=26 L=48	1-09701-270-0	02	1	1009-1302
22	CLIP; BATTERY CABLE (C) ID=11 & 13 H=26 L=48	1-09701-270-0	03	1	1303-
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	1009-1302
57	WASHER; PL,BATTERY CABLE ID=6.4	0-91614-506-0	01	1	1303-
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	1009-
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1009-
64	BOX; BATTERY RELAY SMOOTHER-G(C1W)	1-82510-650-0	01	1	1009-
64	BOX; BATTERY RELAY EXC. SMOOTHER-G(C1W)	1-82510-648-0	01	1	1009-
65	COVER; BATTERY RELAY	1-82510-654-1	01	1	1009-
66	BOLT; COVER,BATTERY RELAY (A) M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	1009-1302
66	BOLT; COVER,BATTERY RELAY (B) M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1303-
68	RELAY; BATTERY	1-82550-313-0	01	1	1009-
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	1009-
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	02	1	1009-1302
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	03	1	1303-
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	03	1	1009-1302
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	02	1	1303-
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	1009-
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	1009-
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	1009-
120	NUT; RELAY BATTERY M8 FLANGE	0-91180-108-0	01	1	1009-1302
120	NUT; RELAY BATTERY M8 FLANGE	0-91180-108-0	02	1	1303-
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	1009-
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	1009-
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	1009-
167	CABLE; BATTERY RELAY TO STARTER SMOOTHER-G(C1W) BRAKE SYSTEM RETARDER<RE2>	8-97632-938-0	01	1	1009-1302
167	CABLE; BATTERY RELAY TO STARTER	8-98233-073-0	01	1	1303-
167	CABLE; BATTERY RELAY TO STARTER SMOOTHER-G(C1W) EXC. BRAKE SYSTEM RETARDER<RE2>	8-97632-936-0	01	1	1009-1302
167	CABLE; BATTERY RELAY TO STARTER EXC. SMOOTHER-G(C1W)	8-97632-937-0	01	1	1009-1302
180	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	1009-1302
180	NUT; COVER M8 FLANGE	0-91180-108-0	04	1	1303-

9 9 18 22 22 99 9 9 22 9 22 9 158 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	01	1	1009-
9	CLIP; BATTERY CABLE (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-1302
9	CLIP; BATTERY CABLE BRAKE SYSTEM RETARDER<RE2> (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-1302
9	CLIP; BATTERY CABLE (B) ID=21 L=30 H=40	1-09700-991-1	01	1	1009-
9	CLIP; BATTERY CABLE (D) ID=18 L=28	1-09701-067-0	02	1	1009-
9	CLIP; BATTERY CABLE (F) ID=21 L=24	8-94176-807-1	02	1	1009-
9	CLIP; BATTERY CABLE BRAKE SYSTEM RETARDER<RE2> (E) ID=18 L=28 H=30	1-09701-110-0	02	1	1009-1302
9	CLIP; BATTERY CABLE (E) ID=18 L=28 H=30	1-09701-110-0	03	1	1303-
9	CLIP; BATTERY CABLE EXC. BRAKE SYSTEM RETARDER<RE2> (E) ID=18 L=28 H=30	1-09701-110-0	03	1	1009-1302
9	CLIP; BATTERY CABLE (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1303-
18	CLIP; BATTERY CABLE ID=21 L=24	8-94176-807-1	01	1	1009-
22	CLIP; BATTERY CABLE (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-
22	CLIP; BATTERY CABLE (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1009-1302
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	1009-1302
22	CLIP; BATTERY CABLE (C) ID=11 & 13 H=26 L=48	1-09701-270-0	02	1	1009-1302
22	CLIP; BATTERY CABLE (C) ID=11 & 13 H=26 L=48	1-09701-270-0	03	1	1303-
99	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	02	1	1009-
99	CLIP; BATTERY CABLE (B) ID=18 L=25 H=50	1-09701-096-0	02	1	1009-
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	1009-

64 208 208 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	BOX; BATTERY RELAY SMOOTHER-G(C1W)	1-82510-650-0	01	1	1009-
64	BOX; BATTERY RELAY EXC. SMOOTHER-G(C1W)	1-82510-648-0	01	1	1009-
208	FUSE (C) 80A	1-82516-031-0	01	1	1009-
208	FUSE (B) 100A	1-82516-032-0	01	1	1009-
208	FUSE SMOOTHER-G(C1W) (A) 40A GREEN	8-94468-662-0	06	1	1009-
208	FUSE EXC. SMOOTHER-G(C1W) (A) 40A GREEN	8-94468-662-0	05	1	1009-

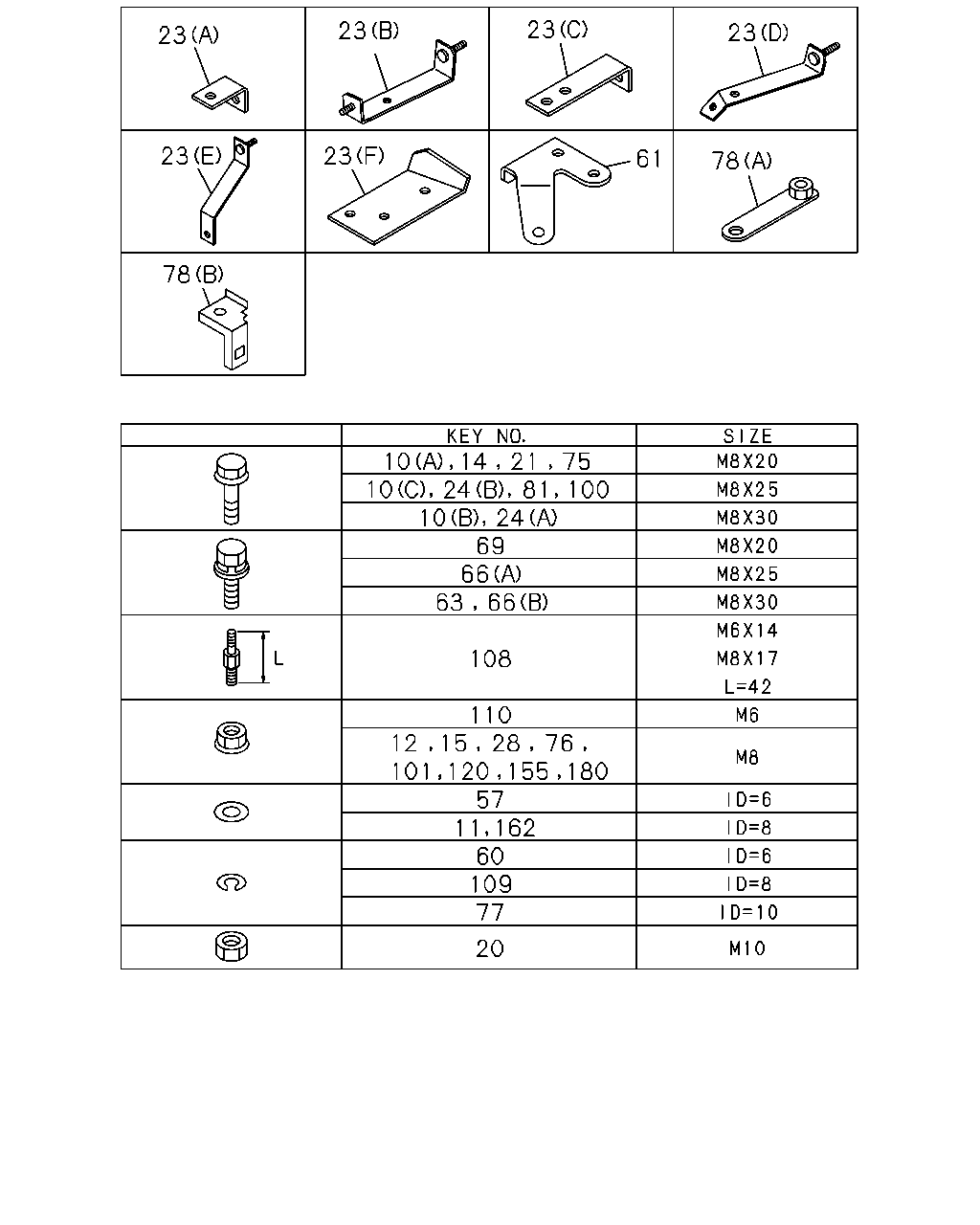

23 23 23 23 61 78 23 23 78 10 14 21 75 10 24 81 100 10 24 69 66 63 66 108 110 12 15 28 76 101 120 155 180 57 11 162 60 109 77 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	BOLT; BATTERY CABLE CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	1009-1302
10	BOLT; BATTERY CABLE CLIP (C) M8X25 FLANGE	0-28650-825-0	04	1	1303-
10	BOLT; BATTERY CABLE CLIP (B) M8X30 FLANGE	0-28650-830-0	03	1	1009-
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	1009-
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	08	1	1009-
14	BOLT; BRKT CLIP M8X20 FLANGE	0-28650-820-0	01	1	1009-1302
14	BOLT; BRKT CLIP M8X20 FLANGE	0-28650-820-0	03	1	1303-1303
14	BOLT; BRKT CLIP M8X20 FLANGE	0-28650-820-0	01	1	1303-
15	NUT; BRKT CLIP M8 FLANGE	0-91180-108-0	01	1	1303-1303
20	NUT; STARTER CABLE M10	8-98011-328-0	01	1	1009-
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28650-820-0	01	1	1009-
23	BRACKET; CABLE CLIP TO FRAME (A) L=40	1-47478-410-0	01	1	1009-
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82698-557-0	01	1	1009-
23	BRACKET; CABLE CLIP TO FRAME (D)	1-82698-574-0	01	1	1009-
23	BRACKET; CABLE CLIP TO FRAME (E)	1-82698-575-1	01	1	1009-
23	BRACKET; CABLE CLIP TO FRAME (B)	1-82698-589-0	01	1	1009-
23	BRACKET; CABLE CLIP TO FRAME (F)	8-98062-598-0	01	1	1009-
24	BOLT; BRKT TO FRAME (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-1302
24	BOLT; BRKT TO FRAME (B) M8X25 FLANGE	0-28650-825-0	02	1	1303-
24	BOLT; BRKT TO FRAME (A) M8X30 FLANGE	0-28650-830-0	03	1	1009-
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	05	1	1009-
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	1009-1302
57	WASHER; PL,BATTERY CABLE ID=6.4	0-91614-506-0	01	1	1303-
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	1009-
61	BRACKET; BATTERY CABLE	8-97632-262-1	01	1	1009-
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1009-
66	BOLT; COVER,BATTERY RELAY (A) M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	1009-1302
66	BOLT; COVER,BATTERY RELAY (B) M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1303-
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	1009-
75	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	02	1	1009-
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	02	1	1009-1302
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	03	1	1303-
77	WASHER; LK,STARTER CABLE ID=10.2	0-91510-610-0	01	1	1009-
78	BRACKET; CLIP BATTERY (B)	8-97304-944-0	02	1	1303-1303
78	BRACKET; CLIP BATTERY (A)	1-47476-396-1	01	1	1009-
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	03	1	1009-1302
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	02	1	1303-
100	BOLT; BATTERY CABLE CLIP M8X25 FLANGE	0-28650-825-0	04	1	1009-
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	04	1	1009-
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	1009-
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	1009-
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	1009-
120	NUT; RELAY BATTERY M8 FLANGE	0-91180-108-0	01	1	1009-1302
120	NUT; RELAY BATTERY M8 FLANGE	0-91180-108-0	02	1	1303-
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	1009-
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	1009-
180	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	1009-1302
180	NUT; COVER M8 FLANGE	0-91180-108-0	04	1	1303-
