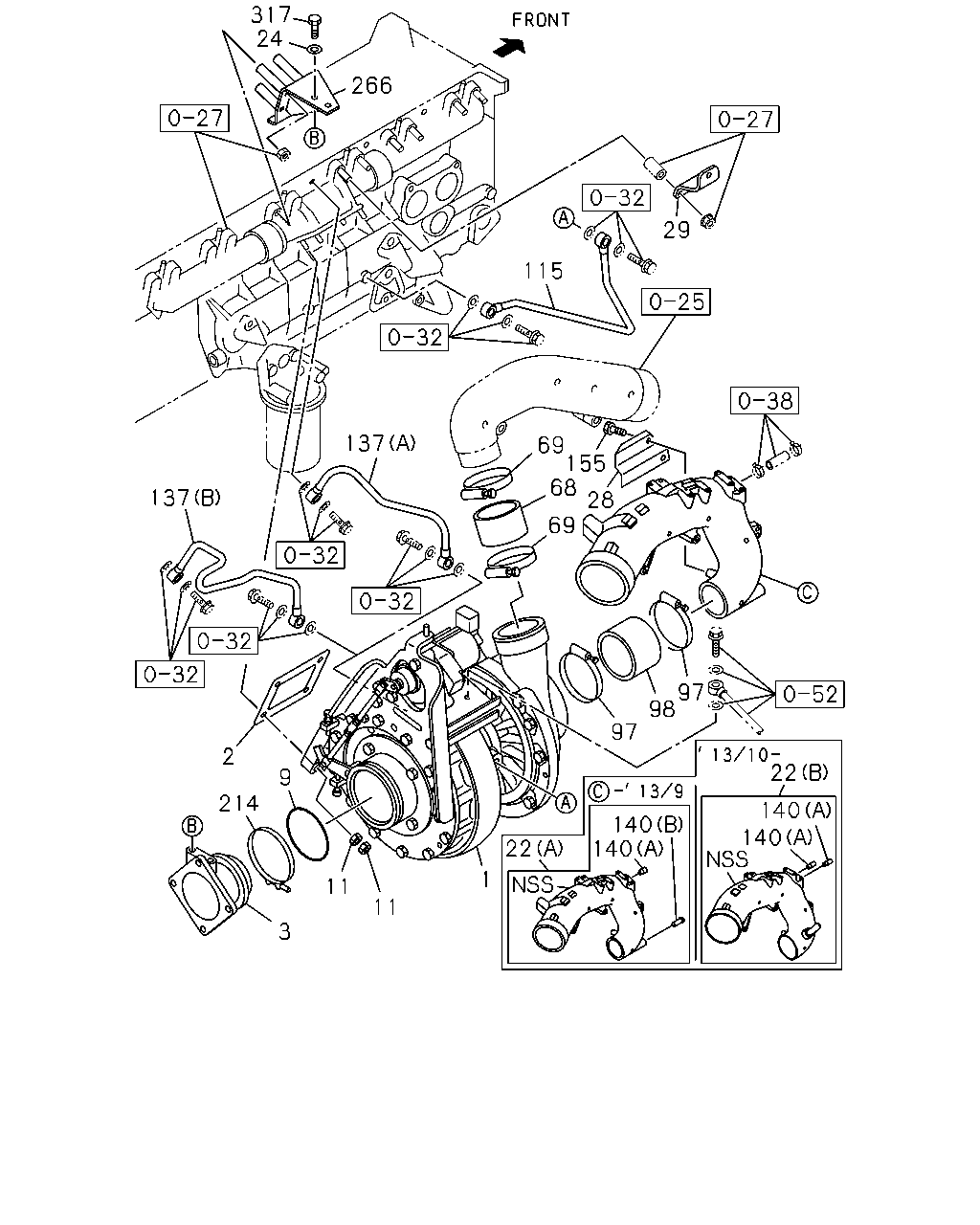

0-36 — TURBOCHARGER SYSTEM
(#70052) — 24 parça
◀
[036A] FIXING;TURBOCHARGER (23 parça)
[036A] FIXING;CONTROL UNIT TURBOCHARGER (1 parça)
▶
317
266
24
115
29
69
137
137
155
68
97
69
28
98
97
22
140
140
140
140
22
1
11
11
3
9
214
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
1-14400-457-7
01
1
1009-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98162-161-0
01
1
1009-
3
PIPE; EXH,TURBOCHARGER
8-97616-134-1
01
1
1009-
9
GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=80 OD=84
8-97618-761-1
01
1
1009-
11
NUT; TURBOCHARGER
M10
1-09420-005-0
08
1
1009-
22
DUCT; INL,ACL TO TURBOCHARGER
(A)
8-97613-690-3
01
1
1009-1309
22
DUCT; INL,ACL TO TURBOCHARGER
(B)
8-98254-521-1
01
1
1310-
24
WASHER; PL,PIPE
ID=10.5 OD=22
1-09500-007-0
02
1
1009-
28
PROTECTOR; HEAT,HOSE,AIR DUCT
1-14181-272-0
01
1
1009-
29
BRACKET; INL PIPE,ACL TO TURBOCHARGER
1-14119-473-0
01
1
1009-
68
HOSE; RUBBER,TURBOCHARGER TO INL COVER
8-98169-678-0
01
1
1009-
69
CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85
8-98096-592-0
02
1
1009-
97
CLIP; HOSE,TURBOCHARGER,INL
ID=104-142
1-09707-139-0
02
1
1009-
98
HOSE; RUBBER,TURBOCHARGER OUTLET
1-09360-988-0
01
1
1009-
115
PIPE; WATER,TURBOCHARGER OUT
1-13722-040-0
01
1
1009-
137
PIPE; WATER,TURBOCHARGER IN
(A)
1-13722-041-2
01
1
1009-1412
137
PIPE; WATER,TURBOCHARGER IN
(B)
8-98300-237-0
01
1
1501-
140
PIPE; AIR PIPE
(B)
8-97603-427-1
01
1
1009-1309
140
PIPE; AIR PIPE
(A)
9-14119-228-1
02
1
1009-
155
BOLT; HEAT PROTECTOR
M8X12 FLANGE
0-28050-812-0
02
1
1009-
214
BAND; "V",TURBOCHARGER TO EXH PIPE
8-98006-007-1
01
1
1009-
266
BRACKET; EXH PIPE
8-97606-662-1
01
1
1009-
317
BOLT; EXH PIPE
M10X20
1-09020-073-2
02
1
1009-
309
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
309
BOLT; TURBOCHARGER
M6X20 FLANGE
0-28650-620-0
02
1
1009-
