Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10820 - CXZ LHD CHINA
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-01 - PROPELLER SHAFT
▶

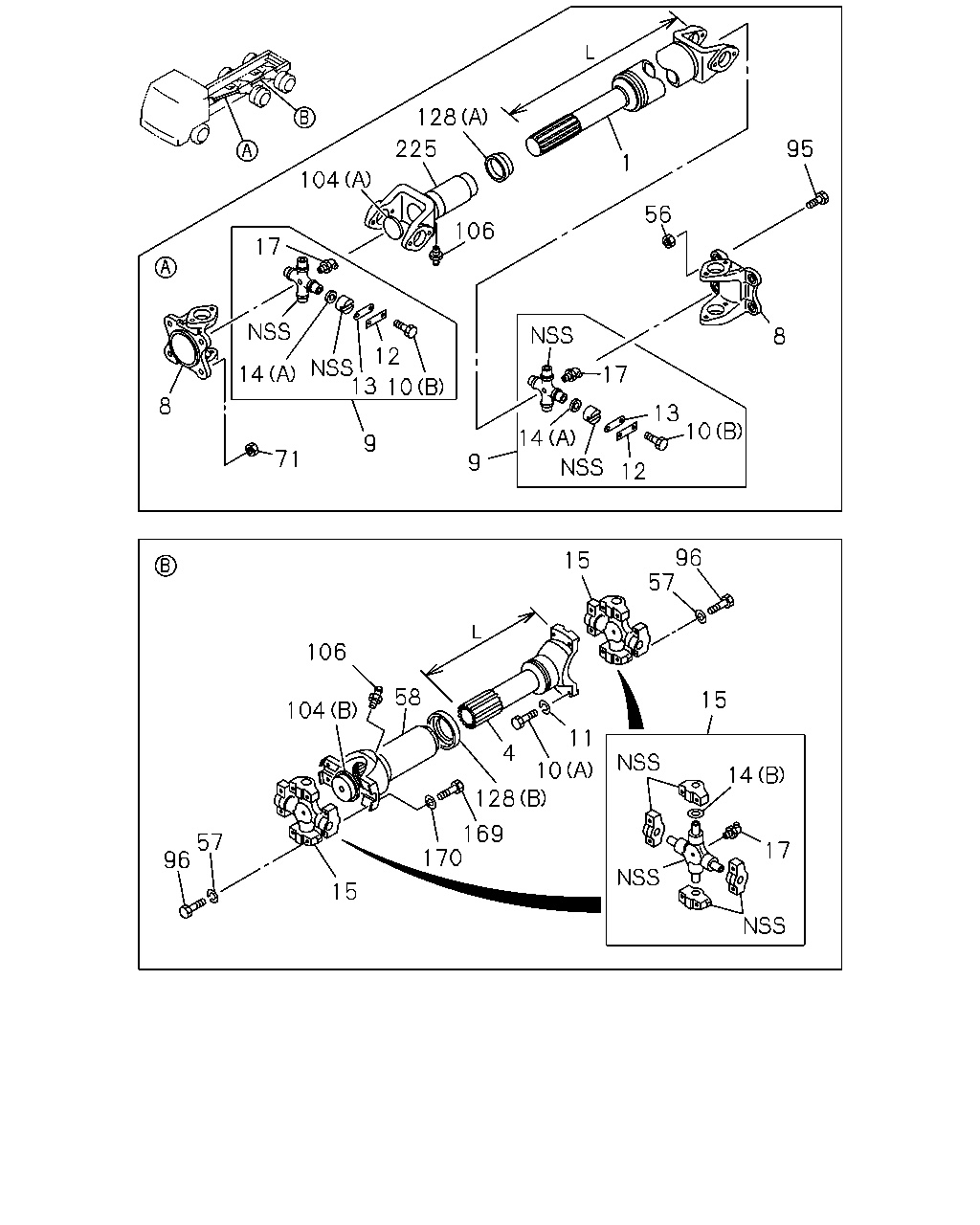

4-01 — PROPELLER SHAFT
(#7005) — 27 parça
128
225
95
1
104
56
106
17
8
12
13
14
17
10
8
13
10
4
9
71
9
12
96
57
15
106
58
15
104
11
4
10
128
14
169
170
57
96
17
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHAFT; PROP
L=1002
1-37123-846-0
01
1
9908-
4
SHAFT; PROP
L=348
1-37171-127-1
01
1
9908-
8
YOKE; FLANGE,PROP SHAFT
1-37211-066-1
02
1
9908-
9
JOURNAL ASM; PROP SHAFT
1-37300-091-0
AR
1
9908-
10
BOLT; UJT
(B) M10X20
9-02061-020-0
AR
1
9908-
10
BOLT; UJT
(A) M12X45
9-91066-245-0
04
1
9908-
11
WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2
9-09150-612-0
04
1
9908-
12
PLATE; LK,FRT UJT,PROP SHAFT
1-37356-008-0
AR
1
9908-
13
COVER; FRT UJT,PROP SHAFT
1-37355-020-0
AR
1
9908-
14
COVER; DUST,SPIDER
(A)
1-37249-131-0
AR
1
9908-
14
COVER; DUST,SPIDER
(B)
1-37319-004-0
08
1
9908-
15
UNIVERSAL CENTER
1-37300-100-1
02
1
9908-
17
NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5
9-09031-110-0
AR
1
9908-
56
NUT; YOKE
M16 FLANGE
1-09449-065-0
04
1
9908-
57
WASHER; LK,YOKE
ID=12.2
9-09150-612-0
08
1
9908-
58
FLANGE; SPLINED
L=265
1-37245-317-0
01
1
9908-
71
NUT; YOKE
M16 FLANGE
1-09449-065-0
04
1
9908-
95
BOLT; YOKE,FINAL
M16X48
1-09000-383-0
04
1
9908-
96
BOLT; PROP SHAFT
M12X45
9-91066-245-0
08
1
9908-
104
PLUG; SLEEVE YOKE
(B)
1-09600-049-0
01
1
9908-
104
PLUG; SLEEVE YOKE
(A)
1-09600-067-0
01
1
9908-
106
NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT
9-09031-010-0
02
1
9908-
128
SEAL; SLEEVE
(B)
1-37247-006-0
01
1
9908-
128
SEAL; SLEEVE
(A)
1-37247-019-0
01
1
9908-
169
BOLT; YOKE,SLEEVE
M12X45
9-91066-245-0
04
1
9908-
170
WASHER; LK,YOKE,SLEEVE
ID=12.2
9-09150-612-0
04
1
9908-
225
YOKE; SLEEVE,PROP SHAFT
L=332
1-37241-103-1
01
1
9908-
