8-75 — CONDENSER (#70030) — 62 parça

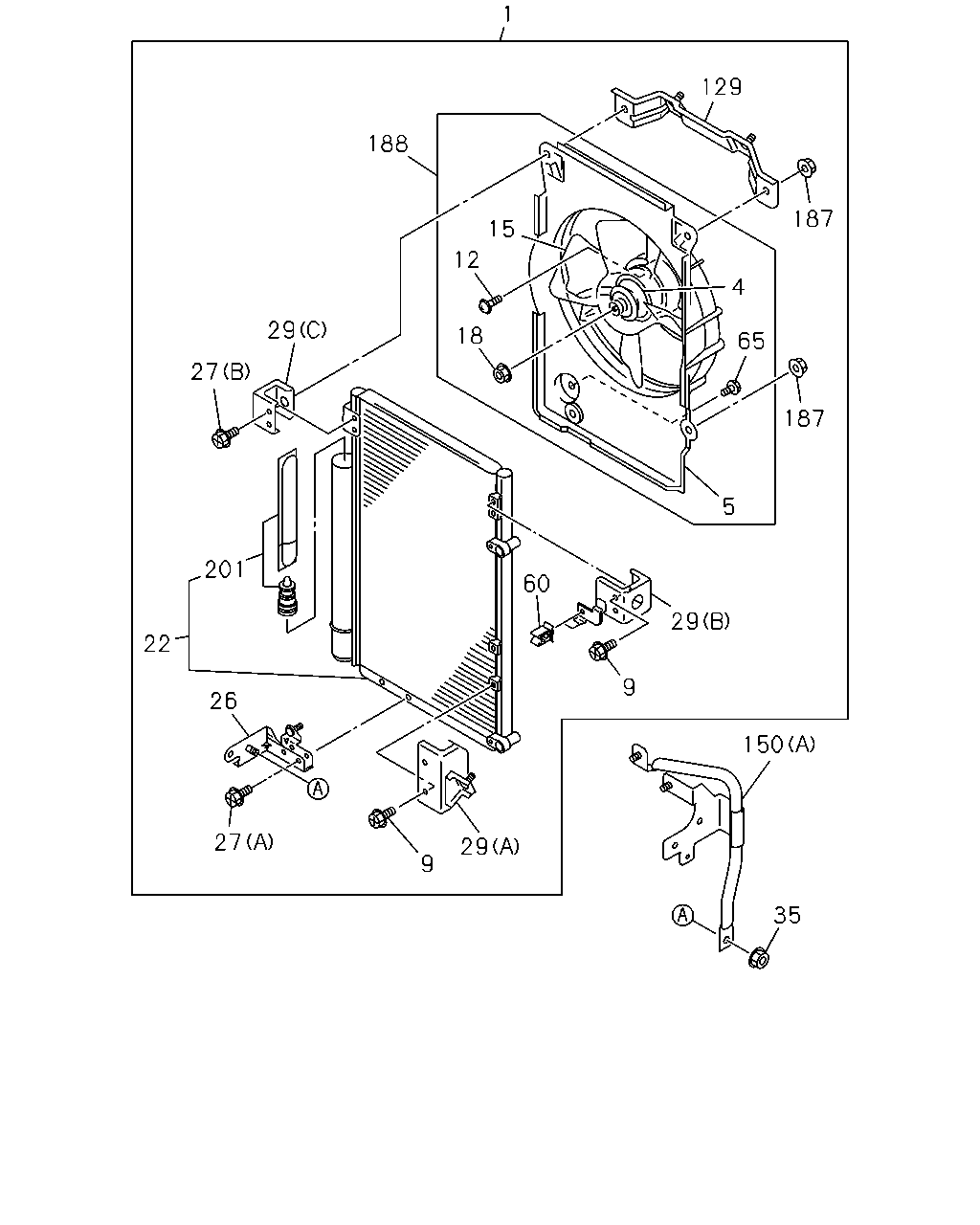

çizim 158074
188 29 27 201 22 26 27 9 29 35 150 9 29 60 5 187 18 12 15 129 187 4 65 1
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98098-373-1 01 1 1009-1302
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-98226-805-1 01 1 1303-
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98068-229-0 01 1 1009-1302
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-98116-585-0 01 1 1303-
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98076-093-0 01 1 1009-1302
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-98076-093-0 01 1 1303-
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M6X14 		1-83539-382-0 04 1 1009-1302
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M6X14 		1-83539-382-0 04 1 1303-
12 BOLT; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-314-0 03 1 1009-1302
12 BOLT; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83539-314-0 03 1 1303-
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98076-092-0 01 1 1009-1302
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-98076-092-0 01 1 1303-
18 NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-313-0 01 1 1009-1302
18 NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83539-313-0 01 1 1303-
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-261-0 01 1 1009-1302
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83534-261-0 01 1 1303-1409
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-98275-189-0 01 1 1410-
26 BRACKET; LOW
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-281-0 01 1 1009-1302
26 BRACKET; LOW
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83573-281-0 01 1 1303-
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X14 		1-83539-382-0 02 1 1009-1302
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M6X14 		1-83539-382-0 02 1 1303-
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X25 		8-97178-770-0 02 1 1009-1302
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M5X25 		8-97178-770-0 02 1 1303-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83573-278-0 01 1 1009-1302
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83573-278-0 01 1 1303-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-279-0 01 1 1009-1302
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83573-279-0 01 1 1303-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-280-0 01 1 1009-1302
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83573-280-0 01 1 1303-
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 05 1 1009-1302
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE 		0-91180-108-0 05 1 1303-
60 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-266-0 01 1 1009-1302
60 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83574-266-0 01 1 1303-
65 BOLT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 		8-97096-525-0 01 1 1009-1302
65 BOLT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M6X16 		8-97096-525-0 01 1 1303-
129 BRACKET; UPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-129-0 01 1 1009-1302
129 BRACKET; UPR
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83573-129-0 01 1 1303-
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-984-0 01 1 1009-1302
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83571-984-0 01 1 1303-
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83571-985-0 01 1 1009-1302
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83571-985-0 01 1 1303-
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-242-1 01 1 1009-1302
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83573-242-1 01 1 1303-
187 NUT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) M6 		1-83539-354-0 04 1 1009-1302
187 NUT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M6 		1-83539-354-0 04 1 1303-
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-187-1 01 1 1009-1302
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-98228-444-0 01 1 1303-
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83535-097-0 01 1 1009-1302
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83535-097-0 01 1 1303-1409
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-98282-482-0 01 1 1410-

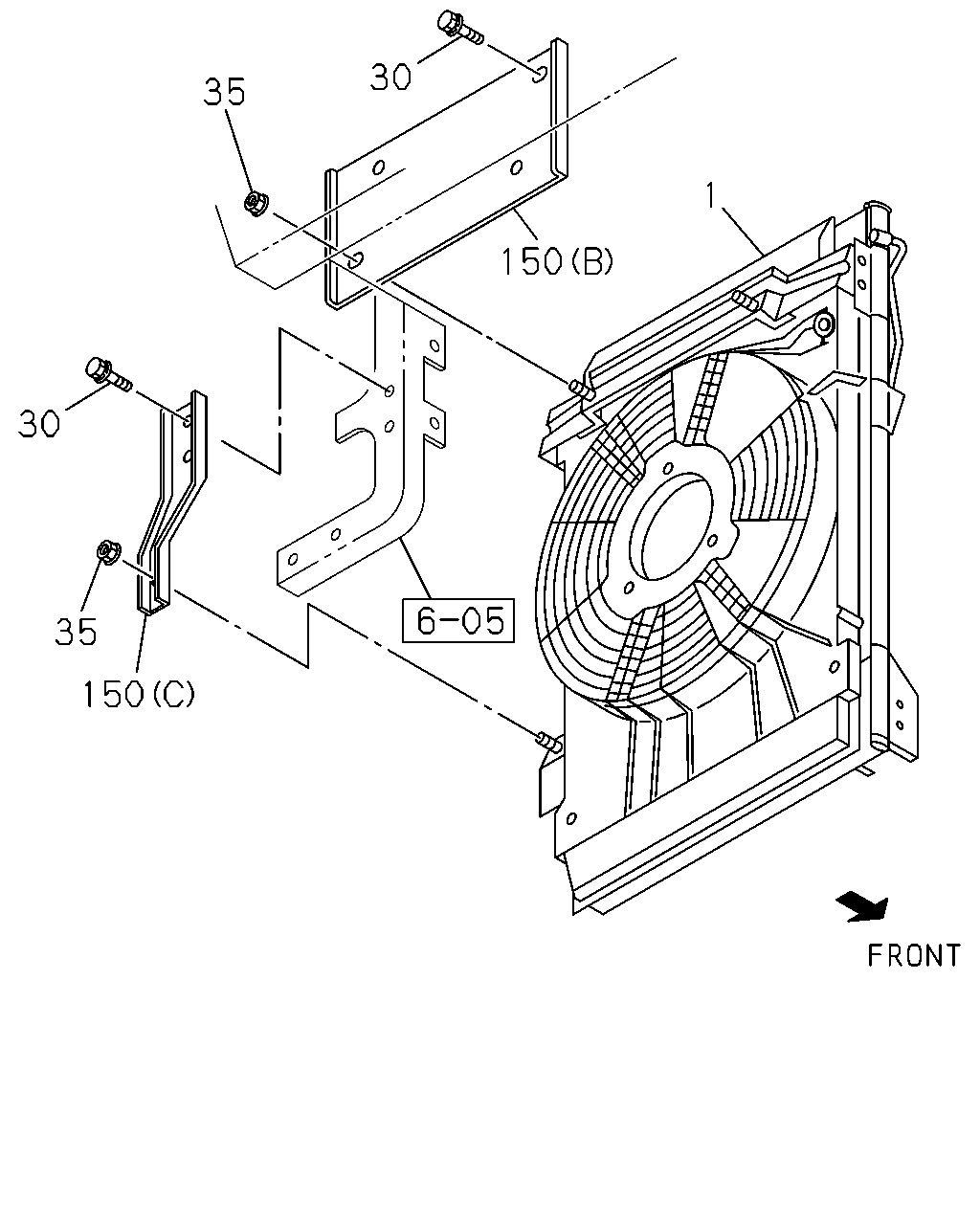

çizim 158096
35 30 30 35 150 150 1
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98098-373-1 01 1 1009-1302
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-98226-805-1 01 1 1303-
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1009-1302
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1303-
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 05 1 1009-1302
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE 		0-91180-108-0 05 1 1303-
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-984-0 01 1 1009-1302
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83571-984-0 01 1 1303-
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83571-985-0 01 1 1009-1302
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83571-985-0 01 1 1303-
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-242-1 01 1 1009-1302
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83573-242-1 01 1 1303-
