8-74 — EVAPORATOR (#70029) — 58 parça

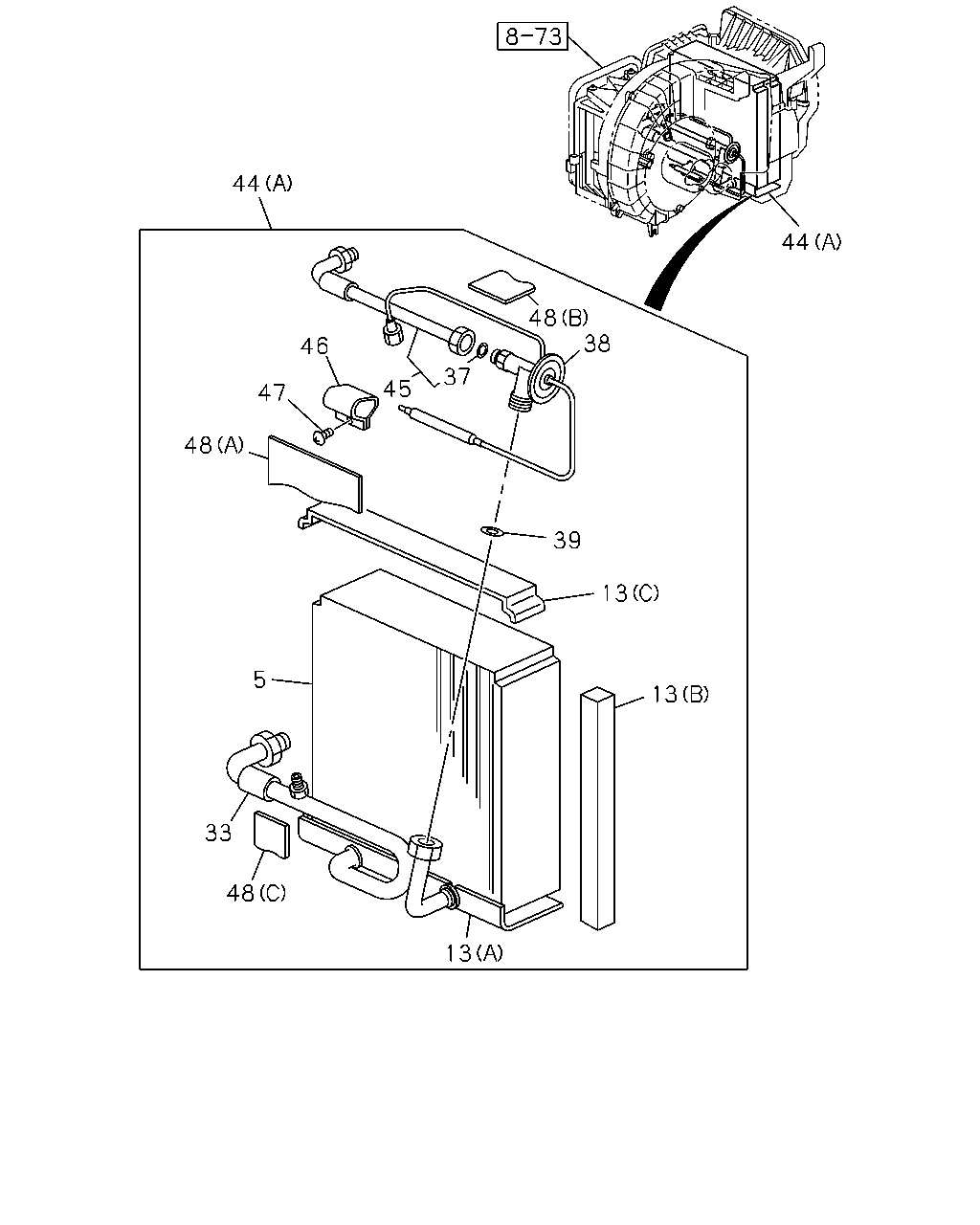

44 44 48 39 13 13 13 48 33 5 48 47 46 37 38 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	EVAPORATOR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83562-097-0	01	1	1303-
5	EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83562-095-0	01	1	1009-
13	SEAL; EVAP AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-959-0	01	1	1303-
13	SEAL; EVAP AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83579-960-0	01	1	1303-
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-669-1	01	1	1009-
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-938-0	01	1	1009-1302
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-938-0	01	1	1303-
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-939-0	01	1	1009-
33	LINING; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-653-0	01	1	1009-1302
33	LINING; EVAP AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-653-0	01	1	1303-
37	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60) ID=6.07	8-94461-902-0	01	1	1009-1302
37	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) ID=6.07	8-94461-902-0	01	1	1303-
38	VALVE; EXPANSION AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83569-189-0	01	1	1303-
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60)	1-83569-158-0	01	1	1009-
39	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	8-94481-717-0	01	1	1009-1302
39	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94481-717-0	01	1	1303-
44	EVAPORATOR ASM; A/C AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83562-099-0	01	1	1303-
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83562-094-1	01	1	1009-
45	PIPE; EXPANSION VLV AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83567-682-0	01	1	1303-
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-681-1	01	1	1009-
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-214-0	01	1	1009-1302
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83574-214-0	01	1	1303-
47	SCREW; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	8-97130-601-0	01	1	1009-1302
47	SCREW; EVAP AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-97130-601-0	01	1	1303-
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-784-0	01	1	1009-1302
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-784-0	01	1	1303-
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-969-0	01	1	1009-1302
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-969-0	01	1	1303-
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-970-0	01	1	1009-

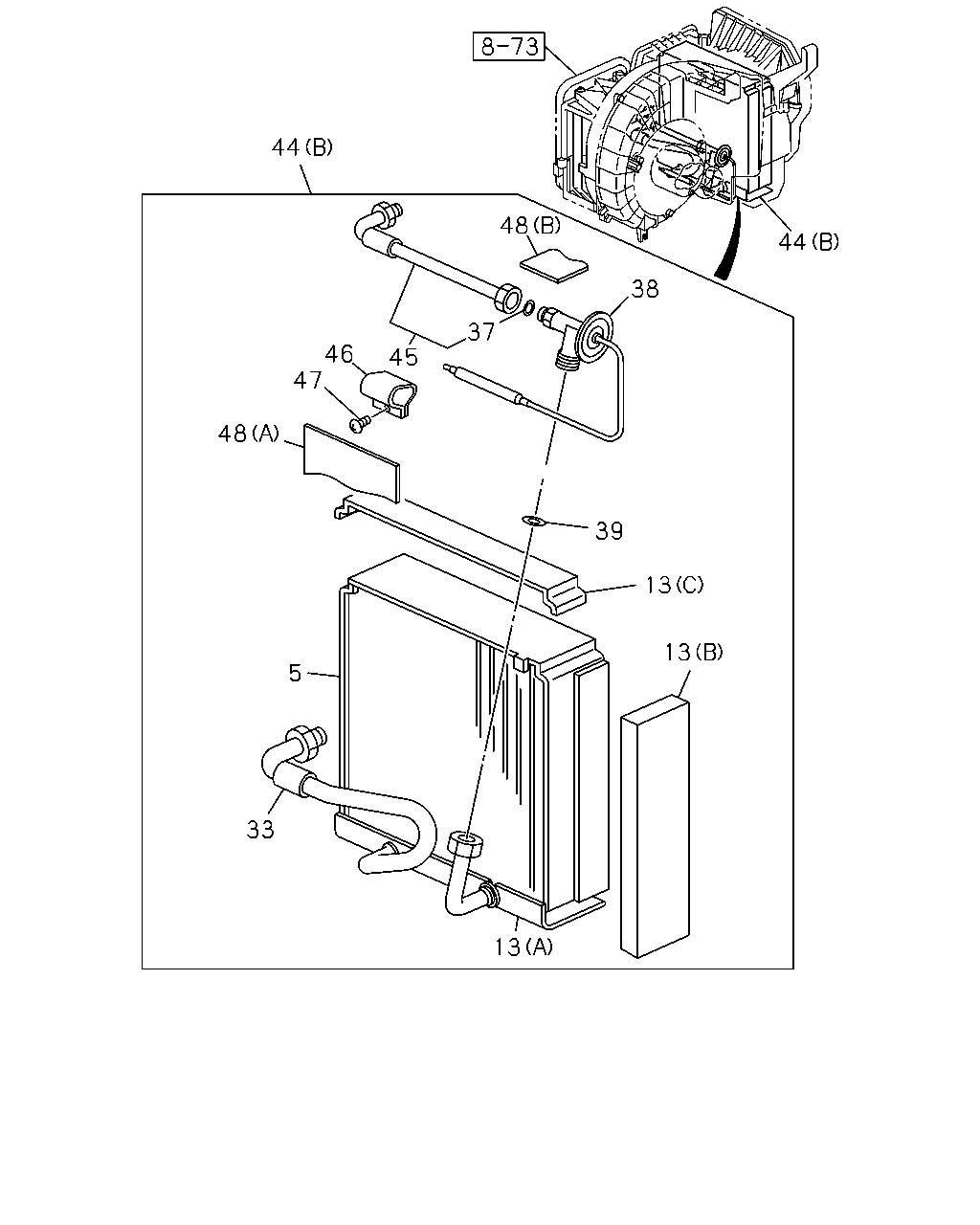

44 44 48 38 37 45 46 47 48 5 33 13 13 13 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	EVAPORATOR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83562-097-0	01	1	1303-
5	EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83562-095-0	01	1	1009-
13	SEAL; EVAP AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-959-0	01	1	1303-
13	SEAL; EVAP AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83579-960-0	01	1	1303-
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-669-1	01	1	1009-
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-938-0	01	1	1009-1302
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-938-0	01	1	1303-
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-939-0	01	1	1009-
33	LINING; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-653-0	01	1	1009-1302
33	LINING; EVAP AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-653-0	01	1	1303-
37	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60) ID=6.07	8-94461-902-0	01	1	1009-1302
37	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) ID=6.07	8-94461-902-0	01	1	1303-
38	VALVE; EXPANSION AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83569-189-0	01	1	1303-
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60)	1-83569-158-0	01	1	1009-
39	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	8-94481-717-0	01	1	1009-1302
39	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94481-717-0	01	1	1303-
44	EVAPORATOR ASM; A/C AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83562-099-0	01	1	1303-
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83562-094-1	01	1	1009-
45	PIPE; EXPANSION VLV AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83567-682-0	01	1	1303-
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-681-1	01	1	1009-
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-214-0	01	1	1009-1302
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83574-214-0	01	1	1303-
47	SCREW; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	8-97130-601-0	01	1	1009-1302
47	SCREW; EVAP AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-97130-601-0	01	1	1303-
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-784-0	01	1	1009-1302
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-784-0	01	1	1303-
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-969-0	01	1	1009-1302
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-969-0	01	1	1303-
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-970-0	01	1	1009-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
