Sayfa 8-73 - Isuzu EPC

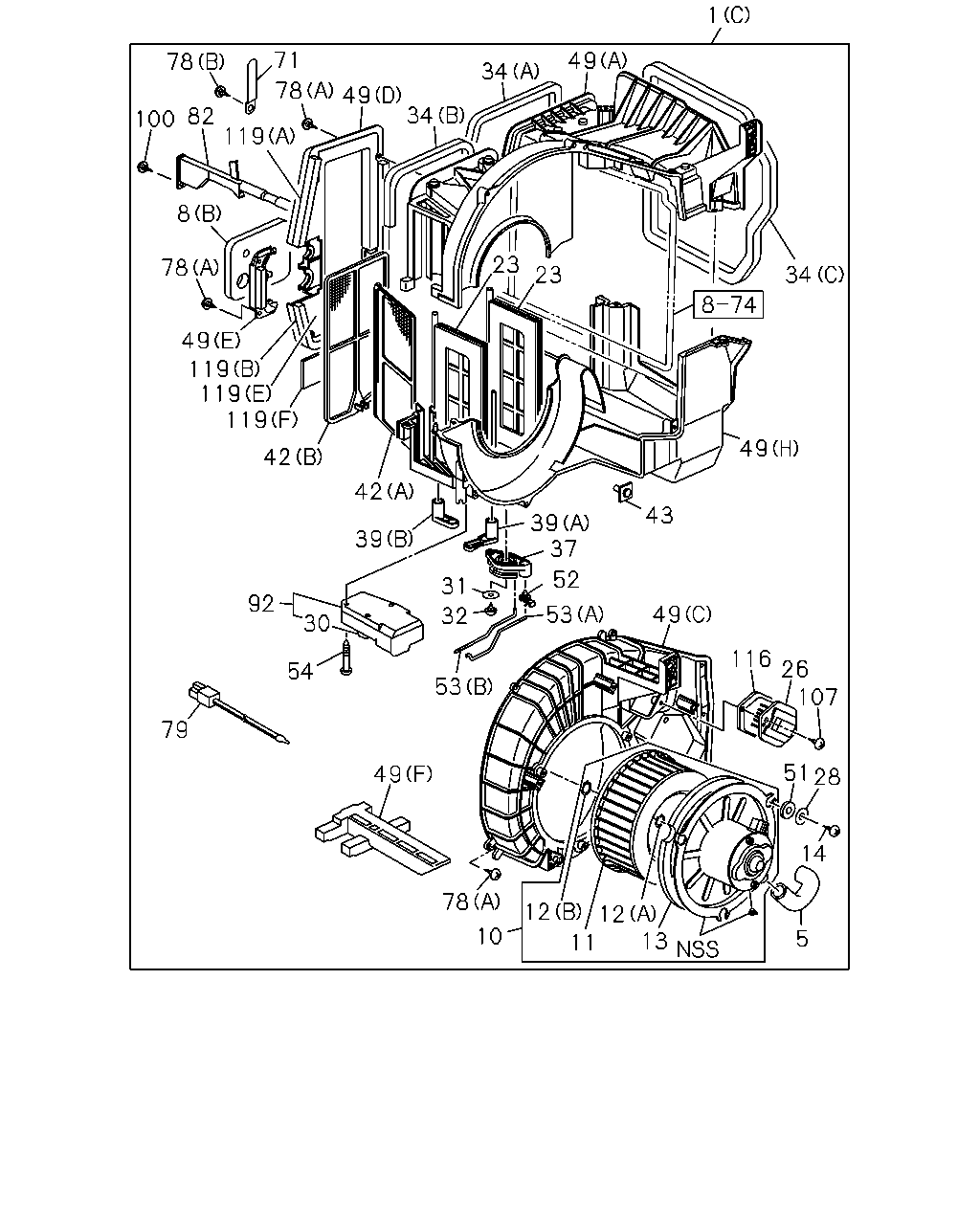

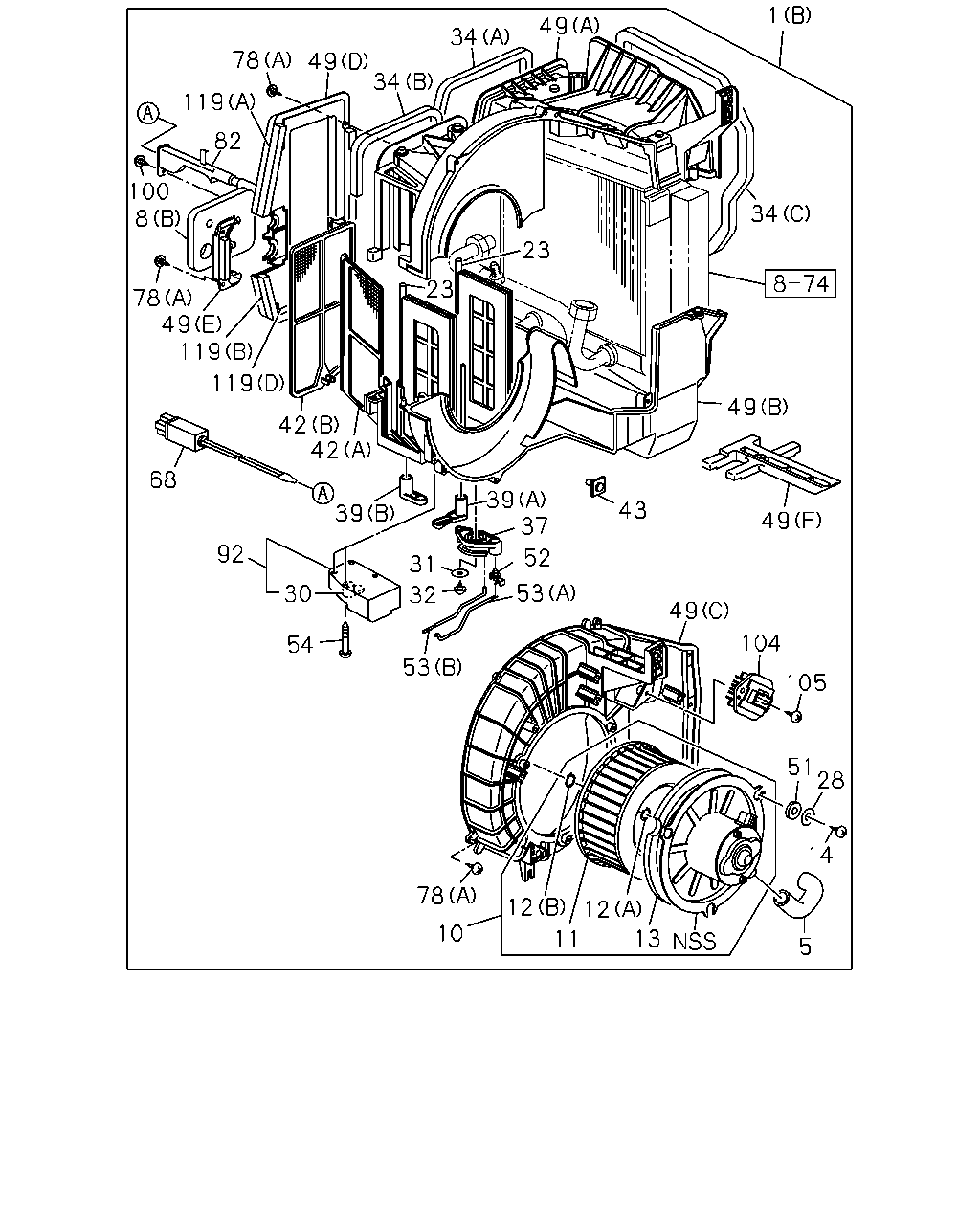

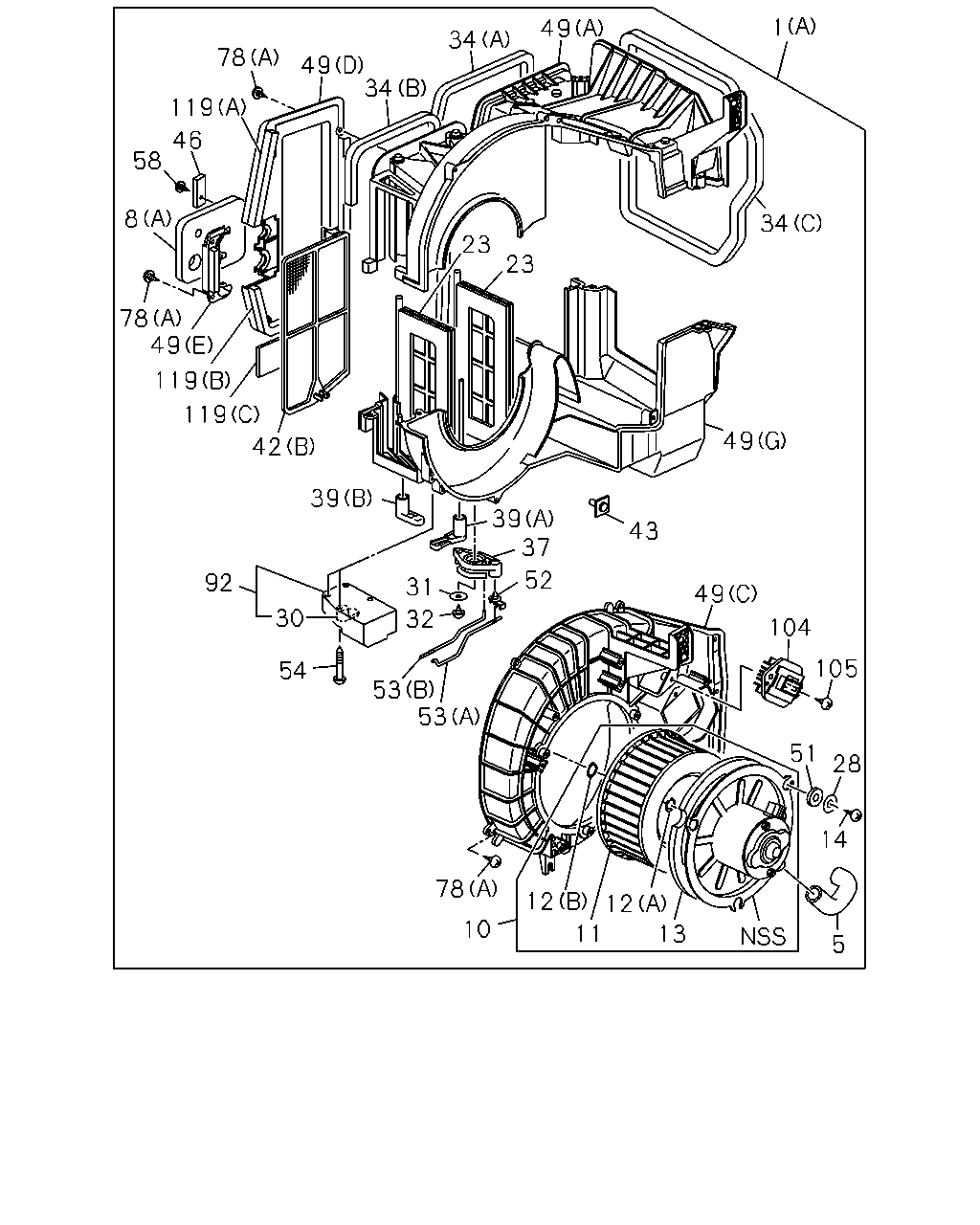

8-73 — BLOWER UNIT (#70028) — 396 parça

1 49 34 34 49 78 119 58 46 8 78 119 49 119 39 42 92 30 54 31 32 53 53 52 39 43 37 49 34 23 23 49 104 105 28 51 14 5 13 12 11 12 10 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOWER ASM HEATER & DEFROSTER(C41) (A)	1-83561-178-2	01	1	1412-
1	BLOWER ASM AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83561-182-2	01	1	1009-
1	BLOWER ASM HEATER & DEFROSTER(C41) (A)	1-83561-178-2	01	1	1009-1302
1	BLOWER ASM AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83561-154-5	01	1	1303-
5	HOSE; AIR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83563-140-0	01	1	1009-1302
5	HOSE; AIR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83563-140-0	01	1	1303-1411
5	HOSE; AIR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83563-140-0	01	1	1412-
8	SEAL; BLOWER UNIT HEATER & DEFROSTER(C41) (A)	1-83579-801-1	01	1	1412-
8	SEAL; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-261-1	01	1	1009-1302
8	SEAL; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83539-261-1	01	1	1303-
8	SEAL; BLOWER UNIT HEATER & DEFROSTER(C41) (A)	1-83579-801-1	01	1	1009-1302
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-161-0	01	1	1009-1302
10	MOTOR ASM; FAN,BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83561-161-0	01	1	1303-1411
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83561-161-0	01	1	1412-
11	IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-635-0	01	1	1009-1302
11	IMPELLER; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-635-0	01	1	1303-1411
11	IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83579-635-0	01	1	1412-
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	5-83569-088-0	01	1	1009-1302
12	RING; SNAP,FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	5-83569-088-0	01	1	1303-1411
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (A)	5-83569-088-0	01	1	1412-
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94243-962-0	01	1	1009-1302
12	RING; SNAP,FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	8-94243-962-0	01	1	1303-1411
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (B)	8-94243-962-0	01	1	1412-
13	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-636-0	01	1	1009-1302
13	LINING; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-636-0	01	1	1303-1411
13	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83579-636-0	01	1	1412-
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	03	1	1009-1302
14	SCREW; COVER TO CASE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X20	9-09829-324-1	03	1	1303-1411
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) M5X20	9-09829-324-1	03	1	1412-
23	SHUTTER; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-637-0	02	1	1303-
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-797-0	02	1	1009-1302
23	SHUTTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-797-0	02	1	1303-1411
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-797-0	02	1	1412-
28	WASHER; PL,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-170-0	03	1	1009-1302
28	WASHER; PL,FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-170-0	03	1	1303-1411
28	WASHER; PL,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83579-170-0	03	1	1412-
30	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-345-1	01	1	1009-1302
30	LEVER; ACTUATOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83564-345-1	01	1	1303-1411
30	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83564-345-1	01	1	1412-
31	WASHER; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-095-0	01	1	1009-1302
31	WASHER; LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-095-0	01	1	1303-1411
31	WASHER; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83579-095-0	01	1	1412-
32	SCREW; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	01	1	1009-1302
32	SCREW; LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X20	9-09829-324-1	01	1	1303-1411
32	SCREW; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) M5X20	9-09829-324-1	01	1	1412-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-633-2	01	1	1009-1302
34	LINING; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-633-2	01	1	1303-1411
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (A)	1-83579-633-2	01	1	1412-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-634-2	01	1	1009-1302
34	LINING; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-634-2	01	1	1303-1411
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (B)	1-83579-634-2	01	1	1412-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-644-0	01	1	1009-1302
34	LINING; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83579-644-0	01	1	1303-1411
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (C)	1-83579-644-0	01	1	1412-
37	LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-344-0	01	1	1009-1302
37	LEVER; MODE LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83564-344-0	01	1	1303-1411
37	LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83564-344-0	01	1	1412-
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-342-0	01	1	1009-1302
39	LEVER; SHUTTER,BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-342-0	01	1	1303-1411
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (A)	1-83564-342-0	01	1	1412-
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-343-0	01	1	1009-1302
39	LEVER; SHUTTER,BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-343-0	01	1	1303-1411
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (B)	1-83564-343-0	01	1	1412-
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-993-0	02	1	1009-1302
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-993-0	02	1	1303-
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-643-3	01	1	1009-1302
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-643-3	01	1	1303-1411
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (B)	1-83579-643-3	01	1	1412-
43	BOLT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-657-2	04	1	1009-1302
43	BOLT; CASE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-657-2	04	1	1303-1411
43	BOLT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83579-657-2	04	1	1412-
46	PLATE; BLOWER UNIT HEATER & DEFROSTER(C41)	1-83571-870-1	01	1	1412-
46	PLATE; BLOWER UNIT HEATER & DEFROSTER(C41)	1-83571-870-1	01	1	1009-1302
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41) (G)	1-83564-352-5	01	1	1412-
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-336-6	01	1	1009-
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (F)	1-83564-340-1	01	1	1009-1302
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (F)	1-83564-340-1	01	1	1303-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41) (G)	1-83564-352-5	01	1	1009-1302
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (H)	1-83564-406-1	01	1	1303-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83564-337-4	01	1	1009-1302
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83564-337-4	01	1	1303-1411
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (C)	1-83564-337-4	01	1	1412-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83564-339-1	01	1	1009-1302
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (E)	1-83564-339-1	01	1	1303-1411
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (E)	1-83564-339-1	01	1	1412-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-351-1	01	1	1009-1302
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-351-1	01	1	1303-1411
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (A)	1-83564-351-1	01	1	1412-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83564-353-1	01	1	1009-1302
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D)	1-83564-353-1	01	1	1303-1411
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (D)	1-83564-353-1	01	1	1412-
51	ISOLATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-496-0	03	1	1009-1302
51	ISOLATOR; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-496-0	03	1	1303-1411
51	ISOLATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83579-496-0	03	1	1412-
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-794-0	02	1	1009-1302
52	CLIP; LEVER TO CASE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94248-794-0	02	1	1303-1411
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	8-94248-794-0	02	1	1412-
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-638-0	01	1	1009-1302
53	ROD; ACTUATOR,BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-638-0	01	1	1303-1411
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (A)	1-83579-638-0	01	1	1412-
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-639-0	01	1	1009-1302
53	ROD; ACTUATOR,BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-639-0	01	1	1303-1411
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (B)	1-83579-639-0	01	1	1412-
54	SCREW; ACTUATOR TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94348-809-0	02	1	1009-1302
54	SCREW; ACTUATOR TO CASE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94348-809-0	02	1	1303-1411
54	SCREW; ACTUATOR TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	8-94348-809-0	02	1	1412-
58	SCREW; PLATE TO CASE HEATER & DEFROSTER(C41) M4X16	8-94324-850-0	01	1	1412-
58	SCREW; PLATE TO CASE HEATER & DEFROSTER(C41) M4X16	8-94324-850-0	01	1	1009-1302
78	SCREW; CASE TO CASE AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M5X10 TAPPING W/PL WASHER	0-74300-510-0	01	1	1303-
78	SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M4X16	8-94324-850-0	17	1	1009-1302
78	SCREW; CASE TO CASE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M4X16	8-94324-850-0	17	1	1303-1411
78	SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (A) M4X16	8-94324-850-0	17	1	1412-
92	ACTUATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-640-1	01	1	1009-1302
92	ACTUATOR; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-640-1	01	1	1303-1411
92	ACTUATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83579-640-1	01	1	1412-
104	RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83519-093-0	01	1	1009-1302
104	RESISTOR; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83519-093-0	01	1	1303-1411
104	RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83519-093-0	01	1	1412-
105	SCREW; RESISTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	02	1	1009-1302
105	SCREW; RESISTOR AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	02	1	1303-1411
105	SCREW; RESISTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	02	1	1412-
119	LINING; CASE HEATER & DEFROSTER(C41) (C)	1-83579-839-0	02	1	1412-
119	LINING; CASE AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (E)	1-83578-032-0	01	1	1303-
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83579-673-2	01	1	1009-
119	LINING; CASE HEATER & DEFROSTER(C41) (C)	1-83579-839-0	02	1	1009-1302
119	LINING; CASE AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (F)	1-83579-961-0	01	1	1303-
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-670-1	01	1	1009-1302
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-670-1	01	1	1303-1411
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (A)	1-83579-670-1	01	1	1412-
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-671-1	01	1	1009-1302
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-671-1	01	1	1303-1411
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (B)	1-83579-671-1	01	1	1412-

49 78 119 100 82 8 78 119 49 119 42 92 68 30 54 53 32 39 42 31 37 53 39 52 43 49 49 34 1 13 12 11 12 10 78 5 14 28 51 105 104 49 23 23 34 34 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOWER ASM HEATER & DEFROSTER(C41) (A)	1-83561-178-2	01	1	1412-
1	BLOWER ASM AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83561-182-2	01	1	1009-
1	BLOWER ASM HEATER & DEFROSTER(C41) (A)	1-83561-178-2	01	1	1009-1302
1	BLOWER ASM AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83561-154-5	01	1	1303-
5	HOSE; AIR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83563-140-0	01	1	1009-1302
5	HOSE; AIR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83563-140-0	01	1	1303-1411
5	HOSE; AIR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83563-140-0	01	1	1412-
8	SEAL; BLOWER UNIT HEATER & DEFROSTER(C41) (A)	1-83579-801-1	01	1	1412-
8	SEAL; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-261-1	01	1	1009-1302
8	SEAL; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83539-261-1	01	1	1303-
8	SEAL; BLOWER UNIT HEATER & DEFROSTER(C41) (A)	1-83579-801-1	01	1	1009-1302
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-161-0	01	1	1009-1302
10	MOTOR ASM; FAN,BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83561-161-0	01	1	1303-1411
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83561-161-0	01	1	1412-
11	IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-635-0	01	1	1009-1302
11	IMPELLER; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-635-0	01	1	1303-1411
11	IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83579-635-0	01	1	1412-
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	5-83569-088-0	01	1	1009-1302
12	RING; SNAP,FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	5-83569-088-0	01	1	1303-1411
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (A)	5-83569-088-0	01	1	1412-
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94243-962-0	01	1	1009-1302
12	RING; SNAP,FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	8-94243-962-0	01	1	1303-1411
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (B)	8-94243-962-0	01	1	1412-
13	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-636-0	01	1	1009-1302
13	LINING; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-636-0	01	1	1303-1411
13	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83579-636-0	01	1	1412-
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	03	1	1009-1302
14	SCREW; COVER TO CASE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X20	9-09829-324-1	03	1	1303-1411
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) M5X20	9-09829-324-1	03	1	1412-
23	SHUTTER; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-637-0	02	1	1303-
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-797-0	02	1	1009-1302
23	SHUTTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-797-0	02	1	1303-1411
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-797-0	02	1	1412-
28	WASHER; PL,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-170-0	03	1	1009-1302
28	WASHER; PL,FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-170-0	03	1	1303-1411
28	WASHER; PL,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83579-170-0	03	1	1412-
30	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-345-1	01	1	1009-1302
30	LEVER; ACTUATOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83564-345-1	01	1	1303-1411
30	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83564-345-1	01	1	1412-
31	WASHER; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-095-0	01	1	1009-1302
31	WASHER; LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-095-0	01	1	1303-1411
31	WASHER; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83579-095-0	01	1	1412-
32	SCREW; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	01	1	1009-1302
32	SCREW; LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X20	9-09829-324-1	01	1	1303-1411
32	SCREW; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) M5X20	9-09829-324-1	01	1	1412-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-633-2	01	1	1009-1302
34	LINING; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-633-2	01	1	1303-1411
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (A)	1-83579-633-2	01	1	1412-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-634-2	01	1	1009-1302
34	LINING; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-634-2	01	1	1303-1411
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (B)	1-83579-634-2	01	1	1412-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-644-0	01	1	1009-1302
34	LINING; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83579-644-0	01	1	1303-1411
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (C)	1-83579-644-0	01	1	1412-
37	LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-344-0	01	1	1009-1302
37	LEVER; MODE LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83564-344-0	01	1	1303-1411
37	LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83564-344-0	01	1	1412-
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-342-0	01	1	1009-1302
39	LEVER; SHUTTER,BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-342-0	01	1	1303-1411
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (A)	1-83564-342-0	01	1	1412-
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-343-0	01	1	1009-1302
39	LEVER; SHUTTER,BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-343-0	01	1	1303-1411
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (B)	1-83564-343-0	01	1	1412-
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-993-0	02	1	1009-1302
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-993-0	02	1	1303-
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-643-3	01	1	1009-1302
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-643-3	01	1	1303-1411
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (B)	1-83579-643-3	01	1	1412-
43	BOLT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-657-2	04	1	1009-1302
43	BOLT; CASE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-657-2	04	1	1303-1411
43	BOLT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83579-657-2	04	1	1412-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41) (G)	1-83564-352-5	01	1	1412-
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-336-6	01	1	1009-
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (F)	1-83564-340-1	01	1	1009-1302
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (F)	1-83564-340-1	01	1	1303-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41) (G)	1-83564-352-5	01	1	1009-1302
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (H)	1-83564-406-1	01	1	1303-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83564-337-4	01	1	1009-1302
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83564-337-4	01	1	1303-1411
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (C)	1-83564-337-4	01	1	1412-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83564-339-1	01	1	1009-1302
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (E)	1-83564-339-1	01	1	1303-1411
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (E)	1-83564-339-1	01	1	1412-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-351-1	01	1	1009-1302
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-351-1	01	1	1303-1411
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (A)	1-83564-351-1	01	1	1412-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83564-353-1	01	1	1009-1302
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D)	1-83564-353-1	01	1	1303-1411
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (D)	1-83564-353-1	01	1	1412-
51	ISOLATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-496-0	03	1	1009-1302
51	ISOLATOR; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-496-0	03	1	1303-1411
51	ISOLATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83579-496-0	03	1	1412-
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-794-0	02	1	1009-1302
52	CLIP; LEVER TO CASE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94248-794-0	02	1	1303-1411
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	8-94248-794-0	02	1	1412-
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-638-0	01	1	1009-1302
53	ROD; ACTUATOR,BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-638-0	01	1	1303-1411
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (A)	1-83579-638-0	01	1	1412-
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-639-0	01	1	1009-1302
53	ROD; ACTUATOR,BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-639-0	01	1	1303-1411
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (B)	1-83579-639-0	01	1	1412-
54	SCREW; ACTUATOR TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94348-809-0	02	1	1009-1302
54	SCREW; ACTUATOR TO CASE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94348-809-0	02	1	1303-1411
54	SCREW; ACTUATOR TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	8-94348-809-0	02	1	1412-
68	THERMOSTAT; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83544-026-1	01	1	1009-
78	SCREW; CASE TO CASE AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M5X10 TAPPING W/PL WASHER	0-74300-510-0	01	1	1303-
78	SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M4X16	8-94324-850-0	17	1	1009-1302
78	SCREW; CASE TO CASE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M4X16	8-94324-850-0	17	1	1303-1411
78	SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (A) M4X16	8-94324-850-0	17	1	1412-
82	BRACKET; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-871-1	01	1	1009-1302
82	BRACKET; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83571-871-1	01	1	1303-
92	ACTUATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-640-1	01	1	1009-1302
92	ACTUATOR; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-640-1	01	1	1303-1411
92	ACTUATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83579-640-1	01	1	1412-
100	SCREW; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	01	1	1009-1302
100	SCREW; BRKT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M4X16	8-94324-850-0	01	1	1303-
104	RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83519-093-0	01	1	1009-1302
104	RESISTOR; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83519-093-0	01	1	1303-1411
104	RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83519-093-0	01	1	1412-
105	SCREW; RESISTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	02	1	1009-1302
105	SCREW; RESISTOR AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	02	1	1303-1411
105	SCREW; RESISTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	02	1	1412-
119	LINING; CASE HEATER & DEFROSTER(C41) (C)	1-83579-839-0	02	1	1412-
119	LINING; CASE AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (E)	1-83578-032-0	01	1	1303-
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83579-673-2	01	1	1009-
119	LINING; CASE HEATER & DEFROSTER(C41) (C)	1-83579-839-0	02	1	1009-1302
119	LINING; CASE AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (F)	1-83579-961-0	01	1	1303-
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-670-1	01	1	1009-1302
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-670-1	01	1	1303-1411
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (A)	1-83579-670-1	01	1	1412-
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-671-1	01	1	1009-1302
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-671-1	01	1	1303-1411
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (B)	1-83579-671-1	01	1	1412-

34 1 49 34 49 78 71 78 82 100 119 8 78 49 119 119 119 42 39 42 31 32 53 54 92 30 79 49 12 78 10 11 13 12 5 14 51 28 107 26 116 49 53 39 52 43 37 49 34 23 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOWER ASM HEATER & DEFROSTER(C41) (A)	1-83561-178-2	01	1	1412-
1	BLOWER ASM AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83561-182-2	01	1	1009-
1	BLOWER ASM HEATER & DEFROSTER(C41) (A)	1-83561-178-2	01	1	1009-1302
1	BLOWER ASM AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83561-154-5	01	1	1303-
5	HOSE; AIR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83563-140-0	01	1	1009-1302
5	HOSE; AIR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83563-140-0	01	1	1303-1411
5	HOSE; AIR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83563-140-0	01	1	1412-
8	SEAL; BLOWER UNIT HEATER & DEFROSTER(C41) (A)	1-83579-801-1	01	1	1412-
8	SEAL; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-261-1	01	1	1009-1302
8	SEAL; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83539-261-1	01	1	1303-
8	SEAL; BLOWER UNIT HEATER & DEFROSTER(C41) (A)	1-83579-801-1	01	1	1009-1302
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-161-0	01	1	1009-1302
10	MOTOR ASM; FAN,BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83561-161-0	01	1	1303-1411
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83561-161-0	01	1	1412-
11	IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-635-0	01	1	1009-1302
11	IMPELLER; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-635-0	01	1	1303-1411
11	IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83579-635-0	01	1	1412-
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	5-83569-088-0	01	1	1009-1302
12	RING; SNAP,FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	5-83569-088-0	01	1	1303-1411
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (A)	5-83569-088-0	01	1	1412-
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94243-962-0	01	1	1009-1302
12	RING; SNAP,FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	8-94243-962-0	01	1	1303-1411
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (B)	8-94243-962-0	01	1	1412-
13	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-636-0	01	1	1009-1302
13	LINING; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-636-0	01	1	1303-1411
13	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83579-636-0	01	1	1412-
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	03	1	1009-1302
14	SCREW; COVER TO CASE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X20	9-09829-324-1	03	1	1303-1411
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) M5X20	9-09829-324-1	03	1	1412-
23	SHUTTER; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-637-0	02	1	1303-
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-797-0	02	1	1009-1302
23	SHUTTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-797-0	02	1	1303-1411
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-797-0	02	1	1412-
26	TRANSISTOR; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-654-0	01	1	1303-
28	WASHER; PL,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-170-0	03	1	1009-1302
28	WASHER; PL,FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-170-0	03	1	1303-1411
28	WASHER; PL,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83579-170-0	03	1	1412-
30	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-345-1	01	1	1009-1302
30	LEVER; ACTUATOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83564-345-1	01	1	1303-1411
30	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83564-345-1	01	1	1412-
31	WASHER; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-095-0	01	1	1009-1302
31	WASHER; LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-095-0	01	1	1303-1411
31	WASHER; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83579-095-0	01	1	1412-
32	SCREW; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	01	1	1009-1302
32	SCREW; LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X20	9-09829-324-1	01	1	1303-1411
32	SCREW; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) M5X20	9-09829-324-1	01	1	1412-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-633-2	01	1	1009-1302
34	LINING; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-633-2	01	1	1303-1411
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (A)	1-83579-633-2	01	1	1412-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-634-2	01	1	1009-1302
34	LINING; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-634-2	01	1	1303-1411
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (B)	1-83579-634-2	01	1	1412-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-644-0	01	1	1009-1302
34	LINING; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83579-644-0	01	1	1303-1411
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (C)	1-83579-644-0	01	1	1412-
37	LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-344-0	01	1	1009-1302
37	LEVER; MODE LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83564-344-0	01	1	1303-1411
37	LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83564-344-0	01	1	1412-
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-342-0	01	1	1009-1302
39	LEVER; SHUTTER,BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-342-0	01	1	1303-1411
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (A)	1-83564-342-0	01	1	1412-
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-343-0	01	1	1009-1302
39	LEVER; SHUTTER,BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-343-0	01	1	1303-1411
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (B)	1-83564-343-0	01	1	1412-
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-993-0	02	1	1009-1302
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-993-0	02	1	1303-
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-643-3	01	1	1009-1302
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-643-3	01	1	1303-1411
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (B)	1-83579-643-3	01	1	1412-
43	BOLT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-657-2	04	1	1009-1302
43	BOLT; CASE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-657-2	04	1	1303-1411
43	BOLT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83579-657-2	04	1	1412-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41) (G)	1-83564-352-5	01	1	1412-
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-336-6	01	1	1009-
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (F)	1-83564-340-1	01	1	1009-1302
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (F)	1-83564-340-1	01	1	1303-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41) (G)	1-83564-352-5	01	1	1009-1302
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (H)	1-83564-406-1	01	1	1303-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83564-337-4	01	1	1009-1302
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83564-337-4	01	1	1303-1411
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (C)	1-83564-337-4	01	1	1412-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83564-339-1	01	1	1009-1302
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (E)	1-83564-339-1	01	1	1303-1411
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (E)	1-83564-339-1	01	1	1412-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-351-1	01	1	1009-1302
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-351-1	01	1	1303-1411
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (A)	1-83564-351-1	01	1	1412-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83564-353-1	01	1	1009-1302
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D)	1-83564-353-1	01	1	1303-1411
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (D)	1-83564-353-1	01	1	1412-
51	ISOLATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-496-0	03	1	1009-1302
51	ISOLATOR; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-496-0	03	1	1303-1411
51	ISOLATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83579-496-0	03	1	1412-
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-794-0	02	1	1009-1302
52	CLIP; LEVER TO CASE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94248-794-0	02	1	1303-1411
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	8-94248-794-0	02	1	1412-
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-638-0	01	1	1009-1302
53	ROD; ACTUATOR,BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-638-0	01	1	1303-1411
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (A)	1-83579-638-0	01	1	1412-
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-639-0	01	1	1009-1302
53	ROD; ACTUATOR,BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-639-0	01	1	1303-1411
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (B)	1-83579-639-0	01	1	1412-
54	SCREW; ACTUATOR TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94348-809-0	02	1	1009-1302
54	SCREW; ACTUATOR TO CASE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94348-809-0	02	1	1303-1411
54	SCREW; ACTUATOR TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	8-94348-809-0	02	1	1412-
71	CLIP; HARNESS AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83574-080-0	01	1	1303-
78	SCREW; CASE TO CASE AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M5X10 TAPPING W/PL WASHER	0-74300-510-0	01	1	1303-
78	SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M4X16	8-94324-850-0	17	1	1009-1302
78	SCREW; CASE TO CASE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M4X16	8-94324-850-0	17	1	1303-1411
78	SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (A) M4X16	8-94324-850-0	17	1	1412-
79	SENSOR; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83544-037-0	01	1	1303-
82	BRACKET; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-871-1	01	1	1009-1302
82	BRACKET; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83571-871-1	01	1	1303-
92	ACTUATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-640-1	01	1	1009-1302
92	ACTUATOR; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-640-1	01	1	1303-1411
92	ACTUATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83579-640-1	01	1	1412-
100	SCREW; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	01	1	1009-1302
100	SCREW; BRKT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M4X16	8-94324-850-0	01	1	1303-
107	SCREW; TRANSISTOR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M4X16	8-94324-850-0	02	1	1303-
116	SEAL; TRANSISTOR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-656-0	01	1	1303-
119	LINING; CASE HEATER & DEFROSTER(C41) (C)	1-83579-839-0	02	1	1412-
119	LINING; CASE AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (E)	1-83578-032-0	01	1	1303-
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83579-673-2	01	1	1009-
119	LINING; CASE HEATER & DEFROSTER(C41) (C)	1-83579-839-0	02	1	1009-1302
119	LINING; CASE AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (F)	1-83579-961-0	01	1	1303-
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-670-1	01	1	1009-1302
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-670-1	01	1	1303-1411
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (A)	1-83579-670-1	01	1	1412-
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-671-1	01	1	1009-1302
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-671-1	01	1	1303-1411
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (B)	1-83579-671-1	01	1	1412-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
