Sayfa 8-60 - Isuzu EPC

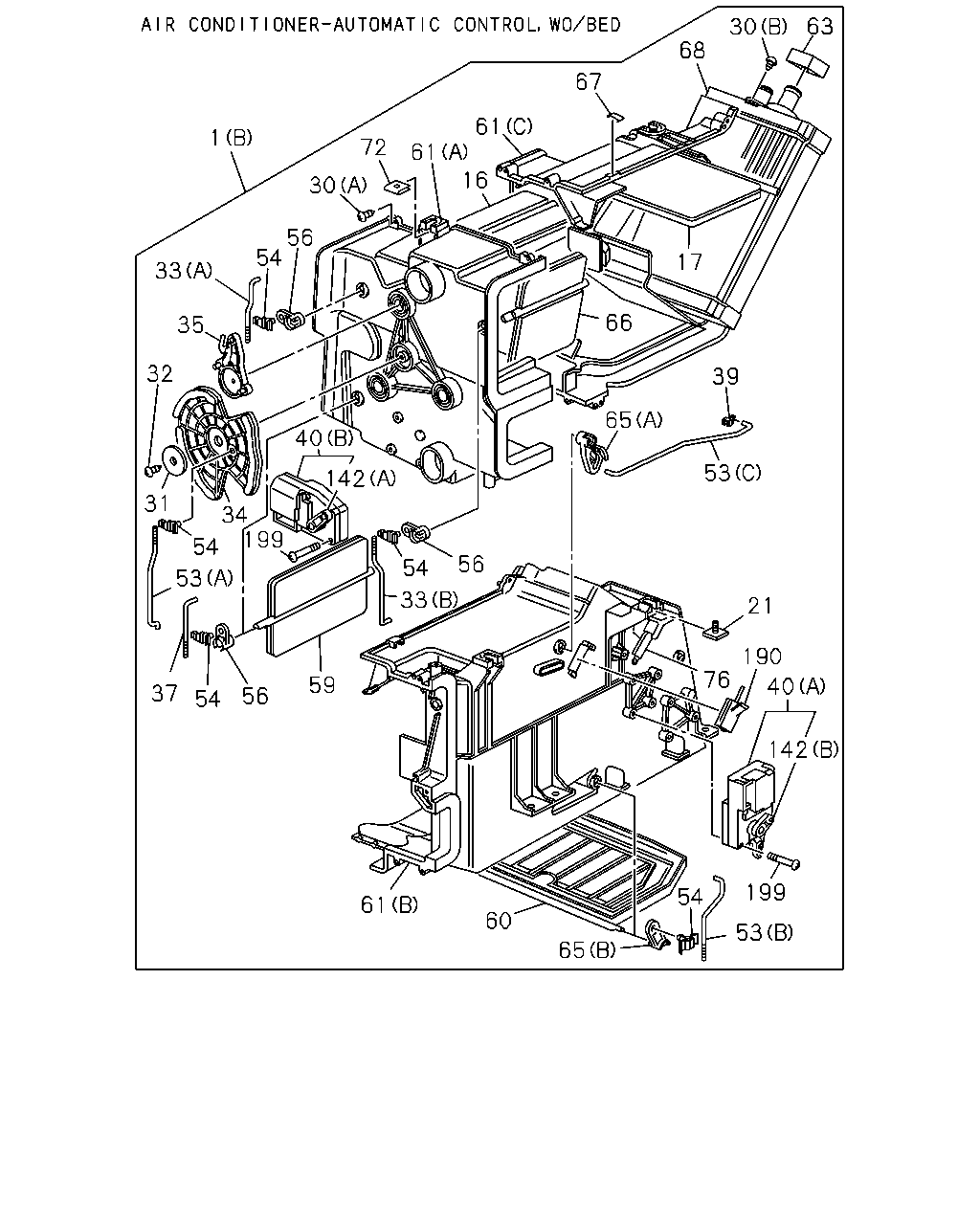

8-60 — HEATER UNIT; FRONT (#70026) — 240 parça

65 54 53 60 61 17 66 56 33 54 40 199 142 34 32 54 53 37 54 59 56 31 35 33 56 61 30 72 61 16 21 68 67 30 63 65 53 40 142 199 39 1 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83511-184-1	01	1	1303-1409
1	HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	8-98238-482-0	01	1	1410-
1	HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83511-175-1	01	1	1009-1302
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83511-175-1	01	1	1303-1409
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98238-476-0	01	1	1410-1411
1	HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98238-476-0	01	1	1412-
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-625-1	01	1	1009-1302
16	SHUTTER; HTR UNIT,CENTER UPR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-625-1	01	1	1303-1411
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83579-625-1	01	1	1412-
17	SHUTTER; HTR UNIT,CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-628-1	01	1	1009-1302
17	SHUTTER; HTR UNIT,CENTER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-628-1	01	1	1303-1411
17	SHUTTER; HTR UNIT,CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83579-628-1	01	1	1412-
21	BOLT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-657-2	02	1	1009-1302
21	BOLT; CASE,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-657-2	02	1	1303-1411
21	BOLT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83579-657-2	02	1	1412-
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M4X16	8-94324-850-0	12	1	1009-1302
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M4X16	8-94324-850-0	12	1	1303-1411
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (B) M4X16	8-94324-850-0	12	1	1412-
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X20	9-09829-324-1	01	1	1009-1302
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M5X20	9-09829-324-1	01	1	1303-1409
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M5X16	8-94248-820-0	01	1	1410-1411
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (A) M5X16	8-94248-820-0	01	1	1412-
31	WASHER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94129-950-0	01	1	1009-1302
31	WASHER; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94129-950-0	01	1	1303-1411
31	WASHER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	8-94129-950-0	01	1	1412-
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	01	1	1009-1302
32	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X20	9-09829-324-1	01	1	1303-1409
32	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X16	8-94248-820-0	01	1	1410-1411
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) M5X16	8-94248-820-0	01	1	1412-
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-619-0	01	1	1009-1302
33	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-619-0	01	1	1303-1411
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (A)	1-83579-619-0	01	1	1412-
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-621-0	01	1	1009-1302
33	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-621-0	01	1	1303-1411
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (B)	1-83579-621-0	01	1	1412-
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-326-0	01	1	1009-1302
34	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83564-326-0	01	1	1303-1411
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83564-326-0	01	1	1412-
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94389-502-1	03	1	1009-1302
35	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94389-502-1	03	1	1303-1411
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	8-94389-502-1	03	1	1412-
37	ROD; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-620-1	01	1	1009-1302
37	ROD; LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-620-1	01	1	1303-1411
37	ROD; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83579-620-1	01	1	1412-
39	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-136-0	01	1	1009-1302
39	CLIP; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83574-136-0	01	1	1303-1411
39	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83574-136-0	01	1	1412-
40	ACTUATOR; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-649-1	01	1	1009-1302
40	ACTUATOR; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-649-2	01	1	1303-1411
40	ACTUATOR; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (B)	1-83579-649-2	01	1	1412-
40	ACTUATOR; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-650-1	01	1	1009-1302
40	ACTUATOR; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-650-1	01	1	1303-1411
40	ACTUATOR; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (A)	1-83579-650-1	01	1	1412-
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-622-0	01	1	1009-1302
53	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-622-0	01	1	1303-1411
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (A)	1-83579-622-0	01	1	1412-
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-623-0	01	1	1009-1302
53	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-623-0	01	1	1303-1411
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (B)	1-83579-623-0	01	1	1412-
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-624-0	01	1	1009-1302
53	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83579-624-0	01	1	1303-1411
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (C)	1-83579-624-0	01	1	1412-
54	CLIP; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-794-0	05	1	1009-1302
54	CLIP; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94248-794-0	05	1	1303-1411
54	CLIP; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	8-94248-794-0	05	1	1412-
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-325-0	03	1	1009-1302
56	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83564-325-0	03	1	1303-1411
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83564-325-0	03	1	1412-
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-626-2	01	1	1009-1302
59	SHUTTER; HTR UNIT,SIDE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-626-2	01	1	1303-1411
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83579-626-2	01	1	1412-
60	DOOR; MIX,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83578-084-0	01	1	1009-1302
60	DOOR; MIX,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83578-084-0	01	1	1303-1411
60	DOOR; MIX,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83578-084-0	01	1	1412-
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98299-713-0	01	1	1410-1411
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98299-713-0	01	1	1412-
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98299-715-0	01	1	1410-1411
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98299-715-0	01	1	1412-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83564-346-3	01	1	1009-1302
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83564-346-3	01	1	1303-1411
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (C)	1-83564-346-3	01	1	1412-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-401-0	01	1	1009-1302
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-401-0	01	1	1303-1409
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-401-0	01	1	1410-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-402-0	01	1	1009-1302
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-402-0	01	1	1303-1409
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-402-0	01	1	1410-
63	LINING; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-557-0	02	1	1009-1302
63	LINING; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-557-0	02	1	1303-1411
63	LINING; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83579-557-0	02	1	1412-
65	LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-327-0	01	1	1009-1302
65	LEVER; MIX,DOOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-327-0	01	1	1303-1411
65	LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (A)	1-83564-327-0	01	1	1412-
65	LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-328-1	01	1	1009-1302
65	LEVER; MIX,DOOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-328-1	01	1	1303-1411
65	LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (B)	1-83564-328-1	01	1	1412-
66	SHUTTER; HTR UNIT,CENTER LWR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-680-0	01	1	1303-
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-627-0	01	1	1009-1302
66	SHUTTER; HTR UNIT,CENTER LWR AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-627-0	01	1	1303-1411
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-627-0	01	1	1412-
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-148-0	01	1	1009-1302
67	CLIP; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83574-148-0	01	1	1303-1411
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83574-148-0	01	1	1412-
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83562-078-1	01	1	1009-1302
68	CORE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83562-078-1	01	1	1303-1409
68	CORE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-98238-475-0	01	1	1410-1411
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	8-98238-475-0	01	1	1412-
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-659-4	02	1	1009-1302
72	NUT; CASE,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-659-4	02	1	1303-1411
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83579-659-4	02	1	1412-
142	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-345-1	01	1	1009-1302
142	LEVER; ACTUATOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-345-1	01	1	1303-1411
142	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (B)	1-83564-345-1	01	1	1412-
142	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-414-0	01	1	1009-1302
142	LEVER; ACTUATOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-414-0	01	1	1303-1411
142	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (A)	1-83564-414-0	01	1	1412-
199	SCREW; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94348-809-0	04	1	1009-1302
199	SCREW; ACTUATOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94348-809-0	04	1	1303-1411
199	SCREW; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	8-94348-809-0	04	1	1412-

39 65 53 21 190 40 142 199 53 54 65 60 61 59 56 54 37 53 31 54 33 199 54 40 32 35 33 54 56 30 72 61 61 67 68 30 63 66 17 16 76 56 142 34 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83511-184-1	01	1	1303-1409
1	HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	8-98238-482-0	01	1	1410-
1	HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83511-175-1	01	1	1009-1302
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83511-175-1	01	1	1303-1409
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98238-476-0	01	1	1410-1411
1	HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98238-476-0	01	1	1412-
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-625-1	01	1	1009-1302
16	SHUTTER; HTR UNIT,CENTER UPR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-625-1	01	1	1303-1411
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83579-625-1	01	1	1412-
17	SHUTTER; HTR UNIT,CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-628-1	01	1	1009-1302
17	SHUTTER; HTR UNIT,CENTER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-628-1	01	1	1303-1411
17	SHUTTER; HTR UNIT,CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83579-628-1	01	1	1412-
21	BOLT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-657-2	02	1	1009-1302
21	BOLT; CASE,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-657-2	02	1	1303-1411
21	BOLT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83579-657-2	02	1	1412-
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M4X16	8-94324-850-0	12	1	1009-1302
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M4X16	8-94324-850-0	12	1	1303-1411
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (B) M4X16	8-94324-850-0	12	1	1412-
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X20	9-09829-324-1	01	1	1009-1302
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M5X20	9-09829-324-1	01	1	1303-1409
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M5X16	8-94248-820-0	01	1	1410-1411
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (A) M5X16	8-94248-820-0	01	1	1412-
31	WASHER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94129-950-0	01	1	1009-1302
31	WASHER; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94129-950-0	01	1	1303-1411
31	WASHER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	8-94129-950-0	01	1	1412-
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	01	1	1009-1302
32	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X20	9-09829-324-1	01	1	1303-1409
32	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X16	8-94248-820-0	01	1	1410-1411
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) M5X16	8-94248-820-0	01	1	1412-
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-619-0	01	1	1009-1302
33	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-619-0	01	1	1303-1411
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (A)	1-83579-619-0	01	1	1412-
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-621-0	01	1	1009-1302
33	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-621-0	01	1	1303-1411
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (B)	1-83579-621-0	01	1	1412-
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-326-0	01	1	1009-1302
34	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83564-326-0	01	1	1303-1411
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83564-326-0	01	1	1412-
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94389-502-1	03	1	1009-1302
35	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94389-502-1	03	1	1303-1411
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	8-94389-502-1	03	1	1412-
37	ROD; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-620-1	01	1	1009-1302
37	ROD; LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-620-1	01	1	1303-1411
37	ROD; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83579-620-1	01	1	1412-
39	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-136-0	01	1	1009-1302
39	CLIP; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83574-136-0	01	1	1303-1411
39	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83574-136-0	01	1	1412-
40	ACTUATOR; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-649-1	01	1	1009-1302
40	ACTUATOR; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-649-2	01	1	1303-1411
40	ACTUATOR; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (B)	1-83579-649-2	01	1	1412-
40	ACTUATOR; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-650-1	01	1	1009-1302
40	ACTUATOR; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-650-1	01	1	1303-1411
40	ACTUATOR; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (A)	1-83579-650-1	01	1	1412-
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-622-0	01	1	1009-1302
53	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-622-0	01	1	1303-1411
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (A)	1-83579-622-0	01	1	1412-
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-623-0	01	1	1009-1302
53	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-623-0	01	1	1303-1411
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (B)	1-83579-623-0	01	1	1412-
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-624-0	01	1	1009-1302
53	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83579-624-0	01	1	1303-1411
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (C)	1-83579-624-0	01	1	1412-
54	CLIP; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-794-0	05	1	1009-1302
54	CLIP; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94248-794-0	05	1	1303-1411
54	CLIP; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	8-94248-794-0	05	1	1412-
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-325-0	03	1	1009-1302
56	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83564-325-0	03	1	1303-1411
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83564-325-0	03	1	1412-
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-626-2	01	1	1009-1302
59	SHUTTER; HTR UNIT,SIDE AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-626-2	01	1	1303-1411
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83579-626-2	01	1	1412-
60	DOOR; MIX,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83578-084-0	01	1	1009-1302
60	DOOR; MIX,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83578-084-0	01	1	1303-1411
60	DOOR; MIX,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83578-084-0	01	1	1412-
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98299-713-0	01	1	1410-1411
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98299-713-0	01	1	1412-
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98299-715-0	01	1	1410-1411
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98299-715-0	01	1	1412-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83564-346-3	01	1	1009-1302
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83564-346-3	01	1	1303-1411
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (C)	1-83564-346-3	01	1	1412-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-401-0	01	1	1009-1302
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-401-0	01	1	1303-1409
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-401-0	01	1	1410-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-402-0	01	1	1009-1302
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-402-0	01	1	1303-1409
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-402-0	01	1	1410-
63	LINING; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-557-0	02	1	1009-1302
63	LINING; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-557-0	02	1	1303-1411
63	LINING; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83579-557-0	02	1	1412-
65	LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-327-0	01	1	1009-1302
65	LEVER; MIX,DOOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-327-0	01	1	1303-1411
65	LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (A)	1-83564-327-0	01	1	1412-
65	LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-328-1	01	1	1009-1302
65	LEVER; MIX,DOOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-328-1	01	1	1303-1411
65	LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (B)	1-83564-328-1	01	1	1412-
66	SHUTTER; HTR UNIT,CENTER LWR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-680-0	01	1	1303-
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-627-0	01	1	1009-1302
66	SHUTTER; HTR UNIT,CENTER LWR AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-627-0	01	1	1303-1411
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-627-0	01	1	1412-
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-148-0	01	1	1009-1302
67	CLIP; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83574-148-0	01	1	1303-1411
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83574-148-0	01	1	1412-
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83562-078-1	01	1	1009-1302
68	CORE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83562-078-1	01	1	1303-1409
68	CORE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-98238-475-0	01	1	1410-1411
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	8-98238-475-0	01	1	1412-
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-659-4	02	1	1009-1302
72	NUT; CASE,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-659-4	02	1	1303-1411
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	1-83579-659-4	02	1	1412-
76	BRACKET; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83571-874-0	01	1	1303-
142	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-345-1	01	1	1009-1302
142	LEVER; ACTUATOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-345-1	01	1	1303-1411
142	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (B)	1-83564-345-1	01	1	1412-
142	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-414-0	01	1	1009-1302
142	LEVER; ACTUATOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-414-0	01	1	1303-1411
142	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (A)	1-83564-414-0	01	1	1412-
190	SENSOR; HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-658-1	01	1	1303-
199	SCREW; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94348-809-0	04	1	1009-1302
199	SCREW; ACTUATOR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94348-809-0	04	1	1303-1411
199	SCREW; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB)	8-94348-809-0	04	1	1412-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
