8-40 — HEATER SYSTEM (#70022) — 94 parça

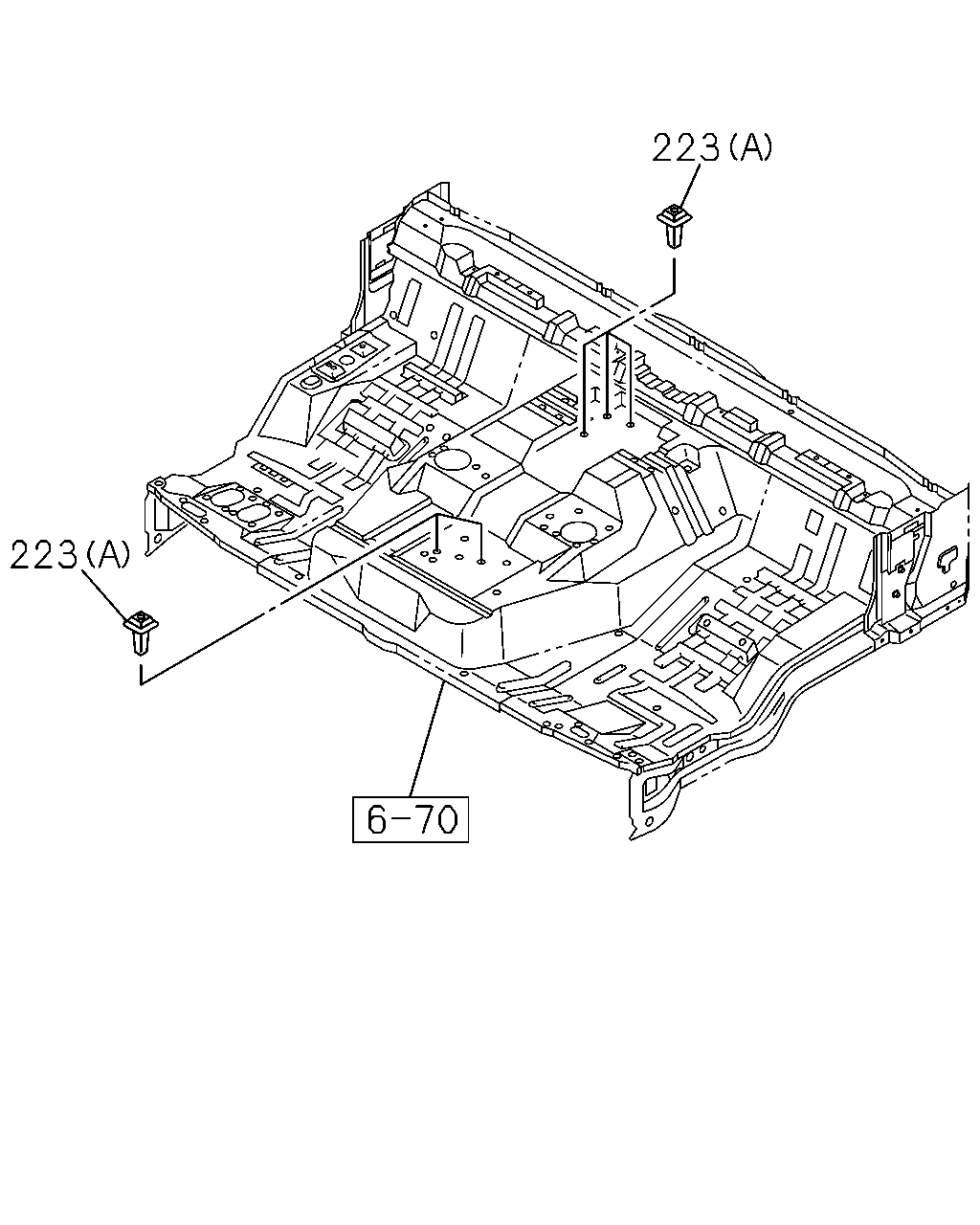

223 223

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	1009-
	223	GROMMET; SCREW (B) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	1009-

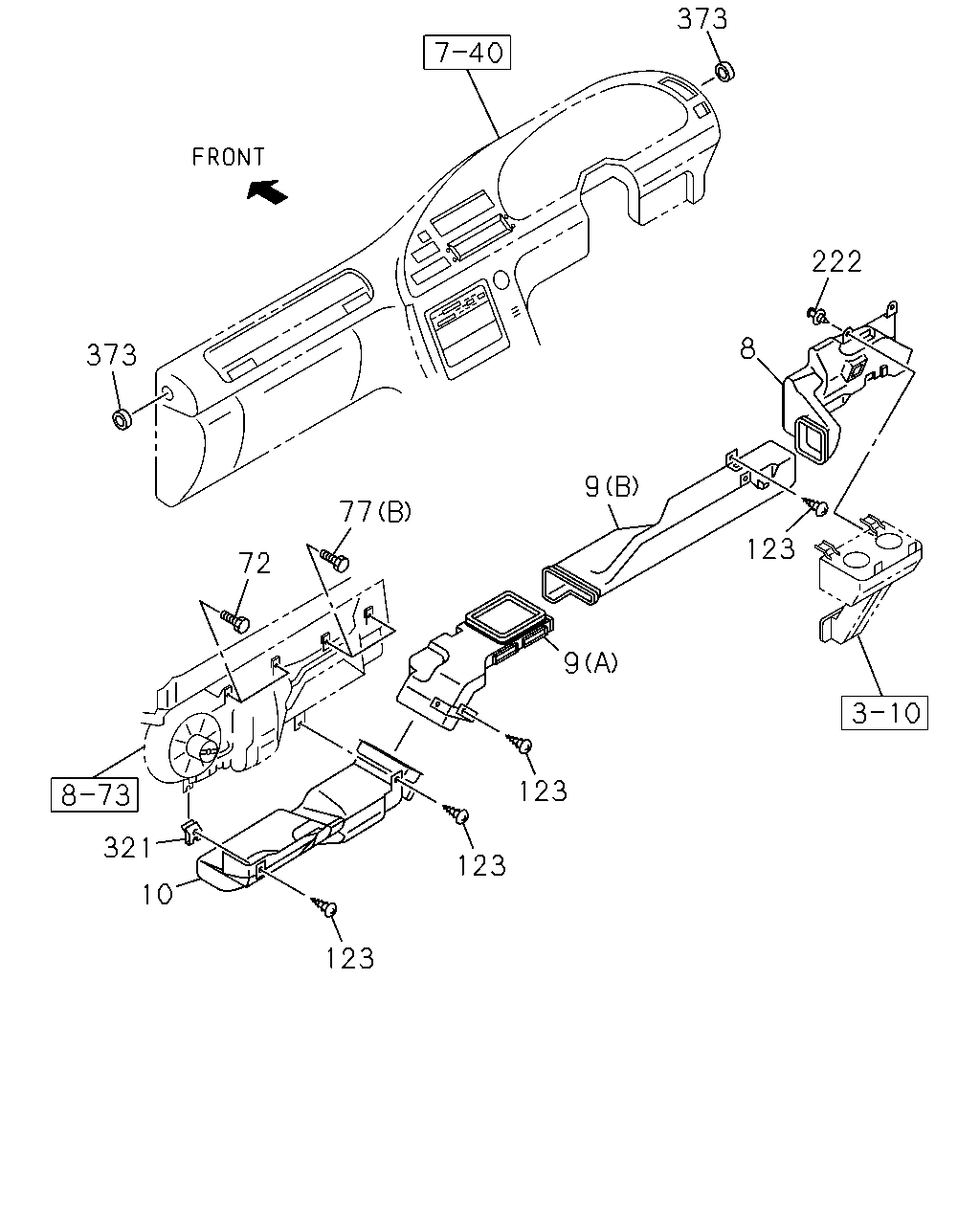

373 373 72 77 9 8 222 123 321 10 123 123 123 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	DUCT; HTR AIR,DRIVER FOOT	1-76377-208-0	01	1	1009-
9	DUCT; HTR AIR,FOOT CENTER (B)	1-76377-210-1	01	1	1009-
9	DUCT; HTR AIR,FOOT CENTER (A)	1-76377-226-2	01	1	1009-
10	DUCT; HTR AIR,ASSIST FOOT	1-76377-204-2	01	1	1009-
72	BOLT; BLOWER UNIT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1009-1302
72	BOLT; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1303-1411
72	BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1412-
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-1	02	1	1009-1302
77	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M6X16	1-09980-598-1	02	1	1303-1411
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (A) M6X16	1-09980-598-1	02	1	1412-
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1009-1302
77	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1303-1411
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1412-
123	SCREW; DUCT M5X14	8-94279-325-0	08	1	1303-
123	SCREW; DUCT M5X14	8-94279-325-0	12	1	1009-1302
123	SCREW; DUCT M5X14	8-94279-325-0	04	1	1303-
222	FASTENER; DUCT D6X12.5	8-94146-425-0	02	1	1009-
321	NUT; DUCT FIX M5	1-09984-196-0	01	1	1009-
373	RUBBER; JOINT	1-76378-291-0	02	1	1009-

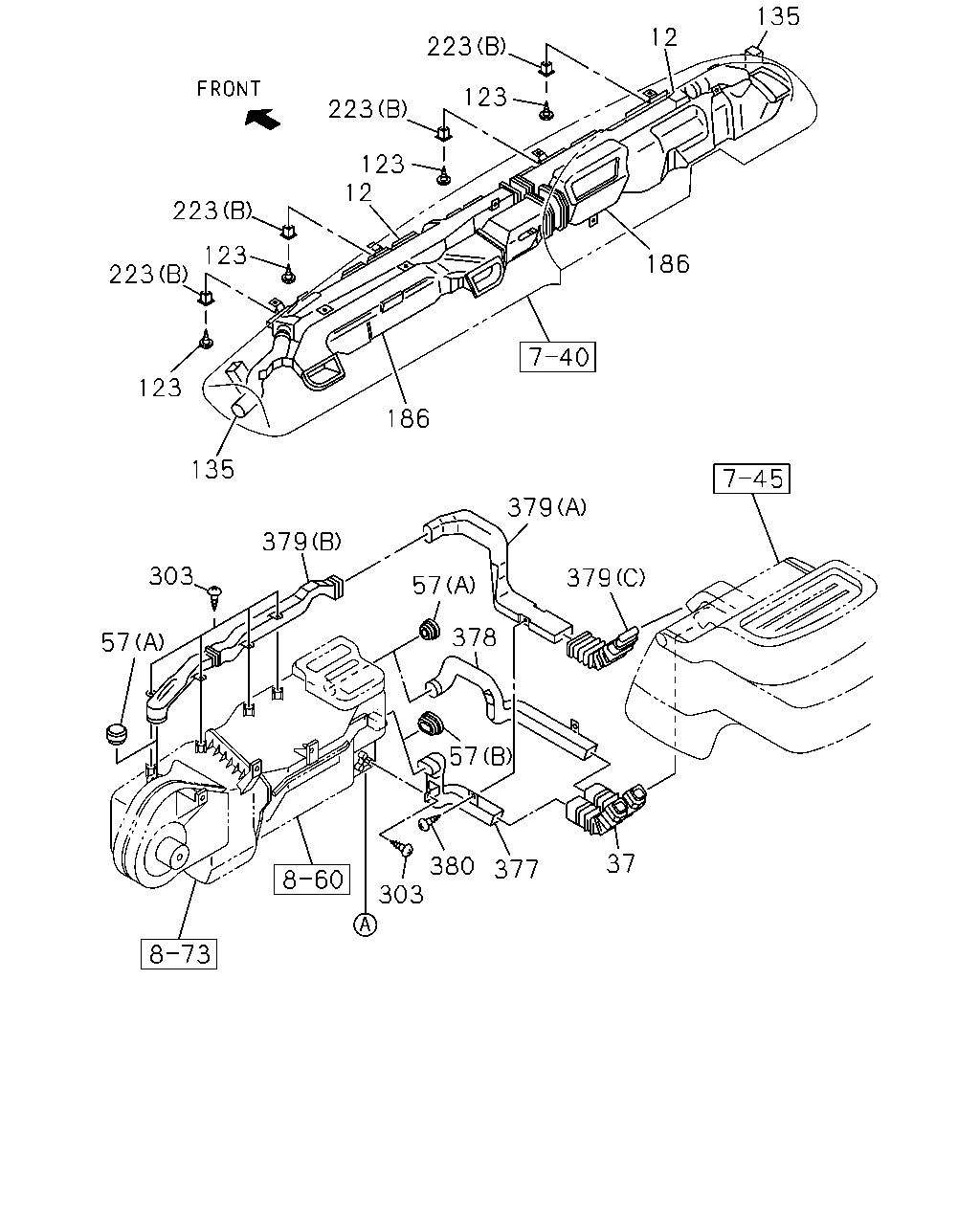

223 223 223 223 123 12 123 12 135 186 186 135 303 57 379 379 379 378 57 303 57 380 377 37 123 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NOZZLE; DEFROSTER	1-76377-153-5	01	1	1009-
12	NOZZLE; DEFROSTER	1-76377-172-7	01	1	1009-
37	HOSE; AIR,HTR COOL & HOT BOX<TMU>	1-76377-193-3	01	1	1303-
57	COVER; INL DUCT EXC. CENTER SEAT DELETE(SP9) (A)	1-83579-617-0	02	1	1009-1302
57	COVER; INL DUCT CENTER SEAT(SA1) (A)	1-83579-617-0	02	1	1303-
57	COVER; INL DUCT EXC. CENTER SEAT DELETE(SP9) (B)	1-83579-618-0	01	1	1009-1302
57	COVER; INL DUCT CENTER SEAT(SA1) (B)	1-83579-618-0	01	1	1303-
123	SCREW; DUCT M5X14	8-94279-325-0	08	1	1303-
123	SCREW; DUCT M5X14	8-94279-325-0	12	1	1009-1302
123	SCREW; DUCT M5X14	8-94279-325-0	04	1	1303-
135	HOSE; DEFROSTER	1-76378-253-4	01	1	1009-
135	HOSE; DEFROSTER	1-76378-252-7	01	1	1009-
186	DUCT; VENTILATOR	1-76377-243-1	01	1	1009-
186	DUCT; VENTILATOR	1-76377-246-0	01	1	1009-
223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	1009-
223	GROMMET; SCREW (B) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	1009-
303	SCREW; HOSE COOL & HOT BOX<TMU> M5X14	8-94279-325-0	05	1	1303-
377	HOSE; BOX,INLET,COOL COOL & HOT BOX<TMU>	1-76377-159-5	01	1	1303-
378	HOSE; BOX,INLET,HOT COOL & HOT BOX<TMU>	1-76377-161-6	01	1	1303-
379	HOSE; BOX,OUTLET COOL & HOT BOX<TMU> (A)	1-76377-163-5	01	1	1303-
379	HOSE; BOX,OUTLET COOL & HOT BOX<TMU> (B)	1-76377-164-3	01	1	1303-
379	HOSE; BOX,OUTLET COOL & HOT BOX<TMU> (C)	1-76377-192-4	01	1	1303-
380	FASTENER; HOSE COOL & HOT BOX<TMU> D4.6X14.7 BLACK	1-09983-104-0	03	1	1303-

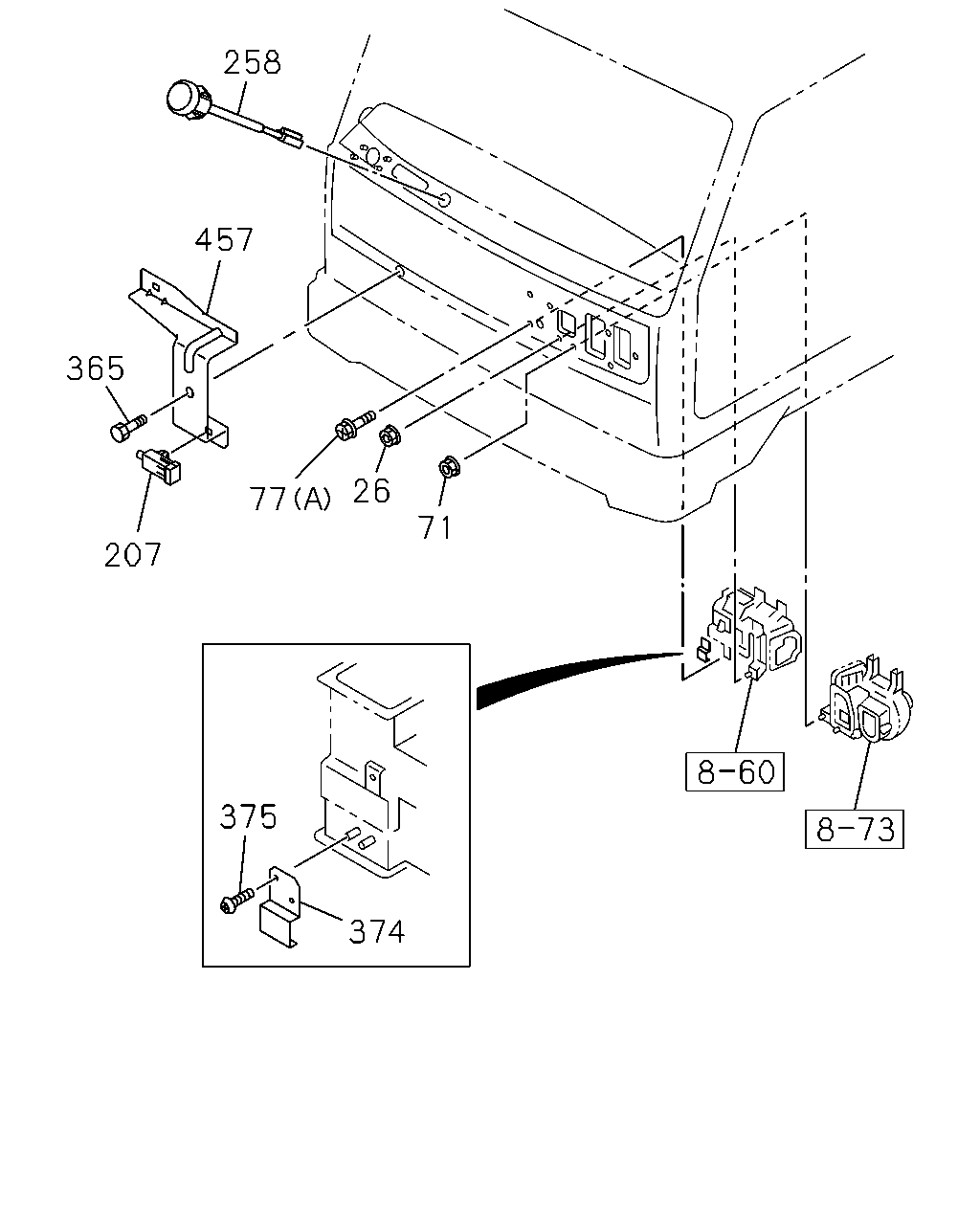

258 457 365 207 77 71 26 375 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	NUT; HTR M6 FLANGE W/RUBBER	1-09984-180-0	02	1	1009-1302
26	NUT; HTR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	1303-1411
26	NUT; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	1412-
71	NUT; BLOWER UNIT TO DASH M6 FLANGE W/RUBBER	1-09984-180-0	04	1	1009-1302
71	NUT; BLOWER UNIT TO DASH AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M6 FLANGE W/RUBBER	1-09984-180-0	04	1	1303-1411
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) M6 FLANGE W/RUBBER	1-09984-180-0	04	1	1412-
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-1	02	1	1009-1302
77	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M6X16	1-09980-598-1	02	1	1303-1411
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (A) M6X16	1-09980-598-1	02	1	1412-
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1009-1302
77	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1303-1411
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1412-
207	SENSOR; AMBIENT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-98214-375-0	01	1	1303-
258	SENSOR; SUN AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94472-043-2	01	1	1303-
365	BOLT; SENSOR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	1303-
374	HOLDER; DUCT	1-76398-012-1	01	1	1009-
375	SCREW; HOLDER M5X14	8-94279-325-0	02	1	1009-
457	BRACKET; SENSOR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-71907-603-1	01	1	1303-

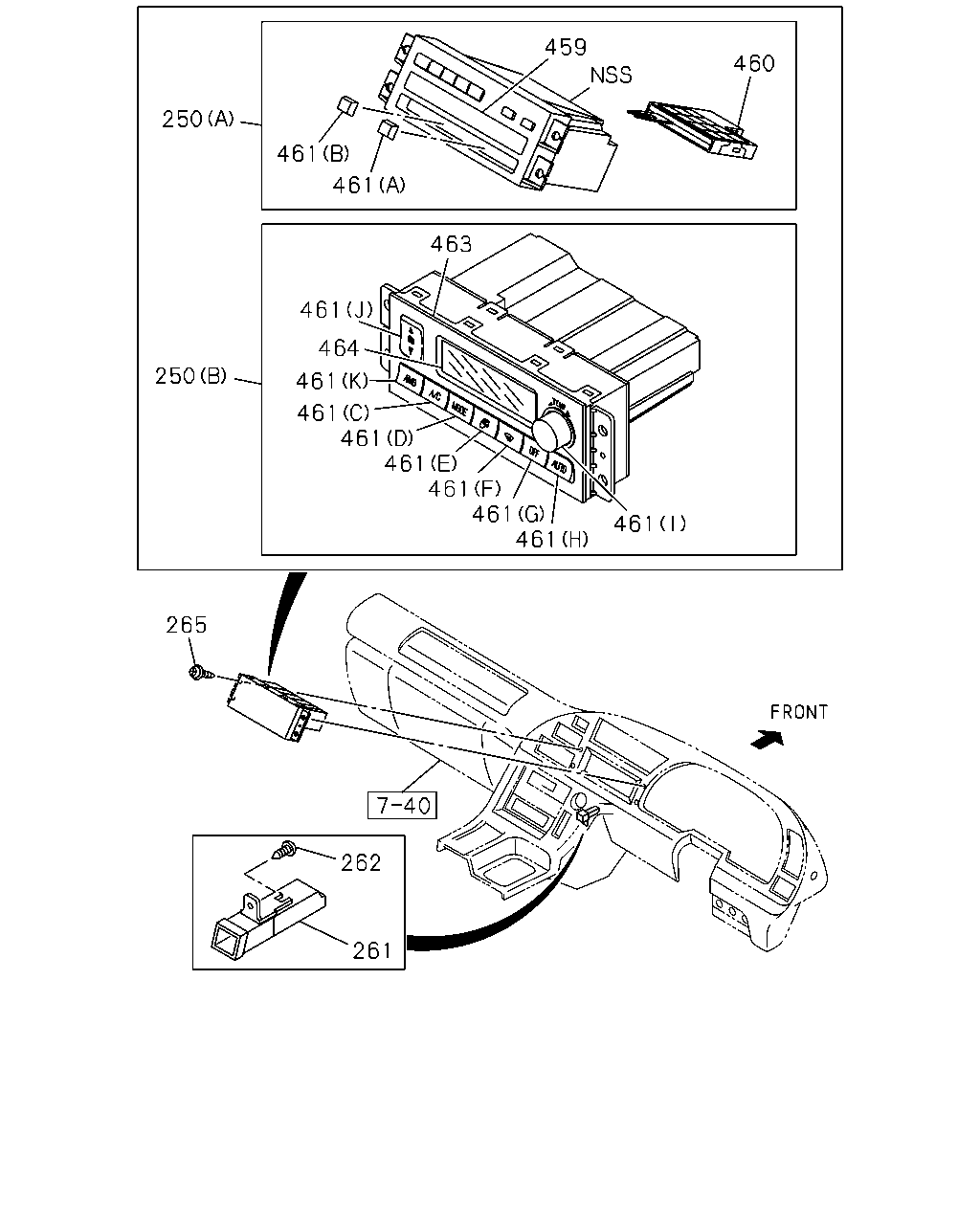

250 250 265 262 261 461 461 461 461 461 461 461 461 464 461 461 459 461 463 460

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
250	CONTROL ASM; A/C AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83543-038-1	01	1	1303-
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98034-326-0	01	1	1009-1302
250	CONTROL ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98034-326-0	01	1	1303-1411
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98034-326-0	01	1	1412-
261	SENSOR; IN CAR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83544-023-1	01	1	1303-
262	SCREW; IN CAR SENSOR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X14	8-94279-325-0	01	1	1303-
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74160-620-0	02	1	1009-1302
265	SCREW; A/C CONT UNIT AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M6X20 TAPPING W/PL WASHER	0-74160-620-0	01	1	1303-1411
265	SCREW; A/C CONT UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) M6X20 TAPPING W/PL WASHER	0-74160-620-0	01	1	1412-
459	PANEL; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83549-013-0	01	1	1009-1302
459	PANEL; CONTROL ASM,A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83549-013-0	01	1	1303-1411
459	PANEL; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83549-013-0	01	1	1412-
460	SWITCH; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-82489-006-0	01	1	1009-1302
460	SWITCH; CONTROL ASM,A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-82489-006-0	01	1	1303-1411
460	SWITCH; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-82489-006-0	01	1	1412-
461	KNOB; CONTROL ASM,A/C AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (J) FAN	1-83549-018-0	01	1	1303-
461	KNOB; CONTROL ASM,A/C AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (K) AMB	1-83549-019-0	01	1	1303-
461	KNOB; CONTROL ASM,A/C AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) A/C	1-83549-020-0	01	1	1303-
461	KNOB; CONTROL ASM,A/C AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D) MODE	1-83549-021-0	01	1	1303-
461	KNOB; CONTROL ASM,A/C AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (E) REC	1-83549-022-0	01	1	1303-
461	KNOB; CONTROL ASM,A/C AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (F) DEF	1-83549-023-0	01	1	1303-
461	KNOB; CONTROL ASM,A/C AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (G) OFF	1-83549-024-0	01	1	1303-
461	KNOB; CONTROL ASM,A/C AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (H) AUTO	1-83549-025-0	01	1	1303-
461	KNOB; CONTROL ASM,A/C AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (I) TEMP	1-83549-026-0	01	1	1303-
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83549-015-0	01	1	1009-1302
461	KNOB; CONTROL ASM,A/C AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83549-015-0	01	1	1303-1411
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83549-015-0	01	1	1412-
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83549-016-0	01	1	1009-1302
461	KNOB; CONTROL ASM,A/C AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83549-016-0	01	1	1303-1411
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83549-016-0	01	1	1412-
463	BEZEL; CONTROL PANEL AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83549-027-0	01	1	1303-
464	PLATE; CONTROL PANEL AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83549-028-0	01	1	1303-
