Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#70021) — 388 parça

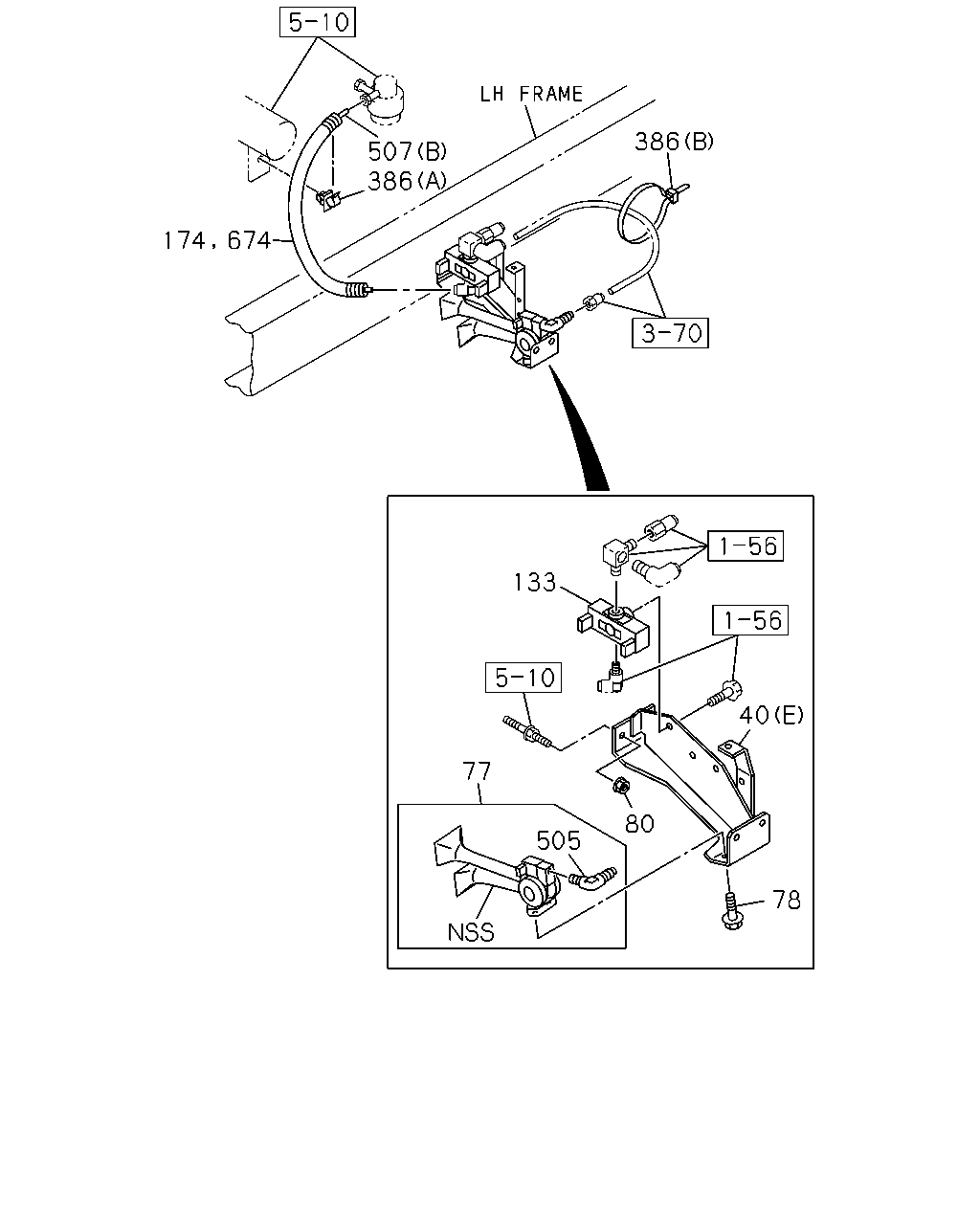

174 674 386 507 386 133 77 505 40 78 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	1009-1302
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (E)	8-98069-778-0	01	1	1009-1302
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (D)	1-53458-380-0	01	1	1303-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (E)	1-53457-180-0	01	1	1009-1302
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (A)	1-47471-076-0	01	1	1009-
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (C)	1-47479-362-0	01	1	1009-
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (B)	1-47479-894-0	01	1	1009-
77	HORN ASM	1-83430-041-2	01	1	1009-1302
78	BOLT; AIR HORN M8X20 FLANGE	0-28650-820-0	02	1	1009-1302
80	NUT; MAG VLV M12 FLANGE	0-91180-212-0	02	1	1009-1302
133	VALVE; MAG,AIR HORN FULL FLOATING CAB(W16)	1-53458-378-2	01	1	1009-1302
174	COVER FULL FLOATING CAB(W16) L=800	1-83129-031-1	01	1	1009-1302
386	CLIP; HARNESS FULL FLOATING CAB(W16) (B) L=350	1-09707-183-0	02	1	1009-1302
386	CLIP; HARNESS FULL FLOATING CAB(W16) (A) ID=9.5	5-09709-020-0	01	1	1009-1302
505	JOINT; AIR HORN	1-83439-006-0	01	1	1009-1302
507	TUBE; NYLON FULL FLOATING CAB(W16) (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1009-1302
507	TUBE; NYLON SMOOTHER-G(C1W) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	04	1	1009-
674	TUBE; CORRUGATE FULL FLOATING CAB(W16) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	1009-1302

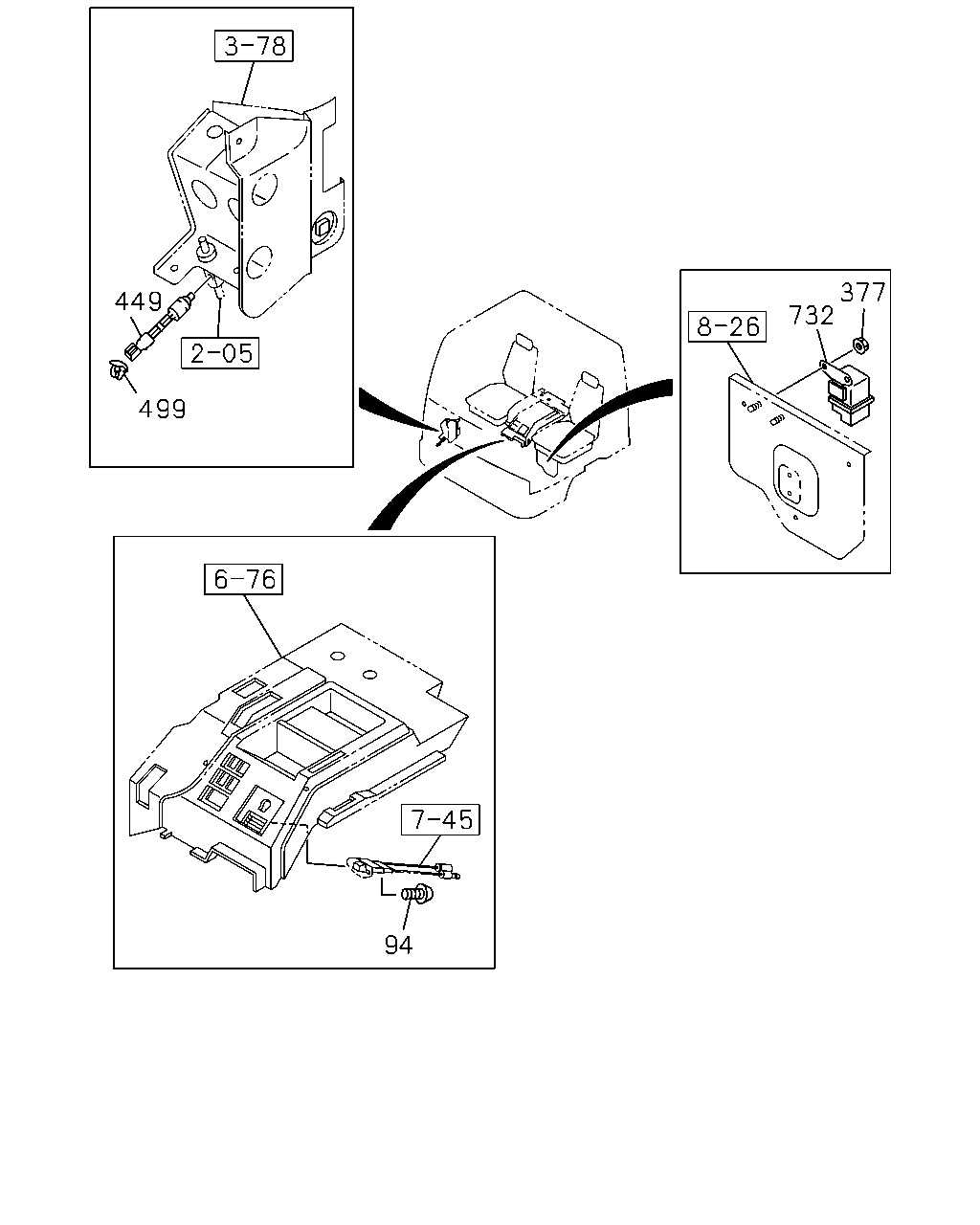

499 449 732 377 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	1009-
377	NUT; RELAY AIR BAG(TFQ) M6 FLANGE	0-91180-106-0	01	1	1009-
377	NUT; RELAY SMOOTHER-G(C1W) M6 FLANGE	0-91180-106-0	02	1	1009-
449	SWITCH; OIL PRESS,CLUTCH BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W),MJX M/T<Y9N>	1-82410-143-1	01	1	1009-
449	SWITCH; OIL PRESS,CLUTCH MJX M/T<Y9N> BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W)	1-82410-180-0	01	1	1009-
499	CLIP; SWITCH BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W) OD=9 H=6	1-09709-178-0	01	1	1009-
732	RELAY; EDS SMOOTHER-G(C1W)	1-82550-337-1	01	1	1009-

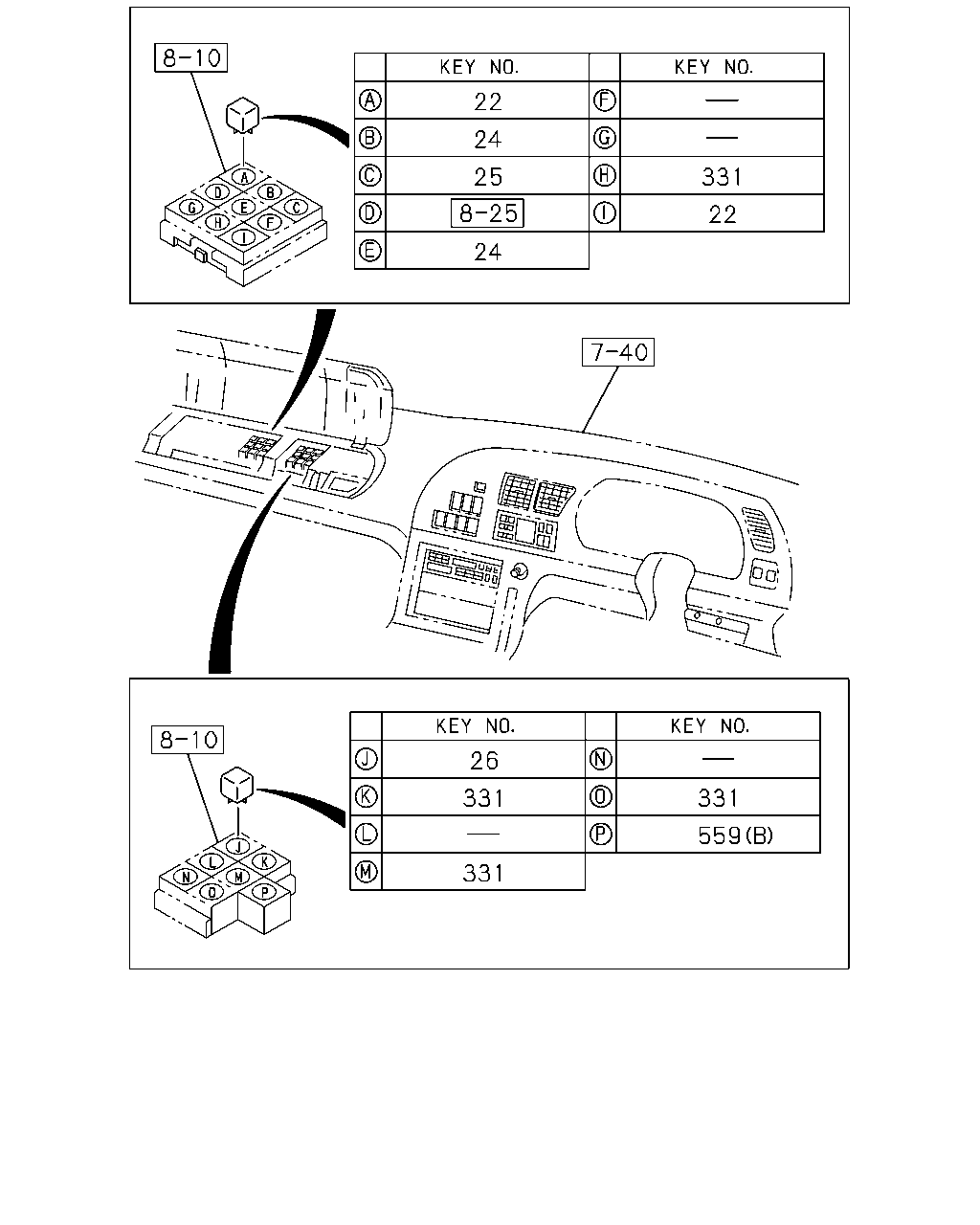

22 331 24 22 25 24 26 331 331 331 559

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP EXC. FULL TRACTOR TRUCK<RD6> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1303-1304
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1009-1302
22	RELAY; STOP LAMP FULL TRACTOR TRUCK<RD6> 24V 12.5A PANASONIC	8-97262-933-0	02	1	1303-1304
22	RELAY; STOP LAMP FULL TRACTOR TRUCK<RD6> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1305-
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1305-
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	1009-
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1009-
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	1009-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	02	1	1303-
331	RELAY; A/C AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 24V 12.5A PANASONIC	8-97262-933-0	04	1	1303-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	03	1	1009-1302
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1303-1411
331	RELAY; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1412-
559	RELAY; MAG VLV SMOOTHER-G(C1W) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1009-
559	RELAY; MAG VLV SMOOTHER-G(C1W) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1009-

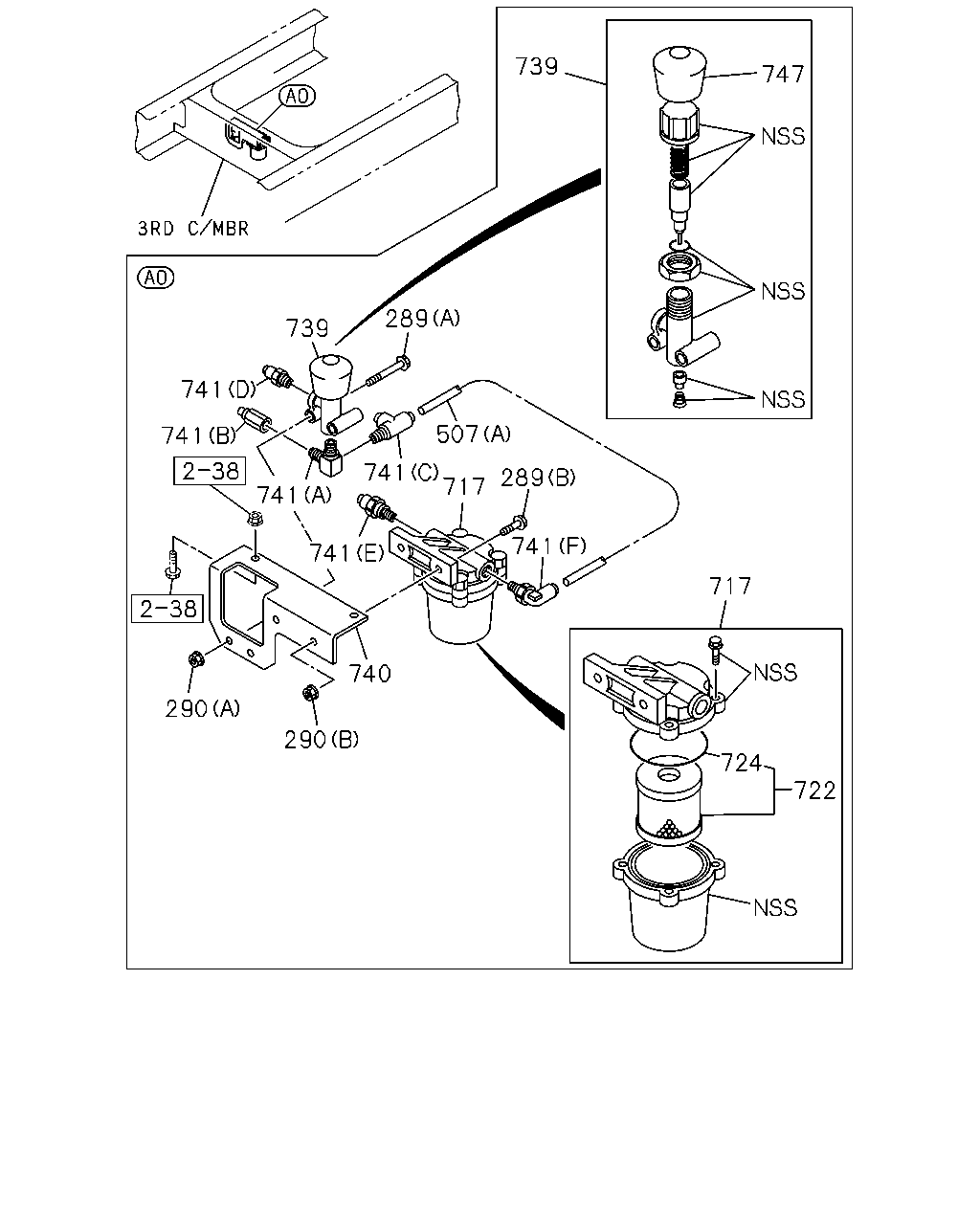

739 747 289 739 741 741 507 289 717 741 741 741 290 290 740 741 717 724 722

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
289	BOLT SMOOTHER-G(C1W) (A) M6X50 FLANGE	0-28050-650-0	02	1	1009-
289	BOLT SMOOTHER-G(C1W) (B) M8X25 FLANGE	0-28650-825-0	02	1	1009-
290	NUT SMOOTHER-G(C1W) (A) M6 FLANGE	0-91180-106-0	02	1	1009-
290	NUT SMOOTHER-G(C1W) (B) M8 FLANGE	0-91180-108-0	02	1	1009-
507	TUBE; NYLON FULL FLOATING CAB(W16) (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1009-1302
507	TUBE; NYLON SMOOTHER-G(C1W) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	04	1	1009-
717	FILTER; MAG VLV SMOOTHER-G(C1W)	8-98092-703-0	01	1	1009-
722	ELEMENT; AIR FILTER SMOOTHER-G(C1W)	1-33779-040-0	01	1	1009-
724	GASKET; AIR FILTER SMOOTHER-G(C1W)	5-09623-075-0	01	1	1009-
739	VALVE; PRESSURE SMOOTHER-G(C1W)	1-48410-738-0	01	1	1009-
740	BRACKET; FILTER SMOOTHER-G(C1W)	1-33779-042-0	01	1	1009-
741	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (A) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	1009-
741	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1009-
741	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (C) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	1009-
741	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (D) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1009-
741	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (E) DIN8 & M16 STRAIGHT	1-09661-530-0	01	1	1009-
741	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (F) DIN8 & M16 ELBOW	1-09661-531-0	01	1	1009-
747	BOOT; PRESSURE VALVE SMOOTHER-G(C1W)	1-48419-073-0	01	1	1009-

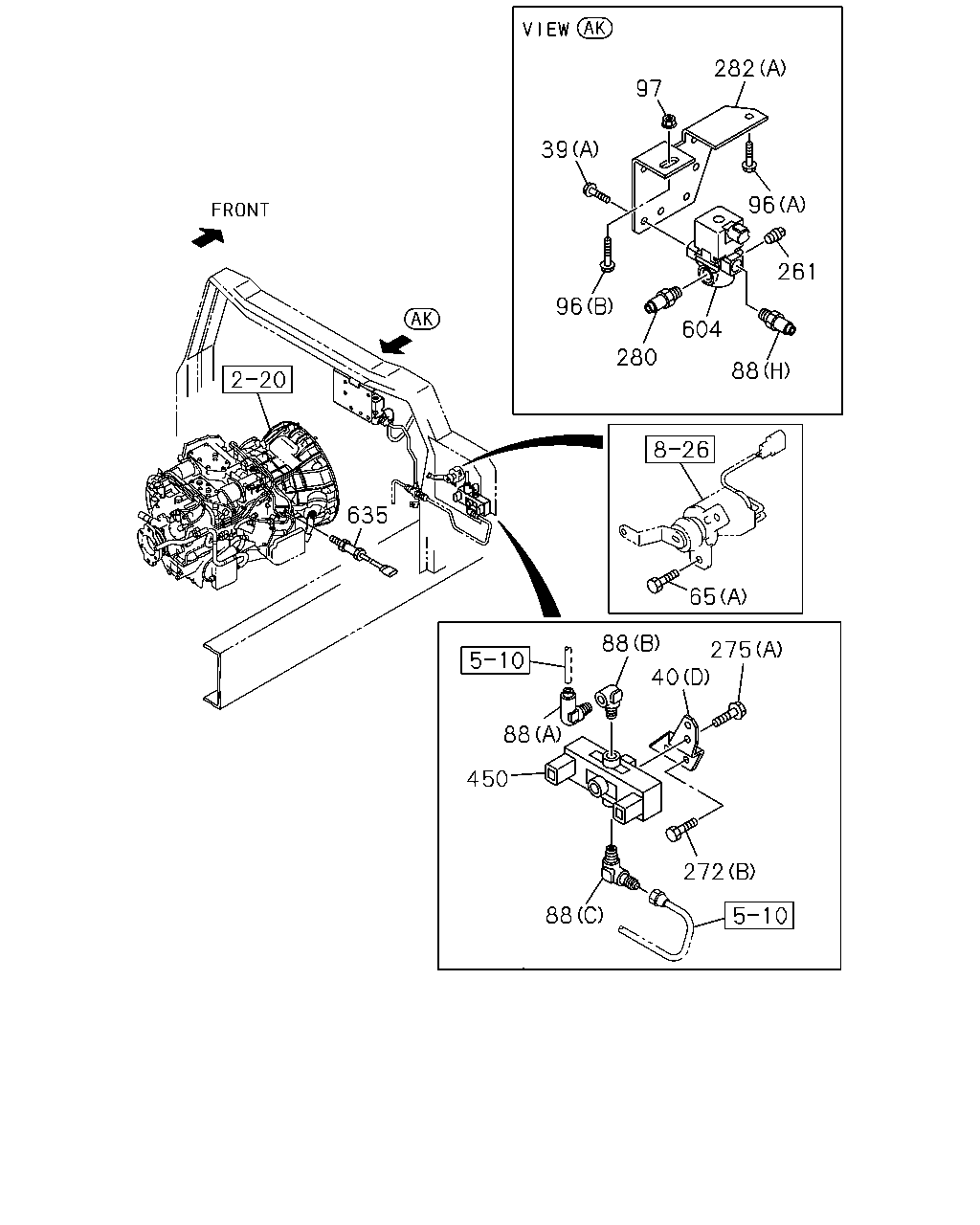

39 97 282 96 261 88 604 280 96 635 65 88 275 88 450 88 272 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	1009-1302
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M8X35 FLANGE	0-28650-835-0	02	1	1303-
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	1009-1302
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (E)	8-98069-778-0	01	1	1009-1302
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (D)	1-53458-380-0	01	1	1303-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (E)	1-53457-180-0	01	1	1009-1302
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (A)	1-47471-076-0	01	1	1009-
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (C)	1-47479-362-0	01	1	1009-
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (B)	1-47479-894-0	01	1	1009-
65	BOLT; SOCKET FIX FULL TRAILER PIPING<Z25> (B) M8X25 FLANGE	0-28650-825-0	04	1	1303-
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28050-616-0	02	1	1009-1302
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X25 FLANGE	0-28050-625-0	02	1	1303-
88	CONNECTOR; MAG VLV DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) FULL FLOATING CAB(W16) (I)	1-09661-073-0	01	1	1303-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (J) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1303-
88	CONNECTOR; MAG VLV (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1009-1302
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1303-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1009-1302
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1303-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	1009-1302
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	1303-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1009-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (E) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	1009-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (F) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (G) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1009-
96	BOLT; BRKT FIX FULL TRAILER PIPING<Z25> (C) M8X25 FLANGE	0-28650-825-0	04	1	1303-
96	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-
96	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1009-1302
96	BOLT; BRKT FIX (A) M10X25 FLANGE	0-28651-025-0	01	1	1303-
97	NUT; BRKT FIX FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	04	1	1303-
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	1009-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	02	1	1009-1302
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	1009-1302
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) PT1/4	9-99204-513-0	01	1	1009-1302
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) PT1/4	9-99204-513-0	01	1	1303-1411
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	1303-1411
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1303-1411
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	1303-1411
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) PT1/4	9-99204-513-0	01	1	1412-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	1412-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1412-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. NEW ZEALAND EQUIPMENT(PK5),SINGAPORE EQUIPMENT(WQ3) PT1/4	9-99204-513-0	01	1	1412-
272	BOLT; MAG VLV (B) M10X20 FLANGE	0-28651-020-0	02	1	1009-1208
272	BOLT; MAG VLV (B) M10X25 FLANGE	0-28651-025-0	02	1	1209-1302
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X25 FLANGE	0-28651-025-0	02	1	1303-
272	BOLT; MAG VLV SMOOTHER-G(C1W) (A) M8X35 FLANGE	0-28650-835-0	02	1	1009-
275	BOLT; BRKT FULL FLOATING CAB(W16) (C) M8X12 FLANGE	0-28050-812-0	01	1	1303-
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	1009-1302
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	1303-
275	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-
280	CONNECTOR; IN,MAG VLV M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D)	1-82569-358-0	01	1	1303-
282	BRACKET; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (D)	1-82569-358-0	01	1	1303-
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	1009-
282	BRACKET; MAG VLV (B)	1-82569-421-0	01	1	1009-1302
282	BRACKET; MAG VLV EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-82569-421-0	01	1	1303-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-47471-175-0	01	1	1009-1302
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. NEW ZEALAND EQUIPMENT(PK5) (C)	1-47471-175-0	01	1	1303-1411
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. NEW ZEALAND EQUIPMENT(PK5),SINGAPORE EQUIPMENT(WQ3) (C)	1-47471-175-0	01	1	1412-
450	VALVE; MAG	1-53458-378-2	01	1	1009-1302
450	VALVE; MAG FULL FLOATING CAB(W16)	1-53458-378-2	02	1	1303-
604	VALVE; MAG,ENG CONT	1-82563-871-2	01	1	1009-
635	SENSOR; PICK UP,INPUT SHAFT SMOOTHER-G(C1W)	1-81510-736-1	01	1	1009-

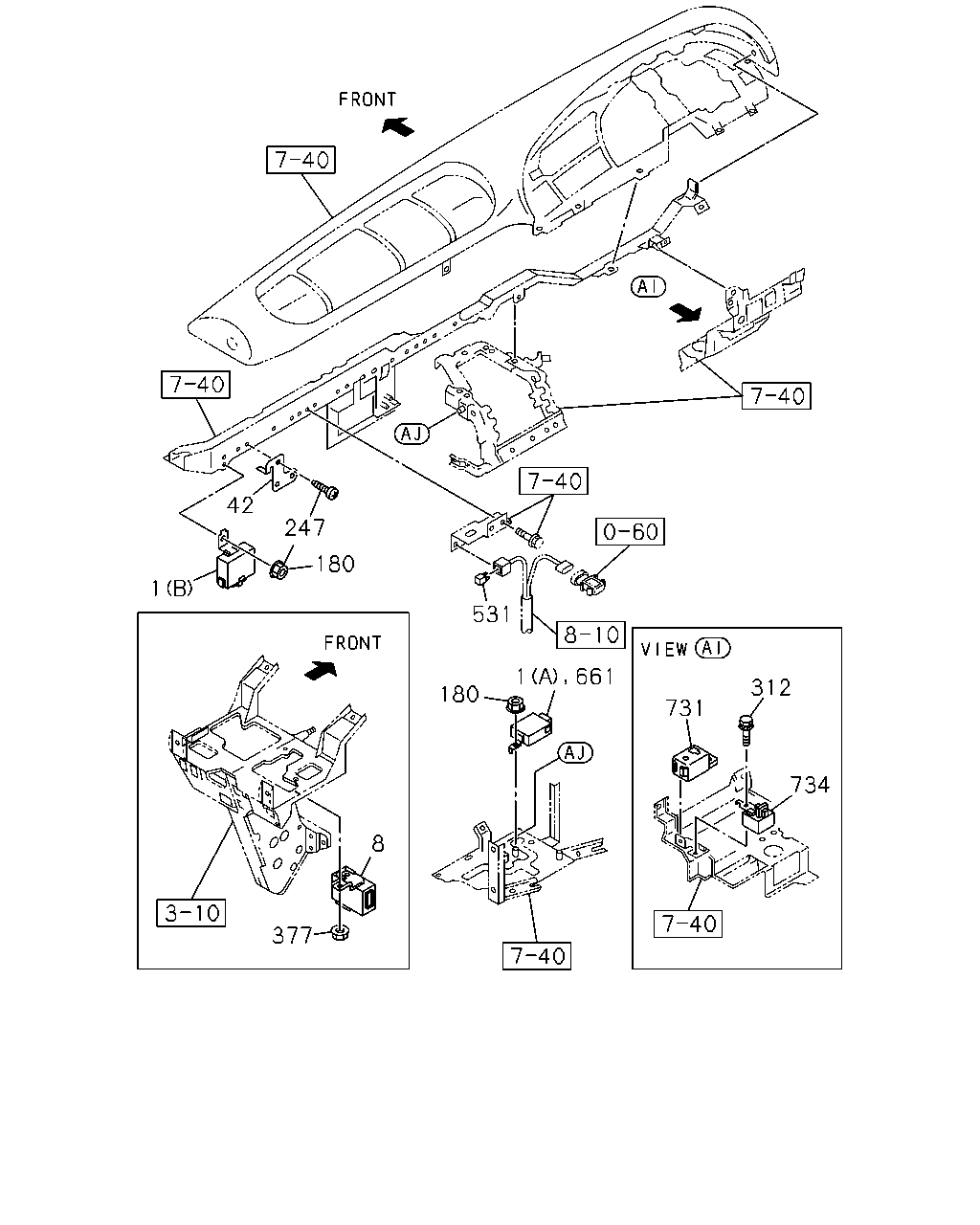

247 42 1 180 531 180 661 731 734 312 1 8 377

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER FULL TRACTOR TRUCK<RD6> (B)	8-97613-970-1	01	1	1303-
1	UNIT; FLASHER (A)	8-98025-533-1	01	1	1009-1302
1	UNIT; FLASHER EXC. FULL TRACTOR TRUCK<RD6> (A)	8-98025-533-1	01	1	1303-
8	RELAY; WIPER AIR BAG(TFQ)	1-83316-002-4	01	1	1009-
42	BRACKET; RELAY	1-82698-128-2	01	1	1009-
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	1009-1302
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	1303-
180	NUT; FLASHER UNIT FULL TRACTOR TRUCK<RD6> M6 FLANGE	0-91180-106-0	01	1	1303-
247	SCREW; BRKT M5X14	8-94279-325-0	01	1	1009-
312	BOLT; BUZZER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1009-
377	NUT; RELAY AIR BAG(TFQ) M6 FLANGE	0-91180-106-0	01	1	1009-
377	NUT; RELAY SMOOTHER-G(C1W) M6 FLANGE	0-91180-106-0	02	1	1009-
531	RELAY; MAIN 24V	8-98167-175-0	01	1	1009-
661	CONTROL UNIT; FLASHER FULL TRACTOR TRUCK<RD6>	1-83470-066-1	01	1	1303-
731	ALARM; INFORMATION SMOOTHER-G(C1W)	1-83460-051-1	01	1	1009-
734	ALARM; MULTI	1-83460-106-0	01	1	1009-

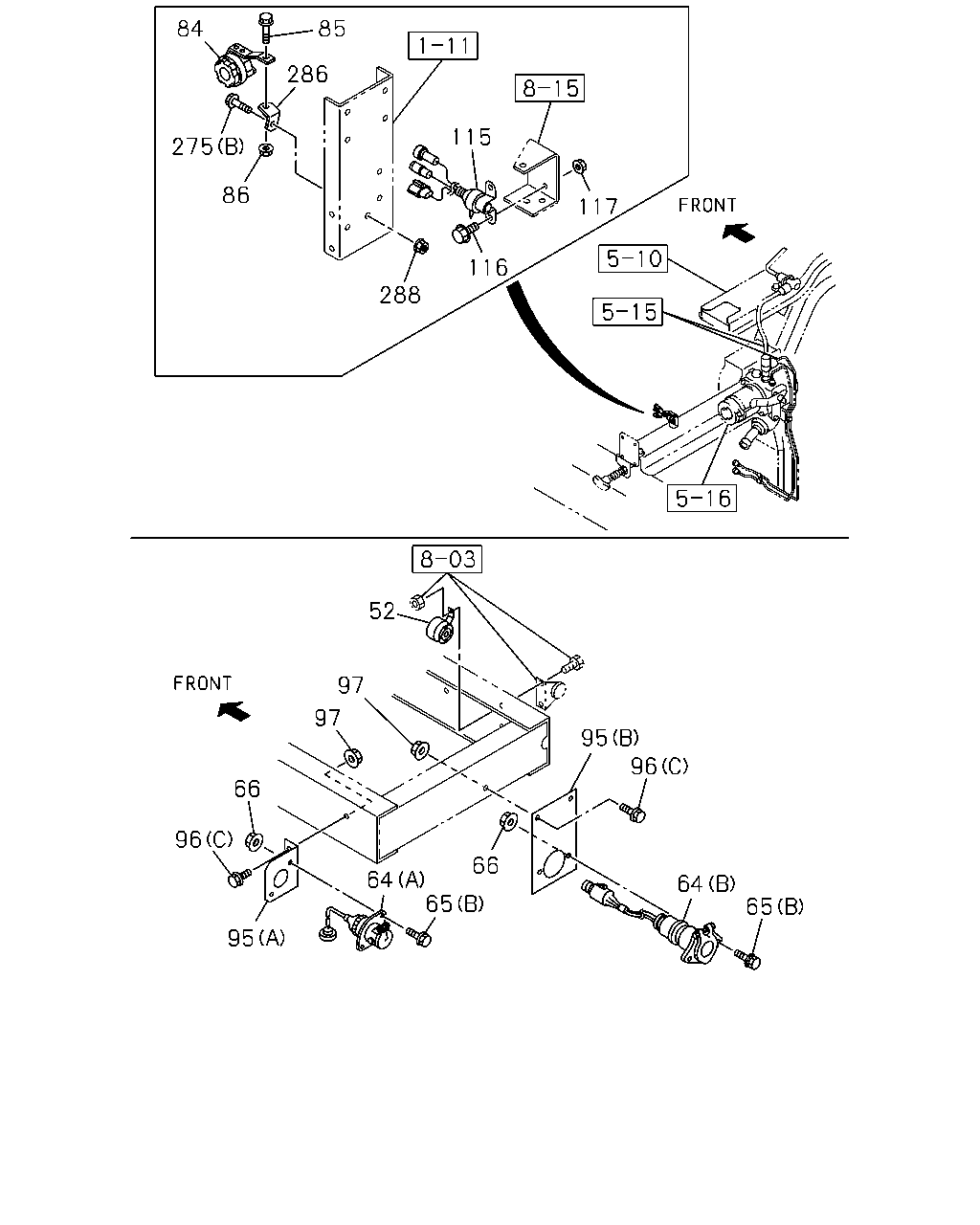

85 286 275 86 84 288 116 115 117 52 97 97 66 96 95 64 65 66 95 96 64 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BUZZER; BACK NEW ZEALAND EQUIPMENT(PK5) METRO DENSO	8-98069-861-0	01	1	1303-
64	SOCKET; TRAILER FULL TRACTOR TRUCK<RD6> (B) 7P	1-82523-014-0	01	1	1303-
64	SOCKET; TRAILER FULL TRACTOR TRUCK<RD6> (A) L=860	8-98172-008-0	01	1	1303-
65	BOLT; SOCKET FIX FULL TRAILER PIPING<Z25> (B) M8X25 FLANGE	0-28650-825-0	04	1	1303-
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28050-616-0	02	1	1009-1302
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X25 FLANGE	0-28050-625-0	02	1	1303-
66	NUT; SOCKET FIX FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	02	1	1303-
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	1009-
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	1009-
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	1009-
95	BRACKET; SOCKET,TRAILER FULL TRAILER PIPING<Z25> (B)	1-82699-387-0	01	1	1303-
95	BRACKET; SOCKET,TRAILER FULL TRAILER PIPING<Z25> (A)	8-97985-137-0	01	1	1303-
96	BOLT; BRKT FIX FULL TRAILER PIPING<Z25> (C) M8X25 FLANGE	0-28650-825-0	04	1	1303-
96	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-
96	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1009-1302
96	BOLT; BRKT FIX (A) M10X25 FLANGE	0-28651-025-0	01	1	1303-
97	NUT; BRKT FIX FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	04	1	1303-
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	1009-
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	1009-
116	BOLT; RELAY FIX M8X16 FLANGE	0-28050-816-0	02	1	1009-
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	1009-1302
275	BOLT; BRKT FULL FLOATING CAB(W16) (C) M8X12 FLANGE	0-28050-812-0	01	1	1303-
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	1009-1302
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	1303-
275	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-
286	BRACKET	1-82699-199-0	01	1	1009-
288	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	1009-

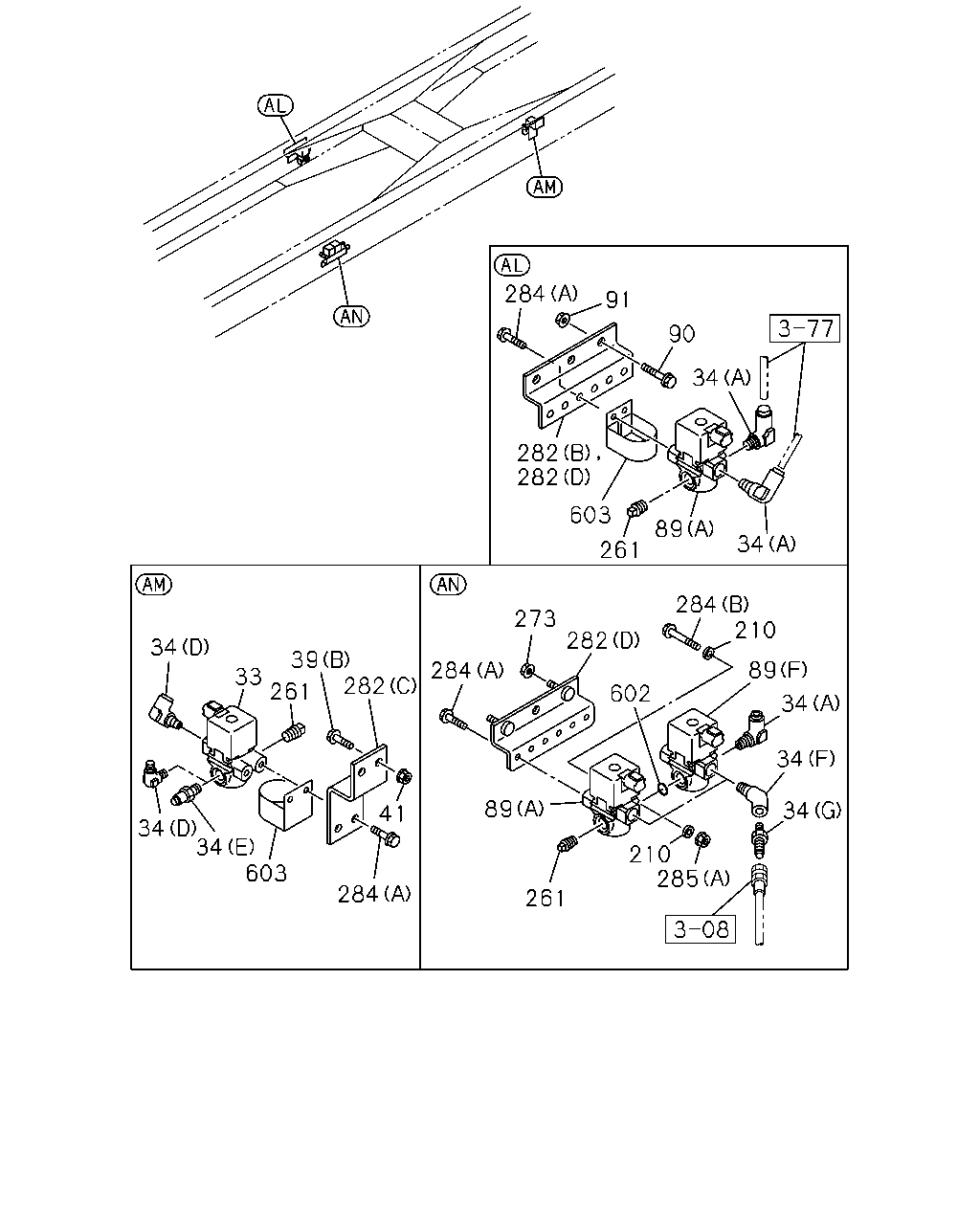

284 91 34 282 282 90 34 89 261 603 34 33 261 282 34 34 603 284 41 39 273 284 89 261 285 210 34 34 34 89 210 284 602 282

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	1009-1302
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-82563-871-2	01	1	1303-1411
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. NEW ZEALAND EQUIPMENT(PK5),SINGAPORE EQUIPMENT(WQ3)	1-82563-871-2	01	1	1412-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) HONG KONG EQUIPMENT(PQ1) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1303-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) HONG KONG EQUIPMENT(PQ1) (E) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1303-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	1303-1411
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	1412-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1009-
34	CONNECTOR; MAG VLV,INL PORT SMOOTHER-G(C1W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1009-1302
34	CONNECTOR; MAG VLV,INL PORT MJX12P M/T SMOOTHER-G(Y4S) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1303-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1303-
34	CONNECTOR; MAG VLV,INL PORT SMOOTHER-G(C1W) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1009-
34	CONNECTOR; MAG VLV,INL PORT SMOOTHER-G(C1W) (C) PT3/8	1-48319-058-0	01	1	1009-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1009-1302
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1303-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (E) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1009-1302
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (F) R1/4 & RC1/4	1-09664-211-0	02	1	1303-
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	1009-1302
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M8X35 FLANGE	0-28650-835-0	02	1	1303-
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91180-108-0	02	1	1009-1302
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91180-108-0	02	1	1303-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	1303-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (F)	1-82563-872-1	01	1	1303-
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	1009-1205
89	VALVE; MAG,DIFF LOCK (A)	8-97641-594-0	01	1	1206-
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (C)	1-82564-212-1	01	1	1009-
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (D)	1-82564-279-1	01	1	1009-
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (B)	1-82564-354-1	01	1	1009-1302
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (B)	8-98160-653-1	01	1	1303-
90	BOLT; MAG VLV EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X40 FLANGE	0-28650-840-0	02	1	1303-1411
90	BOLT; MAG VLV EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X40 FLANGE	0-28650-840-0	02	1	1412-
90	BOLT; MAG VLV M8X25 FLANGE	0-28650-825-0	02	1	1009-1302
90	BOLT; MAG VLV HONG KONG EQUIPMENT(PQ1) M8X35 FLANGE	0-28650-835-0	02	1	1303-1411
90	BOLT; MAG VLV HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X35 FLANGE	0-28650-835-0	02	1	1412-
91	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	1009-
210	WASHER; PL,BRKT SMOOTHER-G(C1W)	1-82569-266-0	02	1	1009-1302
210	WASHER; PL,BRKT MJX12P M/T SMOOTHER-G(Y4S)	1-82569-266-0	02	1	1303-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	1303-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	02	1	1009-1302
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	1009-1302
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) PT1/4	9-99204-513-0	01	1	1009-1302
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) PT1/4	9-99204-513-0	01	1	1303-1411
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	1303-1411
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1303-1411
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	1303-1411
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) PT1/4	9-99204-513-0	01	1	1412-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	1412-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1412-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. NEW ZEALAND EQUIPMENT(PK5),SINGAPORE EQUIPMENT(WQ3) PT1/4	9-99204-513-0	01	1	1412-
273	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91180-108-0	02	1	1303-
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D)	1-82569-358-0	01	1	1303-
282	BRACKET; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (D)	1-82569-358-0	01	1	1303-
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	1009-
282	BRACKET; MAG VLV (B)	1-82569-421-0	01	1	1009-1302
282	BRACKET; MAG VLV EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-82569-421-0	01	1	1303-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-47471-175-0	01	1	1009-1302
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. NEW ZEALAND EQUIPMENT(PK5) (C)	1-47471-175-0	01	1	1303-1411
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. NEW ZEALAND EQUIPMENT(PK5),SINGAPORE EQUIPMENT(WQ3) (C)	1-47471-175-0	01	1	1412-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-1302
284	BOLT; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-1302
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-1302
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X20 FLANGE	0-28650-820-0	02	1	1303-1411
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28650-820-0	02	1	1303-1411
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1303-1411
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M8X20 FLANGE	0-28650-820-0	02	1	1303-1411
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X20 FLANGE	0-28650-820-0	02	1	1412-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28650-820-0	02	1	1412-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1412-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. NEW ZEALAND EQUIPMENT(PK5),SINGAPORE EQUIPMENT(WQ3) (A) M8X20 FLANGE	0-28650-820-0	02	1	1412-
284	BOLT; MAG VLV SMOOTHER-G(C1W) (B) M6X50 FLANGE	0-28050-650-0	01	1	1009-1302
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M6X50 FLANGE	0-28050-650-0	01	1	1303-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	1303-
284	BOLT; MAG VLV SMOOTHER-G(C1W) (C) M8X14 FLANGE	0-28080-814-0	02	1	1009-1302
284	BOLT; MAG VLV SMOOTHER-G(C1W) (C) M8X12 FLANGE	0-28050-812-0	02	1	1303-
285	NUT; MAG VLV SMOOTHER-G(C1W) (B) M5	0-91110-505-0	03	1	1009-
285	NUT; MAG VLV SMOOTHER-G(C1W) (A) M6 FLANGE	0-91180-106-0	01	1	1009-1302
285	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M6 FLANGE	0-91180-106-0	01	1	1303-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91180-106-0	01	1	1303-
602	GASKET; MAG VLV SMOOTHER-G(C1W) ID=16.8	9-09565-117-0	01	1	1009-1302
602	GASKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) ID=16.8	9-09565-117-0	01	1	1303-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	1303-
603	PROTECTOR; MAG VLV	1-47471-046-0	01	1	1009-1302
603	PROTECTOR; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-47471-046-0	01	1	1009-1302
603	PROTECTOR; MAG VLV EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47471-046-0	01	1	1303-1411
603	PROTECTOR; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47471-046-0	01	1	1303-1411
603	PROTECTOR; MAG VLV EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47471-046-0	01	1	1412-
603	PROTECTOR; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. NEW ZEALAND EQUIPMENT(PK5),SINGAPORE EQUIPMENT(WQ3)	1-47471-046-0	01	1	1412-

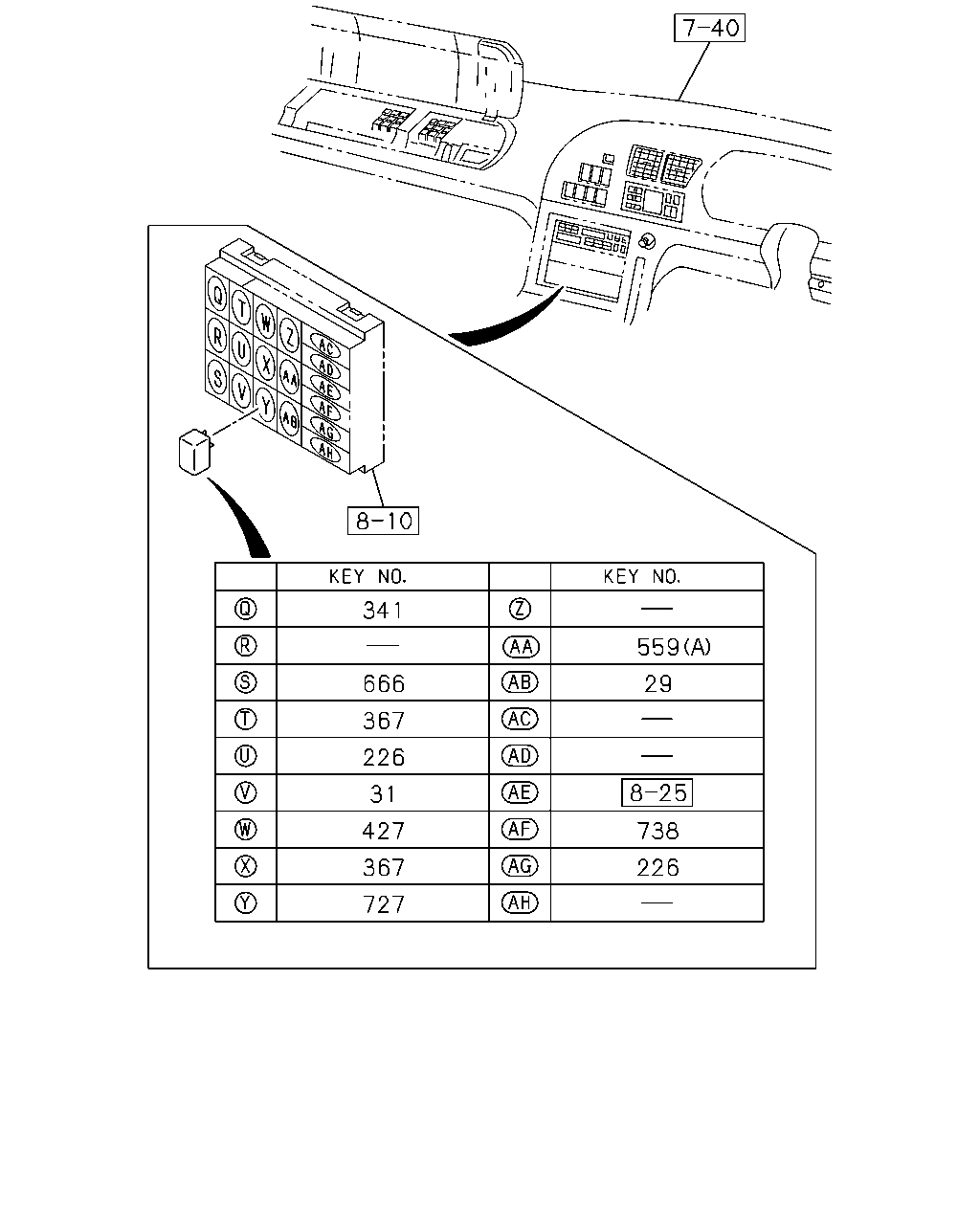

341 666 367 226 31 427 367 727 559 29 738 226

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	RELAY; HORN 24V 10A PANASONIC	8-97173-035-1	01	1	1303-
31	RELAY; PTO CONT SMOOTHER-G(C1W) TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC	8-97173-035-1	01	1	1009-1302
31	RELAY; PTO CONT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	1303-
226	RELAY; EXH BRK 24V 10A PANASONIC	8-97173-035-1	01	1	1009-
341	RELAY FULL FLOATING CAB(W16) 24V 10A PANASONIC	8-97173-035-1	01	1	1009-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	1009-
367	RELAY; NEUTRAL SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	1009-
427	RELAY; RETARDER FOOT BRAKE W/EXHAUST BRAKE<SJB> 24V 10A PANASONIC	8-97173-035-1	01	1	1009-1302
427	RELAY; RETARDER FOOT BRAKE W/EXHAUST BRAKE<SJB>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 24V 10A PANASONIC	8-97173-035-1	01	1	1303-
427	RELAY; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 24V 10A PANASONIC	8-97173-035-1	01	1	1303-
559	RELAY; MAG VLV SMOOTHER-G(C1W) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1009-
559	RELAY; MAG VLV SMOOTHER-G(C1W) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1009-
666	RELAY; STARTER SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	1009-
727	RELAY; START CUT 24V 10A PANASONIC	8-97173-035-1	01	1	1009-1306
727	RELAY; START CUT 24V 10A PANASONIC	8-98167-173-0	01	1	1307-
738	RELAY; EXH & RETARDER CUT 24V 10A PANASONIC	8-97173-035-1	01	1	1009-

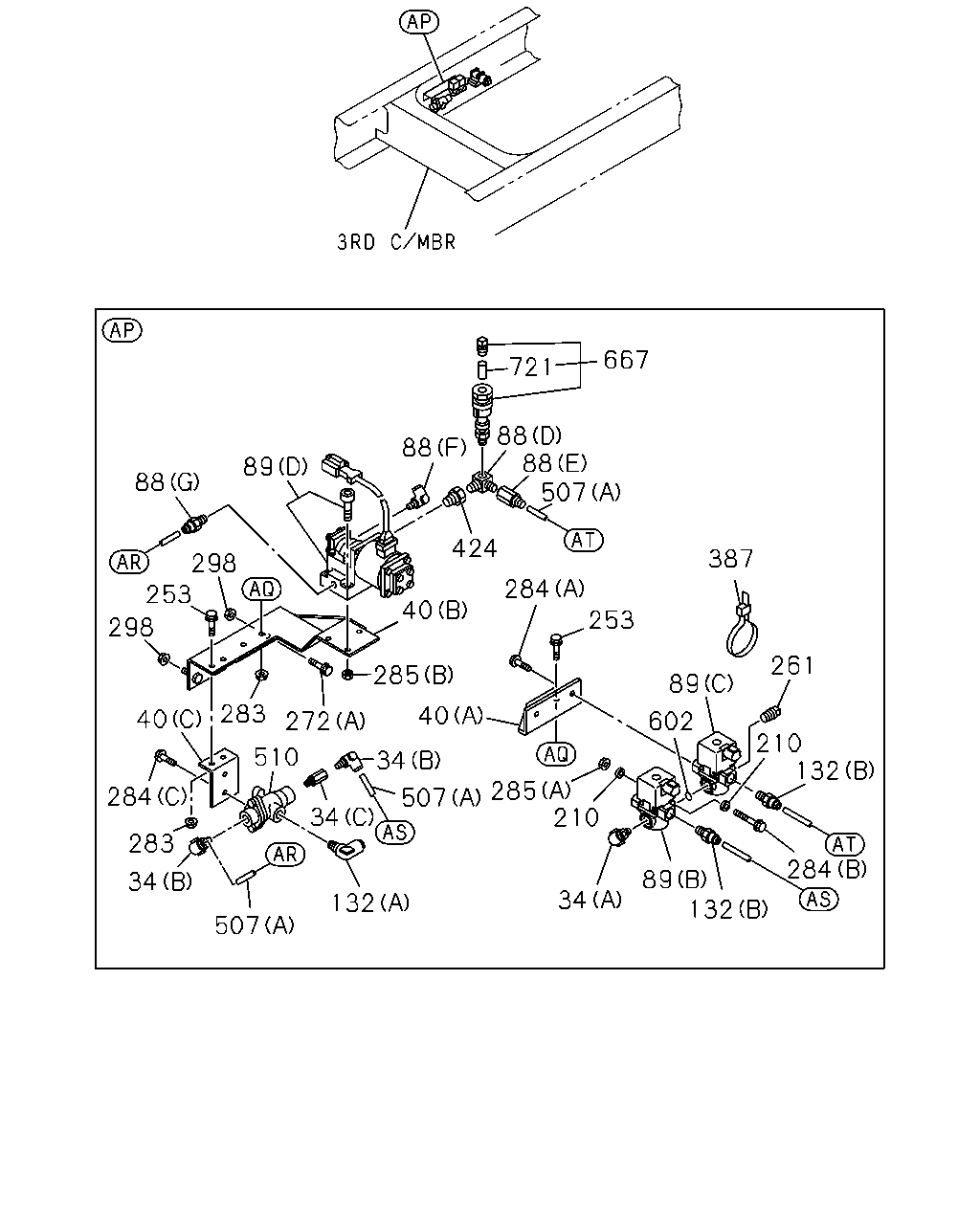

88 298 253 298 40 284 283 34 507 132 34 510 283 272 507 34 285 40 40 253 424 88 89 88 507 284 387 261 210 132 284 132 89 34 210 285 89 602 88 667 721

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) HONG KONG EQUIPMENT(PQ1) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1303-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) HONG KONG EQUIPMENT(PQ1) (E) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1303-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	1303-1411
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	1412-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1009-
34	CONNECTOR; MAG VLV,INL PORT SMOOTHER-G(C1W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1009-1302
34	CONNECTOR; MAG VLV,INL PORT MJX12P M/T SMOOTHER-G(Y4S) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1303-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1303-
34	CONNECTOR; MAG VLV,INL PORT SMOOTHER-G(C1W) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1009-
34	CONNECTOR; MAG VLV,INL PORT SMOOTHER-G(C1W) (C) PT3/8	1-48319-058-0	01	1	1009-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1009-1302
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1303-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (E) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1009-1302
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (F) R1/4 & RC1/4	1-09664-211-0	02	1	1303-
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	1009-1302
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (E)	8-98069-778-0	01	1	1009-1302
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (D)	1-53458-380-0	01	1	1303-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (E)	1-53457-180-0	01	1	1009-1302
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (A)	1-47471-076-0	01	1	1009-
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (C)	1-47479-362-0	01	1	1009-
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (B)	1-47479-894-0	01	1	1009-
88	CONNECTOR; MAG VLV DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) FULL FLOATING CAB(W16) (I)	1-09661-073-0	01	1	1303-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (J) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1303-
88	CONNECTOR; MAG VLV (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1009-1302
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1303-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1009-1302
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1303-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	1009-1302
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	1303-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1009-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (E) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	1009-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (F) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (G) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1009-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	1303-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (F)	1-82563-872-1	01	1	1303-
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	1009-1205
89	VALVE; MAG,DIFF LOCK (A)	8-97641-594-0	01	1	1206-
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (C)	1-82564-212-1	01	1	1009-
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (D)	1-82564-279-1	01	1	1009-
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (B)	1-82564-354-1	01	1	1009-1302
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (B)	8-98160-653-1	01	1	1303-
132	CONNECTOR; OUTLET,MAG VLV SMOOTHER-G(C1W) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-
132	CONNECTOR; OUTLET,MAG VLV SMOOTHER-G(C1W) (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	1009-
210	WASHER; PL,BRKT SMOOTHER-G(C1W)	1-82569-266-0	02	1	1009-1302
210	WASHER; PL,BRKT MJX12P M/T SMOOTHER-G(Y4S)	1-82569-266-0	02	1	1303-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	1303-
253	BOLT; BRKT SMOOTHER-G(C1W) M8X25 FLANGE	0-28650-825-0	04	1	1009-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	02	1	1009-1302
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	1009-1302
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) PT1/4	9-99204-513-0	01	1	1009-1302
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) PT1/4	9-99204-513-0	01	1	1303-1411
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	1303-1411
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1303-1411
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	1303-1411
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) PT1/4	9-99204-513-0	01	1	1412-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	1412-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1412-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. NEW ZEALAND EQUIPMENT(PK5),SINGAPORE EQUIPMENT(WQ3) PT1/4	9-99204-513-0	01	1	1412-
272	BOLT; MAG VLV (B) M10X20 FLANGE	0-28651-020-0	02	1	1009-1208
272	BOLT; MAG VLV (B) M10X25 FLANGE	0-28651-025-0	02	1	1209-1302
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X25 FLANGE	0-28651-025-0	02	1	1303-
272	BOLT; MAG VLV SMOOTHER-G(C1W) (A) M8X35 FLANGE	0-28650-835-0	02	1	1009-
283	NUT; BRKT SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	04	1	1009-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-1302
284	BOLT; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-1302
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-1302
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X20 FLANGE	0-28650-820-0	02	1	1303-1411
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28650-820-0	02	1	1303-1411
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1303-1411
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M8X20 FLANGE	0-28650-820-0	02	1	1303-1411
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X20 FLANGE	0-28650-820-0	02	1	1412-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28650-820-0	02	1	1412-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1412-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. NEW ZEALAND EQUIPMENT(PK5),SINGAPORE EQUIPMENT(WQ3) (A) M8X20 FLANGE	0-28650-820-0	02	1	1412-
284	BOLT; MAG VLV SMOOTHER-G(C1W) (B) M6X50 FLANGE	0-28050-650-0	01	1	1009-1302
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M6X50 FLANGE	0-28050-650-0	01	1	1303-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	1303-
284	BOLT; MAG VLV SMOOTHER-G(C1W) (C) M8X14 FLANGE	0-28080-814-0	02	1	1009-1302
284	BOLT; MAG VLV SMOOTHER-G(C1W) (C) M8X12 FLANGE	0-28050-812-0	02	1	1303-
285	NUT; MAG VLV SMOOTHER-G(C1W) (B) M5	0-91110-505-0	03	1	1009-
285	NUT; MAG VLV SMOOTHER-G(C1W) (A) M6 FLANGE	0-91180-106-0	01	1	1009-1302
285	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M6 FLANGE	0-91180-106-0	01	1	1303-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91180-106-0	01	1	1303-
298	NUT; MAG VLV SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	03	1	1009-
387	CLIP; BAND SMOOTHER-G(C1W) L=350	1-09707-183-0	01	1	1009-
424	ADAPTER SMOOTHER-G(C1W) PT3/8	1-09664-210-0	01	1	1009-
507	TUBE; NYLON FULL FLOATING CAB(W16) (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1009-1302
507	TUBE; NYLON SMOOTHER-G(C1W) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	04	1	1009-
510	VALVE; CHECK SMOOTHER-G(C1W)	1-48410-531-1	01	1	1009-
602	GASKET; MAG VLV SMOOTHER-G(C1W) ID=16.8	9-09565-117-0	01	1	1009-1302
602	GASKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) ID=16.8	9-09565-117-0	01	1	1303-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	1303-
667	LUBRICATION SMOOTHER-G(C1W)	8-98063-001-0	01	1	1009-
721	ELEMENT; LUBRICATION SMOOTHER-G(C1W)	1-33779-028-0	01	1	1009-

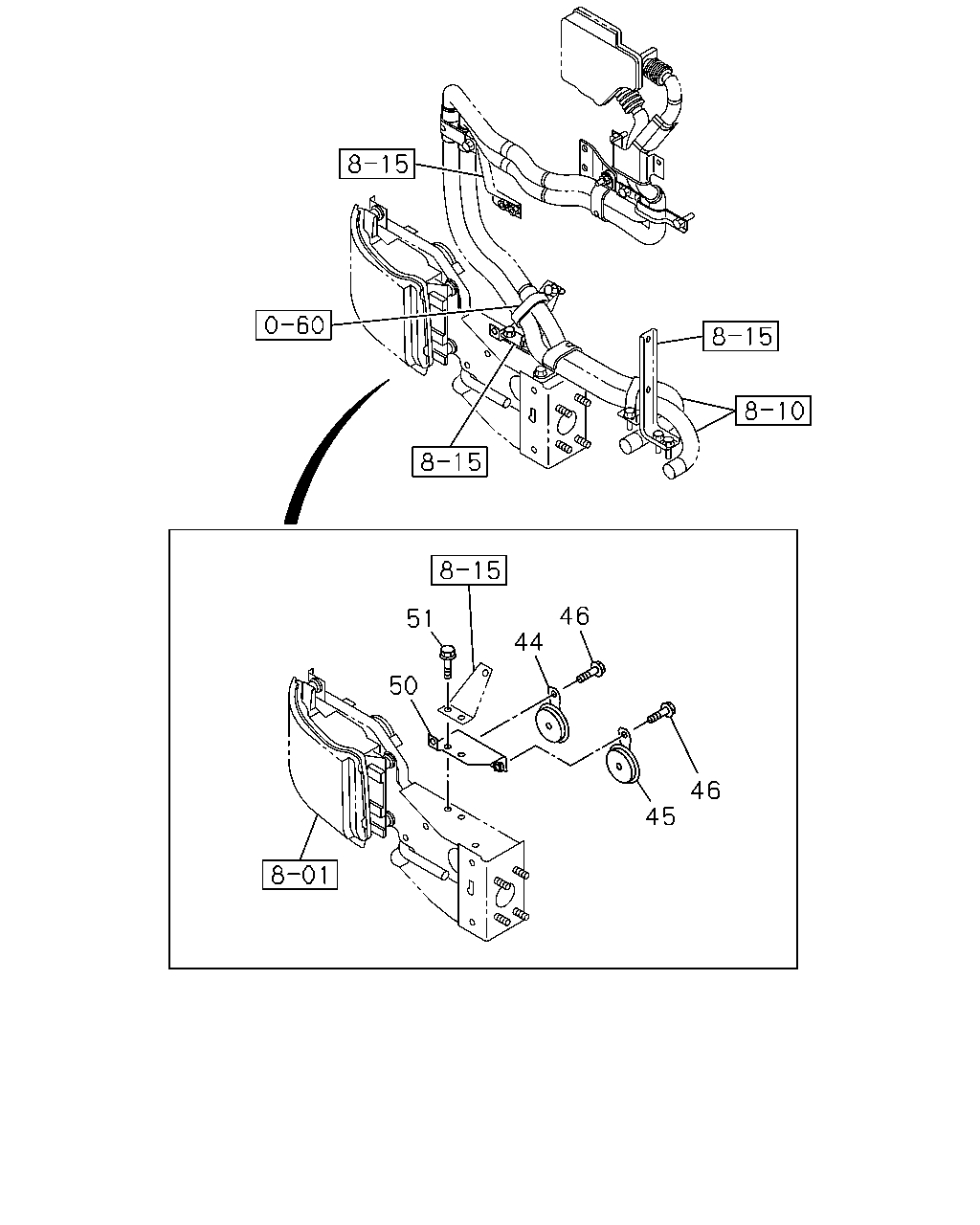

51 50 44 45 46 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	HORN; HIGH NOTE	1-83410-061-1	01	1	1303-
45	HORN; LOW NOTE	1-83410-062-1	01	1	1303-
46	BOLT; HORN TO BODY M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1303-
50	BRACKET; HORN	8-98210-372-0	01	1	1303-
51	BOLT; HORN TO BRKT M8X25 FLANGE	0-28650-825-0	02	1	1303-

275 88 88 450 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
88	CONNECTOR; MAG VLV DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) FULL FLOATING CAB(W16) (I)	1-09661-073-0	01	1	1303-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (J) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1303-
88	CONNECTOR; MAG VLV (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1009-1302
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1303-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1009-1302
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1303-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	1009-1302
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	1303-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1009-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (E) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	1009-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (F) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (G) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1009-
275	BOLT; BRKT FULL FLOATING CAB(W16) (C) M8X12 FLANGE	0-28050-812-0	01	1	1303-
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	1009-1302
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	1303-
275	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-
450	VALVE; MAG	1-53458-378-2	01	1	1009-1302
450	VALVE; MAG FULL FLOATING CAB(W16)	1-53458-378-2	02	1	1303-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
