◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11289 - CYH RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#70019) — 118 parça

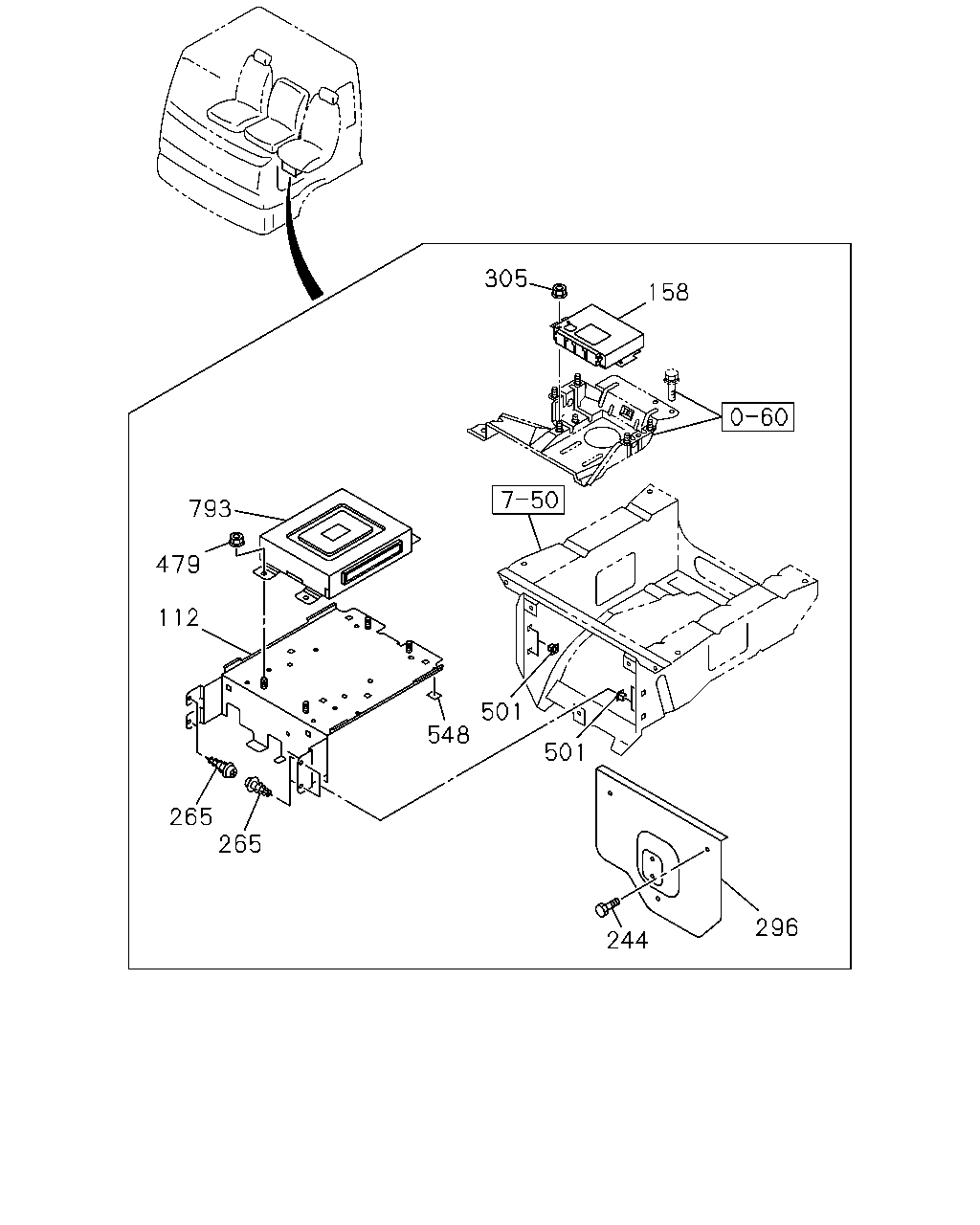

çizim 138239
305 158 793 479 112 265 265 548 501 501 244 296
BalonParca AdiParca NoAdetTipApplied Date
112 BRACKET; CONT UNIT
SMOOTHER-G(C1W) 		8-97589-714-2 01 1 1009-
158 CONTROLLER; ABS
TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N) 		8-98170-647-0 01 1 1303-
158 CONTROLLER; ABS
TIRE 12R22.5-152/148L RIB LUG(5A7),TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 12R22.5-16 RIB(75N) ANTILOCK BRAKE SYSTEM(BFA) 		1-80119-231-2 01 1 1009-1201
158 CONTROLLER; ABS
TIRE 12R22.5-152/148L RIB LUG(5A7),TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 12R22.5-16 RIB(75N) ANTILOCK BRAKE SYSTEM(BFA) 		8-98196-714-0 01 1 1202-1302
158 CONTROLLER; ABS
TIRE FRT 11R22.5-16 RIB RR 11R22.5-16 LUG(20X), TIREFT 11R22.5-16 WEA RR 11R22.5-16LUG NZ(28X),TIRE 29 5/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE315/80R22.5-156/150 K RIBLUG LATIN AMERICA(5N2),TIRE 11.00R20-16 RIBLUGOFF ROAD(5N4),TIRE 12R22.5-16 RIB(75N),TIRE 11.00R20-16 RIB(85R),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R) 		8-98196-714-0 01 1 1303-1411
158 CONTROLLER; ABS
TIRE FRT 11R22.5-16 RIB RR 11R22.5-16 LUG(20X), TIREFT 11R22.5-16 WEA RR 11R22.5-16LUG NZ(28X),TIRE 29 5/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE315/80R22.5-156/150 K RIBLUG LATIN AMERICA(5N2),TIRE 11.00R20-16 RIBLUGOFF ROAD(5N4),FT315/80R22.5-156/150L RR295/80R22.5152/148J(5S5),TIRE 12R22.5-16 RIB(75N),TIRE 11.00R20-16 RIB(85R),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R) 		8-98196-714-0 01 1 1412-
244 BOLT; COVER
M6X16 		0-52000-616-0 03 1 1009-1302
244 BOLT; COVER
SMOOTHER-G(C1W) M6X16 		0-52000-616-0 03 1 1303-1303
244 BOLT; COVER
M6X16 		0-52000-616-0 03 1 1304-
265 SCREW; BRKT,CONT UNIT
SMOOTHER-G(C1W) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 1009-
296 COVER; CONT UNIT 8-97388-687-0 01 1 1009-1302
296 COVER; CONT UNIT
SMOOTHER-G(C1W) 		8-97388-687-0 01 1 1303-1303
296 COVER; CONT UNIT 8-97388-687-0 01 1 1304-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 1009-1302
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 02 1 1009-1302
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 1303-1303
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 1303-1303
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 02 1 1303-1303
305 NUT; CONT UNIT
NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91180-106-0 02 1 1303-1303
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 02 1 1304-
305 NUT; CONT UNIT
NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91180-106-0 02 1 1304-
305 NUT; CONT UNIT
ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE 		0-91180-106-0 04 1 1009-1302
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 1303-
479 NUT; CONTROLLER
SMOOTHER-G(C1W) M6 FLANGE 		0-91180-106-0 04 1 1009-
501 GROMMET; SCREW
SMOOTHER-G(C1W) D=9.7X9.7 L=8 		8-94222-314-0 04 1 1009-
548 SEAL; NOISE
SMOOTHER-G(C1W) 30X30 		8-98142-344-0 03 1 1009-1305
548 SEAL; NOISE
SMOOTHER-G(C1W) 30X30 		8-98142-344-0 01 1 1306-
793 CONTROL UNIT; EDS
SMOOTHER-G(C1W) 		8-98178-725-0 01 1 1009-1102
793 CONTROL UNIT; EDS
SMOOTHER-G(C1W) 		8-98187-428-0 01 1 1103-1205
793 CONTROL UNIT; EDS
SMOOTHER-G(C1W) 		8-98217-216-0 01 1 1206-1211
793 CONTROL UNIT; EDS
SMOOTHER-G(C1W) 		8-98229-323-0 01 1 1212-1507
793 CONTROL UNIT; EDS
SMOOTHER-G(C1W) 		8-98324-372-0 01 1 1508-

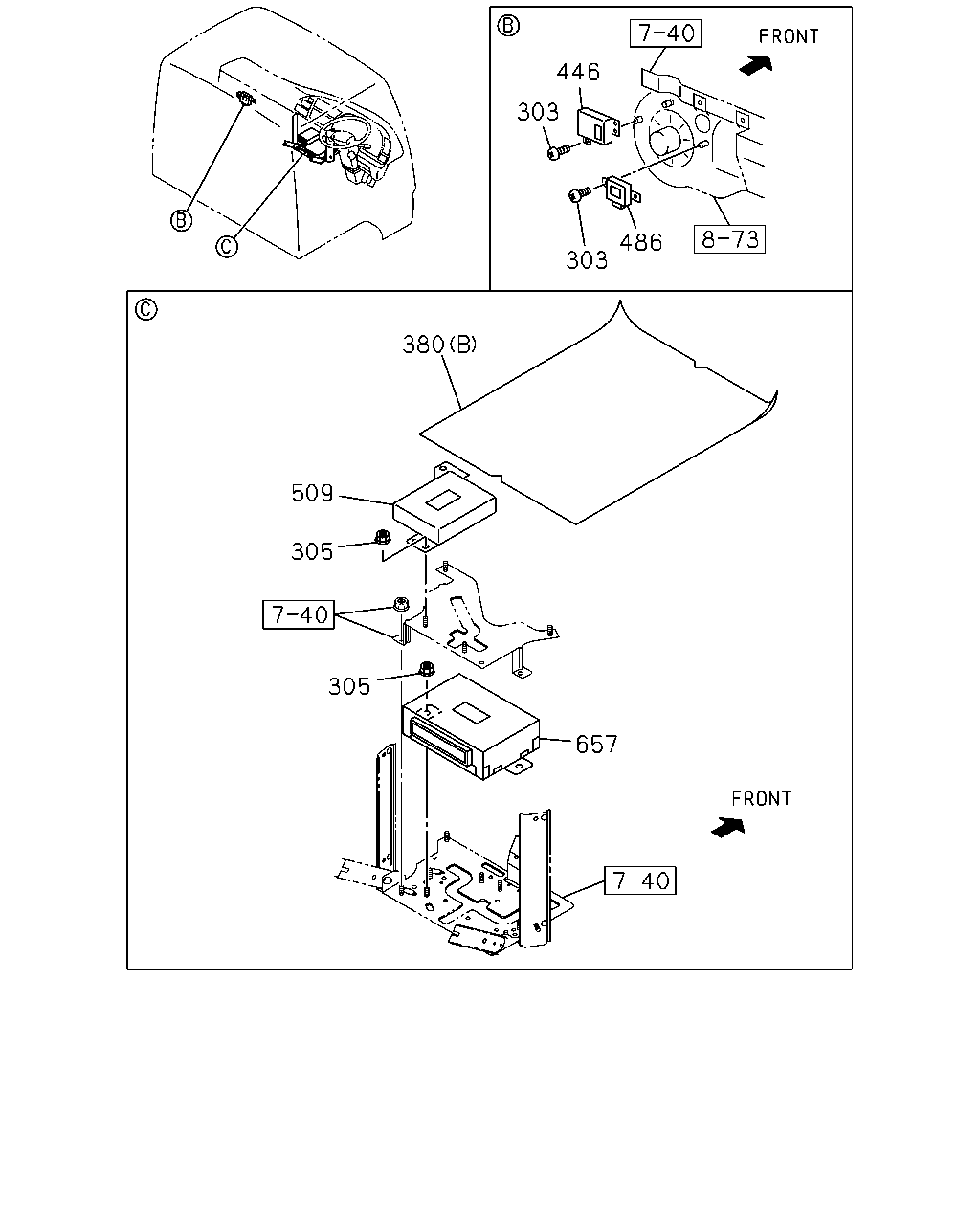

çizim 138350
446 303 303 486 380 509 305 305 657
BalonParca AdiParca NoAdetTipApplied Date
303 SCREW; CONT UNIT
BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W) M5X14 		8-94279-325-0 03 1 1009-
303 SCREW; CONT UNIT
MIR STAY O/S W/REMOTE<TBA> M5X14 		8-94279-325-0 01 1 1009-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 1009-1302
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 02 1 1009-1302
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 1303-1303
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 1303-1303
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 02 1 1303-1303
305 NUT; CONT UNIT
NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91180-106-0 02 1 1303-1303
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 02 1 1304-
305 NUT; CONT UNIT
NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91180-106-0 02 1 1304-
305 NUT; CONT UNIT
ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE 		0-91180-106-0 04 1 1009-1302
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 1303-
380 SEAL
NEW ZEALAND EQUIPMENT(PK5) (A) OD=25 BLACK 		1-76798-019-0 02 1 1303-
380 SEAL
(A) OD=25 BLACK 		1-76798-019-0 03 1 1009-1302
380 SEAL
(A) OD=25 BLACK 		1-76798-019-0 01 1 1303-1303
380 SEAL
FULL FLOATING CAB(W16) (B) 450X350 		1-76770-008-0 01 1 1009-1302
380 SEAL
(B) 450X350 		1-76770-008-0 01 1 1303-
446 CONTROL UNIT; HSA
BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W) 		1-80111-116-2 01 1 1009-
486 CONTROL UNIT; MIRROR
MIR STAY O/S W/REMOTE<TBA> 		1-82540-046-0 01 1 1009-
509 CONTROL UNIT; CAB SUS
FULL FLOATING CAB(W16) 		1-80150-042-1 01 1 1009-
657 CONTROL UNIT; MIMAMORI 8-98081-576-1 01 1 1009-1302
657 CONTROL UNIT; MIMAMORI 8-98208-717-1 01 1 1303-

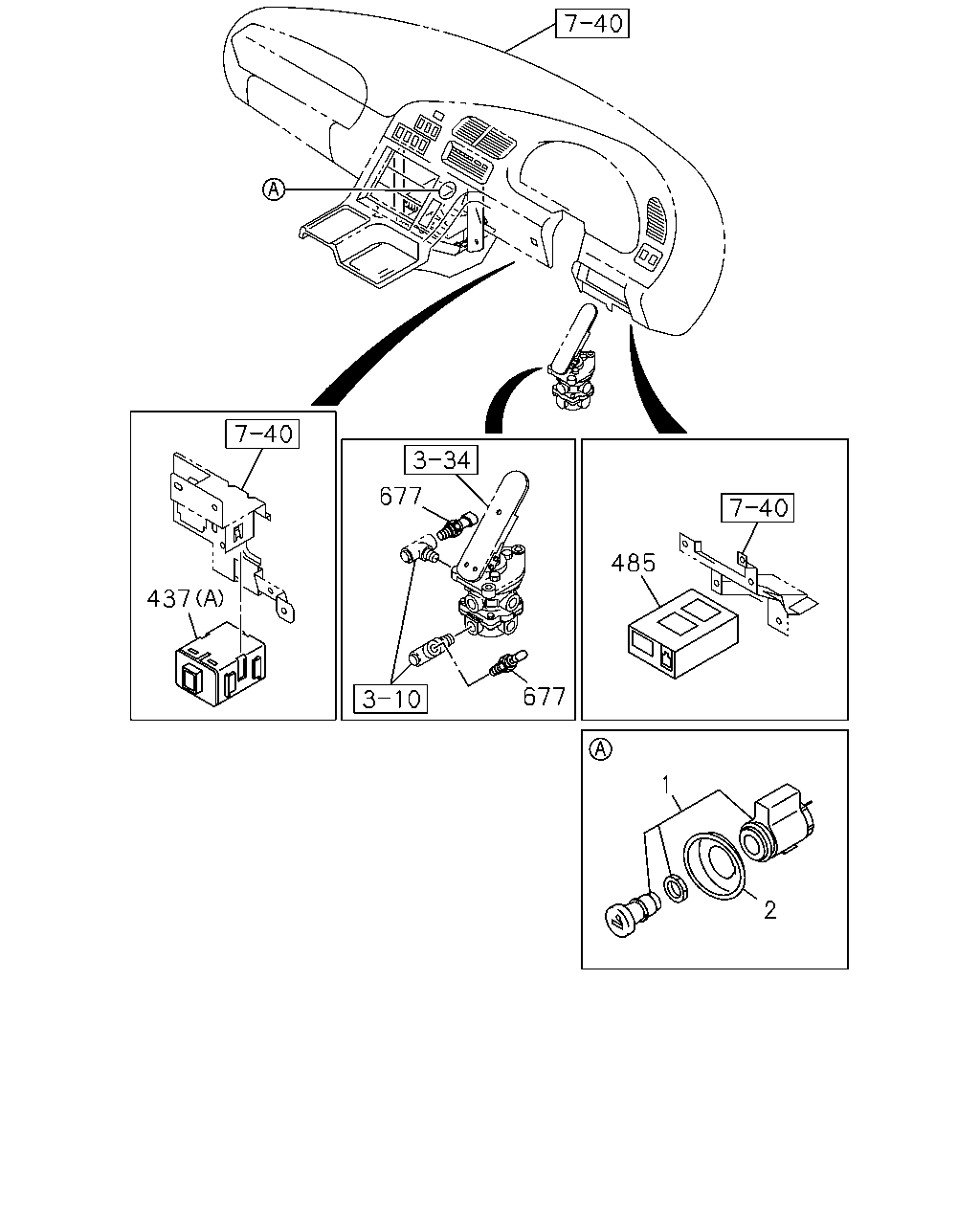

çizim 138529
437 677 485 677 1 2
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1009-
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 1009-
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (B) METRO DENSO 		8-98046-423-0 01 1 1303-
437 CONVERTER; DC
(A) KOITO 		8-97359-129-0 01 1 1009-1302
437 CONVERTER; DC
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> (A) KOITO 		8-97359-129-0 01 1 1303-
485 CONTROL UNIT; SPEED SENSOR 8-98140-862-0 01 1 1009-1109
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 1110-
677 SENSOR; AIR METER
THREAD R1/4 		1-80220-023-1 02 1 1009-

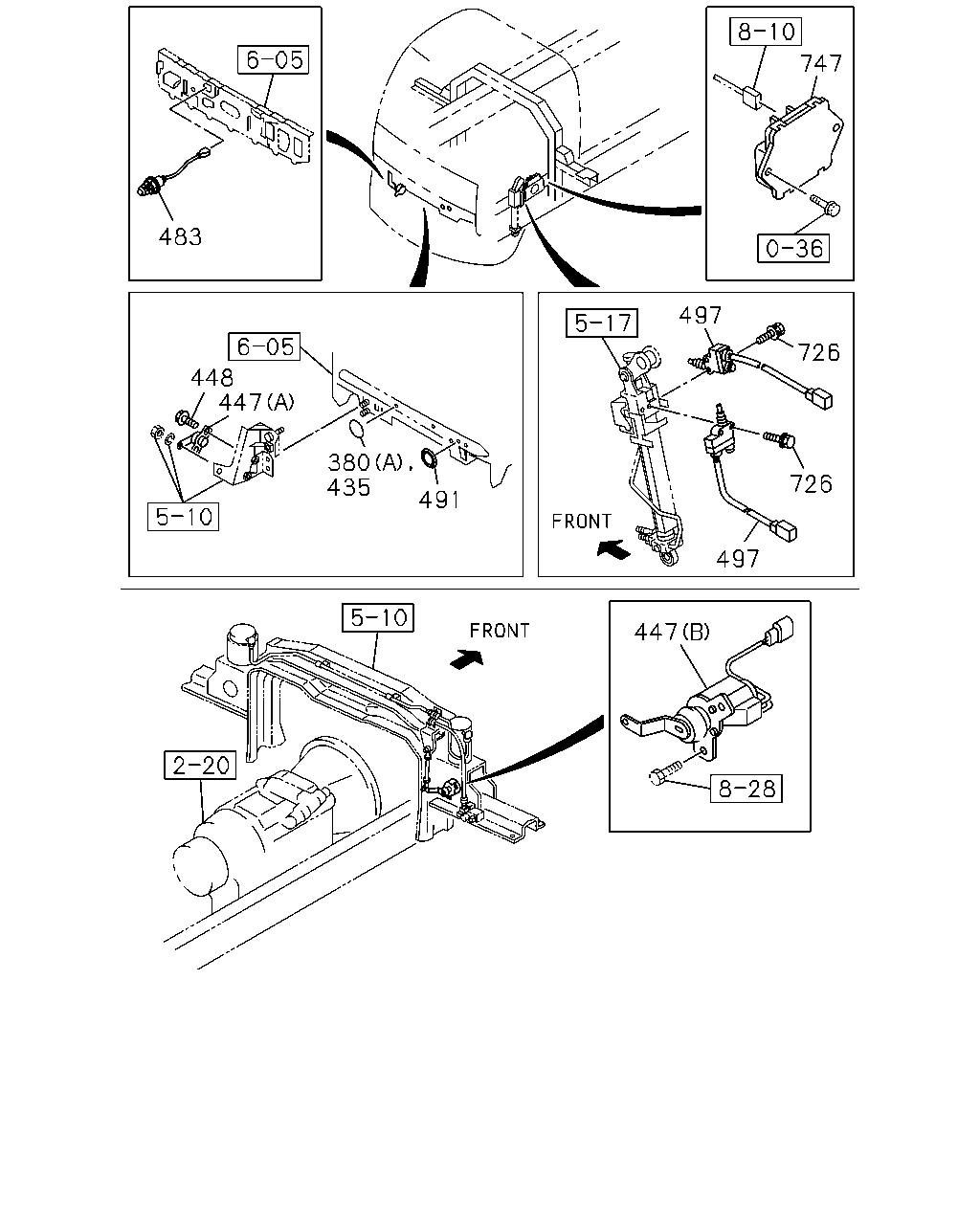

çizim 143758
483 448 380 747 726 497 726 497 435 447 491 447
BalonParca AdiParca NoAdetTipApplied Date
380 SEAL
NEW ZEALAND EQUIPMENT(PK5) (A) OD=25 BLACK 		1-76798-019-0 02 1 1303-
380 SEAL
(A) OD=25 BLACK 		1-76798-019-0 03 1 1009-1302
380 SEAL
(A) OD=25 BLACK 		1-76798-019-0 01 1 1303-1303
380 SEAL
FULL FLOATING CAB(W16) (B) 450X350 		1-76770-008-0 01 1 1009-1302
380 SEAL
(B) 450X350 		1-76770-008-0 01 1 1303-
435 GROMMET
OD=25 BLACK 		1-76798-019-0 03 1 1009-
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (A) 		1-80250-010-1 01 1 1009-1302
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (A) 		8-98125-255-0 01 1 1303-
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (B) 		1-80250-011-1 01 1 1009-1302
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (B) 		8-98125-257-0 01 1 1303-
448 BOLT; SENSOR
FULL FLOATING CAB(W16) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1009-1302
448 BOLT; SENSOR
FULL FLOATING CAB(W16) M6X25 		8-94279-204-0 02 1 1303-
483 SWITCH 8-97632-269-0 01 1 1303-
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 1009-
497 SWITCH; CAB TILT
STAMP NO 		1-82380-172-1 02 1 1009-
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 1009-
747 CONTROL UNIT; TURBOCHARGER 8-98118-472-0 01 1 1009-

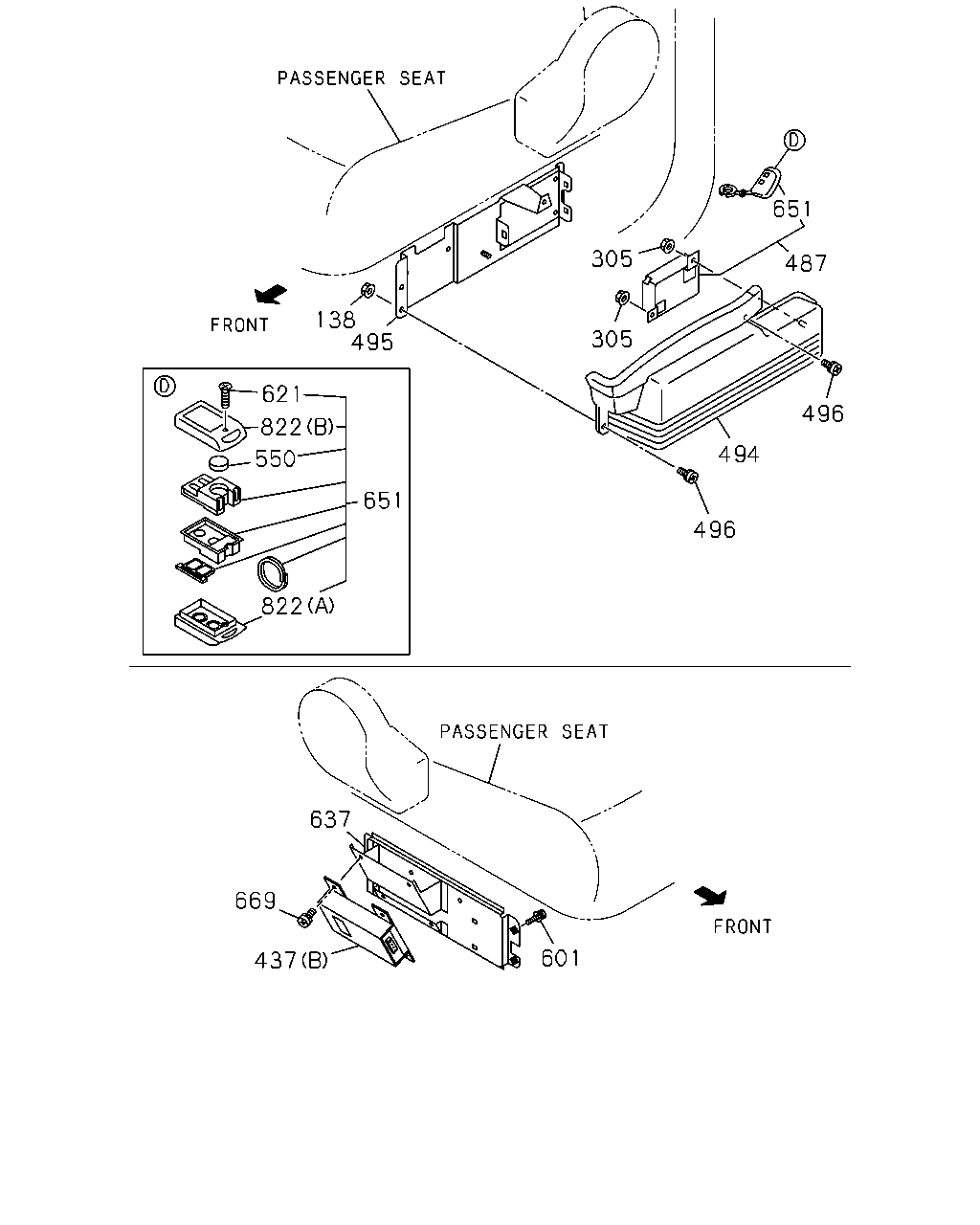

çizim 188485
651 305 305 494 496 487 496 495 138 621 550 822 651 822 637 669 437 601
BalonParca AdiParca NoAdetTipApplied Date
138 NUT; BRKT
FABRIC SEAT W/RECLINING(SFQ) M6 FLANGE 		0-91180-106-0 02 1 1009-1302
138 NUT; BRKT
REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91180-106-0 02 1 1303-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 1009-1302
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 02 1 1009-1302
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 1303-1303
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 1303-1303
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 02 1 1303-1303
305 NUT; CONT UNIT
NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91180-106-0 02 1 1303-1303
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 02 1 1304-
305 NUT; CONT UNIT
NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91180-106-0 02 1 1304-
305 NUT; CONT UNIT
ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE 		0-91180-106-0 04 1 1009-1302
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 1303-
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (B) METRO DENSO 		8-98046-423-0 01 1 1303-
437 CONVERTER; DC
(A) KOITO 		8-97359-129-0 01 1 1009-1302
437 CONVERTER; DC
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> (A) KOITO 		8-97359-129-0 01 1 1303-
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE
NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<SLG> 		8-98218-230-0 01 1 1303-
494 COVER; ELEC BOX
FABRIC SEAT W/RECLINING(SFQ) 		8-97589-725-0 01 1 1009-1302
494 COVER; ELEC BOX
REMOTE CONT DOOR LOCK<SLG> 		8-97589-725-0 01 1 1303-
495 BRACKET; ELEC BOX
FABRIC SEAT W/RECLINING(SFQ) 		8-97589-728-0 01 1 1009-1302
495 BRACKET; ELEC BOX
REMOTE CONT DOOR LOCK<SLG> 		1-75558-488-5 01 1 1303-
496 SCREW; COVER
FABRIC SEAT W/RECLINING(SFQ) M6X12 W/LK&PL WASHER 		0-36230-612-0 03 1 1009-1302
496 SCREW; COVER
REMOTE CONT DOOR LOCK<SLG> M6X12 W/LK&PL WASHER 		0-36230-612-0 03 1 1303-
550 BATTERY; TRANSMITTER
NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<SLG> 		8-98078-061-0 01 1 1303-
601 BOLT; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6X12 W/LK&PL WASHER 		0-36230-612-0 02 1 1303-
621 SCREW
NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<SLG> M2X5 		8-98218-239-0 01 1 1303-
637 BRACKET; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> 		1-75557-483-1 01 1 1303-
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE
NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<SLG> 		8-98218-236-0 01 1 1303-
669 SCREW; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6X12 W/PL WASHER 		1-09981-380-0 04 1 1303-
822 COVER; TRANSMITTER
NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<SLG> (A) 		8-98218-240-0 01 1 1303-
822 COVER; TRANSMITTER
NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<SLG> (B) 		8-98218-243-0 01 1 1303-

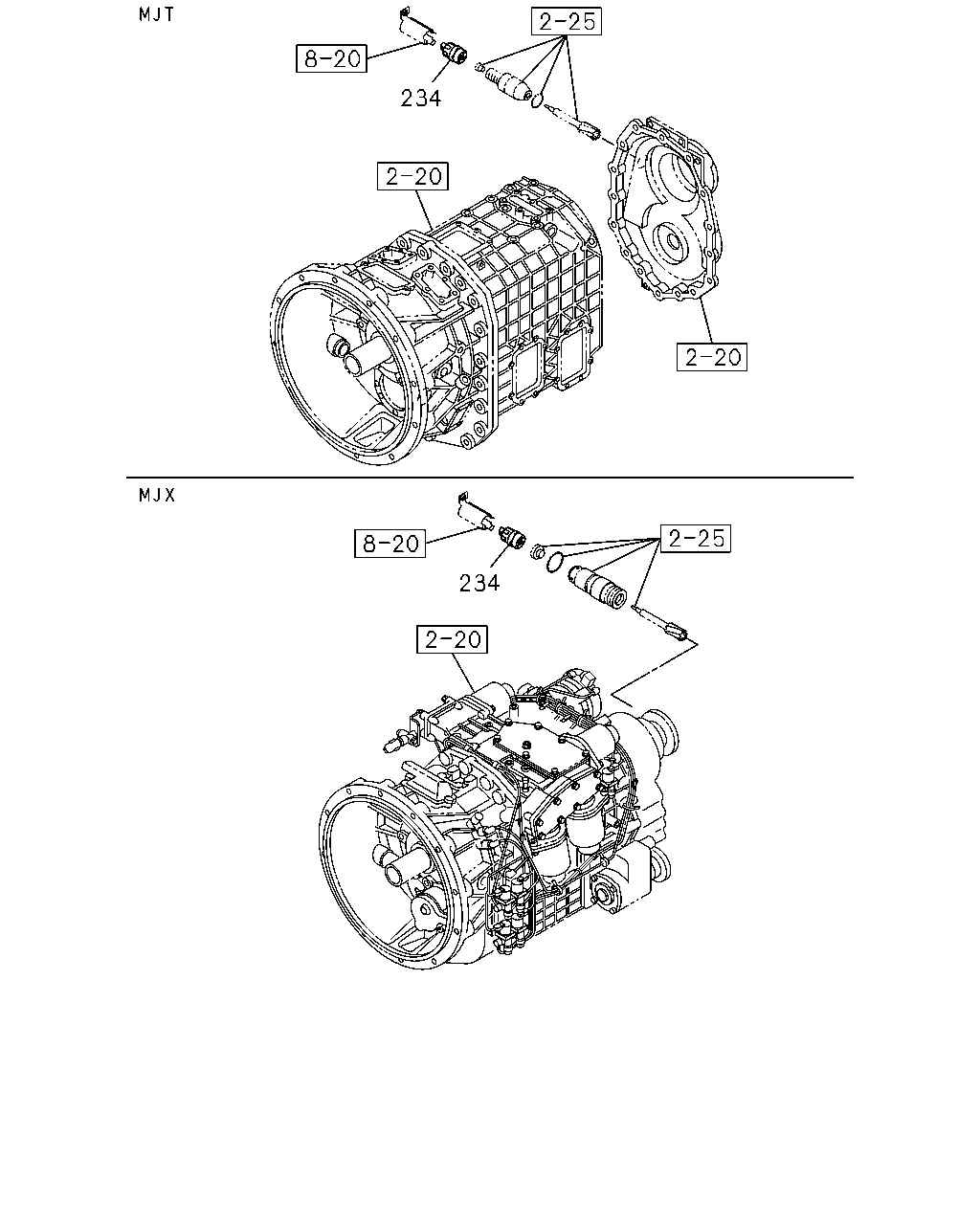

çizim 188487
234 234
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) 25 PULSE 		8-98234-167-0 01 1 1303-
234 SENSOR; VEHICLE SPD
25 PULSE 		1-80240-029-0 01 1 1009-1301
234 SENSOR; VEHICLE SPD
25 PULSE 		8-98234-167-0 01 1 1302-1302
234 SENSOR; VEHICLE SPD
TRANSMISSION-FULLER RTLO169 18(Y3S) 25 PULSE 		1-83127-414-1 01 1 1303-
çizim 337071
257 234
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) 25 PULSE 		8-98234-167-0 01 1 1303-
234 SENSOR; VEHICLE SPD
25 PULSE 		1-80240-029-0 01 1 1009-1301
234 SENSOR; VEHICLE SPD
25 PULSE 		8-98234-167-0 01 1 1302-1302
234 SENSOR; VEHICLE SPD
TRANSMISSION-FULLER RTLO169 18(Y3S) 25 PULSE 		1-83127-414-1 01 1 1303-
257 KEY; SPEED SENSOR
TRANSMISSION-FULLER RTLO169 18(Y3S) 		1-83129-073-0 01 1 1303-
