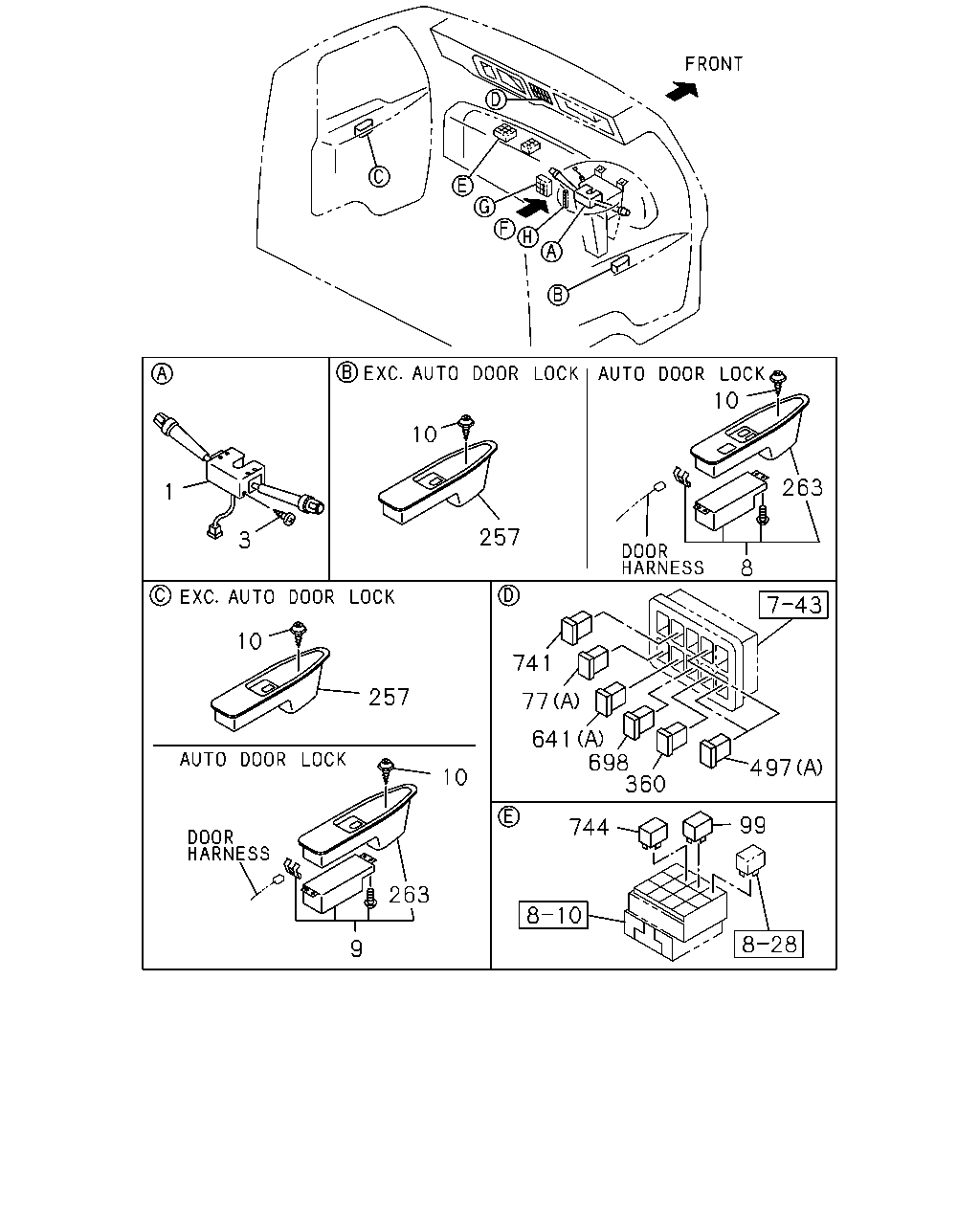

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#70018) — 116 parça

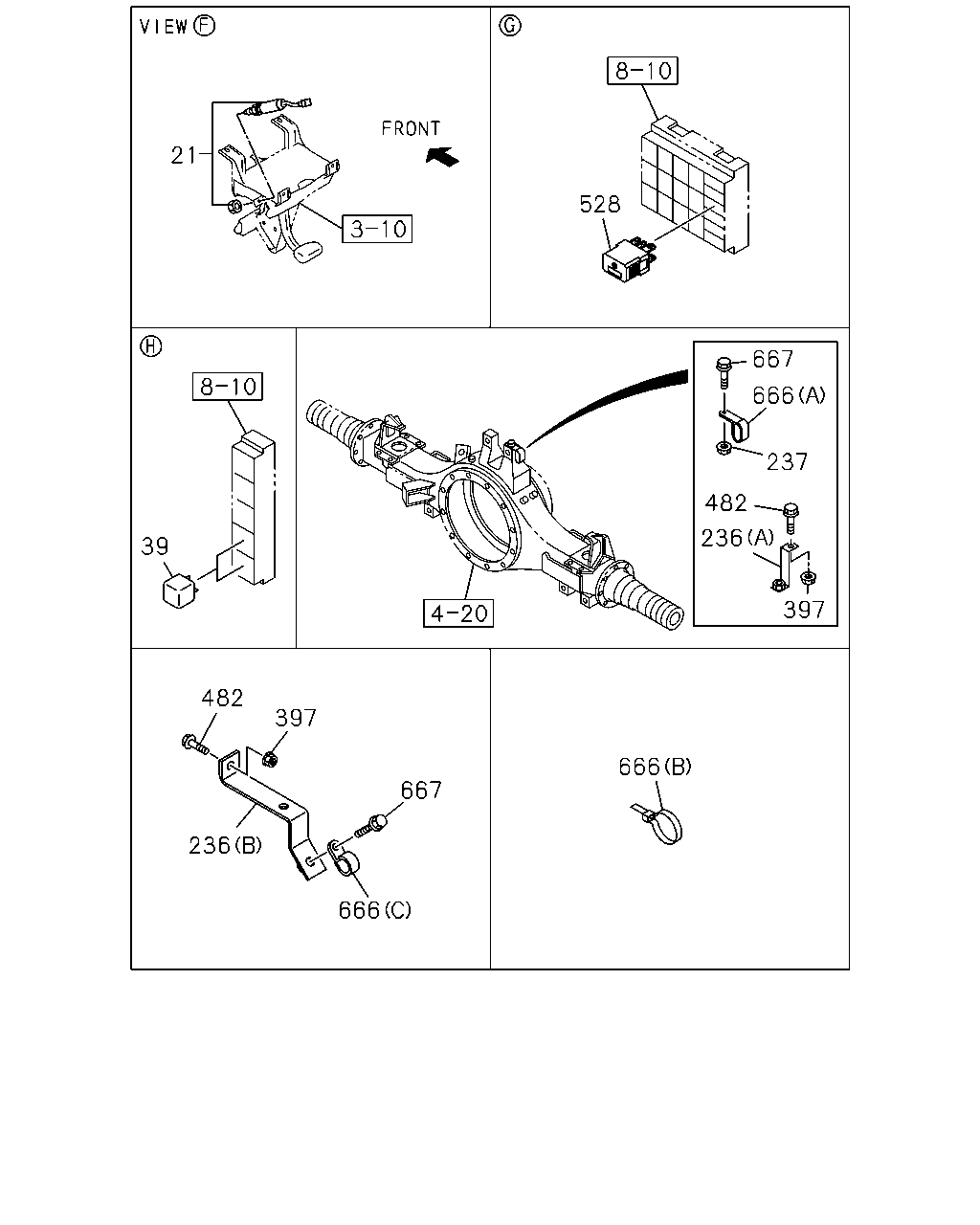

21 528 667 666 237 236 397 666 667 666 236 397 482 39 482

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	SWITCH; CLU EXC. SMOOTHER-G(C1W)	1-82380-114-3	01	1	1009-
39	RELAY; DOOR LK REMOTE CONT DOOR LOCK<SLG> 24V 12.5A PANASONIC	8-97262-933-0	02	1	1303-
236	BRACKET; AXLE HARNESS,RR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82699-996-1	01	1	1303-
236	BRACKET; AXLE HARNESS,RR (A)	1-47476-200-0	01	1	1009-1302
236	BRACKET; AXLE HARNESS,RR EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-47476-200-0	01	1	1303-
237	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	1009-1302
237	NUT M8 FLANGE	0-91180-108-0	01	1	1303-
237	NUT M8 FLANGE	0-91180-108-0	01	1	1303-
397	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	1009-1302
397	NUT; BRKT FIX BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91180-108-0	01	1	1303-
397	NUT; BRKT FIX EXC. NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91180-108-0	01	1	1303-
482	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1304-1304
482	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1009-1302
482	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1303-
482	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X30 FLANGE	0-28650-830-0	01	1	1303-
528	RELAY; BUZZER 24V 10A PANASONIC	8-97173-035-1	01	1	1009-
666	CLIP; AXLE HARNESS (A) ID=11X2 L=20	1-09700-871-0	02	1	1304-1411
666	CLIP; AXLE HARNESS EXC. HONG KONG EQUIPMENT(PQ1) (A) ID=11X2 L=20	1-09700-871-0	02	1	1304-1411
666	CLIP; AXLE HARNESS (A) ID=11X2 L=20	1-09700-871-0	02	1	1412-
666	CLIP; AXLE HARNESS EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=11X2 L=20	1-09700-871-0	02	1	1412-
666	CLIP; AXLE HARNESS NEW ZEALAND EQUIPMENT(PK5) (B) L=250	5-09707-030-1	01	1	1303-
666	CLIP; AXLE HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) ID=11 L=16	0-95235-025-0	01	1	1303-
666	CLIP; AXLE HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) ID=11X2 L=20	1-09700-871-0	05	1	1009-1302
666	CLIP; AXLE HARNESS (A) ID=11X2 L=20	1-09700-871-0	02	1	1303-1303
666	CLIP; AXLE HARNESS (A) ID=11X2 L=20	1-09700-871-0	02	1	1303-1303
666	CLIP; AXLE HARNESS HONG KONG EQUIPMENT(PQ1) (A) ID=11X2 L=20	1-09700-871-0	03	1	1304-1411
666	CLIP; AXLE HARNESS HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=11X2 L=20	1-09700-871-0	03	1	1412-
667	BOLT; CLIP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X20 FLANGE	0-28650-820-0	01	1	1303-
667	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1303-
667	BOLT; CLIP NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28650-820-0	01	1	1303-
667	BOLT; CLIP ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE	0-28650-820-0	04	1	1009-1302
667	BOLT; CLIP EXC. NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28650-820-0	03	1	1303-1303
667	BOLT; CLIP HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE	0-28650-820-0	03	1	1304-1411
667	BOLT; CLIP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X20 FLANGE	0-28650-820-0	03	1	1412-

1 257 10 3 8 263 10 741 77 641 698 360 497 257 10 9 10 263 744 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SWITCH; COMB SMOOTHER-G(C1W) AUTO CRUISE W/RESUME<NKA> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> AIR BAG(TFQ)	1-82360-694-2	01	1	1303-
1	SWITCH; COMB SMOOTHER-G(C1W) AUTO CRUISE W/RESUME<NKA> AIR BAG(TFQ) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82360-695-2	01	1	1303-
1	SWITCH; COMB AUTO CRUISE W/RESUME<NKA> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> AIR BAG(TFQ) EXC. SMOOTHER-G(C1W)	1-82360-580-2	01	1	1303-
1	SWITCH; COMB AUTO CRUISE W/RESUME<NKA> AIR BAG(TFQ) EXC. SMOOTHER-G(C1W),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82360-579-2	01	1	1303-
1	SWITCH; COMB AIR BAG(TFQ) EXC. SMOOTHER-G(C1W)	1-82360-548-1	01	1	1009-1302
1	SWITCH; COMB AIR BAG(TFQ) EXC. SMOOTHER-G(C1W),AUTO CRUISE W/RESUME<NKA>, BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82360-548-1	01	1	1303-
1	SWITCH; COMB SMOOTHER-G(C1W) AIR BAG(TFQ)	1-82360-701-1	01	1	1009-1302
1	SWITCH; COMB SMOOTHER-G(C1W) AIR BAG(TFQ) EXC. AUTO CRUISE W/RESUME<NKA>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82360-701-1	01	1	1303-
1	SWITCH; COMB EXC. SMOOTHER-G(C1W),AIR BAG(TFQ)	8-98152-592-0	01	1	1009-1302
1	SWITCH; COMB EXC. SMOOTHER-G(C1W),AUTO CRUISE W/RESUME<NKA>, BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>,AIR BAG(TFQ)	8-98152-592-0	01	1	1303-
3	SCREW; COMB SW M5X12 TAPPING W/PL WASHER	0-74165-512-0	04	1	1009-
8	SWITCH; POWER WINDOW AUTO DOOR LOCK<AU4> DRIVER SIDE	1-82380-166-2	01	1	1009-1302
8	SWITCH; POWER WINDOW POWER WINDOW<A30> DRIVER SIDE	1-82380-166-2	01	1	1303-
9	SWITCH; POWER WINDOW AUTO DOOR LOCK<AU4> PASSENGER SIDE	1-82380-167-1	01	1	1009-1302
9	SWITCH; POWER WINDOW POWER WINDOW<A30> PASSENGER SIDE	1-82380-167-1	01	1	1303-
10	SCREW; POWER WINDOW SW M5X16 TAPPING W/PL WASHER	0-74360-516-0	02	1	1009-1302
10	SCREW; POWER WINDOW SW POWER WINDOW<A30> M5X16 TAPPING W/PL WASHER	0-74360-516-0	02	1	1303-
77	SWITCH; PTO DUMP CONTROL LEVER<RC4> (B)	1-82380-112-0	01	1	1009-
77	SWITCH; PTO MIXER TRUCK<RA2> RIGID SEAT WO/ARM REST(TAZ) (A)	1-82340-413-0	01	1	1009-1302
77	SWITCH; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82340-413-0	01	1	1009-1302
77	SWITCH; PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. DUMP TRUCK<RA1> (A)	8-97386-993-4	01	1	1303-
99	RELAY; FOG LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1009-
257	COVER; HOLE,SW EXC. AUTO DOOR LOCK<AU4>	1-82389-011-2	01	1	1009-1302
257	COVER; HOLE,SW EXC. POWER WINDOW<A30>	1-82389-011-2	01	1	1303-
257	COVER; HOLE,SW EXC. AUTO DOOR LOCK<AU4>	1-82389-012-2	01	1	1009-1302
257	COVER; HOLE,SW EXC. POWER WINDOW<A30>	1-82389-012-2	01	1	1303-
263	COVER; SW AUTO DOOR LOCK<AU4> DRIVER SIDE	1-82385-005-2	01	1	1009-1302
263	COVER; SW POWER WINDOW<A30> DRIVER SIDE	1-82385-005-2	01	1	1303-
263	COVER; SW AUTO DOOR LOCK<AU4> PASSENGER SIDE	1-82385-006-3	01	1	1009-1302
263	COVER; SW POWER WINDOW<A30> PASSENGER SIDE	1-82385-006-3	01	1	1303-
360	SWITCH ASM; DIFF LK	1-82340-677-0	01	1	1009-1302
360	SWITCH ASM; DIFF LK	8-98222-520-1	01	1	1303-
497	SWITCH; HSA BRAKE SYSTEM HSA<SLD> (A) HSA OFF	1-82340-408-1	01	1	1009-1105
497	SWITCH; HSA BRAKE SYSTEM HSA<SLD> (A) HSA OFF	8-98191-448-1	01	1	1106-1302
497	SWITCH; HSA BRAKE SYSTEM HSA<SLD> (A)	8-97386-923-2	01	1	1303-
497	SWITCH; HSA BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W) (B) HSA ADJUST	1-82350-237-2	01	1	1009-
497	SWITCH; HSA BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W) (C) HSA RESET	8-97076-356-0	01	1	1009-1302
497	SWITCH; HSA BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W) (C) HSA RESET	8-98134-958-1	01	1	1303-
641	SWITCH; MAP SMOOTHER-G(C1W) (A)	8-97615-637-0	01	1	1009-1302
641	SWITCH; MAP SMOOTHER-G(C1W) (B)	8-98222-524-1	01	1	1303-
698	SWITCH; EDS SMOOTHER-G(C1W) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	8-98197-609-1	01	1	1303-
741	SWITCH; TRAILER SMOOTHER-G(C1W) FULL TRACTOR TRUCK<RD6>	8-98222-522-1	01	1	1303-
744	RELAY; TILT,LID OPEN 24V 10A PANASONIC	8-97173-035-1	01	1	1303-

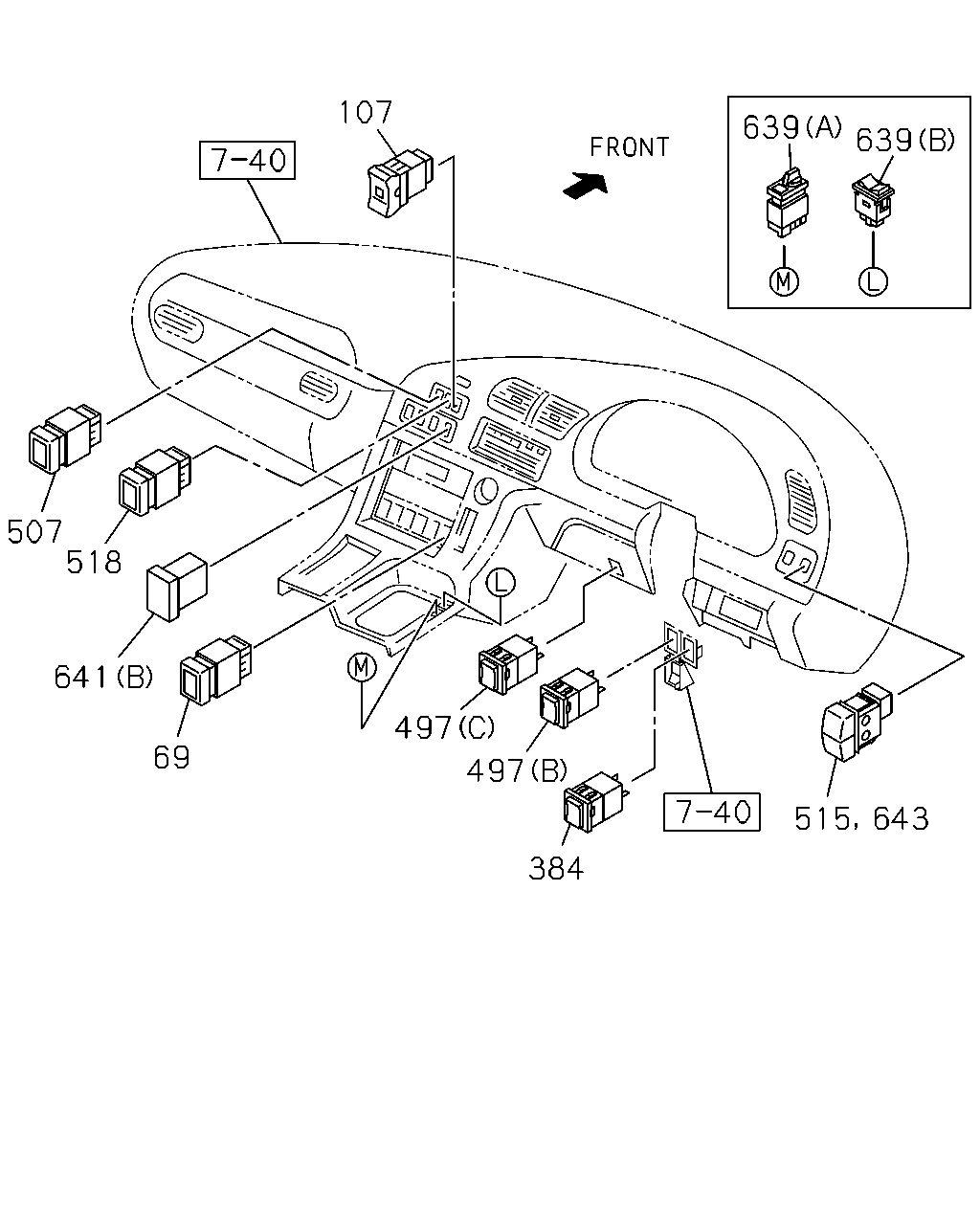

507 518 641 69 497 497 384 515 643 107 639 639

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
69	SWITCH; AUTO CRUISE AUTO CRUISE W/RESUME<NKA>	8-98011-344-1	01	1	1303-
107	SWITCH; REMOTE CONT,MIRROR MIR STAY O/S W/REMOTE<TBA>	1-82350-233-0	01	1	1009-1302
107	SWITCH; REMOTE CONT,MIRROR MIR STAY O/S W/REMOTE<TBA>	8-98011-343-2	01	1	1303-
384	SWITCH; IDLING CONT,ELEC	1-82350-213-1	01	1	1009-
497	SWITCH; HSA BRAKE SYSTEM HSA<SLD> (A) HSA OFF	1-82340-408-1	01	1	1009-1105
497	SWITCH; HSA BRAKE SYSTEM HSA<SLD> (A) HSA OFF	8-98191-448-1	01	1	1106-1302
497	SWITCH; HSA BRAKE SYSTEM HSA<SLD> (A)	8-97386-923-2	01	1	1303-
497	SWITCH; HSA BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W) (B) HSA ADJUST	1-82350-237-2	01	1	1009-
497	SWITCH; HSA BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W) (C) HSA RESET	8-97076-356-0	01	1	1009-1302
497	SWITCH; HSA BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W) (C) HSA RESET	8-98134-958-1	01	1	1303-
507	SWITCH; MIRROR HEATER MIR O/S RR VIEW HEATED<DNN>	1-82340-423-0	01	1	1009-1302
507	SWITCH; MIRROR HEATER MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. NEW ZEALAND EQUIPMENT(PK5)	8-97386-924-3	01	1	1303-
507	SWITCH; MIRROR HEATER NEW ZEALAND EQUIPMENT(PK5)	8-97386-924-3	01	1	1303-
515	SWITCH; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> EXC. SMOOTHER-G(C1W)	8-97386-917-2	01	1	1303-
518	SWITCH; RADIO TUNE NEW ZEALAND EQUIPMENT(PK5)	8-98222-523-1	01	1	1303-
639	SWITCH; EMERGENCY SMOOTHER-G(C1W) (A)	1-82330-068-0	01	1	1009-
639	SWITCH; EMERGENCY SMOOTHER-G(C1W) (B)	1-82350-363-0	01	1	1009-
641	SWITCH; MAP SMOOTHER-G(C1W) (A)	8-97615-637-0	01	1	1009-1302
641	SWITCH; MAP SMOOTHER-G(C1W) (B)	8-98222-524-1	01	1	1303-
643	SWITCH; SKIP SHIFT SMOOTHER-G(C1W) EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>	8-98129-204-2	01	1	1303-
643	SWITCH; SKIP SHIFT SMOOTHER-G(C1W)	8-97381-251-0	01	1	1009-1302
643	SWITCH; SKIP SHIFT SMOOTHER-G(C1W) LAMP-ROOM OPERATION W/CONSOLE<C93>	8-98144-539-2	01	1	1303-

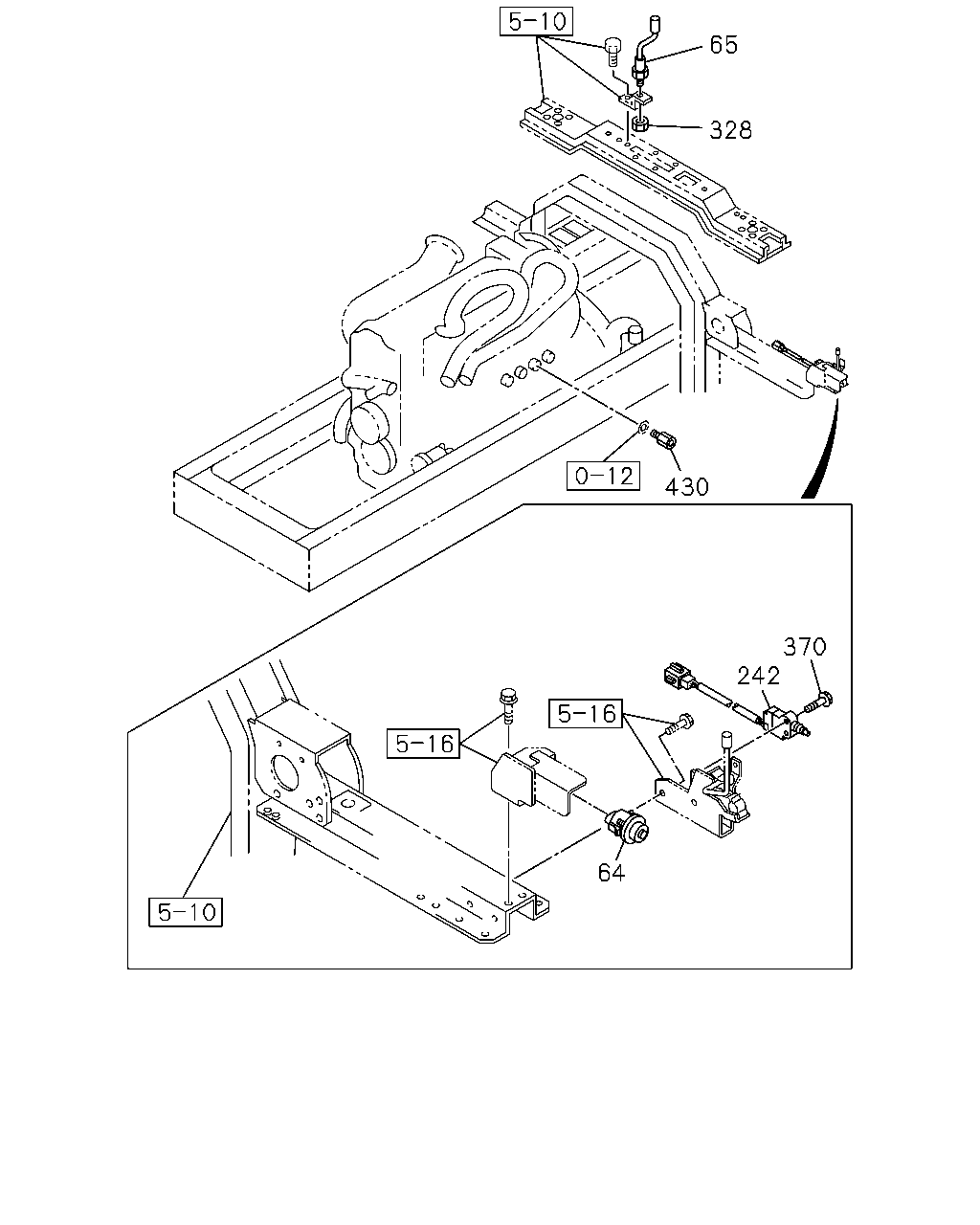

65 328 430 370 242 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	SWITCH; CAB TILT MAIN	1-82380-173-2	01	1	1009-
65	SWITCH; CAB TILT LK STAMP NC	1-82380-125-1	01	1	1009-
242	SWITCH STAMP NO	1-82380-172-1	01	1	1009-
328	NUT; SW M16	0-91110-516-0	01	1	1009-
370	BOLT; SW M6X30 FLANGE	0-28650-630-0	02	1	1009-
430	ADAPTER; SW M14 & PT1/4 STRAIGHT	1-09669-130-0	01	1	1009-

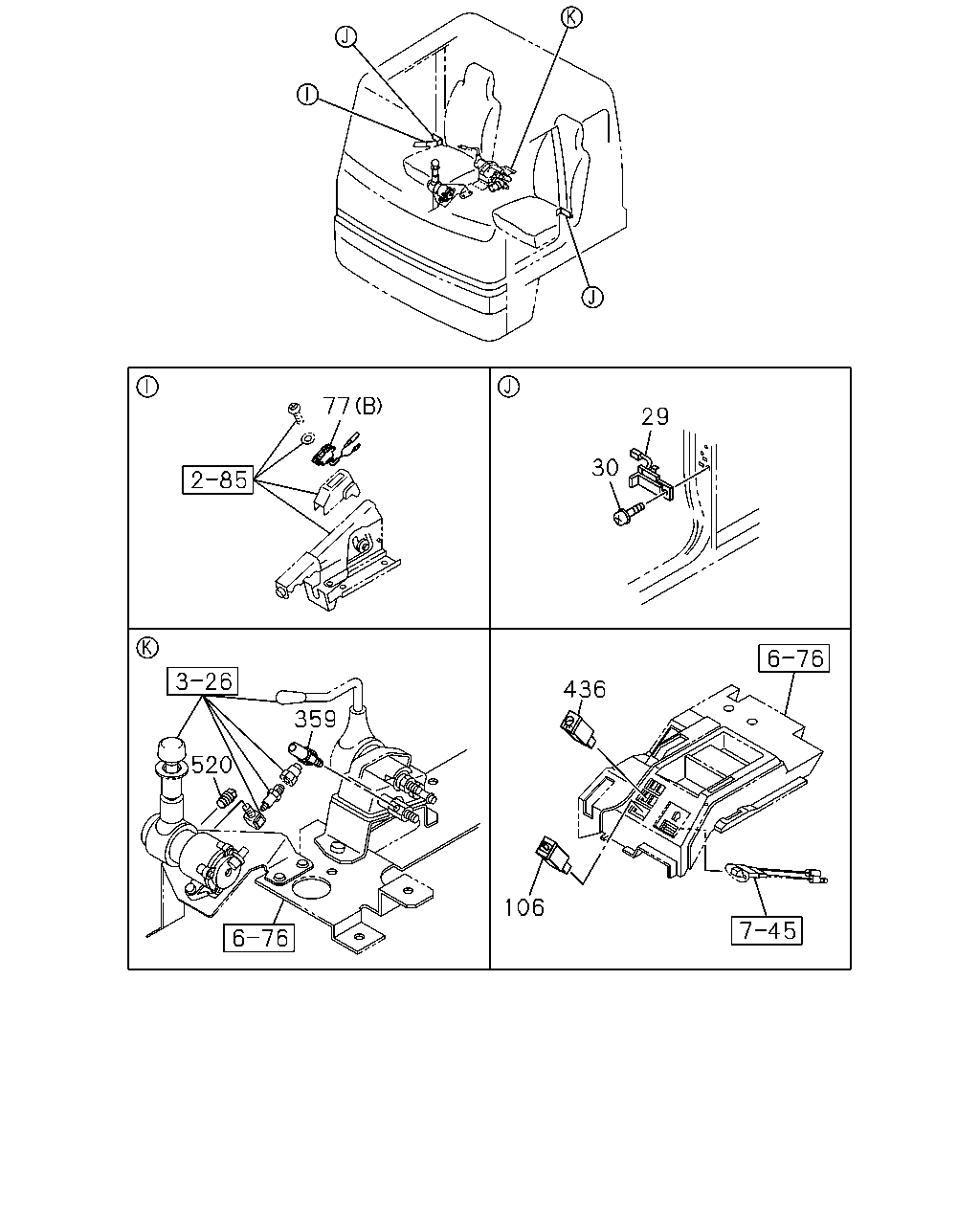

77 29 30 359 520 436 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	SWITCH; DOOR	8-97855-032-3	02	1	1009-
30	SCREW; DOOR SW M5X11	1-09981-536-1	02	1	1009-
77	SWITCH; PTO DUMP CONTROL LEVER<RC4> (B)	1-82380-112-0	01	1	1009-
77	SWITCH; PTO MIXER TRUCK<RA2> RIGID SEAT WO/ARM REST(TAZ) (A)	1-82340-413-0	01	1	1009-1302
77	SWITCH; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82340-413-0	01	1	1009-1302
77	SWITCH; PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. DUMP TRUCK<RA1> (A)	8-97386-993-4	01	1	1303-
106	SWITCH; REMOTE CONT MIRROR NEW ZEALAND EQUIPMENT(PK5)	1-82350-223-0	02	1	1303-
359	SWITCH; TRAILER BRAKE TRAILER BRAKE HAND CONTROL<NLG> STAMP 0.3	8-98010-857-0	01	1	1303-
436	SWITCH; HEADLAMP LEVELING	1-82330-043-0	01	1	1009-1302
436	SWITCH; HEADLAMP LEVELING HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	8-97386-981-2	01	1	1303-
520	PLUG; CONNECTOR NEW ZEALAND EQUIPMENT(PK5),SINGAPORE EQUIPMENT(WQ3) FULL TRAILER PIPING<Z25> PT1/4	9-99204-513-0	01	1	1504-
