◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11289 - CYH RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#70016) — 24 parça

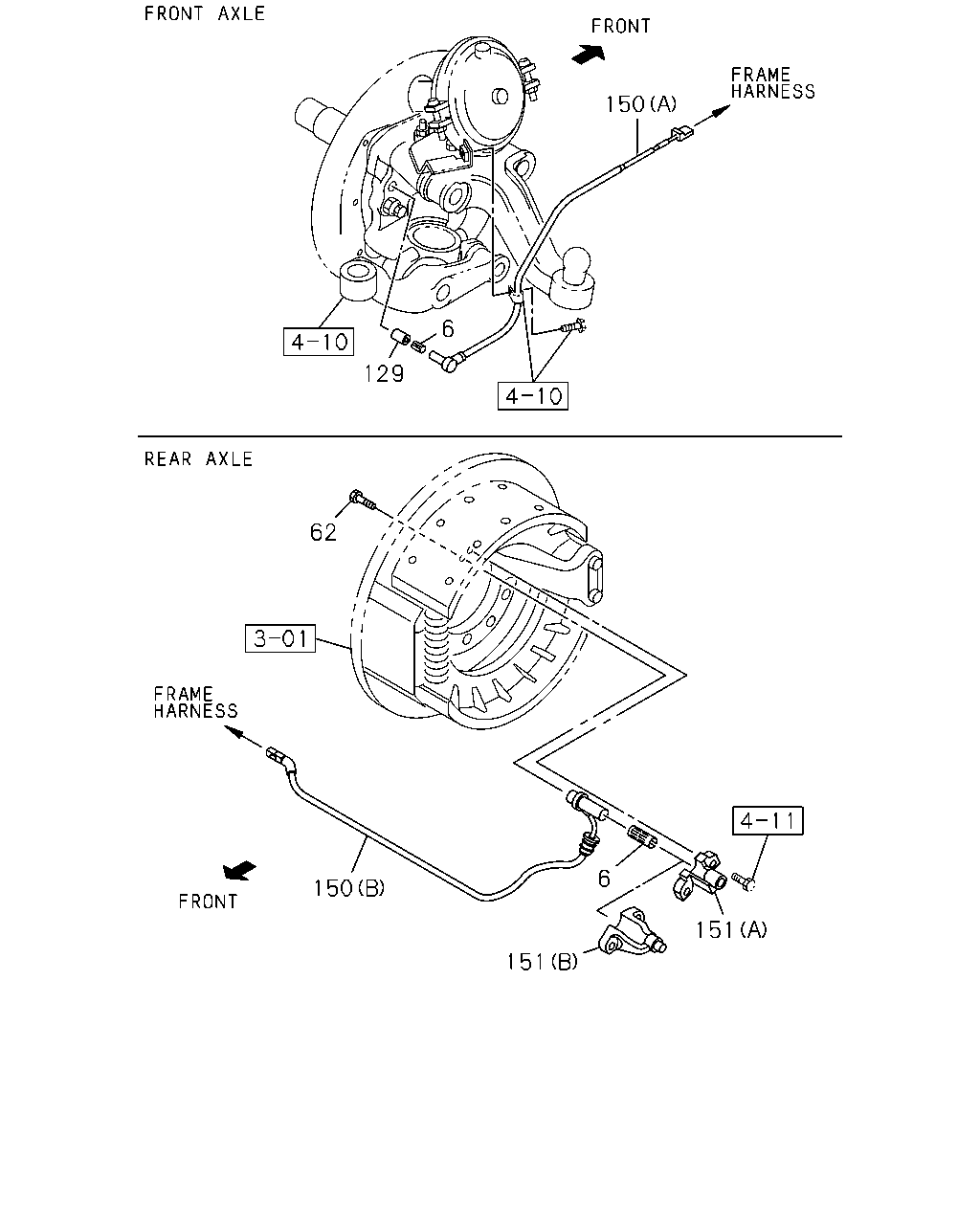

çizim 137842
6 129 62 150 6 150 151 151
BalonParca AdiParca NoAdetTipApplied Date
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 1009-
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 1009-
62 BOLT; SENSOR
M8X16 		9-05820-816-0 02 1 1009-1506
62 BOLT; SENSOR
M8X16 HEX SOCKET 		0-58330-816-0 02 1 1507-
129 COLLAR 1-83129-471-0 01 1 1009-1302
129 COLLAR 1-83129-471-0 01 1 1009-1302
129 COLLAR 1-83129-471-0 02 1 1303-
150 SENSOR; SPEED,ABS
FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) NEW ZEALAND EQUIPMENT(PK5) (B) 		8-98130-586-0 01 1 1303-
150 SENSOR; SPEED,ABS
FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) NEW ZEALAND EQUIPMENT(PK5) (B) 		8-98130-587-0 01 1 1303-
150 SENSOR; SPEED,ABS
(A) 		1-83127-853-3 01 1 1009-1302
150 SENSOR; SPEED,ABS
(A) 		1-83127-853-3 01 1 1009-1302
150 SENSOR; SPEED,ABS
(A) 		1-83127-853-3 02 1 1303-
150 SENSOR; SPEED,ABS
(B) 		8-98121-318-0 01 1 1009-1302
150 SENSOR; SPEED,ABS
FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 39/9 16.5"(W4Q) HONG KONG EQUIPMENT(PQ1) (B) 		8-98224-161-0 01 1 1303-1411
150 SENSOR; SPEED,ABS
FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 39/9 16.5"(W4Q) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 		8-98224-161-0 01 1 1412-
150 SENSOR; SPEED,ABS
(B) 		8-98121-319-0 01 1 1009-1302
150 SENSOR; SPEED,ABS
FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 39/9 16.5"(W4Q) HONG KONG EQUIPMENT(PQ1) (B) 		8-98224-162-0 01 1 1303-1411
150 SENSOR; SPEED,ABS
FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 39/9 16.5"(W4Q) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 		8-98224-162-0 01 1 1412-
151 BRACKET; SPD SENSOR
(A) 		1-83129-405-0 01 1 1009-1504
151 BRACKET; SPD SENSOR
(B) 		8-98299-398-0 01 1 1505-
151 BRACKET; SPD SENSOR
(A) 		1-83129-406-0 01 1 1009-1504
151 BRACKET; SPD SENSOR
(B) 		8-98299-399-0 01 1 1505-

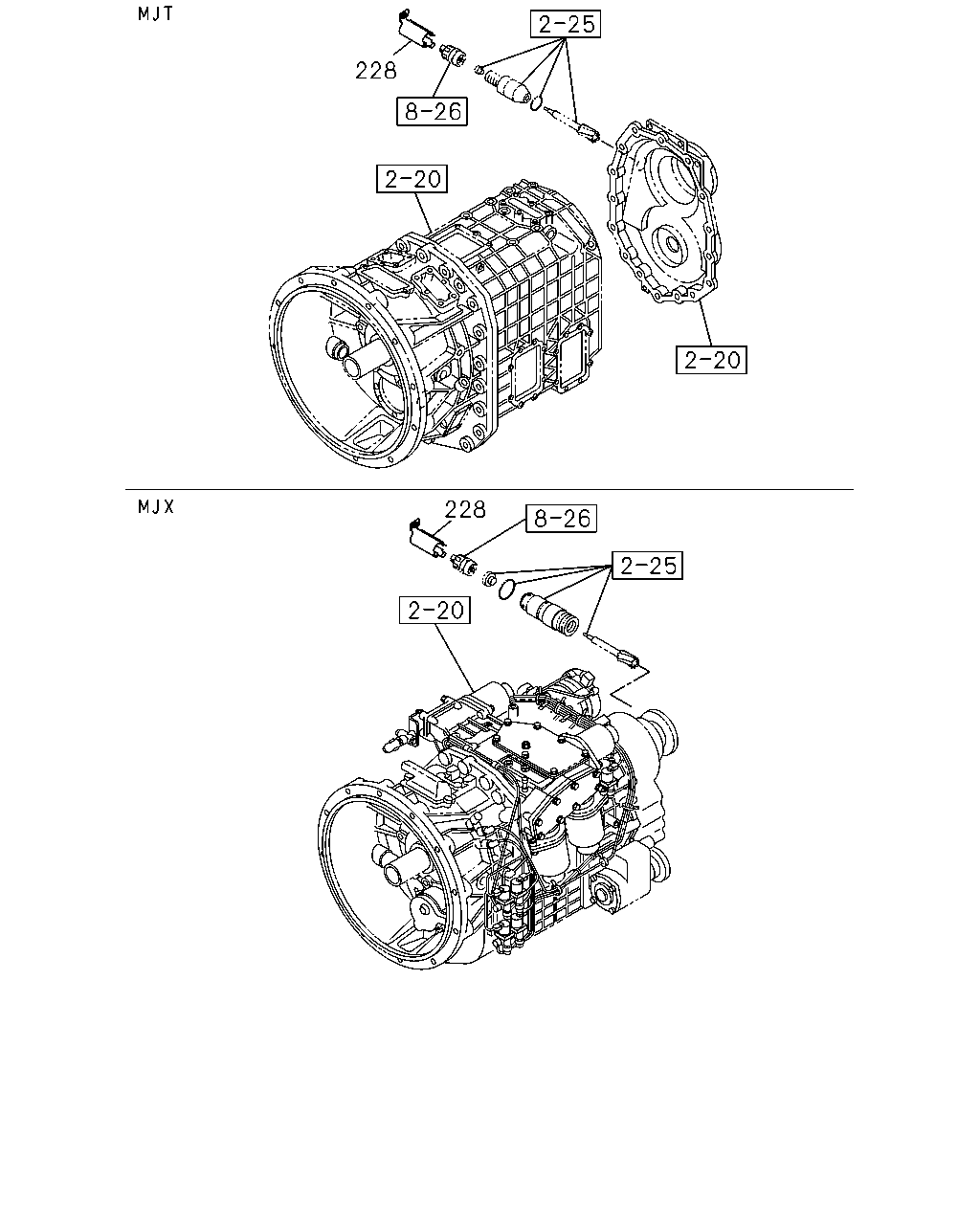

çizim 188488
228 228
BalonParca AdiParca NoAdetTipApplied Date
228 PROTECTOR; SENSOR 8-98119-901-0 01 1 1009-1302
228 PROTECTOR; SENSOR
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) 		8-98119-901-0 01 1 1303-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
