Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#70015) — 965 parça

1 1 1 224 1 1 178 178 178 178 178 178 178 530 178 292 503

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (A) ID=29 OD=39 L=40	1-09337-013-0	02	1	1009-
1	SLEEVE; RUBBER (D) ID=38.1 L=25	1-09337-052-0	01	1	1009-
1	SLEEVE; RUBBER (C) ID=18 OD=22 L=25	8-94412-773-0	01	1	1009-
1	SLEEVE; RUBBER AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=38.1 L=50	5-09360-835-0	01	1	1009-1302
1	SLEEVE; RUBBER AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) ID=38.1 L=50	5-09360-835-0	01	1	1303-
1	SLEEVE; RUBBER (E) ID=23 OD=27 L=40	1-09337-015-0	02	1	1303-1303
1	SLEEVE; RUBBER NEW ZEALAND EQUIPMENT(PK5) (E) ID=23 OD=27 L=40	1-09337-015-0	02	1	1304-
178	GROMMET; HARNESS NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (F) ID=24 OD=30 T=22	1-09332-126-0	02	1	1303-1411
178	GROMMET; HARNESS NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (F) ID=24 OD=30 T=22	1-09332-126-0	02	1	1412-
178	GROMMET; HARNESS EXC. NEW ZEALAND EQUIPMENT(PK5) (D) ID=28 OD=35 T=25	1-09332-011-1	02	1	1303-
178	GROMMET; HARNESS (H) ID=39 OD=45 T=19	1-09332-077-0	01	1	1303-
178	GROMMET; HARNESS SMOOTHER-G(C1W) (H) ID=39 OD=45 T=19	1-09332-077-0	01	1	1303-
178	GROMMET; HARNESS (B) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1009-
178	GROMMET; HARNESS (C) ID=32 OD=40 T=18	1-09891-003-0	01	1	1009-1302
178	GROMMET; HARNESS (G) ID=28 OD=35 T=17	9-09956-256-2	01	1	1303-1303
178	GROMMET; HARNESS EXC. HONG KONG EQUIPMENT(PQ1) (G) ID=28 OD=35 T=17	9-09956-256-2	02	1	1304-1411
178	GROMMET; HARNESS EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (G) ID=28 OD=35 T=17	9-09956-256-2	02	1	1412-
178	GROMMET; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (D) ID=28 OD=35 T=25	1-09332-011-1	02	1	1009-1302
178	GROMMET; HARNESS NEW ZEALAND EQUIPMENT(PK5) (G) ID=28 OD=35 T=17	9-09956-256-2	02	1	1303-1303
178	GROMMET; HARNESS (G) ID=28 OD=35 T=17	9-09956-256-2	01	1	1304-
178	GROMMET; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) ID=24 OD=30 T=22	1-09332-104-0	02	1	1009-1302
178	GROMMET; HARNESS (A) ID=24 OD=30 T=22	1-09332-104-0	01	1	1009-1302
178	GROMMET; HARNESS NEW ZEALAND EQUIPMENT(PK5) (A) ID=24 OD=30 T=22	1-09332-104-0	01	1	1303-1303
178	GROMMET; HARNESS NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) ID=24 OD=30 T=22	1-09332-104-0	01	1	1303-1303
178	GROMMET; HARNESS NEW ZEALAND EQUIPMENT(PK5) (A) ID=24 OD=30 T=22	1-09332-104-0	01	1	1304-
178	GROMMET; HARNESS (A) ID=24 OD=30 T=22	1-09332-104-0	01	1	1304-
178	GROMMET; HARNESS EXC. SMOOTHER-G(C1W) (E)	1-82698-551-0	01	1	1009-
224	SLEEVE; RUBBER,HARNESS FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=32 OD=36 L=50	1-09337-023-0	01	1	1303-
292	CAP; RUBBER	1-82690-667-0	01	1	1009-1302
503	CONNECTOR EXC. SMOOTHER-G(C1W),BRAKE SYSTEM HSA<SLD>	1-82690-666-0	01	1	1009-1302
530	SEAL; HARNESS SMOOTHER-G(C1W) 180X40	1-72498-019-1	03	1	1303-
530	SEAL; HARNESS NEW ZEALAND EQUIPMENT(PK5) 100X40	1-72498-022-1	02	1	1303-
530	SEAL; HARNESS NEW ZEALAND EQUIPMENT(PK5) OD=25 BLACK	1-76798-019-0	01	1	1303-
530	SEAL; HARNESS EXC. SMOOTHER-G(C1W) 180X40	1-72498-019-1	01	1	1303-
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1009-1302
530	SEAL; HARNESS 180X40	1-72498-019-1	13	1	1303-
530	SEAL; HARNESS 100X40	1-72498-022-1	01	1	1009-

38 150 150 242 38 38 150 242 38 313 133 358 38 139 86 38 313 242 139 86 38 313 242 38 242 38 516 239 88 386 139 64 528 313 86 139 38 358 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

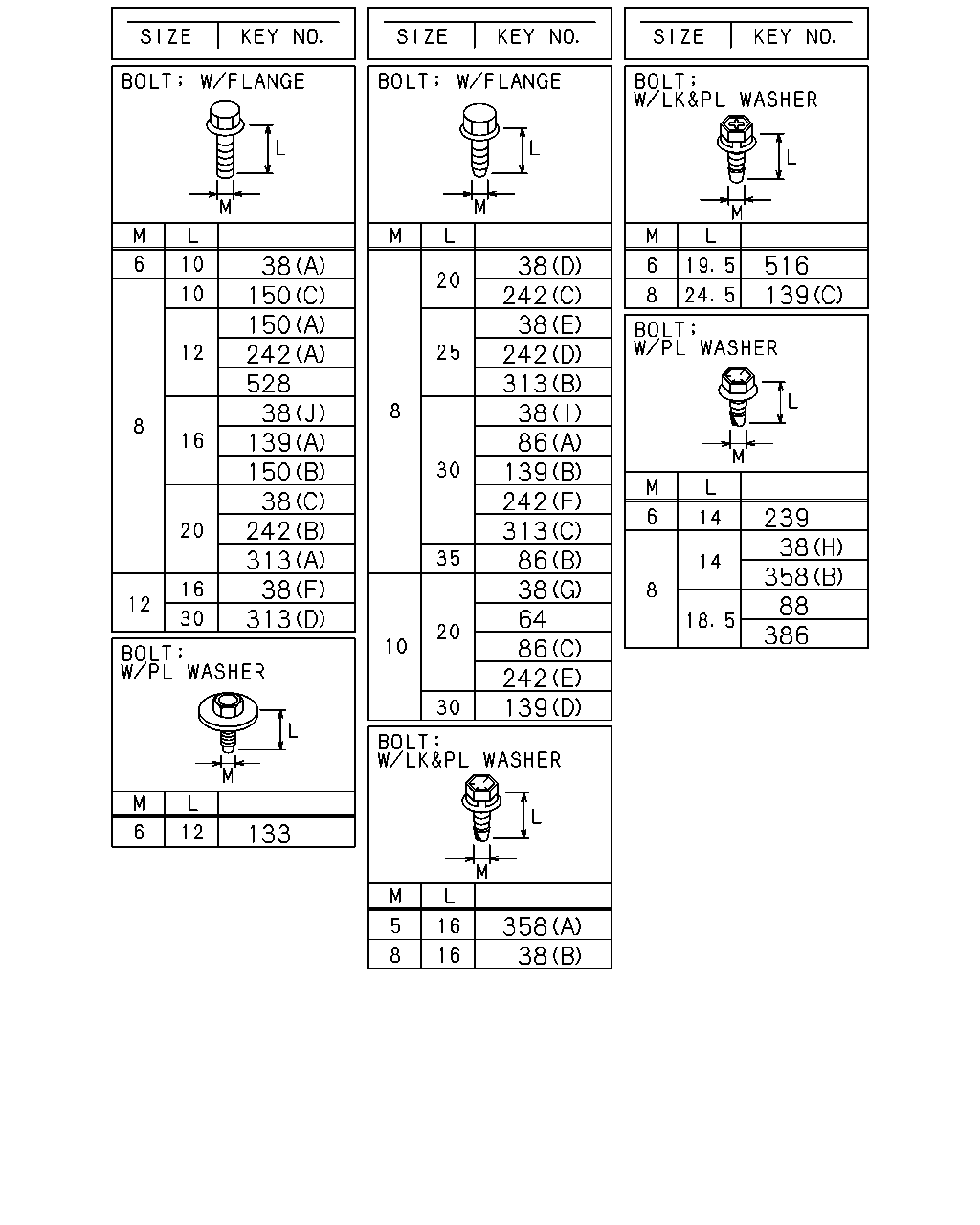

38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	04	1	1305-
38	BOLT; CLIP,HARNESS (I) M8X30 FLANGE	0-28650-830-0	03	1	1305-
38	BOLT; CLIP,HARNESS HONG KONG EQUIPMENT(PQ1) EXC. SMOOTHER-G(C1W) (H) M8X14 W/PL WASHER	8-98164-837-0	02	1	1303-1303
38	BOLT; CLIP,HARNESS NEW ZEALAND EQUIPMENT(PK5) EXC. SMOOTHER-G(C1W) (H) M8X14 W/PL WASHER	8-98164-837-0	02	1	1304-1304
38	BOLT; CLIP,HARNESS EXC. SMOOTHER-G(C1W),NEW ZEALAND EQUIPMENT(PK5) (H) M8X14 W/PL WASHER	8-98164-837-0	02	1	1304-
38	BOLT; CLIP,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (J) M8X16 FLANGE	0-28050-816-0	02	1	1303-
38	BOLT; CLIP,HARNESS MJT7S M/T(Y3E) (G) M10X20 FLANGE	0-28751-020-0	01	1	1303-
38	BOLT; CLIP,HARNESS (A) M6X10 FLANGE	0-28050-610-0	01	1	1009-
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28050-820-0	05	1	1009-1302
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28050-820-0	01	1	1303-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	09	1	1009-1302
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	04	1	1303-1303
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	03	1	1304-
38	BOLT; CLIP,HARNESS (G) M10X20 FLANGE	0-28751-020-0	01	1	1009-1302
38	BOLT; CLIP,HARNESS (I) M8X30 FLANGE	0-28650-830-0	04	1	1303-1304
38	BOLT; CLIP,HARNESS (I) M8X30 FLANGE	0-28650-830-0	01	1	1305-
38	BOLT; CLIP,HARNESS (F) M12X16 FLANGE	1-09044-079-0	01	1	1009-1105
38	BOLT; CLIP,HARNESS (F) M12X16 FLANGE	0-28051-216-0	01	1	1106-
38	BOLT; CLIP,HARNESS MJT7 M/T<Y9E> (D) M8X20 FLANGE	0-28650-820-0	03	1	1009-1302
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1303-1303
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1303-1303
38	BOLT; CLIP,HARNESS MJT7S M/T(Y3E),TRANSMISSION-FULLER RTLO169 18(Y3S) (D) M8X20 FLANGE	0-28650-820-0	02	1	1303-1303
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1304-1304
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1304-1304
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1304-1304
38	BOLT; CLIP,HARNESS MJT7S M/T(Y3E),TRANSMISSION-FULLER RTLO169 18(Y3S) (D) M8X20 FLANGE	0-28650-820-0	02	1	1304-1304
38	BOLT; CLIP,HARNESS MJT7S M/T(Y3E),TRANSMISSION-FULLER RTLO169 18(Y3S) (D) M8X20 FLANGE	0-28650-820-0	02	1	1305-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1305-
38	BOLT; CLIP,HARNESS SMOOTHER-G(C1W) (D) M8X20 FLANGE	0-28650-820-0	01	1	1009-1302
38	BOLT; CLIP,HARNESS SMOOTHER-G(C1W) (D) M8X20 FLANGE	0-28650-820-0	01	1	1303-1303
38	BOLT; CLIP,HARNESS FULLER M/T<X9B> (D) M8X20 FLANGE	0-28650-820-0	01	1	1303-1303
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	01	1	1303-1303
38	BOLT; CLIP,HARNESS SMOOTHER-G(C1W) (D) M8X20 FLANGE	0-28650-820-0	01	1	1304-
38	BOLT; CLIP,HARNESS FULLER M/T<X9B> (D) M8X20 FLANGE	0-28650-820-0	01	1	1304-
38	BOLT; CLIP,HARNESS SMOOTHER-G(C1W) (E) M8X25 FLANGE	0-28650-825-0	02	1	1009-1302
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	01	1	1303-
38	BOLT; CLIP,HARNESS FULL TRAILER PIPING<Z25> (E) M8X25 FLANGE	0-28650-825-0	01	1	1303-
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	01	1	1303-
38	BOLT; CLIP,HARNESS SMOOTHER-G(C1W) (B) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	1009-1201
38	BOLT; CLIP,HARNESS SMOOTHER-G(C1W) (H) M8X14 W/PL WASHER	8-98164-837-0	04	1	1202-1302
38	BOLT; CLIP,HARNESS SMOOTHER-G(C1W) NEW ZEALAND EQUIPMENT(PK5) (H) M8X14 W/PL WASHER	8-98164-837-0	04	1	1303-
38	BOLT; CLIP,HARNESS EXC. SMOOTHER-G(C1W) (B) M8X16 W/LK&PL WASHER	8-97087-055-0	03	1	1009-1201
38	BOLT; CLIP,HARNESS EXC. SMOOTHER-G(C1W) (H) M8X14 W/PL WASHER	8-98164-837-0	03	1	1202-1302
38	BOLT; CLIP,HARNESS SMOOTHER-G(C1W) HONG KONG EQUIPMENT(PQ1) (H) M8X14 W/PL WASHER	8-98164-837-0	03	1	1303-
38	BOLT; CLIP,HARNESS NEW ZEALAND EQUIPMENT(PK5) EXC. SMOOTHER-G(C1W) (H) M8X14 W/PL WASHER	8-98164-837-0	03	1	1303-
64	SCREW; CLIP SMOOTHER-G(C1W) M10X20 FLANGE	0-28751-020-0	02	1	1009-1302
64	SCREW; CLIP SMOOTHER-G(C1W) M10X20 FLANGE	0-28751-020-0	01	1	1303-
86	BOLT; CLIP BRKT SMOOTHER-G(C1W) (C) M10X20 FLANGE	0-28751-020-0	01	1	1303-
86	BOLT; CLIP BRKT EXC. SMOOTHER-G(C1W),NEW ZEALAND EQUIPMENT(PK5) (B) M8X35 FLANGE	0-28650-835-0	01	1	1303-1303
86	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1009-1302
86	BOLT; CLIP BRKT SMOOTHER-G(C1W) HONG KONG EQUIPMENT(PQ1) (A) M8X30 FLANGE	0-28650-830-0	01	1	1303-1303
86	BOLT; CLIP BRKT NEW ZEALAND EQUIPMENT(PK5) (A) M8X30 FLANGE	0-28650-830-0	01	1	1303-1303
86	BOLT; CLIP BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) M8X30 FLANGE	0-28650-830-0	01	1	1304-1411
86	BOLT; CLIP BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (A) M8X30 FLANGE	0-28650-830-0	01	1	1412-
88	BOLT; DOOR HARNESS EARTH AUTO DOOR LOCK<AU4> M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1009-1302
88	BOLT; DOOR HARNESS EARTH POWER WINDOW<A30> M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1303-
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/PL WASHER	8-97806-950-0	01	1	1009-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1303-1303
139	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) M8X30 FLANGE	0-28650-830-0	01	1	1303-1303
139	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5) (B) M8X30 FLANGE	0-28650-830-0	01	1	1304-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1304-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1303-
139	BOLT; BRKT EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M8X30 FLANGE	0-28650-830-0	04	1	1303-1303
139	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) (B) M8X30 FLANGE	0-28650-830-0	04	1	1304-1411
139	BOLT; BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M8X30 FLANGE	0-28650-830-0	04	1	1412-
139	BOLT; BRKT (D) M10X30 FLANGE	0-28151-030-0	01	1	1112-
139	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	03	1	1009-1111
139	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1112-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	05	1	1009-1302
139	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (B) M8X30 FLANGE	0-28650-830-0	05	1	1009-1302
139	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5) (B) M8X30 FLANGE	0-28650-830-0	05	1	1303-
139	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1009-
150	BOLT; CLIP FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M8X10 FLANGE	0-28050-810-0	01	1	1303-
150	BOLT; CLIP (A) M8X12 FLANGE	0-28050-812-0	05	1	1009-
150	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	07	1	1009-
239	BOLT; GRAND M6X14 W/PL WASHER	8-98164-836-0	02	1	1009-
242	BOLT; BRKT,HARNESS (A) M8X12 FLANGE	0-28050-812-0	01	1	1009-
242	BOLT; BRKT,HARNESS (B) M8X20 FLANGE	0-28050-820-0	04	1	1009-1302
242	BOLT; BRKT,HARNESS (B) M8X20 FLANGE	0-28050-820-0	01	1	1303-
242	BOLT; BRKT,HARNESS (C) M8X20 FLANGE	0-28650-820-0	01	1	1009-1302
242	BOLT; BRKT,HARNESS (C) M8X20 FLANGE	0-28650-820-0	02	1	1303-
242	BOLT; BRKT,HARNESS (C) M8X20 FLANGE	0-28650-820-0	04	1	1009-1302
242	BOLT; BRKT,HARNESS (F) M8X30 FLANGE	0-28650-830-0	02	1	1303-
242	BOLT; BRKT,HARNESS (D) M8X25 FLANGE	0-28650-825-0	01	1	1009-1302
242	BOLT; BRKT,HARNESS (C) M8X20 FLANGE	0-28650-820-0	01	1	1303-
242	BOLT; BRKT,HARNESS (E) M10X20 FLANGE	0-28651-020-0	02	1	1009-1302
313	BOLT; BRKT SMOOTHER-G(C1W) (D) M12X30 FLANGE	0-28051-230-0	01	1	1303-
313	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) (B) M8X25 FLANGE	0-28650-825-0	01	1	1303-1310
313	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) (B) M8X25 FLANGE	0-28650-825-0	01	1	1311-1411
313	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M8X25 FLANGE	0-28650-825-0	01	1	1311-1411
313	BOLT; BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M8X25 FLANGE	0-28650-825-0	01	1	1412-
313	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M8X25 FLANGE	0-28650-825-0	01	1	1412-
313	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	03	1	1009-1302
313	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1303-
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	1009-1302
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	04	1	1303-
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	07	1	1009-1302
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	1303-
358	BOLT; EARTH (B) M8X14 W/PL WASHER	8-98164-837-0	01	1	1303-1303
358	BOLT; EARTH NEW ZEALAND EQUIPMENT(PK5) (B) M8X14 W/PL WASHER	8-98164-837-0	01	1	1304-
358	BOLT; EARTH (A) M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1009-
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1303-
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1009-
528	BOLT; CONNECTOR SMOOTHER-G(C1W) M8X12 FLANGE	0-28050-812-0	01	1	1009-

142 369 16 208 16 51 142 425 380 194 102 48 16 14 212 194 14 14 67 102 206 104 81 51 102 121 142 171 194 208 305 369 380 470 111 81 16 14 305 212

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

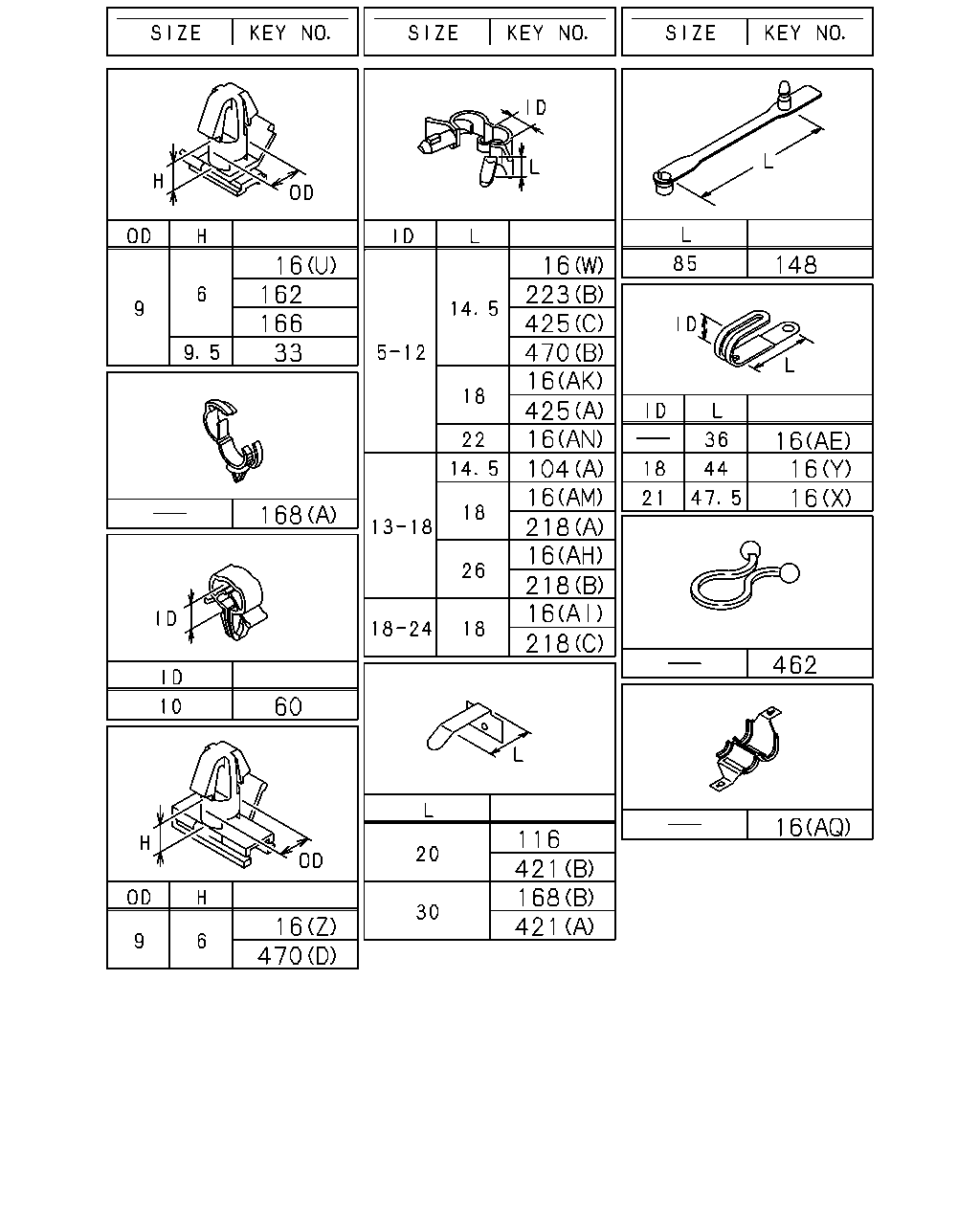

14	CLIP; BAND,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=250	1-09707-126-0	01	1	1303-
14	CLIP; BAND,HARNESS FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) L=250	5-09707-030-1	02	1	1303-
14	CLIP; BAND,HARNESS FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) L=140	5-09707-031-1	01	1	1303-
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	1009-1302
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	1009-1302
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	1303-
14	CLIP; BAND,HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) L=350	1-09707-183-0	01	1	1009-1302
14	CLIP; BAND,HARNESS HONG KONG EQUIPMENT(PQ1) (B) L=350	1-09707-183-0	01	1	1303-1303
14	CLIP; BAND,HARNESS EXC. NEW ZEALAND EQUIPMENT(PK5) (B) L=350	1-09707-183-0	01	1	1304-

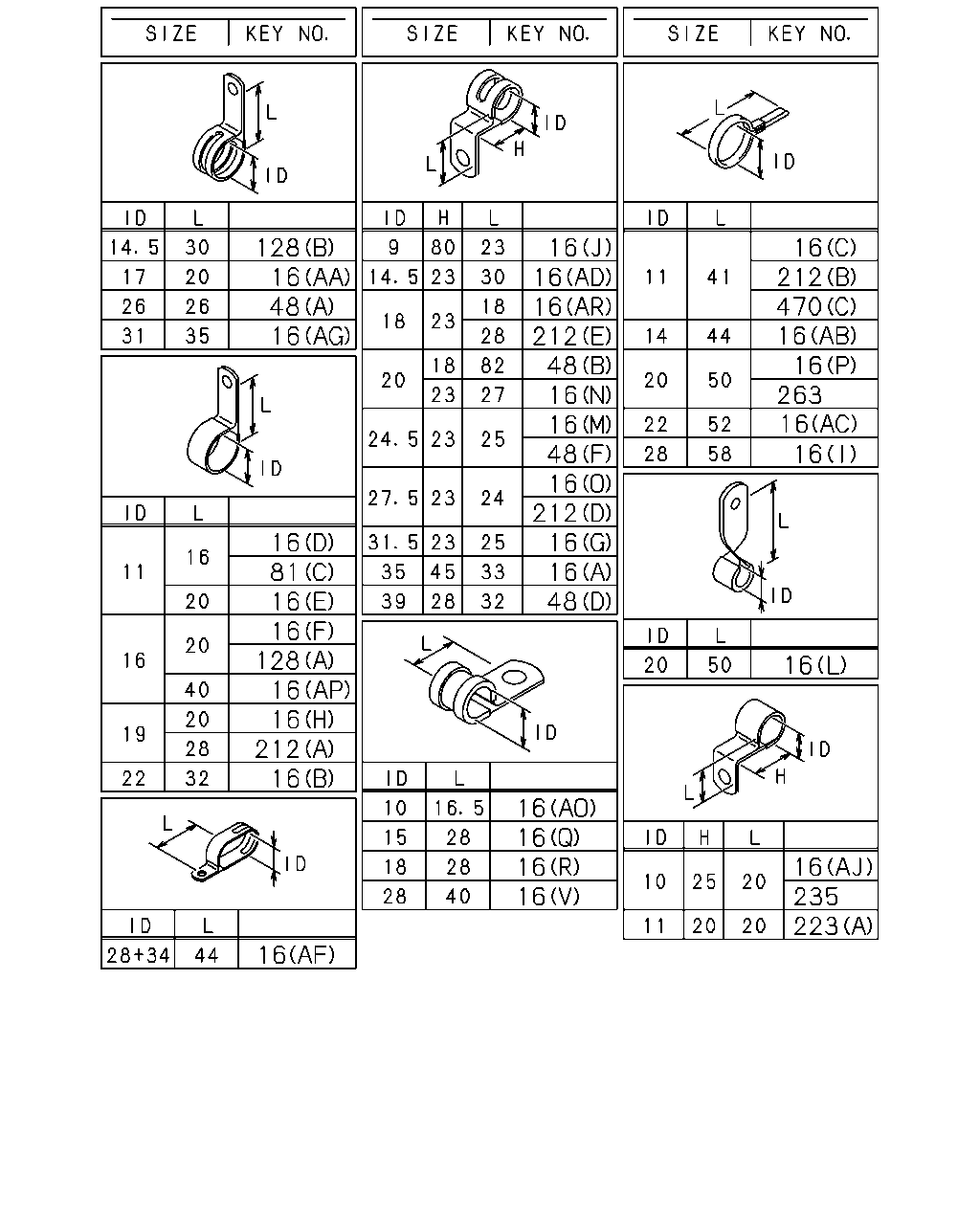

16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	07	1	1305-
16	CLIP; HARNESS HONG KONG EQUIPMENT(PQ1) (T) L=350	1-09707-183-0	01	1	1304-1304
16	CLIP; HARNESS HONG KONG EQUIPMENT(PQ1) (AM) ID=13-18 L=18	1-09709-291-0	01	1	1305-1411
16	CLIP; HARNESS HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (AM) ID=13-18 L=18	1-09709-291-0	01	1	1412-
16	CLIP; HARNESS ENGINE REAR PTO(SV1) (K) L=250	8-98216-430-0	09	1	1206-1302
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. NEW ZEALAND EQUIPMENT(PK5) (K) L=250	5-09707-030-1	03	1	1303-1303
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1) (K) L=250	5-09707-030-1	03	1	1304-1411
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (K) L=250	5-09707-030-1	03	1	1412-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (T) L=350	1-09707-183-0	01	1	1103-1302
16	CLIP; HARNESS (T) L=350	1-09707-183-0	02	1	1303-
16	CLIP; HARNESS SMOOTHER-G(C1W) (T) L=350	1-09707-183-0	02	1	1303-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1103-1302
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (AQ) W/SPONGE RUBBER	1-09709-150-0	01	1	1303-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (K) L=250	5-09707-030-1	02	1	1103-1302
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1303-1303
16	CLIP; HARNESS NEW ZEALAND EQUIPMENT(PK5) (K) L=250	5-09707-030-1	02	1	1303-1303
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (K) L=250	5-09707-030-1	02	1	1303-1303
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (K) L=250	5-09707-030-1	02	1	1303-1303
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (K) L=250	5-09707-030-1	02	1	1303-1303
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1304-1411
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (K) L=250	5-09707-030-1	02	1	1304-1411
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (K) L=250	5-09707-030-1	02	1	1304-1411
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (K) L=250	5-09707-030-1	02	1	1304-1411
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. HONG KONG EQUIPMENT(PQ1) (K) L=250	5-09707-030-1	02	1	1304-1411
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1412-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (K) L=250	5-09707-030-1	02	1	1412-
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (K) L=250	5-09707-030-1	02	1	1412-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (K) L=250	5-09707-030-1	02	1	1412-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (K) L=250	5-09707-030-1	02	1	1412-
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (T) L=350	1-09707-183-0	02	1	1103-1302
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> NEW ZEALAND EQUIPMENT(PK5) (AI) ID=18-24 L=18	1-09709-294-0	05	1	1303-
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (W) ID=5-12 L=14.5	1-09987-221-0	01	1	1103-1302
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	04	1	1009-1102
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	03	1	1103-1302
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1303-
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	1009-
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	02	1	1009-
16	CLIP; HARNESS (B) ID=22 L=32	1-09700-126-1	01	1	1009-
16	CLIP; HARNESS (I) ID=28 L=58	1-09700-400-0	07	1	1009-1302
16	CLIP; HARNESS (I) ID=28 L=58	1-09700-400-0	03	1	1303-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	13	1	1009-1302
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	12	1	1303-1304
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	03	1	1305-
16	CLIP; HARNESS (M) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1009-1302
16	CLIP; HARNESS (L) ID=20 L=50	1-09700-679-1	01	1	1303-
16	CLIP; HARNESS (A) ID=35 H=45 L=33	1-09700-947-0	01	1	1009-
16	CLIP; HARNESS (G) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1009-1302
16	CLIP; HARNESS (G) ID=31.5 H=23 L=25	1-09701-017-0	02	1	1303-
16	CLIP; HARNESS (J) ID=9 H=80 L=23	1-09701-061-0	02	1	1009-
16	CLIP; HARNESS (R) ID=18 L=28	1-09701-067-0	03	1	1009-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1009-
16	CLIP; HARNESS (V) ID=28 L=40	1-09701-261-0	01	1	1009-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1009-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	07	1	1009-1102
16	CLIP; HARNESS (T) L=350	1-09707-183-0	05	1	1103-1302
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1303-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	01	1	1009-1302
16	CLIP; HARNESS (AE) L=36	8-94224-891-1	01	1	1303-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	02	1	1009-1302
16	CLIP; HARNESS MJT7 M/T<Y9E> (U) OD=9 H=6	1-09709-178-0	02	1	1009-1302
16	CLIP; HARNESS SMOOTHER-G(C1W) (U) OD=9 H=6	1-09709-178-0	01	1	1303-1411
16	CLIP; HARNESS TRANSMISSION-FULLER RTLO169 18(Y3S) (U) OD=9 H=6	1-09709-178-0	01	1	1303-1411
16	CLIP; HARNESS AIR CONDITIONER MANUAL CONTROL(C60) CAUTIONS CHINESE<SL7> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (U) OD=9 H=6	1-09709-178-0	01	1	1303-1411
16	CLIP; HARNESS AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) CAUTIONS ENGLISH<RR8> CLUTCH-15.5" TWIN PLATE SPICER(TEY) (U) OD=9 H=6	1-09709-178-0	01	1	1303-1411
16	CLIP; HARNESS SMOOTHER-G(C1W) (U) OD=9 H=6	1-09709-178-0	01	1	1412-
16	CLIP; HARNESS TRANSMISSION-FULLER RTLO169 18(Y3S) (U) OD=9 H=6	1-09709-178-0	01	1	1412-
16	CLIP; HARNESS AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) CAUTIONS ENGLISH<RR8> CLUTCH-15.5" TWIN PLATE SPICER(TEY) (U) OD=9 H=6	1-09709-178-0	01	1	1412-
16	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (U) OD=9 H=6	1-09709-178-0	01	1	1412-
16	CLIP; HARNESS (AK) ID=5-12 L=18	1-09709-287-0	02	1	1009-1102
16	CLIP; HARNESS (AK) ID=5-12 L=18	1-09709-287-0	01	1	1103-1302
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) EXC. POOR QUALITY DIESEL FUEL<KF0> (AK) ID=5-12 L=18	1-09709-287-0	01	1	1103-1302
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AK) ID=5-12 L=18	1-09709-287-0	01	1	1103-1302
16	CLIP; HARNESS EXC. NEW ZEALAND EQUIPMENT(PK5) (AK) ID=5-12 L=18	1-09709-287-0	01	1	1303-
16	CLIP; HARNESS (AK) ID=5-12 L=18	1-09709-287-0	01	1	1303-
16	CLIP; HARNESS (AN) ID=5-12 L=22	1-09709-288-0	02	1	1009-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	09	1	1009-1205
16	CLIP; HARNESS ENGINE REAR PTO(SV1) (K) L=250	5-09707-030-1	09	1	1009-1205
16	CLIP; HARNESS (K) L=250	5-09707-030-1	09	1	1206-1302
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	02	1	1303-1303
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-1304
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-1304
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	02	1	1305-
16	CLIP; HARNESS (X) ID=21 L=47.5	8-94178-108-0	03	1	1009-
16	CLIP; HARNESS (Y) ID=18 L=44	8-97367-985-1	02	1	1009-
16	CLIP; HARNESS (Z) OD=9 H=6	8-97368-793-0	02	1	1009-
16	CLIP; HARNESS (AA) ID=17 L=20	8-97619-251-0	01	1	1009-1302
16	CLIP; HARNESS (AR) ID=18 L=38 H=23	1-09701-147-0	01	1	1303-
16	CLIP; HARNESS (AL) L=251	8-97619-917-0	01	1	1009-
16	CLIP; HARNESS (AO) ID=10 L=16.5	8-98082-034-0	02	1	1009-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	03	1	1009-1302
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	06	1	1303-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	06	1	1009-1302
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	03	1	1303-
16	CLIP; HARNESS (AC) ID=22 L=52	9-09917-431-0	05	1	1009-1302
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	02	1	1303-
16	CLIP; HARNESS EXC. ENGINE REAR PTO(SV1) (K) L=250	5-09707-030-1	10	1	1009-1205
16	CLIP; HARNESS EXC. ENGINE REAR PTO(SV1) (K) L=250	8-98216-430-0	10	1	1206-1302
16	CLIP; HARNESS (K) L=250	8-98216-430-0	10	1	1303-
16	CLIP; HARNESS GENERATOR NIKKO 24V-50A 1.2KW(SLX) (L) ID=20 L=50	1-09700-679-1	01	1	1009-1302
16	CLIP; HARNESS TRANSMISSION-FULLER RTLO169 18(Y3S) (AP) ID=16 L=40	0-95235-576-0	01	1	1303-
16	CLIP; HARNESS MIXER TRUCK<RA2> (H) ID=19 L=20	0-95235-836-0	01	1	1009-1302
16	CLIP; HARNESS TRANSMISSION-FULLER RTLO169 18(Y3S) (F) T=1.2 ID=16 L=20	0-95235-536-0	01	1	1303-
16	CLIP; HARNESS EXC. MIXER TRUCK<RA2> (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-1302
16	CLIP; HARNESS GENERATOR NIKKO 24V-50A 1.2KW(SLX) (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-1302
16	CLIP; HARNESS SMOOTHER-G(C1W) (M) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1303-
16	CLIP; HARNESS MJT7 M/T<Y9E> (AD) ID=14.5 H=23 L=30	1-09700-859-0	02	1	1009-1302
16	CLIP; HARNESS MJT7S M/T(Y3E) (F) T=1.2 ID=16 L=20	0-95235-536-0	02	1	1303-
16	CLIP; HARNESS SMOOTHER-G(C1W) (AJ) ID=10 H=25 L=20	1-09700-519-0	01	1	1009-
16	CLIP; HARNESS MJX12P M/T SMOOTHER-G(Y4S) (AI) ID=18-24 L=18	1-09709-294-0	01	1	1009-1102
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AI) ID=18-24 L=18	1-09709-294-0	01	1	1009-1102
16	CLIP; HARNESS MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) (AI) ID=18-24 L=18	1-09709-294-0	01	1	1103-1302
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. POOR QUALITY DIESEL FUEL<KF0> (AI) ID=18-24 L=18	1-09709-294-0	01	1	1103-1302
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. POOR QUALITY DIESEL FUEL<KF0> (AI) ID=18-24 L=18	1-09709-294-0	01	1	1303-1303
16	CLIP; HARNESS SMOOTHER-G(C1W) (AI) ID=18-24 L=18	1-09709-294-0	01	1	1303-1303
16	CLIP; HARNESS SMOOTHER-G(C1W) (AI) ID=18-24 L=18	1-09709-294-0	01	1	1304-
16	CLIP; HARNESS MJX12P M/T SMOOTHER-G(Y4S) (AE) L=36	8-94224-891-1	01	1	1009-1302
16	CLIP; HARNESS (AE) L=36	8-94224-891-1	01	1	1009-1302
16	CLIP; HARNESS HONG KONG EQUIPMENT(PQ1) (K) L=250	5-09707-030-1	01	1	1303-1303
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1303-1303
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (K) L=250	5-09707-030-1	01	1	1303-1303
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (K) L=250	5-09707-030-1	01	1	1303-1303
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1303-
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (K) L=250	5-09707-030-1	01	1	1303-
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (K) L=250	5-09707-030-1	01	1	1303-
16	CLIP; HARNESS SMOOTHER-G(C1W) (O) ID=27.5 H=23 L=24	1-09700-863-0	03	1	1009-1302
16	CLIP; HARNESS SMOOTHER-G(C1W) HONG KONG EQUIPMENT(PQ1) (O) ID=27.5 H=23 L=24	1-09700-863-0	03	1	1303-
16	CLIP; HARNESS SMOOTHER-G(C1W) (AF) ID=28+34 L=44	1-09701-311-0	01	1	1009-1302
16	CLIP; HARNESS FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16	0-95235-025-0	01	1	1303-
16	CLIP; HARNESS SMOOTHER-G(C1W) (U) OD=9 H=6	1-09709-178-0	07	1	1009-
16	CLIP; HARNESS SMOOTHER-G(C1W) (P) ID=20 L=50	9-09917-430-0	01	1	1009-1302
16	CLIP; HARNESS SMOOTHER-G(C1W) (W) ID=5-12 L=14.5	1-09987-221-0	01	1	1303-1304
16	CLIP; HARNESS FULL FLOATING CAB(W16) (C) ID=11 L=41	1-09700-403-0	02	1	1305-
16	CLIP; HARNESS SMOOTHER-G(C1W) (AC) ID=22 L=52	9-09917-431-0	01	1	1009-1302
16	CLIP; HARNESS SMOOTHER-G(C1W) NEW ZEALAND EQUIPMENT(PK5) (M) ID=24.5 H=23 L=25	1-09700-862-0	02	1	1303-
16	CLIP; HARNESS EXC. SMOOTHER-G(C1W) (F) T=0.8 ID=16 L=20	0-95235-535-0	01	1	1009-
16	CLIP; HARNESS EXC. SMOOTHER-G(C1W) (AG) ID=31 L=35	1-09700-329-1	01	1	1009-1302
16	CLIP; HARNESS SMOOTHER-G(C1W) (AG) ID=31 L=35	1-09700-329-1	01	1	1303-
16	CLIP; HARNESS (AG) ID=31 L=35	1-09700-329-1	01	1	1303-
16	CLIP; HARNESS EXC. SMOOTHER-G(C1W) (P) ID=20 L=50	9-09917-430-0	02	1	1009-1302
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	07	1	1303-
16	CLIP; HARNESS TRANSMISSION SIDE PTO WO/LEVER(SH5) (K) L=250	5-09707-030-1	01	1	1009-1302
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (AM) ID=13-18 L=18	1-09709-291-0	03	1	1303-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (AH) ID=13-18 L=26	1-09709-293-0	02	1	1009-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (AI) ID=18-24 L=18	1-09709-294-0	02	1	1009-1102
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (AI) ID=18-24 L=18	1-09709-294-0	02	1	1103-1302
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> (AI) ID=18-24 L=18	1-09709-294-0	02	1	1103-1302
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (AI) ID=18-24 L=18	1-09709-294-0	02	1	1303-1411
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> HONG KONG EQUIPMENT(PQ1) (AI) ID=18-24 L=18	1-09709-294-0	02	1	1303-1411
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (AI) ID=18-24 L=18	1-09709-294-0	02	1	1412-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (AI) ID=18-24 L=18	1-09709-294-0	02	1	1412-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AM) ID=13-18 L=18	1-09709-291-0	01	1	1009-1102
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. POOR QUALITY DIESEL FUEL<KF0> (AM) ID=13-18 L=18	1-09709-291-0	01	1	1103-1302
16	CLIP; HARNESS HONG KONG EQUIPMENT(PQ1) (AM) ID=13-18 L=18	1-09709-291-0	01	1	1303-1304
16	CLIP; HARNESS SMOOTHER-G(C1W) (AM) ID=13-18 L=18	1-09709-291-0	01	1	1303-1304
16	CLIP; HARNESS EXC. NEW ZEALAND EQUIPMENT(PK5) (C) L=350	1-09707-183-0	01	1	1305-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AH) ID=13-18 L=26	1-09709-293-0	05	1	1009-1302
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1) (AH) ID=13-18 L=26	1-09709-293-0	05	1	1303-1411
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (AH) ID=13-18 L=26	1-09709-293-0	05	1	1412-
48	CLIP; FRAME HARNESS NEW ZEALAND EQUIPMENT(PK5) (F) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1303-
48	CLIP; FRAME HARNESS NEW ZEALAND EQUIPMENT(PK5) (C) L=350	1-09707-183-0	04	1	1303-
48	CLIP; FRAME HARNESS HONG KONG EQUIPMENT(PQ1) (A) ID=26 L=26	1-09701-236-0	01	1	1303-1411
48	CLIP; FRAME HARNESS HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=26 L=26	1-09701-236-0	01	1	1412-
48	CLIP; FRAME HARNESS HONG KONG EQUIPMENT(PQ1) (C) L=350	1-09707-183-0	07	1	1303-1411
48	CLIP; FRAME HARNESS HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=350	1-09707-183-0	07	1	1412-
48	CLIP; FRAME HARNESS (A) ID=26 L=26	1-09701-236-0	01	1	1009-1302
48	CLIP; FRAME HARNESS (D) ID=39 H=28 L=32	1-09701-263-0	04	1	1303-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	1009-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	13	1	1009-1302
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	03	1	1303-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180	1-09707-162-1	01	1	1009-1302
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) L=180	1-09707-162-1	01	1	1303-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-1	01	1	1009-1302
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) L=140	5-09707-031-1	01	1	1303-
67	CLIP; BAND,HARNESS,CLU SW MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) L=140	5-09707-031-1	01	1	1009-1302
67	CLIP; BAND,HARNESS,CLU SW MJX M/T<Y9N> TRANSMISSION CONTROL CABLE TYPE(C1A) L=140	5-09707-031-1	01	1	1303-
81	CLIP; HARNESS FRONT SPOILER<VP1> (A) L=140	5-09707-031-1	04	1	1009-1302
81	CLIP; HARNESS EXC. FRONT SPOILER<VP1> (B) L=250	5-09707-030-1	02	1	1009-1302
81	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) ID=11 L=16	0-95235-025-0	02	1	1303-
81	CLIP; HARNESS EXC. FRONT SPOILER<VP1> (A) L=140	5-09707-031-1	08	1	1009-1302
102	CLIP; BAND TRANSMISSION-FULLER RTLO169 18(Y3S) (C) L=140	5-09707-031-1	01	1	1303-
102	CLIP; BAND ANTILOCK BRAKE SYSTEM(BFA) (A) L=350	1-09707-183-0	01	1	1009-1012
102	CLIP; BAND (A) L=350	1-09707-183-0	01	1	1101-1302
102	CLIP; BAND ANTILOCK BRAKE SYSTEM(BFA) (A) L=350	1-09707-183-0	01	1	1101-1302
102	CLIP; BAND HONG KONG EQUIPMENT(PQ1) (A) L=350	1-09707-183-0	01	1	1303-1411
102	CLIP; BAND HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=350	1-09707-183-0	01	1	1412-
102	CLIP; BAND SMOOTHER-G(C1W) (B) L=250	5-09707-030-1	01	1	1009-1303
102	CLIP; BAND NEW ZEALAND EQUIPMENT(PK5) (B) L=250	5-09707-030-1	01	1	1304-
102	CLIP; BAND MJX12P M/T SMOOTHER-G(Y4S) (B) L=250	5-09707-030-1	01	1	1304-
104	CLIP; HEADLAMP HARNESS (A) ID=13-18 L=14.5	1-09709-290-0	06	1	1009-1302
104	CLIP; HEADLAMP HARNESS (B) L=140	5-09707-031-1	04	1	1009-1302
104	CLIP; HEADLAMP HARNESS HALOGEN HEADLAMPS<TT5> (B) L=140	5-09707-031-1	02	1	1303-
111	CLIP; STOP LAMP SW HARNESS L=250	5-09707-030-1	01	1	1009-1302
121	CLIP; FACIA HARNESS NEW ZEALAND EQUIPMENT(PK5) L=250	5-09707-030-1	02	1	1303-
142	CLIP; HARNESS,ENG (A) L=180	1-09707-162-1	01	1	1009-1207
142	CLIP; HARNESS,ENG (A) L=180	8-98216-427-0	01	1	1208-
142	CLIP; HARNESS,ENG (B) L=250	5-09707-030-1	02	1	1009-1205
142	CLIP; HARNESS,ENG (B) L=250	8-98216-430-0	02	1	1206-
142	CLIP; HARNESS,ENG (C) L=251	8-97619-917-0	01	1	1009-
171	CLIP; STARTER HARNESS L=250	5-09707-030-1	05	1	1009-1302
171	CLIP; STARTER HARNESS L=250	5-09707-030-1	02	1	1303-
194	CLIP; BAND (A) L=300	1-09707-001-1	01	1	1009-
194	CLIP; BAND (C) L=350	1-09707-183-0	07	1	1009-1202
194	CLIP; BAND (C) L=350	1-09707-183-0	08	1	1203-1302
194	CLIP; BAND NEW ZEALAND EQUIPMENT(PK5) (C) L=350	1-09707-183-0	03	1	1303-
194	CLIP; BAND (B) L=250	5-09707-030-1	01	1	1009-1302
194	CLIP; BAND HONG KONG EQUIPMENT(PQ1) (C) L=350	1-09707-183-0	05	1	1303-1304
194	CLIP; BAND EXC. NEW ZEALAND EQUIPMENT(PK5) (C) L=350	1-09707-183-0	05	1	1305-
194	CLIP; BAND SMOOTHER-G(C1W) (B) L=250	5-09707-030-1	06	1	1009-1302
194	CLIP; BAND SMOOTHER-G(C1W) (B) L=250	5-09707-030-1	09	1	1303-
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	02	1	1009-
208	CLIP; HARNESS,MAG VLV (A) L=250	5-09707-030-1	01	1	1303-
208	CLIP; HARNESS,MAG VLV PTO CONTROL OPERATION CAB BACK<TBZ> (B) L=180	1-09707-162-1	01	1	1009-
212	CLIP; HORN HARNESS (A) ID=19 L=28	0-95235-856-0	01	1	1009-1302
212	CLIP; HORN HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1009-1302
212	CLIP; HORN HARNESS (C) L=300	1-09707-001-1	01	1	1009-1302
212	CLIP; HORN HARNESS (F) L=140	5-09707-031-1	01	1	1009-1302
212	CLIP; HORN HARNESS SMOOTHER-G(C1W) (D) ID=27.5 H=23 L=24	1-09700-863-0	03	1	1009-1302
212	CLIP; HORN HARNESS EXC. SMOOTHER-G(C1W) (E) ID=18 H=23 L=28	1-09700-860-0	03	1	1009-1302
305	CLIP; ENG HARNESS (A) L=140	5-09707-031-1	01	1	1009-1302
305	CLIP; ENG HARNESS (B) L=250	5-09707-030-1	04	1	1303-
369	CLIP; BAND EDS HARNESS (A) L=180	1-09707-162-1	01	1	1009-1302
369	CLIP; BAND EDS HARNESS (A) L=140	5-09707-031-1	01	1	1303-
369	CLIP; BAND EDS HARNESS (B) L=250	5-09707-030-1	01	1	1009-1302
369	CLIP; BAND EDS HARNESS NEW ZEALAND EQUIPMENT(PK5) FULL TRAILER PIPING<Z25> (B) L=250	5-09707-030-1	02	1	1303-1303
369	CLIP; BAND EDS HARNESS FULL TRAILER PIPING<Z25> (B) L=250	5-09707-030-1	02	1	1304-
380	CLIP; EARTH HARNESS (A) L=350	1-09707-183-0	01	1	1303-
380	CLIP; EARTH HARNESS (B) L=250	5-09707-030-1	02	1	1303-
425	CLIP; MODULATOR NEW ZEALAND EQUIPMENT(PK5) (B) L=350	1-09707-183-0	02	1	1303-
425	CLIP; MODULATOR NEW ZEALAND EQUIPMENT(PK5) (C) ID=5-12 L=14.5	1-09987-221-0	03	1	1303-
425	CLIP; MODULATOR HONG KONG EQUIPMENT(PQ1) (A) ID=5-12 L=18	1-09709-287-0	02	1	1303-1411
425	CLIP; MODULATOR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=5-12 L=18	1-09709-287-0	02	1	1412-
425	CLIP; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (A) ID=5-12 L=18	1-09709-287-0	02	1	1009-1302
425	CLIP; MODULATOR NEW ZEALAND EQUIPMENT(PK5) (A) ID=5-12 L=18	1-09709-287-0	01	1	1303-
470	CLIP; HARNESS,LICENSE LAMP NEW ZEALAND EQUIPMENT(PK5) (D) OD=9 H=6	1-09709-178-0	01	1	1303-
470	CLIP; HARNESS,LICENSE LAMP WHEEL BASE 6300MM(63W) (A) L=250	5-09707-030-1	05	1	1303-
470	CLIP; HARNESS,LICENSE LAMP WHEEL BASE 6600MM(66W) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) L=250	5-09707-030-1	04	1	1303-
470	CLIP; HARNESS,LICENSE LAMP (A) L=250	5-09707-030-1	03	1	1009-1111
470	CLIP; HARNESS,LICENSE LAMP (A) L=250	5-09707-030-1	05	1	1112-1302
470	CLIP; HARNESS,LICENSE LAMP (A) L=250	5-09707-030-1	01	1	1303-1303
470	CLIP; HARNESS,LICENSE LAMP NEW ZEALAND EQUIPMENT(PK5) (A) L=250	5-09707-030-1	01	1	1304-
470	CLIP; HARNESS,LICENSE LAMP WHEEL BASE 6600MM(66W) (B) ID=5-12 L=14.5	1-09987-221-0	01	1	1009-1111
470	CLIP; HARNESS,LICENSE LAMP WHEEL BASE 6600MM(66W) (C) ID=11 L=41	1-09700-403-0	01	1	1112-

162 16 166 33 168 60 16 470 421 421 168 116 218 218 218 16 16 16 104 16 425 16 470 425 223 16 148 16 16 16 462 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	07	1	1305-
16	CLIP; HARNESS HONG KONG EQUIPMENT(PQ1) (T) L=350	1-09707-183-0	01	1	1304-1304
16	CLIP; HARNESS HONG KONG EQUIPMENT(PQ1) (AM) ID=13-18 L=18	1-09709-291-0	01	1	1305-1411
16	CLIP; HARNESS HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (AM) ID=13-18 L=18	1-09709-291-0	01	1	1412-
16	CLIP; HARNESS ENGINE REAR PTO(SV1) (K) L=250	8-98216-430-0	09	1	1206-1302
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. NEW ZEALAND EQUIPMENT(PK5) (K) L=250	5-09707-030-1	03	1	1303-1303
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1) (K) L=250	5-09707-030-1	03	1	1304-1411
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (K) L=250	5-09707-030-1	03	1	1412-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (T) L=350	1-09707-183-0	01	1	1103-1302
16	CLIP; HARNESS (T) L=350	1-09707-183-0	02	1	1303-
16	CLIP; HARNESS SMOOTHER-G(C1W) (T) L=350	1-09707-183-0	02	1	1303-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1103-1302
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (AQ) W/SPONGE RUBBER	1-09709-150-0	01	1	1303-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (K) L=250	5-09707-030-1	02	1	1103-1302
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1303-1303
16	CLIP; HARNESS NEW ZEALAND EQUIPMENT(PK5) (K) L=250	5-09707-030-1	02	1	1303-1303
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (K) L=250	5-09707-030-1	02	1	1303-1303
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (K) L=250	5-09707-030-1	02	1	1303-1303
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (K) L=250	5-09707-030-1	02	1	1303-1303
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1304-1411
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (K) L=250	5-09707-030-1	02	1	1304-1411
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (K) L=250	5-09707-030-1	02	1	1304-1411
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (K) L=250	5-09707-030-1	02	1	1304-1411
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. HONG KONG EQUIPMENT(PQ1) (K) L=250	5-09707-030-1	02	1	1304-1411
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1412-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (K) L=250	5-09707-030-1	02	1	1412-
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (K) L=250	5-09707-030-1	02	1	1412-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (K) L=250	5-09707-030-1	02	1	1412-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (K) L=250	5-09707-030-1	02	1	1412-
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (T) L=350	1-09707-183-0	02	1	1103-1302
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> NEW ZEALAND EQUIPMENT(PK5) (AI) ID=18-24 L=18	1-09709-294-0	05	1	1303-
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (W) ID=5-12 L=14.5	1-09987-221-0	01	1	1103-1302
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	04	1	1009-1102
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	03	1	1103-1302
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1303-
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	1009-
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	02	1	1009-
16	CLIP; HARNESS (B) ID=22 L=32	1-09700-126-1	01	1	1009-
16	CLIP; HARNESS (I) ID=28 L=58	1-09700-400-0	07	1	1009-1302
16	CLIP; HARNESS (I) ID=28 L=58	1-09700-400-0	03	1	1303-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	13	1	1009-1302
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	12	1	1303-1304
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	03	1	1305-
16	CLIP; HARNESS (M) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1009-1302
16	CLIP; HARNESS (L) ID=20 L=50	1-09700-679-1	01	1	1303-
16	CLIP; HARNESS (A) ID=35 H=45 L=33	1-09700-947-0	01	1	1009-
16	CLIP; HARNESS (G) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1009-1302
16	CLIP; HARNESS (G) ID=31.5 H=23 L=25	1-09701-017-0	02	1	1303-
16	CLIP; HARNESS (J) ID=9 H=80 L=23	1-09701-061-0	02	1	1009-
16	CLIP; HARNESS (R) ID=18 L=28	1-09701-067-0	03	1	1009-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1009-
16	CLIP; HARNESS (V) ID=28 L=40	1-09701-261-0	01	1	1009-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1009-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	07	1	1009-1102
16	CLIP; HARNESS (T) L=350	1-09707-183-0	05	1	1103-1302
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1303-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	01	1	1009-1302
16	CLIP; HARNESS (AE) L=36	8-94224-891-1	01	1	1303-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	02	1	1009-1302
16	CLIP; HARNESS MJT7 M/T<Y9E> (U) OD=9 H=6	1-09709-178-0	02	1	1009-1302
16	CLIP; HARNESS SMOOTHER-G(C1W) (U) OD=9 H=6	1-09709-178-0	01	1	1303-1411
16	CLIP; HARNESS TRANSMISSION-FULLER RTLO169 18(Y3S) (U) OD=9 H=6	1-09709-178-0	01	1	1303-1411
16	CLIP; HARNESS AIR CONDITIONER MANUAL CONTROL(C60) CAUTIONS CHINESE<SL7> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (U) OD=9 H=6	1-09709-178-0	01	1	1303-1411
16	CLIP; HARNESS AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) CAUTIONS ENGLISH<RR8> CLUTCH-15.5" TWIN PLATE SPICER(TEY) (U) OD=9 H=6	1-09709-178-0	01	1	1303-1411
16	CLIP; HARNESS SMOOTHER-G(C1W) (U) OD=9 H=6	1-09709-178-0	01	1	1412-
16	CLIP; HARNESS TRANSMISSION-FULLER RTLO169 18(Y3S) (U) OD=9 H=6	1-09709-178-0	01	1	1412-
16	CLIP; HARNESS AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) CAUTIONS ENGLISH<RR8> CLUTCH-15.5" TWIN PLATE SPICER(TEY) (U) OD=9 H=6	1-09709-178-0	01	1	1412-
16	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (U) OD=9 H=6	1-09709-178-0	01	1	1412-
16	CLIP; HARNESS (AK) ID=5-12 L=18	1-09709-287-0	02	1	1009-1102
16	CLIP; HARNESS (AK) ID=5-12 L=18	1-09709-287-0	01	1	1103-1302
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) EXC. POOR QUALITY DIESEL FUEL<KF0> (AK) ID=5-12 L=18	1-09709-287-0	01	1	1103-1302
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AK) ID=5-12 L=18	1-09709-287-0	01	1	1103-1302
16	CLIP; HARNESS EXC. NEW ZEALAND EQUIPMENT(PK5) (AK) ID=5-12 L=18	1-09709-287-0	01	1	1303-
16	CLIP; HARNESS (AK) ID=5-12 L=18	1-09709-287-0	01	1	1303-
16	CLIP; HARNESS (AN) ID=5-12 L=22	1-09709-288-0	02	1	1009-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	09	1	1009-1205
16	CLIP; HARNESS ENGINE REAR PTO(SV1) (K) L=250	5-09707-030-1	09	1	1009-1205
16	CLIP; HARNESS (K) L=250	5-09707-030-1	09	1	1206-1302
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	02	1	1303-1303
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-1304
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-1304
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	02	1	1305-
16	CLIP; HARNESS (X) ID=21 L=47.5	8-94178-108-0	03	1	1009-
16	CLIP; HARNESS (Y) ID=18 L=44	8-97367-985-1	02	1	1009-
16	CLIP; HARNESS (Z) OD=9 H=6	8-97368-793-0	02	1	1009-
16	CLIP; HARNESS (AA) ID=17 L=20	8-97619-251-0	01	1	1009-1302
16	CLIP; HARNESS (AR) ID=18 L=38 H=23	1-09701-147-0	01	1	1303-
16	CLIP; HARNESS (AL) L=251	8-97619-917-0	01	1	1009-
16	CLIP; HARNESS (AO) ID=10 L=16.5	8-98082-034-0	02	1	1009-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	03	1	1009-1302
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	06	1	1303-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	06	1	1009-1302
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	03	1	1303-
16	CLIP; HARNESS (AC) ID=22 L=52	9-09917-431-0	05	1	1009-1302
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	02	1	1303-
16	CLIP; HARNESS EXC. ENGINE REAR PTO(SV1) (K) L=250	5-09707-030-1	10	1	1009-1205
16	CLIP; HARNESS EXC. ENGINE REAR PTO(SV1) (K) L=250	8-98216-430-0	10	1	1206-1302
16	CLIP; HARNESS (K) L=250	8-98216-430-0	10	1	1303-
16	CLIP; HARNESS GENERATOR NIKKO 24V-50A 1.2KW(SLX) (L) ID=20 L=50	1-09700-679-1	01	1	1009-1302
16	CLIP; HARNESS TRANSMISSION-FULLER RTLO169 18(Y3S) (AP) ID=16 L=40	0-95235-576-0	01	1	1303-
16	CLIP; HARNESS MIXER TRUCK<RA2> (H) ID=19 L=20	0-95235-836-0	01	1	1009-1302
16	CLIP; HARNESS TRANSMISSION-FULLER RTLO169 18(Y3S) (F) T=1.2 ID=16 L=20	0-95235-536-0	01	1	1303-
16	CLIP; HARNESS EXC. MIXER TRUCK<RA2> (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-1302
16	CLIP; HARNESS GENERATOR NIKKO 24V-50A 1.2KW(SLX) (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-1302
16	CLIP; HARNESS SMOOTHER-G(C1W) (M) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1303-
16	CLIP; HARNESS MJT7 M/T<Y9E> (AD) ID=14.5 H=23 L=30	1-09700-859-0	02	1	1009-1302
16	CLIP; HARNESS MJT7S M/T(Y3E) (F) T=1.2 ID=16 L=20	0-95235-536-0	02	1	1303-
16	CLIP; HARNESS SMOOTHER-G(C1W) (AJ) ID=10 H=25 L=20	1-09700-519-0	01	1	1009-
16	CLIP; HARNESS MJX12P M/T SMOOTHER-G(Y4S) (AI) ID=18-24 L=18	1-09709-294-0	01	1	1009-1102
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AI) ID=18-24 L=18	1-09709-294-0	01	1	1009-1102
16	CLIP; HARNESS MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) (AI) ID=18-24 L=18	1-09709-294-0	01	1	1103-1302
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. POOR QUALITY DIESEL FUEL<KF0> (AI) ID=18-24 L=18	1-09709-294-0	01	1	1103-1302
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. POOR QUALITY DIESEL FUEL<KF0> (AI) ID=18-24 L=18	1-09709-294-0	01	1	1303-1303
16	CLIP; HARNESS SMOOTHER-G(C1W) (AI) ID=18-24 L=18	1-09709-294-0	01	1	1303-1303
16	CLIP; HARNESS SMOOTHER-G(C1W) (AI) ID=18-24 L=18	1-09709-294-0	01	1	1304-
16	CLIP; HARNESS MJX12P M/T SMOOTHER-G(Y4S) (AE) L=36	8-94224-891-1	01	1	1009-1302
16	CLIP; HARNESS (AE) L=36	8-94224-891-1	01	1	1009-1302
16	CLIP; HARNESS HONG KONG EQUIPMENT(PQ1) (K) L=250	5-09707-030-1	01	1	1303-1303
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1303-1303
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (K) L=250	5-09707-030-1	01	1	1303-1303
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (K) L=250	5-09707-030-1	01	1	1303-1303
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1303-
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (K) L=250	5-09707-030-1	01	1	1303-
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (K) L=250	5-09707-030-1	01	1	1303-
16	CLIP; HARNESS SMOOTHER-G(C1W) (O) ID=27.5 H=23 L=24	1-09700-863-0	03	1	1009-1302
16	CLIP; HARNESS SMOOTHER-G(C1W) HONG KONG EQUIPMENT(PQ1) (O) ID=27.5 H=23 L=24	1-09700-863-0	03	1	1303-
16	CLIP; HARNESS SMOOTHER-G(C1W) (AF) ID=28+34 L=44	1-09701-311-0	01	1	1009-1302
16	CLIP; HARNESS FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16	0-95235-025-0	01	1	1303-
16	CLIP; HARNESS SMOOTHER-G(C1W) (U) OD=9 H=6	1-09709-178-0	07	1	1009-
16	CLIP; HARNESS SMOOTHER-G(C1W) (P) ID=20 L=50	9-09917-430-0	01	1	1009-1302
16	CLIP; HARNESS SMOOTHER-G(C1W) (W) ID=5-12 L=14.5	1-09987-221-0	01	1	1303-1304
16	CLIP; HARNESS FULL FLOATING CAB(W16) (C) ID=11 L=41	1-09700-403-0	02	1	1305-
16	CLIP; HARNESS SMOOTHER-G(C1W) (AC) ID=22 L=52	9-09917-431-0	01	1	1009-1302
16	CLIP; HARNESS SMOOTHER-G(C1W) NEW ZEALAND EQUIPMENT(PK5) (M) ID=24.5 H=23 L=25	1-09700-862-0	02	1	1303-
16	CLIP; HARNESS EXC. SMOOTHER-G(C1W) (F) T=0.8 ID=16 L=20	0-95235-535-0	01	1	1009-
16	CLIP; HARNESS EXC. SMOOTHER-G(C1W) (AG) ID=31 L=35	1-09700-329-1	01	1	1009-1302
16	CLIP; HARNESS SMOOTHER-G(C1W) (AG) ID=31 L=35	1-09700-329-1	01	1	1303-
16	CLIP; HARNESS (AG) ID=31 L=35	1-09700-329-1	01	1	1303-
16	CLIP; HARNESS EXC. SMOOTHER-G(C1W) (P) ID=20 L=50	9-09917-430-0	02	1	1009-1302
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	07	1	1303-
16	CLIP; HARNESS TRANSMISSION SIDE PTO WO/LEVER(SH5) (K) L=250	5-09707-030-1	01	1	1009-1302
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (AM) ID=13-18 L=18	1-09709-291-0	03	1	1303-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (AH) ID=13-18 L=26	1-09709-293-0	02	1	1009-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (AI) ID=18-24 L=18	1-09709-294-0	02	1	1009-1102
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (AI) ID=18-24 L=18	1-09709-294-0	02	1	1103-1302
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> (AI) ID=18-24 L=18	1-09709-294-0	02	1	1103-1302
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (AI) ID=18-24 L=18	1-09709-294-0	02	1	1303-1411
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> HONG KONG EQUIPMENT(PQ1) (AI) ID=18-24 L=18	1-09709-294-0	02	1	1303-1411
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (AI) ID=18-24 L=18	1-09709-294-0	02	1	1412-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (AI) ID=18-24 L=18	1-09709-294-0	02	1	1412-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AM) ID=13-18 L=18	1-09709-291-0	01	1	1009-1102
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. POOR QUALITY DIESEL FUEL<KF0> (AM) ID=13-18 L=18	1-09709-291-0	01	1	1103-1302
16	CLIP; HARNESS HONG KONG EQUIPMENT(PQ1) (AM) ID=13-18 L=18	1-09709-291-0	01	1	1303-1304
16	CLIP; HARNESS SMOOTHER-G(C1W) (AM) ID=13-18 L=18	1-09709-291-0	01	1	1303-1304
16	CLIP; HARNESS EXC. NEW ZEALAND EQUIPMENT(PK5) (C) L=350	1-09707-183-0	01	1	1305-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AH) ID=13-18 L=26	1-09709-293-0	05	1	1009-1302
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1) (AH) ID=13-18 L=26	1-09709-293-0	05	1	1303-1411
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (AH) ID=13-18 L=26	1-09709-293-0	05	1	1412-
33	CLIP; HARNESS,VLV SMOOTHER-G(C1W) OD=9 H=9.5	1-09709-179-0	01	1	1305-
33	CLIP; HARNESS,VLV SMOOTHER-G(C1W) OD=9 H=9.5	1-09709-179-0	01	1	1009-1302
60	CLIP; CONSOLE HARNESS,SW PTO DUMP CONTROL LEVER<RC4> ID=10	8-94450-392-0	01	1	1009-
104	CLIP; HEADLAMP HARNESS (A) ID=13-18 L=14.5	1-09709-290-0	06	1	1009-1302
104	CLIP; HEADLAMP HARNESS (B) L=140	5-09707-031-1	04	1	1009-1302
104	CLIP; HEADLAMP HARNESS HALOGEN HEADLAMPS<TT5> (B) L=140	5-09707-031-1	02	1	1303-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	06	1	1009-1409
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	07	1	1410-
148	CLIP; BAND,HEADLAMP HARNESS L=85	8-94232-611-0	03	1	1009-
162	CLIP; SW HARNESS OD=9 H=6	1-09709-178-0	01	1	1009-
166	CLIP; HARNESS CLU SW EXC. SMOOTHER-G(C1W) OD=9 H=6	1-09709-178-0	01	1	1009-1302
168	CLIP; DASH HARNESS HEATER & DEFROSTER(C41) (B) L=30 SET=10 PIECE	1-09987-265-0	01	1	1412-
168	CLIP; DASH HARNESS (A) ID=6 & 10-13	8-97069-515-0	06	1	1009-1302
168	CLIP; DASH HARNESS (A) ID=6 & 10-13	8-97069-515-0	05	1	1303-
168	CLIP; DASH HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 SET=10 PIECE	1-09987-265-0	01	1	1009-1302
218	CLIP; BAND,RR COMB WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1) (C) ID=18-24 L=18	1-09709-294-0	01	1	1303-1411
218	CLIP; BAND,RR COMB WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) ID=18-24 L=18	1-09709-294-0	01	1	1412-
218	CLIP; BAND,RR COMB WHEEL BASE 6600MM(66W) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=13-18 L=18	1-09709-291-0	03	1	1303-
218	CLIP; BAND,RR COMB WHEEL BASE 6300MM(63W) (A) ID=13-18 L=18	1-09709-291-0	04	1	1009-
218	CLIP; BAND,RR COMB WHEEL BASE 6300MM(63W) (B) ID=13-18 L=26	1-09709-293-0	01	1	1009-
218	CLIP; BAND,RR COMB WHEEL BASE 6600MM(66W) (A) ID=13-18 L=18	1-09709-291-0	03	1	1009-1302
218	CLIP; BAND,RR COMB WHEEL BASE 6600MM(66W) NEW ZEALAND EQUIPMENT(PK5) (A) ID=13-18 L=18	1-09709-291-0	01	1	1303-
218	CLIP; BAND,RR COMB WHEEL BASE 6600MM(66W) (C) ID=18-24 L=18	1-09709-294-0	01	1	1009-1302
218	CLIP; BAND,RR COMB WHEEL BASE 6600MM(66W) NEW ZEALAND EQUIPMENT(PK5) (C) ID=18-24 L=18	1-09709-294-0	04	1	1303-
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	01	1	1009-1302
223	CLIP; AIR TANK HARNESS EXC. NEW ZEALAND EQUIPMENT(PK5) (B) ID=5-12 L=14.5	1-09987-221-0	01	1	1303-
223	CLIP; AIR TANK HARNESS (A) ID=11 H=20 L=20	8-98033-780-0	04	1	1009-1302
223	CLIP; AIR TANK HARNESS (A) ID=11 H=20 L=20	8-98033-780-0	03	1	1303-
421	CLIP; FLOOR HARNESS SMOOTHER-G(C1W) (A) L=30 SET=10 PIECE	1-09987-265-0	05	1	1009-
421	CLIP; FLOOR HARNESS EXC. SMOOTHER-G(C1W) (B) L=20 SET=10 PIECE	1-09987-246-2	05	1	1009-1302
425	CLIP; MODULATOR NEW ZEALAND EQUIPMENT(PK5) (B) L=350	1-09707-183-0	02	1	1303-
425	CLIP; MODULATOR NEW ZEALAND EQUIPMENT(PK5) (C) ID=5-12 L=14.5	1-09987-221-0	03	1	1303-
425	CLIP; MODULATOR HONG KONG EQUIPMENT(PQ1) (A) ID=5-12 L=18	1-09709-287-0	02	1	1303-1411
425	CLIP; MODULATOR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=5-12 L=18	1-09709-287-0	02	1	1412-
425	CLIP; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (A) ID=5-12 L=18	1-09709-287-0	02	1	1009-1302
425	CLIP; MODULATOR NEW ZEALAND EQUIPMENT(PK5) (A) ID=5-12 L=18	1-09709-287-0	01	1	1303-
462	CLIP; HARNESS,HTR HEATER & DEFROSTER(C41) ID=20	1-09709-068-0	02	1	1412-
462	CLIP; HARNESS,HTR EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=20	1-09709-068-0	02	1	1009-1302
470	CLIP; HARNESS,LICENSE LAMP NEW ZEALAND EQUIPMENT(PK5) (D) OD=9 H=6	1-09709-178-0	01	1	1303-
470	CLIP; HARNESS,LICENSE LAMP WHEEL BASE 6300MM(63W) (A) L=250	5-09707-030-1	05	1	1303-
470	CLIP; HARNESS,LICENSE LAMP WHEEL BASE 6600MM(66W) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) L=250	5-09707-030-1	04	1	1303-
470	CLIP; HARNESS,LICENSE LAMP (A) L=250	5-09707-030-1	03	1	1009-1111
470	CLIP; HARNESS,LICENSE LAMP (A) L=250	5-09707-030-1	05	1	1112-1302
470	CLIP; HARNESS,LICENSE LAMP (A) L=250	5-09707-030-1	01	1	1303-1303
470	CLIP; HARNESS,LICENSE LAMP NEW ZEALAND EQUIPMENT(PK5) (A) L=250	5-09707-030-1	01	1	1304-
470	CLIP; HARNESS,LICENSE LAMP WHEEL BASE 6600MM(66W) (B) ID=5-12 L=14.5	1-09987-221-0	01	1	1009-1111
470	CLIP; HARNESS,LICENSE LAMP WHEEL BASE 6600MM(66W) (C) ID=11 L=41	1-09700-403-0	01	1	1112-

53 53 53 53 53 53 53 53 312 53 53 53 53 53 53 53 53 53 53 53 53 53

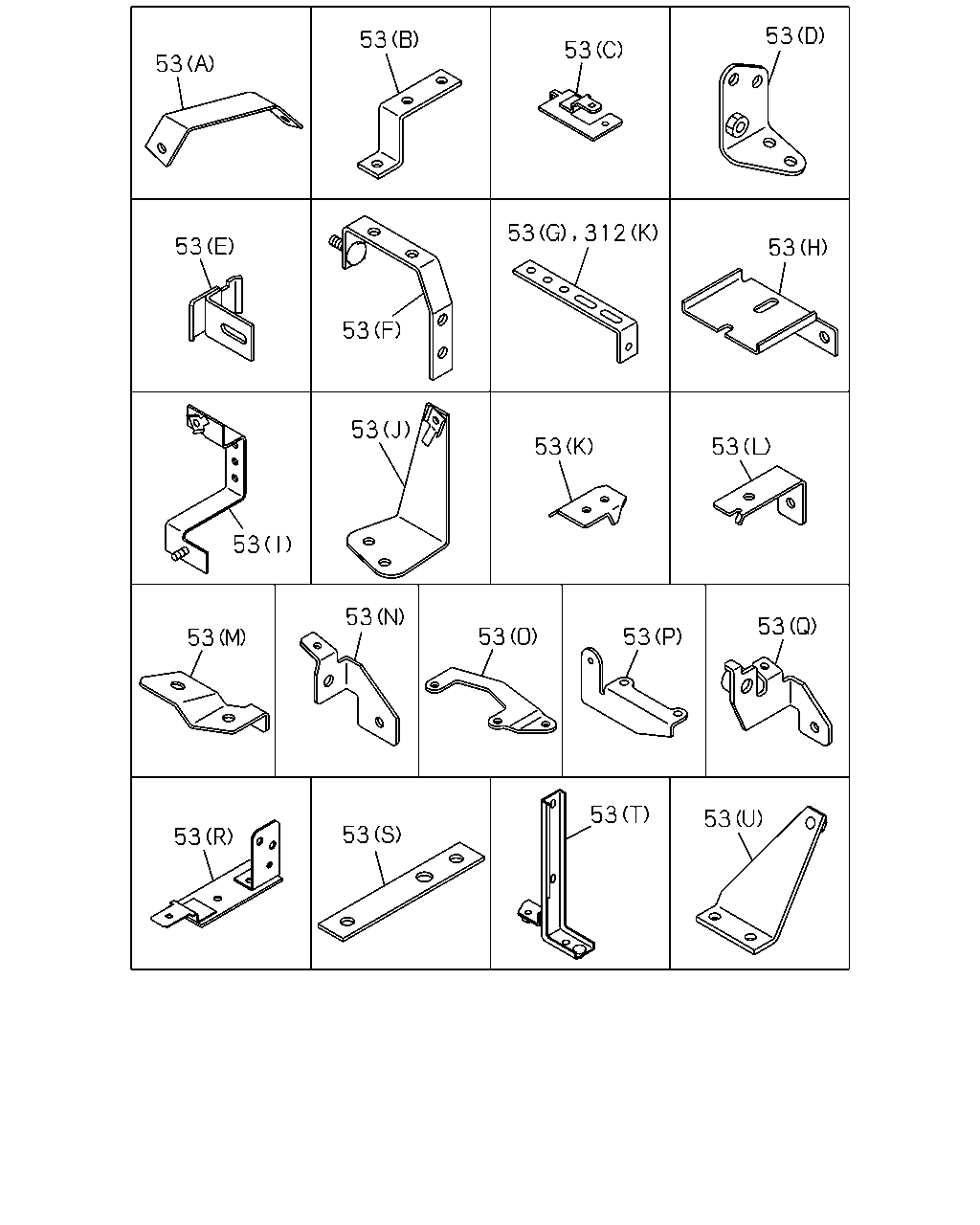

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	BRACKET; HARNESS (A)	1-47479-537-0	03	1	1305-
53	BRACKET; HARNESS (A)	1-47479-537-0	10	1	1009-1302
53	BRACKET; HARNESS (A)	1-47479-537-0	05	1	1303-1304
53	BRACKET; HARNESS (A)	1-47479-537-0	02	1	1305-
53	BRACKET; HARNESS (E)	1-47479-693-0	01	1	1009-1302
53	BRACKET; HARNESS HONG KONG EQUIPMENT(PQ1) (E)	1-47479-693-0	01	1	1303-1411
53	BRACKET; HARNESS HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E)	1-47479-693-0	01	1	1412-
53	BRACKET; HARNESS (G) L=160 H=30	1-47479-759-0	01	1	1009-1302
53	BRACKET; HARNESS (R)	8-97638-190-0	01	1	1303-
53	BRACKET; HARNESS (F)	1-47479-800-0	01	1	1009-1302
53	BRACKET; HARNESS HONG KONG EQUIPMENT(PQ1) (F)	1-47479-800-0	01	1	1303-1303
53	BRACKET; HARNESS EXC. NEW ZEALAND EQUIPMENT(PK5) (F)	1-47479-800-0	01	1	1304-
53	BRACKET; HARNESS (C)	1-82698-495-2	01	1	1009-1302
53	BRACKET; HARNESS (T)	8-98227-138-0	01	1	1303-
53	BRACKET; HARNESS (D)	8-97610-339-1	01	1	1009-
53	BRACKET; HARNESS (K)	8-97625-412-0	02	1	1009-
53	BRACKET; HARNESS (L)	8-97625-794-0	01	1	1009-
53	BRACKET; HARNESS (M)	8-97630-437-0	01	1	1009-
53	BRACKET; HARNESS (H)	8-98032-696-0	01	1	1009-1302
53	BRACKET; HARNESS (U)	8-98227-141-0	01	1	1303-
53	BRACKET; HARNESS (I)	8-98050-989-0	01	1	1009-1302
53	BRACKET; HARNESS NEW ZEALAND EQUIPMENT(PK5) (S) L=130	1-47478-959-0	02	1	1303-
53	BRACKET; HARNESS (J)	8-98052-592-0	01	1	1009-1302
53	BRACKET; HARNESS (N)	8-98123-473-1	01	1	1009-1111
53	BRACKET; HARNESS (Q)	8-98194-068-0	01	1	1112-
53	BRACKET; HARNESS (O)	8-98123-474-0	01	1	1009-
53	BRACKET; HARNESS (P)	8-98123-475-0	01	1	1009-
53	BRACKET; HARNESS (B)	8-98124-778-0	01	1	1009-
312	BRACKET; CLIP HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (P)	8-98254-842-0	01	1	1311-
312	BRACKET; CLIP HARNESS MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) (J)	1-82698-586-0	01	1	1009-1302
312	BRACKET; CLIP HARNESS SMOOTHER-G(C1W) (J)	1-82698-586-0	01	1	1303-
312	BRACKET; CLIP HARNESS (C)	1-82698-556-0	01	1	1009-1302
312	BRACKET; CLIP HARNESS (K) L=160 H=30	1-47479-759-0	01	1	1303-
312	BRACKET; CLIP HARNESS (A)	8-98035-927-1	01	1	1009-
312	BRACKET; CLIP HARNESS (F)	8-98052-591-0	01	1	1009-1302
312	BRACKET; CLIP HARNESS (L)	8-97636-868-1	01	1	1303-
312	BRACKET; CLIP HARNESS (B) L=82 B=20	1-47478-420-0	01	1	1009-1302
312	BRACKET; CLIP HARNESS FULL TRAILER PIPING<Z25> (M)	8-97638-177-0	01	1	1303-
312	BRACKET; CLIP HARNESS (E) L=195.5	1-82698-502-0	01	1	1009-1302
312	BRACKET; CLIP HARNESS EXC. SMOOTHER-G(C1W) (O) L=120 H=35	1-82698-088-0	01	1	1303-
312	BRACKET; CLIP HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (G)	1-82698-443-0	01	1	1009-1302
312	BRACKET; CLIP HARNESS EXC. FULL TRAILER PIPING<Z25> (N)	8-97635-477-2	01	1	1303-
312	BRACKET; CLIP HARNESS MJT7 M/T<Y9E> (H)	1-82698-479-0	01	1	1009-1302
312	BRACKET; CLIP HARNESS SMOOTHER-G(C1W) (K) L=160 H=40	8-97629-006-0	01	1	1303-
312	BRACKET; CLIP HARNESS SMOOTHER-G(C1W) (I)	1-82698-570-0	01	1	1009-1302
312	BRACKET; CLIP HARNESS SMOOTHER-G(C1W) (I)	1-82698-570-0	01	1	1303-
312	BRACKET; CLIP HARNESS SMOOTHER-G(C1W) (D)	1-82699-182-0	01	1	1009-1302
312	BRACKET; CLIP HARNESS SMOOTHER-G(C1W) (D)	1-82699-182-0	01	1	1303-

312 312 312 312 312 312 375 312 211 211 312 312 312 137 59 59 59

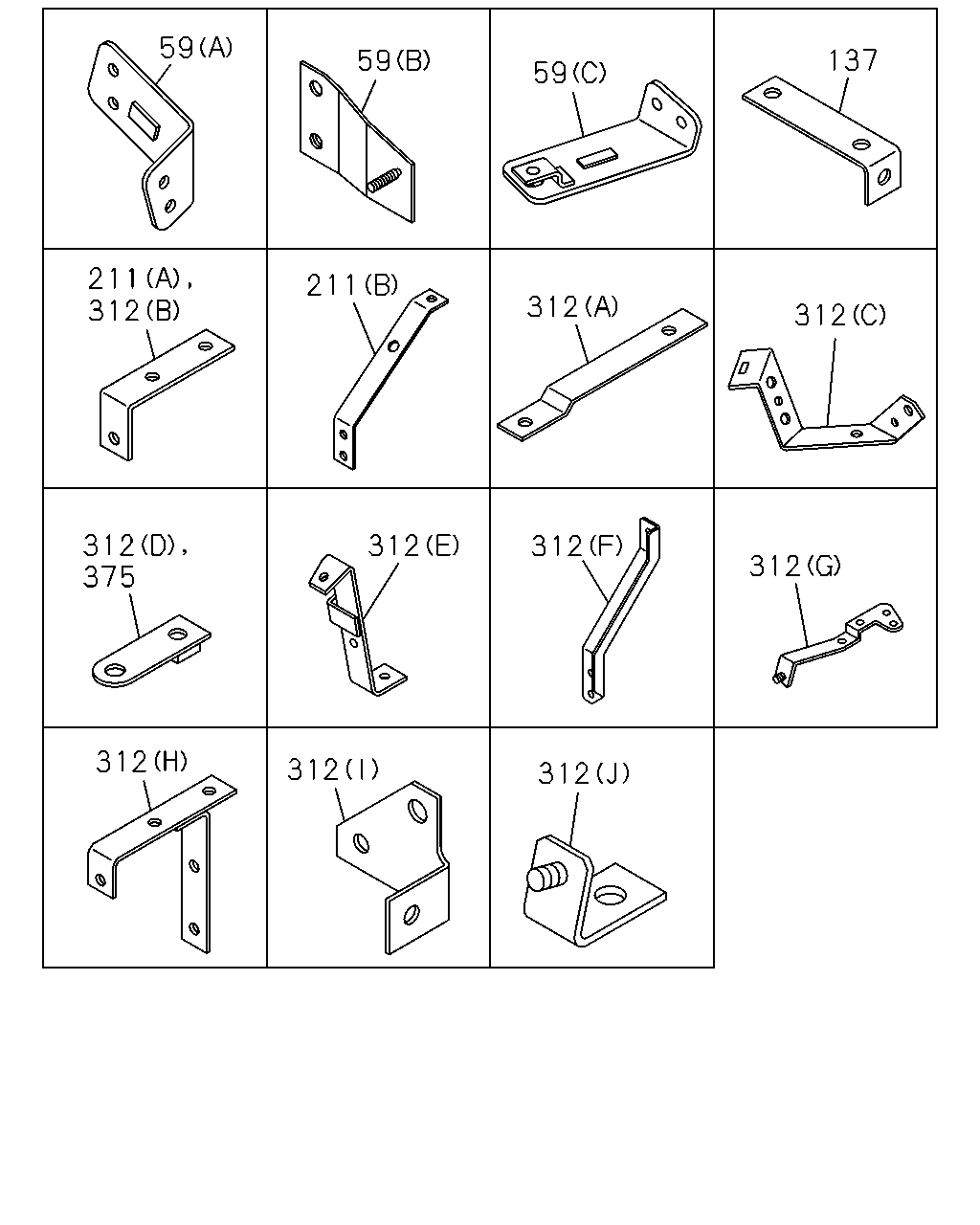

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
59	BRACKET; FRAME HARNESS EXC. FULL TRAILER PIPING<Z25> (A)	8-97633-543-1	01	1	1303-
59	BRACKET; FRAME HARNESS (A)	1-82698-531-0	01	1	1009-1302
59	BRACKET; FRAME HARNESS FULL TRAILER PIPING<Z25> (C)	8-97639-069-0	01	1	1303-
59	BRACKET; FRAME HARNESS (B)	8-98061-135-1	01	1	1009-
137	BRACKET; HARNESS CLAMP L=175 H=30	1-47479-386-1	01	1	1303-1303
137	BRACKET; HARNESS CLAMP NEW ZEALAND EQUIPMENT(PK5) L=175 H=30	1-47479-386-1	01	1	1304-
211	BRACKET; AXLE HARNESS NEW ZEALAND EQUIPMENT(PK5) (A)	1-82698-588-0	01	1	1303-
211	BRACKET; AXLE HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B)	1-47479-430-0	02	1	1009-1302
211	BRACKET; AXLE HARNESS (B)	1-47479-430-0	02	1	1303-

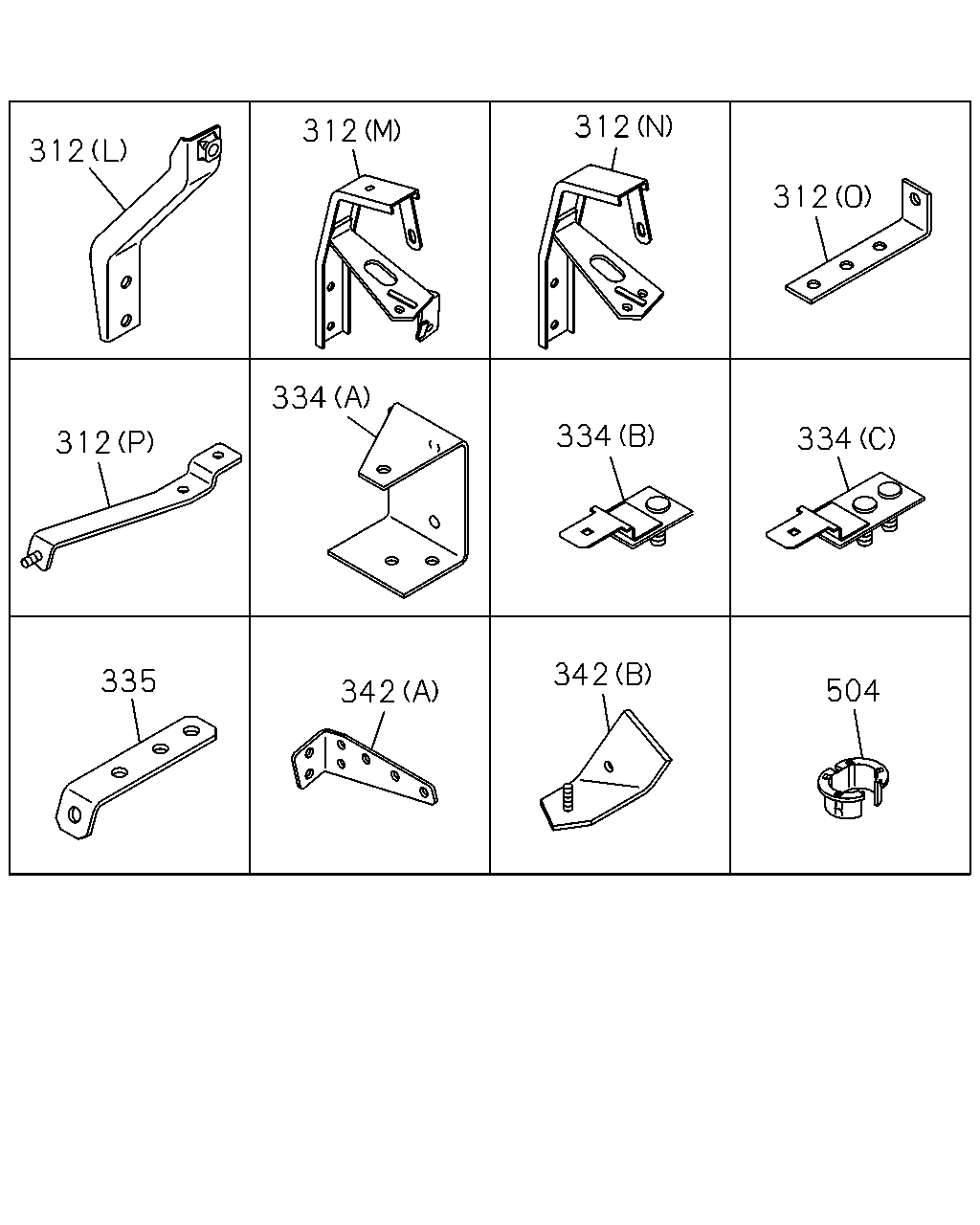

312	BRACKET; CLIP HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (P)	8-98254-842-0	01	1	1311-
312	BRACKET; CLIP HARNESS MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) (J)	1-82698-586-0	01	1	1009-1302
312	BRACKET; CLIP HARNESS SMOOTHER-G(C1W) (J)	1-82698-586-0	01	1	1303-
312	BRACKET; CLIP HARNESS (C)	1-82698-556-0	01	1	1009-1302
312	BRACKET; CLIP HARNESS (K) L=160 H=30	1-47479-759-0	01	1	1303-
312	BRACKET; CLIP HARNESS (A)	8-98035-927-1	01	1	1009-
312	BRACKET; CLIP HARNESS (F)	8-98052-591-0	01	1	1009-1302
312	BRACKET; CLIP HARNESS (L)	8-97636-868-1	01	1	1303-
312	BRACKET; CLIP HARNESS (B) L=82 B=20	1-47478-420-0	01	1	1009-1302
312	BRACKET; CLIP HARNESS FULL TRAILER PIPING<Z25> (M)	8-97638-177-0	01	1	1303-
312	BRACKET; CLIP HARNESS (E) L=195.5	1-82698-502-0	01	1	1009-1302
312	BRACKET; CLIP HARNESS EXC. SMOOTHER-G(C1W) (O) L=120 H=35	1-82698-088-0	01	1	1303-
312	BRACKET; CLIP HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (G)	1-82698-443-0	01	1	1009-1302
312	BRACKET; CLIP HARNESS EXC. FULL TRAILER PIPING<Z25> (N)	8-97635-477-2	01	1	1303-
312	BRACKET; CLIP HARNESS MJT7 M/T<Y9E> (H)	1-82698-479-0	01	1	1009-1302
312	BRACKET; CLIP HARNESS SMOOTHER-G(C1W) (K) L=160 H=40	8-97629-006-0	01	1	1303-
312	BRACKET; CLIP HARNESS SMOOTHER-G(C1W) (I)	1-82698-570-0	01	1	1009-1302
312	BRACKET; CLIP HARNESS SMOOTHER-G(C1W) (I)	1-82698-570-0	01	1	1303-
312	BRACKET; CLIP HARNESS SMOOTHER-G(C1W) (D)	1-82699-182-0	01	1	1009-1302
312	BRACKET; CLIP HARNESS SMOOTHER-G(C1W) (D)	1-82699-182-0	01	1	1303-
375	BRACKET; AC GEN HARNESS CLIP	1-82699-182-0	01	1	1009-

82 119 524 515 294 552 515 294 219 340 423

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	WASHER; PL BRKT,HARNESS NEW ZEALAND EQUIPMENT(PK5) ID=10.5 OD=22	0-91614-610-0	02	1	1303-
119	SCREW; DOOR HARNESS EARTH M5X14 W/PL WASHER	8-94447-551-0	02	1	1009-
219	NUT M8 FLANGE	0-91180-108-0	12	1	1009-1302
219	NUT M8 FLANGE	0-91180-108-0	02	1	1303-
219	NUT EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	1009-1302
219	NUT M8 FLANGE	0-91180-108-0	08	1	1303-1304
219	NUT M8 FLANGE	0-91180-108-0	06	1	1305-
219	NUT SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	05	1	1009-1302
219	NUT SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	03	1	1303-1304
219	NUT SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	03	1	1305-
219	NUT M8 FLANGE	0-91180-108-0	03	1	1305-
219	NUT EXC. SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	03	1	1009-1302
219	NUT HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91180-108-0	01	1	1303-1304
219	NUT EXC. NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91180-108-0	01	1	1303-1304
219	NUT M8 FLANGE	0-91180-108-0	01	1	1303-1304
219	NUT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1303-1304
219	NUT MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	01	1	1303-1304
219	NUT M8 FLANGE	0-91180-108-0	01	1	1303-1304
219	NUT HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91180-108-0	01	1	1305-1411
219	NUT M8 FLANGE	0-91180-108-0	01	1	1305-1411
219	NUT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1305-1411
219	NUT MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	01	1	1305-1411
219	NUT HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91180-108-0	01	1	1305-1411
219	NUT EXC. SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	01	1	1305-1411
219	NUT M8 FLANGE	0-91180-108-0	01	1	1412-
219	NUT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	01	1	1412-
219	NUT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1412-
219	NUT MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	01	1	1412-
219	NUT EXC. SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	01	1	1412-
219	NUT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	01	1	1412-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1304-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1304-
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	1303-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1303-1303
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1303-1303
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1303-1303
294	NUT HONG KONG EQUIPMENT(PQ1) (A) M8 FLANGE	0-91180-108-0	05	1	1304-1411
294	NUT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8 FLANGE	0-91180-108-0	05	1	1412-
294	NUT (A) M8 FLANGE	0-91180-108-0	10	1	1009-1302
294	NUT (A) M8 FLANGE	0-91180-108-0	03	1	1303-
294	NUT ANTILOCK BRAKE SYSTEM(BFA) (A) M8 FLANGE	0-91180-108-0	05	1	1009-1302
294	NUT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) M8 FLANGE	0-91180-108-0	05	1	1303-1303
294	NUT NEW ZEALAND EQUIPMENT(PK5) (A) M8 FLANGE	0-91180-108-0	06	1	1304-
294	NUT MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) (B) M10 FLANGE	0-91180-210-0	01	1	1009-1302
294	NUT SMOOTHER-G(C1W) (B) M10 FLANGE	0-91180-210-0	01	1	1303-
340	NUT; HARNESS CAB TO FRAME M8 CUTTING NUT W/FLANGE	1-09985-340-0	05	1	1009-
423	WASHER; HARNESS,EARTH HONG KONG EQUIPMENT(PQ1) EXC. SMOOTHER-G(C1W) ID=8.4	1-09503-264-0	02	1	1303-1303
423	WASHER; HARNESS,EARTH NEW ZEALAND EQUIPMENT(PK5) ID=8.4	1-09503-264-0	01	1	1304-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	01	1	1303-1303
423	WASHER; HARNESS,EARTH NEW ZEALAND EQUIPMENT(PK5) EXC. SMOOTHER-G(C1W) ID=8.4	1-09503-264-0	02	1	1304-1304
423	WASHER; HARNESS,EARTH EXC. SMOOTHER-G(C1W),NEW ZEALAND EQUIPMENT(PK5) ID=8.4	1-09503-264-0	02	1	1304-
423	WASHER; HARNESS,EARTH SMOOTHER-G(C1W) ID=8.4	1-09503-264-0	04	1	1009-1302
423	WASHER; HARNESS,EARTH SMOOTHER-G(C1W) NEW ZEALAND EQUIPMENT(PK5) ID=8.4	1-09503-264-0	04	1	1303-
423	WASHER; HARNESS,EARTH EXC. SMOOTHER-G(C1W) ID=8.4	1-09503-264-0	03	1	1009-1302
423	WASHER; HARNESS,EARTH SMOOTHER-G(C1W) HONG KONG EQUIPMENT(PQ1) ID=8.4	1-09503-264-0	03	1	1303-
423	WASHER; HARNESS,EARTH NEW ZEALAND EQUIPMENT(PK5) EXC. SMOOTHER-G(C1W) ID=8.4	1-09503-264-0	03	1	1303-
515	NUT; BRKT NEW ZEALAND EQUIPMENT(PK5) (B) M10 FLANGE	0-91180-210-0	02	1	1303-
515	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	1009-1304
515	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1305-
515	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1305-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	01	1	1009-
552	NUT; BRKT,HARNESS M8 FLANGE	0-91180-108-0	01	1	1009-1302

128 16 16 81 16 16 128 16 16 212 16 16 16 16 16 16 16 235 223 16 16 16 263 16 16 470 212 16 48 16 212 16 16 48 16 16 48 212 16 16 16 16 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	07	1	1305-
16	CLIP; HARNESS HONG KONG EQUIPMENT(PQ1) (T) L=350	1-09707-183-0	01	1	1304-1304
16	CLIP; HARNESS HONG KONG EQUIPMENT(PQ1) (AM) ID=13-18 L=18	1-09709-291-0	01	1	1305-1411
16	CLIP; HARNESS HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (AM) ID=13-18 L=18	1-09709-291-0	01	1	1412-
16	CLIP; HARNESS ENGINE REAR PTO(SV1) (K) L=250	8-98216-430-0	09	1	1206-1302
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. NEW ZEALAND EQUIPMENT(PK5) (K) L=250	5-09707-030-1	03	1	1303-1303
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1) (K) L=250	5-09707-030-1	03	1	1304-1411
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (K) L=250	5-09707-030-1	03	1	1412-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (T) L=350	1-09707-183-0	01	1	1103-1302
16	CLIP; HARNESS (T) L=350	1-09707-183-0	02	1	1303-
16	CLIP; HARNESS SMOOTHER-G(C1W) (T) L=350	1-09707-183-0	02	1	1303-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1103-1302
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (AQ) W/SPONGE RUBBER	1-09709-150-0	01	1	1303-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (K) L=250	5-09707-030-1	02	1	1103-1302
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1303-1303
16	CLIP; HARNESS NEW ZEALAND EQUIPMENT(PK5) (K) L=250	5-09707-030-1	02	1	1303-1303
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (K) L=250	5-09707-030-1	02	1	1303-1303
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (K) L=250	5-09707-030-1	02	1	1303-1303
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (K) L=250	5-09707-030-1	02	1	1303-1303
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1304-1411
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (K) L=250	5-09707-030-1	02	1	1304-1411
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (K) L=250	5-09707-030-1	02	1	1304-1411
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (K) L=250	5-09707-030-1	02	1	1304-1411
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. HONG KONG EQUIPMENT(PQ1) (K) L=250	5-09707-030-1	02	1	1304-1411
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1412-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (K) L=250	5-09707-030-1	02	1	1412-
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (K) L=250	5-09707-030-1	02	1	1412-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (K) L=250	5-09707-030-1	02	1	1412-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (K) L=250	5-09707-030-1	02	1	1412-
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (T) L=350	1-09707-183-0	02	1	1103-1302
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> NEW ZEALAND EQUIPMENT(PK5) (AI) ID=18-24 L=18	1-09709-294-0	05	1	1303-
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (W) ID=5-12 L=14.5	1-09987-221-0	01	1	1103-1302
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	04	1	1009-1102
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	03	1	1103-1302
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1303-
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	1009-
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	02	1	1009-
16	CLIP; HARNESS (B) ID=22 L=32	1-09700-126-1	01	1	1009-
16	CLIP; HARNESS (I) ID=28 L=58	1-09700-400-0	07	1	1009-1302
16	CLIP; HARNESS (I) ID=28 L=58	1-09700-400-0	03	1	1303-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	13	1	1009-1302
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	12	1	1303-1304
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	03	1	1305-
16	CLIP; HARNESS (M) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1009-1302
16	CLIP; HARNESS (L) ID=20 L=50	1-09700-679-1	01	1	1303-
16	CLIP; HARNESS (A) ID=35 H=45 L=33	1-09700-947-0	01	1	1009-
16	CLIP; HARNESS (G) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1009-1302
16	CLIP; HARNESS (G) ID=31.5 H=23 L=25	1-09701-017-0	02	1	1303-
16	CLIP; HARNESS (J) ID=9 H=80 L=23	1-09701-061-0	02	1	1009-
16	CLIP; HARNESS (R) ID=18 L=28	1-09701-067-0	03	1	1009-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1009-
16	CLIP; HARNESS (V) ID=28 L=40	1-09701-261-0	01	1	1009-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1009-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	07	1	1009-1102
16	CLIP; HARNESS (T) L=350	1-09707-183-0	05	1	1103-1302
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1303-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	01	1	1009-1302
16	CLIP; HARNESS (AE) L=36	8-94224-891-1	01	1	1303-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	02	1	1009-1302
16	CLIP; HARNESS MJT7 M/T<Y9E> (U) OD=9 H=6	1-09709-178-0	02	1	1009-1302
16	CLIP; HARNESS SMOOTHER-G(C1W) (U) OD=9 H=6	1-09709-178-0	01	1	1303-1411
16	CLIP; HARNESS TRANSMISSION-FULLER RTLO169 18(Y3S) (U) OD=9 H=6	1-09709-178-0	01	1	1303-1411
16	CLIP; HARNESS AIR CONDITIONER MANUAL CONTROL(C60) CAUTIONS CHINESE<SL7> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (U) OD=9 H=6	1-09709-178-0	01	1	1303-1411
16	CLIP; HARNESS AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) CAUTIONS ENGLISH<RR8> CLUTCH-15.5" TWIN PLATE SPICER(TEY) (U) OD=9 H=6	1-09709-178-0	01	1	1303-1411
16	CLIP; HARNESS SMOOTHER-G(C1W) (U) OD=9 H=6	1-09709-178-0	01	1	1412-
16	CLIP; HARNESS TRANSMISSION-FULLER RTLO169 18(Y3S) (U) OD=9 H=6	1-09709-178-0	01	1	1412-
16	CLIP; HARNESS AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) CAUTIONS ENGLISH<RR8> CLUTCH-15.5" TWIN PLATE SPICER(TEY) (U) OD=9 H=6	1-09709-178-0	01	1	1412-
16	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (U) OD=9 H=6	1-09709-178-0	01	1	1412-
16	CLIP; HARNESS (AK) ID=5-12 L=18	1-09709-287-0	02	1	1009-1102
16	CLIP; HARNESS (AK) ID=5-12 L=18	1-09709-287-0	01	1	1103-1302
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) EXC. POOR QUALITY DIESEL FUEL<KF0> (AK) ID=5-12 L=18	1-09709-287-0	01	1	1103-1302
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AK) ID=5-12 L=18	1-09709-287-0	01	1	1103-1302
16	CLIP; HARNESS EXC. NEW ZEALAND EQUIPMENT(PK5) (AK) ID=5-12 L=18	1-09709-287-0	01	1	1303-
16	CLIP; HARNESS (AK) ID=5-12 L=18	1-09709-287-0	01	1	1303-
16	CLIP; HARNESS (AN) ID=5-12 L=22	1-09709-288-0	02	1	1009-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	09	1	1009-1205
16	CLIP; HARNESS ENGINE REAR PTO(SV1) (K) L=250	5-09707-030-1	09	1	1009-1205
16	CLIP; HARNESS (K) L=250	5-09707-030-1	09	1	1206-1302
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	02	1	1303-1303
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-1304
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-1304
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	02	1	1305-
16	CLIP; HARNESS (X) ID=21 L=47.5	8-94178-108-0	03	1	1009-
16	CLIP; HARNESS (Y) ID=18 L=44	8-97367-985-1	02	1	1009-
16	CLIP; HARNESS (Z) OD=9 H=6	8-97368-793-0	02	1	1009-
16	CLIP; HARNESS (AA) ID=17 L=20	8-97619-251-0	01	1	1009-1302
16	CLIP; HARNESS (AR) ID=18 L=38 H=23	1-09701-147-0	01	1	1303-
16	CLIP; HARNESS (AL) L=251	8-97619-917-0	01	1	1009-
16	CLIP; HARNESS (AO) ID=10 L=16.5	8-98082-034-0	02	1	1009-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	03	1	1009-1302
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	06	1	1303-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	06	1	1009-1302
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	03	1	1303-
16	CLIP; HARNESS (AC) ID=22 L=52	9-09917-431-0	05	1	1009-1302
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	02	1	1303-
16	CLIP; HARNESS EXC. ENGINE REAR PTO(SV1) (K) L=250	5-09707-030-1	10	1	1009-1205
16	CLIP; HARNESS EXC. ENGINE REAR PTO(SV1) (K) L=250	8-98216-430-0	10	1	1206-1302
16	CLIP; HARNESS (K) L=250	8-98216-430-0	10	1	1303-
16	CLIP; HARNESS GENERATOR NIKKO 24V-50A 1.2KW(SLX) (L) ID=20 L=50	1-09700-679-1	01	1	1009-1302
16	CLIP; HARNESS TRANSMISSION-FULLER RTLO169 18(Y3S) (AP) ID=16 L=40	0-95235-576-0	01	1	1303-
16	CLIP; HARNESS MIXER TRUCK<RA2> (H) ID=19 L=20	0-95235-836-0	01	1	1009-1302
16	CLIP; HARNESS TRANSMISSION-FULLER RTLO169 18(Y3S) (F) T=1.2 ID=16 L=20	0-95235-536-0	01	1	1303-
16	CLIP; HARNESS EXC. MIXER TRUCK<RA2> (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-1302
16	CLIP; HARNESS GENERATOR NIKKO 24V-50A 1.2KW(SLX) (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-1302
16	CLIP; HARNESS SMOOTHER-G(C1W) (M) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1303-
16	CLIP; HARNESS MJT7 M/T<Y9E> (AD) ID=14.5 H=23 L=30	1-09700-859-0	02	1	1009-1302
16	CLIP; HARNESS MJT7S M/T(Y3E) (F) T=1.2 ID=16 L=20	0-95235-536-0	02	1	1303-
16	CLIP; HARNESS SMOOTHER-G(C1W) (AJ) ID=10 H=25 L=20	1-09700-519-0	01	1	1009-
16	CLIP; HARNESS MJX12P M/T SMOOTHER-G(Y4S) (AI) ID=18-24 L=18	1-09709-294-0	01	1	1009-1102
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AI) ID=18-24 L=18	1-09709-294-0	01	1	1009-1102
16	CLIP; HARNESS MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) (AI) ID=18-24 L=18	1-09709-294-0	01	1	1103-1302
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. POOR QUALITY DIESEL FUEL<KF0> (AI) ID=18-24 L=18	1-09709-294-0	01	1	1103-1302
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. POOR QUALITY DIESEL FUEL<KF0> (AI) ID=18-24 L=18	1-09709-294-0	01	1	1303-1303
16	CLIP; HARNESS SMOOTHER-G(C1W) (AI) ID=18-24 L=18	1-09709-294-0	01	1	1303-1303
16	CLIP; HARNESS SMOOTHER-G(C1W) (AI) ID=18-24 L=18	1-09709-294-0	01	1	1304-
16	CLIP; HARNESS MJX12P M/T SMOOTHER-G(Y4S) (AE) L=36	8-94224-891-1	01	1	1009-1302
16	CLIP; HARNESS (AE) L=36	8-94224-891-1	01	1	1009-1302
16	CLIP; HARNESS HONG KONG EQUIPMENT(PQ1) (K) L=250	5-09707-030-1	01	1	1303-1303
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1303-1303
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (K) L=250	5-09707-030-1	01	1	1303-1303
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (K) L=250	5-09707-030-1	01	1	1303-1303
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1303-
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (K) L=250	5-09707-030-1	01	1	1303-
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (K) L=250	5-09707-030-1	01	1	1303-
16	CLIP; HARNESS SMOOTHER-G(C1W) (O) ID=27.5 H=23 L=24	1-09700-863-0	03	1	1009-1302
16	CLIP; HARNESS SMOOTHER-G(C1W) HONG KONG EQUIPMENT(PQ1) (O) ID=27.5 H=23 L=24	1-09700-863-0	03	1	1303-
16	CLIP; HARNESS SMOOTHER-G(C1W) (AF) ID=28+34 L=44	1-09701-311-0	01	1	1009-1302
16	CLIP; HARNESS FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16	0-95235-025-0	01	1	1303-
16	CLIP; HARNESS SMOOTHER-G(C1W) (U) OD=9 H=6	1-09709-178-0	07	1	1009-
16	CLIP; HARNESS SMOOTHER-G(C1W) (P) ID=20 L=50	9-09917-430-0	01	1	1009-1302
16	CLIP; HARNESS SMOOTHER-G(C1W) (W) ID=5-12 L=14.5	1-09987-221-0	01	1	1303-1304
16	CLIP; HARNESS FULL FLOATING CAB(W16) (C) ID=11 L=41	1-09700-403-0	02	1	1305-
16	CLIP; HARNESS SMOOTHER-G(C1W) (AC) ID=22 L=52	9-09917-431-0	01	1	1009-1302
16	CLIP; HARNESS SMOOTHER-G(C1W) NEW ZEALAND EQUIPMENT(PK5) (M) ID=24.5 H=23 L=25	1-09700-862-0	02	1	1303-
16	CLIP; HARNESS EXC. SMOOTHER-G(C1W) (F) T=0.8 ID=16 L=20	0-95235-535-0	01	1	1009-
16	CLIP; HARNESS EXC. SMOOTHER-G(C1W) (AG) ID=31 L=35	1-09700-329-1	01	1	1009-1302
16	CLIP; HARNESS SMOOTHER-G(C1W) (AG) ID=31 L=35	1-09700-329-1	01	1	1303-
16	CLIP; HARNESS (AG) ID=31 L=35	1-09700-329-1	01	1	1303-
16	CLIP; HARNESS EXC. SMOOTHER-G(C1W) (P) ID=20 L=50	9-09917-430-0	02	1	1009-1302
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	07	1	1303-
16	CLIP; HARNESS TRANSMISSION SIDE PTO WO/LEVER(SH5) (K) L=250	5-09707-030-1	01	1	1009-1302
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (AM) ID=13-18 L=18	1-09709-291-0	03	1	1303-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (AH) ID=13-18 L=26	1-09709-293-0	02	1	1009-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (AI) ID=18-24 L=18	1-09709-294-0	02	1	1009-1102
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (AI) ID=18-24 L=18	1-09709-294-0	02	1	1103-1302
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> (AI) ID=18-24 L=18	1-09709-294-0	02	1	1103-1302
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (AI) ID=18-24 L=18	1-09709-294-0	02	1	1303-1411
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> HONG KONG EQUIPMENT(PQ1) (AI) ID=18-24 L=18	1-09709-294-0	02	1	1303-1411
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (AI) ID=18-24 L=18	1-09709-294-0	02	1	1412-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (AI) ID=18-24 L=18	1-09709-294-0	02	1	1412-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AM) ID=13-18 L=18	1-09709-291-0	01	1	1009-1102
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. POOR QUALITY DIESEL FUEL<KF0> (AM) ID=13-18 L=18	1-09709-291-0	01	1	1103-1302
16	CLIP; HARNESS HONG KONG EQUIPMENT(PQ1) (AM) ID=13-18 L=18	1-09709-291-0	01	1	1303-1304
16	CLIP; HARNESS SMOOTHER-G(C1W) (AM) ID=13-18 L=18	1-09709-291-0	01	1	1303-1304
16	CLIP; HARNESS EXC. NEW ZEALAND EQUIPMENT(PK5) (C) L=350	1-09707-183-0	01	1	1305-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AH) ID=13-18 L=26	1-09709-293-0	05	1	1009-1302
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1) (AH) ID=13-18 L=26	1-09709-293-0	05	1	1303-1411
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (AH) ID=13-18 L=26	1-09709-293-0	05	1	1412-
48	CLIP; FRAME HARNESS NEW ZEALAND EQUIPMENT(PK5) (F) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1303-
48	CLIP; FRAME HARNESS NEW ZEALAND EQUIPMENT(PK5) (C) L=350	1-09707-183-0	04	1	1303-
48	CLIP; FRAME HARNESS HONG KONG EQUIPMENT(PQ1) (A) ID=26 L=26	1-09701-236-0	01	1	1303-1411
48	CLIP; FRAME HARNESS HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=26 L=26	1-09701-236-0	01	1	1412-
48	CLIP; FRAME HARNESS HONG KONG EQUIPMENT(PQ1) (C) L=350	1-09707-183-0	07	1	1303-1411
48	CLIP; FRAME HARNESS HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=350	1-09707-183-0	07	1	1412-
48	CLIP; FRAME HARNESS (A) ID=26 L=26	1-09701-236-0	01	1	1009-1302
48	CLIP; FRAME HARNESS (D) ID=39 H=28 L=32	1-09701-263-0	04	1	1303-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	1009-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	13	1	1009-1302
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	03	1	1303-
81	CLIP; HARNESS FRONT SPOILER<VP1> (A) L=140	5-09707-031-1	04	1	1009-1302
81	CLIP; HARNESS EXC. FRONT SPOILER<VP1> (B) L=250	5-09707-030-1	02	1	1009-1302
81	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) ID=11 L=16	0-95235-025-0	02	1	1303-
81	CLIP; HARNESS EXC. FRONT SPOILER<VP1> (A) L=140	5-09707-031-1	08	1	1009-1302
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	1009-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	1009-
212	CLIP; HORN HARNESS (A) ID=19 L=28	0-95235-856-0	01	1	1009-1302
212	CLIP; HORN HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1009-1302
212	CLIP; HORN HARNESS (C) L=300	1-09707-001-1	01	1	1009-1302
212	CLIP; HORN HARNESS (F) L=140	5-09707-031-1	01	1	1009-1302
212	CLIP; HORN HARNESS SMOOTHER-G(C1W) (D) ID=27.5 H=23 L=24	1-09700-863-0	03	1	1009-1302
212	CLIP; HORN HARNESS EXC. SMOOTHER-G(C1W) (E) ID=18 H=23 L=28	1-09700-860-0	03	1	1009-1302
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	01	1	1009-1302
223	CLIP; AIR TANK HARNESS EXC. NEW ZEALAND EQUIPMENT(PK5) (B) ID=5-12 L=14.5	1-09987-221-0	01	1	1303-
223	CLIP; AIR TANK HARNESS (A) ID=11 H=20 L=20	8-98033-780-0	04	1	1009-1302
223	CLIP; AIR TANK HARNESS (A) ID=11 H=20 L=20	8-98033-780-0	03	1	1303-
235	CLIP; HARNESS,SPD SENSOR,SSPS MJT7 M/T<Y9E> ID=10 H=25 L=20	1-09700-519-0	01	1	1009-1302
235	CLIP; HARNESS,SPD SENSOR,SSPS MJT7S M/T(Y3E) ID=10 H=25 L=20	1-09700-519-0	01	1	1303-
263	CLIP; HARNESS,CLIP TO BATTERY RELAY ID=20 L=50	9-09917-430-0	02	1	1009-1302
470	CLIP; HARNESS,LICENSE LAMP NEW ZEALAND EQUIPMENT(PK5) (D) OD=9 H=6	1-09709-178-0	01	1	1303-
470	CLIP; HARNESS,LICENSE LAMP WHEEL BASE 6300MM(63W) (A) L=250	5-09707-030-1	05	1	1303-
470	CLIP; HARNESS,LICENSE LAMP WHEEL BASE 6600MM(66W) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) L=250	5-09707-030-1	04	1	1303-
470	CLIP; HARNESS,LICENSE LAMP (A) L=250	5-09707-030-1	03	1	1009-1111
470	CLIP; HARNESS,LICENSE LAMP (A) L=250	5-09707-030-1	05	1	1112-1302
470	CLIP; HARNESS,LICENSE LAMP (A) L=250	5-09707-030-1	01	1	1303-1303
470	CLIP; HARNESS,LICENSE LAMP NEW ZEALAND EQUIPMENT(PK5) (A) L=250	5-09707-030-1	01	1	1304-
470	CLIP; HARNESS,LICENSE LAMP WHEEL BASE 6600MM(66W) (B) ID=5-12 L=14.5	1-09987-221-0	01	1	1009-1111
470	CLIP; HARNESS,LICENSE LAMP WHEEL BASE 6600MM(66W) (C) ID=11 L=41	1-09700-403-0	01	1	1112-

312 312 312 312 312 334 334 335 342 342 504 334

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
312	BRACKET; CLIP HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (P)	8-98254-842-0	01	1	1311-
312	BRACKET; CLIP HARNESS MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) (J)	1-82698-586-0	01	1	1009-1302
312	BRACKET; CLIP HARNESS SMOOTHER-G(C1W) (J)	1-82698-586-0	01	1	1303-
312	BRACKET; CLIP HARNESS (C)	1-82698-556-0	01	1	1009-1302
312	BRACKET; CLIP HARNESS (K) L=160 H=30	1-47479-759-0	01	1	1303-
312	BRACKET; CLIP HARNESS (A)	8-98035-927-1	01	1	1009-
312	BRACKET; CLIP HARNESS (F)	8-98052-591-0	01	1	1009-1302
312	BRACKET; CLIP HARNESS (L)	8-97636-868-1	01	1	1303-
312	BRACKET; CLIP HARNESS (B) L=82 B=20	1-47478-420-0	01	1	1009-1302
312	BRACKET; CLIP HARNESS FULL TRAILER PIPING<Z25> (M)	8-97638-177-0	01	1	1303-
312	BRACKET; CLIP HARNESS (E) L=195.5	1-82698-502-0	01	1	1009-1302
312	BRACKET; CLIP HARNESS EXC. SMOOTHER-G(C1W) (O) L=120 H=35	1-82698-088-0	01	1	1303-
312	BRACKET; CLIP HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (G)	1-82698-443-0	01	1	1009-1302
312	BRACKET; CLIP HARNESS EXC. FULL TRAILER PIPING<Z25> (N)	8-97635-477-2	01	1	1303-
312	BRACKET; CLIP HARNESS MJT7 M/T<Y9E> (H)	1-82698-479-0	01	1	1009-1302
312	BRACKET; CLIP HARNESS SMOOTHER-G(C1W) (K) L=160 H=40	8-97629-006-0	01	1	1303-
312	BRACKET; CLIP HARNESS SMOOTHER-G(C1W) (I)	1-82698-570-0	01	1	1009-1302
312	BRACKET; CLIP HARNESS SMOOTHER-G(C1W) (I)	1-82698-570-0	01	1	1303-
312	BRACKET; CLIP HARNESS SMOOTHER-G(C1W) (D)	1-82699-182-0	01	1	1009-1302
312	BRACKET; CLIP HARNESS SMOOTHER-G(C1W) (D)	1-82699-182-0	01	1	1303-
334	BRACKET SMOOTHER-G(C1W) NEW ZEALAND EQUIPMENT(PK5) (C)	8-98157-823-0	01	1	1303-
334	BRACKET (A)	1-53457-153-2	01	1	1009-
334	BRACKET SMOOTHER-G(C1W) (B)	1-82698-543-0	01	1	1009-1302
334	BRACKET SMOOTHER-G(C1W) EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-82698-543-0	01	1	1303-
335	BRACKET; CONNECTOR ANTILOCK BRAKE SYSTEM(BFA)	1-82698-167-0	01	1	1009-1302
335	BRACKET; CONNECTOR	1-82698-167-0	01	1	1303-
342	BRACKET; HARNESS CAB MTG (A)	1-82699-625-0	01	1	1009-
342	BRACKET; HARNESS CAB MTG EXC. MIXER TRUCK<RA2> (B)	1-47479-974-0	01	1	1009-1302
342	BRACKET; HARNESS CAB MTG EXC. FULLER M/T<X9B> (B)	8-98240-938-0	01	1	1303-
504	PROTECTOR; HARNESS MIR O/S RR VIEW HEATED<DNN>	1-82698-391-0	02	1	1009-1302
504	PROTECTOR; HARNESS MIR STAY O/S W/REMOTE<TBA> MIRROR - O/SIDE RR VIEW,HEATED<7SV>	1-82698-391-0	02	1	1303-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
