◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11289 - CYH RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#70014) — 273 parça

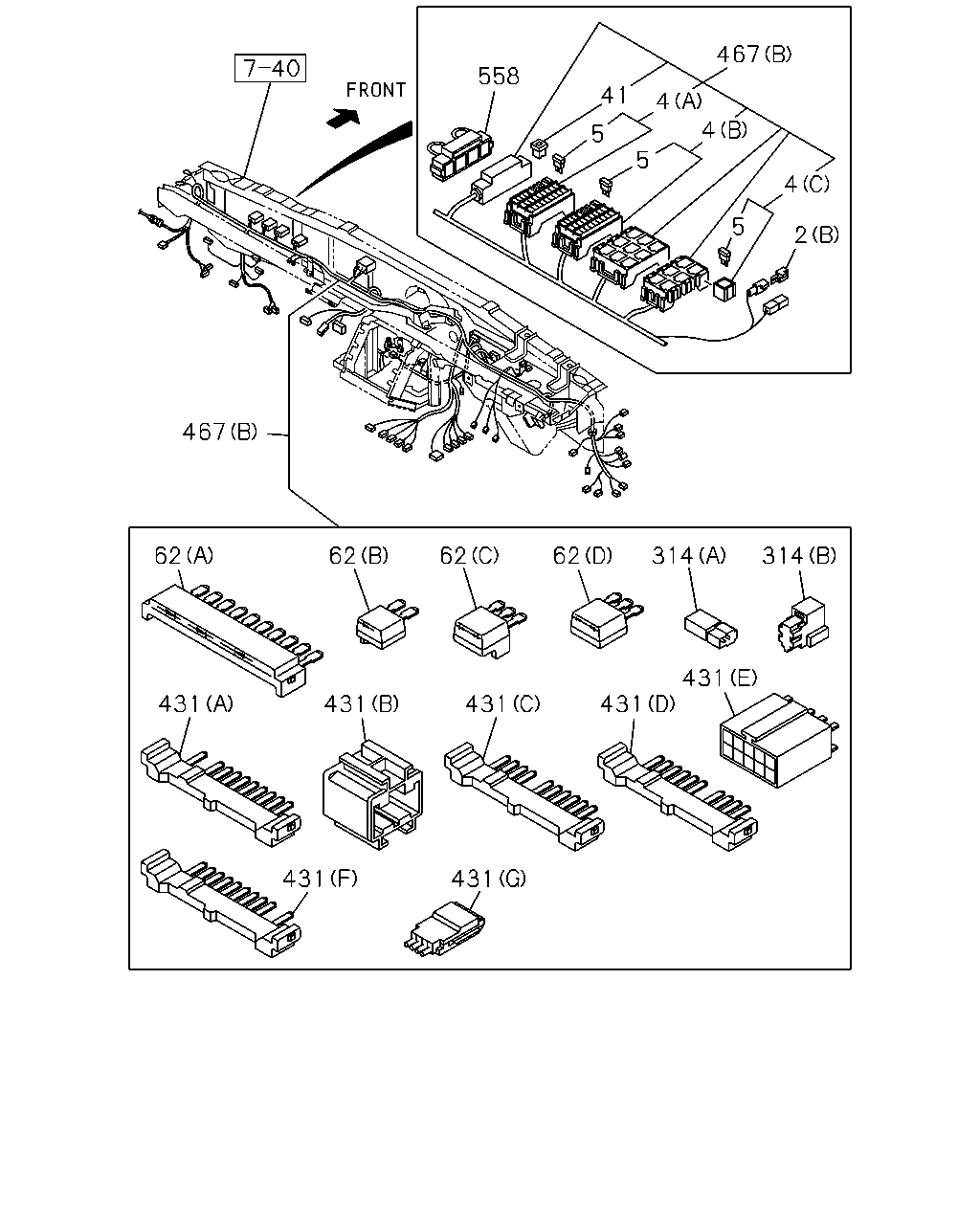

çizim 136265
431 431 431 431 431 431 431 314 314 62 62 62 62 467 2 5 4 5 4 4 467 5 41 558
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
(A) GRAY 2P-1.3A 		1-81514-015-0 01 1 1009-1302
2 DIODE; CABLE HARNESS
TRANSMISSION-FULLER RTLO169 18(Y3S) POOR QUALITY DIESEL FUEL<KF0> FULL TRAILER PIPING<Z25> EXC. SMOOTHER-G(C1W) (A) GRAY 2P-1.3A 		1-81514-015-0 01 1 1303-
2 DIODE; CABLE HARNESS
BRAKE REGULATION HONG KONG<TCZ> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 1009-1302
2 DIODE; CABLE HARNESS
HONG KONG EQUIPMENT(PQ1) (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 1303-
4 BOX ASM; FUSE,HARNESS
HONG KONG EQUIPMENT(PQ1) (A) 7.5AX20 10AX4 15AX1 		1-82510-478-0 01 1 1303-1309
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX20 10AX4 15AX1 		1-82510-478-0 01 1 1310-
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX22 10AX4 		1-82510-455-0 01 1 1009-1302
4 BOX ASM; FUSE,HARNESS
NEW ZEALAND EQUIPMENT(PK5) EXC. SMOOTHER-G(C1W) (A) 7.5AX22 10AX4 		1-82510-455-0 01 1 1303-1309
4 BOX ASM; FUSE,HARNESS
(B) 15AX25 25AX2 		1-82510-602-0 01 1 1009-1302
4 BOX ASM; FUSE,HARNESS
NEW ZEALAND EQUIPMENT(PK5) EXC. SMOOTHER-G(C1W) (B) 15AX25 25AX2 		1-82510-602-0 01 1 1303-1411
4 BOX ASM; FUSE,HARNESS
HONG KONG EQUIPMENT(PQ1) (B) 15AX25 25AX2 		1-82510-602-0 01 1 1303-1411
4 BOX ASM; FUSE,HARNESS
(B) 15AX25 25AX2 		1-82510-602-0 01 1 1412-
4 BOX ASM; FUSE,HARNESS
(C) 15AX3 		1-82510-638-0 01 1 1009-1302
4 BOX ASM; FUSE,HARNESS
NEW ZEALAND EQUIPMENT(PK5) EXC. SMOOTHER-G(C1W) (C) 15AX3 		1-82510-638-0 01 1 1303-1411
4 BOX ASM; FUSE,HARNESS
HONG KONG EQUIPMENT(PQ1) (C) 15AX3 		1-82510-638-0 01 1 1303-1411
4 BOX ASM; FUSE,HARNESS
(C) 15AX3 		1-82510-638-0 01 1 1412-
5 FUSE; FACIA HARNESS
HONG KONG EQUIPMENT(PQ1) 15A BLUE 		5-82516-003-0 27 1 1303-1411
5 FUSE; FACIA HARNESS
SMOOTHER-G(C1W) HONG KONG EQUIPMENT(PQ1) 15A BLUE 		5-82516-003-0 27 1 1412-
5 FUSE; FACIA HARNESS
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. SMOOTHER-G(C1W) 15A BLUE 		5-82516-003-0 27 1 1412-
5 FUSE; FACIA HARNESS
HONG KONG EQUIPMENT(PQ1) 7.5A BROWN 		8-94159-007-0 20 1 1303-1309
5 FUSE; FACIA HARNESS
10A RED 		5-82516-002-0 04 1 1009-1302
5 FUSE; FACIA HARNESS
NEW ZEALAND EQUIPMENT(PK5) EXC. SMOOTHER-G(C1W) 10A RED 		5-82516-002-0 04 1 1303-1411
5 FUSE; FACIA HARNESS
HONG KONG EQUIPMENT(PQ1) 10A RED 		5-82516-002-0 04 1 1303-1411
5 FUSE; FACIA HARNESS
10A RED 		5-82516-002-0 04 1 1412-
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 28 1 1009-1302
5 FUSE; FACIA HARNESS
NEW ZEALAND EQUIPMENT(PK5) EXC. SMOOTHER-G(C1W) 15A BLUE 		5-82516-003-0 28 1 1303-1309
5 FUSE; FACIA HARNESS
NEW ZEALAND EQUIPMENT(PK5) EXC. SMOOTHER-G(C1W) 15A BLUE 		5-82516-003-0 26 1 1310-
5 FUSE; FACIA HARNESS
25A CLEAR 		5-82516-005-0 02 1 1009-1302
5 FUSE; FACIA HARNESS
NEW ZEALAND EQUIPMENT(PK5) EXC. SMOOTHER-G(C1W) 25A CLEAR 		5-82516-005-0 02 1 1303-1411
5 FUSE; FACIA HARNESS
HONG KONG EQUIPMENT(PQ1) 25A CLEAR 		5-82516-005-0 02 1 1303-1411
5 FUSE; FACIA HARNESS
25A CLEAR 		5-82516-005-0 02 1 1412-
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 22 1 1009-1302
5 FUSE; FACIA HARNESS
NEW ZEALAND EQUIPMENT(PK5) EXC. SMOOTHER-G(C1W) 7.5A BROWN 		8-94159-007-0 22 1 1303-1309
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 20 1 1310-
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 1009-1302
41 PULLER; FUSE
NEW ZEALAND EQUIPMENT(PK5) EXC. SMOOTHER-G(C1W) L=25.3 B=11.5 		8-94121-482-0 01 1 1303-1411
41 PULLER; FUSE
HONG KONG EQUIPMENT(PQ1) L=25.3 B=11.5 		8-94121-482-0 01 1 1303-1411
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 1412-
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 03 1 1009-1302
62 DIODE; HARNESS
NEW ZEALAND EQUIPMENT(PK5) EXC. SMOOTHER-G(C1W) (A) BLACK 10P 		1-82699-703-0 03 1 1303-1411
62 DIODE; HARNESS
HONG KONG EQUIPMENT(PQ1) (A) BLACK 10P 		1-82699-703-0 03 1 1303-1411
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 03 1 1412-
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 03 1 1009-1302
62 DIODE; HARNESS
NEW ZEALAND EQUIPMENT(PK5) EXC. SMOOTHER-G(C1W) (C) BLACK 3P-1.5A 		8-94416-438-1 02 1 1303-1309
62 DIODE; HARNESS
HONG KONG EQUIPMENT(PQ1) (C) BLACK 3P-1.5A 		8-94416-438-1 02 1 1303-1309
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 07 1 1310-
62 DIODE; HARNESS
HONG KONG EQUIPMENT(PQ1) (B) BLACK 2P-1.5A 		8-94422-639-1 07 1 1303-1309
62 DIODE; HARNESS
HONG KONG EQUIPMENT(PQ1) (C) BLACK 3P-1.5A 		8-94416-438-1 02 1 1310-1411
62 DIODE; HARNESS
SMOOTHER-G(C1W) HONG KONG EQUIPMENT(PQ1) (C) BLACK 3P-1.5A 		8-94416-438-1 02 1 1412-
62 DIODE; HARNESS
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. SMOOTHER-G(C1W) (C) BLACK 3P-1.5A 		8-94416-438-1 02 1 1412-
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 09 1 1009-1302
62 DIODE; HARNESS
NEW ZEALAND EQUIPMENT(PK5) EXC. SMOOTHER-G(C1W) (B) BLACK 2P-1.5A 		8-94422-639-1 09 1 1303-1309
62 DIODE; HARNESS
NEW ZEALAND EQUIPMENT(PK5) EXC. SMOOTHER-G(C1W) (C) BLACK 3P-1.5A 		8-94416-438-1 01 1 1310-
62 DIODE; HARNESS
(D) BLACK 3P-1.5A 		8-94422-640-1 03 1 1009-1302
62 DIODE; HARNESS
NEW ZEALAND EQUIPMENT(PK5) EXC. SMOOTHER-G(C1W) (D) BLACK 3P-1.5A 		8-94422-640-1 03 1 1303-1411
62 DIODE; HARNESS
HONG KONG EQUIPMENT(PQ1) (D) BLACK 3P-1.5A 		8-94422-640-1 03 1 1303-1411
62 DIODE; HARNESS
(D) BLACK 3P-1.5A 		8-94422-640-1 03 1 1412-
314 RESISTOR; HARNESS
(A) RESISTANCE NO.5 2K OHM 		1-81515-025-0 01 1 1009-1302
314 RESISTOR; HARNESS
NEW ZEALAND EQUIPMENT(PK5) EXC. SMOOTHER-G(C1W) (A) RESISTANCE NO.5 2K OHM 		1-81515-025-0 01 1 1303-
314 RESISTOR; HARNESS
(B) BLUE 		1-82691-204-0 02 1 1009-1302
314 RESISTOR; HARNESS
NEW ZEALAND EQUIPMENT(PK5) EXC. SMOOTHER-G(C1W) (B) BLUE 		1-82691-204-0 02 1 1303-
431 CONNECTOR; JOINT
(B) 6P 		1-82691-206-0 01 1 1009-1302
431 CONNECTOR; JOINT
NEW ZEALAND EQUIPMENT(PK5) EXC. SMOOTHER-G(C1W) (B) 6P 		1-82691-206-0 01 1 1303-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 03 1 1009-1302
431 CONNECTOR; JOINT
NEW ZEALAND EQUIPMENT(PK5) EXC. SMOOTHER-G(C1W) (F) 10P GREEN 		1-82698-579-0 03 1 1303-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 13 1 1009-1302
431 CONNECTOR; JOINT
NEW ZEALAND EQUIPMENT(PK5) EXC. SMOOTHER-G(C1W) (C) 10P BLUE 		1-82699-598-0 13 1 1303-1309
431 CONNECTOR; JOINT
NEW ZEALAND EQUIPMENT(PK5) EXC. SMOOTHER-G(C1W) (C) 10P BLUE 		1-82699-598-0 12 1 1310-
431 CONNECTOR; JOINT
(D) 10P GREEN 		1-82699-599-0 03 1 1009-1302
431 CONNECTOR; JOINT
NEW ZEALAND EQUIPMENT(PK5) EXC. SMOOTHER-G(C1W) (D) 10P GREEN 		1-82699-599-0 03 1 1303-1309
431 CONNECTOR; JOINT
NEW ZEALAND EQUIPMENT(PK5) EXC. SMOOTHER-G(C1W) (D) 10P GREEN 		1-82699-599-0 04 1 1310-
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 07 1 1009-1302
431 CONNECTOR; JOINT
NEW ZEALAND EQUIPMENT(PK5) EXC. SMOOTHER-G(C1W) (A) 10P BROWN 		1-82699-601-0 08 1 1303-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 01 1 1009-1302
431 CONNECTOR; JOINT
NEW ZEALAND EQUIPMENT(PK5) EXC. SMOOTHER-G(C1W) (E) 10P 		8-97077-943-0 01 1 1303-
431 CONNECTOR; JOINT
(G) 4P 		8-97376-776-0 17 1 1009-1302
431 CONNECTOR; JOINT
NEW ZEALAND EQUIPMENT(PK5) EXC. SMOOTHER-G(C1W) (G) 4P 		8-97376-776-0 17 1 1303-1309
431 CONNECTOR; JOINT
NEW ZEALAND EQUIPMENT(PK5) EXC. SMOOTHER-G(C1W) (G) 4P 		8-97376-776-0 11 1 1310-
467 HARNESS; FACIA
(A) 		8-97635-060-0 01 1 1009-1302
467 HARNESS; FACIA
(A) 		8-97645-324-0 01 1 1303-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) HONG KONG EQUIPMENT(PQ1) AIR BAG(TFQ) EXC. SMOOTHER-G(C1W) (B) 		8-97635-010-2 01 1 1009-1302
467 HARNESS; FACIA
NEW ZEALAND EQUIPMENT(PK5) EXC. SMOOTHER-G(C1W) (B) 		8-97645-737-1 01 1 1303-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) SINGAPORE EQUIPMENT(WQ3) EXC. SMOOTHER-G(C1W),AIR BAG(TFQ) (B) 		8-97635-013-2 01 1 1009-1302
467 HARNESS; FACIA
HONG KONG EQUIPMENT(PQ1) EXC. SMOOTHER-G(C1W) (B) 		8-97645-322-2 01 1 1303-1411
467 HARNESS; FACIA
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. SMOOTHER-G(C1W) (B) 		8-97645-322-2 01 1 1412-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) SMOOTHER-G(C1W) HONG KONG EQUIPMENT(PQ1) AIR BAG(TFQ) (B) 		8-97635-009-2 01 1 1009-1302
467 HARNESS; FACIA
SMOOTHER-G(C1W) HONG KONG EQUIPMENT(PQ1) (B) 		8-97645-321-2 01 1 1303-
558 CONNECTOR; HARNESS
FOOT BRAKE W/EXHAUST BRAKE<SJB> EXC. SMOOTHER-G(C1W) 4P 		1-82629-690-0 01 1 1009-

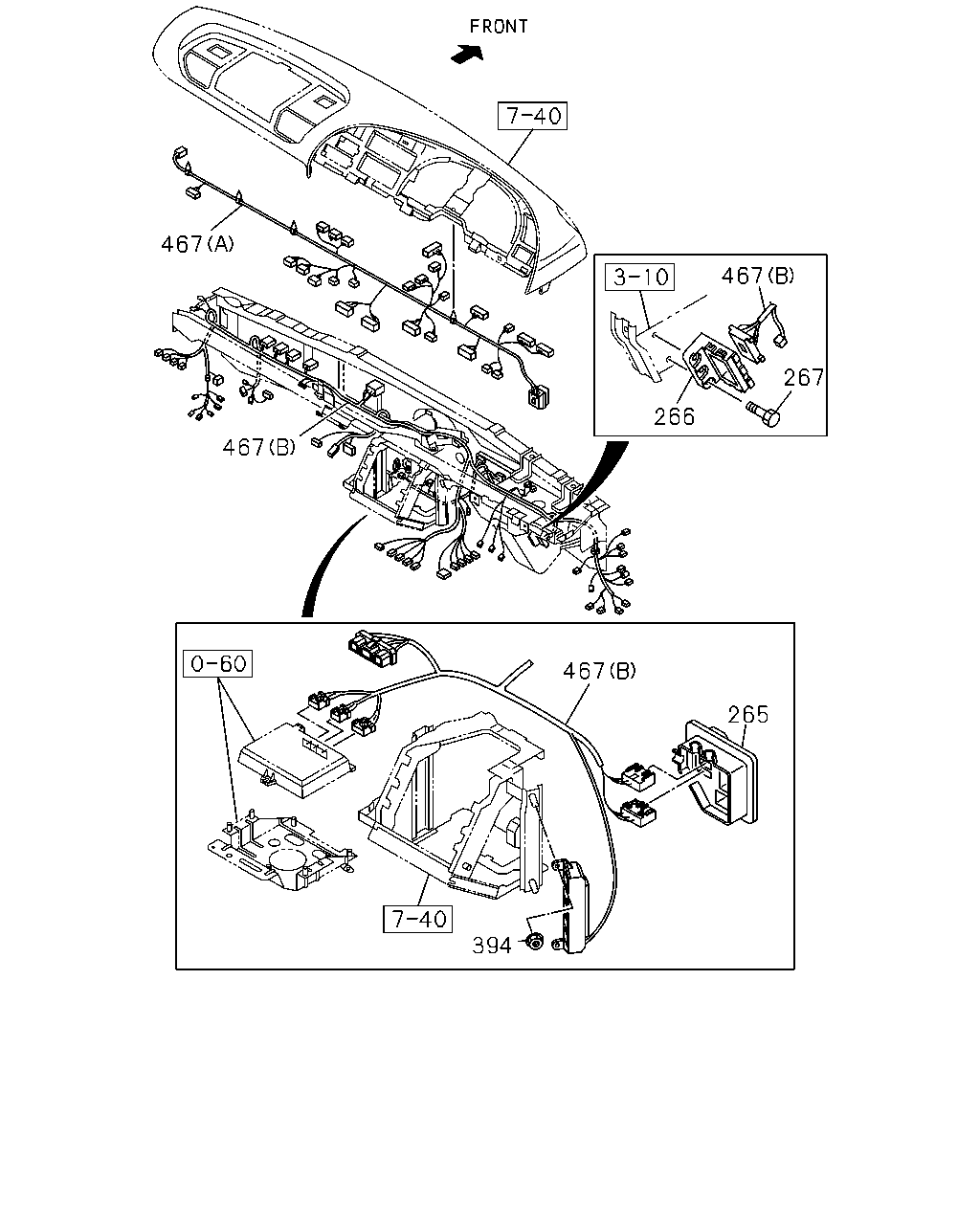

çizim 136272
394 265 467 266 267 267 467 467
BalonParca AdiParca NoAdetTipApplied Date
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 1009-
266 BRACKET; CONN BOX 1-82699-580-0 01 1 1009-
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 1009-
394 NUT; RELAY BOX TO BODY
EXC. HONG KONG EQUIPMENT(PQ1) M6 FLANGE 		0-91180-106-0 01 1 1303-1411
394 NUT; RELAY BOX TO BODY
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M6 FLANGE 		0-91180-106-0 01 1 1412-
467 HARNESS; FACIA
(A) 		8-97635-060-0 01 1 1009-1302
467 HARNESS; FACIA
(A) 		8-97645-324-0 01 1 1303-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) HONG KONG EQUIPMENT(PQ1) AIR BAG(TFQ) EXC. SMOOTHER-G(C1W) (B) 		8-97635-010-2 01 1 1009-1302
467 HARNESS; FACIA
NEW ZEALAND EQUIPMENT(PK5) EXC. SMOOTHER-G(C1W) (B) 		8-97645-737-1 01 1 1303-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) SINGAPORE EQUIPMENT(WQ3) EXC. SMOOTHER-G(C1W),AIR BAG(TFQ) (B) 		8-97635-013-2 01 1 1009-1302
467 HARNESS; FACIA
HONG KONG EQUIPMENT(PQ1) EXC. SMOOTHER-G(C1W) (B) 		8-97645-322-2 01 1 1303-1411
467 HARNESS; FACIA
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. SMOOTHER-G(C1W) (B) 		8-97645-322-2 01 1 1412-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) SMOOTHER-G(C1W) HONG KONG EQUIPMENT(PQ1) AIR BAG(TFQ) (B) 		8-97635-009-2 01 1 1009-1302
467 HARNESS; FACIA
SMOOTHER-G(C1W) HONG KONG EQUIPMENT(PQ1) (B) 		8-97645-321-2 01 1 1303-

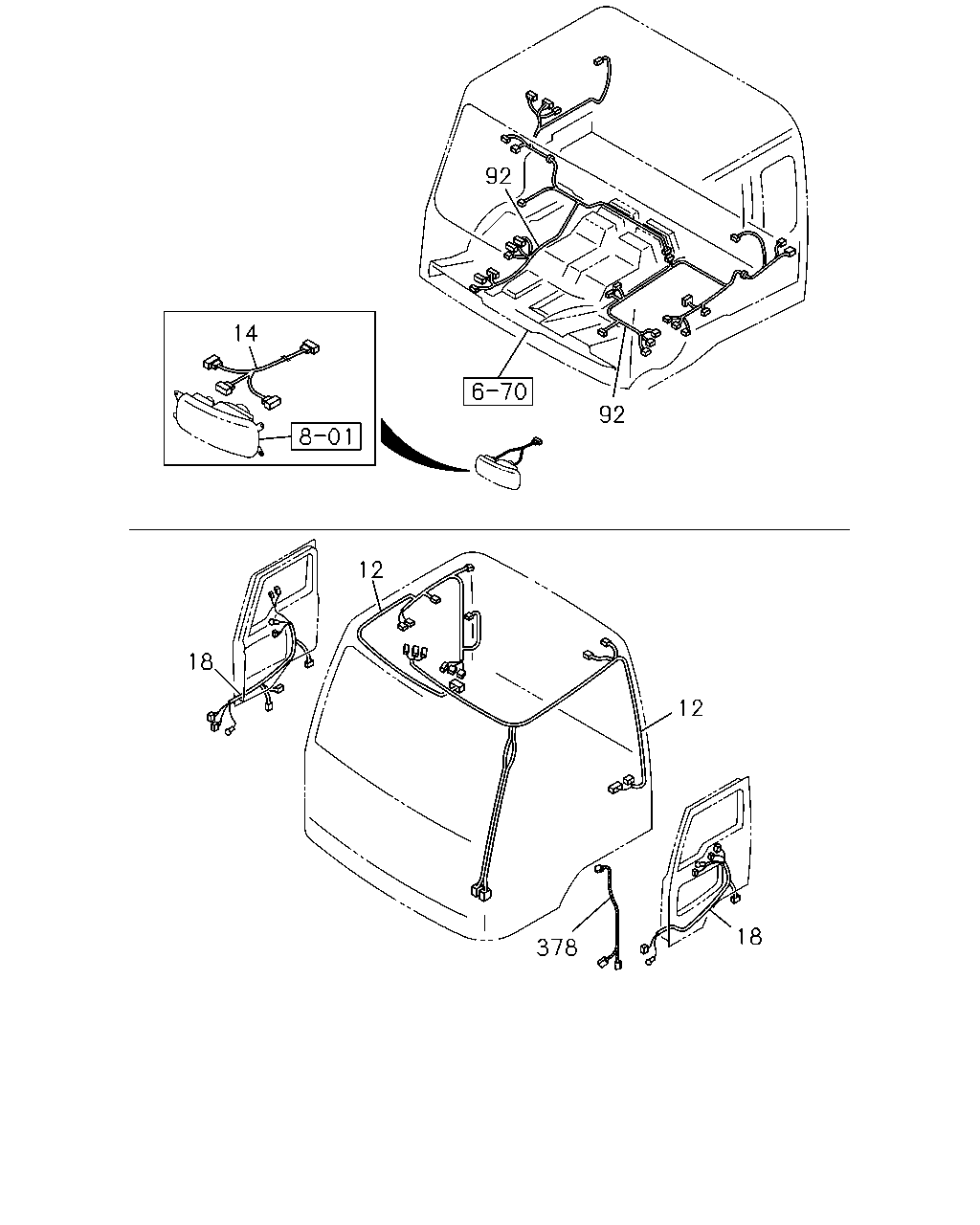

çizim 136543
92 92 14 12 18 12 18 378
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF
EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> 		8-97644-022-2 01 1 1303-1410
12 HARNESS; ROOF
EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> 		8-98284-065-0 01 1 1411-
12 HARNESS; ROOF
PASSENGER SIDE 		8-97611-861-1 01 1 1009-1302
12 HARNESS; ROOF
LAMP-ROOM OPERATION W/CONSOLE<C93> 		8-97644-079-3 01 1 1303-1410
12 HARNESS; ROOF
LAMP-ROOM OPERATION W/CONSOLE<C93> 		8-98284-066-0 01 1 1411-
12 HARNESS; ROOF
DRIVER SIDE 		8-97611-862-0 01 1 1009-
14 HARNESS; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		8-97607-335-0 02 1 1009-1302
14 HARNESS; HEADLAMP
HALOGEN HEADLAMPS<TT5> 		8-98156-953-2 02 1 1303-1304
14 HARNESS; HEADLAMP
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HALOGEN HEADLAMPS<TT5> 		8-98156-953-2 02 1 1305-
18 HARNESS; DOOR
NEW ZEALAND EQUIPMENT(PK5) 		8-97632-130-0 01 1 1303-
18 HARNESS; DOOR
NEW ZEALAND EQUIPMENT(PK5) 		8-97632-131-0 01 1 1303-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> 		8-97631-060-0 01 1 1009-1302
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. NEW ZEALAND EQUIPMENT(PK5) 		8-97644-086-0 01 1 1303-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> 		8-97631-061-0 01 1 1009-1302
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. NEW ZEALAND EQUIPMENT(PK5) 		8-97644-087-0 01 1 1303-
92 HARNESS; FLOOR
DRIVER ISRINGHAUSEN SEAT(SJA) SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) EXC. SMOOTHER-G(C1W) 		8-97645-739-0 01 1 1303-
92 HARNESS; FLOOR
MJT7S M/T(Y3E),TRANSMISSION-FULLER RTLO169 18(Y3S) TRANSMISSION CONTROL CABLE TYPE(C1A) REMOTE CONT DOOR LOCK<SLG> 		8-97645-740-0 01 1 1303-
92 HARNESS; FLOOR
EXC. SMOOTHER-G(C1W),DRIVER ISRINGHAUSEN SEAT(SJA), SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97644-014-1 01 1 1303-
92 HARNESS; FLOOR
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) EXC. SMOOTHER-G(C1W) 		8-97631-056-2 01 1 1009-1302
92 HARNESS; FLOOR
MJT7S M/T(Y3E),TRANSMISSION-FULLER RTLO169 18(Y3S) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. REMOTE CONT DOOR LOCK<SLG> 		8-97645-330-0 01 1 1303-
92 HARNESS; FLOOR
SMOOTHER-G(C1W) 		8-97631-426-1 01 1 1009-1210
92 HARNESS; FLOOR
SMOOTHER-G(C1W) 		8-98229-078-0 01 1 1211-1302
92 HARNESS; FLOOR
SMOOTHER-G(C1W) EXC. REMOTE CONT DOOR LOCK<SLG> 		8-97645-331-1 01 1 1303-
92 HARNESS; FLOOR
SMOOTHER-G(C1W) SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97631-055-2 01 1 1009-1302
92 HARNESS; FLOOR
SMOOTHER-G(C1W) SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		8-97645-326-0 01 1 1303-1401
92 HARNESS; FLOOR
SMOOTHER-G(C1W) SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98258-216-0 01 1 1402-
92 HARNESS; FLOOR
EXC. SMOOTHER-G(C1W) 		8-97631-425-1 01 1 1009-1302
92 HARNESS; FLOOR
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) EXC. SMOOTHER-G(C1W),DRIVER ISRINGHAUSEN SEAT(SJA) 		8-97645-327-0 01 1 1303-
92 HARNESS; FLOOR
EXC. SMOOTHER-G(C1W),SEAT BELT PRE TENSIONER 3POINTW/AIR BAG(7MC) 		8-97635-015-0 01 1 1009-1302
92 HARNESS; FLOOR
SMOOTHER-G(C1W) DRIVER ISRINGHAUSEN SEAT(SJA) SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97645-738-0 01 1 1303-1401
92 HARNESS; FLOOR
SMOOTHER-G(C1W) DRIVER ISRINGHAUSEN SEAT(SJA) SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-98258-217-0 01 1 1402-
378 HARNESS; EXT,MIRROR
NEW ZEALAND EQUIPMENT(PK5) 		8-97621-787-0 02 1 1303-

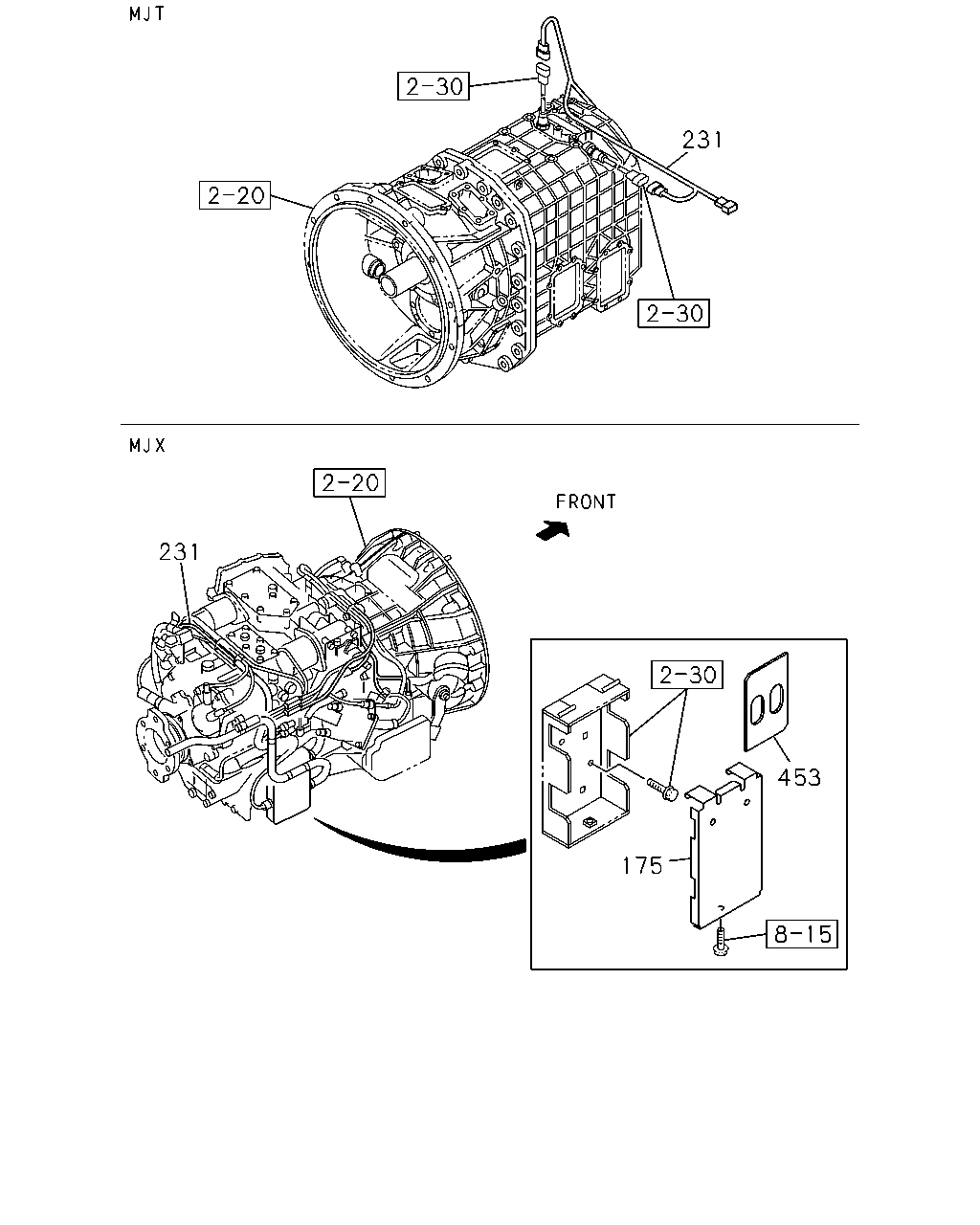

çizim 136733
231 231 175 453
BalonParca AdiParca NoAdetTipApplied Date
175 BOX; CONNECTOR
SMOOTHER-G(C1W) 		1-82569-435-1 01 1 1009-
231 HARNESS; TRANS
TRANSMISSION-FULLER RTLO169 18(Y3S) 		8-98214-252-0 01 1 1303-
231 HARNESS; TRANS
MJT7 M/T<Y9E> 		8-97615-725-1 01 1 1009-1302
231 HARNESS; TRANS
MJT7S M/T(Y3E) 		8-97615-725-1 01 1 1303-
231 HARNESS; TRANS
SMOOTHER-G(C1W) 		8-97631-167-1 01 1 1009-
453 PROTECTOR; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98213-847-1 01 1 1207-1302
453 PROTECTOR; HARNESS
SMOOTHER-G(C1W) 		8-98213-847-1 01 1 1303-

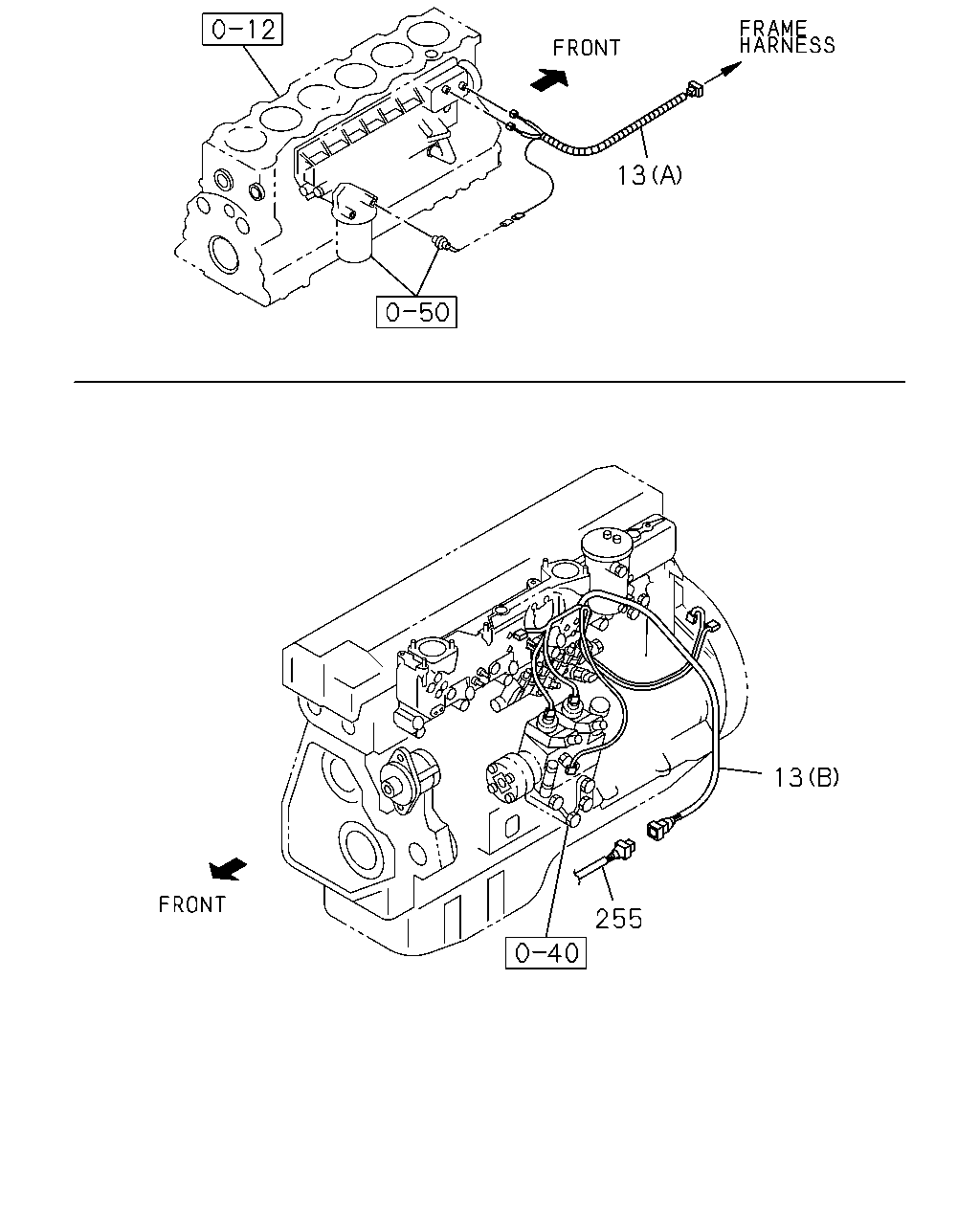

çizim 136998
13 13 255
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
(B) 		8-98152-248-0 01 1 1009-1204
13 HARNESS; ENG
(B) 		8-98210-224-0 01 1 1205-
13 HARNESS; ENG
(A) 		8-98126-840-2 01 1 1009-
255 HARNESS; ELEC GOV 8-97631-059-0 01 1 1009-1302
255 HARNESS; ELEC GOV 8-97645-325-2 01 1 1303-

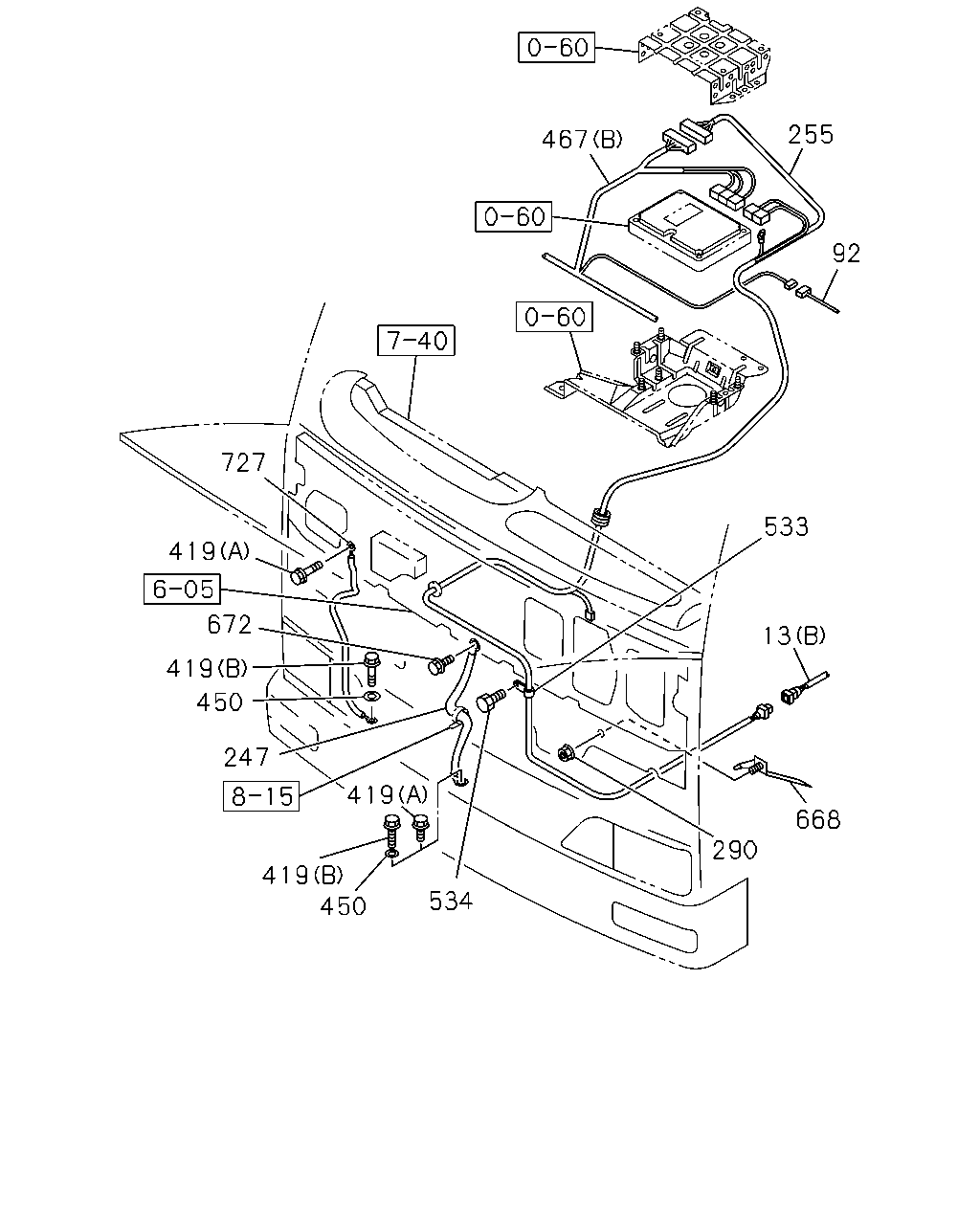

çizim 137028
533 92 255 467 727 419 672 419 450 247 419 419 450 534 290 13 668
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
(B) 		8-98152-248-0 01 1 1009-1204
13 HARNESS; ENG
(B) 		8-98210-224-0 01 1 1205-
13 HARNESS; ENG
(A) 		8-98126-840-2 01 1 1009-
92 HARNESS; FLOOR
DRIVER ISRINGHAUSEN SEAT(SJA) SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) EXC. SMOOTHER-G(C1W) 		8-97645-739-0 01 1 1303-
92 HARNESS; FLOOR
MJT7S M/T(Y3E),TRANSMISSION-FULLER RTLO169 18(Y3S) TRANSMISSION CONTROL CABLE TYPE(C1A) REMOTE CONT DOOR LOCK<SLG> 		8-97645-740-0 01 1 1303-
92 HARNESS; FLOOR
EXC. SMOOTHER-G(C1W),DRIVER ISRINGHAUSEN SEAT(SJA), SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97644-014-1 01 1 1303-
92 HARNESS; FLOOR
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) EXC. SMOOTHER-G(C1W) 		8-97631-056-2 01 1 1009-1302
92 HARNESS; FLOOR
MJT7S M/T(Y3E),TRANSMISSION-FULLER RTLO169 18(Y3S) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. REMOTE CONT DOOR LOCK<SLG> 		8-97645-330-0 01 1 1303-
92 HARNESS; FLOOR
SMOOTHER-G(C1W) 		8-97631-426-1 01 1 1009-1210
92 HARNESS; FLOOR
SMOOTHER-G(C1W) 		8-98229-078-0 01 1 1211-1302
92 HARNESS; FLOOR
SMOOTHER-G(C1W) EXC. REMOTE CONT DOOR LOCK<SLG> 		8-97645-331-1 01 1 1303-
92 HARNESS; FLOOR
SMOOTHER-G(C1W) SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97631-055-2 01 1 1009-1302
92 HARNESS; FLOOR
SMOOTHER-G(C1W) SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		8-97645-326-0 01 1 1303-1401
92 HARNESS; FLOOR
SMOOTHER-G(C1W) SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98258-216-0 01 1 1402-
92 HARNESS; FLOOR
EXC. SMOOTHER-G(C1W) 		8-97631-425-1 01 1 1009-1302
92 HARNESS; FLOOR
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) EXC. SMOOTHER-G(C1W),DRIVER ISRINGHAUSEN SEAT(SJA) 		8-97645-327-0 01 1 1303-
92 HARNESS; FLOOR
EXC. SMOOTHER-G(C1W),SEAT BELT PRE TENSIONER 3POINTW/AIR BAG(7MC) 		8-97635-015-0 01 1 1009-1302
92 HARNESS; FLOOR
SMOOTHER-G(C1W) DRIVER ISRINGHAUSEN SEAT(SJA) SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97645-738-0 01 1 1303-1401
92 HARNESS; FLOOR
SMOOTHER-G(C1W) DRIVER ISRINGHAUSEN SEAT(SJA) SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-98258-217-0 01 1 1402-
247 CABLE; BONDING,CAB
L=570 		1-82662-390-1 01 1 1009-
255 HARNESS; ELEC GOV 8-97631-059-0 01 1 1009-1302
255 HARNESS; ELEC GOV 8-97645-325-2 01 1 1303-
290 NUT; BRKT
HEATER & DEFROSTER(C41) M8 FLANGE 		0-91180-108-0 01 1 1412-
290 NUT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 01 1 1009-1302
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 1009-1201
419 BOLT; CAB EARTH
(A) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202-
419 BOLT; CAB EARTH
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 1009-1201
419 BOLT; CAB EARTH
(A) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-1302
419 BOLT; CAB EARTH
(A) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1303-
419 BOLT; CAB EARTH
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 1009-1201
419 BOLT; CAB EARTH
(B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1202-1302
419 BOLT; CAB EARTH
(B) M8X24 W/PL WASHER 		8-98141-256-1 02 1 1303-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 03 1 1009-1302
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 04 1 1303-
467 HARNESS; FACIA
(A) 		8-97635-060-0 01 1 1009-1302
467 HARNESS; FACIA
(A) 		8-97645-324-0 01 1 1303-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) HONG KONG EQUIPMENT(PQ1) AIR BAG(TFQ) EXC. SMOOTHER-G(C1W) (B) 		8-97635-010-2 01 1 1009-1302
467 HARNESS; FACIA
NEW ZEALAND EQUIPMENT(PK5) EXC. SMOOTHER-G(C1W) (B) 		8-97645-737-1 01 1 1303-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) SINGAPORE EQUIPMENT(WQ3) EXC. SMOOTHER-G(C1W),AIR BAG(TFQ) (B) 		8-97635-013-2 01 1 1009-1302
467 HARNESS; FACIA
HONG KONG EQUIPMENT(PQ1) EXC. SMOOTHER-G(C1W) (B) 		8-97645-322-2 01 1 1303-1411
467 HARNESS; FACIA
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. SMOOTHER-G(C1W) (B) 		8-97645-322-2 01 1 1412-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) SMOOTHER-G(C1W) HONG KONG EQUIPMENT(PQ1) AIR BAG(TFQ) (B) 		8-97635-009-2 01 1 1009-1302
467 HARNESS; FACIA
SMOOTHER-G(C1W) HONG KONG EQUIPMENT(PQ1) (B) 		8-97645-321-2 01 1 1303-
533 CLIP
SMOOTHER-G(C1W) ID=28 & 34 L=63 		1-09701-310-0 01 1 1009-
533 CLIP
EXC. SMOOTHER-G(C1W) ID=31 L=35 		1-09700-329-1 01 1 1009-1302
533 CLIP
EXC. SMOOTHER-G(C1W) ID=35 L=35 		1-09700-684-0 01 1 1303-
534 BOLT
M8X16 FLANGE 		0-28050-816-0 01 1 1009-
668 BRACKET; HARNESS
HEATER & DEFROSTER(C41) 		1-82698-415-1 01 1 1412-
668 BRACKET; HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82698-415-1 01 1 1009-1302
672 BOLT; BONDING
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 1009-1302
672 BOLT; BONDING
M8X14 W/PL WASHER 		8-98164-837-0 01 1 1303-
727 HARNESS; CAB,EARTH
L=760 		8-97632-854-0 01 1 1303-

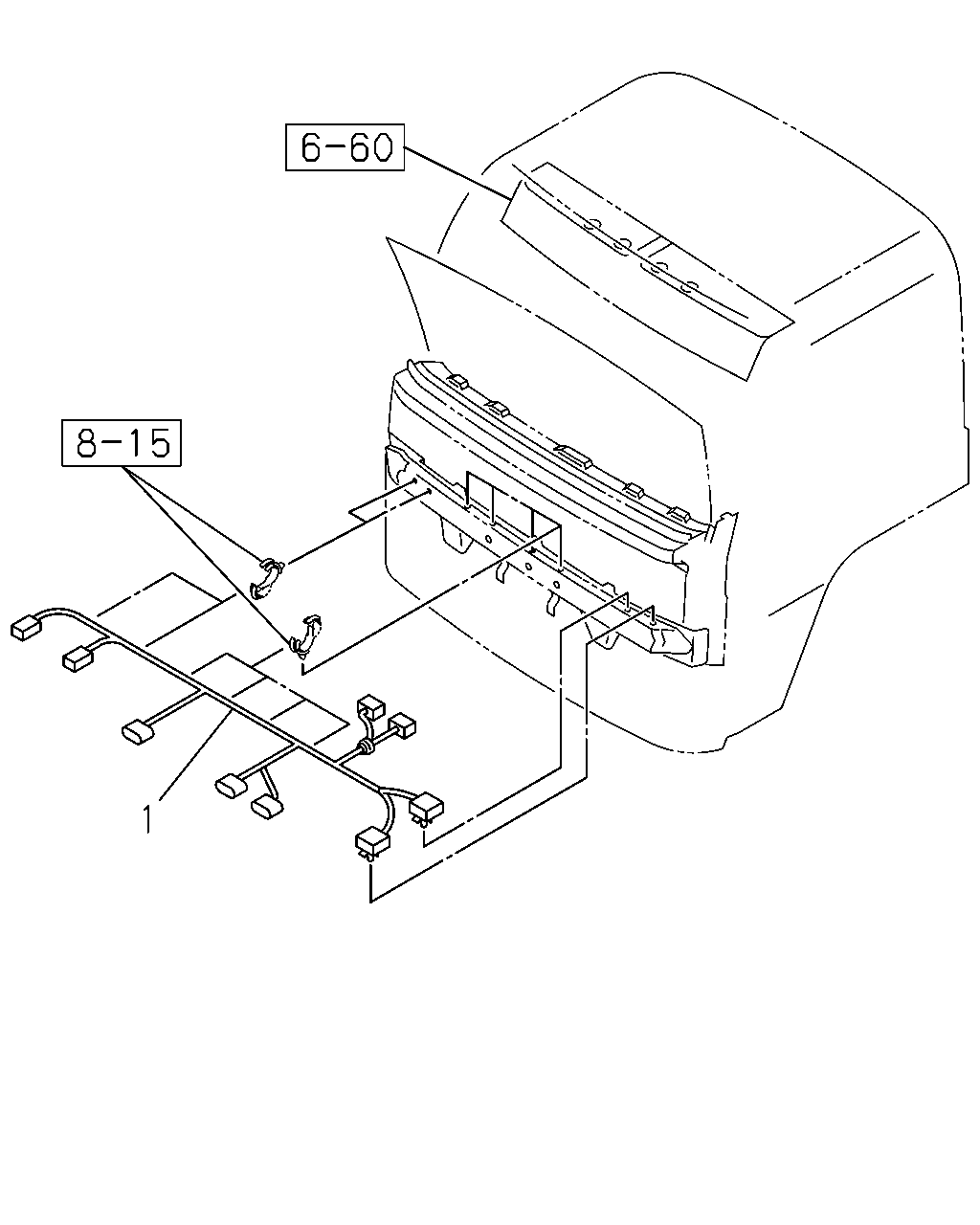

çizim 137122
1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-82662-363-1 01 1 1303-

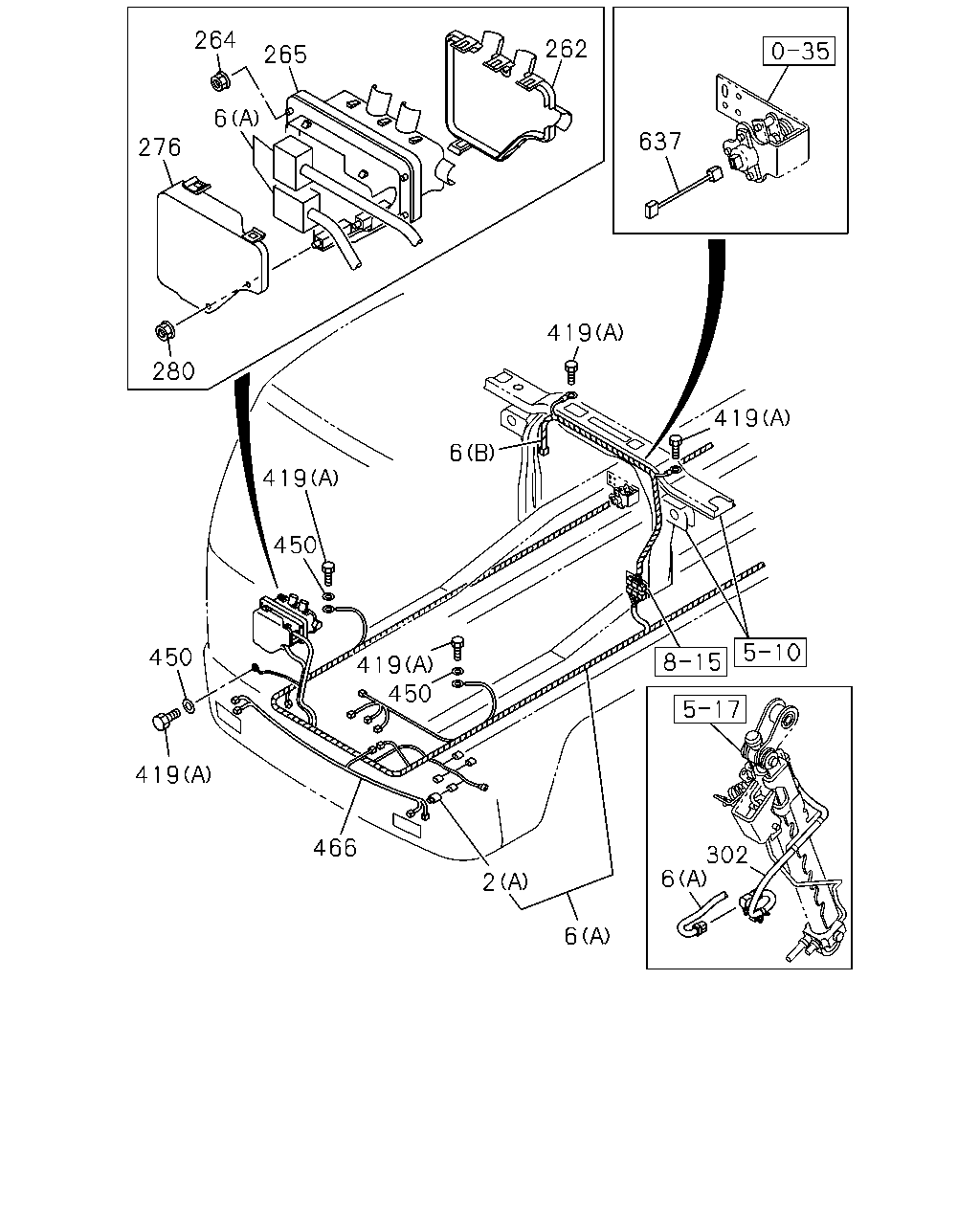

çizim 188479
264 265 6 276 280 419 450 450 419 466 419 450 2 6 6 302 6 419 419 262 637
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
(A) GRAY 2P-1.3A 		1-81514-015-0 01 1 1009-1302
2 DIODE; CABLE HARNESS
TRANSMISSION-FULLER RTLO169 18(Y3S) POOR QUALITY DIESEL FUEL<KF0> FULL TRAILER PIPING<Z25> EXC. SMOOTHER-G(C1W) (A) GRAY 2P-1.3A 		1-81514-015-0 01 1 1303-
2 DIODE; CABLE HARNESS
BRAKE REGULATION HONG KONG<TCZ> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 1009-1302
2 DIODE; CABLE HARNESS
HONG KONG EQUIPMENT(PQ1) (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 1303-
6 HARNESS; FRAME
POOR QUALITY DIESEL FUEL<KF0> EXC. SMOOTHER-G(C1W) (A) 		8-98186-084-0 01 1 1103-1302
6 HARNESS; FRAME
TRANSMISSION-FULLER RTLO169 18(Y3S) POOR QUALITY DIESEL FUEL<KF0> FULL TRAILER PIPING<Z25> EXC. SMOOTHER-G(C1W) (A) 		8-98236-447-2 01 1 1303-
6 HARNESS; FRAME
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) POOR QUALITY DIESEL FUEL<KF0> (A) 		8-98186-083-0 01 1 1103-1302
6 HARNESS; FRAME
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) POOR QUALITY DIESEL FUEL<KF0> EXC. FULL TRAILER PIPING<Z25> (A) 		8-98232-956-3 01 1 1303-
6 HARNESS; FRAME
SMOOTHER-G(C1W) (A) 		8-97631-070-2 01 1 1009-1102
6 HARNESS; FRAME
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) EXC. POOR QUALITY DIESEL FUEL<KF0> (A) 		8-97631-070-2 01 1 1103-1302
6 HARNESS; FRAME
MJT7S M/T(Y3E) POOR QUALITY DIESEL FUEL<KF0> EXC. SMOOTHER-G(C1W),FULL TRAILER PIPING<Z25> (A) 		8-98232-955-3 01 1 1303-
6 HARNESS; FRAME
EXC. SMOOTHER-G(C1W) (A) 		8-97631-071-2 01 1 1009-1102
6 HARNESS; FRAME
EXC. SMOOTHER-G(C1W),POOR QUALITY DIESEL FUEL<KF0> (A) 		8-97631-071-2 01 1 1103-1302
6 HARNESS; FRAME
(B) 		8-97631-086-1 01 1 1009-1302
6 HARNESS; FRAME
(B) 		8-98232-959-2 01 1 1303-1502
6 HARNESS; FRAME
(B) 		8-98306-826-0 01 1 1503-
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-582-1 01 1 1009-
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 1009-
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 1009-
276 COVER; BOX,FRAME HARNESS 1-82699-585-2 01 1 1009-
280 NUT; BOX ASM FIX
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1009-
302 HARNESS; POWER CAB TILT 8-97636-525-0 01 1 1303-
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 1009-1201
419 BOLT; CAB EARTH
(A) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202-
419 BOLT; CAB EARTH
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 1009-1201
419 BOLT; CAB EARTH
(A) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-1302
419 BOLT; CAB EARTH
(A) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1303-
419 BOLT; CAB EARTH
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 1009-1201
419 BOLT; CAB EARTH
(B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1202-1302
419 BOLT; CAB EARTH
(B) M8X24 W/PL WASHER 		8-98141-256-1 02 1 1303-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 03 1 1009-1302
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 04 1 1303-
466 HARNESS; BUMPER
FRONT SPOILER<VP1> 		8-97610-100-0 01 1 1009-1302
466 HARNESS; BUMPER
EXC. FRONT SPOILER<VP1> 		8-97610-101-0 01 1 1009-1302
637 HARNESS; EXT,S/SENSOR
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82675-934-0 01 1 1009-
çizim 188482
9 6 6 9
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
POOR QUALITY DIESEL FUEL<KF0> EXC. SMOOTHER-G(C1W) (A) 		8-98186-084-0 01 1 1103-1302
6 HARNESS; FRAME
TRANSMISSION-FULLER RTLO169 18(Y3S) POOR QUALITY DIESEL FUEL<KF0> FULL TRAILER PIPING<Z25> EXC. SMOOTHER-G(C1W) (A) 		8-98236-447-2 01 1 1303-
6 HARNESS; FRAME
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) POOR QUALITY DIESEL FUEL<KF0> (A) 		8-98186-083-0 01 1 1103-1302
6 HARNESS; FRAME
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) POOR QUALITY DIESEL FUEL<KF0> EXC. FULL TRAILER PIPING<Z25> (A) 		8-98232-956-3 01 1 1303-
6 HARNESS; FRAME
SMOOTHER-G(C1W) (A) 		8-97631-070-2 01 1 1009-1102
6 HARNESS; FRAME
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) EXC. POOR QUALITY DIESEL FUEL<KF0> (A) 		8-97631-070-2 01 1 1103-1302
6 HARNESS; FRAME
MJT7S M/T(Y3E) POOR QUALITY DIESEL FUEL<KF0> EXC. SMOOTHER-G(C1W),FULL TRAILER PIPING<Z25> (A) 		8-98232-955-3 01 1 1303-
6 HARNESS; FRAME
EXC. SMOOTHER-G(C1W) (A) 		8-97631-071-2 01 1 1009-1102
6 HARNESS; FRAME
EXC. SMOOTHER-G(C1W),POOR QUALITY DIESEL FUEL<KF0> (A) 		8-97631-071-2 01 1 1103-1302
6 HARNESS; FRAME
(B) 		8-97631-086-1 01 1 1009-1302
6 HARNESS; FRAME
(B) 		8-98232-959-2 01 1 1303-1502
6 HARNESS; FRAME
(B) 		8-98306-826-0 01 1 1503-
9 HARNESS; FRAME,RR
WHEEL BASE 6600MM(66W) NEW ZEALAND EQUIPMENT(PK5) (B) 		8-97632-140-0 01 1 1303-
9 HARNESS; FRAME,RR
WHEEL BASE 6600MM(66W) FULL TRAILER PIPING<Z25> (A) 		8-98236-450-0 01 1 1303-
9 HARNESS; FRAME,RR
WHEEL BASE 6300MM(63W) POOR QUALITY DIESEL FUEL<KF0> (A) 		8-98186-757-1 01 1 1103-
9 HARNESS; FRAME,RR
WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> (A) 		8-98186-758-0 01 1 1103-1302
9 HARNESS; FRAME,RR
WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> EXC. FULL TRAILER PIPING<Z25> (A) 		8-98186-758-1 01 1 1303-
9 HARNESS; FRAME,RR
WHEEL BASE 6300MM(63W) (A) 		8-97631-078-2 01 1 1009-1102
9 HARNESS; FRAME,RR
WHEEL BASE 6300MM(63W) EXC. POOR QUALITY DIESEL FUEL<KF0> (A) 		8-97631-078-2 01 1 1103-1302
9 HARNESS; FRAME,RR
WHEEL BASE 6600MM(66W) (A) 		8-97631-077-2 01 1 1009-1102
9 HARNESS; FRAME,RR
WHEEL BASE 6600MM(66W) EXC. POOR QUALITY DIESEL FUEL<KF0> (A) 		8-97631-077-2 01 1 1103-1302
9 HARNESS; FRAME,RR
WHEEL BASE 6300MM(63W) (B) 		8-97631-085-2 01 1 1009-
9 HARNESS; FRAME,RR
WHEEL BASE 6600MM(66W) SMOOTHER-G(C1W) (B) 		8-97631-084-3 01 1 1009-1302
9 HARNESS; FRAME,RR
WHEEL BASE 6600MM(66W) SMOOTHER-G(C1W) EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		8-98234-660-0 01 1 1303-
9 HARNESS; FRAME,RR
WHEEL BASE 6600MM(66W) EXC. SMOOTHER-G(C1W) (B) 		8-97631-526-2 01 1 1009-1302
9 HARNESS; FRAME,RR
WHEEL BASE 6600MM(66W) EXC. SMOOTHER-G(C1W),NEW ZEALAND EQUIPMENT(PK5) (B) 		8-97631-526-2 01 1 1303-

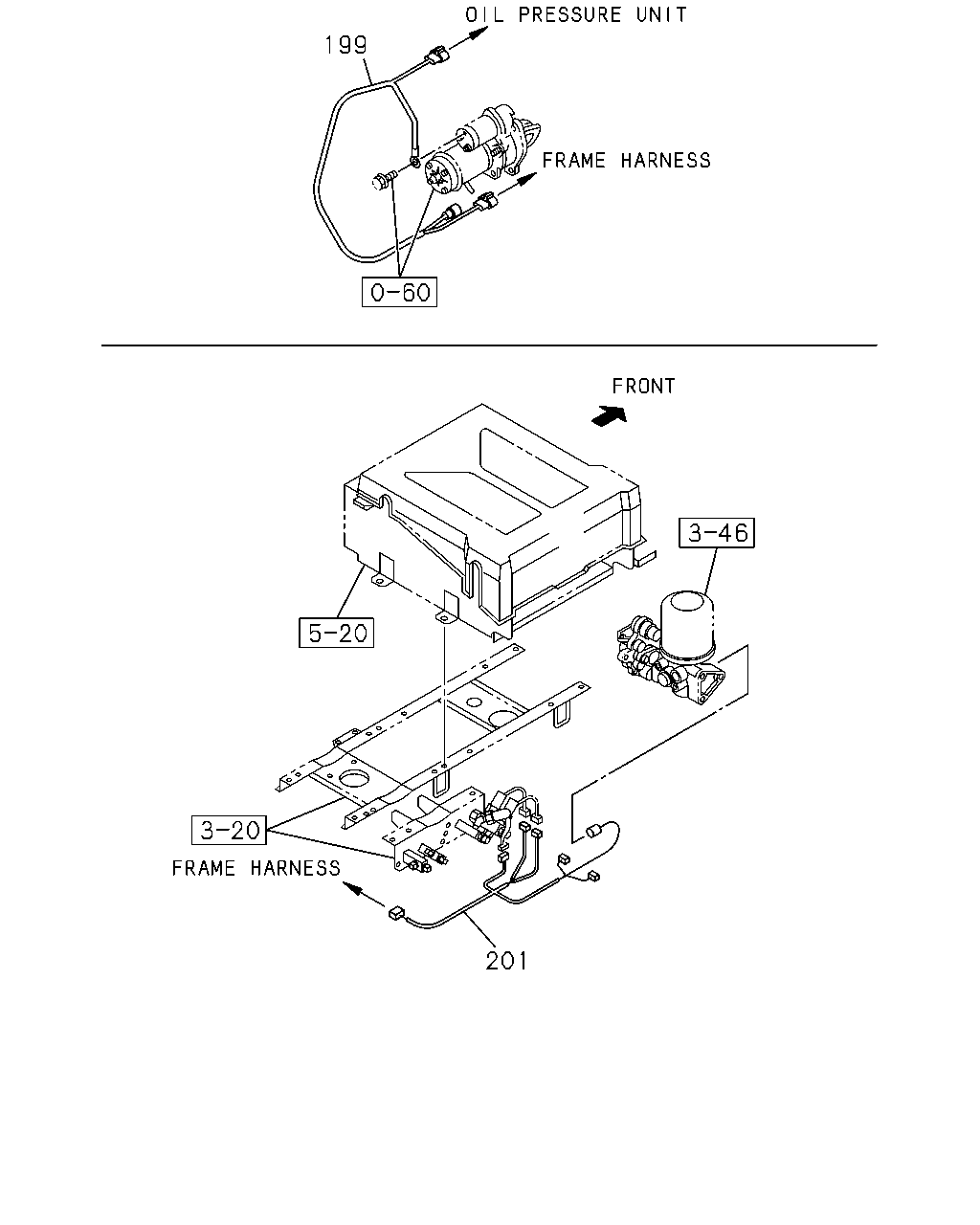

çizim 336712
199 201
BalonParca AdiParca NoAdetTipApplied Date
199 HARNESS; STARTER
MIXER TRUCK<RA2> 		8-97612-155-0 01 1 1009-1302
199 HARNESS; STARTER
EXC. MIXER TRUCK<RA2> 		8-97607-313-0 01 1 1009-1302
199 HARNESS; STARTER 8-97607-313-0 01 1 1303-
201 HARNESS; AIR TANK
NEW ZEALAND EQUIPMENT(PK5) 		8-98236-452-1 01 1 1303-
201 HARNESS; AIR TANK 8-97631-094-1 01 1 1009-1302
201 HARNESS; AIR TANK
HONG KONG EQUIPMENT(PQ1) 		8-98232-957-2 01 1 1303-1411
201 HARNESS; AIR TANK
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98232-957-2 01 1 1412-

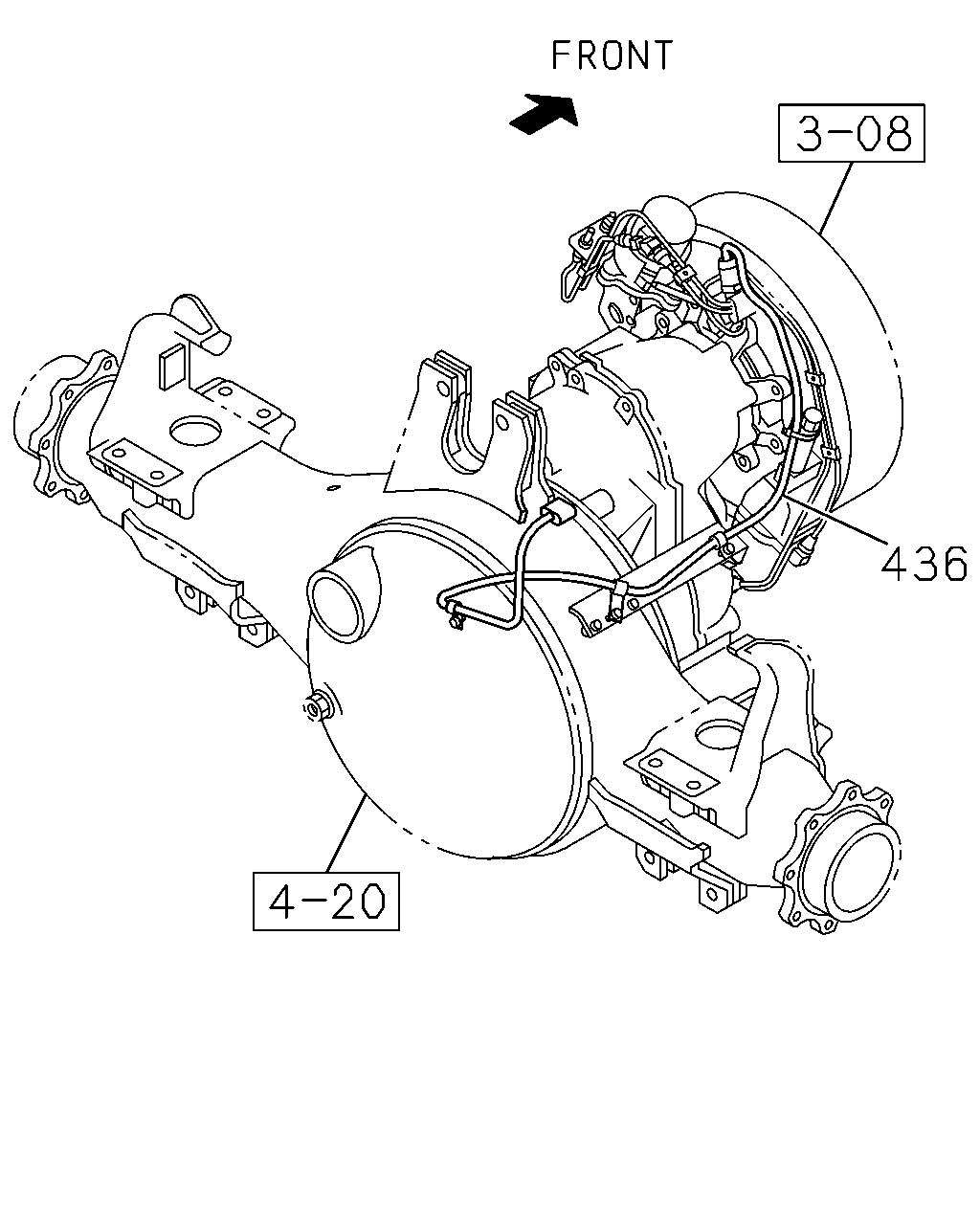

çizim 336713
436
BalonParca AdiParca NoAdetTipApplied Date
436 HARNESS; RETARDER
FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82677-629-0 01 1 1303-

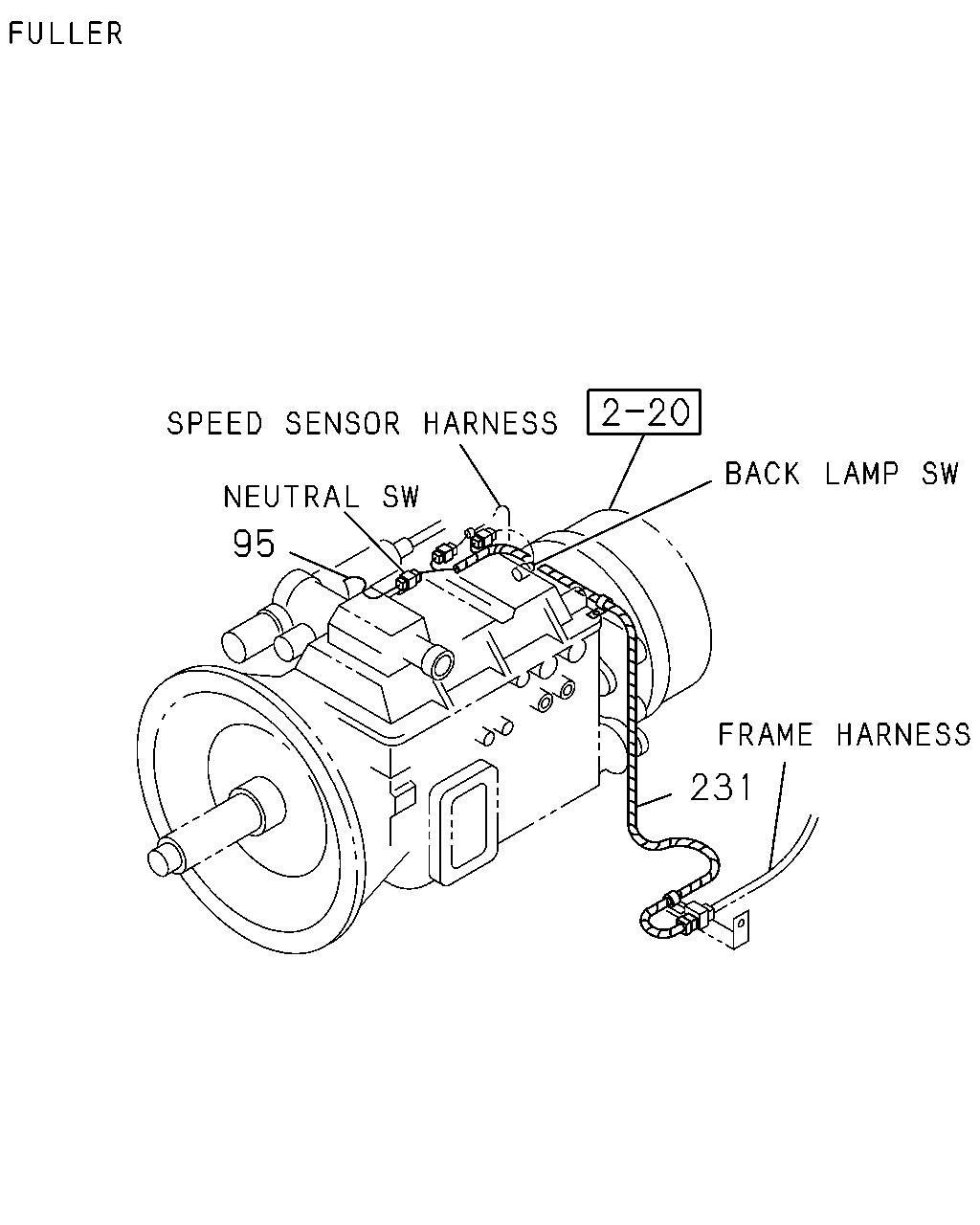

çizim 337034
95 231
BalonParca AdiParca NoAdetTipApplied Date
95 HARNESS; NEUTRAL SW
TRANSMISSION-FULLER RTLO169 18(Y3S) 		1-82639-626-0 01 1 1303-
231 HARNESS; TRANS
TRANSMISSION-FULLER RTLO169 18(Y3S) 		8-98214-252-0 01 1 1303-
231 HARNESS; TRANS
MJT7 M/T<Y9E> 		8-97615-725-1 01 1 1009-1302
231 HARNESS; TRANS
MJT7S M/T(Y3E) 		8-97615-725-1 01 1 1303-
231 HARNESS; TRANS
SMOOTHER-G(C1W) 		8-97631-167-1 01 1 1009-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
