8-03 — LAMP; REAR AND REAR SIDE (#70012) — 158 parça

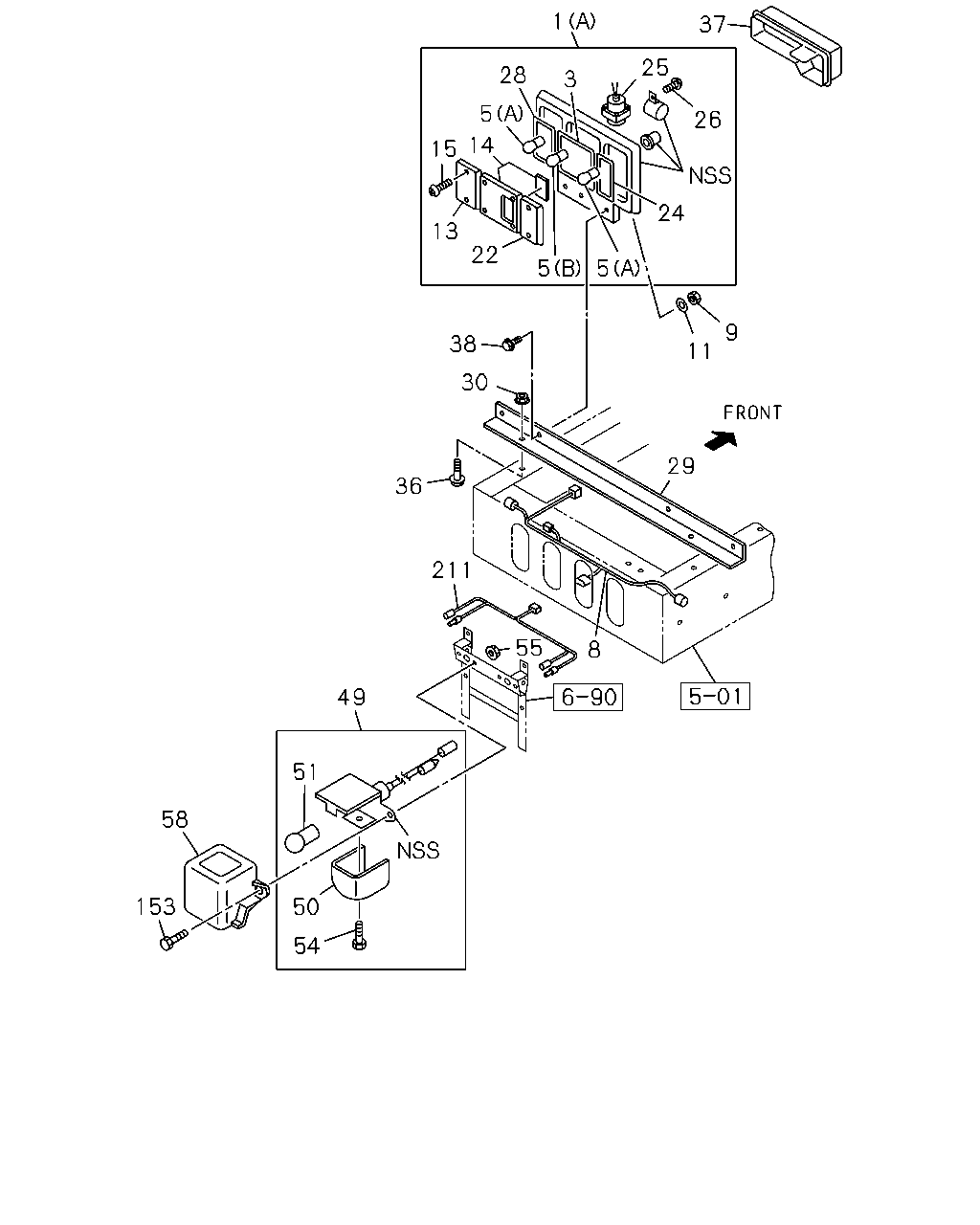

37 1 25 26 28 24 3 5 15 14 5 5 22 13 11 9 38 36 29 30 211 8 55 49 51 58 153 50 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; RR COMB NEW ZEALAND EQUIPMENT(PK5) (B)	1-82230-203-6	01	1	1303-
1	LAMP ASM; RR COMB NEW ZEALAND EQUIPMENT(PK5) (B)	1-82230-204-5	01	1	1303-
1	LAMP ASM; RR COMB (A)	1-82230-208-0	01	1	1009-1302
1	LAMP ASM; RR COMB EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-82230-208-0	01	1	1303-
1	LAMP ASM; RR COMB (A)	1-82230-209-0	01	1	1009-1302
1	LAMP ASM; RR COMB EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-82230-209-0	01	1	1303-
3	GASKET; RR COMB LAMP NEW ZEALAND EQUIPMENT(PK5)	1-82236-008-0	02	1	1303-
3	GASKET; RR COMB LAMP	8-94257-505-0	02	1	1009-1302
3	GASKET; RR COMB LAMP EXC. NEW ZEALAND EQUIPMENT(PK5)	8-94257-505-0	02	1	1303-
5	BULB; RR COMB LAMP NEW ZEALAND EQUIPMENT(PK5) (C) 24V 21W	1-82194-108-0	02	1	1303-
5	BULB; RR COMB LAMP NEW ZEALAND EQUIPMENT(PK5) (D) 24V 21/5W	1-82194-109-0	02	1	1303-
5	BULB; RR COMB LAMP (A) 24V 21W	1-82194-036-0	04	1	1009-1302
5	BULB; RR COMB LAMP EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 24V 21W	1-82194-036-0	04	1	1303-
5	BULB; RR COMB LAMP (B) 24V 21/5W	1-82194-038-0	02	1	1009-1302
5	BULB; RR COMB LAMP EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 24V 21/5W	1-82194-038-0	02	1	1303-
8	HARNESS; RR COMB LAMP WHEEL BASE 6600MM(66W) FULL TRAILER PIPING<Z25>	8-97624-217-0	01	1	1303-
8	HARNESS; RR COMB LAMP WHEEL BASE 6300MM(63W)	8-97635-016-1	01	1	1009-1302
8	HARNESS; RR COMB LAMP WHEEL BASE 6300MM(63W) HONG KONG EQUIPMENT(PQ1)	8-97635-016-1	01	1	1303-1411
8	HARNESS; RR COMB LAMP WHEEL BASE 6300MM(63W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-97635-016-1	01	1	1412-
8	HARNESS; RR COMB LAMP WHEEL BASE 6600MM(66W)	8-97635-017-1	01	1	1009-1302
8	HARNESS; RR COMB LAMP WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1)	8-97635-017-1	01	1	1303-1411
8	HARNESS; RR COMB LAMP WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-97635-017-1	01	1	1412-
9	NUT; LAMP,RR COMB NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91180-108-0	02	1	1303-
9	NUT; LAMP,RR COMB M6	0-91110-506-0	04	1	1009-1302
9	NUT; LAMP,RR COMB EXC. NEW ZEALAND EQUIPMENT(PK5) M6	0-91110-506-0	04	1	1303-
11	WASHER; PL,LAMP,RR COMB ID=6.4 OD=18	0-91610-706-0	04	1	1009-1302
11	WASHER; PL,LAMP,RR COMB EXC. NEW ZEALAND EQUIPMENT(PK5) ID=6.4 OD=18	0-91610-706-0	04	1	1303-
13	LENS; TURN SIGNAL NEW ZEALAND EQUIPMENT(PK5)	1-82235-036-0	02	1	1303-
13	LENS; TURN SIGNAL	8-94174-638-0	01	1	1009-1302
13	LENS; TURN SIGNAL EXC. NEW ZEALAND EQUIPMENT(PK5)	8-94174-638-0	01	1	1303-
13	LENS; TURN SIGNAL	8-94174-639-0	01	1	1009-1302
13	LENS; TURN SIGNAL EXC. NEW ZEALAND EQUIPMENT(PK5)	8-94174-639-0	01	1	1303-
14	LENS; TAIL & STOP,RR COMB LAMP NEW ZEALAND EQUIPMENT(PK5)	1-82235-035-0	02	1	1303-
14	LENS; TAIL & STOP,RR COMB LAMP	8-94178-624-0	01	1	1009-1302
14	LENS; TAIL & STOP,RR COMB LAMP EXC. NEW ZEALAND EQUIPMENT(PK5)	8-94178-624-0	01	1	1303-
14	LENS; TAIL & STOP,RR COMB LAMP	8-94178-625-0	01	1	1009-1302
14	LENS; TAIL & STOP,RR COMB LAMP EXC. NEW ZEALAND EQUIPMENT(PK5)	8-94178-625-0	01	1	1303-
15	SCREW; RR COMB LAMP NEW ZEALAND EQUIPMENT(PK5)	1-82239-012-0	26	1	1303-
15	SCREW; RR COMB LAMP M4X20 TAPPING STAINLESS	0-71190-420-0	16	1	1009-1302
15	SCREW; RR COMB LAMP EXC. NEW ZEALAND EQUIPMENT(PK5) M4X20 TAPPING STAINLESS	0-71190-420-0	16	1	1303-
22	LENS; BACKUP,RR COMB LAMP	8-94257-512-1	02	1	1009-1302
22	LENS; BACKUP,RR COMB LAMP EXC. NEW ZEALAND EQUIPMENT(PK5)	8-94257-512-1	02	1	1303-
24	GASKET; BACK,LAMP	8-94257-506-0	02	1	1009-1302
24	GASKET; BACK,LAMP EXC. NEW ZEALAND EQUIPMENT(PK5)	8-94257-506-0	02	1	1303-
25	HORN ASM; BACK	8-94257-518-0	01	1	1009-1302
25	HORN ASM; BACK EXC. NEW ZEALAND EQUIPMENT(PK5)	8-94257-518-0	01	1	1303-
26	SCREW; BACK HORN M4X12 TAPPING	9-07076-412-0	02	1	1009-1302
26	SCREW; BACK HORN EXC. NEW ZEALAND EQUIPMENT(PK5) M4X12 TAPPING	9-07076-412-0	02	1	1303-
26	SCREW; BACK HORN M4X14 TAPPING	9-07076-414-0	01	1	1009-1302
26	SCREW; BACK HORN EXC. NEW ZEALAND EQUIPMENT(PK5) M4X14 TAPPING	9-07076-414-0	01	1	1303-
28	GASKET; TURN,LAMP NEW ZEALAND EQUIPMENT(PK5)	1-82236-008-0	02	1	1303-
28	GASKET; TURN,LAMP	8-94257-507-0	02	1	1009-1302
28	GASKET; TURN,LAMP EXC. NEW ZEALAND EQUIPMENT(PK5)	8-94257-507-0	02	1	1303-
29	BRACKET; LAMP,RR COMB	1-53487-021-0	01	1	1009-1302
29	BRACKET; LAMP,RR COMB EXC. NEW ZEALAND EQUIPMENT(PK5)	1-53487-021-1	01	1	1303-
30	NUT; BRKT,RR COMB M10 FLANGE	0-91180-210-0	02	1	1009-1302
30	NUT; BRKT,RR COMB EXC. NEW ZEALAND EQUIPMENT(PK5) M10 FLANGE	0-91180-210-0	02	1	1303-
36	BOLT; BRKT,RR COMB M10X40 FLANGE	0-28651-040-0	02	1	1009-1302
36	BOLT; BRKT,RR COMB EXC. NEW ZEALAND EQUIPMENT(PK5) M10X40 FLANGE	0-28651-040-0	02	1	1303-
37	COVER; RR COMB LAMP	1-82239-008-0	01	1	1009-1302
37	COVER; RR COMB LAMP EXC. NEW ZEALAND EQUIPMENT(PK5)	1-82239-008-0	01	1	1303-
37	COVER; RR COMB LAMP	1-82239-007-0	01	1	1009-1302
37	COVER; RR COMB LAMP EXC. NEW ZEALAND EQUIPMENT(PK5)	1-82239-007-0	01	1	1303-
38	BOLT; LAMP,RR COMB NEW ZEALAND EQUIPMENT(PK5) M8X35 W/LK&PL WASHER	1-09030-073-0	02	1	1303-
38	BOLT; LAMP,RR COMB M6X30 W/LK&PL WASHER	0-50640-630-0	04	1	1009-1302
38	BOLT; LAMP,RR COMB EXC. NEW ZEALAND EQUIPMENT(PK5) M6X30 W/LK&PL WASHER	0-50640-630-0	04	1	1303-
49	LAMP; LICENSE PLATE NEW ZEALAND EQUIPMENT(PK5) 24V 10W	1-82120-024-1	01	1	1303-
49	LAMP; LICENSE PLATE 24V 5W	8-97105-380-0	02	1	1009-1302
49	LAMP; LICENSE PLATE EXC. NEW ZEALAND EQUIPMENT(PK5) 24V 5W	8-97105-380-0	02	1	1303-1509
49	LAMP; LICENSE PLATE EXC. NEW ZEALAND EQUIPMENT(PK5) 24V 5W	8-98329-430-0	02	1	1510-
50	LENS; LICENSE PLATE LAMP NEW ZEALAND EQUIPMENT(PK5)	1-82235-006-0	01	1	1303-
50	LENS; LICENSE PLATE LAMP	8-97108-212-0	02	1	1009-1302
50	LENS; LICENSE PLATE LAMP EXC. NEW ZEALAND EQUIPMENT(PK5)	8-97108-212-0	02	1	1303-
51	BULB; LICENSE PLATE LAMP NEW ZEALAND EQUIPMENT(PK5) 24V 10W	1-82194-037-0	01	1	1303-
51	BULB; LICENSE PLATE LAMP 24V 5W	1-82194-039-0	02	1	1009-1302
51	BULB; LICENSE PLATE LAMP EXC. NEW ZEALAND EQUIPMENT(PK5) 24V 5W	1-82194-039-0	02	1	1303-
54	SCREW; LICENSE PLATE LAMP NEW ZEALAND EQUIPMENT(PK5) M5X20	1-82129-007-0	02	1	1303-
54	SCREW; LICENSE PLATE LAMP M4X8	8-94419-312-0	02	1	1009-1302
54	SCREW; LICENSE PLATE LAMP EXC. NEW ZEALAND EQUIPMENT(PK5) M4X8	8-94419-312-0	02	1	1303-
55	NUT; LICENSE PLATE LAMP M5 FLANGE	8-94153-039-0	04	1	1009-1111
58	COVER; LICENSE PLATE LAMP NEW ZEALAND EQUIPMENT(PK5)	1-82129-005-0	01	1	1303-
58	COVER; LICENSE PLATE LAMP	8-97076-590-1	02	1	1009-1302
58	COVER; LICENSE PLATE LAMP EXC. NEW ZEALAND EQUIPMENT(PK5)	8-97076-590-1	02	1	1303-
153	BOLT; LICENSE PLATE LAMP M5X20	9-93490-520-0	02	1	1009-1111
153	BOLT; LICENSE PLATE LAMP M5X20	9-93490-520-0	04	1	1112-1302
153	BOLT; LICENSE PLATE LAMP EXC. NEW ZEALAND EQUIPMENT(PK5) M5X20	9-93490-520-0	04	1	1303-
211	HARNESS; EXT	8-98131-066-0	01	1	1009-1302
211	HARNESS; EXT EXC. NEW ZEALAND EQUIPMENT(PK5)	8-98131-066-0	01	1	1303-

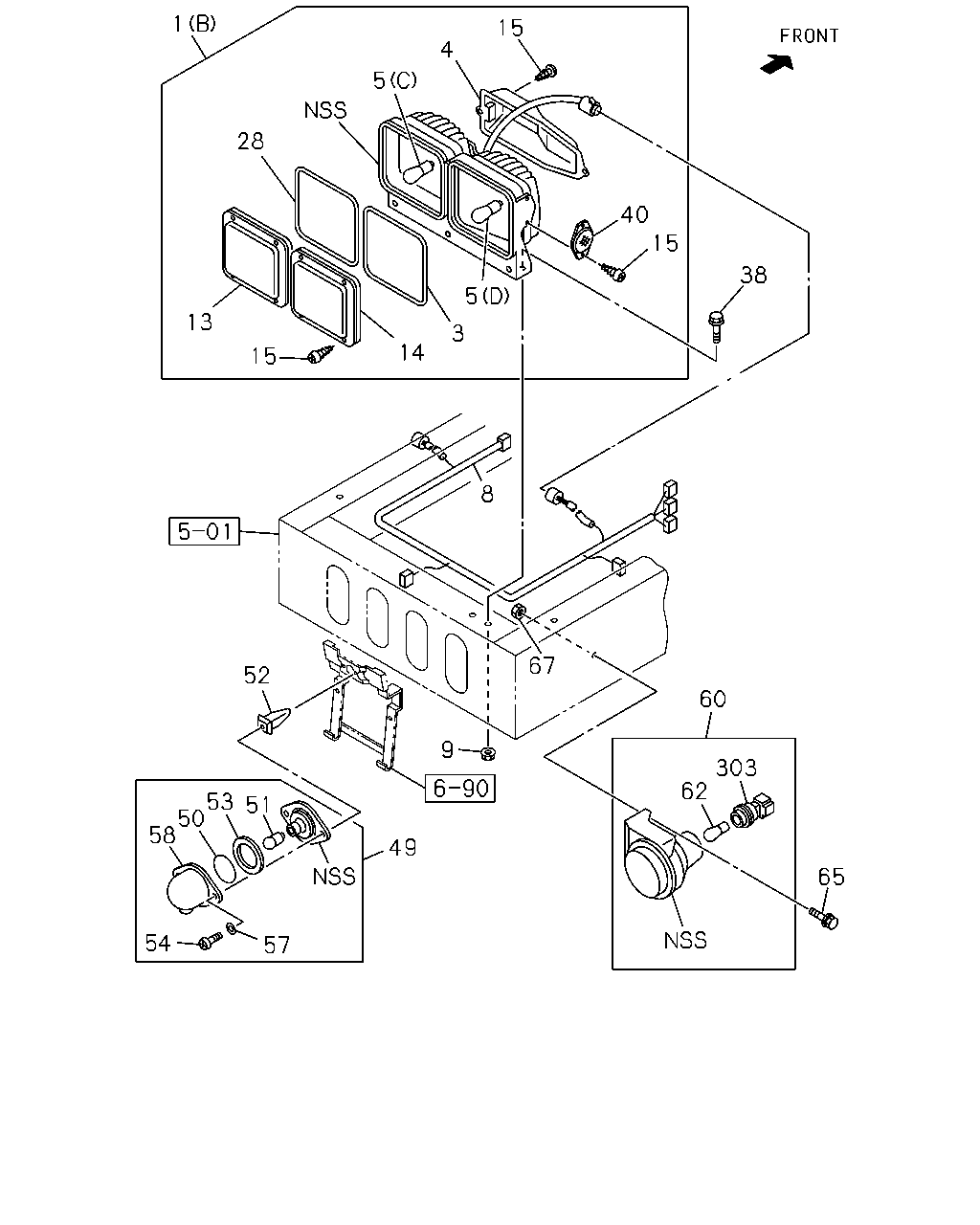

1 28 5 4 15 15 40 38 5 3 14 15 13 8 67 60 303 62 65 49 9 52 57 54 51 53 50 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; RR COMB NEW ZEALAND EQUIPMENT(PK5) (B)	1-82230-203-6	01	1	1303-
1	LAMP ASM; RR COMB NEW ZEALAND EQUIPMENT(PK5) (B)	1-82230-204-5	01	1	1303-
1	LAMP ASM; RR COMB (A)	1-82230-208-0	01	1	1009-1302
1	LAMP ASM; RR COMB EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-82230-208-0	01	1	1303-
1	LAMP ASM; RR COMB (A)	1-82230-209-0	01	1	1009-1302
1	LAMP ASM; RR COMB EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-82230-209-0	01	1	1303-
3	GASKET; RR COMB LAMP NEW ZEALAND EQUIPMENT(PK5)	1-82236-008-0	02	1	1303-
3	GASKET; RR COMB LAMP	8-94257-505-0	02	1	1009-1302
3	GASKET; RR COMB LAMP EXC. NEW ZEALAND EQUIPMENT(PK5)	8-94257-505-0	02	1	1303-
4	COVER; RR,RR COMB LAMP NEW ZEALAND EQUIPMENT(PK5)	1-82239-011-0	02	1	1303-
5	BULB; RR COMB LAMP NEW ZEALAND EQUIPMENT(PK5) (C) 24V 21W	1-82194-108-0	02	1	1303-
5	BULB; RR COMB LAMP NEW ZEALAND EQUIPMENT(PK5) (D) 24V 21/5W	1-82194-109-0	02	1	1303-
5	BULB; RR COMB LAMP (A) 24V 21W	1-82194-036-0	04	1	1009-1302
5	BULB; RR COMB LAMP EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 24V 21W	1-82194-036-0	04	1	1303-
5	BULB; RR COMB LAMP (B) 24V 21/5W	1-82194-038-0	02	1	1009-1302
5	BULB; RR COMB LAMP EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 24V 21/5W	1-82194-038-0	02	1	1303-
8	HARNESS; RR COMB LAMP WHEEL BASE 6600MM(66W) FULL TRAILER PIPING<Z25>	8-97624-217-0	01	1	1303-
8	HARNESS; RR COMB LAMP WHEEL BASE 6300MM(63W)	8-97635-016-1	01	1	1009-1302
8	HARNESS; RR COMB LAMP WHEEL BASE 6300MM(63W) HONG KONG EQUIPMENT(PQ1)	8-97635-016-1	01	1	1303-1411
8	HARNESS; RR COMB LAMP WHEEL BASE 6300MM(63W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-97635-016-1	01	1	1412-
8	HARNESS; RR COMB LAMP WHEEL BASE 6600MM(66W)	8-97635-017-1	01	1	1009-1302
8	HARNESS; RR COMB LAMP WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1)	8-97635-017-1	01	1	1303-1411
8	HARNESS; RR COMB LAMP WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-97635-017-1	01	1	1412-
9	NUT; LAMP,RR COMB NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91180-108-0	02	1	1303-
9	NUT; LAMP,RR COMB M6	0-91110-506-0	04	1	1009-1302
9	NUT; LAMP,RR COMB EXC. NEW ZEALAND EQUIPMENT(PK5) M6	0-91110-506-0	04	1	1303-
13	LENS; TURN SIGNAL NEW ZEALAND EQUIPMENT(PK5)	1-82235-036-0	02	1	1303-
13	LENS; TURN SIGNAL	8-94174-638-0	01	1	1009-1302
13	LENS; TURN SIGNAL EXC. NEW ZEALAND EQUIPMENT(PK5)	8-94174-638-0	01	1	1303-
13	LENS; TURN SIGNAL	8-94174-639-0	01	1	1009-1302
13	LENS; TURN SIGNAL EXC. NEW ZEALAND EQUIPMENT(PK5)	8-94174-639-0	01	1	1303-
14	LENS; TAIL & STOP,RR COMB LAMP NEW ZEALAND EQUIPMENT(PK5)	1-82235-035-0	02	1	1303-
14	LENS; TAIL & STOP,RR COMB LAMP	8-94178-624-0	01	1	1009-1302
14	LENS; TAIL & STOP,RR COMB LAMP EXC. NEW ZEALAND EQUIPMENT(PK5)	8-94178-624-0	01	1	1303-
14	LENS; TAIL & STOP,RR COMB LAMP	8-94178-625-0	01	1	1009-1302
14	LENS; TAIL & STOP,RR COMB LAMP EXC. NEW ZEALAND EQUIPMENT(PK5)	8-94178-625-0	01	1	1303-
15	SCREW; RR COMB LAMP NEW ZEALAND EQUIPMENT(PK5)	1-82239-012-0	26	1	1303-
15	SCREW; RR COMB LAMP M4X20 TAPPING STAINLESS	0-71190-420-0	16	1	1009-1302
15	SCREW; RR COMB LAMP EXC. NEW ZEALAND EQUIPMENT(PK5) M4X20 TAPPING STAINLESS	0-71190-420-0	16	1	1303-
28	GASKET; TURN,LAMP NEW ZEALAND EQUIPMENT(PK5)	1-82236-008-0	02	1	1303-
28	GASKET; TURN,LAMP	8-94257-507-0	02	1	1009-1302
28	GASKET; TURN,LAMP EXC. NEW ZEALAND EQUIPMENT(PK5)	8-94257-507-0	02	1	1303-
38	BOLT; LAMP,RR COMB NEW ZEALAND EQUIPMENT(PK5) M8X35 W/LK&PL WASHER	1-09030-073-0	02	1	1303-
38	BOLT; LAMP,RR COMB M6X30 W/LK&PL WASHER	0-50640-630-0	04	1	1009-1302
38	BOLT; LAMP,RR COMB EXC. NEW ZEALAND EQUIPMENT(PK5) M6X30 W/LK&PL WASHER	0-50640-630-0	04	1	1303-
40	REFLECTOR; REFLEX NEW ZEALAND EQUIPMENT(PK5)	8-97608-772-0	02	1	1303-
49	LAMP; LICENSE PLATE NEW ZEALAND EQUIPMENT(PK5) 24V 10W	1-82120-024-1	01	1	1303-
49	LAMP; LICENSE PLATE 24V 5W	8-97105-380-0	02	1	1009-1302
49	LAMP; LICENSE PLATE EXC. NEW ZEALAND EQUIPMENT(PK5) 24V 5W	8-97105-380-0	02	1	1303-1509
49	LAMP; LICENSE PLATE EXC. NEW ZEALAND EQUIPMENT(PK5) 24V 5W	8-98329-430-0	02	1	1510-
50	LENS; LICENSE PLATE LAMP NEW ZEALAND EQUIPMENT(PK5)	1-82235-006-0	01	1	1303-
50	LENS; LICENSE PLATE LAMP	8-97108-212-0	02	1	1009-1302
50	LENS; LICENSE PLATE LAMP EXC. NEW ZEALAND EQUIPMENT(PK5)	8-97108-212-0	02	1	1303-
51	BULB; LICENSE PLATE LAMP NEW ZEALAND EQUIPMENT(PK5) 24V 10W	1-82194-037-0	01	1	1303-
51	BULB; LICENSE PLATE LAMP 24V 5W	1-82194-039-0	02	1	1009-1302
51	BULB; LICENSE PLATE LAMP EXC. NEW ZEALAND EQUIPMENT(PK5) 24V 5W	1-82194-039-0	02	1	1303-
52	GROMMET; SCREW,LICENSE PLATE LAMP NEW ZEALAND EQUIPMENT(PK5) D=7.8X7.8 L=18 M5 BLACK	8-94275-946-0	02	1	1303-
53	GASKET; LICENSE LAMP NEW ZEALAND EQUIPMENT(PK5)	1-82126-005-0	01	1	1303-
54	SCREW; LICENSE PLATE LAMP NEW ZEALAND EQUIPMENT(PK5) M5X20	1-82129-007-0	02	1	1303-
54	SCREW; LICENSE PLATE LAMP M4X8	8-94419-312-0	02	1	1009-1302
54	SCREW; LICENSE PLATE LAMP EXC. NEW ZEALAND EQUIPMENT(PK5) M4X8	8-94419-312-0	02	1	1303-
57	WASHER; PL,LICENSE PLATE LAMP NEW ZEALAND EQUIPMENT(PK5)	1-82129-008-0	02	1	1303-
58	COVER; LICENSE PLATE LAMP NEW ZEALAND EQUIPMENT(PK5)	1-82129-005-0	01	1	1303-
58	COVER; LICENSE PLATE LAMP	8-97076-590-1	02	1	1009-1302
58	COVER; LICENSE PLATE LAMP EXC. NEW ZEALAND EQUIPMENT(PK5)	8-97076-590-1	02	1	1303-
60	LAMP; BACKUP NEW ZEALAND EQUIPMENT(PK5)	1-82130-025-0	01	1	1303-
62	BULB; BACKUP LAMP NEW ZEALAND EQUIPMENT(PK5) 24V 21W	1-82194-104-0	01	1	1303-
65	BOLT; LAMP,BACKUP NEW ZEALAND EQUIPMENT(PK5) M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	1303-
67	NUT; FLANGE NEW ZEALAND EQUIPMENT(PK5) M10 FLANGE	0-91180-210-0	02	1	1303-
303	SOCKET ASM; BACKUP LAMP NEW ZEALAND EQUIPMENT(PK5)	1-82135-006-0	01	1	1303-
