Sayfa 7-70 - Isuzu EPC

7-70 — SEPARATER AND BED (#70010) — 62 parça

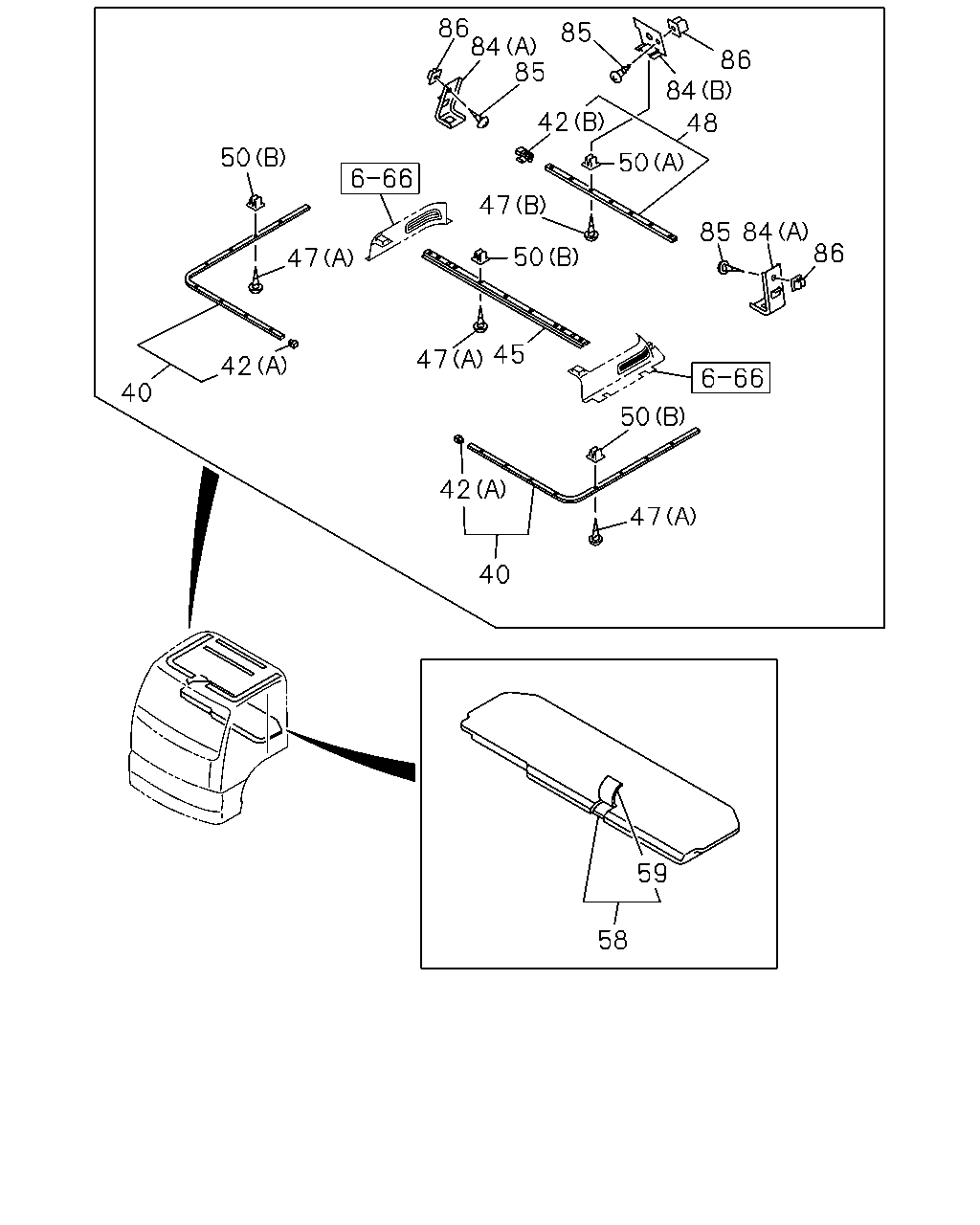

86 85 84 86 84 85 42 48 50 85 84 86 50 47 40 42 47 45 50 47 50 47 42 40 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	1009-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	1009-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	1009-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	1009-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	1009-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	1009-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	1009-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	1009-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-546-3	01	1	1009-
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-545-2	01	1	1009-
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	1009-
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	1009-
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	1009-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	1009-
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=13 M5	1-09983-159-0	07	1	1009-
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	1009-
58	BED; MAT MATTRESS SLEEPER CAB<E40> DRIVER ISRINGHAUSEN SEAT(SJA)	1-75127-018-3	01	1	1303-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75127-112-2	01	1	1009-1302
58	BED; MAT MATTRESS SLEEPER CAB<E40> EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75127-112-2	01	1	1303-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> DRIVER ISRINGHAUSEN SEAT(SJA)	1-75127-132-2	01	1	1303-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-130-1	01	1	1009-1302
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75127-130-1	01	1	1303-
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	1009-
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	1009-
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	1009-
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	1009-

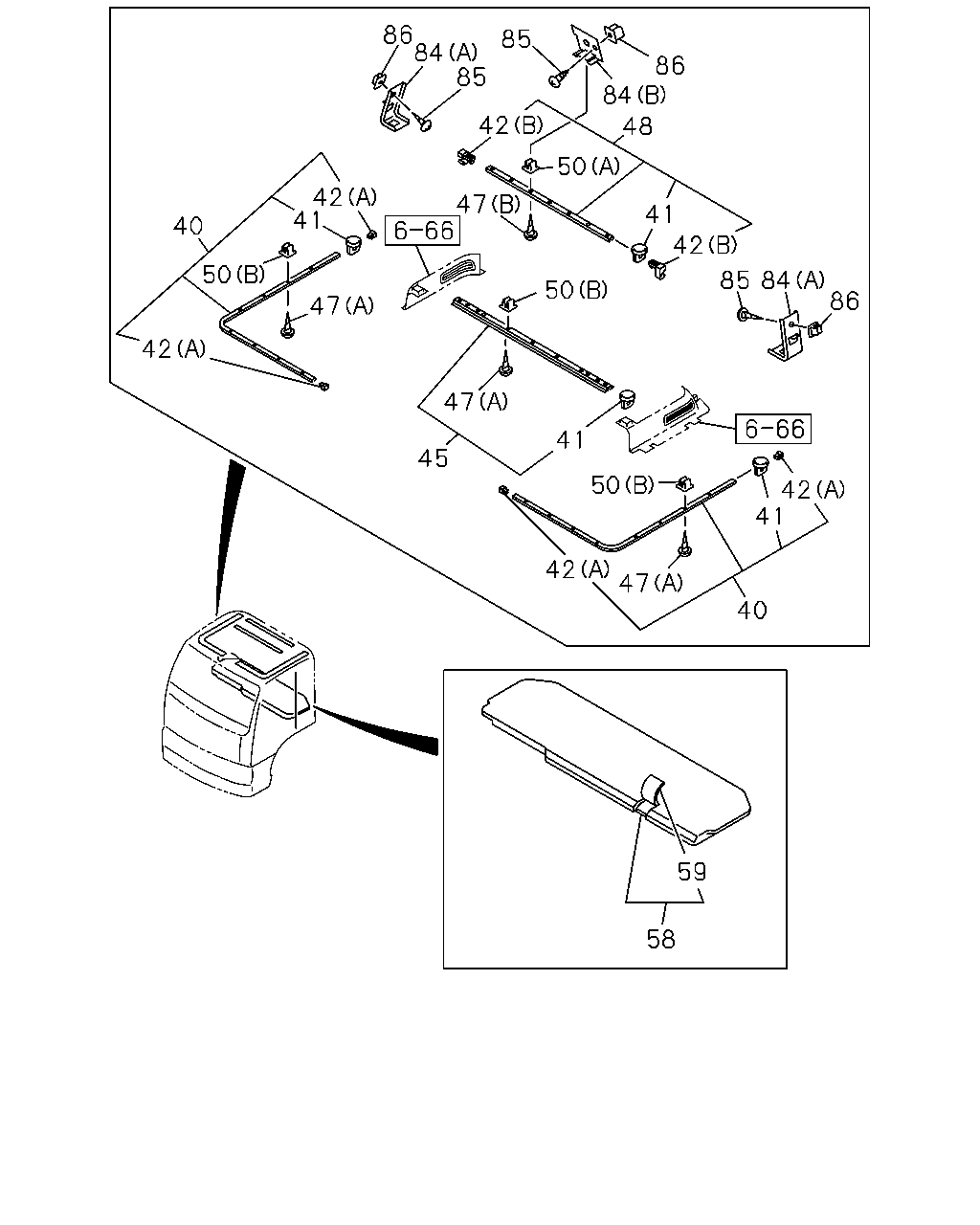

58 59 40 47 41 50 42 41 86 84 85 47 45 50 42 41 50 48 84 86 85 42 47 85 84 86 47 42 41 50 42 40 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	1009-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	1009-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	1009-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	1009-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	42	1	1009-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	1009-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	1009-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	1009-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	1009-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	1009-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-546-3	01	1	1009-
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-545-2	01	1	1009-
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	1009-
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	1009-
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	1009-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	1009-
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=13 M5	1-09983-159-0	07	1	1009-
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	1009-
58	BED; MAT MATTRESS SLEEPER CAB<E40> DRIVER ISRINGHAUSEN SEAT(SJA)	1-75127-018-3	01	1	1303-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75127-112-2	01	1	1009-1302
58	BED; MAT MATTRESS SLEEPER CAB<E40> EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75127-112-2	01	1	1303-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> DRIVER ISRINGHAUSEN SEAT(SJA)	1-75127-132-2	01	1	1303-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-130-1	01	1	1009-1302
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75127-130-1	01	1	1303-
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	1009-
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	1009-
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	1009-
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	1009-

64 92 44 44 51 51 46 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-480-1	01	1	1009-
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-481-1	01	1	1009-
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-426-0	01	1	1009-
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73907-482-1	01	1	1009-
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73907-483-1	01	1	1009-
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4>	1-73907-479-1	01	1	1009-
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73907-484-1	01	1	1009-
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73907-485-1	01	1	1009-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
