3-70 — BRAKE PIPING; AIR,AIR MASTER (#7001) — 170 parça

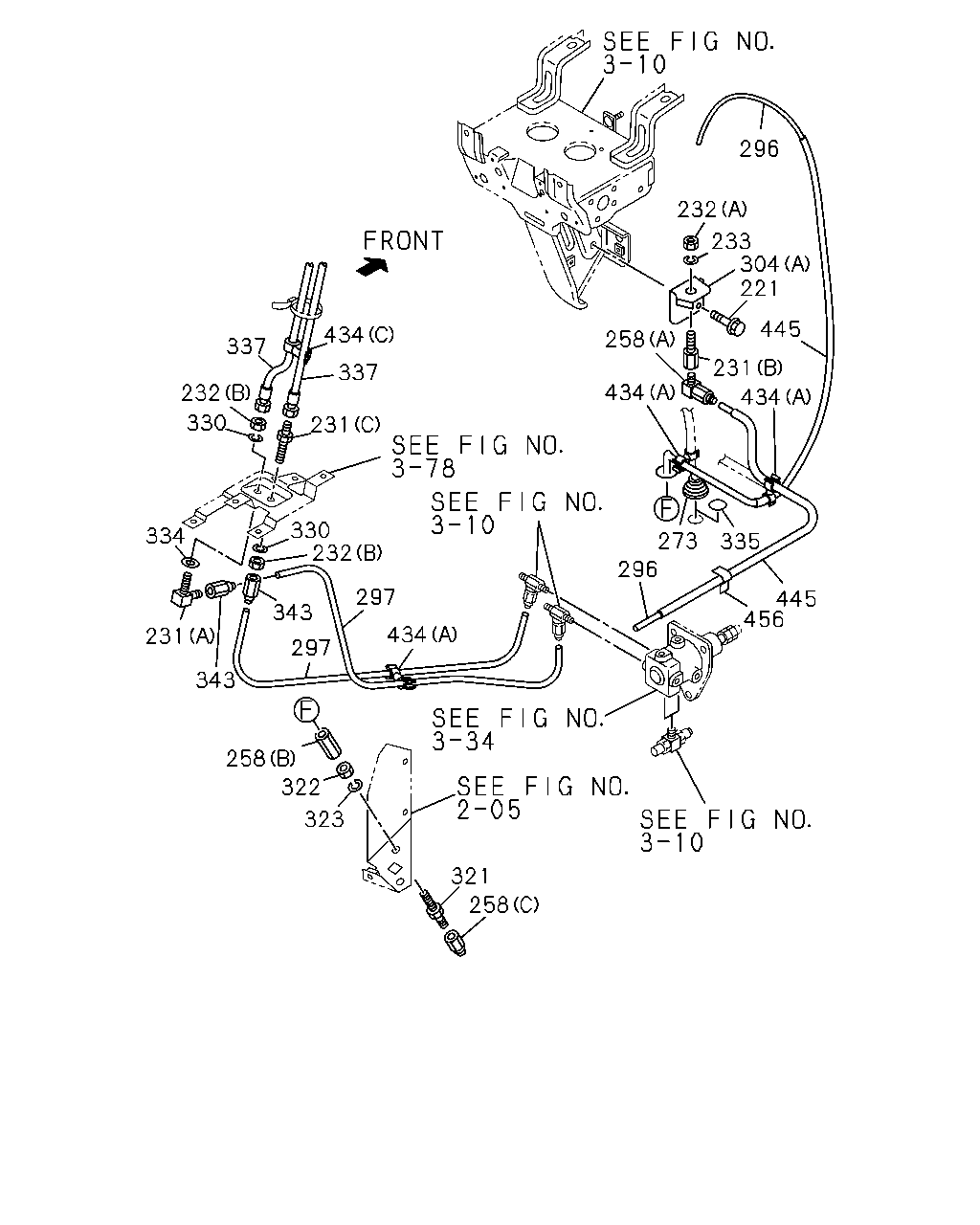

çizim 8314
296 232 233 304 221 445 231 434 434 258 335 273 296 445 456 434 337 231 337 232 330 334 231 330 232 297 343 297 434 343 258 322 323 321 258
BalonParca AdiParca NoAdetTipApplied Date
221 BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9908-
231 UNION; AIR PIPE
(A) M10 ELBOW 		1-09654-186-2 01 1 9908-
231 UNION; AIR PIPE
(C) M10 STRAIGHT 		1-09654-361-0 01 1 9908-
231 UNION; AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-09656-713-2 01 1 9908-
232 NUT; UNION,AIR PIPE
(B) M10 H=8 		1-09400-029-0 02 1 9908-
232 NUT; UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 H=8 		1-09400-029-0 01 1 9908-
233 WASHER; LK,UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 9908-
258 CONNECTOR; NYLON TUBE
(E) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 9908-0007
258 CONNECTOR; NYLON TUBE
(E) DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 0008-0009
258 CONNECTOR; NYLON TUBE
(E) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0010-
258 CONNECTOR; NYLON TUBE
(D) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 9908-9908
258 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 9909-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 9909-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 9908-0302
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-09660-796-1 01 1 9908-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9908-0007
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-
258 CONNECTOR; NYLON TUBE
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 9909-
273 GROMMET
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09332-102-0 01 1 9908-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 9908-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 9908-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9908-0001
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0002-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 OD=6 		1-87410-081-0 01 1 9908-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 02 1 9908-
304 BRACKET; UNION
(B) 		1-47477-182-1 01 1 9908-9908
304 BRACKET; UNION
EXC. ENGINE REAR PTO(SV1) (B) 		1-47477-182-1 01 1 9909-
304 BRACKET; UNION
ENGINE REAR PTO(SV1) (B) 		1-47477-184-1 01 1 9909-
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-71117-210-0 01 1 9908-
321 JOINT; FLEX HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09656-738-0 01 1 9908-
322 NUT; JOINT,FLEX HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 9908-
323 WASHER; LK,JOINT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 9908-
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 02 1 9908-
334 SPACER; PIPE UNION
ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 9908-
335 SEAL; UNION
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK 		1-76798-035-0 01 1 9908-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 9908-
343 UNION; NYLON TUBE 1-09660-796-1 02 1 9908-
343 UNION; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09660-796-1 01 1 9908-
434 CLIP
(B) L=300 		1-09707-001-1 01 1 9908-
434 CLIP
(C) ID=10 & 10 		1-09709-221-0 01 1 9908-
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8.3 & 8.3 		8-94426-175-0 03 1 9908-
445 GUARD
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=520 ID=7.4 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 9908-
456 SEAL; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 100X40 		1-72498-022-0 01 1 9908-

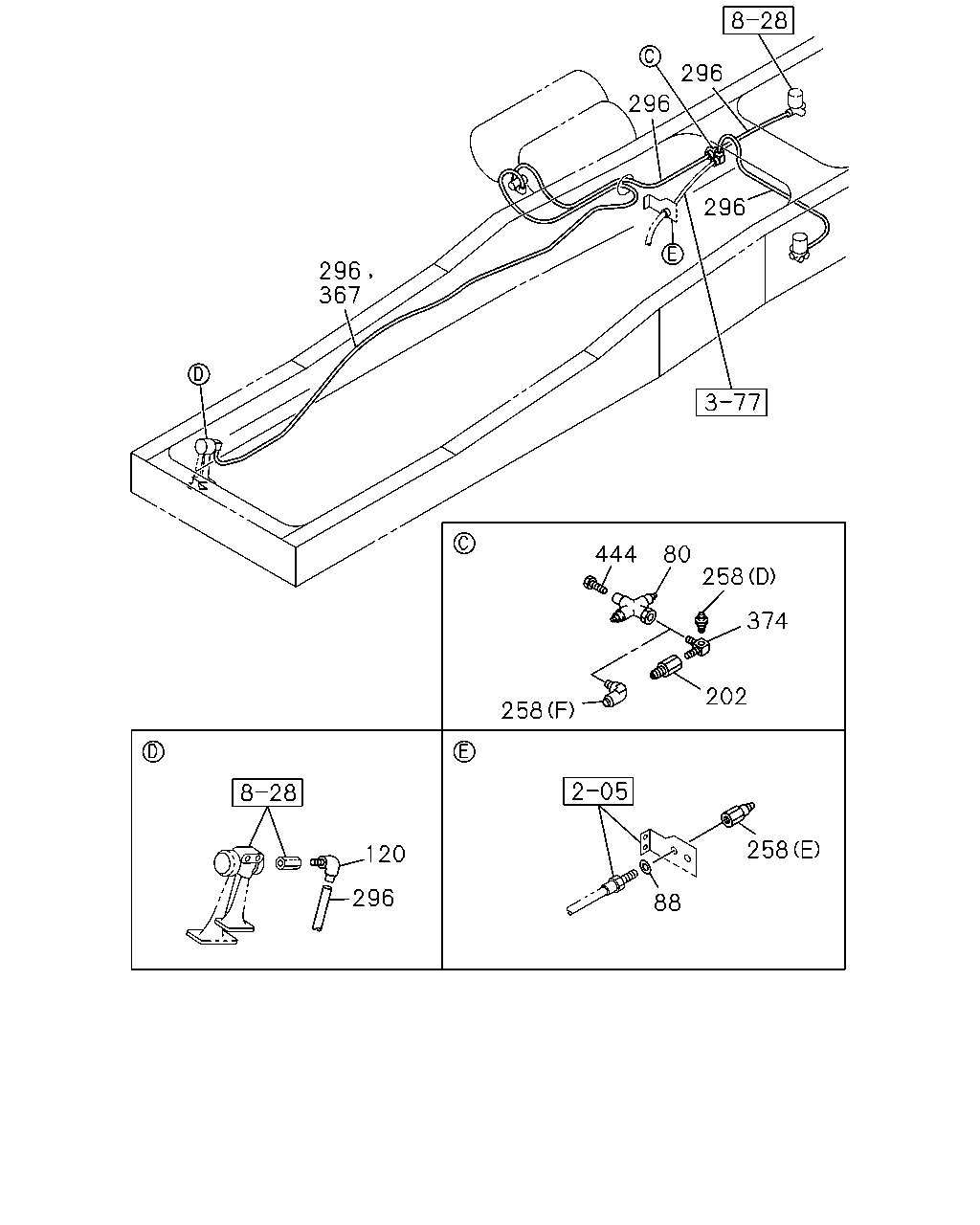

çizim 44075
296 296 296 296 367 80 444 258 374 202 258 258 120 296 88
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 9908-
88 GASKET; NYLON TUBE
ID=11 OD=18 		9-09572-510-0 01 1 9908-
120 CONNECTOR; AIR PIPE
DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9908-
202 ADAPTER
DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 9908-9908
202 ADAPTER
TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 9909-0007
202 ADAPTER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 9909-0007
202 ADAPTER
TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0008-
202 ADAPTER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0008-
258 CONNECTOR; NYLON TUBE
(E) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 9908-0007
258 CONNECTOR; NYLON TUBE
(E) DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 0008-0009
258 CONNECTOR; NYLON TUBE
(E) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0010-
258 CONNECTOR; NYLON TUBE
(D) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 9908-9908
258 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 9909-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 9909-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 9908-0302
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-09660-796-1 01 1 9908-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9908-0007
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-
258 CONNECTOR; NYLON TUBE
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 9909-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 9908-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 9908-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9908-0001
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0002-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 OD=6 		1-87410-081-0 01 1 9908-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9908-
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=10 		1-87410-089-0 01 1 9908-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 9908-
367 TUBE; CORRUGATE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 9908-
374 CONNECTOR
M16 PT3/8X2 3WAY 		1-09656-418-2 01 1 9908-9908
374 CONNECTOR
TRANSMISSION SIDE PTO WO/LEVER(SH5) M16 PT3/8X2 3WAY 		1-09656-418-2 01 1 9909-
374 CONNECTOR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M16 PT3/8X2 3WAY 		1-09656-418-2 01 1 9909-
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 01 1 9908-

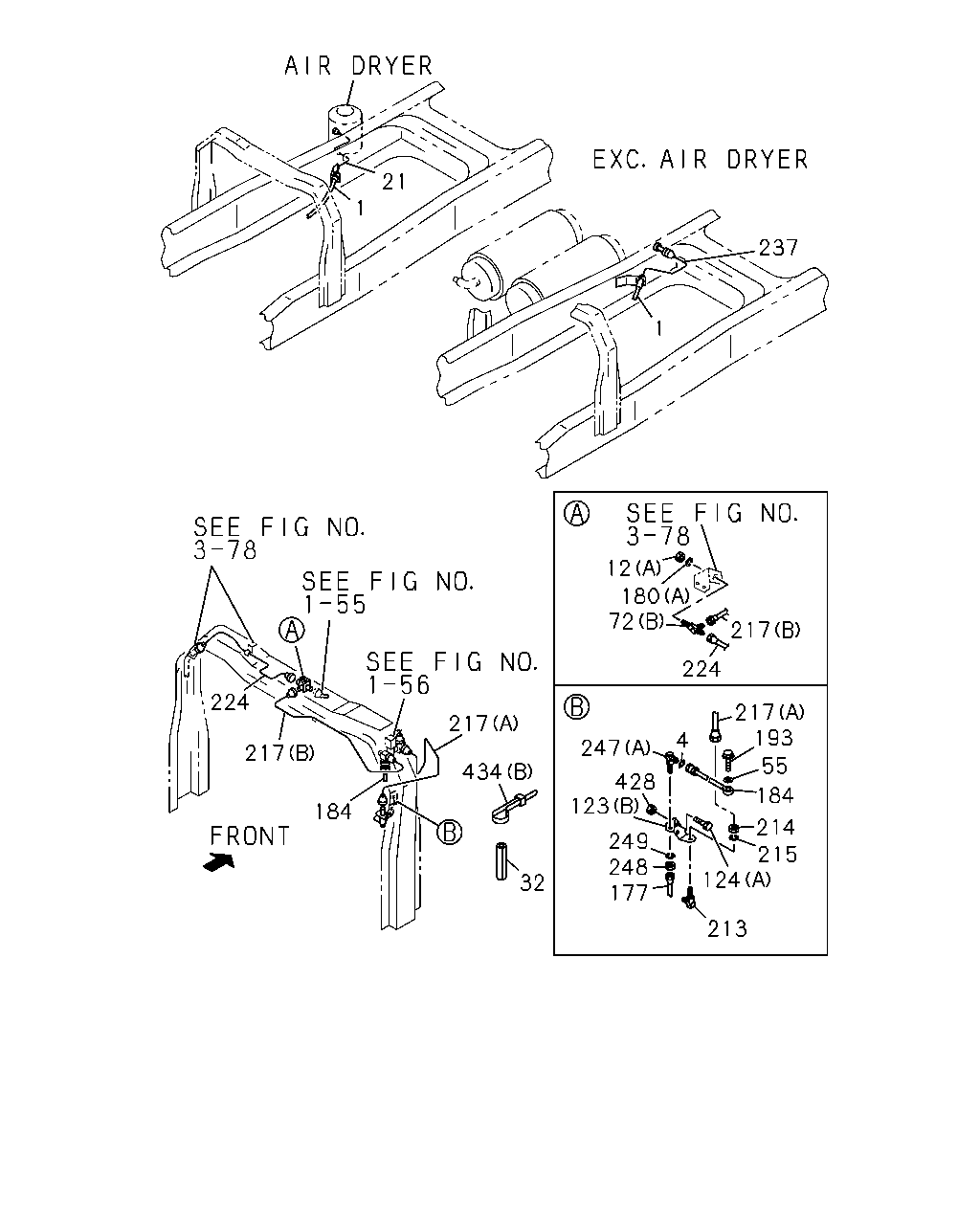

çizim 44111
1 21 237 1 224 217 184 217 434 32 12 180 72 224 217 217 193 55 184 214 215 124 213 4 247 428 123 249 248 177
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=640 		0-07816-540-1 01 1 9908-
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 03 1 9908-9908
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 02 1 9909-
12 NUT; UNION
(A) M12 		9-09840-280-0 01 1 9908-
12 NUT; UNION
(B) M20 		9-99111-420-0 01 1 9908-
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> L=549 		1-49116-241-0 01 1 9908-
32 SLEEVE; RUBBER,AIR PIPE
ID=6 L=30 		5-09360-352-0 01 1 9908-9910
32 SLEEVE; RUBBER,AIR PIPE
ID=6 OD=10 L=70 		1-09376-512-0 01 1 9911-
32 SLEEVE; RUBBER,AIR PIPE
ID=12.5 OD=15.5 L=30 		9-09714-002-0 02 1 9908-
55 GASKET; AIR PIPE
ID=14.2 OD=19.2 		1-09630-085-0 02 1 9908-
72 UNION; AIR PIPE
(A) 		1-09654-097-1 01 1 9908-
72 UNION; AIR PIPE
(B) M12 3WAY 		9-09228-906-1 01 1 9908-
123 BRACKET; UNION
(B) 		1-47477-045-0 01 1 9908-
123 BRACKET; UNION
(A) 		1-47477-187-0 01 1 9908-9908
123 BRACKET; UNION
(A) 		1-47477-877-0 01 1 9909-
124 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9908-
124 BOLT; BRKT
(B) M8X35 FLANGE 		0-28680-835-0 01 1 9908-
177 PIPE; AIR,UNION TO UNION
L=823 		1-49117-411-0 01 1 9908-9908
177 PIPE; AIR,UNION TO UNION
L=803 		1-49122-235-0 01 1 9909-
180 WASHER; LK,UNION
(A) ID=12.2 		9-09150-512-0 01 1 9908-
180 WASHER; LK,UNION
(B) ID=22.5 		9-09150-522-0 01 1 9908-
184 HOSE; FLEX,AIR GOV
L=370 		0-07532-370-1 01 1 9908-
193 BOLT; EYE,FLEX HOSE,GOV LINE
M14X27 FLANGE 		1-09675-086-0 01 1 9908-
213 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 01 1 9908-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 9908-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		9-09150-512-0 01 1 9908-
217 PIPE; VAC,UNION TO MAG VLV
(A) L=620 		1-49121-778-0 01 1 9908-
217 PIPE; VAC,UNION TO MAG VLV
(B) L=552 		1-49121-876-0 01 1 9908-
224 PIPE; AIR,UNION TO FLEX HOSE
L=494 SERVICED BY L=500 		1-47428-807-0 01 1 9908-
237 PIPE; AIR,FLEX HOSE TO UNION
EXC. AIR DRYER<PS7> L=373 		1-49116-157-1 01 1 9908-
247 UNION; AIR PIPE
(A) M12 		1-09654-087-1 01 1 9908-
247 UNION; AIR PIPE
(B) M12 L=40 		9-09223-006-1 01 1 9908-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 9908-
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 9908-
428 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9908-
434 CLIP
(B) L=300 		1-09707-001-1 01 1 9908-
434 CLIP
(C) ID=10 & 10 		1-09709-221-0 01 1 9908-
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8.3 & 8.3 		8-94426-175-0 03 1 9908-

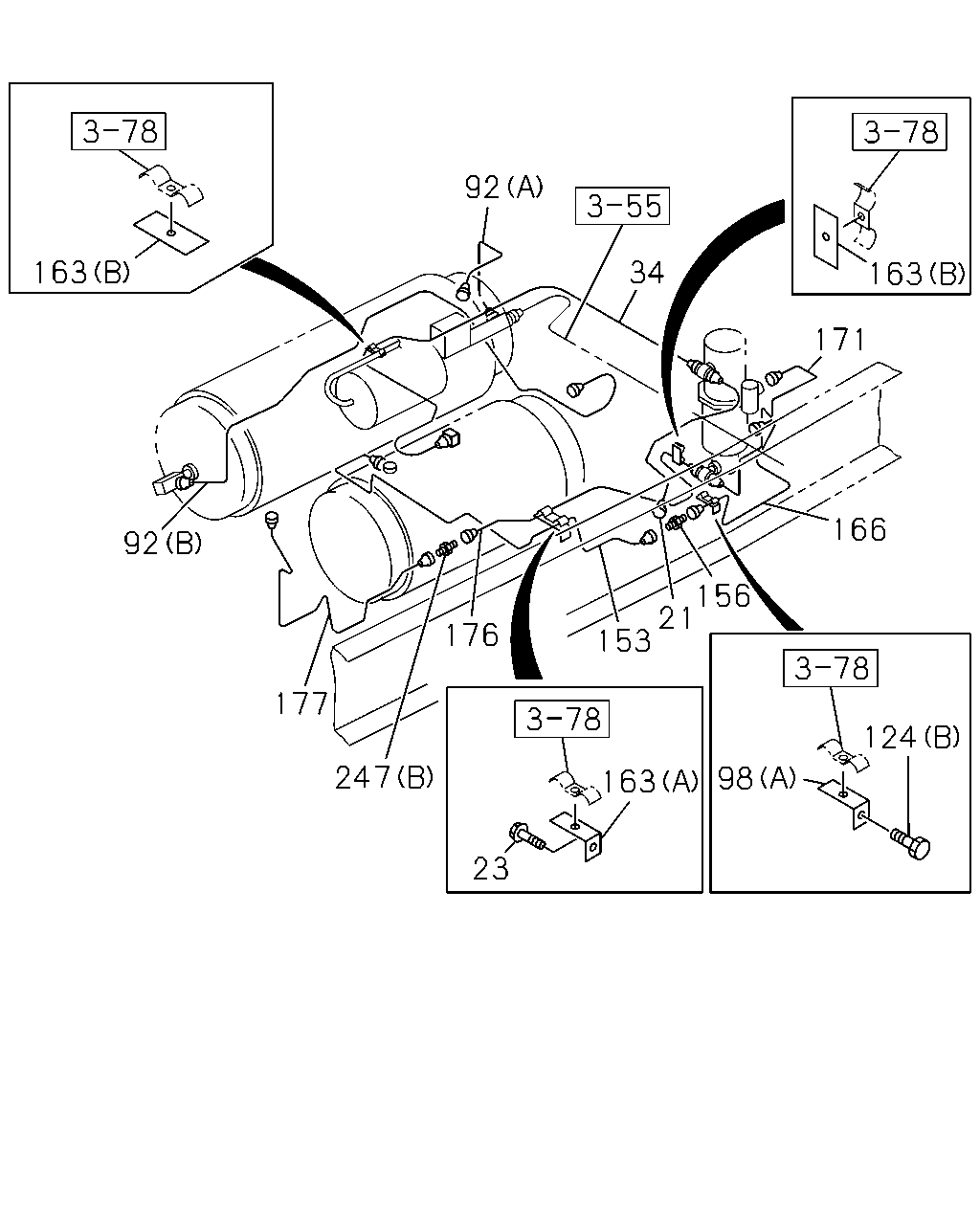

çizim 44112
92 163 34 163 171 166 92 156 21 153 176 177 124 247 98 163 23
BalonParca AdiParca NoAdetTipApplied Date
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> L=549 		1-49116-241-0 01 1 9908-
23 BOLT; BRKT,AIR PIPE
M8X35 FLANGE 		0-28680-835-0 01 1 9908-
34 PIPE; AIR
AIR DRYER<PS7> L=1065 		1-49121-551-0 01 1 9908-
92 PIPE; AIR,AIR TANK TO AIR MASTER
(A) L=541 		1-47492-107-0 01 1 9908-
92 PIPE; AIR,AIR TANK TO AIR MASTER
(B) L=1509 		1-49116-233-0 01 1 9908-
98 BRACKET; AIR PIPE
(A) L=55 		1-47475-304-0 01 1 9908-
98 BRACKET; AIR PIPE
(B) 		1-47477-840-0 02 1 9908-
124 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9908-
124 BOLT; BRKT
(B) M8X35 FLANGE 		0-28680-835-0 01 1 9908-
153 PIPE; AIR,AIR TANK TO UNION
L=1024 		1-49117-409-0 01 1 9908-9908
153 PIPE; AIR,AIR TANK TO UNION
L=1007 		1-49122-280-0 01 1 9909-
156 UNION; AIR PIPE
M12 L=40 		9-09223-006-1 01 1 9908-
163 BRACKET; AIR PIPE
(B) L=50 		1-47475-299-2 02 1 9908-9908
163 BRACKET; AIR PIPE
(B) L=50 		1-47475-299-2 03 1 9909-
163 BRACKET; AIR PIPE
(A) L=55 		1-47475-304-0 01 1 9908-
166 PIPE; AIR,UNION TO GOV
L=464 		1-49119-765-0 01 1 9908-
171 PIPE; AIR,GOV TO AIR DRYER
L=667 		1-49119-766-0 01 1 9908-
176 PIPE; AIR,AIR DRYER TO UNION
L=1138 		1-49117-410-0 01 1 9908-
177 PIPE; AIR,UNION TO UNION
L=823 		1-49117-411-0 01 1 9908-9908
177 PIPE; AIR,UNION TO UNION
L=803 		1-49122-235-0 01 1 9909-
247 UNION; AIR PIPE
(A) M12 		1-09654-087-1 01 1 9908-
247 UNION; AIR PIPE
(B) M12 L=40 		9-09223-006-1 01 1 9908-

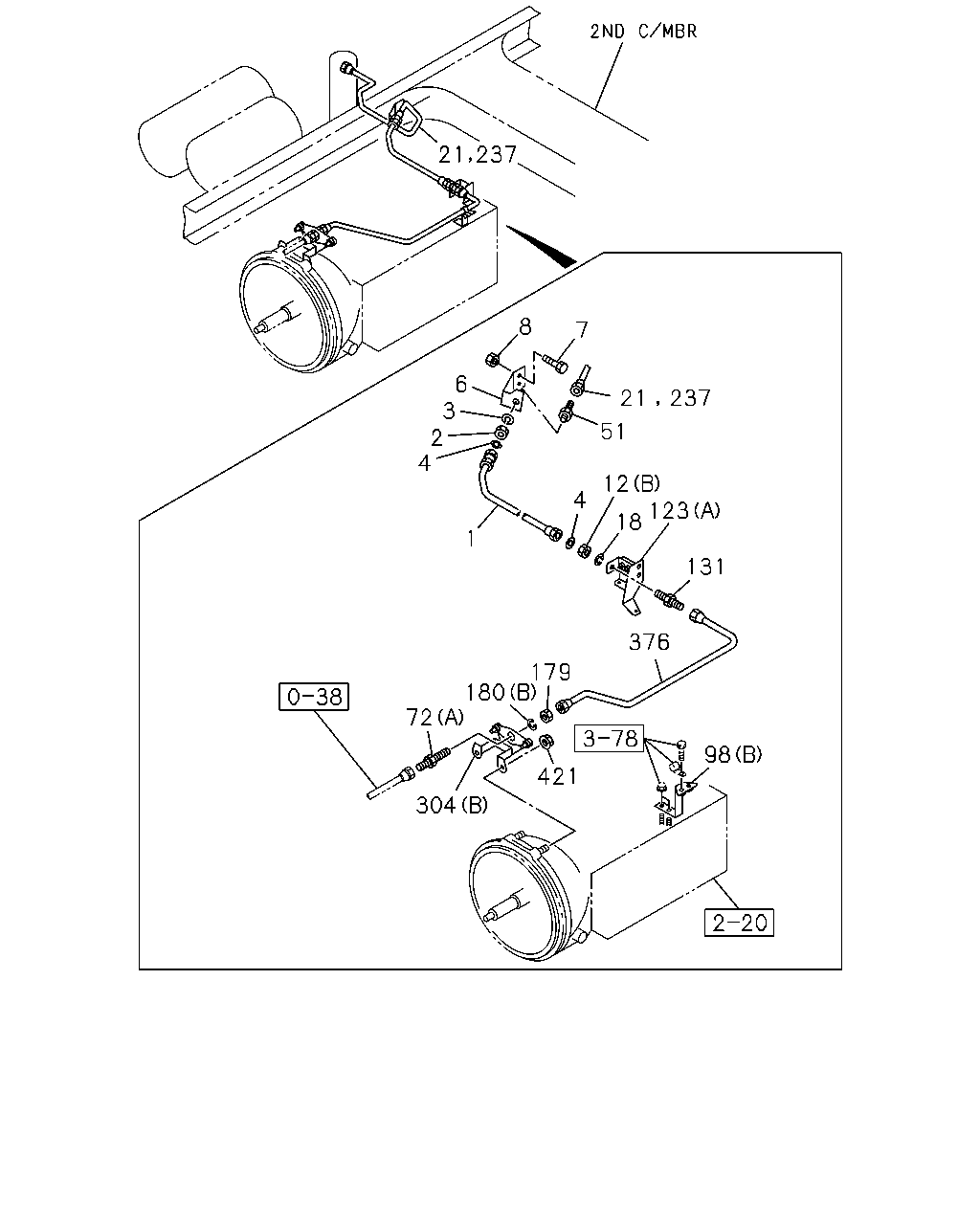

çizim 44451
8 7 6 3 2 4 21 237 51 12 123 18 4 1 131 376 179 180 72 98 421 304 21 237
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=640 		0-07816-540-1 01 1 9908-
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9908-
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9908-
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 03 1 9908-9908
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 02 1 9909-
6 BRACKET; FLEX HOSE,AIR TANK 1-47477-198-1 01 1 9908-9908
6 BRACKET; FLEX HOSE,AIR TANK 1-47477-661-0 01 1 9909-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X35 FLANGE 		0-28680-835-0 02 1 9908-
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91150-108-0 02 1 9908-
12 NUT; UNION
(A) M12 		9-09840-280-0 01 1 9908-
12 NUT; UNION
(B) M20 		9-99111-420-0 01 1 9908-
18 WASHER; LK,UNION
ID=20.2 		9-09150-520-0 01 1 9908-
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> L=549 		1-49116-241-0 01 1 9908-
51 UNION
M20 & M22 STRAIGHT 		1-09654-166-1 01 1 9908-
72 UNION; AIR PIPE
(A) 		1-09654-097-1 01 1 9908-
72 UNION; AIR PIPE
(B) M12 3WAY 		9-09228-906-1 01 1 9908-
98 BRACKET; AIR PIPE
(A) L=55 		1-47475-304-0 01 1 9908-
98 BRACKET; AIR PIPE
(B) 		1-47477-840-0 02 1 9908-
123 BRACKET; UNION
(B) 		1-47477-045-0 01 1 9908-
123 BRACKET; UNION
(A) 		1-47477-187-0 01 1 9908-9908
123 BRACKET; UNION
(A) 		1-47477-877-0 01 1 9909-
131 UNION; AIR PIPE
M20 & M22 STRAIGHT 		1-09654-166-1 01 1 9908-9908
179 NUT; UNION
M22 		9-09111-422-0 01 1 9908-
180 WASHER; LK,UNION
(A) ID=12.2 		9-09150-512-0 01 1 9908-
180 WASHER; LK,UNION
(B) ID=22.5 		9-09150-522-0 01 1 9908-
237 PIPE; AIR,FLEX HOSE TO UNION
EXC. AIR DRYER<PS7> L=373 		1-49116-157-1 01 1 9908-
304 BRACKET; UNION
(B) 		1-47477-182-1 01 1 9908-9908
304 BRACKET; UNION
EXC. ENGINE REAR PTO(SV1) (B) 		1-47477-182-1 01 1 9909-
304 BRACKET; UNION
ENGINE REAR PTO(SV1) (B) 		1-47477-184-1 01 1 9909-
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-71117-210-0 01 1 9908-
376 PIPE; AIR,FLEX HOSE
ENGINE REAR PTO(SV1) L=685 		1-49112-569-0 01 1 9908-
376 PIPE; AIR,FLEX HOSE
EXC. ENGINE REAR PTO(SV1) L=643 		1-49112-568-0 01 1 9908-
421 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9908-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
