Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#70008) — 384 parça

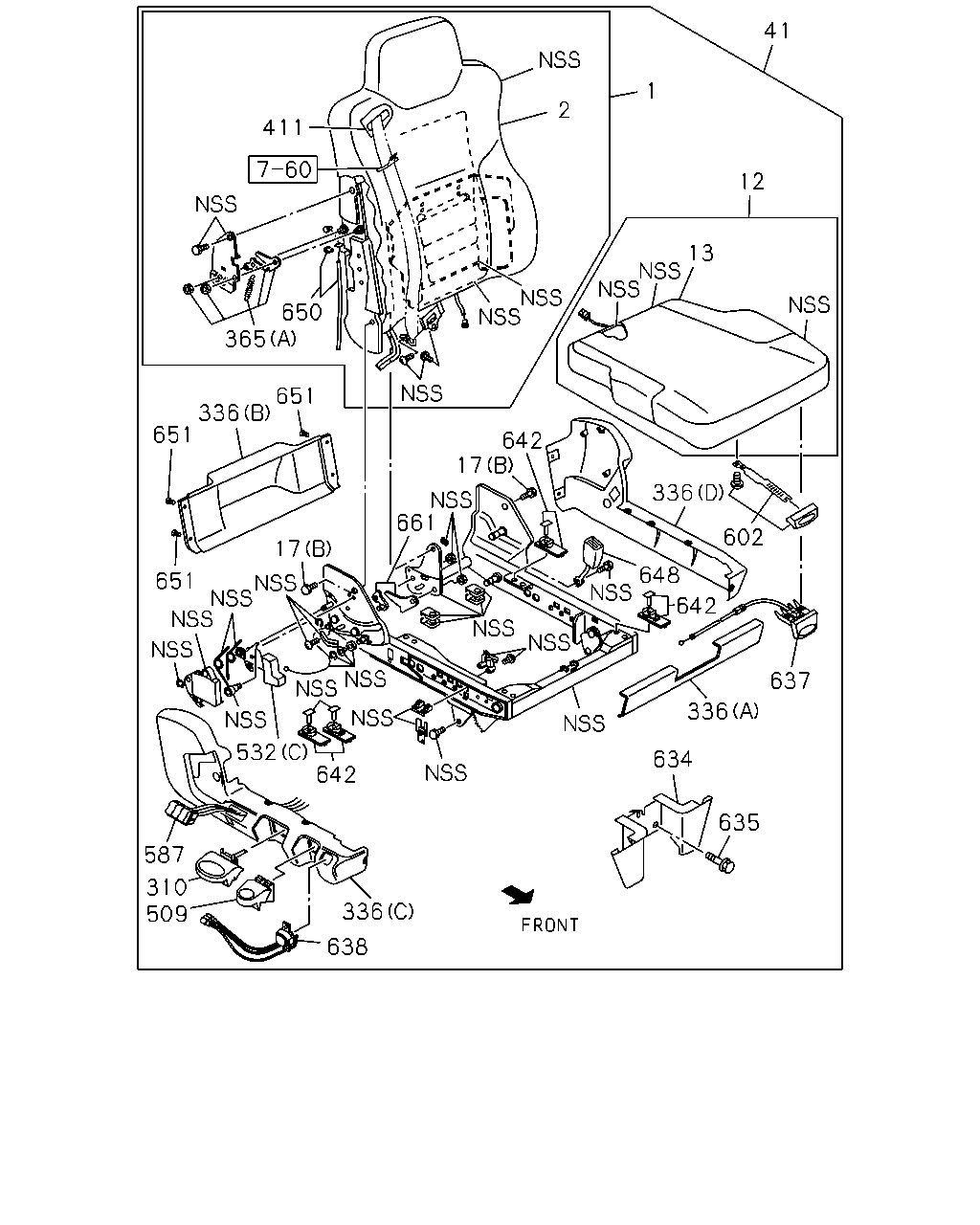

411 650 365 651 336 651 651 17 532 587 310 509 638 336 642 635 634 336 637 642 602 648 336 41 12 13 1 2 642 17 661

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98135-639-0	01	1	1009-1009
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98168-072-0	01	1	1010-
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98135-635-0	01	1	1009-1302
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98097-964-0	01	1	1303-
1	BACK ASM; SEAT VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98135-630-0	01	1	1009-
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-187-0	01	1	1009-1009
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98168-089-0	01	1	1010-
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-165-1	01	1	1009-1302
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98232-353-0	01	1	1303-
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-146-2	01	1	1009-
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98098-006-0	01	1	1303-
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-770-0	01	1	1009-1009
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98168-048-0	01	1	1010-
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-603-2	01	1	1009-1302
12	CUSHION; SEAT,FRT VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-603-2	01	1	1009-1302
12	CUSHION; SEAT,FRT VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-603-2	01	1	1303-
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98098-007-0	01	1	1303-
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-186-0	01	1	1009-1009
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98168-081-0	01	1	1010-
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-102-1	01	1	1009-1302
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-102-1	01	1	1009-1302
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-102-1	01	1	1303-
17	BOLT; RECLINING (A) M8X20	8-97255-906-0	02	1	1009-1302
17	BOLT; RECLINING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M8X20	8-97255-906-0	02	1	1303-
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (B)	8-98097-974-0	02	1	1303-
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98195-067-1	01	1	1303-
310	LEVER ASM; HEIGHT ADJ DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98097-992-0	01	1	1303-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (D)	8-98097-978-0	01	1	1303-1508
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (D)	8-98331-313-0	01	1	1509-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (C)	8-98097-984-0	01	1	1303-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (A)	8-98097-995-0	01	1	1303-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (B)	8-98097-996-0	01	1	1303-
336	COVER; DRIVER SEAT (E)	1-75518-303-0	01	1	1009-1302
336	COVER; DRIVER SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E)	1-75518-303-0	01	1	1303-
365	LOCK ASM; SEAT DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (A)	8-98097-972-0	01	1	1303-

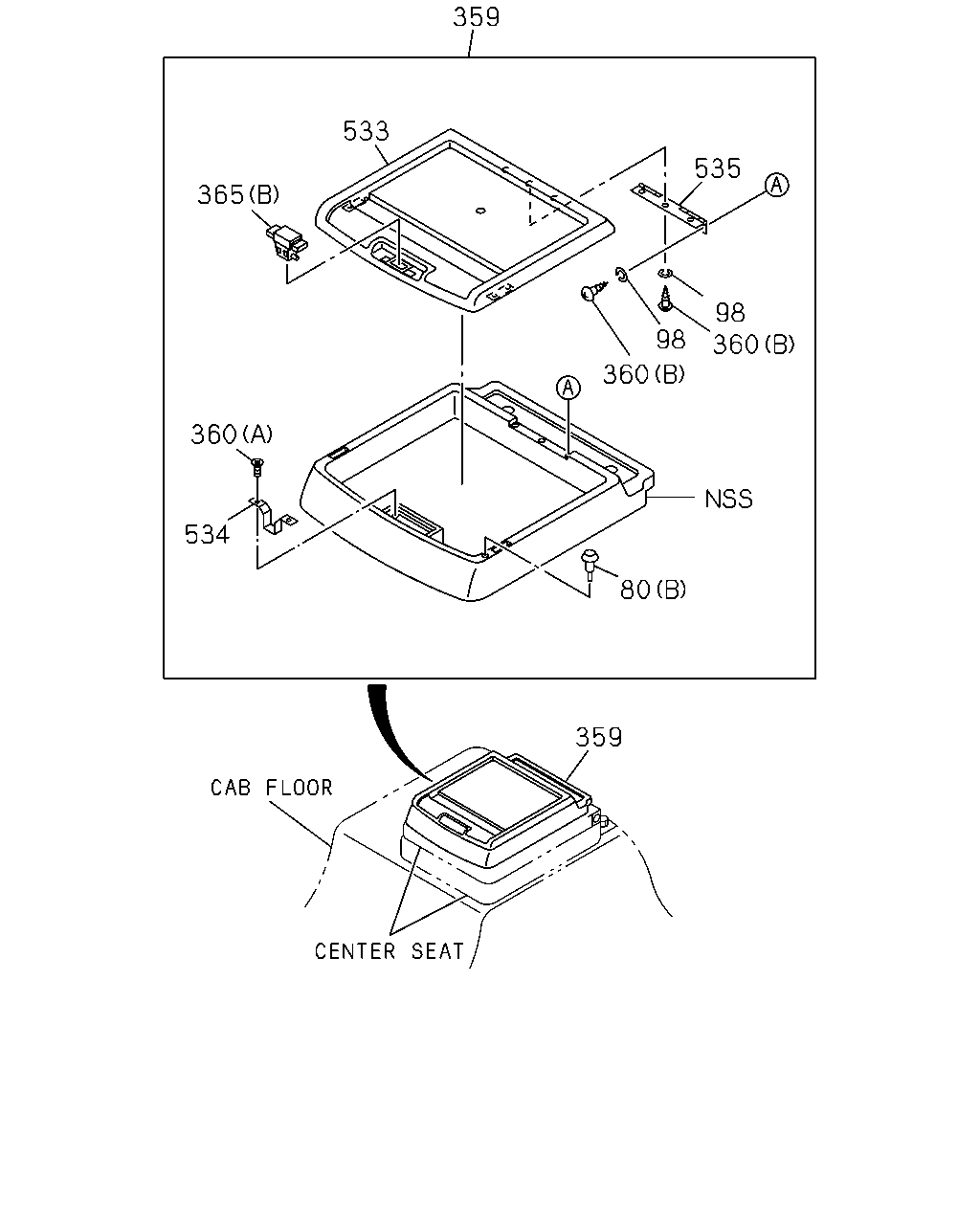

365	LOCK ASM; SEAT CENTER SEAT(SA1) (B)	1-72538-180-0	01	1	1009-
411	GUIDE; SEAT BELT DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98097-967-0	01	1	1303-
509	LEVER; DAMPER DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98097-988-0	01	1	1303-
532	LEVER ASM; TILT DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (C)	8-98097-982-0	01	1	1303-
532	LEVER ASM; TILT (A)	1-75518-203-0	01	1	1009-1302
532	LEVER ASM; TILT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-203-0	01	1	1303-
532	LEVER ASM; TILT (B)	1-75518-204-1	01	1	1009-1302
532	LEVER ASM; TILT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-204-1	01	1	1303-
587	VALVE; LUMBAR SUPPORT DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98097-986-0	01	1	1303-
602	KNOB; ADJ,SEAT DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98098-008-0	01	1	1303-
634	COVER; CONNECTOR,SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	8-98088-279-0	01	1	1303-
635	BOLT; COVER DRIVER ISRINGHAUSEN SEAT(SJA) M6X16	0-52000-616-0	02	1	1303-
637	LEVER; SLOPE ADJ DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98097-989-0	01	1	1303-
638	VALVE; LOWERING DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98097-994-0	01	1	1303-
642	SLIDER; CUSHION DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98192-932-0	04	1	1303-
648	BUCKLE; SEAT BELT DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98097-976-0	01	1	1303-
650	CABLE DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98232-354-0	01	1	1303-
651	RIVET DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98194-075-0	04	1	1303-
661	LOCK ASM; RECLINING DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98097-980-0	01	1	1303-

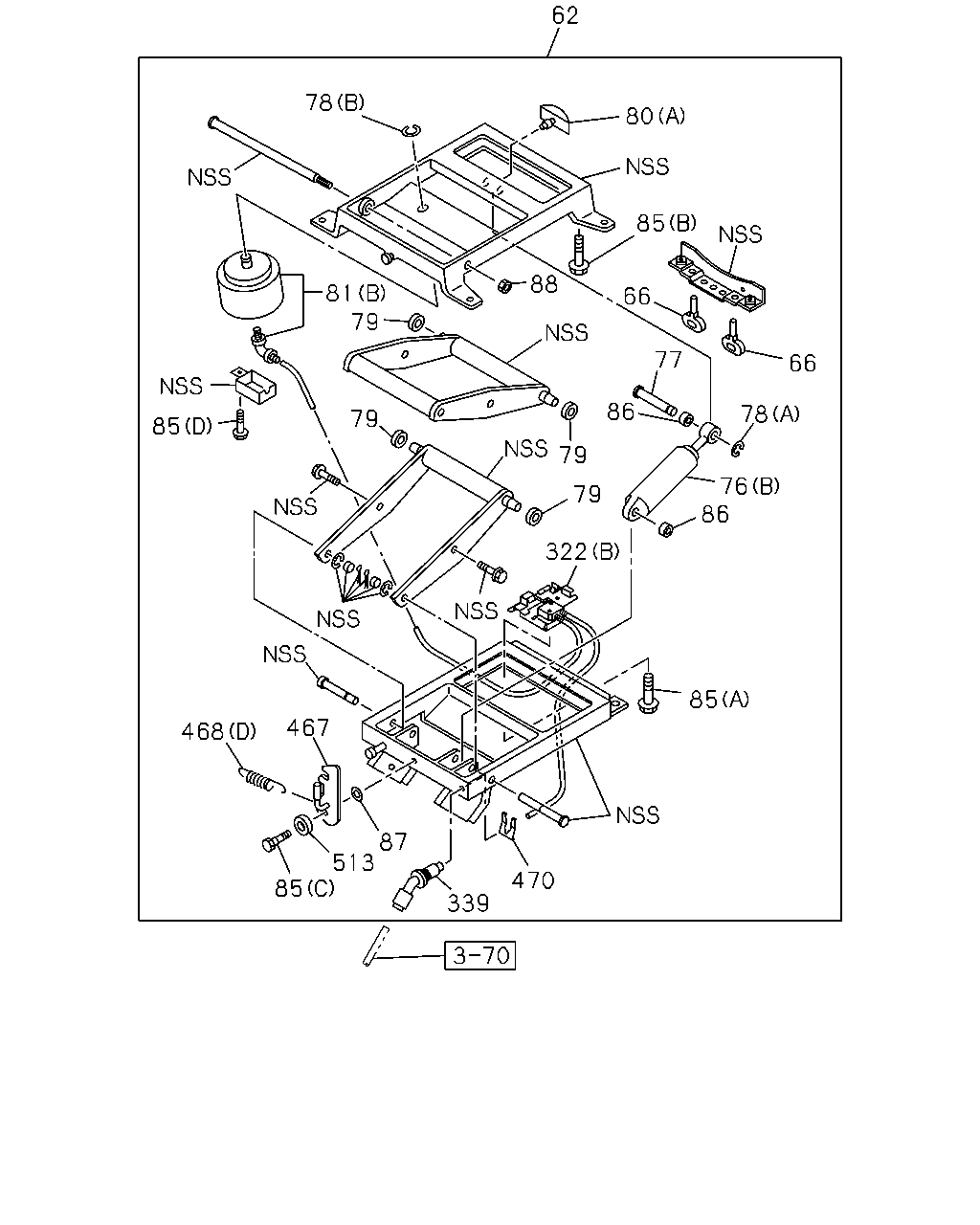

62 78 80 85 88 81 79 79 85 79 322 79 76 78 77 66 66 86 86 85 470 339 87 513 85 467 468

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-262-8	01	1	1009-1403
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98261-449-0	01	1	1404-
66	RUBBER; LWR STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-145-0	02	1	1009-
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (A)	8-98097-999-0	01	1	1303-
76	DAMPER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75537-230-2	01	1	1009-
77	PIN; DAMPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-138-2	01	1	1009-
78	RING; SNAP DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (C)	8-98101-900-0	02	1	1303-
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8	9-09185-408-0	01	1	1009-
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15	9-09185-415-0	01	1	1009-
79	ROLLER ASM; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-159-0	04	1	1009-1403
79	ROLLER ASM; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98261-489-0	04	1	1404-
80	RUBBER; STOPPER CENTER SEAT(SA1) (B)	1-72538-187-0	02	1	1009-
80	RUBBER; STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09987-123-0	01	1	1009-
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (A)	8-98098-000-0	01	1	1303-
81	SPRING; AIR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75538-151-2	01	1	1009-1312
81	SPRING; AIR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	8-98242-816-0	01	1	1401-
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-09980-577-1	01	1	1009-
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12	1-75538-208-1	02	1	1009-
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	1009-1312
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1401-
86	BUSHING; GUIDE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1009-
87	WASHER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2	0-91510-508-0	01	1	1009-
88	NUT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10	1-75537-273-1	01	1	1009-
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (A)	8-98098-001-0	01	1	1303-1508
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (A)	8-98331-314-0	01	1	1509-
322	VALVE; AIR SPRING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75538-186-3	01	1	1009-
339	UNION; DRIVER SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-131-3	01	1	1009-
467	LEVER; LOCK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-134-0	01	1	1009-
468	SPRING; RETURN (A)	1-75518-206-0	01	1	1009-1302
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-206-0	01	1	1303-
468	SPRING; RETURN (B)	1-75518-207-0	01	1	1009-1302
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-207-0	01	1	1303-
468	SPRING; RETURN (C)	1-75518-208-0	02	1	1009-1302
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-208-0	02	1	1303-
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	1009-
470	CLIP; HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-137-0	01	1	1009-
513	SPACER; LEVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-133-0	01	1	1009-

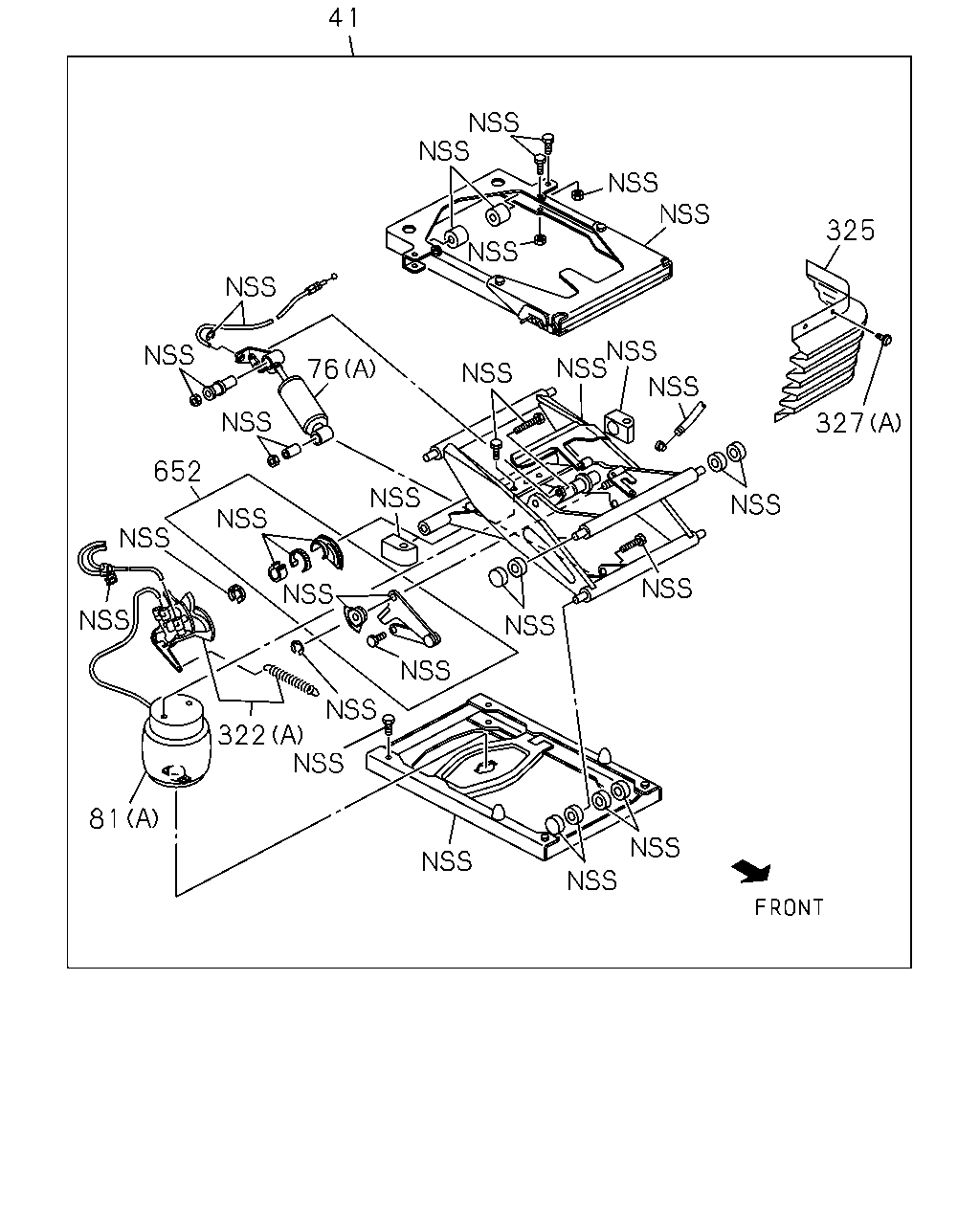

41 325 327 322 81 652 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98195-067-1	01	1	1303-
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (A)	8-98097-999-0	01	1	1303-
76	DAMPER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75537-230-2	01	1	1009-
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (A)	8-98098-000-0	01	1	1303-
81	SPRING; AIR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75538-151-2	01	1	1009-1312
81	SPRING; AIR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	8-98242-816-0	01	1	1401-
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (A)	8-98098-001-0	01	1	1303-1508
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (A)	8-98331-314-0	01	1	1509-
322	VALVE; AIR SPRING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75538-186-3	01	1	1009-
325	COVER; SUSPENSION DEVICE DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98098-003-0	01	1	1303-
327	CLIP; COVER DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (A)	8-98098-004-0	01	1	1303-
327	CLIP; COVER (B)	1-09987-273-0	02	1	1009-1302
327	CLIP; COVER VINYL SEAT(A83) (B)	1-09987-273-0	02	1	1009-1302
327	CLIP; COVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-09987-273-0	02	1	1303-
652	LOCK ASM; HEIGHT DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98098-002-0	01	1	1303-

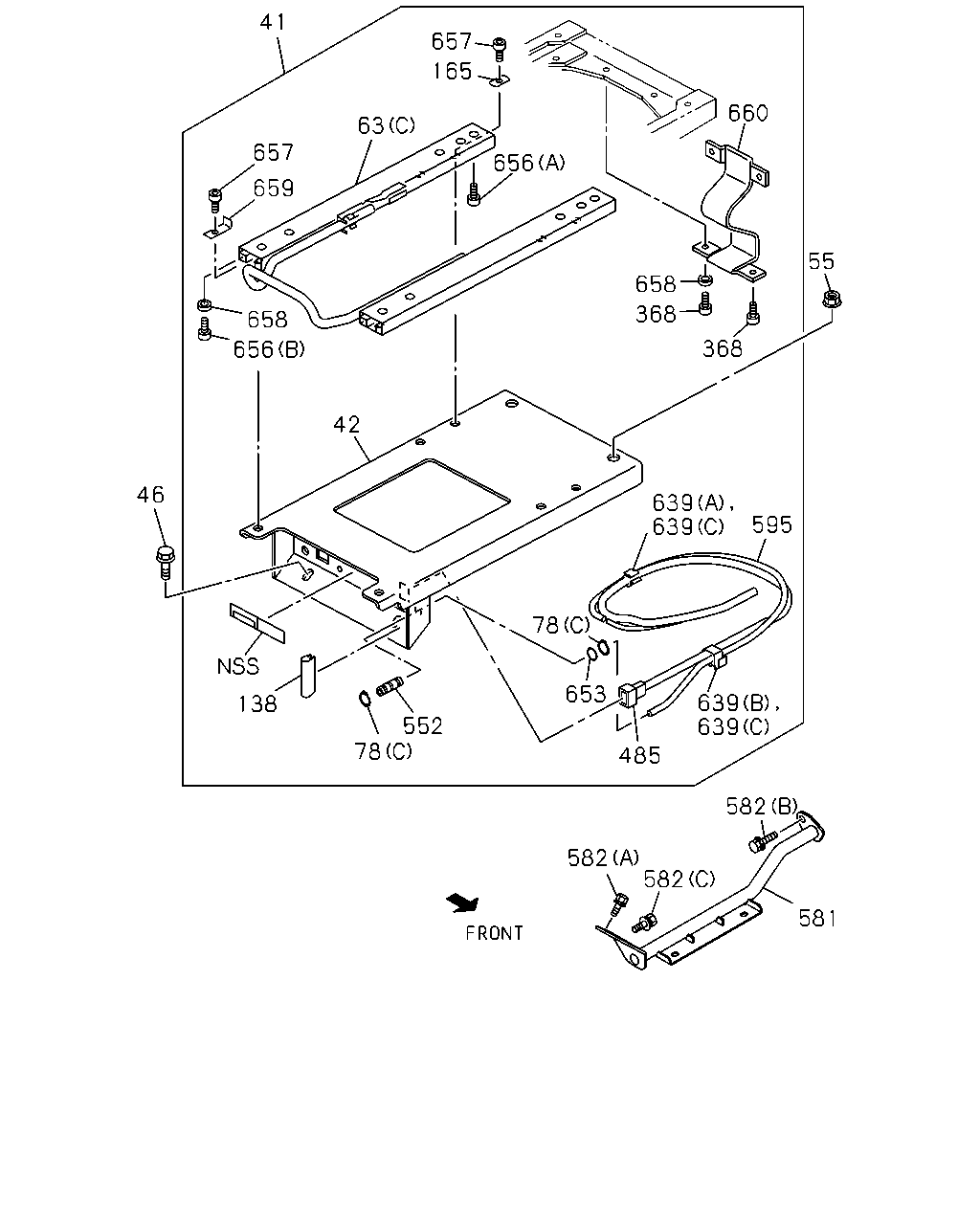

41 657 660 165 656 63 657 659 658 656 42 46 138 552 78 78 653 639 639 582 581 582 582 485 595 639 639 368 658 368 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98195-067-1	01	1	1303-
42	STAND; DRIVER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75558-604-1	01	1	1009-1302
42	STAND; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98106-347-0	01	1	1303-
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	1009-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	0-91180-110-0	02	1	1009-
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (C)	8-98098-005-0	01	1	1303-
63	ADJUSTER; SEAT SLIDE (A)	1-75518-199-1	01	1	1009-1302
63	ADJUSTER; SEAT SLIDE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-199-1	01	1	1303-
63	ADJUSTER; SEAT SLIDE (B)	1-75518-323-0	01	1	1009-1302
63	ADJUSTER; SEAT SLIDE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-323-0	01	1	1303-
78	RING; SNAP DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (C)	8-98101-900-0	02	1	1303-
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8	9-09185-408-0	01	1	1009-
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15	9-09185-415-0	01	1	1009-
138	PROTECTOR; SEAT STAND DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98106-351-0	01	1	1303-
165	WASHER; PL DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	1-75590-086-0	04	1	1303-
368	BOLT; SEAT DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98106-353-0	04	1	1303-
485	HARNESS; FRT SEAT DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98106-360-0	01	1	1303-
552	CONNECTOR DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98101-902-0	01	1	1303-1508
552	CONNECTOR DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98308-101-0	01	1	1509-
581	PIPE; SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	1-73907-605-2	01	1	1303-
582	BOLT; PIPE,SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-09980-619-1	02	1	1303-
582	BOLT; PIPE,SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (C) M8X30 W/LK&PL WASHER	8-94279-210-0	01	1	1303-
582	BOLT; PIPE,SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1303-
595	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98106-348-0	01	1	1303-
639	CLIP; SEAT DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (A)	8-98106-349-0	01	1	1303-1508
639	CLIP; SEAT DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (C)	8-98308-100-0	02	1	1509-
639	CLIP; SEAT DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (B)	8-98106-350-0	01	1	1303-1508
653	GASKET DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98101-901-0	01	1	1303-
656	BOLT; SLIDER TO SEAT DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (A)	1-75590-085-0	04	1	1303-
656	BOLT; SLIDER TO SEAT DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (B)	8-98106-354-0	02	1	1303-
657	BOLT; SLIDER TO STAND DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	1-75590-085-0	06	1	1303-
658	SPACER; BOLT DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98106-355-0	02	1	1303-
659	STOPPER DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98106-356-0	02	1	1303-
660	BELT; TETHER DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98106-357-0	01	1	1303-

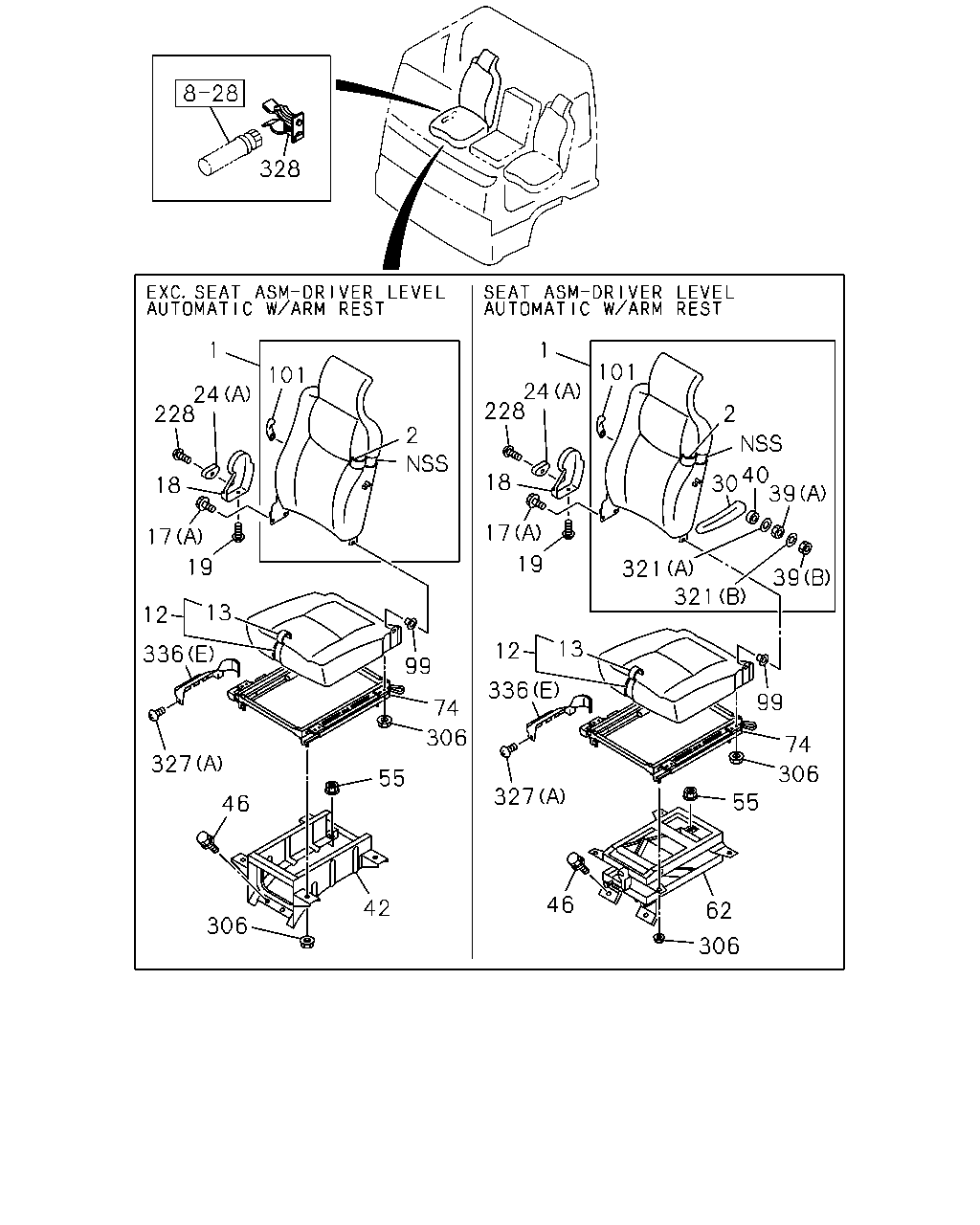

306 46 55 74 99 306 327 336 12 13 321 39 39 321 40 30 2 101 1 24 228 18 17 19 42 55 306 74 99 306 46 327 336 12 13 19 17 228 24 101 2 18 1 328 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98135-639-0	01	1	1009-1009
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98168-072-0	01	1	1010-
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98135-635-0	01	1	1009-1302
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98097-964-0	01	1	1303-
1	BACK ASM; SEAT VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98135-630-0	01	1	1009-
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-187-0	01	1	1009-1009
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98168-089-0	01	1	1010-
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-165-1	01	1	1009-1302
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98232-353-0	01	1	1303-
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-146-2	01	1	1009-
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98098-006-0	01	1	1303-
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-770-0	01	1	1009-1009
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98168-048-0	01	1	1010-
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-603-2	01	1	1009-1302
12	CUSHION; SEAT,FRT VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-603-2	01	1	1009-1302
12	CUSHION; SEAT,FRT VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-603-2	01	1	1303-
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98098-007-0	01	1	1303-
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-186-0	01	1	1009-1009
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98168-081-0	01	1	1010-
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-102-1	01	1	1009-1302
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-102-1	01	1	1009-1302
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-102-1	01	1	1303-
17	BOLT; RECLINING (A) M8X20	8-97255-906-0	02	1	1009-1302
17	BOLT; RECLINING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M8X20	8-97255-906-0	02	1	1303-
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (B)	8-98097-974-0	02	1	1303-
18	COVER; RECLINING DARK GRAY	8-97867-020-0	01	1	1009-1302
18	COVER; RECLINING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DARK GRAY	8-97867-020-0	01	1	1303-
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	1009-1302
19	SCREW; COVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	1303-
24	KNOB; RECLINING,FRT,SEAT (A)	1-75418-066-0	01	1	1009-1302
24	KNOB; RECLINING,FRT,SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75418-066-0	01	1	1303-
24	KNOB; RECLINING,FRT,SEAT VINYL SEAT(A83) (B) DARK GRAY	8-97859-019-0	01	1	1009-1302
24	KNOB; RECLINING,FRT,SEAT FABRIC SEAT W/RECLINING(SFQ) DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75418-067-0	01	1	1304-
30	REST ASM; ARM,FRT SEAT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-185-0	01	1	1009-1009
30	REST ASM; ARM,FRT SEAT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98168-091-0	01	1	1010-
30	REST ASM; ARM,FRT SEAT VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-015-1	01	1	1009-
39	NUT; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8	1-75147-657-0	01	1	1009-
39	NUT; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10	9-09110-410-0	01	1	1009-
40	SPACER; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94285-921-0	02	1	1009-
42	STAND; DRIVER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75558-604-1	01	1	1009-1302
42	STAND; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ)	8-98106-347-0	01	1	1303-
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	1009-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	0-91180-110-0	02	1	1009-
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-262-8	01	1	1009-1403
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98261-449-0	01	1	1404-
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-330-3	01	1	1009-1302
74	ADJUSTER; FRT SEAT,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-330-3	01	1	1303-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98291-644-0	01	1	1503-
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	1009-1302
99	BUSHING; SEAT BACK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-97854-087-0	01	1	1303-
101	LEVER ASM; LUMBAR	5-75190-138-0	01	1	1009-1302
101	LEVER ASM; LUMBAR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	5-75190-138-0	01	1	1303-
228	SCREW; KNOB DRIVER M4	8-98062-662-0	01	1	1009-1302
228	SCREW; KNOB SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER M4	8-98062-662-0	01	1	1303-1303
228	SCREW; KNOB DRIVER M4	8-98062-662-0	01	1	1304-
228	SCREW; KNOB VINYL SEAT(A83) PASSENGER M4X6	8-97042-273-0	01	1	1009-1302
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	14	1	1009-1302
306	NUT; SEAT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	14	1	1303-
321	WASHER; PL,ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=10.5 OD=22	9-09160-610-0	01	1	1009-
321	WASHER; PL,ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4 OD=22	9-09164-708-0	01	1	1009-
327	CLIP; COVER DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (A)	8-98098-004-0	01	1	1303-
327	CLIP; COVER (B)	1-09987-273-0	02	1	1009-1302
327	CLIP; COVER VINYL SEAT(A83) (B)	1-09987-273-0	02	1	1009-1302
327	CLIP; COVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-09987-273-0	02	1	1303-
328	CLIP; HANDY WARNING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-72537-239-0	01	1	1009-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (D)	8-98097-978-0	01	1	1303-1508
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (D)	8-98331-313-0	01	1	1509-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (C)	8-98097-984-0	01	1	1303-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (A)	8-98097-995-0	01	1	1303-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (B)	8-98097-996-0	01	1	1303-
336	COVER; DRIVER SEAT (E)	1-75518-303-0	01	1	1009-1302
336	COVER; DRIVER SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E)	1-75518-303-0	01	1	1303-

306 63 63 306 201 518 551 201 551 72 518 302 518 72 551 302 518 302 551 302 302 518 302 543 543 302 74 543 518 278 532 51 512 51 468 468 512 51 51 532 278 278 518 518 302 518 543 518 471 468 529 468 158 158 543

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	SCREW; COVER	1-75518-325-1	04	1	1009-1302
51	SCREW; COVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-325-1	04	1	1303-
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (C)	8-98098-005-0	01	1	1303-
63	ADJUSTER; SEAT SLIDE (A)	1-75518-199-1	01	1	1009-1302
63	ADJUSTER; SEAT SLIDE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-199-1	01	1	1303-
63	ADJUSTER; SEAT SLIDE (B)	1-75518-323-0	01	1	1009-1302
63	ADJUSTER; SEAT SLIDE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-323-0	01	1	1303-
72	SPACER; SEAT ADJ	1-75518-334-1	02	1	1009-1302
72	SPACER; SEAT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-334-1	02	1	1303-1502
72	SPACER; SEAT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98291-668-0	02	1	1503-
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-330-3	01	1	1009-1302
74	ADJUSTER; FRT SEAT,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-330-3	01	1	1303-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98291-644-0	01	1	1503-
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1009-1302
158	BUSHING; LINK ARM SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-209-0	02	1	1303-
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1009-1302
201	CABLE; ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667	1-75518-288-0	01	1	1303-
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1009-1302
201	CABLE; ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605	1-75518-289-1	01	1	1303-
278	COLLAR; FRT SEAT	1-75518-244-0	03	1	1009-1302
278	COLLAR; FRT SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-244-0	03	1	1303-
302	BOLT; ADJ,HEIGHT CONT (C)	1-75518-266-2	02	1	1009-1302
302	BOLT; ADJ,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-266-2	02	1	1303-
302	BOLT; ADJ,HEIGHT CONT (A)	1-75518-270-1	04	1	1009-1302
302	BOLT; ADJ,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-270-1	04	1	1303-1502
302	BOLT; ADJ,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	8-98291-667-0	04	1	1503-
302	BOLT; ADJ,HEIGHT CONT (B)	1-75518-336-1	02	1	1009-1302
302	BOLT; ADJ,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-336-1	02	1	1303-
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	14	1	1009-1302
306	NUT; SEAT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	14	1	1303-
468	SPRING; RETURN (A)	1-75518-206-0	01	1	1009-1302
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-206-0	01	1	1303-
468	SPRING; RETURN (B)	1-75518-207-0	01	1	1009-1302
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-207-0	01	1	1303-
468	SPRING; RETURN (C)	1-75518-208-0	02	1	1009-1302
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-208-0	02	1	1303-
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	1009-
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1009-1302
471	LEVER; SEAT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98107-869-0	01	1	1303-
512	COVER; LEVER	1-75518-243-1	02	1	1009-1302
512	COVER; LEVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-243-1	02	1	1303-
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1009-1302
518	NUT; TILT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-263-0	01	1	1303-
518	NUT; TILT ADJ (C) M8	1-75518-264-0	04	1	1009-1302
518	NUT; TILT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8	1-75518-264-0	04	1	1303-
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	1009-1302
518	NUT; TILT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT	5-09984-020-0	02	1	1303-
518	NUT; TILT ADJ (B) M8 FLANGE	8-94152-886-0	04	1	1009-1302
518	NUT; TILT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8 FLANGE	8-94152-886-0	04	1	1303-
529	PIN; LINK	1-75518-262-0	01	1	1009-1302
529	PIN; LINK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-262-0	01	1	1303-
532	LEVER ASM; TILT DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (C)	8-98097-982-0	01	1	1303-
532	LEVER ASM; TILT (A)	1-75518-203-0	01	1	1009-1302
532	LEVER ASM; TILT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-203-0	01	1	1303-
532	LEVER ASM; TILT (B)	1-75518-204-1	01	1	1009-1302
532	LEVER ASM; TILT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-204-1	01	1	1303-
543	WASHER; HEIGHT ADJUSTER (A)	1-75518-335-0	02	1	1009-1302
543	WASHER; HEIGHT ADJUSTER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-335-0	02	1	1303-1502
543	WASHER; HEIGHT ADJUSTER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=13 OD=19	8-98291-669-0	02	1	1503-
543	WASHER; HEIGHT ADJUSTER (B) ID=8.4	9-09160-508-0	04	1	1009-1302
543	WASHER; HEIGHT ADJUSTER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4	9-09160-508-0	04	1	1303-
551	SLIDER; HEIGHT ADJ	1-75518-265-0	04	1	1009-1302
551	SLIDER; HEIGHT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-265-0	04	1	1303-

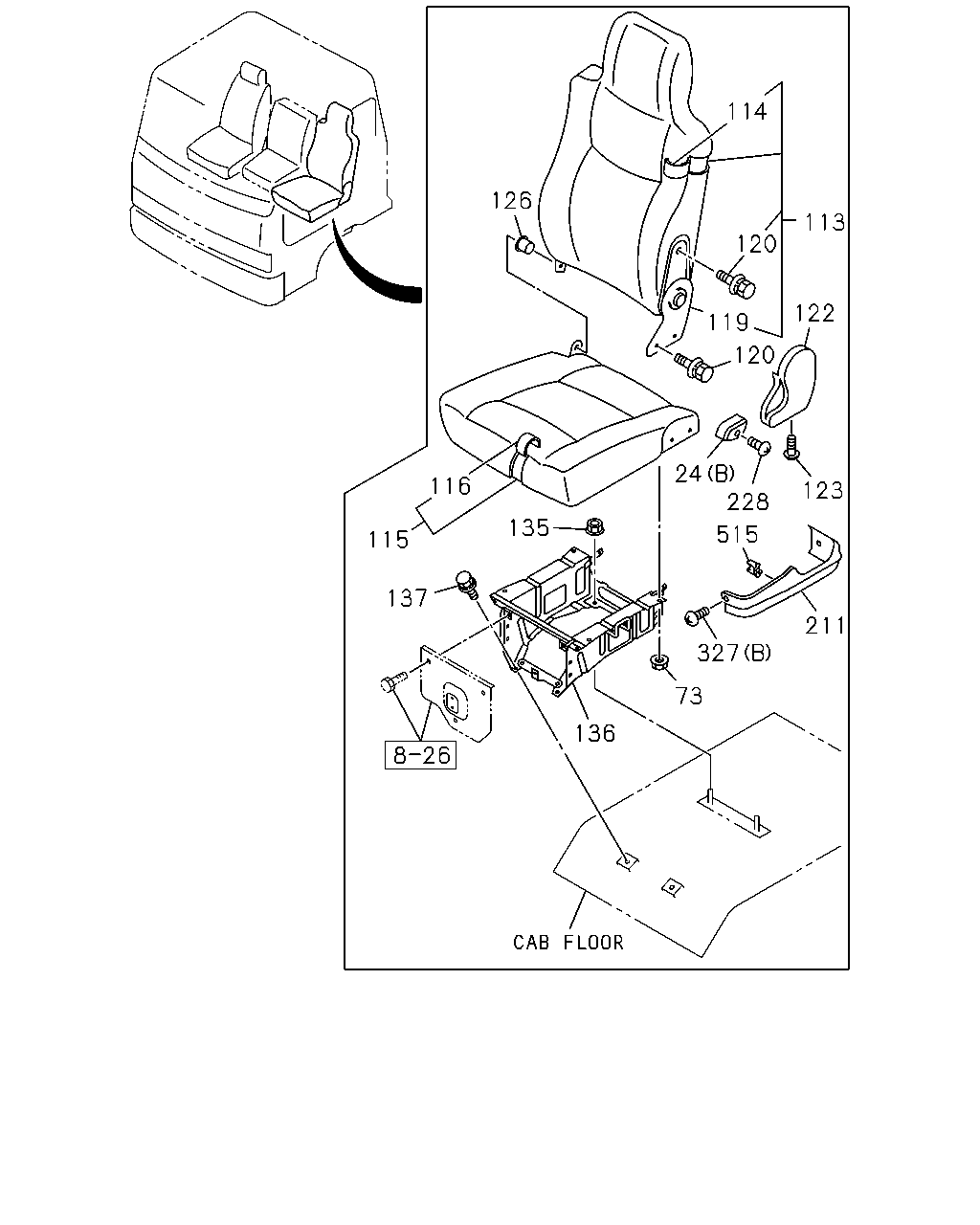

113 114 126 120 122 119 24 123 515 228 211 327 73 136 137 115 116 135 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	KNOB; RECLINING,FRT,SEAT (A)	1-75418-066-0	01	1	1009-1302
24	KNOB; RECLINING,FRT,SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75418-066-0	01	1	1303-
24	KNOB; RECLINING,FRT,SEAT VINYL SEAT(A83) (B) DARK GRAY	8-97859-019-0	01	1	1009-1302
24	KNOB; RECLINING,FRT,SEAT FABRIC SEAT W/RECLINING(SFQ) DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75418-067-0	01	1	1304-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	1009-
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) DRIVER ISRINGHAUSEN SEAT(SJA)	8-98054-773-0	01	1	1304-
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-759-0	01	1	1009-1009
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ)	8-98168-280-0	01	1	1010-1303
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98168-280-0	01	1	1304-
113	BACK ASM; SEAT VINYL SEAT(A83)	1-75207-652-2	01	1	1009-1302
113	BACK ASM; SEAT VINYL SEAT(A83)	1-75207-598-1	01	1	1303-
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) DRIVER ISRINGHAUSEN SEAT(SJA)	8-98054-777-0	01	1	1304-
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING(SFQ)	1-75127-189-0	01	1	1009-1009
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING(SFQ)	8-98168-295-0	01	1	1010-1303
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98168-295-0	01	1	1304-
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT(A83)	1-75127-171-1	01	1	1009-1302
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT(A83)	1-75127-153-1	01	1	1303-
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ) DRIVER ISRINGHAUSEN SEAT(SJA)	8-98054-770-0	01	1	1304-
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-771-0	01	1	1009-1009
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ)	8-98168-131-0	01	1	1010-1303
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98168-131-0	01	1	1304-
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT(A83)	1-75207-300-0	01	1	1009-1302
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT(A83)	1-75207-213-2	01	1	1303-
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ) DRIVER ISRINGHAUSEN SEAT(SJA)	8-98054-775-0	01	1	1304-
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ)	1-75127-188-0	01	1	1009-1009
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ)	8-98168-270-0	01	1	1010-1303
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98168-270-0	01	1	1304-
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT(A83)	1-75127-124-0	01	1	1009-1302
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT(A83)	1-75127-029-1	01	1	1303-
119	ADJ; SEAT RECLINING,ASSIST SIDE FABRIC SEAT W/RECLINING(SFQ)	1-75417-597-0	01	1	1009-1302
119	ADJ; SEAT RECLINING,ASSIST SIDE	1-75417-597-0	01	1	1303-1303
119	ADJ; SEAT RECLINING,ASSIST SIDE VINYL SEAT(A83)	1-75417-597-0	01	1	1304-
119	ADJ; SEAT RECLINING,ASSIST SIDE FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75417-597-0	01	1	1304-
120	BOLT; RECLINING ADJ FABRIC SEAT W/RECLINING(SFQ) DRIVER ISRINGHAUSEN SEAT(SJA) M8X20	8-97255-906-0	02	1	1304-
120	BOLT; RECLINING ADJ FABRIC SEAT W/RECLINING(SFQ) M8X20	8-97255-906-0	04	1	1009-1302
120	BOLT; RECLINING ADJ VINYL SEAT(A83) M8X20	8-97255-906-0	02	1	1009-1302
120	BOLT; RECLINING ADJ M8X20	8-97255-906-0	04	1	1303-1303
120	BOLT; RECLINING ADJ VINYL SEAT(A83) M8X20	8-97255-906-0	04	1	1304-
120	BOLT; RECLINING ADJ FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20	8-97255-906-0	04	1	1304-
122	COVER; ADJ,RECLINING FABRIC SEAT W/RECLINING(SFQ) DRIVER ISRINGHAUSEN SEAT(SJA) DARK GRAY	8-97859-018-0	01	1	1304-
122	COVER; ADJ,RECLINING FABRIC SEAT W/RECLINING(SFQ)	1-75417-598-0	01	1	1009-1302
122	COVER; ADJ,RECLINING	1-75417-598-0	01	1	1303-1303
122	COVER; ADJ,RECLINING VINYL SEAT(A83)	1-75417-598-0	01	1	1304-
122	COVER; ADJ,RECLINING FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75417-598-0	01	1	1304-
122	COVER; ADJ,RECLINING VINYL SEAT(A83) DARK GRAY	8-97859-018-0	01	1	1009-1302
123	SCREW; COVER,RECLINING FABRIC SEAT W/RECLINING(SFQ) DRIVER ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	1304-
123	SCREW; COVER,RECLINING FABRIC SEAT W/RECLINING(SFQ) M6X12	9-03490-612-0	01	1	1009-1302
123	SCREW; COVER,RECLINING M6X12	9-03490-612-0	01	1	1303-1303
123	SCREW; COVER,RECLINING VINYL SEAT(A83) M6X12	9-03490-612-0	01	1	1304-
123	SCREW; COVER,RECLINING FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6X12	9-03490-612-0	01	1	1304-
123	SCREW; COVER,RECLINING VINYL SEAT(A83) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	1009-1302
126	BUSHING; HINGE,RECLINING	8-97854-087-0	01	1	1009-
135	NUT; SEAT STAND M10 FLANGE	0-91180-110-0	02	1	1009-
136	STAND; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ) DRIVER ISRINGHAUSEN SEAT(SJA)	1-75558-601-3	01	1	1304-1305
136	STAND; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ) DRIVER ISRINGHAUSEN SEAT(SJA)	8-98242-298-0	01	1	1306-
136	STAND; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75558-522-8	01	1	1009-1302
136	STAND; PASSENGER SEAT	1-75558-522-8	01	1	1303-1303
136	STAND; PASSENGER SEAT VINYL SEAT(A83)	1-75558-522-8	01	1	1304-1305
136	STAND; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75558-522-8	01	1	1304-1305
136	STAND; PASSENGER SEAT VINYL SEAT(A83)	8-98242-290-0	01	1	1306-
136	STAND; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98242-290-0	01	1	1306-
136	STAND; PASSENGER SEAT VINYL SEAT(A83)	1-75558-602-3	01	1	1009-1302
137	BOLT; STAND M10X20 FLANGE	0-28451-020-0	02	1	1009-
211	COVER; FRT SEAT VINYL SEAT(A83)	1-72538-274-0	01	1	1009-1302
228	SCREW; KNOB DRIVER M4	8-98062-662-0	01	1	1009-1302
228	SCREW; KNOB SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER M4	8-98062-662-0	01	1	1303-1303
228	SCREW; KNOB DRIVER M4	8-98062-662-0	01	1	1304-
228	SCREW; KNOB VINYL SEAT(A83) PASSENGER M4X6	8-97042-273-0	01	1	1009-1302
327	CLIP; COVER DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (A)	8-98098-004-0	01	1	1303-
327	CLIP; COVER (B)	1-09987-273-0	02	1	1009-1302
327	CLIP; COVER VINYL SEAT(A83) (B)	1-09987-273-0	02	1	1009-1302
327	CLIP; COVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-09987-273-0	02	1	1303-
515	CLIP; PIPE VINYL SEAT(A83) BLACK	8-94227-248-1	01	1	1009-1302

506 360 189 359 403 182 179 188 188 16 176 175 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING CENTER SEAT(SA1)	1-75418-062-1	01	1	1009-
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	1-75207-762-0	01	1	1009-1011
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	8-98168-329-1	01	1	1012-
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT(A83) CENTER SEAT(SA1)	1-75026-856-3	01	1	1009-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	1-75127-191-0	01	1	1009-1011
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	8-98168-332-0	01	1	1012-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT(A83) CENTER SEAT(SA1)	1-75116-710-1	01	1	1009-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	1-75127-190-0	01	1	1009-1011
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	8-98168-326-0	01	1	1012-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT(A83) CENTER SEAT(SA1)	1-75116-696-1	01	1	1009-
182	CUSHION ASM; CENTER SEAT CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	1-75207-761-0	01	1	1009-1011
182	CUSHION ASM; CENTER SEAT CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	8-98168-318-2	01	1	1012-
182	CUSHION ASM; CENTER SEAT VINYL SEAT(A83) CENTER SEAT(SA1)	1-75026-845-4	01	1	1009-
188	BOLT; BACK TO CUSHION CENTER SEAT(SA1) M10X16 FLANGE	1-75198-053-0	04	1	1009-
189	BUSHING; HINGE,CENTER SEAT BACK CENTER SEAT(SA1)	8-97854-900-0	01	1	1009-
359	BOX; PARCEL CENTER SEAT(SA1)	8-98145-114-0	01	1	1009-
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	1009-1104
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70080-416-0	06	1	1105-
360	SCREW; PARCEL CENTER SEAT(SA1) (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1009-
360	SCREW; PARCEL CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1009-
403	NUT; CENTER SEAT CENTER SEAT(SA1) M8 FLANGE	0-91180-108-0	04	1	1009-
506	CAP; PARCEL BOX CENTER SEAT(SA1)	1-09983-180-3	02	1	1009-

360 98 98 535 360 80 359 534 360 365 533 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	RUBBER; STOPPER CENTER SEAT(SA1) (B)	1-72538-187-0	02	1	1009-
80	RUBBER; STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09987-123-0	01	1	1009-
98	WASHER; HINGE CENTER SEAT(SA1) ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	1009-
359	BOX; PARCEL CENTER SEAT(SA1)	8-98145-114-0	01	1	1009-
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	1009-1104
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70080-416-0	06	1	1105-
360	SCREW; PARCEL CENTER SEAT(SA1) (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1009-
360	SCREW; PARCEL CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1009-
365	LOCK ASM; SEAT DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG(TFQ) (A)	8-98097-972-0	01	1	1303-
365	LOCK ASM; SEAT CENTER SEAT(SA1) (B)	1-72538-180-0	01	1	1009-
533	LID; PARCEL BOX CENTER SEAT(SA1)	8-98145-118-0	01	1	1009-
534	STRIKER; PARCEL BOX CENTER SEAT(SA1)	1-72538-190-0	01	1	1009-
535	HINGE; PARCEL BOX CENTER SEAT(SA1)	1-72447-391-1	01	1	1009-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
