7-45 — CONSOLE BOX (#70007) — 172 parça

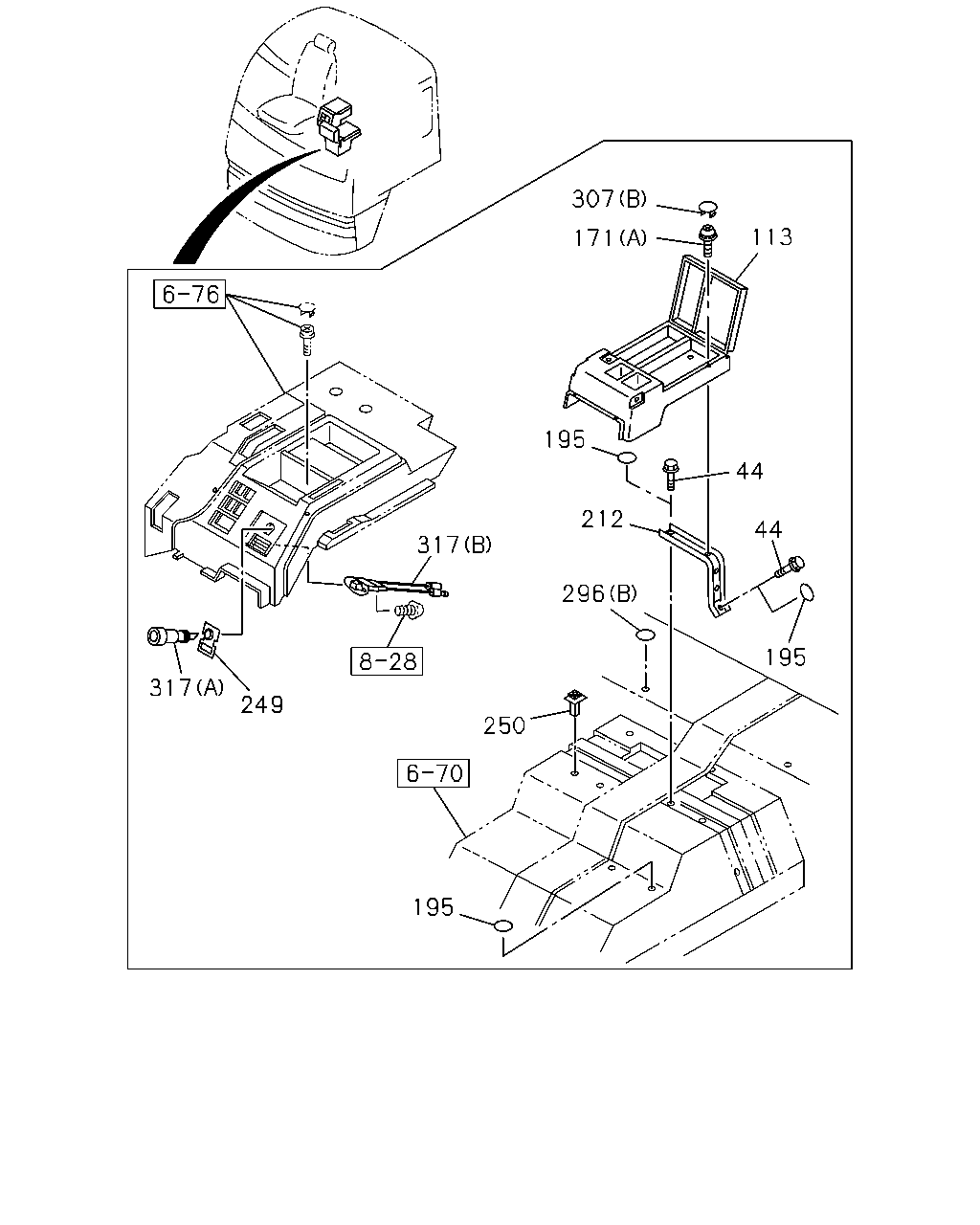

çizim 134269
195 44 44 113 171 307 195 212 296 250 195 317 317 249
BalonParca AdiParca NoAdetTipApplied Date
44 BOLT; SUPPORT,CTR CONSOLE
CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1009-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-326-1 01 1 1303-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-325-1 01 1 1009-1302
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72537-325-1 01 1 1303-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 1009-1302
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 1303-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 1303-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 1009-
195 SEAL; CENTER CONSOLE
EXC. CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 05 1 1009-
212 SUPPORT; CONSOLE TO COMPT
CENTER SEAT DELETE(SP9) 		1-72537-095-1 01 1 1009-
249 COVER
NEW ZEALAND EQUIPMENT(PK5) 		1-82529-001-0 01 1 1303-
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 1009-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 02 1 1009-1302
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 1303-
296 SEAL
CENTER SEAT DELETE(SP9) (A) 		1-72537-094-1 01 1 1009-1302
296 SEAL
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> (A) 		1-72537-094-1 01 1 1303-
296 SEAL
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-094-1 01 1 1303-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72537-188-0 02 1 1009-1302
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> (A) 		1-72537-188-0 02 1 1303-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-188-0 02 1 1303-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (C) 		1-72537-270-1 02 1 1009-1302
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> (C) 		1-72537-270-1 02 1 1303-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-76337-461-0 04 1 1009-
317 CONSENT
NEW ZEALAND EQUIPMENT(PK5) (A) 		8-94382-451-1 01 1 1303-
317 CONSENT
(B) 		1-82523-020-2 01 1 1009-

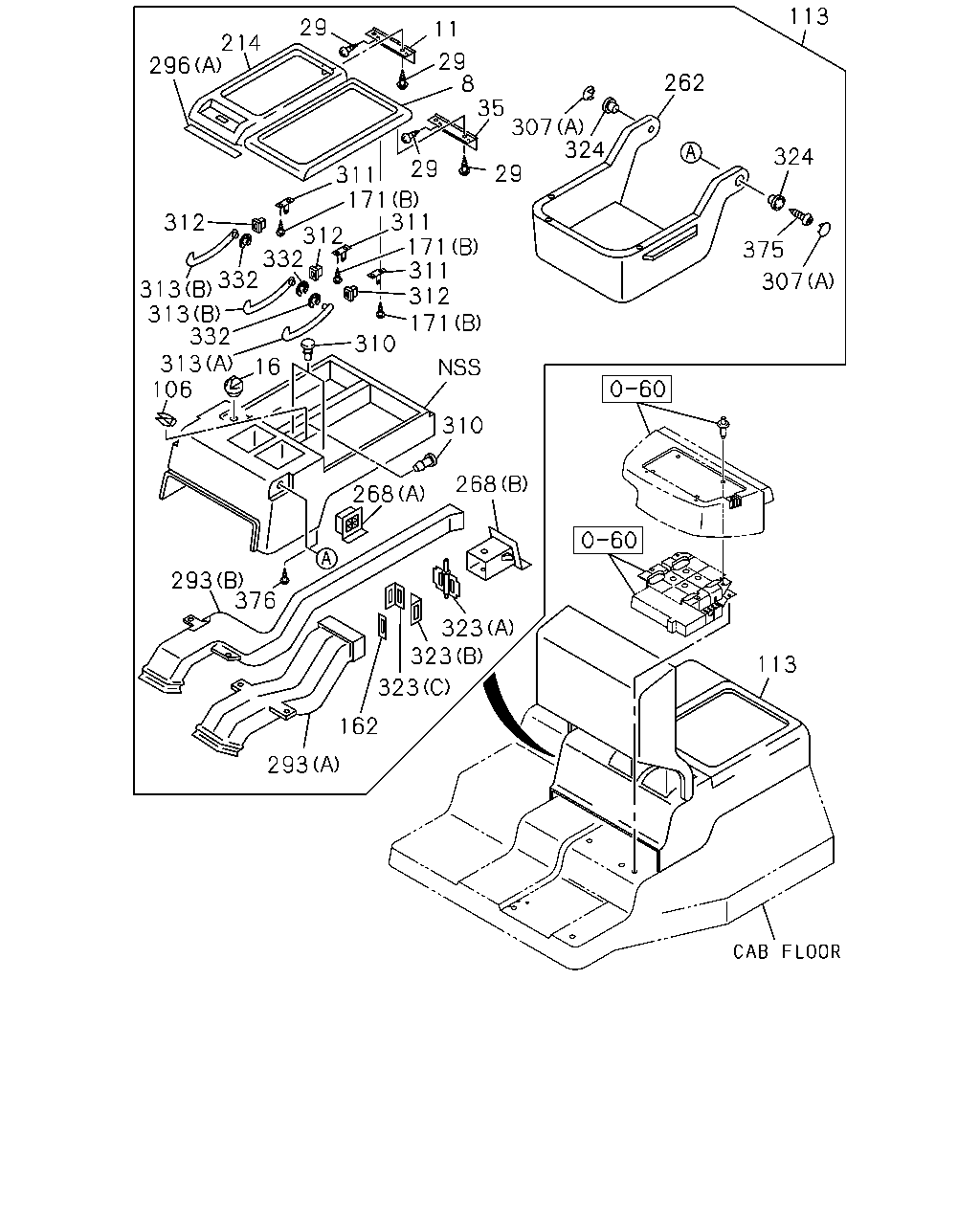

çizim 188470
113 307 375 324 113 262 324 307 35 29 8 29 11 29 214 296 311 29 311 171 311 268 310 171 312 171 310 16 332 312 332 312 313 332 313 313 106 293 376 268 323 323 323 162 293
BalonParca AdiParca NoAdetTipApplied Date
8 LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-332-0 01 1 1009-1302
8 LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72537-332-0 01 1 1303-
8 LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-332-0 01 1 1303-
11 HINGE; CONSOLE LID
CENTER SEAT DELETE(SP9) 		1-72537-070-2 01 1 1009-1302
11 HINGE; CONSOLE LID
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72537-070-2 01 1 1303-
11 HINGE; CONSOLE LID
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-070-2 01 1 1303-
16 KNOB ASM
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-189-0 01 1 1303-
29 SCREW; HINGE
CENTER SEAT DELETE(SP9) M5X14 BINDING HEAD 		1-72537-168-0 08 1 1009-1302
29 SCREW; HINGE
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> M5X14 BINDING HEAD 		1-72537-168-0 08 1 1303-
29 SCREW; HINGE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> M5X14 BINDING HEAD 		1-72537-168-0 08 1 1303-
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-182-1 01 1 1009-1302
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72538-182-1 01 1 1303-
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72538-182-1 01 1 1303-
106 LOCK; CONSOLE LID
CENTER SEAT DELETE(SP9) 		1-72537-079-0 02 1 1009-1302
106 LOCK; CONSOLE LID
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72537-079-0 02 1 1303-
106 LOCK; CONSOLE LID
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-079-0 02 1 1303-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-326-1 01 1 1303-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-325-1 01 1 1009-1302
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72537-325-1 01 1 1303-
162 CUSHION; PARCEL BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-128-0 03 1 1303-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 1009-1302
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 1303-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 1303-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 1009-
214 LID; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-339-0 01 1 1009-1302
214 LID; CONSOLE
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72537-339-0 01 1 1303-
214 LID; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-339-0 01 1 1303-
262 TABLE ASM
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-187-1 01 1 1303-
268 COVER; DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-183-0 01 1 1303-
268 COVER; DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-184-0 01 1 1303-
268 COVER; DUCT
CENTER SEAT DELETE(SP9) (B) 		1-72537-268-0 01 1 1009-1302
268 COVER; DUCT
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> (B) 		1-72537-268-0 01 1 1303-
268 COVER; DUCT
CENTER SEAT DELETE(SP9) (A) 		1-72537-269-0 01 1 1009-1302
268 COVER; DUCT
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> (A) 		1-72537-269-0 01 1 1303-
293 DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-081-3 01 1 1303-
293 DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-083-2 01 1 1303-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 02 1 1009-1302
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 1303-
296 SEAL
CENTER SEAT DELETE(SP9) (A) 		1-72537-094-1 01 1 1009-1302
296 SEAL
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> (A) 		1-72537-094-1 01 1 1303-
296 SEAL
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-094-1 01 1 1303-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72537-188-0 02 1 1009-1302
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> (A) 		1-72537-188-0 02 1 1303-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-188-0 02 1 1303-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (C) 		1-72537-270-1 02 1 1009-1302
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> (C) 		1-72537-270-1 02 1 1303-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-76337-461-0 04 1 1009-
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-187-0 02 1 1009-1302
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72538-187-0 02 1 1303-
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72538-187-0 02 1 1303-
311 HOLDER; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-188-2 03 1 1009-1302
311 HOLDER; CONSOLE
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72538-188-2 03 1 1303-
311 HOLDER; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72538-188-2 03 1 1303-
312 STOPPER; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-186-1 03 1 1009-1302
312 STOPPER; CONSOLE
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72538-186-1 03 1 1303-
312 STOPPER; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72538-186-1 03 1 1303-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72538-184-3 01 1 1009-1302
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> (A) 		1-72538-184-3 01 1 1303-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72538-184-3 01 1 1303-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-72538-185-3 02 1 1009-1302
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> (B) 		1-72538-185-3 02 1 1303-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72538-185-3 02 1 1303-
323 SHUTTER
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-084-1 01 1 1303-
323 SHUTTER
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-126-0 01 1 1303-
323 SHUTTER
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (C) 		1-72537-127-0 01 1 1303-
324 BUSHING
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-116-0 02 1 1303-
332 RING; SNAP,CONSOLE BOX
CENTER SEAT DELETE(SP9) 		1-72537-170-0 03 1 1009-1302
332 RING; SNAP,CONSOLE BOX
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72537-170-0 03 1 1303-
332 RING; SNAP,CONSOLE BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-170-0 03 1 1303-
375 SCREW; TAP BUSHING
CENTER SEAT DELETE(SP9) M6X20 		1-72537-319-0 02 1 1009-1302
375 SCREW; TAP BUSHING
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> M6X20 		1-72537-319-0 02 1 1303-
375 SCREW; TAP BUSHING
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> M6X20 		1-72537-319-0 02 1 1303-
376 SCREW; TAP DUCT
CENTER SEAT DELETE(SP9) M4X14 		1-72537-320-0 03 1 1009-1302
376 SCREW; TAP DUCT
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> M4X14 		1-72537-320-0 03 1 1303-
376 SCREW; TAP DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> M4X14 		1-72537-320-0 03 1 1303-

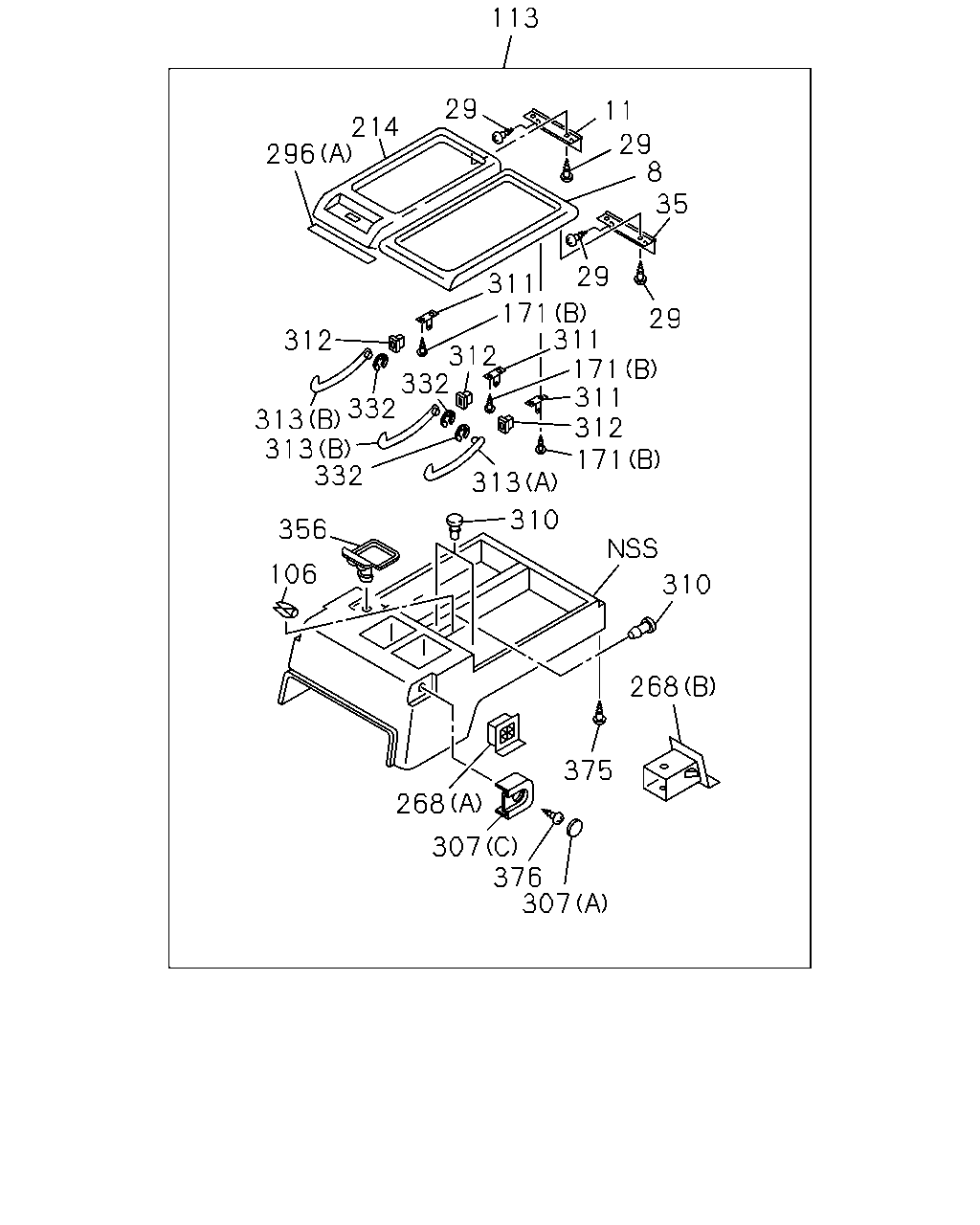

çizim 188474
307 376 307 268 375 268 310 310 313 171 312 311 171 29 29 311 171 311 35 8 29 11 113 29 214 296 312 332 332 312 313 332 313 356 106
BalonParca AdiParca NoAdetTipApplied Date
8 LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-332-0 01 1 1009-1302
8 LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72537-332-0 01 1 1303-
8 LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-332-0 01 1 1303-
11 HINGE; CONSOLE LID
CENTER SEAT DELETE(SP9) 		1-72537-070-2 01 1 1009-1302
11 HINGE; CONSOLE LID
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72537-070-2 01 1 1303-
11 HINGE; CONSOLE LID
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-070-2 01 1 1303-
29 SCREW; HINGE
CENTER SEAT DELETE(SP9) M5X14 BINDING HEAD 		1-72537-168-0 08 1 1009-1302
29 SCREW; HINGE
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> M5X14 BINDING HEAD 		1-72537-168-0 08 1 1303-
29 SCREW; HINGE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> M5X14 BINDING HEAD 		1-72537-168-0 08 1 1303-
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-182-1 01 1 1009-1302
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72538-182-1 01 1 1303-
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72538-182-1 01 1 1303-
106 LOCK; CONSOLE LID
CENTER SEAT DELETE(SP9) 		1-72537-079-0 02 1 1009-1302
106 LOCK; CONSOLE LID
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72537-079-0 02 1 1303-
106 LOCK; CONSOLE LID
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-079-0 02 1 1303-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-326-1 01 1 1303-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-325-1 01 1 1009-1302
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72537-325-1 01 1 1303-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 1009-1302
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 1303-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 1303-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 1009-
214 LID; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-339-0 01 1 1009-1302
214 LID; CONSOLE
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72537-339-0 01 1 1303-
214 LID; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-339-0 01 1 1303-
268 COVER; DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-183-0 01 1 1303-
268 COVER; DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-184-0 01 1 1303-
268 COVER; DUCT
CENTER SEAT DELETE(SP9) (B) 		1-72537-268-0 01 1 1009-1302
268 COVER; DUCT
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> (B) 		1-72537-268-0 01 1 1303-
268 COVER; DUCT
CENTER SEAT DELETE(SP9) (A) 		1-72537-269-0 01 1 1009-1302
268 COVER; DUCT
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> (A) 		1-72537-269-0 01 1 1303-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 02 1 1009-1302
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 1303-
296 SEAL
CENTER SEAT DELETE(SP9) (A) 		1-72537-094-1 01 1 1009-1302
296 SEAL
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> (A) 		1-72537-094-1 01 1 1303-
296 SEAL
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-094-1 01 1 1303-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72537-188-0 02 1 1009-1302
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> (A) 		1-72537-188-0 02 1 1303-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-188-0 02 1 1303-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (C) 		1-72537-270-1 02 1 1009-1302
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> (C) 		1-72537-270-1 02 1 1303-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-76337-461-0 04 1 1009-
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-187-0 02 1 1009-1302
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72538-187-0 02 1 1303-
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72538-187-0 02 1 1303-
311 HOLDER; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-188-2 03 1 1009-1302
311 HOLDER; CONSOLE
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72538-188-2 03 1 1303-
311 HOLDER; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72538-188-2 03 1 1303-
312 STOPPER; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-186-1 03 1 1009-1302
312 STOPPER; CONSOLE
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72538-186-1 03 1 1303-
312 STOPPER; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72538-186-1 03 1 1303-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72538-184-3 01 1 1009-1302
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> (A) 		1-72538-184-3 01 1 1303-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72538-184-3 01 1 1303-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-72538-185-3 02 1 1009-1302
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> (B) 		1-72538-185-3 02 1 1303-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72538-185-3 02 1 1303-
332 RING; SNAP,CONSOLE BOX
CENTER SEAT DELETE(SP9) 		1-72537-170-0 03 1 1009-1302
332 RING; SNAP,CONSOLE BOX
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72537-170-0 03 1 1303-
332 RING; SNAP,CONSOLE BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-170-0 03 1 1303-
356 COVER; KNOB
CENTER SEAT DELETE(SP9) 		1-72537-271-1 01 1 1009-1302
356 COVER; KNOB
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72537-271-1 01 1 1303-
375 SCREW; TAP BUSHING
CENTER SEAT DELETE(SP9) M6X20 		1-72537-319-0 02 1 1009-1302
375 SCREW; TAP BUSHING
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> M6X20 		1-72537-319-0 02 1 1303-
375 SCREW; TAP BUSHING
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> M6X20 		1-72537-319-0 02 1 1303-
376 SCREW; TAP DUCT
CENTER SEAT DELETE(SP9) M4X14 		1-72537-320-0 03 1 1009-1302
376 SCREW; TAP DUCT
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> M4X14 		1-72537-320-0 03 1 1303-
376 SCREW; TAP DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> M4X14 		1-72537-320-0 03 1 1303-

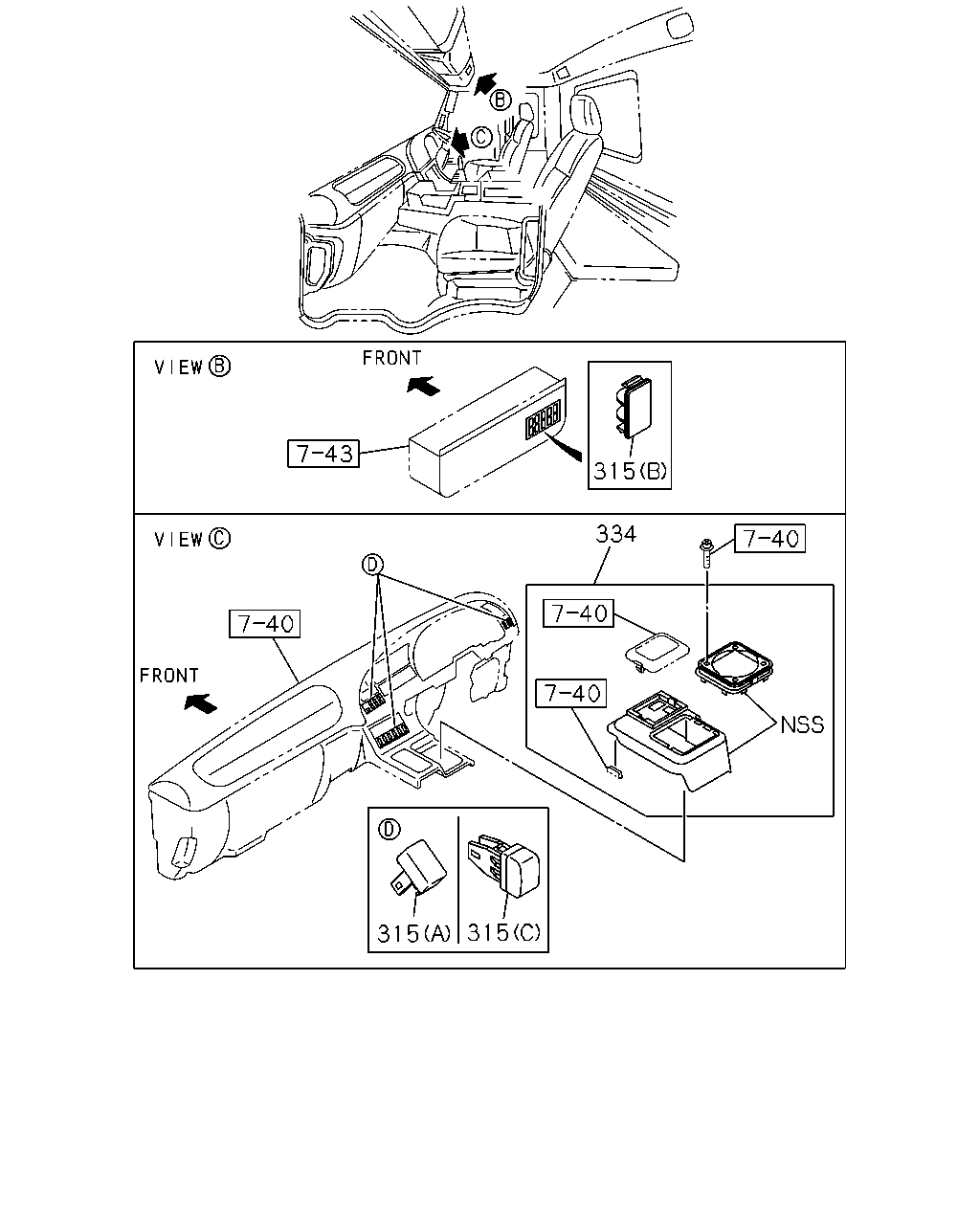

çizim 336927
315 334 315 315
BalonParca AdiParca NoAdetTipApplied Date
315 COVER; HOLE,SW
(A) 		1-82359-069-2 AR 1 1009-1302
315 COVER; HOLE,SW
(C) 		8-98025-954-1 AR 1 1303-
315 COVER; HOLE,SW
(B) 		8-97043-732-1 AR 1 1009-
334 COVER; CHANGE LEVER
SMOOTHER-G(C1W) 		1-72447-969-1 01 1 1009-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
