7-40 — INSTRUMENT PANEL AND BOX (#70005) — 170 parça

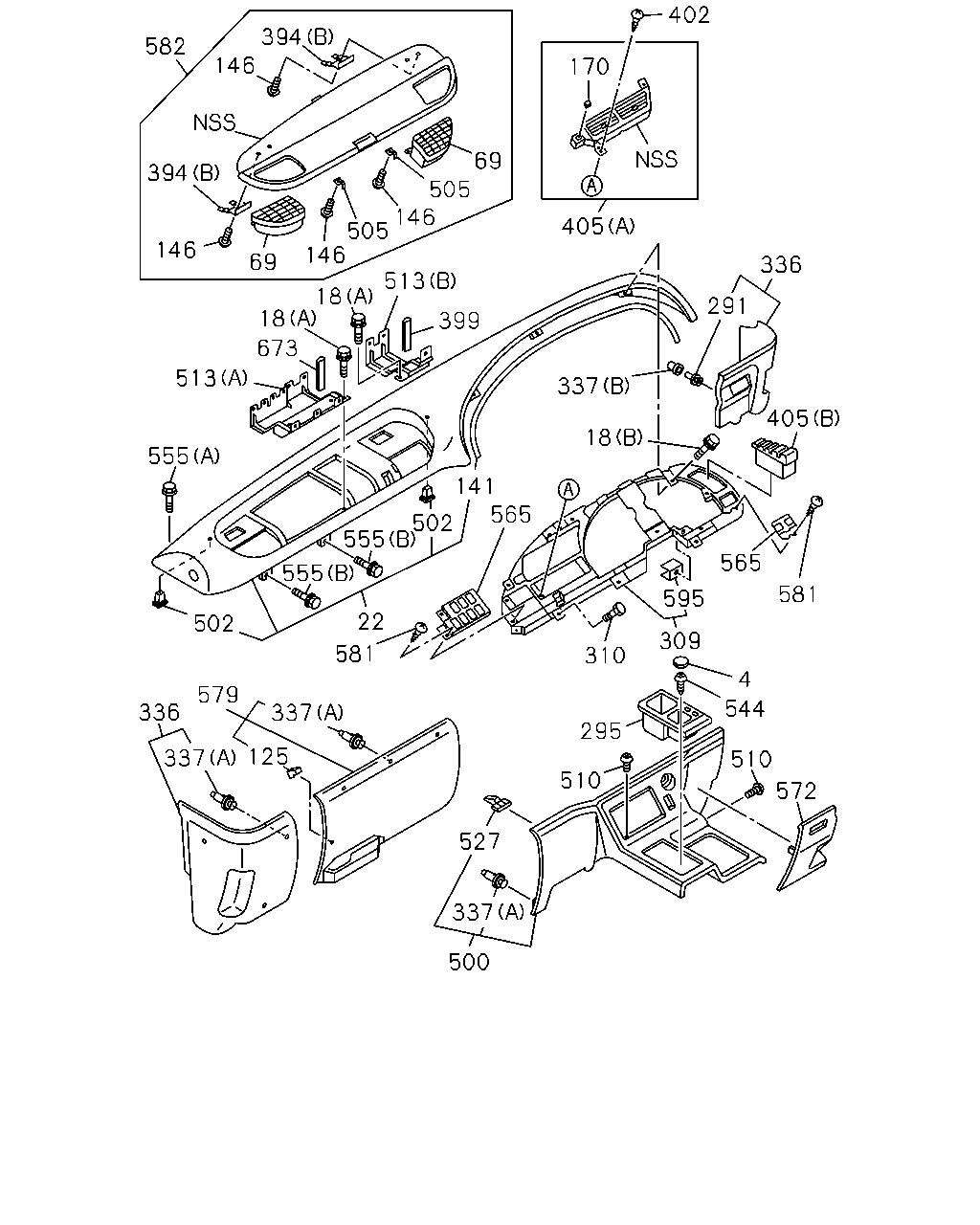

çizim 188471
582 394 146 394 146 69 146 505 146 505 69 18 18 513 513 673 399 555 402 170 405 336 291 337 405 18 502 555 555 502 141 565 22 581 336 579 337 581 565 595 310 309 4 544 510 572 510 295 527 337 500 125 337
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL 1-72537-106-0 01 1 1009-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 1303-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 1009-1302
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1303-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 1009-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1009-
22 PAD; INST 1-72317-372-1 01 1 1009-
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 1009-
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 1009-
125 CLIP; INST PANEL
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-97217-066-0 04 1 1303-1411
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) 		8-97217-066-0 04 1 1412-
125 CLIP; INST PANEL 8-97217-066-0 11 1 1009-1302
125 CLIP; INST PANEL 8-97217-066-0 07 1 1303-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 1009-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 1009-
170 COVER; HOLE 1-76367-068-0 01 1 1009-
291 FASTENER; INST CLUSTER 1-72438-137-0 03 1 1009-
295 TRAY; CTR CLUSTER 1-72437-543-1 01 1 1009-
309 PANEL; SW,INST 1-72418-009-6 01 1 1009-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 1009-
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 1009-
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 1009-
337 FASTENER; COVER
(A) 		1-72438-124-2 12 1 1009-
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 1009-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 1009-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 1009-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 1009-
399 FINISHER; HARNESS
L=50 		8-94270-377-1 01 1 1303-
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 1009-
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-2 01 1 1009-
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 1009-
500 CLUSTER; INST CENTER
TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-72437-619-0 01 1 1406-1408
500 CLUSTER; INST CENTER
TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. INST PANEL CARBON<EGW> 		1-72437-619-0 01 1 1409-
500 CLUSTER; INST CENTER
SMOOTHER-G(C1W) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-72437-628-0 01 1 1406-1408
500 CLUSTER; INST CENTER
SMOOTHER-G(C1W) EXC. INST PANEL CARBON<EGW> 		1-72437-628-0 01 1 1409-
500 CLUSTER; INST CENTER
SMOOTHER-G(C1W) HONG KONG EQUIPMENT(PQ1) 		1-72437-628-0 01 1 1305-1305
500 CLUSTER; INST CENTER
TRANSMISSION CONTROL CABLE TYPE(C1A) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 		8-98217-875-0 01 1 1303-1304
500 CLUSTER; INST CENTER
TRANSMISSION CONTROL CABLE TYPE(C1A) NEW ZEALAND EQUIPMENT(PK5) 		8-98217-875-0 01 1 1305-1305
500 CLUSTER; INST CENTER
TRANSMISSION CONTROL CABLE TYPE(C1A) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 		8-98217-875-0 01 1 1306-1405
500 CLUSTER; INST CENTER
TRANSMISSION CONTROL CABLE TYPE(C1A) NEW ZEALAND EQUIPMENT(PK5) 		8-98217-875-0 01 1 1406-1408
500 CLUSTER; INST CENTER
TRANSMISSION CONTROL CABLE TYPE(C1A) INST PANEL CARBON<EGW> 		8-98217-875-0 01 1 1409-
500 CLUSTER; INST CENTER
SMOOTHER-G(C1W) 		1-72437-628-0 01 1 1009-1302
500 CLUSTER; INST CENTER
SMOOTHER-G(C1W) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 		8-98217-877-0 01 1 1303-1304
500 CLUSTER; INST CENTER
SMOOTHER-G(C1W) NEW ZEALAND EQUIPMENT(PK5) 		8-98217-877-0 01 1 1305-1305
500 CLUSTER; INST CENTER
SMOOTHER-G(C1W) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 		8-98217-877-0 01 1 1306-1405
500 CLUSTER; INST CENTER
SMOOTHER-G(C1W) NEW ZEALAND EQUIPMENT(PK5) 		8-98217-877-0 01 1 1406-1408
500 CLUSTER; INST CENTER
SMOOTHER-G(C1W) INST PANEL CARBON<EGW> 		8-98217-877-0 01 1 1409-
500 CLUSTER; INST CENTER
EXC. SMOOTHER-G(C1W) 		1-72437-619-0 01 1 1009-1302
500 CLUSTER; INST CENTER
TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 		1-72437-619-0 01 1 1303-1304
500 CLUSTER; INST CENTER
TRANSMISSION CONTROL CABLE TYPE(C1A) HONG KONG EQUIPMENT(PQ1) 		1-72437-619-0 01 1 1305-1305
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 1009-
505 LOCK; LID 1-72558-024-2 02 1 1009-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 1009-
513 BRACKET; RELAY
(B) 		1-73907-327-3 01 1 1009-
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 1009-
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 1009-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 1009-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1009-
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 1009-
565 BEZEL; SW PANEL 1-72418-010-2 01 1 1009-
565 BEZEL; SW PANEL 1-72418-011-3 01 1 1009-
572 COVER; INSPECTION 1-72437-634-0 01 1 1009-
579 COVER; INST PNL 1-72437-626-0 01 1 1009-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 1009-
582 LID; FUSE & RELAY 1-72547-124-0 01 1 1009-
595 NUT; HOOK 1-72418-013-0 11 1 1009-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 1009-

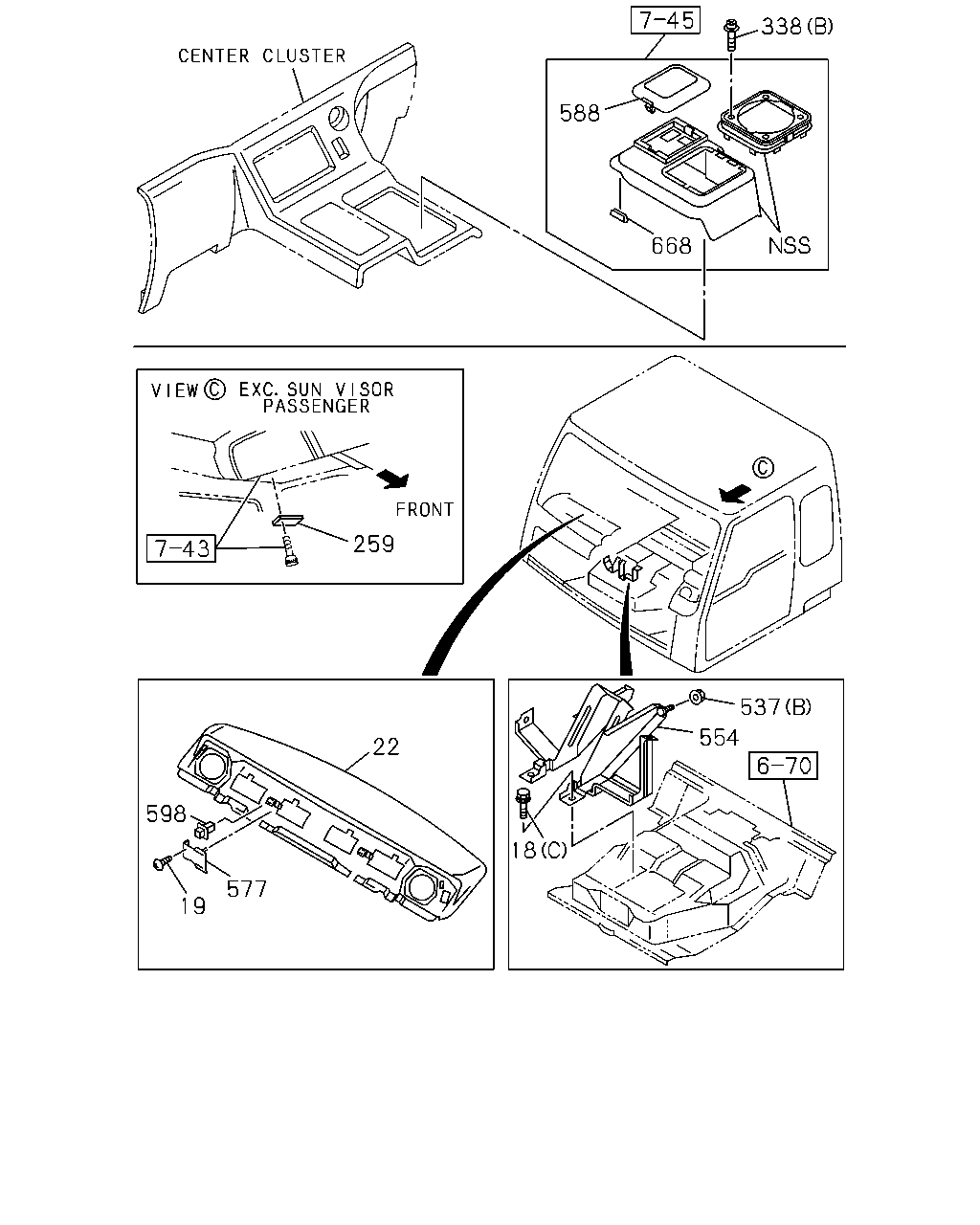

çizim 188473
537 554 18 22 577 19 598 259 668 338 588
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 1303-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 1009-1302
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1303-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 1009-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1009-
19 SCREW; BRKT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X14 		8-94279-325-0 01 1 1303-
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 1009-
22 PAD; INST 1-72317-372-1 01 1 1009-
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 1009-
338 SCREW; COVER
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M5X14 		8-94279-325-0 05 1 1303-
338 SCREW; COVER
AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X14 		8-94279-325-0 10 1 1303-1411
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X14 		8-94279-325-0 10 1 1412-
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 17 1 1009-1302
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 07 1 1303-
338 SCREW; COVER
SMOOTHER-G(C1W) (B) M4X8 W/PL WASHER 		0-36210-408-0 04 1 1009-
537 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 01 1 1009-
537 NUT; BRKT
SMOOTHER-G(C1W) (B) M8 W/DISHED WASHER 		8-97329-625-0 01 1 1009-
554 BRACKET; CENTER BEZEL 1-65671-826-0 01 1 1009-
577 BRACKET; SENSOR
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-72318-413-0 01 1 1303-
588 LID; BOX
SMOOTHER-G(C1W) 		1-72447-974-1 01 1 1009-
598 GROMMET; SCREW
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 01 1 1303-
668 FINISHER; COVER
SMOOTHER-G(C1W) L=167 		1-71996-271-0 01 1 1009-

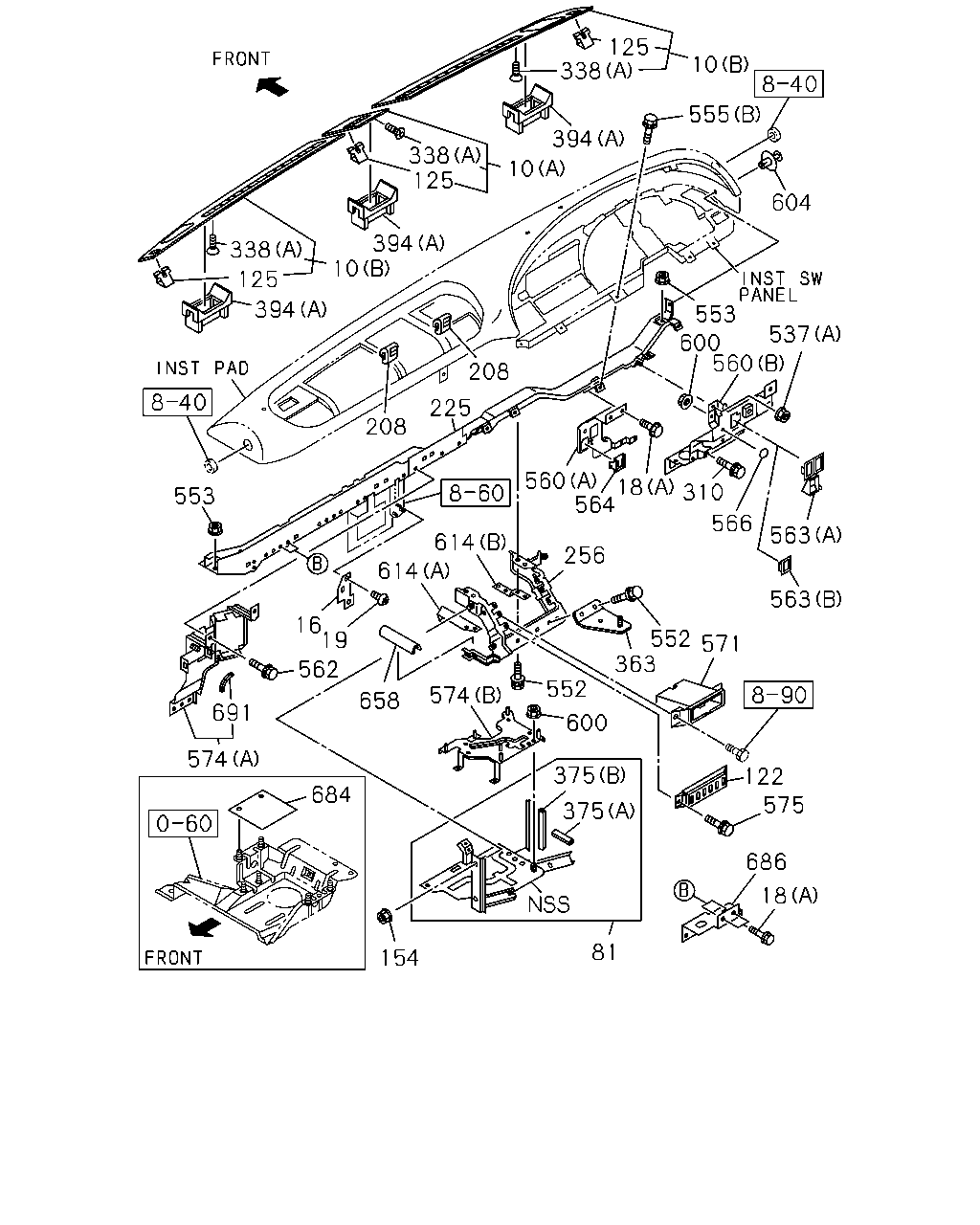

çizim 188476
563 566 563 571 552 122 575 686 18 81 375 375 600 552 256 363 310 18 564 560 614 614 574 658 154 684 574 562 691 19 16 553 560 537 600 553 604 555 10 125 338 394 10 338 394 125 10 394 125 338 208 225 208
BalonParca AdiParca NoAdetTipApplied Date
10 PANEL ASM; GARNISH
(A) CENTER 		1-72437-540-6 01 1 1009-
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-601-6 01 1 1009-
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-600-7 01 1 1009-1302
10 PANEL ASM; GARNISH
AIR CONDITIONER MANUAL CONTROL(C60) (B) W/SPEAKER NET 		1-72437-600-7 01 1 1303-1411
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) W/SPEAKER NET 		1-72437-600-7 01 1 1412-
10 PANEL ASM; GARNISH
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) W/SPEAKER NET 		1-72437-602-7 01 1 1303-
16 BRACKET; INST PNL 1-73908-023-2 01 1 1009-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 1303-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 1009-1302
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1303-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 1009-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1009-
19 SCREW; BRKT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X14 		8-94279-325-0 01 1 1303-
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 1009-
81 BRACKET; ELEC CONT UNIT 1-73907-739-0 01 1 1009-1302
81 BRACKET; ELEC CONT UNIT 8-98160-932-0 01 1 1303-
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 1009-
125 CLIP; INST PANEL
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-97217-066-0 04 1 1303-1411
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL, WO/BED(NNB) 		8-97217-066-0 04 1 1412-
125 CLIP; INST PANEL 8-97217-066-0 11 1 1009-1302
125 CLIP; INST PANEL 8-97217-066-0 07 1 1303-
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 1009-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 1009-
225 FRAME; FACIA 1-65671-725-8 01 1 1009-
256 BEZEL ASM; CENTER 1-65671-828-2 01 1 1009-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 1009-
338 SCREW; COVER
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M5X14 		8-94279-325-0 05 1 1303-
338 SCREW; COVER
AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X14 		8-94279-325-0 10 1 1303-1411
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X14 		8-94279-325-0 10 1 1412-
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 17 1 1009-1302
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 07 1 1303-
338 SCREW; COVER
SMOOTHER-G(C1W) (B) M4X8 W/PL WASHER 		0-36210-408-0 04 1 1009-
363 SUPPORT ASM; COMPT PANEL CTR
SMOOTHER-G(C1W) 		1-73907-776-0 01 1 1009-
375 FINISHER; BRKT,CONT UNIT
(B) L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 1009-1302
375 FINISHER; BRKT,CONT UNIT
(B) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 1303-
375 FINISHER; BRKT,CONT UNIT
(A) L=80 		5-71997-133-0 01 1 1009-1302
375 FINISHER; BRKT,CONT UNIT
(A) L=80 SERVICED BY L=90 		1-71997-795-0 01 1 1303-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 1009-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 1009-
537 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 01 1 1009-
537 NUT; BRKT
SMOOTHER-G(C1W) (B) M8 W/DISHED WASHER 		8-97329-625-0 01 1 1009-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1009-
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 1009-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1009-
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 1009-
560 BRACKET
(A) 		1-65681-197-2 01 1 1009-
560 BRACKET
BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W) (B) 		1-65671-757-4 01 1 1009-1302
560 BRACKET
TRANSMISSION CONTROL CABLE TYPE(C1A) BRAKE SYSTEM HSA<SLD> (B) 		1-65671-757-4 01 1 1303-
560 BRACKET
SMOOTHER-G(C1W) BRAKE SYSTEM HSA<SLD> (B) 		1-65671-760-4 01 1 1009-1302
560 BRACKET
EXC. BRAKE SYSTEM HSA<SLD> (B) 		1-65671-760-4 01 1 1009-1302
560 BRACKET
TRANSMISSION CONTROL CABLE TYPE(C1A), SMOOTHER-G(C1W) EXC. BRAKE SYSTEM HSA<SLD> (B) 		1-65671-760-4 01 1 1303-
560 BRACKET
SMOOTHER-G(C1W) BRAKE SYSTEM HSA<SLD> (B) 		1-65671-760-4 01 1 1303-
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1009-
563 BEZEL; BRKT
BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W) (A) 		1-72447-628-5 01 1 1009-1302
563 BEZEL; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) BRAKE SYSTEM HSA<SLD> (A) 		1-72447-628-5 01 1 1303-
563 BEZEL; BRKT
SMOOTHER-G(C1W) BRAKE SYSTEM HSA<SLD> (B) 		1-72448-410-3 01 1 1009-1302
563 BEZEL; BRKT
EXC. BRAKE SYSTEM HSA<SLD> (B) 		1-72448-410-3 01 1 1009-1302
563 BEZEL; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. BRAKE SYSTEM HSA<SLD> (B) 		1-72448-410-3 01 1 1303-
563 BEZEL; BRKT
SMOOTHER-G(C1W) (B) 		1-72448-410-3 01 1 1303-
564 COVER; SW
BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W) 		8-97856-401-3 01 1 1009-1302
564 COVER; SW
TRANSMISSION CONTROL CABLE TYPE(C1A) BRAKE SYSTEM HSA<SLD> 		8-97856-401-3 01 1 1303-
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1009-1302
566 PLUG; HOLE
SMOOTHER-G(C1W) BRAKE SYSTEM HSA<SLD> OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1009-1302
566 PLUG; HOLE
EXC. BRAKE SYSTEM HSA<SLD> OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1009-1302
566 PLUG; HOLE
TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. BRAKE SYSTEM HSA<SLD> OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1303-
566 PLUG; HOLE
TRANSMISSION CONTROL CABLE TYPE(C1A), SMOOTHER-G(C1W) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1303-
566 PLUG; HOLE
SMOOTHER-G(C1W) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1303-
571 BEZEL; POCKET 1-72438-151-3 01 1 1009-
571 BEZEL; POCKET
EXC. RADIO AM/FM STEREO CD(UT3) 		1-72438-151-3 01 1 1009-
574 PANEL; RELAY BOX
(B) 		1-73907-690-2 01 1 1009-
574 PANEL; RELAY BOX
(A) 		1-73907-761-2 01 1 1009-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1009-
600 NUT; PANEL
M6 FLANGE 		0-91180-106-0 03 1 1009-
604 CLIP; INST PAD 1-09983-123-0 01 1 1009-
614 BRACKET; HARNESS
(A) 		1-65671-745-1 01 1 1009-
614 BRACKET; HARNESS
(B) 		1-65671-746-1 01 1 1009-
658 FINISHER; BEZEL
L=80 		5-71997-133-0 01 1 1009-1302
658 FINISHER; BEZEL
L=80 SERVICED BY L=90 		1-71997-795-0 01 1 1303-
684 RUBBER; HARNESS 1-82698-417-1 01 1 1009-
686 BRACKET; SENSOR & RELAY 1-65681-226-1 01 1 1009-
691 FINISHER; HARNESS PROTECTOR
L=50 		8-94270-377-1 01 1 1009-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
