Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#70003) — 621 parça

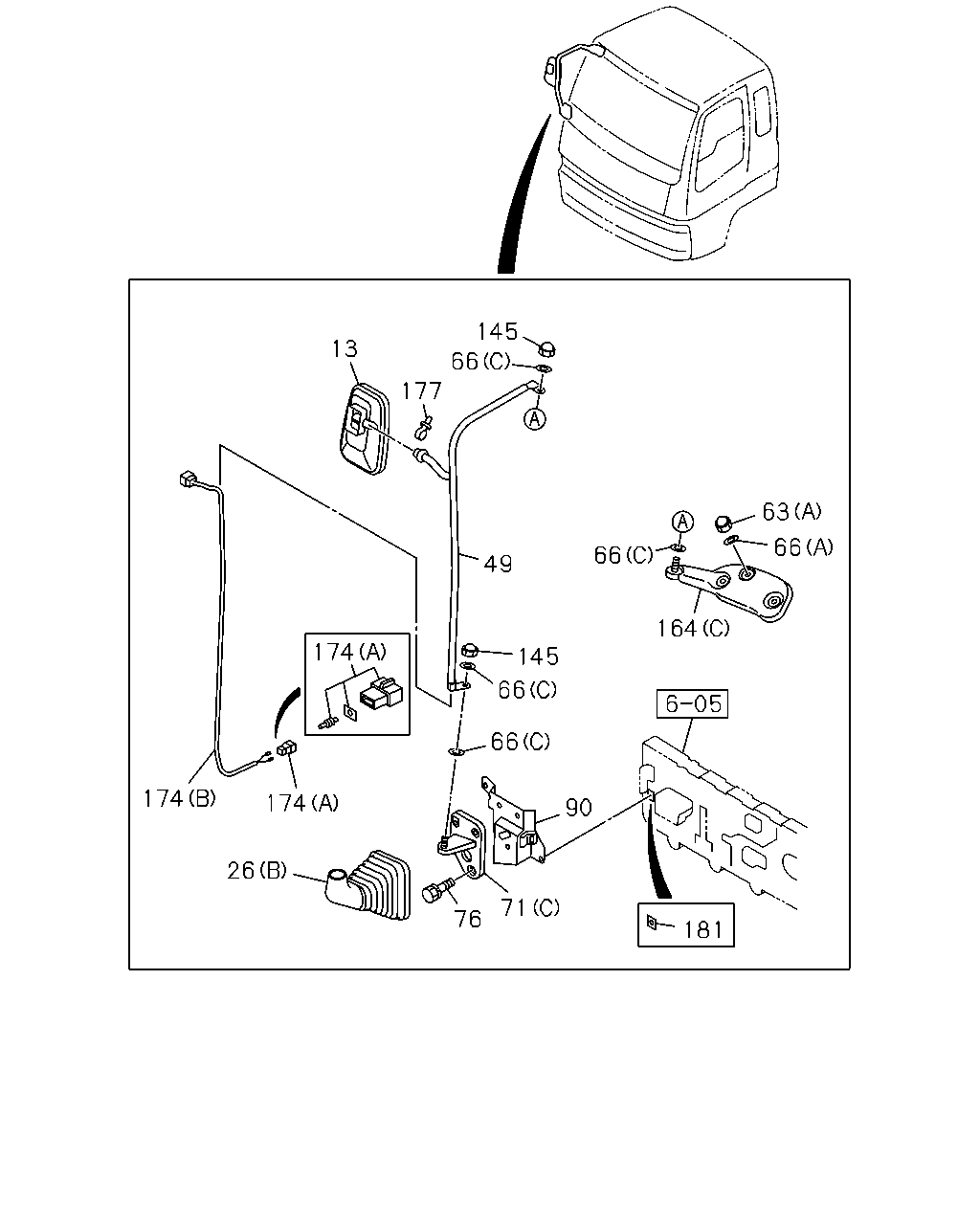

145 66 177 13 49 66 63 66 164 145 66 66 90 76 26 71 174 174 174 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW	1-71707-182-0	01	1	1009-1302
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1)	1-71707-182-0	01	1	1303-1411
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71707-182-0	01	1	1412-1510
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98324-747-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW	1-71707-181-0	01	1	1009-1302
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1)	1-71707-181-0	01	1	1303-1411
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71707-181-0	01	1	1412-1504
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98288-715-1	01	1	1505-1510
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98324-746-0	01	1	1511-
26	COVER; OUTSIDE MIRROR (A)	1-71707-222-0	01	1	1009-1302
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (A)	1-71707-222-0	01	1	1303-1411
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71707-222-0	01	1	1412-
26	COVER; OUTSIDE MIRROR (B)	1-71798-316-2	01	1	1009-1302
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (B)	1-71798-316-2	01	1	1303-1411
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71798-316-2	01	1	1412-
26	COVER; OUTSIDE MIRROR (A)	1-71707-221-0	01	1	1009-1302
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (A)	1-71707-221-0	01	1	1303-1411
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71707-221-0	01	1	1412-
26	COVER; OUTSIDE MIRROR (B)	1-71798-695-0	01	1	1009-1302
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (B)	1-71798-695-0	01	1	1303-1411
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71798-695-0	01	1	1412-
49	STAY; MIRROR SIDE	1-71707-177-1	01	1	1009-1302
49	STAY; MIRROR SIDE HONG KONG EQUIPMENT(PQ1)	1-71707-177-1	01	1	1303-1411
49	STAY; MIRROR SIDE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71707-177-1	01	1	1412-
49	STAY; MIRROR SIDE	1-71707-175-1	01	1	1009-1302
49	STAY; MIRROR SIDE HONG KONG EQUIPMENT(PQ1)	1-71707-175-1	01	1	1303-1411
49	STAY; MIRROR SIDE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71707-175-1	01	1	1412-
49	STAY; MIRROR SIDE NEW ZEALAND EQUIPMENT(PK5)	1-71798-491-3	01	1	1303-1309
49	STAY; MIRROR SIDE NEW ZEALAND EQUIPMENT(PK5)	1-71798-490-3	01	1	1303-1309
63	NUT; STAY (D) M14	0-91110-514-0	01	1	1009-1302
63	NUT; STAY HONG KONG EQUIPMENT(PQ1) (D) M14	0-91110-514-0	01	1	1303-1411
63	NUT; STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) M14	0-91110-514-0	01	1	1412-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (B) M8	1-71798-603-1	02	1	1009-1302
63	NUT; STAY HONG KONG EQUIPMENT(PQ1) (B) M8	1-71798-603-1	02	1	1303-1411
63	NUT; STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M8	1-71798-603-1	02	1	1412-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (C) M10 CAP NUT	1-71798-859-0	01	1	1009-1302
63	NUT; STAY HONG KONG EQUIPMENT(PQ1) (C) M10 CAP NUT	1-71798-859-0	01	1	1303-1411
63	NUT; STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) M10 CAP NUT	1-71798-859-0	01	1	1412-
63	NUT; STAY (A) M8	1-09984-187-0	06	1	1009-1302
63	NUT; STAY NEW ZEALAND EQUIPMENT(PK5) (A) M8	1-09984-187-0	03	1	1303-
63	NUT; STAY HONG KONG EQUIPMENT(PQ1) (A) M8	1-09984-187-0	06	1	1303-1411
63	NUT; STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8	1-09984-187-0	06	1	1412-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	1009-1302
66	WASHER; PL HONG KONG EQUIPMENT(PQ1) (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	1303-1411
66	WASHER; PL HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	1412-
66	WASHER; PL (B) ID=12.5	1-09985-334-0	04	1	1009-1302
66	WASHER; PL HONG KONG EQUIPMENT(PQ1) (B) ID=12.5	1-09985-334-0	04	1	1303-1411
66	WASHER; PL HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=12.5	1-09985-334-0	04	1	1412-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1009-1302
66	WASHER; PL HONG KONG EQUIPMENT(PQ1) (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1303-1411
66	WASHER; PL HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1412-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1009-1302
66	WASHER; PL NEW ZEALAND EQUIPMENT(PK5) (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	1303-
66	WASHER; PL NEW ZEALAND EQUIPMENT(PK5) (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	1303-
66	WASHER; PL NEW ZEALAND EQUIPMENT(PK5) (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	1303-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-224-0	02	1	1009-1302
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (A)	1-71707-224-0	02	1	1303-1411
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71707-224-0	02	1	1412-
71	BRACKET; OUTSIDE MIRROR (B)	1-71797-809-2	01	1	1009-1302
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (B)	1-71797-809-2	01	1	1303-1411
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71797-809-2	01	1	1412-
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-309-4	01	1	1009-1302
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (C)	1-71798-309-4	01	1	1303-1411
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C)	1-71798-309-4	01	1	1412-
71	BRACKET; OUTSIDE MIRROR NEW ZEALAND EQUIPMENT(PK5) (F)	1-71707-255-2	01	1	1303-
71	BRACKET; OUTSIDE MIRROR NEW ZEALAND EQUIPMENT(PK5) (D)	1-71798-484-1	02	1	1303-
71	BRACKET; OUTSIDE MIRROR NEW ZEALAND EQUIPMENT(PK5) (E)	1-71798-486-2	02	1	1303-
71	BRACKET; OUTSIDE MIRROR NEW ZEALAND EQUIPMENT(PK5) (G)	8-98099-810-0	01	1	1303-
71	BRACKET; OUTSIDE MIRROR NEW ZEALAND EQUIPMENT(PK5) (H)	8-98167-111-0	01	1	1303-
76	BOLT; STAY BRKT M8X40 W/LK&PL WASHER	0-50640-840-0	06	1	1009-1302
76	BOLT; STAY BRKT HONG KONG EQUIPMENT(PQ1) M8X40 W/LK&PL WASHER	0-50640-840-0	06	1	1303-1411
76	BOLT; STAY BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X40 W/LK&PL WASHER	0-50640-840-0	06	1	1412-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	1009-
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	1009-
145	NUT; CAP,SUB STAY M10	1-09984-183-0	02	1	1009-1302
145	NUT; CAP,SUB STAY HONG KONG EQUIPMENT(PQ1) M10	1-09984-183-0	02	1	1303-1411
145	NUT; CAP,SUB STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M10	1-09984-183-0	02	1	1412-
164	STAY; ROOF (B)	1-71798-299-4	01	1	1009-1302
164	STAY; ROOF HONG KONG EQUIPMENT(PQ1) (B)	1-71798-299-4	01	1	1303-1411
164	STAY; ROOF HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71798-299-4	01	1	1412-
164	STAY; ROOF (C)	1-71707-090-0	01	1	1009-1302
164	STAY; ROOF HONG KONG EQUIPMENT(PQ1) (C)	1-71707-090-0	01	1	1303-1411
164	STAY; ROOF HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C)	1-71707-090-0	01	1	1412-
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-602-1	01	1	1009-1302
164	STAY; ROOF HONG KONG EQUIPMENT(PQ1) (A)	1-71798-602-1	01	1	1303-1411
164	STAY; ROOF HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71798-602-1	01	1	1412-
164	STAY; ROOF NEW ZEALAND EQUIPMENT(PK5) (D)	1-71707-248-2	01	1	1303-
164	STAY; ROOF NEW ZEALAND EQUIPMENT(PK5) (E)	1-71707-266-1	01	1	1303-
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> (A)	1-82662-365-1	02	1	1009-1302
174	HARNESS; MIRROR MIR STAY O/S W/REMOTE<TBA> MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	1-82662-365-1	02	1	1303-
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> (B)	8-97610-653-0	01	1	1009-1302
174	HARNESS; MIRROR MIR STAY O/S W/REMOTE<TBA> MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-97610-653-0	01	1	1303-
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> (B)	8-97610-652-0	01	1	1009-1302
174	HARNESS; MIRROR MIR STAY O/S W/REMOTE<TBA> MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-97610-652-0	01	1	1303-
177	CLIP; HARNESS L=140	5-09707-031-1	02	1	1009-1302
177	CLIP; HARNESS HONG KONG EQUIPMENT(PQ1) L=140	5-09707-031-1	02	1	1303-1411
177	CLIP; HARNESS HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=140	5-09707-031-1	02	1	1412-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	1009-

29 32 135 30 21 87 86 29 30 134 32 87 21 135 132 13 86 53 53 71 26 25 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW	1-71707-182-0	01	1	1009-1302
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1)	1-71707-182-0	01	1	1303-1411
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71707-182-0	01	1	1412-1510
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98324-747-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW	1-71707-181-0	01	1	1009-1302
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1)	1-71707-181-0	01	1	1303-1411
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71707-181-0	01	1	1412-1504
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98288-715-1	01	1	1505-1510
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98324-746-0	01	1	1511-
14	MIRROR ASM; OUTSIDE (A)	1-71707-231-0	01	1	1009-1302
14	MIRROR ASM; OUTSIDE HONG KONG EQUIPMENT(PQ1) (A)	1-71707-231-0	01	1	1303-1411
14	MIRROR ASM; OUTSIDE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71707-231-0	01	1	1412-1510
14	MIRROR ASM; OUTSIDE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	8-98324-759-0	01	1	1511-
14	MIRROR ASM; OUTSIDE (A)	1-71707-230-0	01	1	1009-1302
14	MIRROR ASM; OUTSIDE HONG KONG EQUIPMENT(PQ1) (A)	1-71707-230-0	01	1	1303-1411
14	MIRROR ASM; OUTSIDE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71707-230-0	01	1	1412-1504
14	MIRROR ASM; OUTSIDE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	8-98288-714-0	01	1	1505-1510
14	MIRROR ASM; OUTSIDE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	8-98324-757-0	01	1	1511-
14	MIRROR ASM; OUTSIDE NEW ZEALAND EQUIPMENT(PK5) (B)	1-71798-895-0	01	1	1303-
21	NUT; MIRROR M5	1-09984-124-0	04	1	1009-1302
21	NUT; MIRROR M5	1-09984-124-0	02	1	1303-1411
21	NUT; MIRROR HONG KONG EQUIPMENT(PQ1) M5	1-09984-124-0	02	1	1303-1411
21	NUT; MIRROR M5	1-09984-124-0	02	1	1412-
21	NUT; MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M5	1-09984-124-0	02	1	1412-
25	SCREW; OUTSIDE MIRROR M6X40	1-71707-223-0	04	1	1009-1302
25	SCREW; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) M6X40	1-71707-223-0	04	1	1303-1411
25	SCREW; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M6X40	1-71707-223-0	04	1	1412-
26	COVER; OUTSIDE MIRROR (A)	1-71707-222-0	01	1	1009-1302
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (A)	1-71707-222-0	01	1	1303-1411
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71707-222-0	01	1	1412-
26	COVER; OUTSIDE MIRROR (B)	1-71798-316-2	01	1	1009-1302
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (B)	1-71798-316-2	01	1	1303-1411
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71798-316-2	01	1	1412-
26	COVER; OUTSIDE MIRROR (A)	1-71707-221-0	01	1	1009-1302
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (A)	1-71707-221-0	01	1	1303-1411
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71707-221-0	01	1	1412-
26	COVER; OUTSIDE MIRROR (B)	1-71798-695-0	01	1	1009-1302
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (B)	1-71798-695-0	01	1	1303-1411
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71798-695-0	01	1	1412-
29	MIRROR ASM; UNDER (A)	1-71797-137-1	01	1	1009-1302
29	MIRROR ASM; UNDER HONG KONG EQUIPMENT(PQ1) (A)	1-71797-137-1	01	1	1303-1411
29	MIRROR ASM; UNDER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71797-137-1	01	1	1412-
29	MIRROR ASM; UNDER (B)	1-71798-421-1	01	1	1009-1302
29	MIRROR ASM; UNDER HONG KONG EQUIPMENT(PQ1) (B)	1-71798-421-1	01	1	1303-1411
29	MIRROR ASM; UNDER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71798-421-1	01	1	1412-
29	MIRROR ASM; UNDER NEW ZEALAND EQUIPMENT(PK5) (C)	1-71798-422-0	01	1	1303-
30	MIRROR; UNDER (A)	1-71797-853-1	01	1	1009-1302
30	MIRROR; UNDER HONG KONG EQUIPMENT(PQ1) (A)	1-71797-853-1	01	1	1303-1411
30	MIRROR; UNDER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71797-853-1	01	1	1412-
30	MIRROR; UNDER (B)	1-71798-592-1	01	1	1009-1302
30	MIRROR; UNDER HONG KONG EQUIPMENT(PQ1) (B)	1-71798-592-1	01	1	1303-1411
30	MIRROR; UNDER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71798-592-1	01	1	1412-
30	MIRROR; UNDER NEW ZEALAND EQUIPMENT(PK5) (C)	1-71798-591-1	01	1	1303-
32	SCREW; UNDER MIRROR M5X40 W/PL WASHER	1-71737-797-0	04	1	1009-1302
32	SCREW; UNDER MIRROR M5X40 W/PL WASHER	1-71737-797-0	02	1	1303-1411
32	SCREW; UNDER MIRROR HONG KONG EQUIPMENT(PQ1) M5X40 W/PL WASHER	1-71737-797-0	02	1	1303-1411
32	SCREW; UNDER MIRROR M5X40 W/PL WASHER	1-71737-797-0	02	1	1412-
32	SCREW; UNDER MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M5X40 W/PL WASHER	1-71737-797-0	02	1	1412-
53	PIVOT; SIDE MIRROR ID=22.2	1-71736-489-2	02	1	1009-1302
53	PIVOT; SIDE MIRROR HONG KONG EQUIPMENT(PQ1) ID=22.2	1-71736-489-2	04	1	1303-1411
53	PIVOT; SIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=22.2	1-71736-489-2	04	1	1412-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-224-0	02	1	1009-1302
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (A)	1-71707-224-0	02	1	1303-1411
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71707-224-0	02	1	1412-
71	BRACKET; OUTSIDE MIRROR (B)	1-71797-809-2	01	1	1009-1302
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (B)	1-71797-809-2	01	1	1303-1411
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71797-809-2	01	1	1412-
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-309-4	01	1	1009-1302
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (C)	1-71798-309-4	01	1	1303-1411
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C)	1-71798-309-4	01	1	1412-
71	BRACKET; OUTSIDE MIRROR NEW ZEALAND EQUIPMENT(PK5) (F)	1-71707-255-2	01	1	1303-
71	BRACKET; OUTSIDE MIRROR NEW ZEALAND EQUIPMENT(PK5) (D)	1-71798-484-1	02	1	1303-
71	BRACKET; OUTSIDE MIRROR NEW ZEALAND EQUIPMENT(PK5) (E)	1-71798-486-2	02	1	1303-
71	BRACKET; OUTSIDE MIRROR NEW ZEALAND EQUIPMENT(PK5) (G)	8-98099-810-0	01	1	1303-
71	BRACKET; OUTSIDE MIRROR NEW ZEALAND EQUIPMENT(PK5) (H)	8-98167-111-0	01	1	1303-
86	COVER; STAY,OUTSIDE MIRROR (C) BLACK	1-71737-649-1	01	1	1009-1411
86	COVER; STAY,OUTSIDE MIRROR NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (C) BLACK	1-71737-649-1	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR (D) BLACK	1-71737-652-1	01	1	1009-1302
86	COVER; STAY,OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (D) BLACK	1-71737-652-1	01	1	1303-1411
86	COVER; STAY,OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) BLACK	1-71737-652-1	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR (A)	1-71798-732-0	01	1	1009-1302
86	COVER; STAY,OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (A)	1-71798-732-0	01	1	1303-1411
86	COVER; STAY,OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71798-732-0	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR (B)	1-71798-733-0	01	1	1009-1302
86	COVER; STAY,OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (B)	1-71798-733-0	01	1	1303-1411
86	COVER; STAY,OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71798-733-0	01	1	1412-
87	SPACER	1-71737-646-2	02	1	1009-1302
87	SPACER	1-71737-646-2	01	1	1303-1411
87	SPACER HONG KONG EQUIPMENT(PQ1)	1-71737-646-2	01	1	1303-1411
87	SPACER	1-71737-646-2	01	1	1412-
87	SPACER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71737-646-2	01	1	1412-
132	RING; MIRROR	1-71737-935-0	01	1	1009-1302
132	RING; MIRROR HONG KONG EQUIPMENT(PQ1)	1-71737-935-0	01	1	1303-1411
132	RING; MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71737-935-0	01	1	1412-
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	1009-1302
134	CLIP; MIRROR LENS HONG KONG EQUIPMENT(PQ1)	1-71737-936-0	01	1	1303-1411
134	CLIP; MIRROR LENS HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71737-936-0	01	1	1412-
135	LENS; MIRROR,SIDE UNDER (B)	1-71707-130-0	01	1	1009-1302
135	LENS; MIRROR,SIDE UNDER HONG KONG EQUIPMENT(PQ1) (B)	1-71707-130-0	01	1	1303-1411
135	LENS; MIRROR,SIDE UNDER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71707-130-0	01	1	1412-
135	LENS; MIRROR,SIDE UNDER (A)	1-71737-929-0	01	1	1009-1302
135	LENS; MIRROR,SIDE UNDER HONG KONG EQUIPMENT(PQ1) (A)	1-71737-929-0	01	1	1303-1411
135	LENS; MIRROR,SIDE UNDER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71737-929-0	01	1	1412-
135	LENS; MIRROR,SIDE UNDER NEW ZEALAND EQUIPMENT(PK5) (C)	1-71798-838-0	01	1	1303-

1 2 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM	1-73117-033-1	01	1	1009-1302
1	MIRROR; ROOM RR VIEW MIRROR<D31>	1-73117-033-1	01	1	1303-
2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	1009-1302
2	SCREW; MIRROR TO BODY RR VIEW MIRROR<D31> M6X20	1-09981-310-0	02	1	1303-
150	PLUG; MIRROR HOLE EXC. RR VIEW MIRROR<D31> OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	1303-

63 151 46 170 170 171 172 172 173 165 54 46 46 166 164 167 66 63 67 58 66 49 177 29 118 201 118 165 200 169 168 164 66 63 63 66 13 66 190 118 174 166 66 58 71 90 76 66 86 26 63 29 174 174 86 58 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW	1-71707-182-0	01	1	1009-1302
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1)	1-71707-182-0	01	1	1303-1411
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71707-182-0	01	1	1412-1510
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98324-747-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW	1-71707-181-0	01	1	1009-1302
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1)	1-71707-181-0	01	1	1303-1411
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71707-181-0	01	1	1412-1504
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98288-715-1	01	1	1505-1510
13	MIRROR ASM; OUTSIDE RR VIEW HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98324-746-0	01	1	1511-
26	COVER; OUTSIDE MIRROR (A)	1-71707-222-0	01	1	1009-1302
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (A)	1-71707-222-0	01	1	1303-1411
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71707-222-0	01	1	1412-
26	COVER; OUTSIDE MIRROR (B)	1-71798-316-2	01	1	1009-1302
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (B)	1-71798-316-2	01	1	1303-1411
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71798-316-2	01	1	1412-
26	COVER; OUTSIDE MIRROR (A)	1-71707-221-0	01	1	1009-1302
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (A)	1-71707-221-0	01	1	1303-1411
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71707-221-0	01	1	1412-
26	COVER; OUTSIDE MIRROR (B)	1-71798-695-0	01	1	1009-1302
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (B)	1-71798-695-0	01	1	1303-1411
26	COVER; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71798-695-0	01	1	1412-
29	MIRROR ASM; UNDER (A)	1-71797-137-1	01	1	1009-1302
29	MIRROR ASM; UNDER HONG KONG EQUIPMENT(PQ1) (A)	1-71797-137-1	01	1	1303-1411
29	MIRROR ASM; UNDER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71797-137-1	01	1	1412-
29	MIRROR ASM; UNDER (B)	1-71798-421-1	01	1	1009-1302
29	MIRROR ASM; UNDER HONG KONG EQUIPMENT(PQ1) (B)	1-71798-421-1	01	1	1303-1411
29	MIRROR ASM; UNDER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71798-421-1	01	1	1412-
29	MIRROR ASM; UNDER NEW ZEALAND EQUIPMENT(PK5) (C)	1-71798-422-0	01	1	1303-
46	WASHER; LK,STAY (B) ID=16.7 OD=22.5 WAVE WASHER	9-61166-107-0	02	1	1009-1302
46	WASHER; LK,STAY HONG KONG EQUIPMENT(PQ1) (B) ID=16.7 OD=22.5 WAVE WASHER	9-61166-107-0	02	1	1303-1411
46	WASHER; LK,STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=16.7 OD=22.5 WAVE WASHER	9-61166-107-0	02	1	1412-
46	WASHER; LK,STAY MIR STAY O/S W/REMOTE<TBA> (A) ID=10	1-09985-345-0	01	1	1009-1302
46	WASHER; LK,STAY HONG KONG EQUIPMENT(PQ1) (A) ID=10	1-09985-345-0	01	1	1303-1411
46	WASHER; LK,STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=10	1-09985-345-0	01	1	1412-
49	STAY; MIRROR SIDE	1-71707-177-1	01	1	1009-1302
49	STAY; MIRROR SIDE HONG KONG EQUIPMENT(PQ1)	1-71707-177-1	01	1	1303-1411
49	STAY; MIRROR SIDE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71707-177-1	01	1	1412-
49	STAY; MIRROR SIDE	1-71707-175-1	01	1	1009-1302
49	STAY; MIRROR SIDE HONG KONG EQUIPMENT(PQ1)	1-71707-175-1	01	1	1303-1411
49	STAY; MIRROR SIDE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71707-175-1	01	1	1412-
49	STAY; MIRROR SIDE NEW ZEALAND EQUIPMENT(PK5)	1-71798-491-3	01	1	1303-1309
49	STAY; MIRROR SIDE NEW ZEALAND EQUIPMENT(PK5)	1-71798-490-3	01	1	1303-1309
54	BOLT; STAY	1-09980-618-0	01	1	1009-1302
54	BOLT; STAY HONG KONG EQUIPMENT(PQ1)	1-09980-618-0	01	1	1303-1411
54	BOLT; STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-09980-618-0	01	1	1412-
58	NUT; MIRROR STAY (B) M12	1-09984-184-1	01	1	1009-1302
58	NUT; MIRROR STAY HONG KONG EQUIPMENT(PQ1) (B) M12	1-09984-184-1	01	1	1303-1411
58	NUT; MIRROR STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M12	1-09984-184-1	01	1	1412-
58	NUT; MIRROR STAY (A) M12	1-09984-178-1	02	1	1009-1302
58	NUT; MIRROR STAY HONG KONG EQUIPMENT(PQ1) (A) M12	1-09984-178-1	02	1	1303-1411
58	NUT; MIRROR STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M12	1-09984-178-1	02	1	1412-
58	NUT; MIRROR STAY NEW ZEALAND EQUIPMENT(PK5) (C) M10	1-09984-183-0	01	1	1303-
63	NUT; STAY (D) M14	0-91110-514-0	01	1	1009-1302
63	NUT; STAY HONG KONG EQUIPMENT(PQ1) (D) M14	0-91110-514-0	01	1	1303-1411
63	NUT; STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) M14	0-91110-514-0	01	1	1412-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (B) M8	1-71798-603-1	02	1	1009-1302
63	NUT; STAY HONG KONG EQUIPMENT(PQ1) (B) M8	1-71798-603-1	02	1	1303-1411
63	NUT; STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M8	1-71798-603-1	02	1	1412-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (C) M10 CAP NUT	1-71798-859-0	01	1	1009-1302
63	NUT; STAY HONG KONG EQUIPMENT(PQ1) (C) M10 CAP NUT	1-71798-859-0	01	1	1303-1411
63	NUT; STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) M10 CAP NUT	1-71798-859-0	01	1	1412-
63	NUT; STAY (A) M8	1-09984-187-0	06	1	1009-1302
63	NUT; STAY NEW ZEALAND EQUIPMENT(PK5) (A) M8	1-09984-187-0	03	1	1303-
63	NUT; STAY HONG KONG EQUIPMENT(PQ1) (A) M8	1-09984-187-0	06	1	1303-1411
63	NUT; STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8	1-09984-187-0	06	1	1412-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	1009-1302
66	WASHER; PL HONG KONG EQUIPMENT(PQ1) (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	1303-1411
66	WASHER; PL HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	1412-
66	WASHER; PL (B) ID=12.5	1-09985-334-0	04	1	1009-1302
66	WASHER; PL HONG KONG EQUIPMENT(PQ1) (B) ID=12.5	1-09985-334-0	04	1	1303-1411
66	WASHER; PL HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=12.5	1-09985-334-0	04	1	1412-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1009-1302
66	WASHER; PL HONG KONG EQUIPMENT(PQ1) (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1303-1411
66	WASHER; PL HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1412-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1009-1302
66	WASHER; PL NEW ZEALAND EQUIPMENT(PK5) (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	1303-
66	WASHER; PL NEW ZEALAND EQUIPMENT(PK5) (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	1303-
66	WASHER; PL NEW ZEALAND EQUIPMENT(PK5) (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	1303-
67	NUT; STAY M12	1-09984-178-1	01	1	1009-1302
67	NUT; STAY HONG KONG EQUIPMENT(PQ1) M12	1-09984-178-1	01	1	1303-1411
67	NUT; STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M12	1-09984-178-1	01	1	1412-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-224-0	02	1	1009-1302
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (A)	1-71707-224-0	02	1	1303-1411
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71707-224-0	02	1	1412-
71	BRACKET; OUTSIDE MIRROR (B)	1-71797-809-2	01	1	1009-1302
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (B)	1-71797-809-2	01	1	1303-1411
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71797-809-2	01	1	1412-
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-309-4	01	1	1009-1302
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (C)	1-71798-309-4	01	1	1303-1411
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C)	1-71798-309-4	01	1	1412-
71	BRACKET; OUTSIDE MIRROR NEW ZEALAND EQUIPMENT(PK5) (F)	1-71707-255-2	01	1	1303-
71	BRACKET; OUTSIDE MIRROR NEW ZEALAND EQUIPMENT(PK5) (D)	1-71798-484-1	02	1	1303-
71	BRACKET; OUTSIDE MIRROR NEW ZEALAND EQUIPMENT(PK5) (E)	1-71798-486-2	02	1	1303-
71	BRACKET; OUTSIDE MIRROR NEW ZEALAND EQUIPMENT(PK5) (G)	8-98099-810-0	01	1	1303-
71	BRACKET; OUTSIDE MIRROR NEW ZEALAND EQUIPMENT(PK5) (H)	8-98167-111-0	01	1	1303-
76	BOLT; STAY BRKT M8X40 W/LK&PL WASHER	0-50640-840-0	06	1	1009-1302
76	BOLT; STAY BRKT HONG KONG EQUIPMENT(PQ1) M8X40 W/LK&PL WASHER	0-50640-840-0	06	1	1303-1411
76	BOLT; STAY BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X40 W/LK&PL WASHER	0-50640-840-0	06	1	1412-
86	COVER; STAY,OUTSIDE MIRROR (C) BLACK	1-71737-649-1	01	1	1009-1411
86	COVER; STAY,OUTSIDE MIRROR NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (C) BLACK	1-71737-649-1	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR (D) BLACK	1-71737-652-1	01	1	1009-1302
86	COVER; STAY,OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (D) BLACK	1-71737-652-1	01	1	1303-1411
86	COVER; STAY,OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) BLACK	1-71737-652-1	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR (A)	1-71798-732-0	01	1	1009-1302
86	COVER; STAY,OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (A)	1-71798-732-0	01	1	1303-1411
86	COVER; STAY,OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71798-732-0	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR (B)	1-71798-733-0	01	1	1009-1302
86	COVER; STAY,OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (B)	1-71798-733-0	01	1	1303-1411
86	COVER; STAY,OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71798-733-0	01	1	1412-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	1009-
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	1009-
118	JOINT ASM; BALL (A)	1-71797-805-1	01	1	1009-1302
118	JOINT ASM; BALL HONG KONG EQUIPMENT(PQ1) (A)	1-71797-805-1	01	1	1303-1411
118	JOINT ASM; BALL HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71797-805-1	01	1	1412-
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> (C) RH THREAD	1-71798-819-2	01	1	1009-1302
118	JOINT ASM; BALL HONG KONG EQUIPMENT(PQ1) (C) RH THREAD	1-71798-819-2	01	1	1303-1411
118	JOINT ASM; BALL HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) RH THREAD	1-71798-819-2	01	1	1412-
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> (B) LH THREAD	1-71798-820-2	01	1	1009-1302
118	JOINT ASM; BALL HONG KONG EQUIPMENT(PQ1) (B) LH THREAD	1-71798-820-2	01	1	1303-1411
118	JOINT ASM; BALL HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) LH THREAD	1-71798-820-2	01	1	1412-
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	1009-1302
151	WASHER; PL,MIRROR HONG KONG EQUIPMENT(PQ1) (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	1303-1411
151	WASHER; PL,MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	1412-
151	WASHER; PL,MIRROR NEW ZEALAND EQUIPMENT(PK5) (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	1303-
164	STAY; ROOF (B)	1-71798-299-4	01	1	1009-1302
164	STAY; ROOF HONG KONG EQUIPMENT(PQ1) (B)	1-71798-299-4	01	1	1303-1411
164	STAY; ROOF HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71798-299-4	01	1	1412-
164	STAY; ROOF (C)	1-71707-090-0	01	1	1009-1302
164	STAY; ROOF HONG KONG EQUIPMENT(PQ1) (C)	1-71707-090-0	01	1	1303-1411
164	STAY; ROOF HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C)	1-71707-090-0	01	1	1412-
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-602-1	01	1	1009-1302
164	STAY; ROOF HONG KONG EQUIPMENT(PQ1) (A)	1-71798-602-1	01	1	1303-1411
164	STAY; ROOF HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71798-602-1	01	1	1412-
164	STAY; ROOF NEW ZEALAND EQUIPMENT(PK5) (D)	1-71707-248-2	01	1	1303-
164	STAY; ROOF NEW ZEALAND EQUIPMENT(PK5) (E)	1-71707-266-1	01	1	1303-
165	LINK; POWER MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-600-1	01	1	1009-1302
165	LINK; POWER MIRROR HONG KONG EQUIPMENT(PQ1) (B)	1-71798-600-1	01	1	1303-1411
165	LINK; POWER MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71798-600-1	01	1	1412-
165	LINK; POWER MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-782-2	01	1	1009-1302
165	LINK; POWER MIRROR HONG KONG EQUIPMENT(PQ1) (A)	1-71798-782-2	01	1	1303-1411
165	LINK; POWER MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71798-782-2	01	1	1412-
166	BUSHING; STAY	1-09983-179-0	02	1	1009-1302
166	BUSHING; STAY HONG KONG EQUIPMENT(PQ1)	1-09983-179-0	02	1	1303-1411
166	BUSHING; STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-09983-179-0	02	1	1412-
167	RUBBER; STOPPER MIR STAY O/S W/REMOTE<TBA>	1-71798-308-0	01	1	1009-1302
167	RUBBER; STOPPER HONG KONG EQUIPMENT(PQ1)	1-71798-308-0	01	1	1303-1411
167	RUBBER; STOPPER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71798-308-0	01	1	1412-
168	POWER UNIT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA>	1-86855-031-0	01	1	1009-1302
168	POWER UNIT; MIRROR STAY HONG KONG EQUIPMENT(PQ1)	1-86855-031-0	01	1	1303-1311
168	POWER UNIT; MIRROR STAY HONG KONG EQUIPMENT(PQ1)	8-98251-163-0	01	1	1312-1411
168	POWER UNIT; MIRROR STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98251-163-0	01	1	1412-
169	WASHER; PL,POWER UNIT MIR STAY O/S W/REMOTE<TBA> ID=26.2 OD=44 T=2	1-86855-011-1	01	1	1009-1302
169	WASHER; PL,POWER UNIT HONG KONG EQUIPMENT(PQ1) ID=26.2 OD=44 T=2	1-86855-011-1	01	1	1303-1411
169	WASHER; PL,POWER UNIT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=26.2 OD=44 T=2	1-86855-011-1	01	1	1412-
170	CAP; POWER UNIT MIR STAY O/S W/REMOTE<TBA> (A)	1-86855-012-0	01	1	1009-1302
170	CAP; POWER UNIT HONG KONG EQUIPMENT(PQ1) (A)	1-86855-012-0	01	1	1303-1411
170	CAP; POWER UNIT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-86855-012-0	01	1	1412-
170	CAP; POWER UNIT MIR STAY O/S W/REMOTE<TBA> (B)	1-86855-014-1	01	1	1009-1302
170	CAP; POWER UNIT HONG KONG EQUIPMENT(PQ1) (B)	1-86855-014-1	01	1	1303-1411
170	CAP; POWER UNIT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-86855-014-1	01	1	1412-
171	NUT; POWER UNIT MIR STAY O/S W/REMOTE<TBA> M26	1-86855-013-1	01	1	1009-1302
171	NUT; POWER UNIT HONG KONG EQUIPMENT(PQ1) M26	1-86855-013-1	01	1	1303-1411
171	NUT; POWER UNIT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M26	1-86855-013-1	01	1	1412-
172	SEAL; RUBBER,POWER UNIT MIR STAY O/S W/REMOTE<TBA> (A)	1-79928-003-1	01	1	1009-1302
172	SEAL; RUBBER,POWER UNIT HONG KONG EQUIPMENT(PQ1) (A)	1-79928-003-1	01	1	1303-1411
172	SEAL; RUBBER,POWER UNIT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-79928-003-1	01	1	1412-
172	SEAL; RUBBER,POWER UNIT MIR STAY O/S W/REMOTE<TBA> (B)	1-86855-015-0	01	1	1009-1302
172	SEAL; RUBBER,POWER UNIT HONG KONG EQUIPMENT(PQ1) (B)	1-86855-015-0	01	1	1303-1411
172	SEAL; RUBBER,POWER UNIT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-86855-015-0	01	1	1412-
173	BOLT; POWER UNIT MIR STAY O/S W/REMOTE<TBA> M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	1009-1302
173	BOLT; POWER UNIT HONG KONG EQUIPMENT(PQ1) M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	1303-1411
173	BOLT; POWER UNIT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	1412-
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> (A)	1-82662-365-1	02	1	1009-1302
174	HARNESS; MIRROR MIR STAY O/S W/REMOTE<TBA> MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	1-82662-365-1	02	1	1303-
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> (B)	8-97610-653-0	01	1	1009-1302
174	HARNESS; MIRROR MIR STAY O/S W/REMOTE<TBA> MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-97610-653-0	01	1	1303-
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> (B)	8-97610-652-0	01	1	1009-1302
174	HARNESS; MIRROR MIR STAY O/S W/REMOTE<TBA> MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-97610-652-0	01	1	1303-
177	CLIP; HARNESS L=140	5-09707-031-1	02	1	1009-1302
177	CLIP; HARNESS HONG KONG EQUIPMENT(PQ1) L=140	5-09707-031-1	02	1	1303-1411
177	CLIP; HARNESS HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=140	5-09707-031-1	02	1	1412-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	1009-
190	SCREW; COVER M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	1009-1302
190	SCREW; COVER HONG KONG EQUIPMENT(PQ1) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	1303-1411
190	SCREW; COVER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	1412-
200	STOPPER; STAY MIR STAY O/S W/REMOTE<TBA>	1-71798-597-0	01	1	1009-1302
200	STOPPER; STAY HONG KONG EQUIPMENT(PQ1)	1-71798-597-0	01	1	1303-1411
200	STOPPER; STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71798-597-0	01	1	1412-
201	ROD; MIRROR MIR STAY O/S W/REMOTE<TBA>	1-71798-821-0	01	1	1009-1302
201	ROD; MIRROR HONG KONG EQUIPMENT(PQ1)	1-71798-821-0	01	1	1303-1411
201	ROD; MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71798-821-0	01	1	1412-

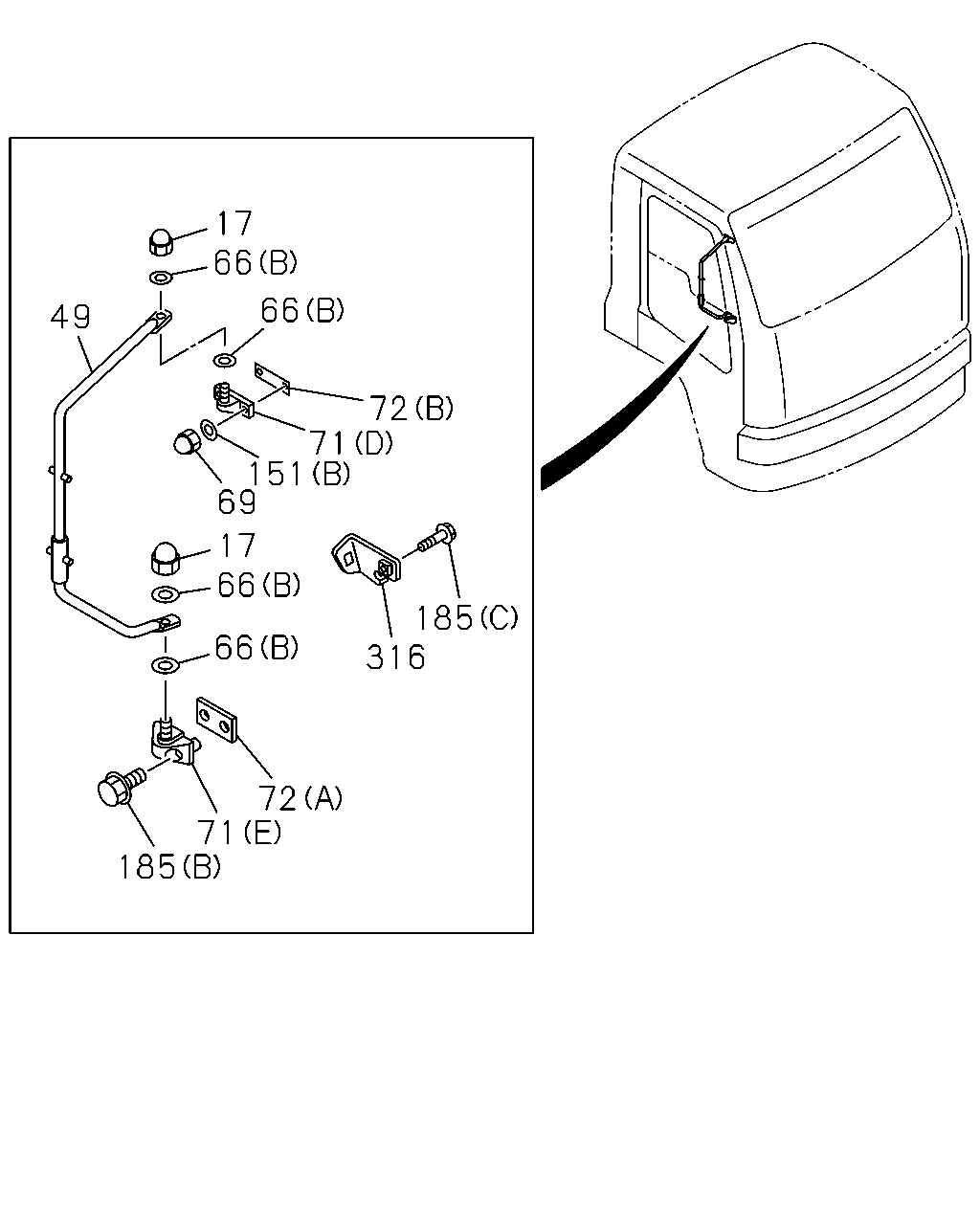

17 49 66 72 66 71 151 69 66 17 66 316 72 71 185 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	NUT; CAP,MIRROR STAY NEW ZEALAND EQUIPMENT(PK5) M10 CAP NUT	1-09984-134-0	03	1	1303-
17	NUT; CAP,MIRROR STAY NEW ZEALAND EQUIPMENT(PK5) M10 CAP NUT	1-09984-134-0	04	1	1303-
49	STAY; MIRROR SIDE	1-71707-177-1	01	1	1009-1302
49	STAY; MIRROR SIDE HONG KONG EQUIPMENT(PQ1)	1-71707-177-1	01	1	1303-1411
49	STAY; MIRROR SIDE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71707-177-1	01	1	1412-
49	STAY; MIRROR SIDE	1-71707-175-1	01	1	1009-1302
49	STAY; MIRROR SIDE HONG KONG EQUIPMENT(PQ1)	1-71707-175-1	01	1	1303-1411
49	STAY; MIRROR SIDE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71707-175-1	01	1	1412-
49	STAY; MIRROR SIDE NEW ZEALAND EQUIPMENT(PK5)	1-71798-491-3	01	1	1303-1309
49	STAY; MIRROR SIDE NEW ZEALAND EQUIPMENT(PK5)	1-71798-490-3	01	1	1303-1309
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	1009-1302
66	WASHER; PL HONG KONG EQUIPMENT(PQ1) (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	1303-1411
66	WASHER; PL HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	1412-
66	WASHER; PL (B) ID=12.5	1-09985-334-0	04	1	1009-1302
66	WASHER; PL HONG KONG EQUIPMENT(PQ1) (B) ID=12.5	1-09985-334-0	04	1	1303-1411
66	WASHER; PL HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=12.5	1-09985-334-0	04	1	1412-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1009-1302
66	WASHER; PL HONG KONG EQUIPMENT(PQ1) (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1303-1411
66	WASHER; PL HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1412-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1009-1302
66	WASHER; PL NEW ZEALAND EQUIPMENT(PK5) (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	1303-
66	WASHER; PL NEW ZEALAND EQUIPMENT(PK5) (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	1303-
66	WASHER; PL NEW ZEALAND EQUIPMENT(PK5) (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	1303-
69	NUT; CAP NEW ZEALAND EQUIPMENT(PK5) M8 CAP NUT	8-98059-914-0	04	1	1303-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-224-0	02	1	1009-1302
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (A)	1-71707-224-0	02	1	1303-1411
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71707-224-0	02	1	1412-
71	BRACKET; OUTSIDE MIRROR (B)	1-71797-809-2	01	1	1009-1302
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (B)	1-71797-809-2	01	1	1303-1411
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71797-809-2	01	1	1412-
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-309-4	01	1	1009-1302
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (C)	1-71798-309-4	01	1	1303-1411
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C)	1-71798-309-4	01	1	1412-
71	BRACKET; OUTSIDE MIRROR NEW ZEALAND EQUIPMENT(PK5) (F)	1-71707-255-2	01	1	1303-
71	BRACKET; OUTSIDE MIRROR NEW ZEALAND EQUIPMENT(PK5) (D)	1-71798-484-1	02	1	1303-
71	BRACKET; OUTSIDE MIRROR NEW ZEALAND EQUIPMENT(PK5) (E)	1-71798-486-2	02	1	1303-
71	BRACKET; OUTSIDE MIRROR NEW ZEALAND EQUIPMENT(PK5) (G)	8-98099-810-0	01	1	1303-
71	BRACKET; OUTSIDE MIRROR NEW ZEALAND EQUIPMENT(PK5) (H)	8-98167-111-0	01	1	1303-
72	SHEET NEW ZEALAND EQUIPMENT(PK5) (B)	1-71798-487-3	02	1	1303-
72	SHEET NEW ZEALAND EQUIPMENT(PK5) (A)	1-71798-488-1	02	1	1303-
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	1009-1302
151	WASHER; PL,MIRROR HONG KONG EQUIPMENT(PQ1) (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	1303-1411
151	WASHER; PL,MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	1412-
151	WASHER; PL,MIRROR NEW ZEALAND EQUIPMENT(PK5) (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	1303-
185	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5) (C) M6X16 FLANGE	0-28660-616-0	01	1	1303-
185	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5) (A) M5X16	1-71707-259-0	02	1	1303-
185	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5) (B) M8X35 FLANGE	8-98046-876-0	04	1	1303-
316	BRACKET; CONNECTOR NEW ZEALAND EQUIPMENT(PK5)	1-71798-896-1	01	1	1304-

17 66 66 72 71 151 69 17 66 66 72 71 185 49 181 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	NUT; CAP,MIRROR STAY NEW ZEALAND EQUIPMENT(PK5) M10 CAP NUT	1-09984-134-0	03	1	1303-
17	NUT; CAP,MIRROR STAY NEW ZEALAND EQUIPMENT(PK5) M10 CAP NUT	1-09984-134-0	04	1	1303-
49	STAY; MIRROR SIDE	1-71707-177-1	01	1	1009-1302
49	STAY; MIRROR SIDE HONG KONG EQUIPMENT(PQ1)	1-71707-177-1	01	1	1303-1411
49	STAY; MIRROR SIDE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71707-177-1	01	1	1412-
49	STAY; MIRROR SIDE	1-71707-175-1	01	1	1009-1302
49	STAY; MIRROR SIDE HONG KONG EQUIPMENT(PQ1)	1-71707-175-1	01	1	1303-1411
49	STAY; MIRROR SIDE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71707-175-1	01	1	1412-
49	STAY; MIRROR SIDE NEW ZEALAND EQUIPMENT(PK5)	1-71798-491-3	01	1	1303-1309
49	STAY; MIRROR SIDE NEW ZEALAND EQUIPMENT(PK5)	1-71798-490-3	01	1	1303-1309
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	1009-1302
66	WASHER; PL HONG KONG EQUIPMENT(PQ1) (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	1303-1411
66	WASHER; PL HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	1412-
66	WASHER; PL (B) ID=12.5	1-09985-334-0	04	1	1009-1302
66	WASHER; PL HONG KONG EQUIPMENT(PQ1) (B) ID=12.5	1-09985-334-0	04	1	1303-1411
66	WASHER; PL HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=12.5	1-09985-334-0	04	1	1412-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1009-1302
66	WASHER; PL HONG KONG EQUIPMENT(PQ1) (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1303-1411
66	WASHER; PL HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1412-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1009-1302
66	WASHER; PL NEW ZEALAND EQUIPMENT(PK5) (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	1303-
66	WASHER; PL NEW ZEALAND EQUIPMENT(PK5) (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	1303-
66	WASHER; PL NEW ZEALAND EQUIPMENT(PK5) (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	1303-
69	NUT; CAP NEW ZEALAND EQUIPMENT(PK5) M8 CAP NUT	8-98059-914-0	04	1	1303-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-224-0	02	1	1009-1302
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (A)	1-71707-224-0	02	1	1303-1411
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71707-224-0	02	1	1412-
71	BRACKET; OUTSIDE MIRROR (B)	1-71797-809-2	01	1	1009-1302
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (B)	1-71797-809-2	01	1	1303-1411
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71797-809-2	01	1	1412-
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-309-4	01	1	1009-1302
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (C)	1-71798-309-4	01	1	1303-1411
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C)	1-71798-309-4	01	1	1412-
71	BRACKET; OUTSIDE MIRROR NEW ZEALAND EQUIPMENT(PK5) (F)	1-71707-255-2	01	1	1303-
71	BRACKET; OUTSIDE MIRROR NEW ZEALAND EQUIPMENT(PK5) (D)	1-71798-484-1	02	1	1303-
71	BRACKET; OUTSIDE MIRROR NEW ZEALAND EQUIPMENT(PK5) (E)	1-71798-486-2	02	1	1303-
71	BRACKET; OUTSIDE MIRROR NEW ZEALAND EQUIPMENT(PK5) (G)	8-98099-810-0	01	1	1303-
71	BRACKET; OUTSIDE MIRROR NEW ZEALAND EQUIPMENT(PK5) (H)	8-98167-111-0	01	1	1303-
72	SHEET NEW ZEALAND EQUIPMENT(PK5) (B)	1-71798-487-3	02	1	1303-
72	SHEET NEW ZEALAND EQUIPMENT(PK5) (A)	1-71798-488-1	02	1	1303-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	1009-
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	1009-
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	1009-1302
151	WASHER; PL,MIRROR HONG KONG EQUIPMENT(PQ1) (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	1303-1411
151	WASHER; PL,MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	1412-
151	WASHER; PL,MIRROR NEW ZEALAND EQUIPMENT(PK5) (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	1303-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	1009-
185	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5) (C) M6X16 FLANGE	0-28660-616-0	01	1	1303-
185	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5) (A) M5X16	1-71707-259-0	02	1	1303-
185	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5) (B) M8X35 FLANGE	8-98046-876-0	04	1	1303-

17 66 66 17 66 99 66 29 86 87 21 30 135 32 164 17 66 66 71 185 63 66 164 116 116 58 22 14 71 71 77 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	MIRROR ASM; OUTSIDE (A)	1-71707-231-0	01	1	1009-1302
14	MIRROR ASM; OUTSIDE HONG KONG EQUIPMENT(PQ1) (A)	1-71707-231-0	01	1	1303-1411
14	MIRROR ASM; OUTSIDE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71707-231-0	01	1	1412-1510
14	MIRROR ASM; OUTSIDE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	8-98324-759-0	01	1	1511-
14	MIRROR ASM; OUTSIDE (A)	1-71707-230-0	01	1	1009-1302
14	MIRROR ASM; OUTSIDE HONG KONG EQUIPMENT(PQ1) (A)	1-71707-230-0	01	1	1303-1411
14	MIRROR ASM; OUTSIDE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71707-230-0	01	1	1412-1504
14	MIRROR ASM; OUTSIDE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	8-98288-714-0	01	1	1505-1510
14	MIRROR ASM; OUTSIDE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	8-98324-757-0	01	1	1511-
14	MIRROR ASM; OUTSIDE NEW ZEALAND EQUIPMENT(PK5) (B)	1-71798-895-0	01	1	1303-
17	NUT; CAP,MIRROR STAY NEW ZEALAND EQUIPMENT(PK5) M10 CAP NUT	1-09984-134-0	03	1	1303-
17	NUT; CAP,MIRROR STAY NEW ZEALAND EQUIPMENT(PK5) M10 CAP NUT	1-09984-134-0	04	1	1303-
21	NUT; MIRROR M5	1-09984-124-0	04	1	1009-1302
21	NUT; MIRROR M5	1-09984-124-0	02	1	1303-1411
21	NUT; MIRROR HONG KONG EQUIPMENT(PQ1) M5	1-09984-124-0	02	1	1303-1411
21	NUT; MIRROR M5	1-09984-124-0	02	1	1412-
21	NUT; MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M5	1-09984-124-0	02	1	1412-
22	STAY; OUTSIDE MIRROR NEW ZEALAND EQUIPMENT(PK5)	1-71798-663-1	01	1	1303-
29	MIRROR ASM; UNDER (A)	1-71797-137-1	01	1	1009-1302
29	MIRROR ASM; UNDER HONG KONG EQUIPMENT(PQ1) (A)	1-71797-137-1	01	1	1303-1411
29	MIRROR ASM; UNDER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71797-137-1	01	1	1412-
29	MIRROR ASM; UNDER (B)	1-71798-421-1	01	1	1009-1302
29	MIRROR ASM; UNDER HONG KONG EQUIPMENT(PQ1) (B)	1-71798-421-1	01	1	1303-1411
29	MIRROR ASM; UNDER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71798-421-1	01	1	1412-
29	MIRROR ASM; UNDER NEW ZEALAND EQUIPMENT(PK5) (C)	1-71798-422-0	01	1	1303-
30	MIRROR; UNDER (A)	1-71797-853-1	01	1	1009-1302
30	MIRROR; UNDER HONG KONG EQUIPMENT(PQ1) (A)	1-71797-853-1	01	1	1303-1411
30	MIRROR; UNDER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71797-853-1	01	1	1412-
30	MIRROR; UNDER (B)	1-71798-592-1	01	1	1009-1302
30	MIRROR; UNDER HONG KONG EQUIPMENT(PQ1) (B)	1-71798-592-1	01	1	1303-1411
30	MIRROR; UNDER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71798-592-1	01	1	1412-
30	MIRROR; UNDER NEW ZEALAND EQUIPMENT(PK5) (C)	1-71798-591-1	01	1	1303-
32	SCREW; UNDER MIRROR M5X40 W/PL WASHER	1-71737-797-0	04	1	1009-1302
32	SCREW; UNDER MIRROR M5X40 W/PL WASHER	1-71737-797-0	02	1	1303-1411
32	SCREW; UNDER MIRROR HONG KONG EQUIPMENT(PQ1) M5X40 W/PL WASHER	1-71737-797-0	02	1	1303-1411
32	SCREW; UNDER MIRROR M5X40 W/PL WASHER	1-71737-797-0	02	1	1412-
32	SCREW; UNDER MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M5X40 W/PL WASHER	1-71737-797-0	02	1	1412-
58	NUT; MIRROR STAY (B) M12	1-09984-184-1	01	1	1009-1302
58	NUT; MIRROR STAY HONG KONG EQUIPMENT(PQ1) (B) M12	1-09984-184-1	01	1	1303-1411
58	NUT; MIRROR STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M12	1-09984-184-1	01	1	1412-
58	NUT; MIRROR STAY (A) M12	1-09984-178-1	02	1	1009-1302
58	NUT; MIRROR STAY HONG KONG EQUIPMENT(PQ1) (A) M12	1-09984-178-1	02	1	1303-1411
58	NUT; MIRROR STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M12	1-09984-178-1	02	1	1412-
58	NUT; MIRROR STAY NEW ZEALAND EQUIPMENT(PK5) (C) M10	1-09984-183-0	01	1	1303-
63	NUT; STAY (D) M14	0-91110-514-0	01	1	1009-1302
63	NUT; STAY HONG KONG EQUIPMENT(PQ1) (D) M14	0-91110-514-0	01	1	1303-1411
63	NUT; STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) M14	0-91110-514-0	01	1	1412-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (B) M8	1-71798-603-1	02	1	1009-1302
63	NUT; STAY HONG KONG EQUIPMENT(PQ1) (B) M8	1-71798-603-1	02	1	1303-1411
63	NUT; STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M8	1-71798-603-1	02	1	1412-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (C) M10 CAP NUT	1-71798-859-0	01	1	1009-1302
63	NUT; STAY HONG KONG EQUIPMENT(PQ1) (C) M10 CAP NUT	1-71798-859-0	01	1	1303-1411
63	NUT; STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) M10 CAP NUT	1-71798-859-0	01	1	1412-
63	NUT; STAY (A) M8	1-09984-187-0	06	1	1009-1302
63	NUT; STAY NEW ZEALAND EQUIPMENT(PK5) (A) M8	1-09984-187-0	03	1	1303-
63	NUT; STAY HONG KONG EQUIPMENT(PQ1) (A) M8	1-09984-187-0	06	1	1303-1411
63	NUT; STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8	1-09984-187-0	06	1	1412-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	1009-1302
66	WASHER; PL HONG KONG EQUIPMENT(PQ1) (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	1303-1411
66	WASHER; PL HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	1412-
66	WASHER; PL (B) ID=12.5	1-09985-334-0	04	1	1009-1302
66	WASHER; PL HONG KONG EQUIPMENT(PQ1) (B) ID=12.5	1-09985-334-0	04	1	1303-1411
66	WASHER; PL HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=12.5	1-09985-334-0	04	1	1412-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1009-1302
66	WASHER; PL HONG KONG EQUIPMENT(PQ1) (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1303-1411
66	WASHER; PL HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1412-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1009-1302
66	WASHER; PL NEW ZEALAND EQUIPMENT(PK5) (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	1303-
66	WASHER; PL NEW ZEALAND EQUIPMENT(PK5) (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	1303-
66	WASHER; PL NEW ZEALAND EQUIPMENT(PK5) (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	1303-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-224-0	02	1	1009-1302
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (A)	1-71707-224-0	02	1	1303-1411
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71707-224-0	02	1	1412-
71	BRACKET; OUTSIDE MIRROR (B)	1-71797-809-2	01	1	1009-1302
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (B)	1-71797-809-2	01	1	1303-1411
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71797-809-2	01	1	1412-
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-309-4	01	1	1009-1302
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (C)	1-71798-309-4	01	1	1303-1411
71	BRACKET; OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C)	1-71798-309-4	01	1	1412-
71	BRACKET; OUTSIDE MIRROR NEW ZEALAND EQUIPMENT(PK5) (F)	1-71707-255-2	01	1	1303-
71	BRACKET; OUTSIDE MIRROR NEW ZEALAND EQUIPMENT(PK5) (D)	1-71798-484-1	02	1	1303-
71	BRACKET; OUTSIDE MIRROR NEW ZEALAND EQUIPMENT(PK5) (E)	1-71798-486-2	02	1	1303-
71	BRACKET; OUTSIDE MIRROR NEW ZEALAND EQUIPMENT(PK5) (G)	8-98099-810-0	01	1	1303-
71	BRACKET; OUTSIDE MIRROR NEW ZEALAND EQUIPMENT(PK5) (H)	8-98167-111-0	01	1	1303-
77	WASHER; PL,BRKT,STAY NEW ZEALAND EQUIPMENT(PK5) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1303-
86	COVER; STAY,OUTSIDE MIRROR (C) BLACK	1-71737-649-1	01	1	1009-1411
86	COVER; STAY,OUTSIDE MIRROR NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (C) BLACK	1-71737-649-1	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR (D) BLACK	1-71737-652-1	01	1	1009-1302
86	COVER; STAY,OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (D) BLACK	1-71737-652-1	01	1	1303-1411
86	COVER; STAY,OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) BLACK	1-71737-652-1	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR (A)	1-71798-732-0	01	1	1009-1302
86	COVER; STAY,OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (A)	1-71798-732-0	01	1	1303-1411
86	COVER; STAY,OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71798-732-0	01	1	1412-
86	COVER; STAY,OUTSIDE MIRROR (B)	1-71798-733-0	01	1	1009-1302
86	COVER; STAY,OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1) (B)	1-71798-733-0	01	1	1303-1411
86	COVER; STAY,OUTSIDE MIRROR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71798-733-0	01	1	1412-
87	SPACER	1-71737-646-2	02	1	1009-1302
87	SPACER	1-71737-646-2	01	1	1303-1411
87	SPACER HONG KONG EQUIPMENT(PQ1)	1-71737-646-2	01	1	1303-1411
87	SPACER	1-71737-646-2	01	1	1412-
87	SPACER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-71737-646-2	01	1	1412-
99	STAY; MAIN UNDER MIRROR NEW ZEALAND EQUIPMENT(PK5)	1-71707-265-1	01	1	1303-
116	WASHER; PL,STAY,MIRROR NEW ZEALAND EQUIPMENT(PK5) ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	1303-
135	LENS; MIRROR,SIDE UNDER (B)	1-71707-130-0	01	1	1009-1302
135	LENS; MIRROR,SIDE UNDER HONG KONG EQUIPMENT(PQ1) (B)	1-71707-130-0	01	1	1303-1411
135	LENS; MIRROR,SIDE UNDER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71707-130-0	01	1	1412-
135	LENS; MIRROR,SIDE UNDER (A)	1-71737-929-0	01	1	1009-1302
135	LENS; MIRROR,SIDE UNDER HONG KONG EQUIPMENT(PQ1) (A)	1-71737-929-0	01	1	1303-1411
135	LENS; MIRROR,SIDE UNDER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71737-929-0	01	1	1412-
135	LENS; MIRROR,SIDE UNDER NEW ZEALAND EQUIPMENT(PK5) (C)	1-71798-838-0	01	1	1303-
163	NUT; MIRROR BRKT NEW ZEALAND EQUIPMENT(PK5) M8 CAP NUT	8-98059-914-0	02	1	1303-
164	STAY; ROOF (B)	1-71798-299-4	01	1	1009-1302
164	STAY; ROOF HONG KONG EQUIPMENT(PQ1) (B)	1-71798-299-4	01	1	1303-1411
164	STAY; ROOF HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-71798-299-4	01	1	1412-
164	STAY; ROOF (C)	1-71707-090-0	01	1	1009-1302
164	STAY; ROOF HONG KONG EQUIPMENT(PQ1) (C)	1-71707-090-0	01	1	1303-1411
164	STAY; ROOF HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C)	1-71707-090-0	01	1	1412-
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-602-1	01	1	1009-1302
164	STAY; ROOF HONG KONG EQUIPMENT(PQ1) (A)	1-71798-602-1	01	1	1303-1411
164	STAY; ROOF HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-71798-602-1	01	1	1412-
164	STAY; ROOF NEW ZEALAND EQUIPMENT(PK5) (D)	1-71707-248-2	01	1	1303-
164	STAY; ROOF NEW ZEALAND EQUIPMENT(PK5) (E)	1-71707-266-1	01	1	1303-
185	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5) (C) M6X16 FLANGE	0-28660-616-0	01	1	1303-
185	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5) (A) M5X16	1-71707-259-0	02	1	1303-
185	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5) (B) M8X35 FLANGE	8-98046-876-0	04	1	1303-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
