◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11289 - CYH RHD EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#70001) — 15 parça
çizim 132402
367 4 137 269 387 245
BalonParca AdiParca NoAdetTipApplied Date
4 EMBLEM; RAD GRILLE 1-76210-704-0 01 1 1009-1302
4 EMBLEM; RAD GRILLE 8-98041-913-0 01 1 1303-
137 DECAL; DOOR
BLACK 		1-74998-049-3 01 1 1009-
137 DECAL; DOOR
BLACK 		1-74998-048-3 01 1 1009-
245 DECAL; MODEL 1-76217-191-0 01 1 1009-1302
245 DECAL; MODEL 8-98202-772-0 01 1 1303-
269 DECAL; SIDE DOOR 8-98201-880-1 02 1 1303-
367 DECAL; "SMOOTHER-G"
MJX12P M/T SMOOTHER-G(Y4S) HONG KONG EQUIPMENT(PQ1) 		1-76230-444-0 01 1 1009-1302
387 DECAL; "EURO"
EXC. HONG KONG EQUIPMENT(PQ1) 		8-98202-777-0 01 1 1303-

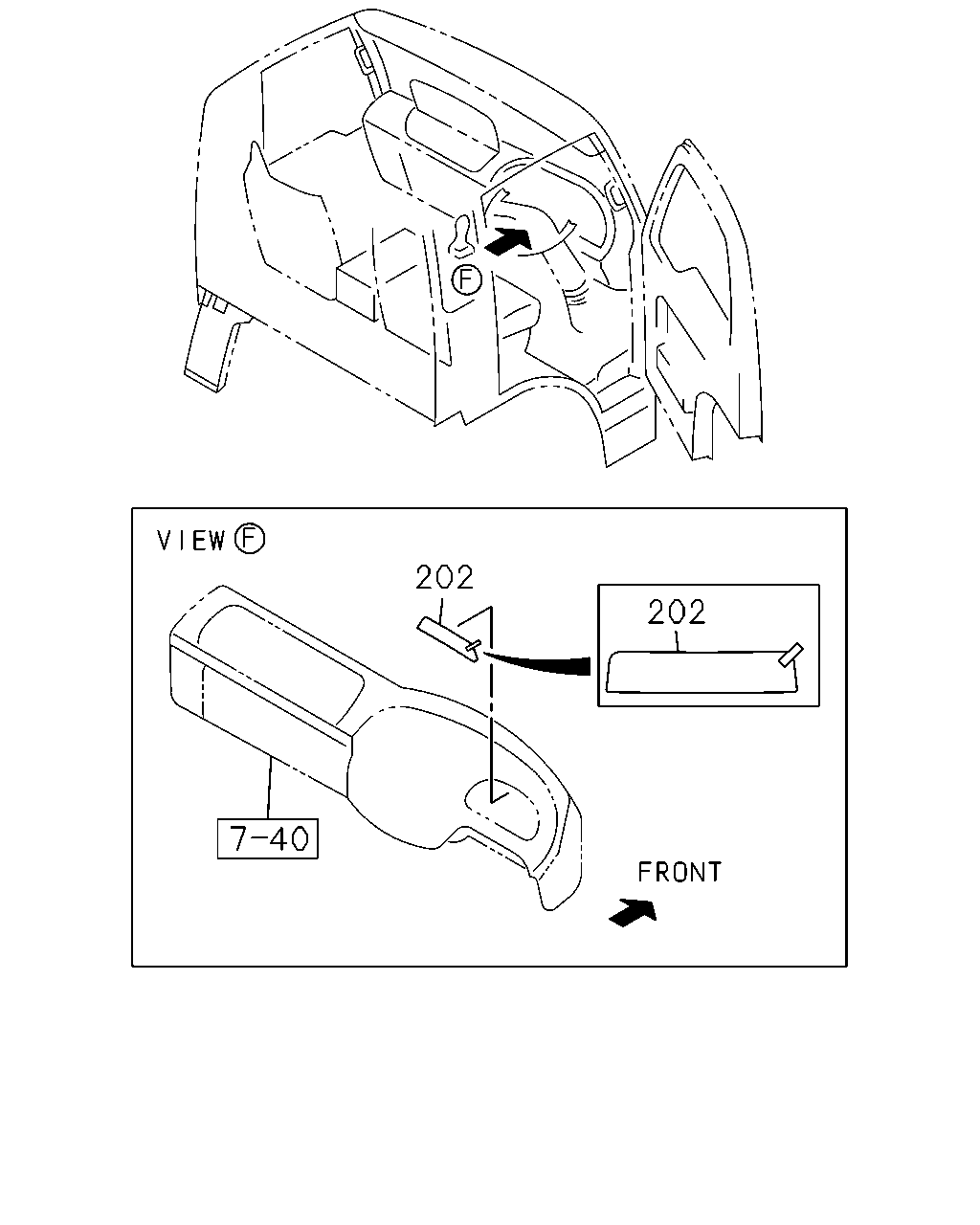

çizim 132857
202 202
BalonParca AdiParca NoAdetTipApplied Date
202 DECAL; METER CLUSTER
METER PANEL GRAIN OF WOOD<NAY> 		1-72418-016-1 01 1 1009-1302
202 DECAL; METER CLUSTER 1-72418-016-1 01 1 1303-1304
202 DECAL; METER CLUSTER
NEW ZEALAND EQUIPMENT(PK5) 		1-72418-016-1 01 1 1305-1305
202 DECAL; METER CLUSTER 1-72418-016-1 01 1 1306-1405
202 DECAL; METER CLUSTER
NEW ZEALAND EQUIPMENT(PK5) 		1-72418-016-1 01 1 1406-1408
202 DECAL; METER CLUSTER
INST PANEL CARBON<EGW> 		1-72418-016-1 01 1 1409-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
