Isuzu WW
▶
TRUCKS
▶
CYH
▶
11289 - CYH RHD EURO5
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-90 - REAR BUMPER
▶

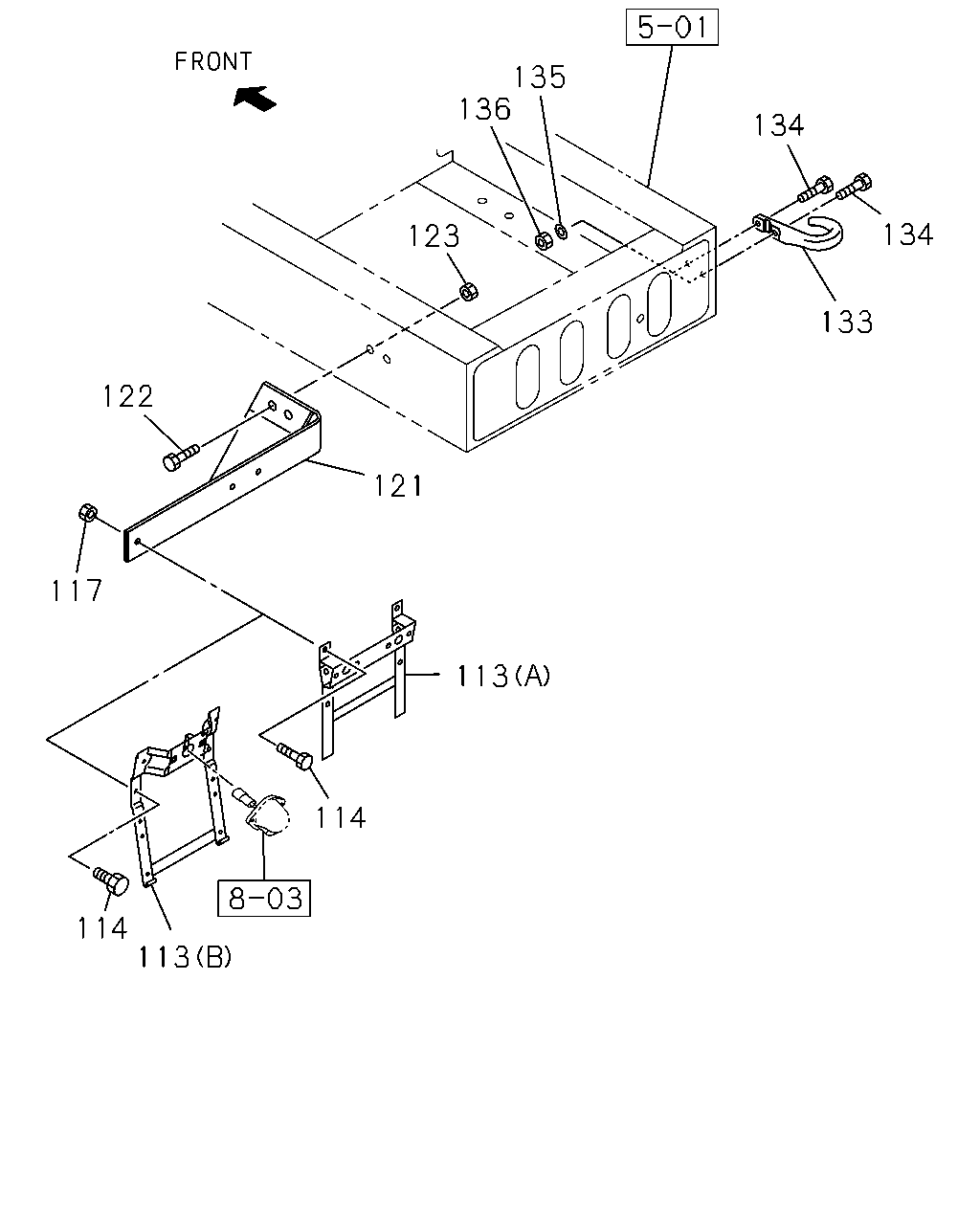

6-90 — REAR BUMPER
(#70000) — 15 parça
135
136
134
134
133
123
122
121
117
113
114
114
113
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
113
BRACKET; LICENSE PLATE
NEW ZEALAND EQUIPMENT(PK5) (B)
8-98052-734-1
01
1
1303-
113
BRACKET; LICENSE PLATE
(A)
8-98144-961-0
01
1
1009-1111
113
BRACKET; LICENSE PLATE
(A)
8-98163-444-1
01
1
1112-1302
113
BRACKET; LICENSE PLATE
EXC. NEW ZEALAND EQUIPMENT(PK5) (A)
8-98163-444-1
01
1
1303-
114
BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE
0-28650-825-0
02
1
1009-
117
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1009-
121
STAY; RR LICENSE PLATE BRKT
WHEEL BASE 6600MM(66W)
1-53485-002-1
01
1
1009-1111
121
STAY; RR LICENSE PLATE BRKT
WHEEL BASE 6600MM(66W)
8-98179-582-0
01
1
1112-
122
BOLT; STAY TO FRAME
WHEEL BASE 6600MM(66W) M12X40 FLANGE
0-28651-240-0
02
1
1009-
123
NUT; STAY
WHEEL BASE 6600MM(66W) M12 FLANGE
0-91180-212-0
02
1
1009-
133
HOOK
1-57181-027-1
01
1
1009-
134
BOLT; HOOK
M16X60
0-10861-660-0
01
1
1009-
134
BOLT; HOOK
M16X70
0-10861-670-0
01
1
1009-
135
WASHER; LK,HOOK
ID=16.2
0-91510-516-0
02
1
1009-
136
NUT; HOOK
M16
0-91110-516-0
02
1
1009-
