Isuzu WW
▶
TRUCKS
▶
FVM
▶
10632 - FVM-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-42 - FUEL PUMP AND PIPE
▶
0-42 — FUEL PUMP AND PIPE
(#700) — 49 parça
Tümü
A - 6SA1 STD ENG
B - 6SA1TC ENG
C - 6HE1 STD ENG
◀

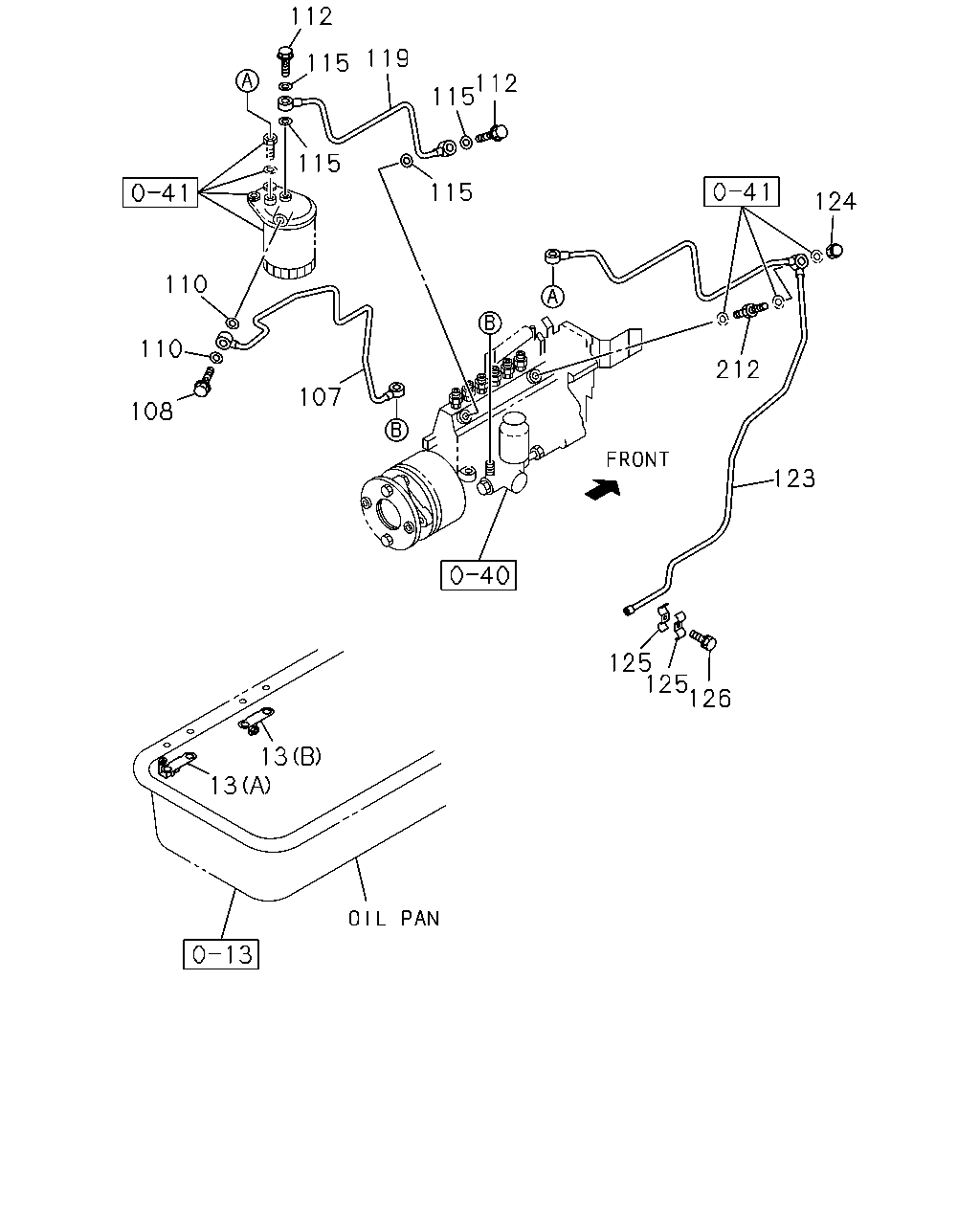

[042A] 6SA1 ENG (23 parça)
[042A] 6HE1 ENG (26 parça)
▶
112
119
115
112
115
115
115
124
110
110
212
107
108
123
125
125
126
13
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
13
STAY; FUEL PIPE CLIP
(B)
1-15419-088-0
01
1
9204-
●
●
13
STAY; FUEL PIPE CLIP
(A)
1-15419-164-0
01
1
9204-
●
●
107
PIPE; FUEL,FEED PUMP TO FUEL FILTER
1-15414-916-0
01
1
9204-
●
●
107
PIPE; FUEL,FEED PUMP TO FUEL FILTER
8-94396-681-0
01
1
9505-
●
108
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
01
1
9204-
●
●
●
110
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
9204-
●
●
●
112
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
02
1
9204-
●
●
112
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
01
1
9505-
●
115
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
04
1
9204-
●
●
115
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
9505-
●
119
PIPE; FUEL,FUEL FILTER TO INJ PUMP
1-15414-183-0
01
1
9204-
●
●
119
PIPE; FUEL,FUEL FILTER TO INJ PUMP
8-94397-066-0
01
1
9505-9505
●
119
PIPE; FUEL,FUEL FILTER TO INJ PUMP
8-94390-343-0
01
1
9506-
●
123
PIPE; FUEL,FUEL FILTER LEAK OFF
1-15415-161-1
01
1
9204-
●
●
123
PIPE; FUEL,FUEL FILTER LEAK OFF
8-94393-021-0
01
1
9505-
●
124
NUT; CAP,FUEL PIPE
M14
1-09468-002-1
01
1
9204-
●
●
●
125
CLIP; FUEL PIPE
WO/NUT ID=10 & 10
1-09700-163-0
07
1
9204-9411
●
●
125
CLIP; FUEL PIPE
ID=10 & 10 L=25
9-09716-114-0
07
1
9412-
●
●
125
CLIP; FUEL PIPE
W/NUT ID=10 & 10
1-09700-164-0
03
1
9204-9411
●
●
125
CLIP; FUEL PIPE
ID=10 & 10 L=25 W/NUT
9-09716-124-0
03
1
9412-
●
●
126
BOLT; CLIP,FUEL PIPE
M6X30 W/LK WASHER
0-50040-630-0
05
1
9204-
●
●
212
VALVE; OVERFLOW
1-13260-001-1
01
1
9204-
●
●
212
VALVE; OVERFLOW
8-94399-087-0
01
1
9505-
●
124
119
150
107
150
212
217
123
108
112
107
110
119
216
93
110
111
115
115
111
92
96
96
95
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
92
BRACKET; FUEL PIPE
8-94394-158-0
01
1
9505-
●
93
BOLT; PIPE BRKT
M8X12 FLANGE
0-28080-812-0
02
1
9505-
●
95
PIPE; VINYL
L=650 SERVICED BY L=10000
9-09914-909-0
01
1
9505-
●
96
CLIP; VINYL PIPE
(A) L=100
5-09707-036-0
01
1
9505-
●
96
CLIP; VINYL PIPE
(B) ID=8
8-94107-762-0
01
1
9505-
●
107
PIPE; FUEL,FEED PUMP TO FUEL FILTER
1-15414-916-0
01
1
9204-
●
●
107
PIPE; FUEL,FEED PUMP TO FUEL FILTER
8-94396-681-0
01
1
9505-
●
108
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
01
1
9204-
●
●
●
110
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
9204-
●
●
●
111
CLIP; FUEL PIPE
(A) L=48
5-09709-103-0
05
1
9505-
●
111
CLIP; FUEL PIPE
(B) L=45
5-09709-104-0
02
1
9505-
●
112
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
02
1
9204-
●
●
112
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
01
1
9505-
●
115
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
04
1
9204-
●
●
115
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
9505-
●
119
PIPE; FUEL,FUEL FILTER TO INJ PUMP
1-15414-183-0
01
1
9204-
●
●
119
PIPE; FUEL,FUEL FILTER TO INJ PUMP
8-94397-066-0
01
1
9505-9505
●
119
PIPE; FUEL,FUEL FILTER TO INJ PUMP
8-94390-343-0
01
1
9506-
●
123
PIPE; FUEL,FUEL FILTER LEAK OFF
1-15415-161-1
01
1
9204-
●
●
123
PIPE; FUEL,FUEL FILTER LEAK OFF
8-94393-021-0
01
1
9505-
●
124
NUT; CAP,FUEL PIPE
M14
1-09468-002-1
01
1
9204-
●
●
●
150
GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
9505-
●
212
VALVE; OVERFLOW
1-13260-001-1
01
1
9204-
●
●
212
VALVE; OVERFLOW
8-94399-087-0
01
1
9505-
●
216
BOLT; CLIP,FUEL PIPE
M6X30 W/LK WASHER
0-50040-630-0
05
1
9505-
●
217
GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
01
1
9505-
●
