2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#7) — 72 parça

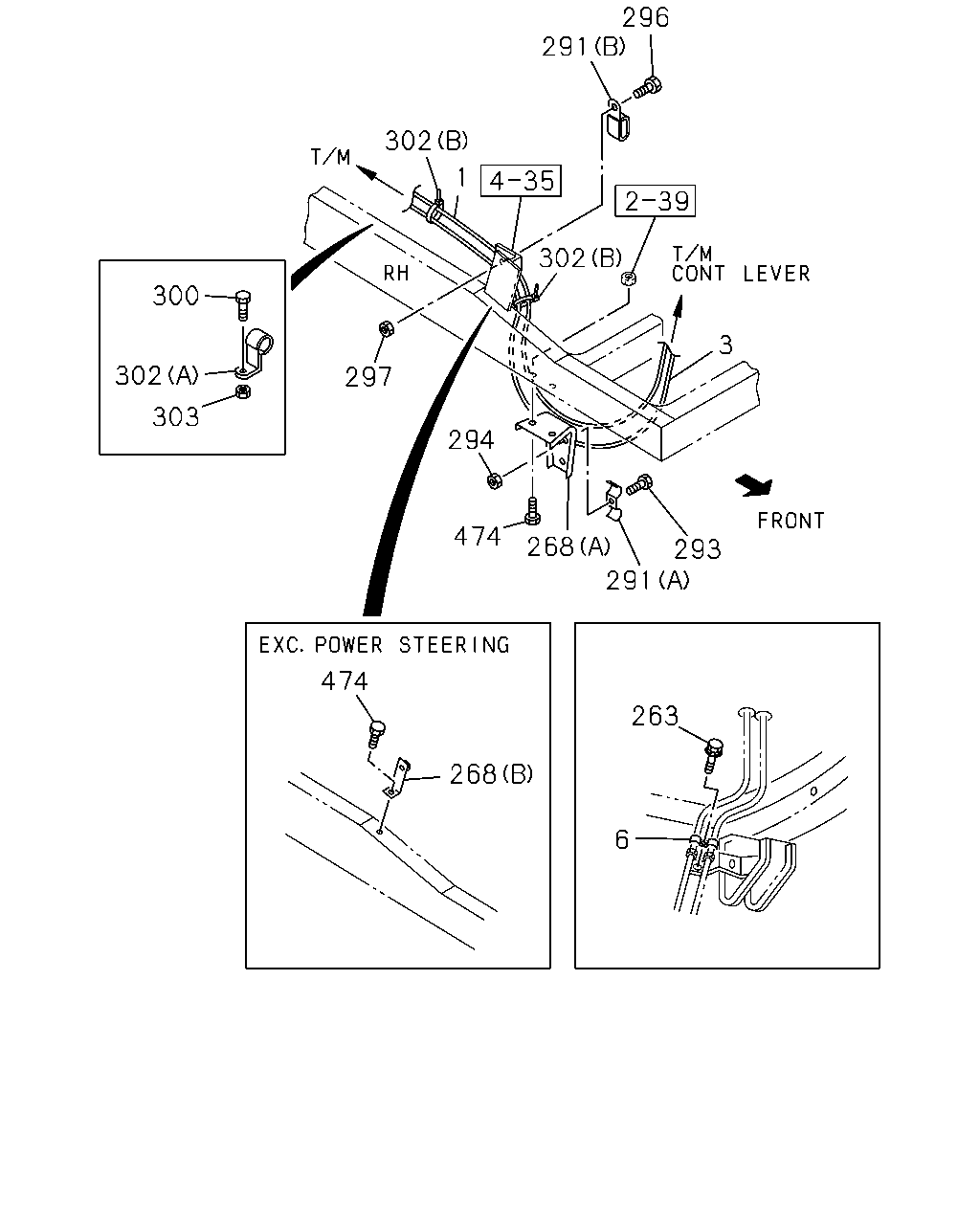

çizim 92390
296 291 302 1 302 300 3 302 297 303 294 474 268 293 291 474 263 268 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CABLE; SHIFT,TRANS CONT
13" CLUTCH(WD4) L=3155 		1-33670-248-0 01 1 9202- ● ● ●
1 CABLE; SHIFT,TRANS CONT
EXC. 13" CLUTCH(WD4) L=3175 		1-33670-249-0 01 1 9202- ● ● ●
1 CABLE; SHIFT,TRANS CONT
ASSISTER SHIFT CONTROL<WX8> L=3110 		1-33670-251-0 01 1 9202- ●
1 CABLE; SHIFT,TRANS CONT
L=3110 		1-33670-251-0 01 1 9202- ●
1 CABLE; SHIFT,TRANS CONT
EXC. ASSISTER SHIFT CONTROL<WX8> L=3180 		1-33670-250-0 01 1 9202- ●
3 CABLE; SELECT,TRANS CONT
13" CLUTCH(WD4) L=3136 		1-33670-254-0 01 1 9202- ● ● ●
3 CABLE; SELECT,TRANS CONT
EXC. 13" CLUTCH(WD4) L=3156 		1-33670-255-0 01 1 9202- ● ● ●
3 CABLE; SELECT,TRANS CONT
ASSISTER SHIFT CONTROL<WX8> L=3220 		1-33670-257-0 01 1 9202- ●
3 CABLE; SELECT,TRANS CONT
L=3220 		1-33670-257-0 01 1 9202- ●
3 CABLE; SELECT,TRANS CONT
EXC. ASSISTER SHIFT CONTROL<WX8> L=3220 		1-33670-256-0 01 1 9202- ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9202- ● ● ● ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 9202- ● ● ● ● ●
268 BRACKET; LINK ROD
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-46147-049-1 01 1 9202-9206 ● ● ● ● ●
268 BRACKET; LINK ROD
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-46147-135-1 01 1 9207- ● ● ● ● ●
268 BRACKET; LINK ROD
STD CAB(FS**M*) ISUZU M/T<X9A> EXC. POWER STEERING(N40) (B) 		1-46147-082-0 01 1 9305- ● ● ● ● ●
268 BRACKET; LINK ROD
DOUBLE CAB(FS**W*) EXC. POWER STEERING(N40) (B) 		1-46147-082-0 01 1 9305- ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9202- ● ● ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) 		1-09701-100-3 01 1 9202- ● ● ● ● ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X18 		0-28010-818-0 01 1 9202-9204 ● ● ● ● ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X20 FLANGE 		0-28080-820-0 01 1 9205- ● ● ● ● ●
294 NUT; CLIP
M8 		9-09110-408-0 01 1 9202- ● ● ● ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X18 		0-28010-818-0 01 1 9202-9204 ● ● ● ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE 		0-28080-820-0 01 1 9205- ● ● ● ● ●
297 NUT; CLIP
M8 		9-09110-408-0 01 1 9202- ● ● ● ● ●
300 BOLT; CLIP
NEW ZEALAND EQUIPMENT(PK5) ASSISTER SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28010-825-0 02 1 9202-9204 ●
300 BOLT; CLIP
NEW ZEALAND EQUIPMENT(PK5) ASSISTER SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 02 1 9205-9207 ●
302 CLIP; BAND
(B) L=140 		5-09707-031-0 02 1 9202- ● ● ● ● ●
302 CLIP; BAND
NEW ZEALAND EQUIPMENT(PK5) ASSISTER SHIFT CONTROL<WX8> (A) ID=6 H=20 L=20 		1-09700-603-0 02 1 9202-9207 ●
303 NUT; CLIP
NEW ZEALAND EQUIPMENT(PK5) ASSISTER SHIFT CONTROL<WX8> M8 		9-09110-408-0 02 1 9202-9207 ●
474 BOLT; BRKT
EXC. POWER STEERING(N40) M10X25 W/LK WASHER 		0-50041-025-0 01 1 9305- ● ● ● ● ●
474 BOLT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/LK WASHER 		9-01900-825-0 02 1 9202-9204 ● ● ● ● ●
474 BOLT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28080-825-0 02 1 9205- ● ● ● ● ●
çizim 92657
392 393 221 3 386 278 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CABLE; SHIFT,TRANS CONT
13" CLUTCH(WD4) L=3155 		1-33670-248-0 01 1 9202- ● ● ●
1 CABLE; SHIFT,TRANS CONT
EXC. 13" CLUTCH(WD4) L=3175 		1-33670-249-0 01 1 9202- ● ● ●
1 CABLE; SHIFT,TRANS CONT
ASSISTER SHIFT CONTROL<WX8> L=3110 		1-33670-251-0 01 1 9202- ●
1 CABLE; SHIFT,TRANS CONT
L=3110 		1-33670-251-0 01 1 9202- ●
1 CABLE; SHIFT,TRANS CONT
EXC. ASSISTER SHIFT CONTROL<WX8> L=3180 		1-33670-250-0 01 1 9202- ●
3 CABLE; SELECT,TRANS CONT
13" CLUTCH(WD4) L=3136 		1-33670-254-0 01 1 9202- ● ● ●
3 CABLE; SELECT,TRANS CONT
EXC. 13" CLUTCH(WD4) L=3156 		1-33670-255-0 01 1 9202- ● ● ●
3 CABLE; SELECT,TRANS CONT
ASSISTER SHIFT CONTROL<WX8> L=3220 		1-33670-257-0 01 1 9202- ●
3 CABLE; SELECT,TRANS CONT
L=3220 		1-33670-257-0 01 1 9202- ●
3 CABLE; SELECT,TRANS CONT
EXC. ASSISTER SHIFT CONTROL<WX8> L=3220 		1-33670-256-0 01 1 9202- ●
221 NUT; SHIFT WIRE TO LEVER
M8 		9-09110-408-0 01 1 9202- ● ● ●
221 NUT; SHIFT WIRE TO LEVER
M10 		9-09110-410-0 01 1 9202- ● ●
278 WASHER; LK,SHIFT WIRE
ID=8.2 		9-09150-508-0 01 1 9202- ● ● ●
278 WASHER; LK,SHIFT WIRE
ID=10.2 		9-09150-510-0 01 1 9202- ● ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-0 02 1 9202- ● ● ● ● ●
392 WASHER; LK,SELECT CABLE,CAB
ID=8.2 		9-09150-508-0 01 1 9202- ● ● ●
392 WASHER; LK,SELECT CABLE,CAB
ID=6.1 		9-09150-506-0 01 1 9202- ● ●
393 NUT; SELECT CABLE,CAB
M8 		9-09110-408-0 01 1 9202- ● ● ●
393 NUT; SELECT CABLE,CAB
M6 		9-09111-406-0 01 1 9202- ● ●
çizim 92760
284 199 392 393 221 3 386 278 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CABLE; SHIFT,TRANS CONT
13" CLUTCH(WD4) L=3155 		1-33670-248-0 01 1 9202- ● ● ●
1 CABLE; SHIFT,TRANS CONT
EXC. 13" CLUTCH(WD4) L=3175 		1-33670-249-0 01 1 9202- ● ● ●
1 CABLE; SHIFT,TRANS CONT
ASSISTER SHIFT CONTROL<WX8> L=3110 		1-33670-251-0 01 1 9202- ●
1 CABLE; SHIFT,TRANS CONT
L=3110 		1-33670-251-0 01 1 9202- ●
1 CABLE; SHIFT,TRANS CONT
EXC. ASSISTER SHIFT CONTROL<WX8> L=3180 		1-33670-250-0 01 1 9202- ●
3 CABLE; SELECT,TRANS CONT
13" CLUTCH(WD4) L=3136 		1-33670-254-0 01 1 9202- ● ● ●
3 CABLE; SELECT,TRANS CONT
EXC. 13" CLUTCH(WD4) L=3156 		1-33670-255-0 01 1 9202- ● ● ●
3 CABLE; SELECT,TRANS CONT
ASSISTER SHIFT CONTROL<WX8> L=3220 		1-33670-257-0 01 1 9202- ●
3 CABLE; SELECT,TRANS CONT
L=3220 		1-33670-257-0 01 1 9202- ●
3 CABLE; SELECT,TRANS CONT
EXC. ASSISTER SHIFT CONTROL<WX8> L=3220 		1-33670-256-0 01 1 9202- ●
199 WASHER; PL,SELECT
ID=6.4 OD=14 		9-09164-606-0 01 1 9202- ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 		9-09110-408-0 01 1 9202- ● ● ●
221 NUT; SHIFT WIRE TO LEVER
M10 		9-09110-410-0 01 1 9202- ● ●
278 WASHER; LK,SHIFT WIRE
ID=8.2 		9-09150-508-0 01 1 9202- ● ● ●
278 WASHER; LK,SHIFT WIRE
ID=10.2 		9-09150-510-0 01 1 9202- ● ●
284 WASHER; WAVE,SELECT CABLE,CAB 8-94242-854-0 01 1 9202- ● ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-0 02 1 9202- ● ● ● ● ●
392 WASHER; LK,SELECT CABLE,CAB
ID=8.2 		9-09150-508-0 01 1 9202- ● ● ●
392 WASHER; LK,SELECT CABLE,CAB
ID=6.1 		9-09150-506-0 01 1 9202- ● ●
393 NUT; SELECT CABLE,CAB
M8 		9-09110-408-0 01 1 9202- ● ● ●
393 NUT; SELECT CABLE,CAB
M6 		9-09111-406-0 01 1 9202- ● ●
