Isuzu WW
▶
TRUCKS
▶
CYH
▶
11289 - CYH RHD EURO5
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-78 - FLOOR HOLE PLUG
▶

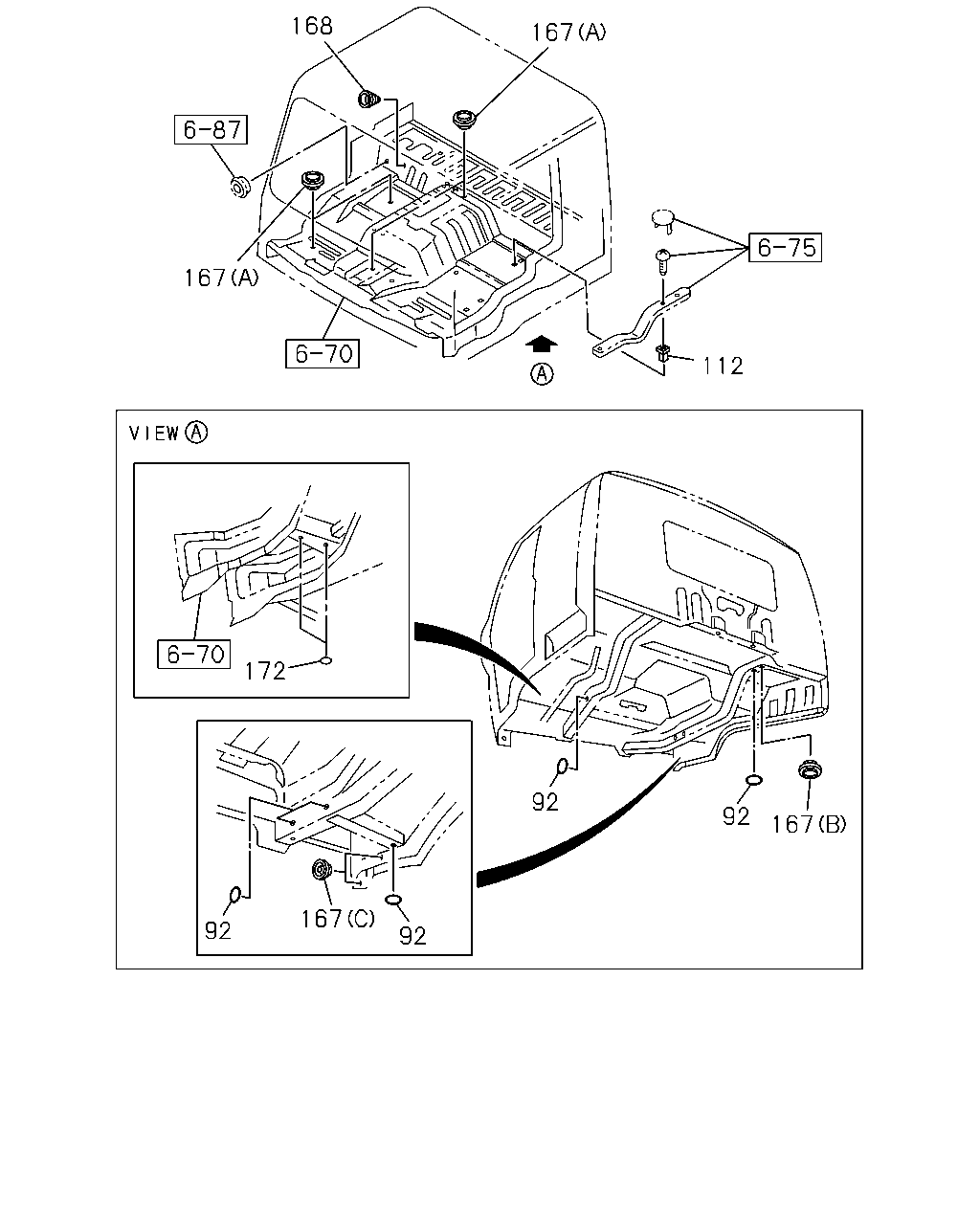

6-78 — FLOOR HOLE PLUG
(#69995) — 15 parça
168
167
167
112
92
92
167
92
167
92
172
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
92
SEAL; LOCATION HOLE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> OD=25 BLACK
1-76798-019-0
05
1
1303-
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
07
1
1303-
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
11
1
1009-1302
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
03
1
1303-
92
SEAL; LOCATION HOLE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK
1-76798-019-0
02
1
1009-1302
92
SEAL; LOCATION HOLE
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) OD=25 BLACK
1-76798-019-0
02
1
1303-1411
92
SEAL; LOCATION HOLE
HEATER & DEFROSTER(C41),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) OD=25 BLACK
1-76798-019-0
02
1
1412-
112
GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
08
1
1009-
167
GROMMET; LOCATION HOLE
(A) OD=23.5
1-09983-101-0
04
1
1303-
167
GROMMET; LOCATION HOLE
(A) OD=23.5
1-09983-101-0
06
1
1009-1302
167
GROMMET; LOCATION HOLE
(A) OD=23.5
1-09983-101-0
02
1
1303-
167
GROMMET; LOCATION HOLE
(B) OD=35
8-94122-971-0
06
1
1009-
167
GROMMET; LOCATION HOLE
(C) OD=15.0
8-94279-040-0
02
1
1009-
168
COVER; HOLE,ANNTENA CABLE
1-79998-891-1
01
1
1009-
172
SEAL; HOLE
OD=25 BLACK
1-76798-019-0
02
1
1009-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
