◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11289 - CYH RHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#69994) — 77 parça

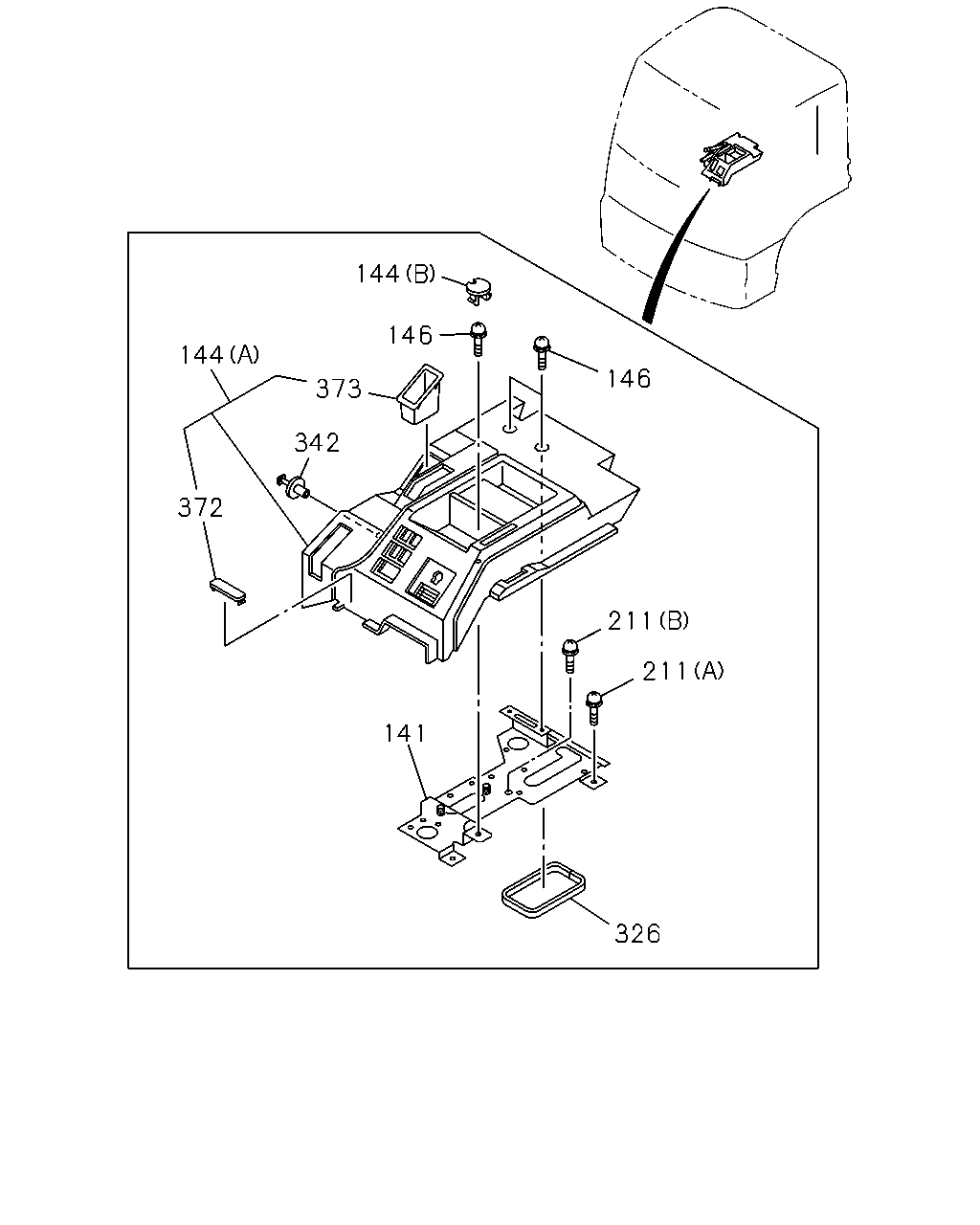

çizim 132182
211 326 211 141 342 373 146 144 144 372 146
BalonParca AdiParca NoAdetTipApplied Date
141 HOLDER 1-79907-076-2 01 1 1009-1302
141 HOLDER
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> 		1-79907-076-2 01 1 1303-1304
141 HOLDER
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> 		1-79907-076-2 01 1 1303-1304
141 HOLDER
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> 		1-79907-076-2 01 1 1305-
141 HOLDER
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> 		1-79907-076-2 01 1 1305-
144 COVER; HAND BRK VLV
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) TRAILER BRAKE HAND CONTROL<NLG> EXC. ELEC OUTLET 12V<TAW> (A) 		1-72417-348-1 01 1 1303-
144 COVER; HAND BRK VLV
TRANSMISSION-FULLER RTLO169 18(Y3S) TRAILER BRAKE HAND CONTROL<NLG> NEW ZEALAND EQUIPMENT(PK5) ELEC OUTLET 12V<TAW> (C) 		1-72417-380-1 01 1 1303-
144 COVER; HAND BRK VLV
TRANSMISSION-FULLER RTLO169 18(Y3S) TRAILER BRAKE HAND CONTROL<NLG> ELEC OUTLET 12V<TAW> (D) 		1-76337-461-0 01 1 1303-
144 COVER; HAND BRK VLV
(A) 		1-72417-338-1 01 1 1009-1302
144 COVER; HAND BRK VLV
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. TRAILER BRAKE HAND CONTROL<NLG>,ELEC OUTLET 12V<TAW> (A) 		1-72417-338-1 01 1 1303-
144 COVER; HAND BRK VLV
(B) 		1-72537-106-0 01 1 1009-1302
144 COVER; HAND BRK VLV
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) (B) 		1-72537-106-0 01 1 1303-
146 BOLT; COVER BRKT
M6X24 W/LK&PL WASHER 		8-94279-404-0 03 1 1009-
211 BOLT; COVER
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1009-1302
211 BOLT; COVER
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1303-1304
211 BOLT; COVER
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1303-1304
211 BOLT; COVER
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1305-
211 BOLT; COVER
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1305-
211 BOLT; COVER
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 1009-1302
211 BOLT; COVER
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 1303-1304
211 BOLT; COVER
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 1303-1304
211 BOLT; COVER
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 1305-
211 BOLT; COVER
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 1305-
326 SEAL; COVER 1-79997-978-1 01 1 1009-1302
326 SEAL; COVER
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> 		1-79997-978-1 01 1 1303-1304
326 SEAL; COVER
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> 		1-79997-978-1 01 1 1303-1304
326 SEAL; COVER
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> 		1-79997-978-1 01 1 1305-
326 SEAL; COVER
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> 		1-79997-978-1 01 1 1305-
342 FASTENER
D8X13.5 		1-09987-248-1 01 1 1009-
372 COVER; CONSOLE 1-72537-124-0 01 1 1009-1302
372 COVER; CONSOLE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. ELEC OUTLET 12V<TAW> 		1-72537-124-0 01 1 1303-
373 COVER; HOLE 1-72537-194-0 01 1 1009-1302
373 COVER; HOLE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. ELEC OUTLET 12V<TAW> 		1-72537-194-0 01 1 1303-

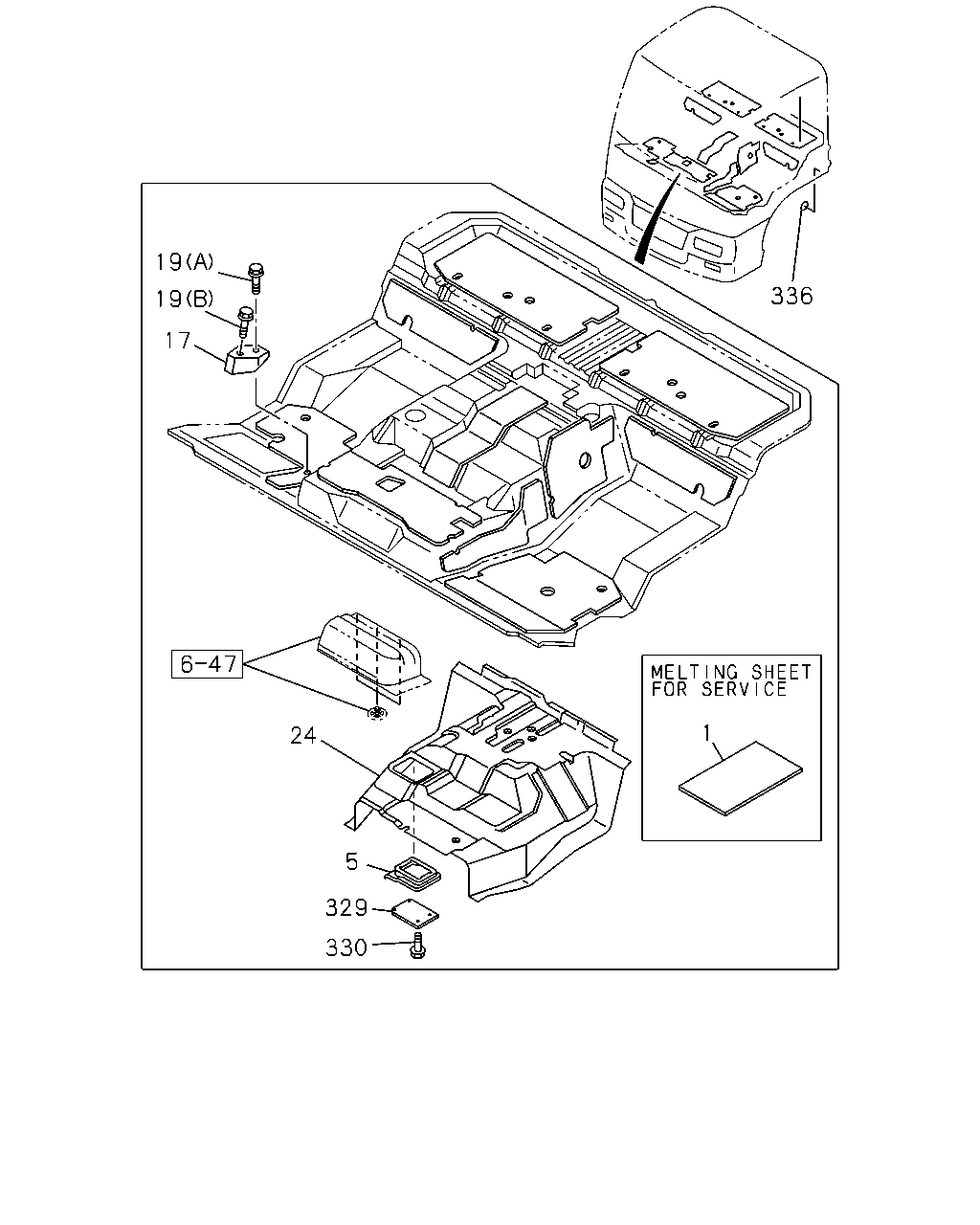

çizim 188466
19 17 19 336 24 5 329 330 1
BalonParca AdiParca NoAdetTipApplied Date
1 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 1009-
5 COVER; CHANGE LEVER 1-33619-163-0 01 1 1009-
17 REST; FOOT,DRIVER 1-73907-176-1 01 1 1009-
19 BOLT; FOOT REST
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1009-
19 BOLT; FOOT REST
(B) M6X47 		8-94407-876-1 01 1 1009-
24 INSULATOR; HEAT,FRT
FULL TRAILER PIPING<Z25> 		1-71907-711-2 01 1 1303-
24 INSULATOR; HEAT,FRT 1-71907-711-2 01 1 1009-1011
24 INSULATOR; HEAT,FRT 1-71907-712-2 01 1 1012-1302
24 INSULATOR; HEAT,FRT
EXC. FULL TRAILER PIPING<Z25> 		1-71907-712-2 01 1 1303-
329 BRACKET; PANEL
SMOOTHER-G(C1W) 		1-33619-465-0 01 1 1009-
330 BOLT; BRKT
SMOOTHER-G(C1W) M8X12 FLANGE 		0-28050-812-0 04 1 1009-
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 02 1 1009-
çizim 336681
146 144 146 144 211 211 326 141 366 342 50
BalonParca AdiParca NoAdetTipApplied Date
50 COVER ASM; SUPPORT,SIDE
FULLER M/T<X9B> 		1-72537-124-0 01 1 1303-
141 HOLDER 1-79907-076-2 01 1 1009-1302
141 HOLDER
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> 		1-79907-076-2 01 1 1303-1304
141 HOLDER
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> 		1-79907-076-2 01 1 1303-1304
141 HOLDER
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> 		1-79907-076-2 01 1 1305-
141 HOLDER
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> 		1-79907-076-2 01 1 1305-
144 COVER; HAND BRK VLV
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) TRAILER BRAKE HAND CONTROL<NLG> EXC. ELEC OUTLET 12V<TAW> (A) 		1-72417-348-1 01 1 1303-
144 COVER; HAND BRK VLV
TRANSMISSION-FULLER RTLO169 18(Y3S) TRAILER BRAKE HAND CONTROL<NLG> NEW ZEALAND EQUIPMENT(PK5) ELEC OUTLET 12V<TAW> (C) 		1-72417-380-1 01 1 1303-
144 COVER; HAND BRK VLV
TRANSMISSION-FULLER RTLO169 18(Y3S) TRAILER BRAKE HAND CONTROL<NLG> ELEC OUTLET 12V<TAW> (D) 		1-76337-461-0 01 1 1303-
144 COVER; HAND BRK VLV
(A) 		1-72417-338-1 01 1 1009-1302
144 COVER; HAND BRK VLV
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. TRAILER BRAKE HAND CONTROL<NLG>,ELEC OUTLET 12V<TAW> (A) 		1-72417-338-1 01 1 1303-
144 COVER; HAND BRK VLV
(B) 		1-72537-106-0 01 1 1009-1302
144 COVER; HAND BRK VLV
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) (B) 		1-72537-106-0 01 1 1303-
146 BOLT; COVER BRKT
M6X24 W/LK&PL WASHER 		8-94279-404-0 03 1 1009-
211 BOLT; COVER
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1009-1302
211 BOLT; COVER
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1303-1304
211 BOLT; COVER
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1303-1304
211 BOLT; COVER
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1305-
211 BOLT; COVER
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1305-
211 BOLT; COVER
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 1009-1302
211 BOLT; COVER
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 1303-1304
211 BOLT; COVER
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 1303-1304
211 BOLT; COVER
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 1305-
211 BOLT; COVER
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 1305-
326 SEAL; COVER 1-79997-978-1 01 1 1009-1302
326 SEAL; COVER
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> 		1-79997-978-1 01 1 1303-1304
326 SEAL; COVER
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> 		1-79997-978-1 01 1 1303-1304
326 SEAL; COVER
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> 		1-79997-978-1 01 1 1305-
326 SEAL; COVER
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> 		1-79997-978-1 01 1 1305-
342 FASTENER
D8X13.5 		1-09987-248-1 01 1 1009-
366 FINISHER; COVER
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> L=50 		8-94270-377-1 01 1 1303-1304
366 FINISHER; COVER
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> L=50 		8-94270-377-1 01 1 1305-
