◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11289 - CYH RHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#69993) — 42 parça

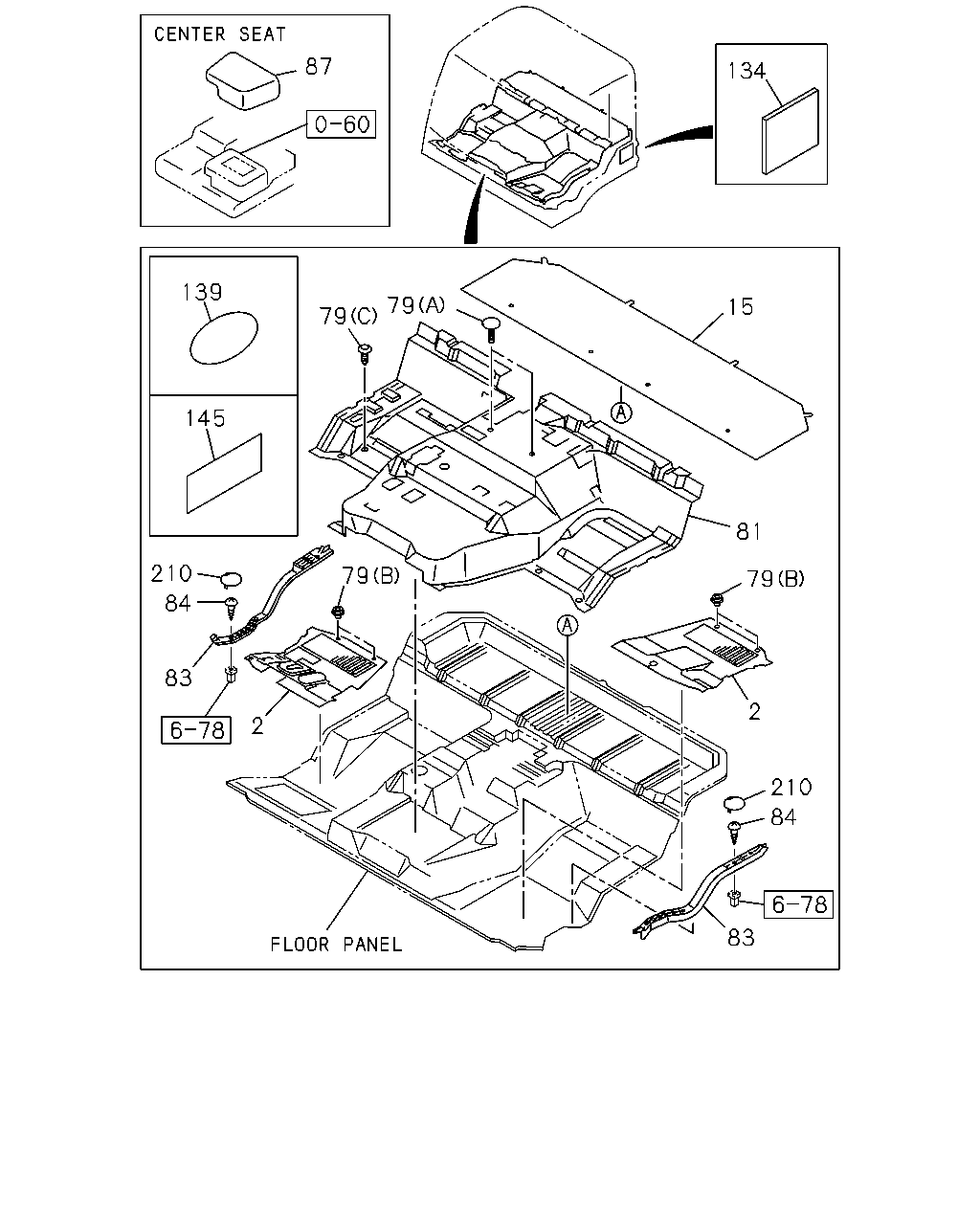

çizim 131842
87 139 145 79 79 15 81 79 79 2 210 84 83 83 84 2 210 134
BalonParca AdiParca NoAdetTipApplied Date
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-784-1 01 1 1009-
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-786-1 01 1 1009-
15 MAT; FLOOR REAR
EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40> 		1-73237-783-1 01 1 1009-
79 HOOK; MALE
EXC. DELUXE CARPET<BF2> (C) OD=16 L=11 		1-76378-155-0 01 1 1303-
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 1009-
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 1009-
81 MAT; FLOOR,CENTER
SMOOTHER-G(C1W) DRIVER ISRINGHAUSEN SEAT(SJA) EXC. DELUXE CARPET<BF2> 		1-73237-929-1 01 1 1303-
81 MAT; FLOOR,CENTER
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. DELUXE CARPET<BF2>,SMOOTHER-G(C1W) 		1-73237-930-1 01 1 1303-
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2> 		1-73237-923-1 01 1 1009-1302
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2>,DRIVER ISRINGHAUSEN SEAT(SJA) 		1-73237-923-1 01 1 1303-
83 PLATE; KICKING,FLOOR MAT
HONG KONG EQUIPMENT(PQ1) 		8-98125-806-3 01 1 1009-
83 PLATE; KICKING,FLOOR MAT
HONG KONG EQUIPMENT(PQ1) 		8-98125-805-3 01 1 1009-
83 PLATE; KICKING,FLOOR MAT
EXC. HONG KONG EQUIPMENT(PQ1) 		1-76798-046-0 01 1 1009-
83 PLATE; KICKING,FLOOR MAT
EXC. HONG KONG EQUIPMENT(PQ1) 		1-76798-045-0 01 1 1009-
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 1009-
87 MAT; FLOOR
EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9) 		1-73237-779-1 01 1 1009-
134 SILENCER; RR FLOOR,SIDE 1-73367-016-2 01 1 1009-1302
134 SILENCER; RR FLOOR,SIDE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-73367-016-2 01 1 1303-
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 04 1 1009-1302
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-1 01 1 1009-
210 COVER; KICKING PLATE 1-76337-461-0 09 1 1009-

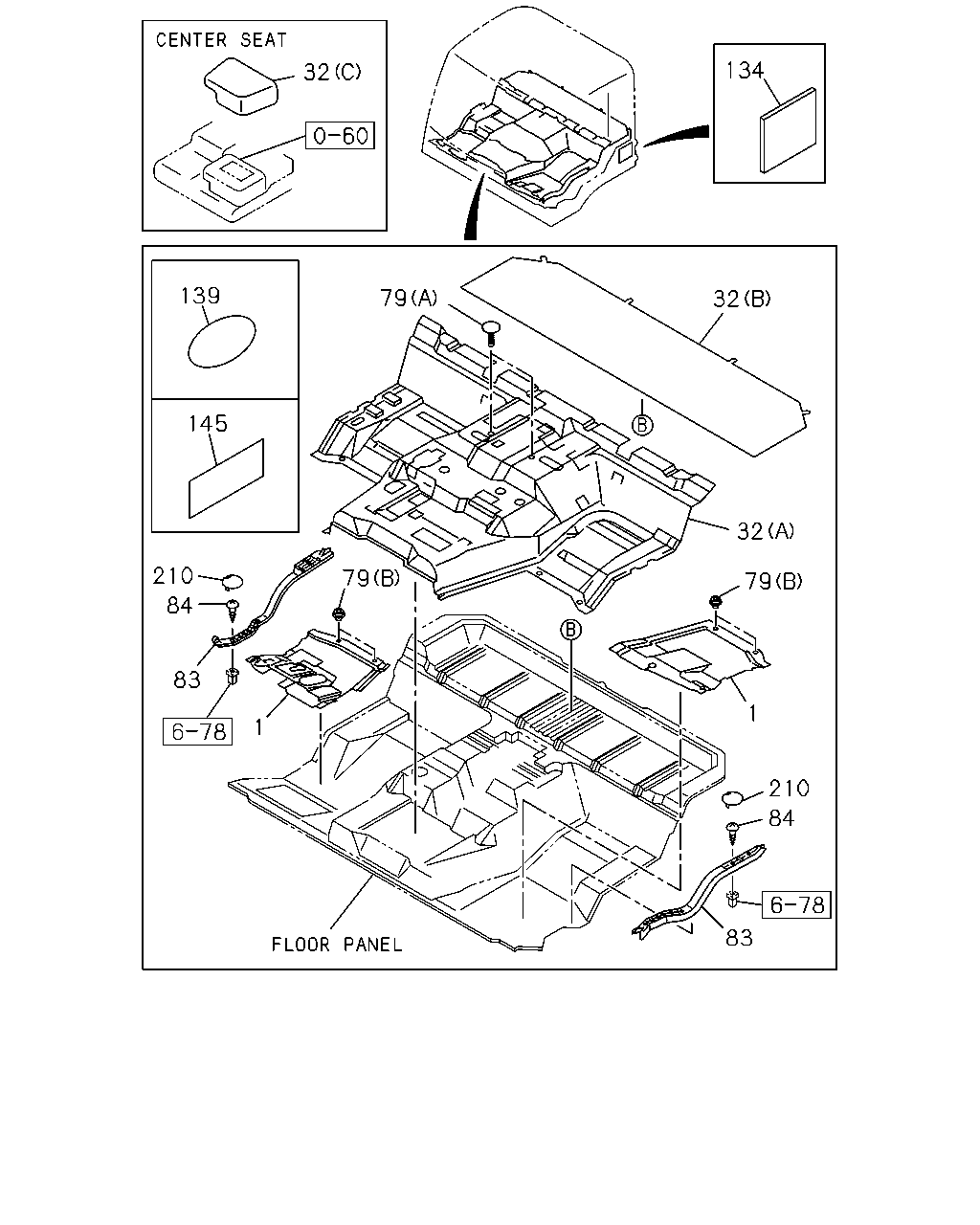

çizim 132414
32 134 32 32 79 210 84 83 1 83 84 210 79 79 139 145 1
BalonParca AdiParca NoAdetTipApplied Date
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-863-2 01 1 1009-
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-864-2 01 1 1009-
32 CARPET; FLOOR
DELUXE CARPET<BF2> SMOOTHER-G(C1W) DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		1-73237-925-2 01 1 1303-
32 CARPET; FLOOR
DELUXE CARPET<BF2> DRIVER ISRINGHAUSEN SEAT(SJA) EXC. SMOOTHER-G(C1W) (A) 		1-73237-945-2 01 1 1303-
32 CARPET; FLOOR
DELUXE CARPET<BF2> (A) 		1-73237-920-1 01 1 1009-1302
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		1-73237-920-2 01 1 1303-
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. CENTER SEAT DELETE(SP9) (C) 		1-73237-835-1 01 1 1009-
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> (B) 		1-73237-867-2 01 1 1009-
79 HOOK; MALE
EXC. DELUXE CARPET<BF2> (C) OD=16 L=11 		1-76378-155-0 01 1 1303-
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 1009-
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 1009-
83 PLATE; KICKING,FLOOR MAT
HONG KONG EQUIPMENT(PQ1) 		8-98125-806-3 01 1 1009-
83 PLATE; KICKING,FLOOR MAT
HONG KONG EQUIPMENT(PQ1) 		8-98125-805-3 01 1 1009-
83 PLATE; KICKING,FLOOR MAT
EXC. HONG KONG EQUIPMENT(PQ1) 		1-76798-046-0 01 1 1009-
83 PLATE; KICKING,FLOOR MAT
EXC. HONG KONG EQUIPMENT(PQ1) 		1-76798-045-0 01 1 1009-
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 1009-
134 SILENCER; RR FLOOR,SIDE 1-73367-016-2 01 1 1009-1302
134 SILENCER; RR FLOOR,SIDE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-73367-016-2 01 1 1303-
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 04 1 1009-1302
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-1 01 1 1009-
210 COVER; KICKING PLATE 1-76337-461-0 09 1 1009-
