◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11289 - CYH RHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#69991) — 29 parça

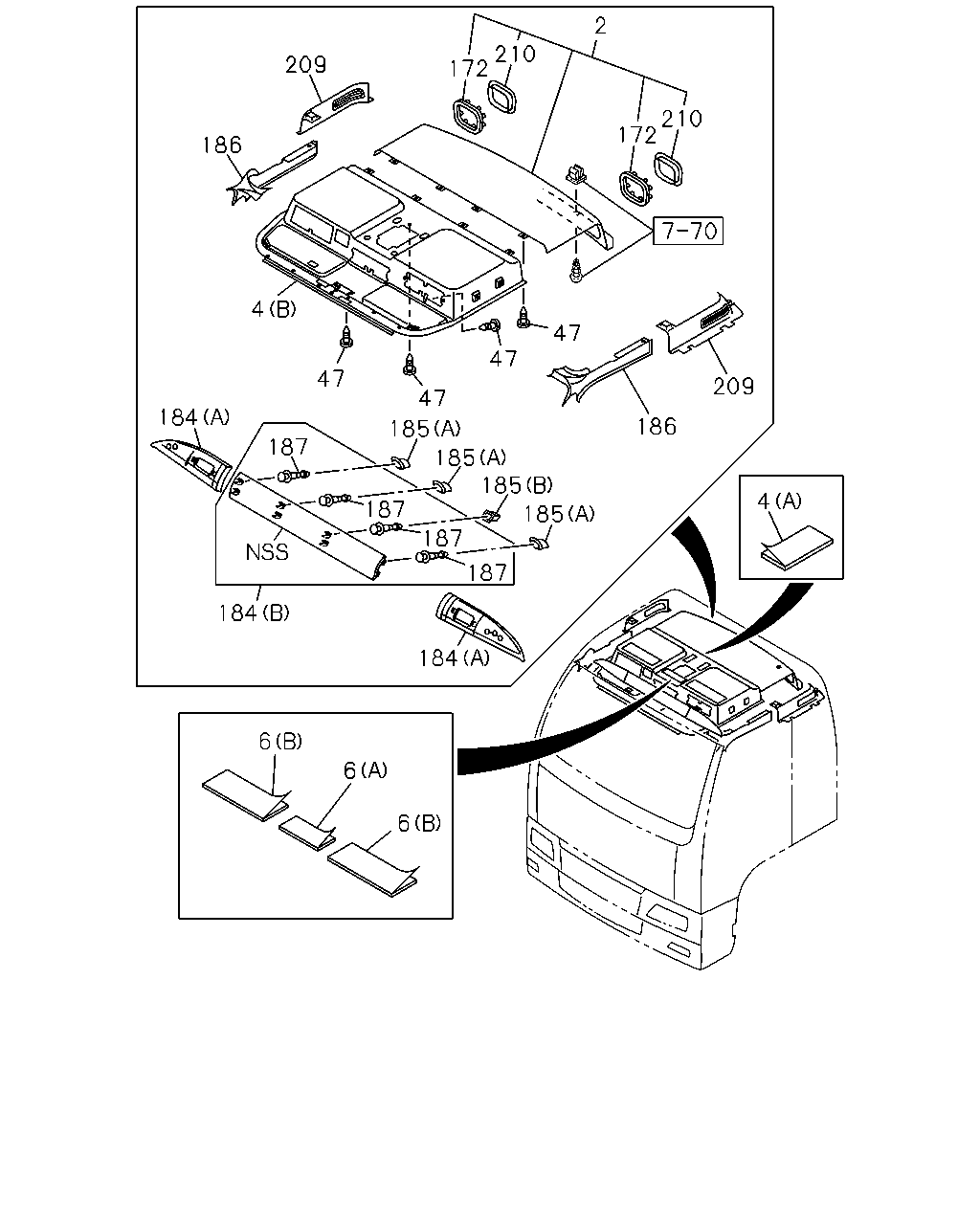

çizim 131424
4 209 186 172 210 2 210 172 209 186 4 47 47 47 47 185 185 185 185 187 187 187 187 184 6 6 6 184 184
BalonParca AdiParca NoAdetTipApplied Date
2 LINING; HD,ROOF RR
SPEAKER SYSTEM 4 SPEAKER<NBV> 		1-73317-503-2 01 1 1303-
2 LINING; HD,ROOF RR 1-73317-502-2 01 1 1009-1302
2 LINING; HD,ROOF RR
EXC. SPEAKER SYSTEM 4 SPEAKER<NBV> 		1-73317-502-2 01 1 1303-
4 LINING; ROOF,FRT
(A) 		1-73317-436-0 02 1 1009-
4 LINING; ROOF,FRT
LOW ROOF<6XQ> (B) 		1-73317-482-2 01 1 1009-
4 LINING; ROOF,FRT
EXC. ROOM LAMP FLUORESCENT<NGG> (B) 		1-73317-486-2 01 1 1009-
6 SPACER; HD LINING
(A) 130X300 		1-73317-435-2 01 1 1009-
6 SPACER; HD LINING
(B) 140X800 		1-73317-429-2 02 1 1009-
47 CLIP; HEADLINING
D5X14.7 		1-09983-183-0 05 1 1009-
47 CLIP; HEADLINING
D6X23 LIGHT GRAY 		1-73318-629-0 11 1 1009-
47 CLIP; HEADLINING
EXC. ROOM LAMP FLUORESCENT<NGG> OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 1009-
172 RETAINER; HEAD LINING
SPEAKER SYSTEM 4 SPEAKER<NBV> 		1-73317-448-0 01 1 1303-
172 RETAINER; HEAD LINING
SPEAKER SYSTEM 4 SPEAKER<NBV> 		1-73317-449-0 01 1 1303-
184 ORNAMENT; ROOF
EXC. HONG KONG EQUIPMENT(PQ1) (A) 		1-73317-408-2 01 1 1303-1411
184 ORNAMENT; ROOF
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) 		1-73317-408-2 01 1 1412-
184 ORNAMENT; ROOF
(B) 		1-73318-660-3 01 1 1009-
184 ORNAMENT; ROOF
(A) 		1-73317-409-2 01 1 1009-
184 ORNAMENT; ROOF
(A) 		1-73317-452-1 01 1 1009-1302
184 ORNAMENT; ROOF
HONG KONG EQUIPMENT(PQ1) (A) 		1-73317-452-1 01 1 1303-1411
184 ORNAMENT; ROOF
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) 		1-73317-452-1 01 1 1412-
185 GROMMET; ORNAMENT
(A) 		1-79198-012-0 06 1 1009-
185 GROMMET; ORNAMENT
(B) 		1-79198-013-0 02 1 1009-
186 TRIM; ROOM,CANT RAIL SIDE 1-73346-013-2 01 1 1009-
186 TRIM; ROOM,CANT RAIL SIDE 1-73346-012-2 01 1 1009-
187 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 1009-
209 COVER; GRILLE 1-73347-866-3 01 1 1009-
209 COVER; GRILLE 1-73347-865-3 01 1 1009-
210 GRILLE; SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> 		1-73347-885-1 01 1 1303-
210 GRILLE; SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> 		1-73347-886-1 01 1 1303-
