Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10820 - CXZ LHD CHINA
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶
3-55 — BRAKE PIPING; OIL,REAR
(#6999) — 28 parça
◀

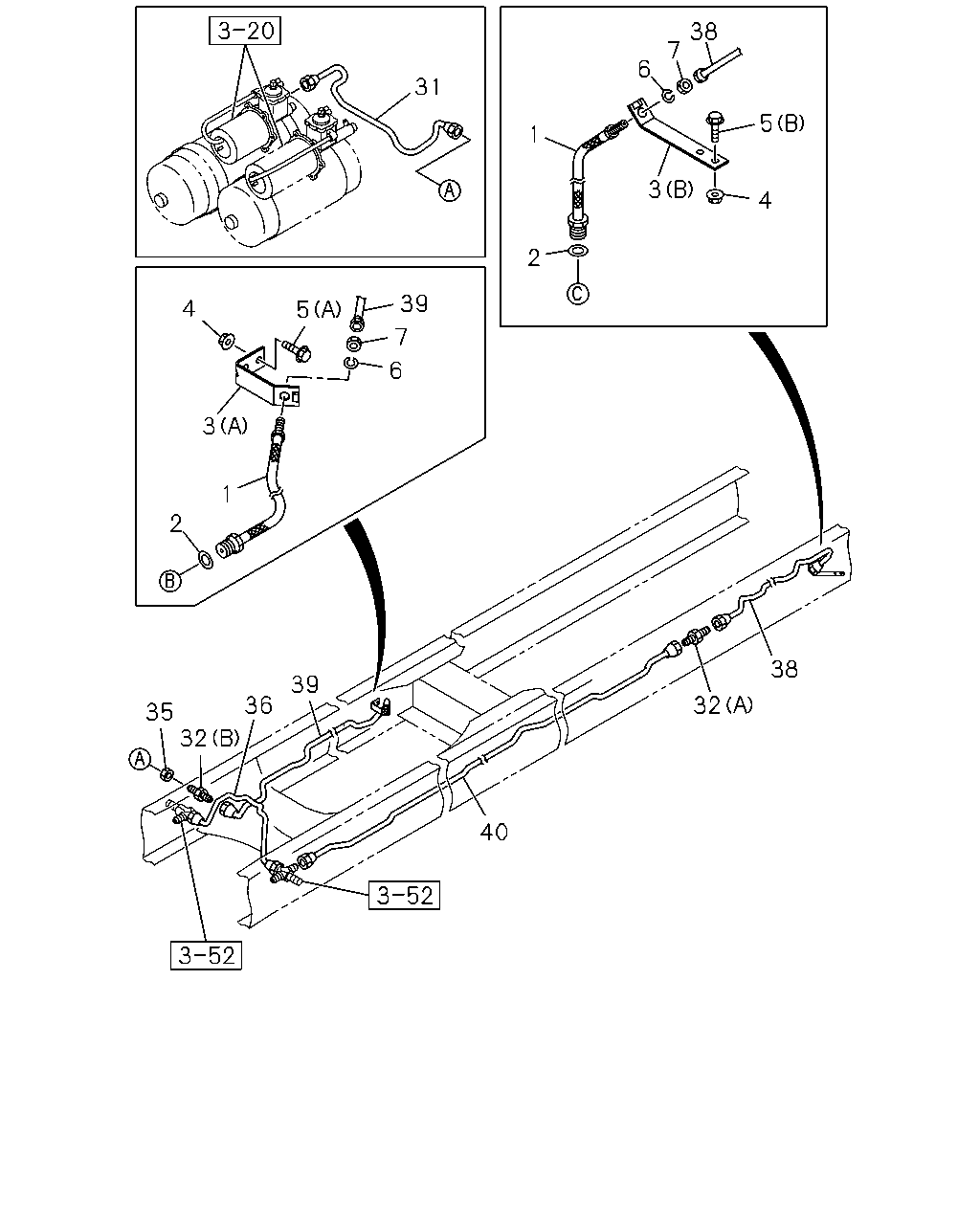

[355A] FRAME SIDE (17 parça)

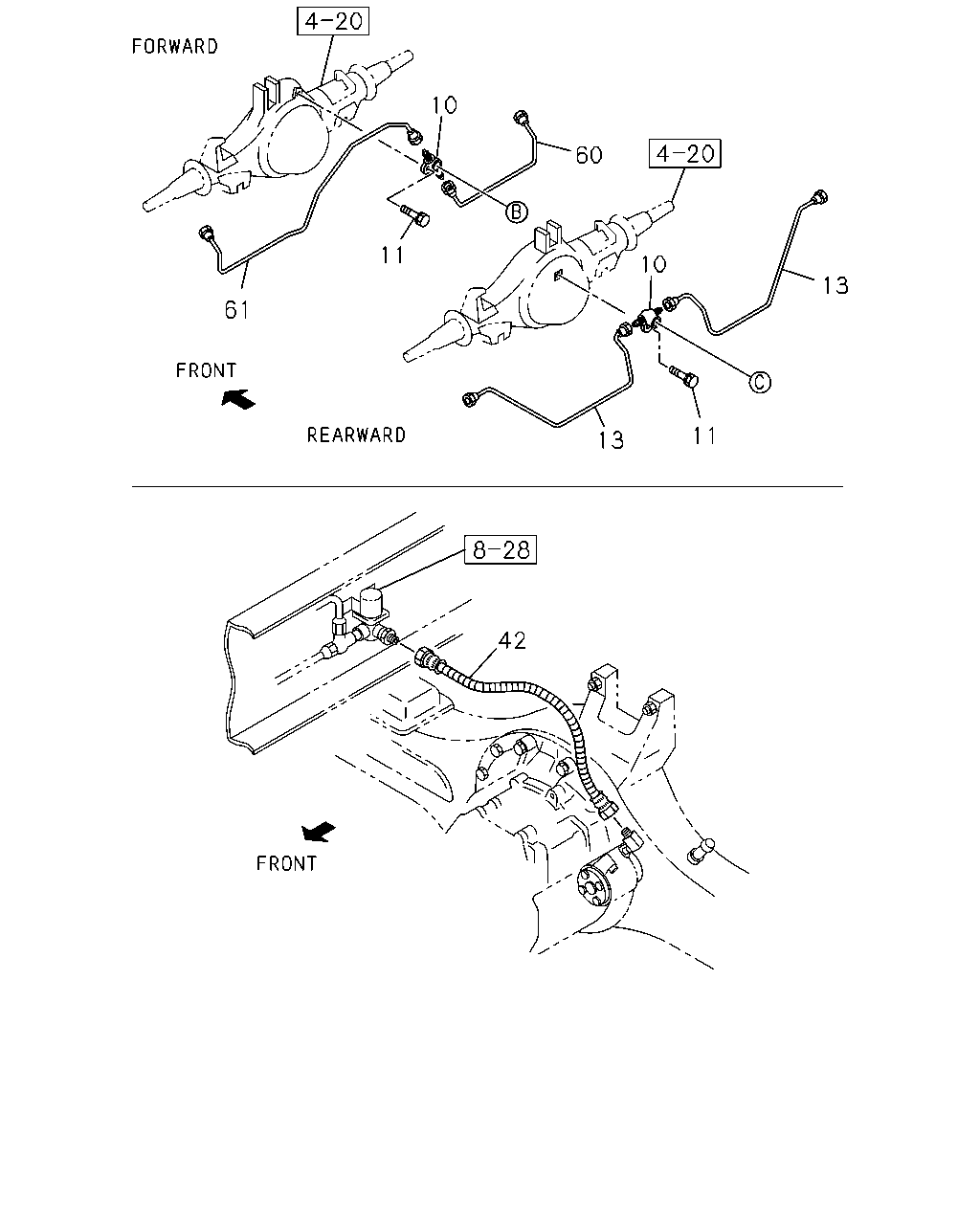

[355A] REAR AXLE SIDE (11 parça)
▶
38
7
6
31
5
1
3
4
2
39
4
5
7
6
3
1
2
38
39
32
36
35
32
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
L=450
1-09364-188-0
02
1
9908-
2
GASKET; FLEX HOSE,RR BRK
ID=9 OD=17
9-09920-472-0
02
1
9908-
3
BRACKET; FLEX HOSE,RR BRK
(A)
1-47475-357-2
01
1
9908-
3
BRACKET; FLEX HOSE,RR BRK
(B)
1-47476-573-1
01
1
9908-
4
NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE
0-91150-108-0
04
1
9908-
5
BOLT; BRKT,FLEX HOSE,RR BRK
(B) M8X40 FLANGE
0-28080-840-0
02
1
9908-
5
BOLT; BRKT,FLEX HOSE,RR BRK
(A) M8X35 FLANGE
0-28680-835-0
02
1
9908-
6
WASHER; LK,FLEX HOSE
ID=12.2
9-09150-512-0
02
1
9908-
7
NUT; FLEX HOSE
M12
9-09840-280-0
02
1
9908-
31
PIPE; OIL,AIR MASTER TO UNION
L=656
1-47429-259-0
01
1
9908-
32
UNION; OIL PIPE
(A) M12 L=40
9-09223-006-1
01
1
9908-
32
UNION; OIL PIPE
(B) M12 L=66.5
9-09223-306-1
01
1
9908-
35
NUT; UNION
M12
9-09840-280-0
01
1
9908-
36
PIPE; OIL,UNION TO UNION
L=1071
1-47429-691-0
01
1
9908-
38
PIPE; OIL,UNION TO FLEX HOSE
L=903
1-47429-644-0
01
1
9908-
39
PIPE; OIL,UNION TO RR FLEX HOSE
L=2067 SERVICED BY L=2200
1-47426-360-0
01
1
9908-
40
PIPE; BRK,UNION TO UNION
L=2623
1-47429-736-0
01
1
9908-
10
60
11
10
13
61
11
13
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
NIPPLE; RR AXLE CASE
9-09903-668-3
02
1
9908-9910
10
NIPPLE; RR AXLE CASE
9-09903-668-3
01
1
9911-
10
NIPPLE; RR AXLE CASE
9-09903-668-3
01
1
9911-
11
BOLT; NIPPLE,RR AXLE CASE
M10X25 W/LK WASHER
0-50041-025-0
02
1
9908-9910
11
BOLT; NIPPLE,RR AXLE CASE
M10X25 W/LK WASHER
0-50041-025-0
01
1
9911-
11
BOLT; NIPPLE,RR AXLE CASE
M10X25 W/LK WASHER
0-50041-025-0
01
1
9911-
13
PIPE; BRK,RR AXLE
L=871
1-47426-907-0
01
1
9908-
13
PIPE; BRK,RR AXLE
L=1002
1-47426-906-0
01
1
9908-
42
HOSE; FLEX,DIFF LOCK
L=580
1-09363-641-0
01
1
9908-
60
PIPE ASM; BRK
L=793
1-47427-916-0
01
1
9908-
61
PIPE ASM; BRK
L=1207
1-47426-905-0
01
1
9908-
