◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11289 - CYH RHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#69989) — 312 parça

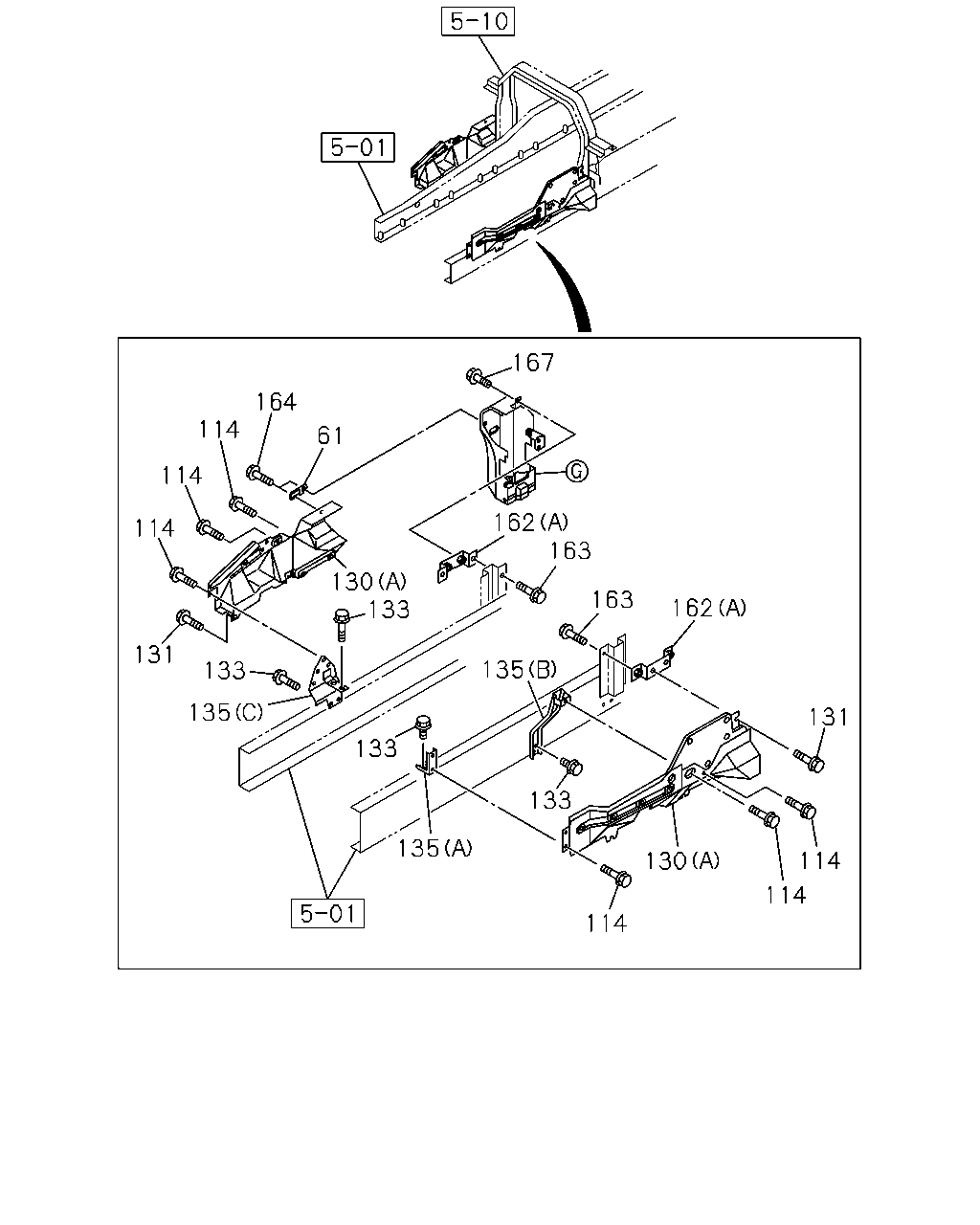

çizim 131253
114 114 131 162 163 163 162 167 135 133 130 114 135 133 133 130 135 133 131 114 114 114 164 61
BalonParca AdiParca NoAdetTipApplied Date
61 BRACKET; COVER 8-98039-501-1 01 1 1009-
114 BOLT
EXC. HONG KONG EQUIPMENT(PQ1) M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 1303-
114 BOLT
M8X20 FLANGE 		0-28650-820-0 02 1 1009-
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 09 1 1009-1302
114 BOLT
HONG KONG EQUIPMENT(PQ1) M8X22 W/LK&PL WASHER 		1-09030-042-0 09 1 1303-
130 PANEL; SHUTTER NOISE
NEW ZEALAND EQUIPMENT(PK5) (D) 		1-79937-919-3 01 1 1303-1303
130 PANEL; SHUTTER NOISE
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (E) 		1-79937-890-2 01 1 1303-1303
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (A) 		1-53194-386-1 01 1 1303-
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (B) 		1-79937-959-3 01 1 1303-1411
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 		1-79937-959-3 01 1 1412-
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (A) 		8-98240-672-0 01 1 1303-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 1009-1302
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (A) 		8-98225-727-0 01 1 1303-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 1009-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 1009-1302
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (A) 		1-53194-380-2 01 1 1303-
130 PANEL; SHUTTER NOISE
(B) 		8-98079-170-1 01 1 1009-1302
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (B) 		8-98079-170-1 01 1 1303-1411
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 		8-98079-170-1 01 1 1412-
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1009-1302
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (D) 		8-98125-820-0 01 1 1303-1303
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1304-
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (C) 		8-98167-256-0 01 1 1009-1303
130 PANEL; SHUTTER NOISE
(C) 		8-98167-256-0 01 1 1304-
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (C) 		8-98079-171-0 01 1 1009-1302
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (C) 		1-79947-082-0 01 1 1303-1303
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-093-0 07 1 1009-
131 BOLT; PANEL
M8X16 FLANGE 		0-28050-816-0 01 1 1009-1302
133 BOLT; FRAME
SMOOTHER-G(C1W) M10X35 FLANGE 		0-28651-035-0 01 1 1303-
133 BOLT; FRAME
SMOOTHER-G(C1W) M14X45 FLANGE 		0-28851-445-0 01 1 1303-
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 04 1 1009-1302
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 02 1 1303-
133 BOLT; FRAME
M10X35 FLANGE 		0-28651-035-0 02 1 1009-1302
133 BOLT; FRAME
M8X30 FLANGE 		0-28650-830-0 02 1 1303-
133 BOLT; FRAME
TRANSMISSION CONTROL CABLE TYPE(C1A) M10X35 FLANGE 		0-28651-035-0 01 1 1303-
133 BOLT; FRAME
TRANSMISSION CONTROL CABLE TYPE(C1A) M14X45 FLANGE 		0-28851-445-0 01 1 1303-
135 BRACKET; SIDE PANEL
(A) 		1-53441-507-0 01 1 1009-1302
135 BRACKET; SIDE PANEL
(A) 		8-98225-728-0 01 1 1303-
135 BRACKET; SIDE PANEL
(B) 		8-98127-905-0 01 1 1009-
135 BRACKET; SIDE PANEL
(C) 		8-98039-211-2 01 1 1009-1302
135 BRACKET; SIDE PANEL
SMOOTHER-G(C1W) (C) 		8-98216-394-1 01 1 1303-
135 BRACKET; SIDE PANEL
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) 		8-98216-298-1 01 1 1303-
162 BRACKET
(A) 		1-53441-520-0 02 1 1009-
162 BRACKET
(C) 		1-53441-552-1 01 1 1009-
162 BRACKET
(B) 		1-71907-815-0 01 1 1009-
162 BRACKET
(D) 		8-98113-210-2 01 1 1009-1302
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1009-
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28650-820-0 02 1 1009-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 04 1 1009-

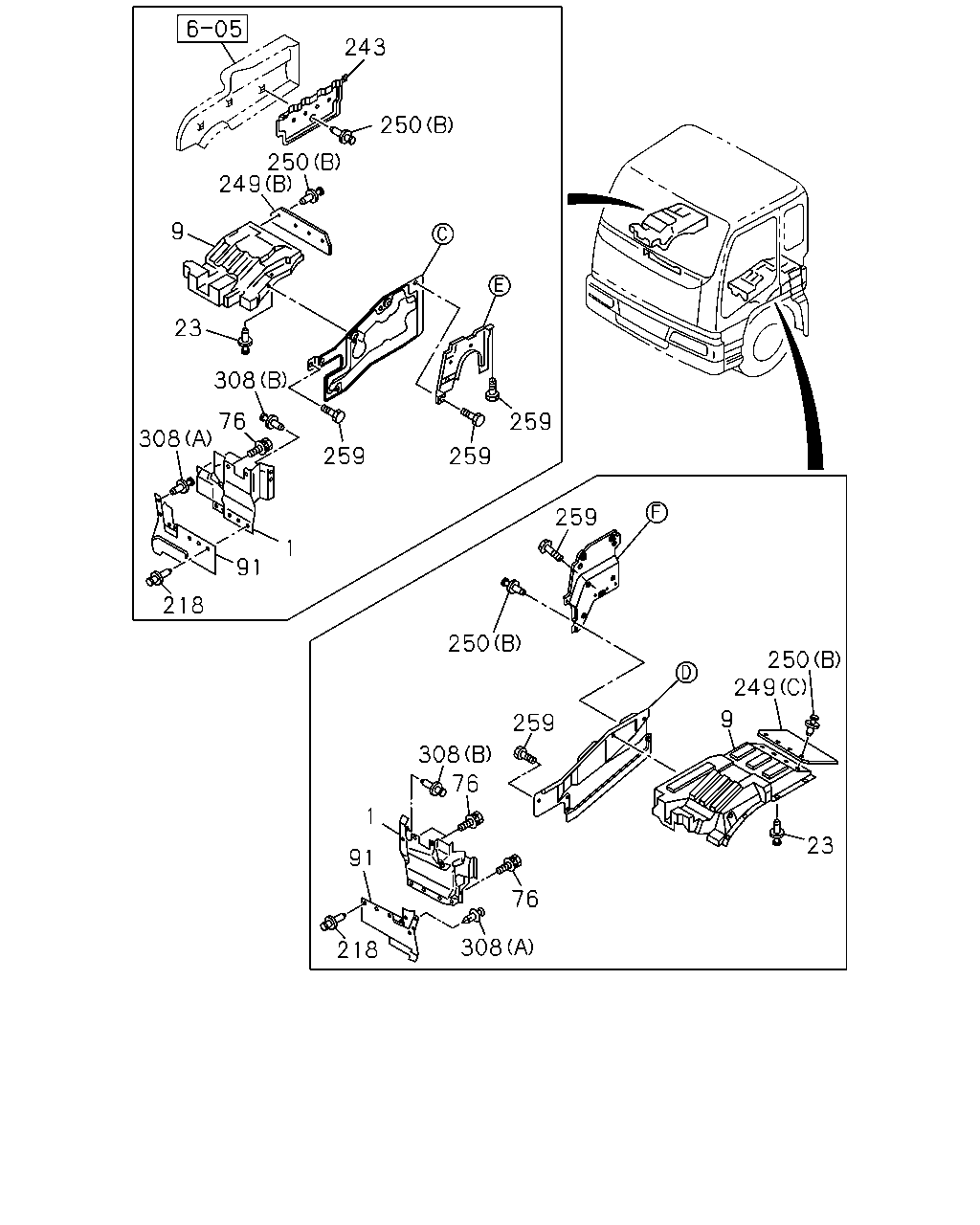

çizim 131438
243 250 250 249 9 23 308 308 259 1 91 218 259 259 259 250 259 308 76 1 91 218 308 76 250 249 9 23 76
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-894-6 01 1 1009-
1 GUARD; MUD,FRT 1-79937-895-5 01 1 1009-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 1009-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 1009-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 1009-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1009-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 1009-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 1009-
91 COVER; MUD,FRT 1-79931-204-1 01 1 1009-1302
91 COVER; MUD,FRT 8-98134-826-2 01 1 1303-
91 COVER; MUD,FRT 1-79931-203-1 01 1 1009-1302
91 COVER; MUD,FRT 8-98134-825-2 01 1 1303-
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 1009-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 1009-
249 RUBBER; SHUTTER
EXC. HONG KONG EQUIPMENT(PQ1) (D) 		1-79937-965-1 01 1 1303-1411
249 RUBBER; SHUTTER
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) 		1-79937-965-1 01 1 1412-
249 RUBBER; SHUTTER
EXC. HONG KONG EQUIPMENT(PQ1) (E) 		1-79937-967-1 01 1 1303-1303
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1009-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 1009-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1009-
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1009-1302
249 RUBBER; SHUTTER
HONG KONG EQUIPMENT(PQ1) (E) 		8-98079-173-0 01 1 1303-1303
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1304-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1009-
249 RUBBER; SHUTTER
(D) 		8-98079-172-0 01 1 1009-1302
249 RUBBER; SHUTTER
HONG KONG EQUIPMENT(PQ1) (D) 		8-98079-172-0 01 1 1303-1411
249 RUBBER; SHUTTER
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) 		8-98079-172-0 01 1 1412-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1303-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 11 1 1009-1302
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 05 1 1303-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 06 1 1009-1302
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 01 1 1303-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 1009-1302
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 09 1 1303-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 12 1 1009-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 1009-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 1009-
çizim 131481
249 185 281 130 185 130 130
BalonParca AdiParca NoAdetTipApplied Date
130 PANEL; SHUTTER NOISE
NEW ZEALAND EQUIPMENT(PK5) (D) 		1-79937-919-3 01 1 1303-1303
130 PANEL; SHUTTER NOISE
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (E) 		1-79937-890-2 01 1 1303-1303
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (A) 		1-53194-386-1 01 1 1303-
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (B) 		1-79937-959-3 01 1 1303-1411
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 		1-79937-959-3 01 1 1412-
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (A) 		8-98240-672-0 01 1 1303-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 1009-1302
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (A) 		8-98225-727-0 01 1 1303-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 1009-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 1009-1302
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (A) 		1-53194-380-2 01 1 1303-
130 PANEL; SHUTTER NOISE
(B) 		8-98079-170-1 01 1 1009-1302
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (B) 		8-98079-170-1 01 1 1303-1411
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 		8-98079-170-1 01 1 1412-
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1009-1302
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (D) 		8-98125-820-0 01 1 1303-1303
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1304-
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (C) 		8-98167-256-0 01 1 1009-1303
130 PANEL; SHUTTER NOISE
(C) 		8-98167-256-0 01 1 1304-
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (C) 		8-98079-171-0 01 1 1009-1302
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (C) 		1-79947-082-0 01 1 1303-1303
185 CLIP; HEAT INSULATOR
NEW ZEALAND EQUIPMENT(PK5) ID=6.2 L=11.4 		8-97808-623-0 06 1 1303-1303
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 25 1 1304-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 10 1 1303-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 31 1 1009-1302
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 1303-
185 CLIP; HEAT INSULATOR
HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 09 1 1009-1302
185 CLIP; HEAT INSULATOR
HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 25 1 1303-1303
185 CLIP; HEAT INSULATOR
EXC. HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 04 1 1009-1302
185 CLIP; HEAT INSULATOR
EXC. HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 14 1 1303-1303
249 RUBBER; SHUTTER
EXC. HONG KONG EQUIPMENT(PQ1) (D) 		1-79937-965-1 01 1 1303-1411
249 RUBBER; SHUTTER
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) 		1-79937-965-1 01 1 1412-
249 RUBBER; SHUTTER
EXC. HONG KONG EQUIPMENT(PQ1) (E) 		1-79937-967-1 01 1 1303-1303
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1009-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 1009-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1009-
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1009-1302
249 RUBBER; SHUTTER
HONG KONG EQUIPMENT(PQ1) (E) 		8-98079-173-0 01 1 1303-1303
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1304-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1009-
249 RUBBER; SHUTTER
(D) 		8-98079-172-0 01 1 1009-1302
249 RUBBER; SHUTTER
HONG KONG EQUIPMENT(PQ1) (D) 		8-98079-172-0 01 1 1303-1411
249 RUBBER; SHUTTER
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) 		8-98079-172-0 01 1 1412-
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1009-1010
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-1302
281 INSULATOR; NOISE
(C) 		8-98227-396-0 01 1 1303-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 1009-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 1009-
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (E) 		1-73237-931-0 01 1 1009-
281 INSULATOR; NOISE
HONG KONG EQUIPMENT(PQ1) (B) 		1-71907-742-0 01 1 1009-1303
281 INSULATOR; NOISE
(B) 		1-71907-742-0 01 1 1304-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (D) 		1-73237-445-4 01 1 1009-
çizim 131525
130 130 73 251 167 122 162 160 122 167 160 167 251 74 251
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
EXC. HONG KONG EQUIPMENT(PQ1) (B) M8X16 FLANGE 		0-28050-816-0 03 1 1303-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1009-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 1009-1302
73 BOLT; MUD COVER BRKT
HONG KONG EQUIPMENT(PQ1) (B) M8X16 FLANGE 		0-28050-816-0 06 1 1303-
74 NUT
HONG KONG EQUIPMENT(PQ1) M8 FLANGE 		0-91180-108-0 01 1 1303-
74 NUT
M8 FLANGE 		0-91180-108-0 07 1 1009-1302
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 1303-
122 BOLT
M8X30 FLANGE 		0-28650-830-0 04 1 1009-
130 PANEL; SHUTTER NOISE
NEW ZEALAND EQUIPMENT(PK5) (D) 		1-79937-919-3 01 1 1303-1303
130 PANEL; SHUTTER NOISE
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (E) 		1-79937-890-2 01 1 1303-1303
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (A) 		1-53194-386-1 01 1 1303-
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (B) 		1-79937-959-3 01 1 1303-1411
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 		1-79937-959-3 01 1 1412-
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (A) 		8-98240-672-0 01 1 1303-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 1009-1302
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (A) 		8-98225-727-0 01 1 1303-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 1009-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 1009-1302
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (A) 		1-53194-380-2 01 1 1303-
130 PANEL; SHUTTER NOISE
(B) 		8-98079-170-1 01 1 1009-1302
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (B) 		8-98079-170-1 01 1 1303-1411
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 		8-98079-170-1 01 1 1412-
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1009-1302
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (D) 		8-98125-820-0 01 1 1303-1303
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1304-
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (C) 		8-98167-256-0 01 1 1009-1303
130 PANEL; SHUTTER NOISE
(C) 		8-98167-256-0 01 1 1304-
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (C) 		8-98079-171-0 01 1 1009-1302
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (C) 		1-79947-082-0 01 1 1303-1303
160 COVER ASM; EXH
(A) 		1-79931-418-1 01 1 1009-
160 COVER ASM; EXH
(B) 		8-98046-681-0 01 1 1009-1207
160 COVER ASM; EXH
(B) 		8-98046-699-0 01 1 1208-
162 BRACKET
(A) 		1-53441-520-0 02 1 1009-
162 BRACKET
(C) 		1-53441-552-1 01 1 1009-
162 BRACKET
(B) 		1-71907-815-0 01 1 1009-
162 BRACKET
(D) 		8-98113-210-2 01 1 1009-1302
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 04 1 1009-
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 09 1 1009-1302
251 CLIP; NOISE INSULATOR
HONG KONG EQUIPMENT(PQ1) (A) 		8-94165-394-0 09 1 1303-
251 CLIP; NOISE INSULATOR
(C) ID=6.2 L=11.4 		8-97808-623-0 04 1 1009-
251 CLIP; NOISE INSULATOR
(B) 		8-94279-048-0 05 1 1009-1302
251 CLIP; NOISE INSULATOR
HONG KONG EQUIPMENT(PQ1) (B) 		8-94279-048-0 05 1 1303-
çizim 188462
130 281 185 249 130 281 185 249
BalonParca AdiParca NoAdetTipApplied Date
130 PANEL; SHUTTER NOISE
NEW ZEALAND EQUIPMENT(PK5) (D) 		1-79937-919-3 01 1 1303-1303
130 PANEL; SHUTTER NOISE
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (E) 		1-79937-890-2 01 1 1303-1303
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (A) 		1-53194-386-1 01 1 1303-
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (B) 		1-79937-959-3 01 1 1303-1411
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 		1-79937-959-3 01 1 1412-
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (A) 		8-98240-672-0 01 1 1303-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 1009-1302
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (A) 		8-98225-727-0 01 1 1303-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 1009-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 1009-1302
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (A) 		1-53194-380-2 01 1 1303-
130 PANEL; SHUTTER NOISE
(B) 		8-98079-170-1 01 1 1009-1302
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (B) 		8-98079-170-1 01 1 1303-1411
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 		8-98079-170-1 01 1 1412-
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1009-1302
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (D) 		8-98125-820-0 01 1 1303-1303
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1304-
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (C) 		8-98167-256-0 01 1 1009-1303
130 PANEL; SHUTTER NOISE
(C) 		8-98167-256-0 01 1 1304-
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (C) 		8-98079-171-0 01 1 1009-1302
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (C) 		1-79947-082-0 01 1 1303-1303
185 CLIP; HEAT INSULATOR
NEW ZEALAND EQUIPMENT(PK5) ID=6.2 L=11.4 		8-97808-623-0 06 1 1303-1303
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 25 1 1304-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 10 1 1303-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 31 1 1009-1302
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 1303-
185 CLIP; HEAT INSULATOR
HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 09 1 1009-1302
185 CLIP; HEAT INSULATOR
HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 25 1 1303-1303
185 CLIP; HEAT INSULATOR
EXC. HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 04 1 1009-1302
185 CLIP; HEAT INSULATOR
EXC. HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 14 1 1303-1303
249 RUBBER; SHUTTER
EXC. HONG KONG EQUIPMENT(PQ1) (D) 		1-79937-965-1 01 1 1303-1411
249 RUBBER; SHUTTER
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) 		1-79937-965-1 01 1 1412-
249 RUBBER; SHUTTER
EXC. HONG KONG EQUIPMENT(PQ1) (E) 		1-79937-967-1 01 1 1303-1303
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1009-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 1009-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1009-
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1009-1302
249 RUBBER; SHUTTER
HONG KONG EQUIPMENT(PQ1) (E) 		8-98079-173-0 01 1 1303-1303
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1304-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1009-
249 RUBBER; SHUTTER
(D) 		8-98079-172-0 01 1 1009-1302
249 RUBBER; SHUTTER
HONG KONG EQUIPMENT(PQ1) (D) 		8-98079-172-0 01 1 1303-1411
249 RUBBER; SHUTTER
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) 		8-98079-172-0 01 1 1412-
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1009-1010
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-1302
281 INSULATOR; NOISE
(C) 		8-98227-396-0 01 1 1303-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 1009-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 1009-
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (E) 		1-73237-931-0 01 1 1009-
281 INSULATOR; NOISE
HONG KONG EQUIPMENT(PQ1) (B) 		1-71907-742-0 01 1 1009-1303
281 INSULATOR; NOISE
(B) 		1-71907-742-0 01 1 1304-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (D) 		1-73237-445-4 01 1 1009-

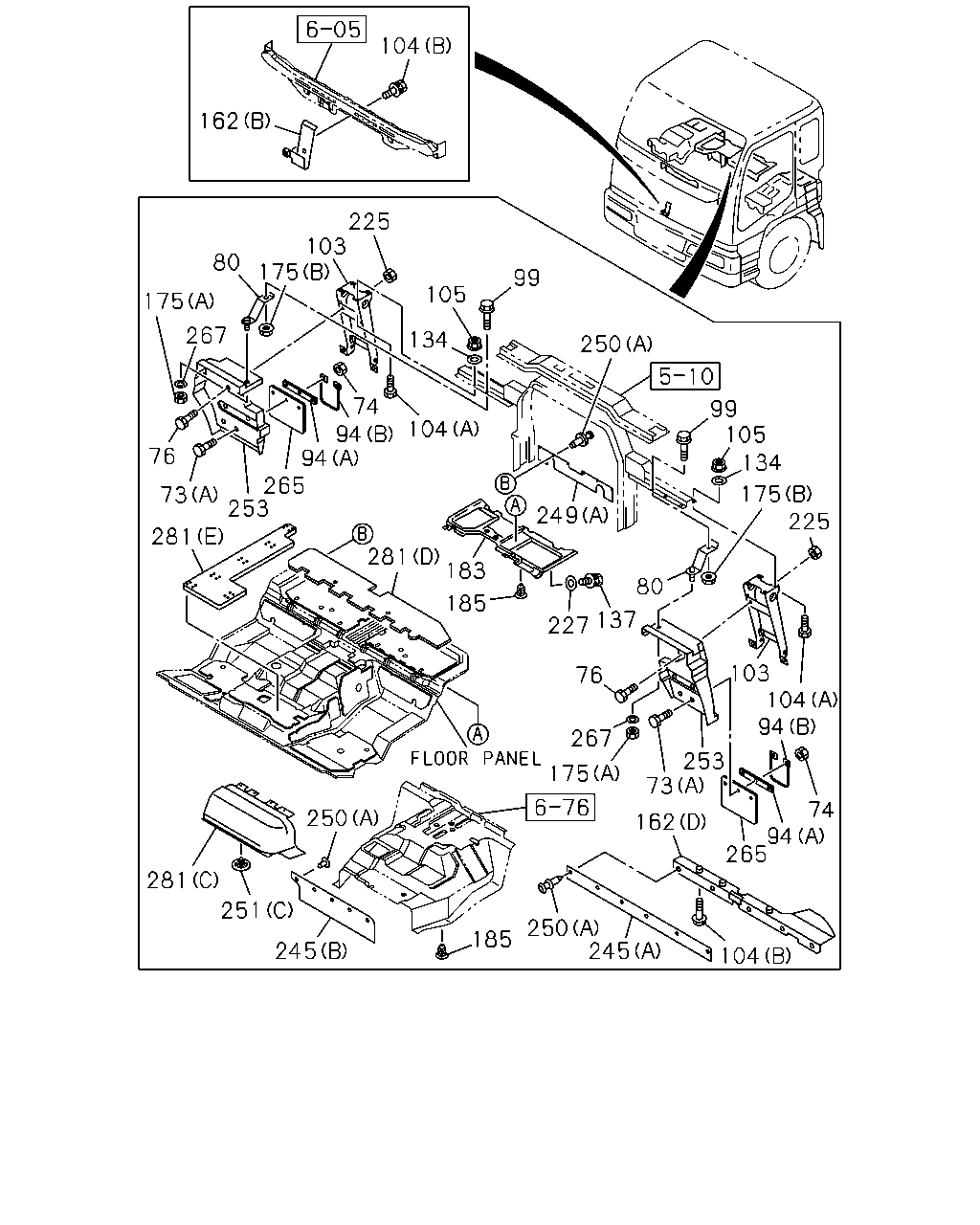

çizim 188465
162 104 225 103 175 80 175 105 99 134 74 267 76 73 281 253 265 94 94 104 250 249 99 105 134 175 225 80 137 227 185 183 281 281 251 245 185 250 245 76 267 175 104 265 162 74 94 73 253 94 104 103 250
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
EXC. HONG KONG EQUIPMENT(PQ1) (B) M8X16 FLANGE 		0-28050-816-0 03 1 1303-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1009-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 1009-1302
73 BOLT; MUD COVER BRKT
HONG KONG EQUIPMENT(PQ1) (B) M8X16 FLANGE 		0-28050-816-0 06 1 1303-
74 NUT
HONG KONG EQUIPMENT(PQ1) M8 FLANGE 		0-91180-108-0 01 1 1303-
74 NUT
M8 FLANGE 		0-91180-108-0 07 1 1009-1302
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 1303-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1009-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 1009-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 1009-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 1009-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 02 1 1009-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 02 1 1009-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 02 1 1009-
103 BRACKET ASM; RR MUD FLAP 1-79931-444-0 02 1 1009-1502
103 BRACKET ASM; RR MUD FLAP 8-98306-892-0 02 1 1503-
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 08 1 1009-
104 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		0-50640-616-0 04 1 1009-1302
104 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		0-50640-616-0 01 1 1303-
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 1009-
134 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 02 1 1009-1302
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1009-
162 BRACKET
(A) 		1-53441-520-0 02 1 1009-
162 BRACKET
(C) 		1-53441-552-1 01 1 1009-
162 BRACKET
(B) 		1-71907-815-0 01 1 1009-
162 BRACKET
(D) 		8-98113-210-2 01 1 1009-1302
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 1009-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 1009-
183 INSULATOR; HEAT,BED PAN 1-71907-526-4 01 1 1009-
185 CLIP; HEAT INSULATOR
NEW ZEALAND EQUIPMENT(PK5) ID=6.2 L=11.4 		8-97808-623-0 06 1 1303-1303
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 25 1 1304-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 10 1 1303-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 31 1 1009-1302
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 1303-
185 CLIP; HEAT INSULATOR
HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 09 1 1009-1302
185 CLIP; HEAT INSULATOR
HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 25 1 1303-1303
185 CLIP; HEAT INSULATOR
EXC. HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 04 1 1009-1302
185 CLIP; HEAT INSULATOR
EXC. HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 14 1 1303-1303
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 1009-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 1009-
245 RUBBER; SHUTTER,RAD
(A) 		8-98113-211-0 01 1 1009-1302
245 RUBBER; SHUTTER,RAD
(B) 		8-98227-395-0 01 1 1303-
249 RUBBER; SHUTTER
EXC. HONG KONG EQUIPMENT(PQ1) (D) 		1-79937-965-1 01 1 1303-1411
249 RUBBER; SHUTTER
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) 		1-79937-965-1 01 1 1412-
249 RUBBER; SHUTTER
EXC. HONG KONG EQUIPMENT(PQ1) (E) 		1-79937-967-1 01 1 1303-1303
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1009-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 1009-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1009-
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1009-1302
249 RUBBER; SHUTTER
HONG KONG EQUIPMENT(PQ1) (E) 		8-98079-173-0 01 1 1303-1303
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1304-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1009-
249 RUBBER; SHUTTER
(D) 		8-98079-172-0 01 1 1009-1302
249 RUBBER; SHUTTER
HONG KONG EQUIPMENT(PQ1) (D) 		8-98079-172-0 01 1 1303-1411
249 RUBBER; SHUTTER
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) 		8-98079-172-0 01 1 1412-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1303-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 11 1 1009-1302
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 05 1 1303-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 06 1 1009-1302
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 01 1 1303-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 1009-1302
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 09 1 1303-
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 09 1 1009-1302
251 CLIP; NOISE INSULATOR
HONG KONG EQUIPMENT(PQ1) (A) 		8-94165-394-0 09 1 1303-
251 CLIP; NOISE INSULATOR
(C) ID=6.2 L=11.4 		8-97808-623-0 04 1 1009-
251 CLIP; NOISE INSULATOR
(B) 		8-94279-048-0 05 1 1009-1302
251 CLIP; NOISE INSULATOR
HONG KONG EQUIPMENT(PQ1) (B) 		8-94279-048-0 05 1 1303-
253 GUARD; MUD 8-98134-766-1 01 1 1009-
253 GUARD; MUD 8-98134-759-0 01 1 1009-
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 1009-
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 1009-
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1009-1010
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-1302
281 INSULATOR; NOISE
(C) 		8-98227-396-0 01 1 1303-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 1009-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 1009-
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (E) 		1-73237-931-0 01 1 1009-
281 INSULATOR; NOISE
HONG KONG EQUIPMENT(PQ1) (B) 		1-71907-742-0 01 1 1009-1303
281 INSULATOR; NOISE
(B) 		1-71907-742-0 01 1 1304-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (D) 		1-73237-445-4 01 1 1009-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
