◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11289 - CYH RHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#69986) — 89 parça

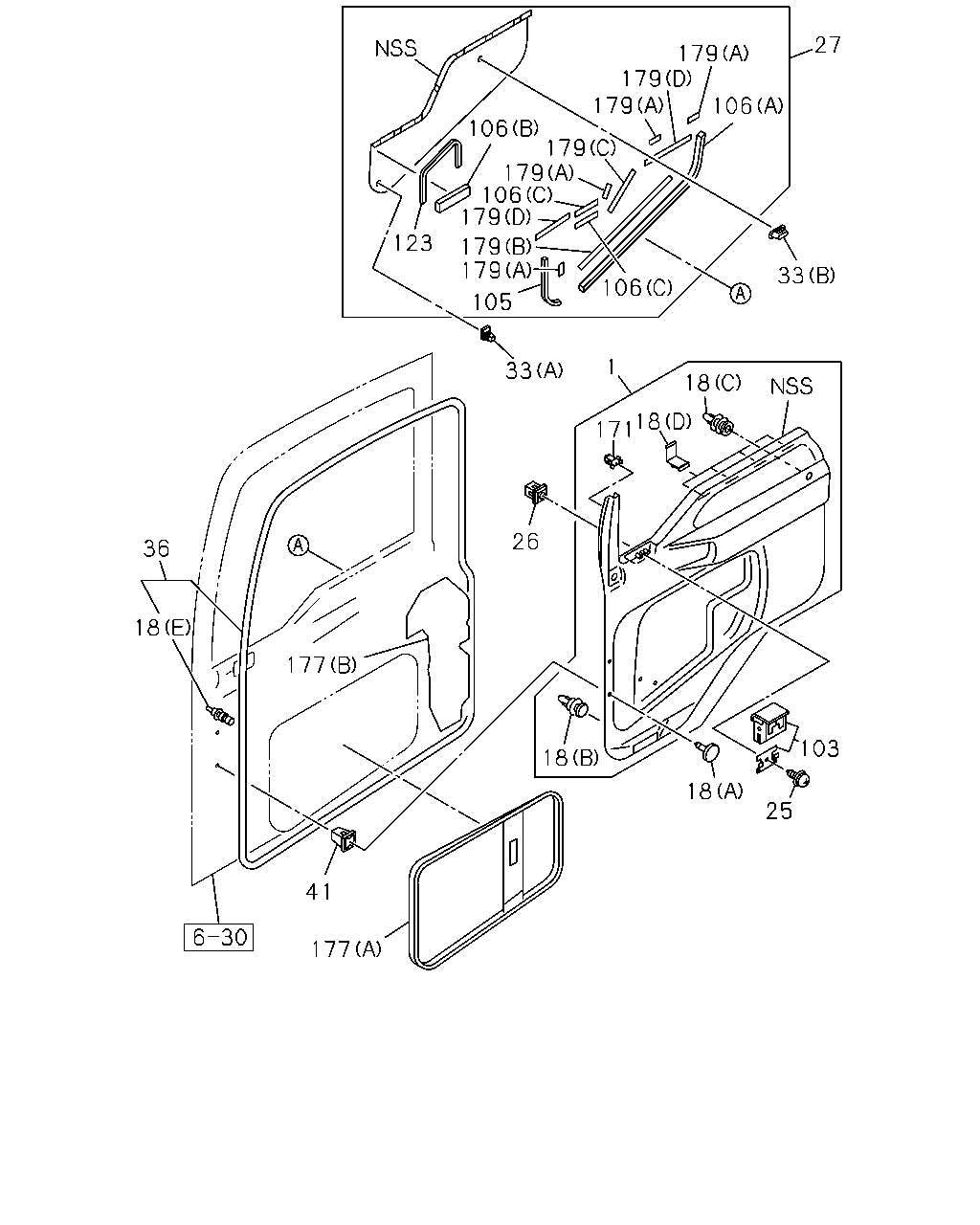

çizim 130826
179 27 106 179 179 179 106 105 179 179 179 106 179 106 123 33 1 33 18 18 171 26 177 18 36 41 177 18 18 25 103
BalonParca AdiParca NoAdetTipApplied Date
1 PAD; TRIM,FRT DOOR
HONG KONG EQUIPMENT(PQ1) 		8-98145-253-1 01 1 1009-1302
1 PAD; TRIM,FRT DOOR 8-98145-253-2 01 1 1303-
1 PAD; TRIM,FRT DOOR
HONG KONG EQUIPMENT(PQ1) 		8-98145-252-1 01 1 1009-1302
1 PAD; TRIM,FRT DOOR 8-98145-252-2 01 1 1303-
1 PAD; TRIM,FRT DOOR
EXC. HONG KONG EQUIPMENT(PQ1) 		1-73337-516-0 01 1 1009-1302
1 PAD; TRIM,FRT DOOR
EXC. HONG KONG EQUIPMENT(PQ1) 		1-73337-513-0 01 1 1009-1302
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 10 1 1009-
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 1009-
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 1009-
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-97893-482-0 10 1 1009-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 1009-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 1009-
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 1009-
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1009-
27 PANEL; ORNAMENT,DOOR
NEW ZEALAND EQUIPMENT(PK5) 		1-76217-157-3 01 1 1303-
27 PANEL; ORNAMENT,DOOR
NEW ZEALAND EQUIPMENT(PK5) 		8-98229-330-0 01 1 1303-
27 PANEL; ORNAMENT,DOOR
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 		8-97632-479-0 01 1 1303-1411
27 PANEL; ORNAMENT,DOOR
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-97632-479-0 01 1 1412-
27 PANEL; ORNAMENT,DOOR
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 		8-98229-332-0 01 1 1303-1411
27 PANEL; ORNAMENT,DOOR
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98229-332-0 01 1 1412-
27 PANEL; ORNAMENT,DOOR 1-76218-099-7 01 1 1009-1302
27 PANEL; ORNAMENT,DOOR
HONG KONG EQUIPMENT(PQ1) 		1-76218-099-7 01 1 1303-1411
27 PANEL; ORNAMENT,DOOR
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		1-76218-099-7 01 1 1412-
27 PANEL; ORNAMENT,DOOR 1-76218-125-7 01 1 1009-1210
27 PANEL; ORNAMENT,DOOR 8-98229-329-0 01 1 1211-1302
27 PANEL; ORNAMENT,DOOR
HONG KONG EQUIPMENT(PQ1) 		8-98229-329-0 01 1 1303-1411
27 PANEL; ORNAMENT,DOOR
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98229-329-0 01 1 1412-
33 GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 02 1 1009-
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 1009-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-9 01 1 1009-1010
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-764-0 01 1 1011-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-9 01 1 1009-1010
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-763-0 01 1 1011-
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 1009-
103 TRAY ASM; ASH,DOOR 1-76458-086-1 01 1 1009-
103 TRAY ASM; ASH,DOOR 1-76458-085-1 01 1 1009-
105 SEAL; DOOR ORNAMENT,FRT
EXC. HONG KONG EQUIPMENT(PQ1) 		1-76218-082-2 02 1 1303-1411
105 SEAL; DOOR ORNAMENT,FRT
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		1-76218-082-2 02 1 1412-
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 02 1 1009-1302
105 SEAL; DOOR ORNAMENT,FRT
HONG KONG EQUIPMENT(PQ1) 		1-76218-082-2 01 1 1303-1411
105 SEAL; DOOR ORNAMENT,FRT
HONG KONG EQUIPMENT(PQ1) 		1-76218-082-2 01 1 1303-1411
105 SEAL; DOOR ORNAMENT,FRT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		1-76218-082-2 01 1 1412-
105 SEAL; DOOR ORNAMENT,FRT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		1-76218-082-2 01 1 1412-
106 SEAL; DOOR ORNAMENT
NEW ZEALAND EQUIPMENT(PK5) (C) 		1-76218-104-0 04 1 1303-
106 SEAL; DOOR ORNAMENT
EXC. HONG KONG EQUIPMENT(PQ1) (A) 		1-76218-083-2 02 1 1303-1411
106 SEAL; DOOR ORNAMENT
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) 		1-76218-083-2 02 1 1412-
106 SEAL; DOOR ORNAMENT
(B) 		8-98226-642-0 01 1 1211-
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 02 1 1009-1302
106 SEAL; DOOR ORNAMENT
HONG KONG EQUIPMENT(PQ1) (A) 		1-76218-083-2 01 1 1303-1411
106 SEAL; DOOR ORNAMENT
HONG KONG EQUIPMENT(PQ1) (A) 		1-76218-083-2 01 1 1303-1411
106 SEAL; DOOR ORNAMENT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) 		1-76218-083-2 01 1 1412-
106 SEAL; DOOR ORNAMENT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) 		1-76218-083-2 01 1 1412-
123 SEAL; ORNAMENT PANEL
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 		8-98150-731-0 01 1 1303-1411
123 SEAL; ORNAMENT PANEL
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98150-731-0 01 1 1412-
123 SEAL; ORNAMENT PANEL
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 		8-98150-732-0 01 1 1303-1411
123 SEAL; ORNAMENT PANEL
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98150-732-0 01 1 1412-
171 RETAINER; DOOR PAD 1-09987-264-0 02 1 1009-
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 1009-
177 SEAL; WATER,DOOR
(A) 		1-76778-052-2 01 1 1009-
177 SEAL; WATER,DOOR
(A) 		1-76778-035-6 01 1 1009-
179 TAPE; ORNAMENT
HONG KONG EQUIPMENT(PQ1) (B) L=770 		1-76218-091-2 01 1 1303-1411
179 TAPE; ORNAMENT
HONG KONG EQUIPMENT(PQ1) (B) L=770 		1-76218-091-2 01 1 1303-1411
179 TAPE; ORNAMENT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=770 		1-76218-091-2 01 1 1412-
179 TAPE; ORNAMENT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=770 		1-76218-091-2 01 1 1412-
179 TAPE; ORNAMENT
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) L=600 		8-97633-876-0 02 1 1303-1411
179 TAPE; ORNAMENT
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=600 		8-97633-876-0 02 1 1412-
179 TAPE; ORNAMENT
EXC. HONG KONG EQUIPMENT(PQ1) (A) L=45 		1-76218-063-2 08 1 1303-1411
179 TAPE; ORNAMENT
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=45 		1-76218-063-2 08 1 1412-
179 TAPE; ORNAMENT
EXC. HONG KONG EQUIPMENT(PQ1) (C) L=160 		1-76218-094-1 02 1 1303-1411
179 TAPE; ORNAMENT
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=160 		1-76218-094-1 02 1 1412-
179 TAPE; ORNAMENT
EXC. HONG KONG EQUIPMENT(PQ1) (D) L=235 		1-76218-127-1 04 1 1303-1411
179 TAPE; ORNAMENT
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) L=235 		1-76218-127-1 04 1 1412-
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 08 1 1009-1302
179 TAPE; ORNAMENT
HONG KONG EQUIPMENT(PQ1) (A) L=45 		1-76218-063-2 04 1 1303-1411
179 TAPE; ORNAMENT
HONG KONG EQUIPMENT(PQ1) (A) L=45 		1-76218-063-2 04 1 1303-1411
179 TAPE; ORNAMENT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=45 		1-76218-063-2 04 1 1412-
179 TAPE; ORNAMENT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=45 		1-76218-063-2 04 1 1412-
179 TAPE; ORNAMENT
(B) L=770 		1-76218-091-2 02 1 1009-1302
179 TAPE; ORNAMENT
NEW ZEALAND EQUIPMENT(PK5) (B) L=770 		1-76218-091-2 02 1 1303-
179 TAPE; ORNAMENT
(C) L=160 		1-76218-094-1 02 1 1009-1302
179 TAPE; ORNAMENT
HONG KONG EQUIPMENT(PQ1) (C) L=160 		1-76218-094-1 01 1 1303-1411
179 TAPE; ORNAMENT
HONG KONG EQUIPMENT(PQ1) (C) L=160 		1-76218-094-1 01 1 1303-1411
179 TAPE; ORNAMENT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=160 		1-76218-094-1 01 1 1412-
179 TAPE; ORNAMENT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=160 		1-76218-094-1 01 1 1412-
179 TAPE; ORNAMENT
(D) L=235 		1-76218-127-1 04 1 1009-1302
179 TAPE; ORNAMENT
HONG KONG EQUIPMENT(PQ1) (D) L=235 		1-76218-127-1 02 1 1303-1411
179 TAPE; ORNAMENT
HONG KONG EQUIPMENT(PQ1) (D) L=235 		1-76218-127-1 02 1 1303-1411
179 TAPE; ORNAMENT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) L=235 		1-76218-127-1 02 1 1412-
179 TAPE; ORNAMENT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) L=235 		1-76218-127-1 02 1 1412-
