Sayfa 6-20 - Isuzu EPC

6-20 — SIDE PANEL AND STEP (#69982) — 454 parça

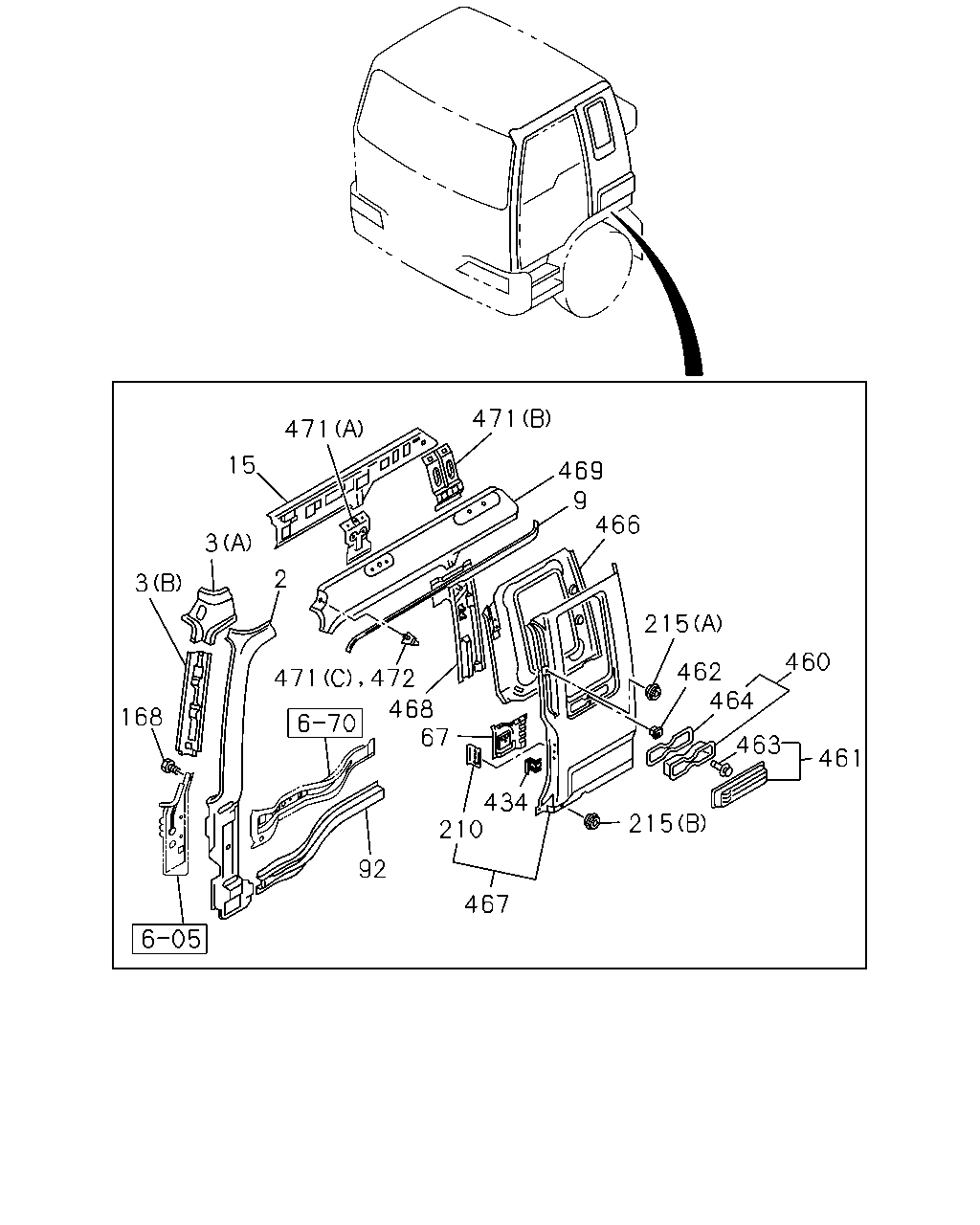

15 3 3 168 92 468 471 472 67 434 210 467 215 464 463 461 460 215 466 9 469 471 471 2 462

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	PILLAR; FRT NEW ZEALAND EQUIPMENT(PK5)	1-61281-410-2	01	1	1303-1411
2	PILLAR; FRT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-61281-410-2	01	1	1412-
2	PILLAR; FRT	1-61281-156-4	01	1	1009-1302
2	PILLAR; FRT HONG KONG EQUIPMENT(PQ1)	1-61281-156-4	01	1	1303-1411
2	PILLAR; FRT MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) EXC. BAGGAGE BOX CAB RR SIDE<TBM>	1-61281-156-4	01	1	1412-
2	PILLAR; FRT	1-61281-155-4	01	1	1009-
3	PANEL; CLOSING,FRT PILLAR (A)	1-61281-170-5	01	1	1009-
3	PANEL; CLOSING,FRT PILLAR (B)	1-61281-344-5	01	1	1009-
3	PANEL; CLOSING,FRT PILLAR (A)	1-61281-169-5	01	1	1009-
3	PANEL; CLOSING,FRT PILLAR (B)	1-61281-343-5	01	1	1009-
9	MOLDING; DRIP,CAB SIDE	1-61281-281-5	01	1	1009-
9	MOLDING; DRIP,CAB SIDE	1-61281-280-5	01	1	1009-
15	PANEL; CANT RAIL SIDE	1-61281-178-8	01	1	1009-
15	PANEL; CANT RAIL SIDE	1-61281-177-8	01	1	1009-
67	PANEL; INNER,RR PILLAR LWR	1-61281-195-5	01	1	1009-
67	PANEL; INNER,RR PILLAR LWR	1-61281-194-5	01	1	1009-
92	PANEL; SIDE SILL,CAB	1-61281-212-8	01	1	1009-
92	PANEL; SIDE SILL,CAB	1-61281-211-9	01	1	1009-
168	BOLT; BODY SIDE PANEL M6X10 FLANGE	0-28050-610-0	04	1	1009-
210	PANEL; DOOR STRIKER REINF	8-97851-446-1	01	1	1009-
215	GROMMET; RR PILLAR (A) OD=23.5	1-09983-101-0	02	1	1009-
215	GROMMET; RR PILLAR (B) OD=28.5	8-94279-711-0	02	1	1009-
434	PATCH; ASSIST GRIP	1-61270-763-1	02	1	1009-1302
434	PATCH; ASSIST GRIP	1-61270-763-1	01	1	1303-
434	PATCH; ASSIST GRIP	1-61270-763-1	01	1	1303-
460	VENTILATOR; BODY SIDE	1-76378-292-4	02	1	1009-
461	ORNAMENT; VENTILATOR	1-76378-303-6	01	1	1009-
461	ORNAMENT; VENTILATOR	1-76378-302-6	01	1	1009-
462	GROMMET; VENTILATOR OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	08	1	1009-
463	PIN; ORNAMENT D4.2X13	1-09983-161-0	08	1	1009-
464	SEAL; VENTILATOR	1-76378-299-0	02	1	1009-
466	PANEL; INNER,BACK CORNER	1-61281-416-1	01	1	1009-
466	PANEL; INNER,BACK CORNER	1-61281-415-1	01	1	1009-
467	PANEL; OUTER,BACK CORNER NEW ZEALAND EQUIPMENT(PK5)	1-61270-773-3	01	1	1303-1411
467	PANEL; OUTER,BACK CORNER NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) BAGGAGE BOX CAB RR SIDE<TBM> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-61270-773-3	01	1	1412-
467	PANEL; OUTER,BACK CORNER	1-61281-204-4	01	1	1009-1302
467	PANEL; OUTER,BACK CORNER HONG KONG EQUIPMENT(PQ1)	1-61281-204-4	01	1	1303-1411
467	PANEL; OUTER,BACK CORNER NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) EXC. BAGGAGE BOX CAB RR SIDE<TBM>	1-61281-204-4	01	1	1412-
467	PANEL; OUTER,BACK CORNER	1-61281-203-4	01	1	1009-
468	REINFORCEMENT; SEAT BELT ANCHOR	1-61281-418-2	01	1	1009-
468	REINFORCEMENT; SEAT BELT ANCHOR	1-61281-417-2	01	1	1009-
469	ROOF; SIDE	1-61281-199-8	01	1	1009-
469	ROOF; SIDE	1-61281-198-8	01	1	1009-
471	PATCH; AIR DEFLECTOR (B)	1-61281-202-3	02	1	1009-1302
471	PATCH; AIR DEFLECTOR (B)	1-61281-202-3	01	1	1303-
471	PATCH; AIR DEFLECTOR (B)	1-61281-202-3	01	1	1303-
471	PATCH; AIR DEFLECTOR (A)	1-61281-201-3	01	1	1009-
471	PATCH; AIR DEFLECTOR (C)	8-98132-463-0	01	1	1009-
471	PATCH; AIR DEFLECTOR (A)	1-61281-200-3	01	1	1009-
472	PATCH; STAY,ROOF	1-61270-943-1	01	1	1009-

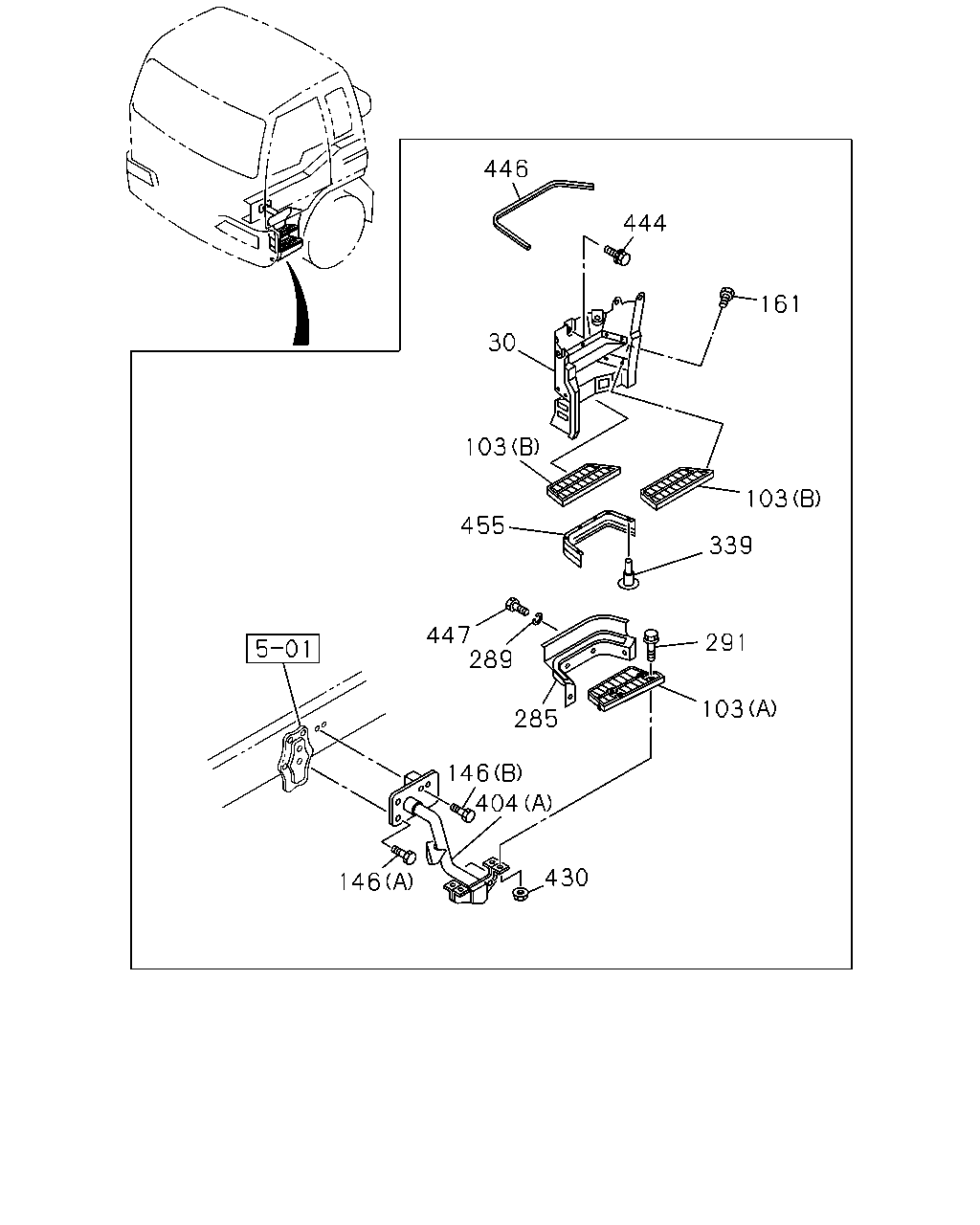

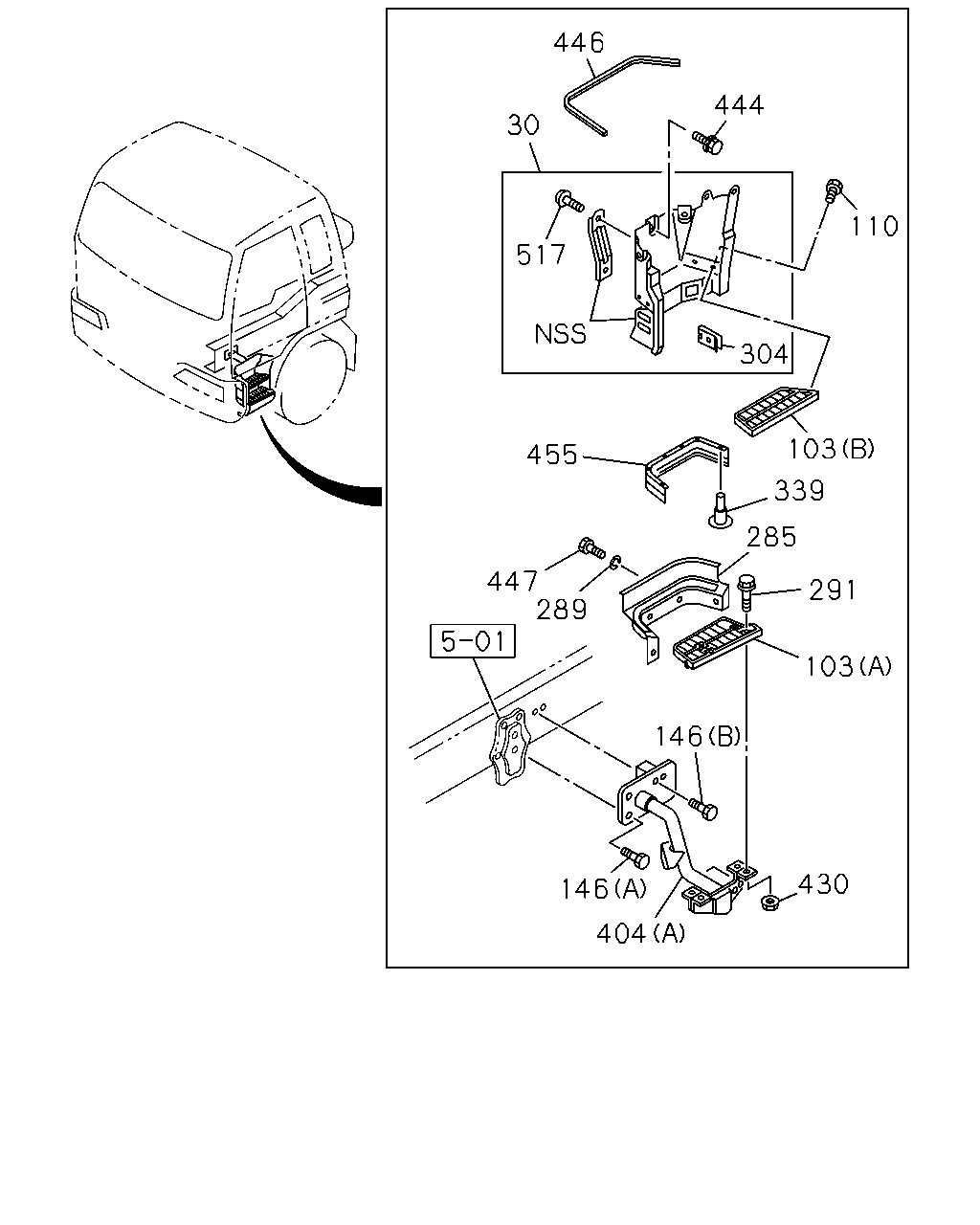

446 30 517 455 447 289 444 110 304 103 339 285 291 103 146 146 404 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-810-4	01	1	1009-1302
30	CLOSING; SIDE STEP	8-98157-935-0	01	1	1303-
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-809-4	01	1	1009-1302
30	CLOSING; SIDE STEP	8-98157-934-0	01	1	1303-
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-848-0	01	1	1009-1302
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-847-0	01	1	1009-1302
103	PLATE; STEP (A)	1-53414-181-0	01	1	1009-
103	PLATE; STEP (A)	1-53414-180-0	01	1	1009-
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	02	1	1009-1302
103	PLATE; STEP (B)	1-71907-249-1	02	1	1303-
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	02	1	1009-1302
103	PLATE; STEP (B)	1-71907-174-1	02	1	1303-
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	01	1	1009-1302
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	01	1	1009-1302
110	BOLT; 1ST STEP PLATE EXC. HONG KONG EQUIPMENT(PQ1) M8X29.5 W/LK+PL WASHER	8-94279-218-0	08	1	1009-1302
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	02	1	1009-1302
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	08	1	1303-1504
146	BOLT; STEP BRKT (A) M12X40 FLANGE	0-28051-240-0	08	1	1505-
146	BOLT; STEP BRKT (B) M12X70 FLANGE	0-28051-270-0	02	1	1009-1302
146	BOLT; STEP BRKT FRONT SPOILER<VP1> (C) M12X35 FLANGE	0-28651-235-0	02	1	1009-1302
146	BOLT; STEP BRKT EXC. MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (C) M12X35 FLANGE	0-28651-235-0	02	1	1009-1302
146	BOLT; STEP BRKT MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (C) M12X35 FLANGE	0-28651-235-0	03	1	1009-1302
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-091-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP	8-98227-947-1	01	1	1303-
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-094-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP	8-98227-948-1	01	1	1303-
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-528-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-529-0	01	1	1009-1302
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	08	1	1009-
291	BOLT; STEP PLATE M8X40 FLANGE	0-28050-840-0	08	1	1009-1302
291	BOLT; STEP PLATE M8X50 FLANGE	0-28050-850-0	08	1	1303-
304	NUT; SPIRE EXC. HONG KONG EQUIPMENT(PQ1) M6	1-09984-182-0	04	1	1009-1302
339	FASTENER; SIDE HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	10	1	1009-1302
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	10	1	1303-
339	FASTENER; SIDE EXC. HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	12	1	1009-1302
404	BRACKET FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1) (C)	8-97609-131-3	01	1	1009-1302
404	BRACKET EXC. HONG KONG EQUIPMENT(PQ1),MIXER TRUCK<RA2>, FRONT SPOILER<VP1> (C)	8-97609-131-3	01	1	1009-1302
404	BRACKET HONG KONG EQUIPMENT(PQ1) (A)	1-53414-158-4	01	1	1009-1302
404	BRACKET NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) FRONT UNDER SPOILER DELETE<SGA> (D)	8-98227-951-0	01	1	1303-1411
404	BRACKET NEW ZEALAND EQUIPMENT(PK5) FRONT SPOILER<VP1> (D)	8-98227-951-0	01	1	1303-1411
404	BRACKET NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) FRONT UNDER SPOILER DELETE<SGA> (D)	8-98227-951-0	01	1	1412-
404	BRACKET NEW ZEALAND EQUIPMENT(PK5) FRONT SPOILER<VP1> (D)	8-98227-951-0	01	1	1412-
404	BRACKET HONG KONG EQUIPMENT(PQ1) EXC. MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (C)	8-97629-747-1	01	1	1009-1302
404	BRACKET HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> (C)	8-97629-747-1	01	1	1009-1302
404	BRACKET NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) FRONT UNDER SPOILER DELETE<SGA> (D)	8-98227-952-0	01	1	1303-1411
404	BRACKET NEW ZEALAND EQUIPMENT(PK5) FRONT SPOILER<VP1> (D)	8-98227-952-0	01	1	1303-1411
404	BRACKET NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) FRONT UNDER SPOILER DELETE<SGA> (D)	8-98227-952-0	01	1	1412-
404	BRACKET NEW ZEALAND EQUIPMENT(PK5) FRONT SPOILER<VP1> (D)	8-98227-952-0	01	1	1412-
404	BRACKET EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-53414-159-4	01	1	1009-1302
404	BRACKET MIXER TRUCK<RA2> HONG KONG EQUIPMENT(PQ1) EXC. FRONT SPOILER<VP1> (B)	8-98128-702-1	01	1	1009-1302
404	BRACKET HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> (D)	8-98241-383-0	01	1	1303-1411
404	BRACKET HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) FRONT SPOILER<VP1> (D)	8-98241-383-0	01	1	1412-
404	BRACKET MIXER TRUCK<RA2> EXC. HONG KONG EQUIPMENT(PQ1),FRONT SPOILER<VP1> (B)	8-97609-965-1	01	1	1009-1302
404	BRACKET HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> (D)	8-98241-384-0	01	1	1303-1411
404	BRACKET HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) FRONT SPOILER<VP1> (D)	8-98241-384-0	01	1	1412-
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	1009-
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	1009-
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	1009-
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	1009-
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-807-2	01	1	1009-1302
455	PROTECTOR; STEP	8-98125-807-2	01	1	1303-
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-808-2	01	1	1009-1302
455	PROTECTOR; STEP	8-98125-808-2	01	1	1303-
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-837-1	01	1	1009-1302
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-838-1	01	1	1009-1302
517	SCREW; TAP EXC. HONG KONG EQUIPMENT(PQ1) M5X10 TAPPING W/PL WASHER	0-74160-510-0	04	1	1009-1302

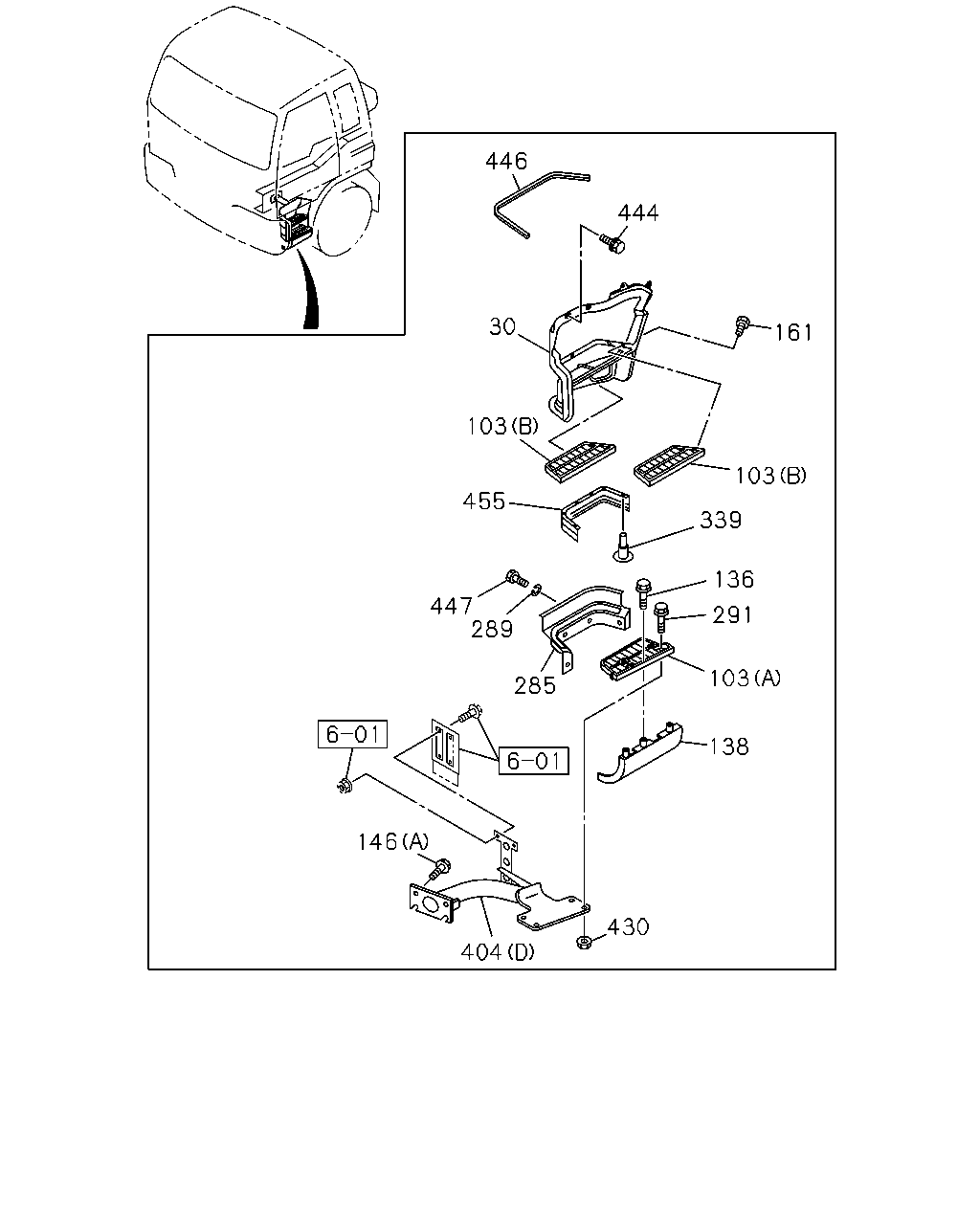

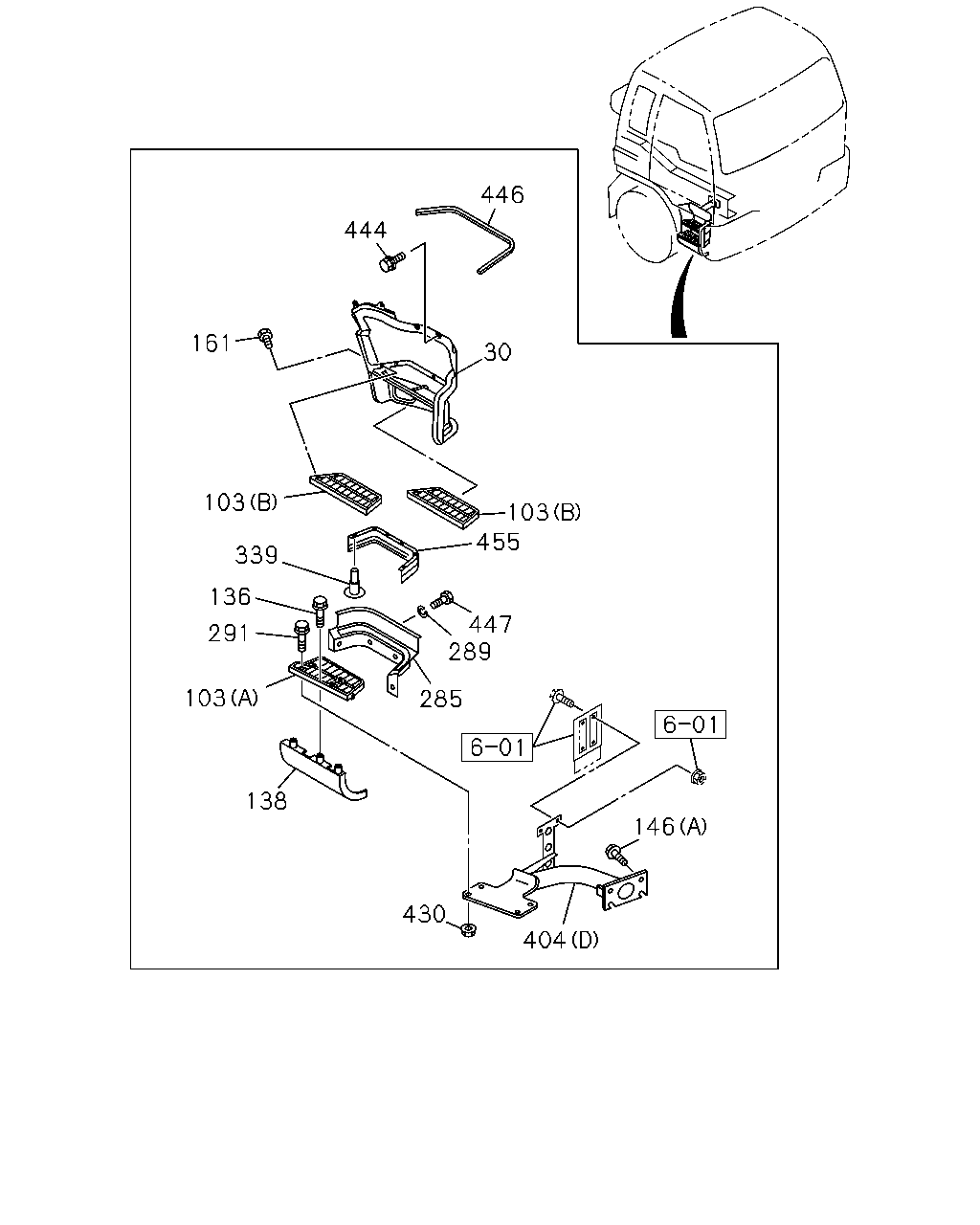

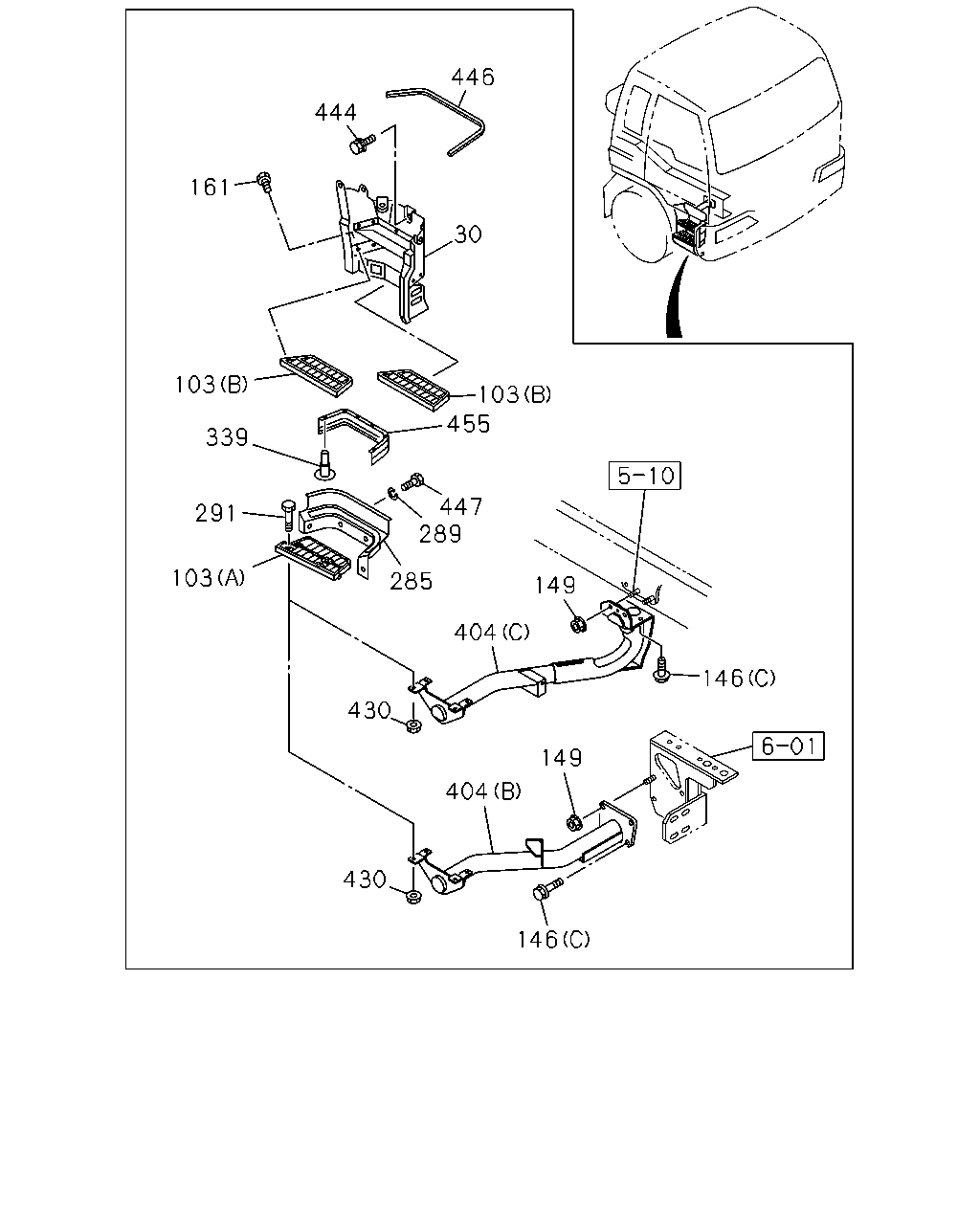

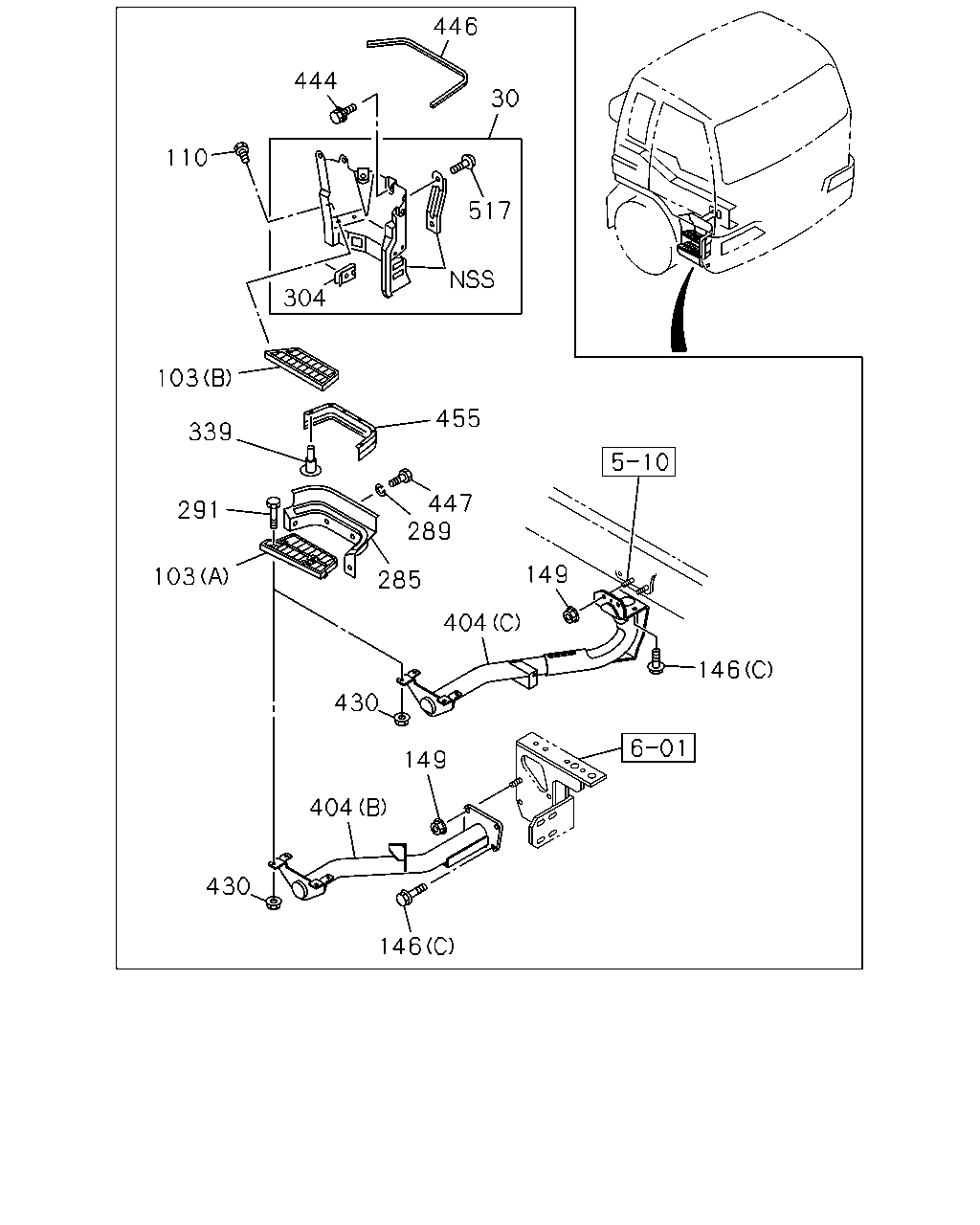

146 430 404 149 430 146 149 404 285 289 447 455 103 291 339 103 304 517 110 444 30 446

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-810-4	01	1	1009-1302
30	CLOSING; SIDE STEP	8-98157-935-0	01	1	1303-
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-809-4	01	1	1009-1302
30	CLOSING; SIDE STEP	8-98157-934-0	01	1	1303-
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-848-0	01	1	1009-1302
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-847-0	01	1	1009-1302
103	PLATE; STEP (A)	1-53414-181-0	01	1	1009-
103	PLATE; STEP (A)	1-53414-180-0	01	1	1009-
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	02	1	1009-1302
103	PLATE; STEP (B)	1-71907-249-1	02	1	1303-
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	02	1	1009-1302
103	PLATE; STEP (B)	1-71907-174-1	02	1	1303-
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	01	1	1009-1302
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	01	1	1009-1302
110	BOLT; 1ST STEP PLATE EXC. HONG KONG EQUIPMENT(PQ1) M8X29.5 W/LK+PL WASHER	8-94279-218-0	08	1	1009-1302
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	02	1	1009-1302
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	08	1	1303-1504
146	BOLT; STEP BRKT (A) M12X40 FLANGE	0-28051-240-0	08	1	1505-
146	BOLT; STEP BRKT (B) M12X70 FLANGE	0-28051-270-0	02	1	1009-1302
146	BOLT; STEP BRKT FRONT SPOILER<VP1> (C) M12X35 FLANGE	0-28651-235-0	02	1	1009-1302
146	BOLT; STEP BRKT EXC. MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (C) M12X35 FLANGE	0-28651-235-0	02	1	1009-1302
146	BOLT; STEP BRKT MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (C) M12X35 FLANGE	0-28651-235-0	03	1	1009-1302
149	NUT; STEP BRKT FRONT SPOILER<VP1> M12 FLANGE	0-91180-212-0	02	1	1009-1302
149	NUT; STEP BRKT EXC. MIXER TRUCK<RA2>,FRONT SPOILER<VP1> M12 FLANGE	0-91180-212-0	02	1	1009-1302
149	NUT; STEP BRKT MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> M12 FLANGE	0-91180-212-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-091-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP	8-98227-947-1	01	1	1303-
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-094-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP	8-98227-948-1	01	1	1303-
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-528-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-529-0	01	1	1009-1302
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	08	1	1009-
291	BOLT; STEP PLATE M8X40 FLANGE	0-28050-840-0	08	1	1009-1302
291	BOLT; STEP PLATE M8X50 FLANGE	0-28050-850-0	08	1	1303-
304	NUT; SPIRE EXC. HONG KONG EQUIPMENT(PQ1) M6	1-09984-182-0	04	1	1009-1302
339	FASTENER; SIDE HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	10	1	1009-1302
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	10	1	1303-
339	FASTENER; SIDE EXC. HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	12	1	1009-1302
404	BRACKET FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1) (C)	8-97609-131-3	01	1	1009-1302
404	BRACKET EXC. HONG KONG EQUIPMENT(PQ1),MIXER TRUCK<RA2>, FRONT SPOILER<VP1> (C)	8-97609-131-3	01	1	1009-1302
404	BRACKET HONG KONG EQUIPMENT(PQ1) (A)	1-53414-158-4	01	1	1009-1302
404	BRACKET NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) FRONT UNDER SPOILER DELETE<SGA> (D)	8-98227-951-0	01	1	1303-1411
404	BRACKET NEW ZEALAND EQUIPMENT(PK5) FRONT SPOILER<VP1> (D)	8-98227-951-0	01	1	1303-1411
404	BRACKET NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) FRONT UNDER SPOILER DELETE<SGA> (D)	8-98227-951-0	01	1	1412-
404	BRACKET NEW ZEALAND EQUIPMENT(PK5) FRONT SPOILER<VP1> (D)	8-98227-951-0	01	1	1412-
404	BRACKET HONG KONG EQUIPMENT(PQ1) EXC. MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (C)	8-97629-747-1	01	1	1009-1302
404	BRACKET HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> (C)	8-97629-747-1	01	1	1009-1302
404	BRACKET NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) FRONT UNDER SPOILER DELETE<SGA> (D)	8-98227-952-0	01	1	1303-1411
404	BRACKET NEW ZEALAND EQUIPMENT(PK5) FRONT SPOILER<VP1> (D)	8-98227-952-0	01	1	1303-1411
404	BRACKET NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) FRONT UNDER SPOILER DELETE<SGA> (D)	8-98227-952-0	01	1	1412-
404	BRACKET NEW ZEALAND EQUIPMENT(PK5) FRONT SPOILER<VP1> (D)	8-98227-952-0	01	1	1412-
404	BRACKET EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-53414-159-4	01	1	1009-1302
404	BRACKET MIXER TRUCK<RA2> HONG KONG EQUIPMENT(PQ1) EXC. FRONT SPOILER<VP1> (B)	8-98128-702-1	01	1	1009-1302
404	BRACKET HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> (D)	8-98241-383-0	01	1	1303-1411
404	BRACKET HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) FRONT SPOILER<VP1> (D)	8-98241-383-0	01	1	1412-
404	BRACKET MIXER TRUCK<RA2> EXC. HONG KONG EQUIPMENT(PQ1),FRONT SPOILER<VP1> (B)	8-97609-965-1	01	1	1009-1302
404	BRACKET HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> (D)	8-98241-384-0	01	1	1303-1411
404	BRACKET HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) FRONT SPOILER<VP1> (D)	8-98241-384-0	01	1	1412-
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	1009-
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	1009-
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	1009-
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	1009-
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-807-2	01	1	1009-1302
455	PROTECTOR; STEP	8-98125-807-2	01	1	1303-
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-808-2	01	1	1009-1302
455	PROTECTOR; STEP	8-98125-808-2	01	1	1303-
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-837-1	01	1	1009-1302
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-838-1	01	1	1009-1302
517	SCREW; TAP EXC. HONG KONG EQUIPMENT(PQ1) M5X10 TAPPING W/PL WASHER	0-74160-510-0	04	1	1009-1302

446 444 161 103 339 291 103 30 103 455 447 289 285 430 404 430 146 149 404 149 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-810-4	01	1	1009-1302
30	CLOSING; SIDE STEP	8-98157-935-0	01	1	1303-
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-809-4	01	1	1009-1302
30	CLOSING; SIDE STEP	8-98157-934-0	01	1	1303-
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-848-0	01	1	1009-1302
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-847-0	01	1	1009-1302
103	PLATE; STEP (A)	1-53414-181-0	01	1	1009-
103	PLATE; STEP (A)	1-53414-180-0	01	1	1009-
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	02	1	1009-1302
103	PLATE; STEP (B)	1-71907-249-1	02	1	1303-
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	02	1	1009-1302
103	PLATE; STEP (B)	1-71907-174-1	02	1	1303-
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	01	1	1009-1302
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	01	1	1009-1302
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	02	1	1009-1302
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	08	1	1303-1504
146	BOLT; STEP BRKT (A) M12X40 FLANGE	0-28051-240-0	08	1	1505-
146	BOLT; STEP BRKT (B) M12X70 FLANGE	0-28051-270-0	02	1	1009-1302
146	BOLT; STEP BRKT FRONT SPOILER<VP1> (C) M12X35 FLANGE	0-28651-235-0	02	1	1009-1302
146	BOLT; STEP BRKT EXC. MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (C) M12X35 FLANGE	0-28651-235-0	02	1	1009-1302
146	BOLT; STEP BRKT MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (C) M12X35 FLANGE	0-28651-235-0	03	1	1009-1302
149	NUT; STEP BRKT FRONT SPOILER<VP1> M12 FLANGE	0-91180-212-0	02	1	1009-1302
149	NUT; STEP BRKT EXC. MIXER TRUCK<RA2>,FRONT SPOILER<VP1> M12 FLANGE	0-91180-212-0	02	1	1009-1302
149	NUT; STEP BRKT MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> M12 FLANGE	0-91180-212-0	01	1	1009-1302
161	BOLT; FIX HONG KONG EQUIPMENT(PQ1) M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1009-1302
161	BOLT; FIX M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1303-
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-091-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP	8-98227-947-1	01	1	1303-
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-094-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP	8-98227-948-1	01	1	1303-
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-528-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-529-0	01	1	1009-1302
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	08	1	1009-
291	BOLT; STEP PLATE M8X40 FLANGE	0-28050-840-0	08	1	1009-1302
291	BOLT; STEP PLATE M8X50 FLANGE	0-28050-850-0	08	1	1303-
339	FASTENER; SIDE HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	10	1	1009-1302
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	10	1	1303-
339	FASTENER; SIDE EXC. HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	12	1	1009-1302
404	BRACKET FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1) (C)	8-97609-131-3	01	1	1009-1302
404	BRACKET EXC. HONG KONG EQUIPMENT(PQ1),MIXER TRUCK<RA2>, FRONT SPOILER<VP1> (C)	8-97609-131-3	01	1	1009-1302
404	BRACKET HONG KONG EQUIPMENT(PQ1) (A)	1-53414-158-4	01	1	1009-1302
404	BRACKET NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) FRONT UNDER SPOILER DELETE<SGA> (D)	8-98227-951-0	01	1	1303-1411
404	BRACKET NEW ZEALAND EQUIPMENT(PK5) FRONT SPOILER<VP1> (D)	8-98227-951-0	01	1	1303-1411
404	BRACKET NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) FRONT UNDER SPOILER DELETE<SGA> (D)	8-98227-951-0	01	1	1412-
404	BRACKET NEW ZEALAND EQUIPMENT(PK5) FRONT SPOILER<VP1> (D)	8-98227-951-0	01	1	1412-
404	BRACKET HONG KONG EQUIPMENT(PQ1) EXC. MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (C)	8-97629-747-1	01	1	1009-1302
404	BRACKET HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> (C)	8-97629-747-1	01	1	1009-1302
404	BRACKET NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) FRONT UNDER SPOILER DELETE<SGA> (D)	8-98227-952-0	01	1	1303-1411
404	BRACKET NEW ZEALAND EQUIPMENT(PK5) FRONT SPOILER<VP1> (D)	8-98227-952-0	01	1	1303-1411
404	BRACKET NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) FRONT UNDER SPOILER DELETE<SGA> (D)	8-98227-952-0	01	1	1412-
404	BRACKET NEW ZEALAND EQUIPMENT(PK5) FRONT SPOILER<VP1> (D)	8-98227-952-0	01	1	1412-
404	BRACKET EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-53414-159-4	01	1	1009-1302
404	BRACKET MIXER TRUCK<RA2> HONG KONG EQUIPMENT(PQ1) EXC. FRONT SPOILER<VP1> (B)	8-98128-702-1	01	1	1009-1302
404	BRACKET HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> (D)	8-98241-383-0	01	1	1303-1411
404	BRACKET HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) FRONT SPOILER<VP1> (D)	8-98241-383-0	01	1	1412-
404	BRACKET MIXER TRUCK<RA2> EXC. HONG KONG EQUIPMENT(PQ1),FRONT SPOILER<VP1> (B)	8-97609-965-1	01	1	1009-1302
404	BRACKET HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> (D)	8-98241-384-0	01	1	1303-1411
404	BRACKET HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) FRONT SPOILER<VP1> (D)	8-98241-384-0	01	1	1412-
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	1009-
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	1009-
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	1009-
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	1009-
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-807-2	01	1	1009-1302
455	PROTECTOR; STEP	8-98125-807-2	01	1	1303-
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-808-2	01	1	1009-1302
455	PROTECTOR; STEP	8-98125-808-2	01	1	1303-
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-837-1	01	1	1009-1302
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-838-1	01	1	1009-1302

446 30 103 455 447 289 285 146 404 146 430 444 161 103 339 291 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-810-4	01	1	1009-1302
30	CLOSING; SIDE STEP	8-98157-935-0	01	1	1303-
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-809-4	01	1	1009-1302
30	CLOSING; SIDE STEP	8-98157-934-0	01	1	1303-
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-848-0	01	1	1009-1302
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-847-0	01	1	1009-1302
103	PLATE; STEP (A)	1-53414-181-0	01	1	1009-
103	PLATE; STEP (A)	1-53414-180-0	01	1	1009-
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	02	1	1009-1302
103	PLATE; STEP (B)	1-71907-249-1	02	1	1303-
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	02	1	1009-1302
103	PLATE; STEP (B)	1-71907-174-1	02	1	1303-
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	01	1	1009-1302
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	01	1	1009-1302
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	02	1	1009-1302
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	08	1	1303-1504
146	BOLT; STEP BRKT (A) M12X40 FLANGE	0-28051-240-0	08	1	1505-
146	BOLT; STEP BRKT (B) M12X70 FLANGE	0-28051-270-0	02	1	1009-1302
146	BOLT; STEP BRKT FRONT SPOILER<VP1> (C) M12X35 FLANGE	0-28651-235-0	02	1	1009-1302
146	BOLT; STEP BRKT EXC. MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (C) M12X35 FLANGE	0-28651-235-0	02	1	1009-1302
146	BOLT; STEP BRKT MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (C) M12X35 FLANGE	0-28651-235-0	03	1	1009-1302
161	BOLT; FIX HONG KONG EQUIPMENT(PQ1) M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1009-1302
161	BOLT; FIX M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1303-
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-091-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP	8-98227-947-1	01	1	1303-
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-094-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP	8-98227-948-1	01	1	1303-
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-528-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-529-0	01	1	1009-1302
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	08	1	1009-
291	BOLT; STEP PLATE M8X40 FLANGE	0-28050-840-0	08	1	1009-1302
291	BOLT; STEP PLATE M8X50 FLANGE	0-28050-850-0	08	1	1303-
339	FASTENER; SIDE HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	10	1	1009-1302
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	10	1	1303-
339	FASTENER; SIDE EXC. HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	12	1	1009-1302
404	BRACKET FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1) (C)	8-97609-131-3	01	1	1009-1302
404	BRACKET EXC. HONG KONG EQUIPMENT(PQ1),MIXER TRUCK<RA2>, FRONT SPOILER<VP1> (C)	8-97609-131-3	01	1	1009-1302
404	BRACKET HONG KONG EQUIPMENT(PQ1) (A)	1-53414-158-4	01	1	1009-1302
404	BRACKET NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) FRONT UNDER SPOILER DELETE<SGA> (D)	8-98227-951-0	01	1	1303-1411
404	BRACKET NEW ZEALAND EQUIPMENT(PK5) FRONT SPOILER<VP1> (D)	8-98227-951-0	01	1	1303-1411
404	BRACKET NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) FRONT UNDER SPOILER DELETE<SGA> (D)	8-98227-951-0	01	1	1412-
404	BRACKET NEW ZEALAND EQUIPMENT(PK5) FRONT SPOILER<VP1> (D)	8-98227-951-0	01	1	1412-
404	BRACKET HONG KONG EQUIPMENT(PQ1) EXC. MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (C)	8-97629-747-1	01	1	1009-1302
404	BRACKET HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> (C)	8-97629-747-1	01	1	1009-1302
404	BRACKET NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) FRONT UNDER SPOILER DELETE<SGA> (D)	8-98227-952-0	01	1	1303-1411
404	BRACKET NEW ZEALAND EQUIPMENT(PK5) FRONT SPOILER<VP1> (D)	8-98227-952-0	01	1	1303-1411
404	BRACKET NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) FRONT UNDER SPOILER DELETE<SGA> (D)	8-98227-952-0	01	1	1412-
404	BRACKET NEW ZEALAND EQUIPMENT(PK5) FRONT SPOILER<VP1> (D)	8-98227-952-0	01	1	1412-
404	BRACKET EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-53414-159-4	01	1	1009-1302
404	BRACKET MIXER TRUCK<RA2> HONG KONG EQUIPMENT(PQ1) EXC. FRONT SPOILER<VP1> (B)	8-98128-702-1	01	1	1009-1302
404	BRACKET HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> (D)	8-98241-383-0	01	1	1303-1411
404	BRACKET HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) FRONT SPOILER<VP1> (D)	8-98241-383-0	01	1	1412-
404	BRACKET MIXER TRUCK<RA2> EXC. HONG KONG EQUIPMENT(PQ1),FRONT SPOILER<VP1> (B)	8-97609-965-1	01	1	1009-1302
404	BRACKET HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> (D)	8-98241-384-0	01	1	1303-1411
404	BRACKET HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) FRONT SPOILER<VP1> (D)	8-98241-384-0	01	1	1412-
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	1009-
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	1009-
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	1009-
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	1009-
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-807-2	01	1	1009-1302
455	PROTECTOR; STEP	8-98125-807-2	01	1	1303-
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-808-2	01	1	1009-1302
455	PROTECTOR; STEP	8-98125-808-2	01	1	1303-
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-837-1	01	1	1009-1302
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-838-1	01	1	1009-1302

446 444 30 103 455 447 289 285 339 136 291 103 138 430 404 146 103 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-810-4	01	1	1009-1302
30	CLOSING; SIDE STEP	8-98157-935-0	01	1	1303-
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-809-4	01	1	1009-1302
30	CLOSING; SIDE STEP	8-98157-934-0	01	1	1303-
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-848-0	01	1	1009-1302
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-847-0	01	1	1009-1302
103	PLATE; STEP (A)	1-53414-181-0	01	1	1009-
103	PLATE; STEP (A)	1-53414-180-0	01	1	1009-
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	02	1	1009-1302
103	PLATE; STEP (B)	1-71907-249-1	02	1	1303-
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	02	1	1009-1302
103	PLATE; STEP (B)	1-71907-174-1	02	1	1303-
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	01	1	1009-1302
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	01	1	1009-1302
136	BOLT; OVER FENDER FRONT SPOILER<VP1> EXC. NEW ZEALAND EQUIPMENT(PK5) M5X22	8-97029-303-1	06	1	1303-
138	FENDER; OVER FRONT SPOILER<VP1> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-79931-263-0	01	1	1303-
138	FENDER; OVER FRONT SPOILER<VP1> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-79931-264-0	01	1	1303-
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	02	1	1009-1302
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	08	1	1303-1504
146	BOLT; STEP BRKT (A) M12X40 FLANGE	0-28051-240-0	08	1	1505-
146	BOLT; STEP BRKT (B) M12X70 FLANGE	0-28051-270-0	02	1	1009-1302
146	BOLT; STEP BRKT FRONT SPOILER<VP1> (C) M12X35 FLANGE	0-28651-235-0	02	1	1009-1302
146	BOLT; STEP BRKT EXC. MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (C) M12X35 FLANGE	0-28651-235-0	02	1	1009-1302
146	BOLT; STEP BRKT MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (C) M12X35 FLANGE	0-28651-235-0	03	1	1009-1302
161	BOLT; FIX HONG KONG EQUIPMENT(PQ1) M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1009-1302
161	BOLT; FIX M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1303-
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-091-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP	8-98227-947-1	01	1	1303-
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-094-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP	8-98227-948-1	01	1	1303-
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-528-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-529-0	01	1	1009-1302
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	08	1	1009-
291	BOLT; STEP PLATE M8X40 FLANGE	0-28050-840-0	08	1	1009-1302
291	BOLT; STEP PLATE M8X50 FLANGE	0-28050-850-0	08	1	1303-
339	FASTENER; SIDE HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	10	1	1009-1302
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	10	1	1303-
339	FASTENER; SIDE EXC. HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	12	1	1009-1302
404	BRACKET FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1) (C)	8-97609-131-3	01	1	1009-1302
404	BRACKET EXC. HONG KONG EQUIPMENT(PQ1),MIXER TRUCK<RA2>, FRONT SPOILER<VP1> (C)	8-97609-131-3	01	1	1009-1302
404	BRACKET HONG KONG EQUIPMENT(PQ1) (A)	1-53414-158-4	01	1	1009-1302
404	BRACKET NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) FRONT UNDER SPOILER DELETE<SGA> (D)	8-98227-951-0	01	1	1303-1411
404	BRACKET NEW ZEALAND EQUIPMENT(PK5) FRONT SPOILER<VP1> (D)	8-98227-951-0	01	1	1303-1411
404	BRACKET NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) FRONT UNDER SPOILER DELETE<SGA> (D)	8-98227-951-0	01	1	1412-
404	BRACKET NEW ZEALAND EQUIPMENT(PK5) FRONT SPOILER<VP1> (D)	8-98227-951-0	01	1	1412-
404	BRACKET HONG KONG EQUIPMENT(PQ1) EXC. MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (C)	8-97629-747-1	01	1	1009-1302
404	BRACKET HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> (C)	8-97629-747-1	01	1	1009-1302
404	BRACKET NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) FRONT UNDER SPOILER DELETE<SGA> (D)	8-98227-952-0	01	1	1303-1411
404	BRACKET NEW ZEALAND EQUIPMENT(PK5) FRONT SPOILER<VP1> (D)	8-98227-952-0	01	1	1303-1411
404	BRACKET NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) FRONT UNDER SPOILER DELETE<SGA> (D)	8-98227-952-0	01	1	1412-
404	BRACKET NEW ZEALAND EQUIPMENT(PK5) FRONT SPOILER<VP1> (D)	8-98227-952-0	01	1	1412-
404	BRACKET EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-53414-159-4	01	1	1009-1302
404	BRACKET MIXER TRUCK<RA2> HONG KONG EQUIPMENT(PQ1) EXC. FRONT SPOILER<VP1> (B)	8-98128-702-1	01	1	1009-1302
404	BRACKET HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> (D)	8-98241-383-0	01	1	1303-1411
404	BRACKET HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) FRONT SPOILER<VP1> (D)	8-98241-383-0	01	1	1412-
404	BRACKET MIXER TRUCK<RA2> EXC. HONG KONG EQUIPMENT(PQ1),FRONT SPOILER<VP1> (B)	8-97609-965-1	01	1	1009-1302
404	BRACKET HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> (D)	8-98241-384-0	01	1	1303-1411
404	BRACKET HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) FRONT SPOILER<VP1> (D)	8-98241-384-0	01	1	1412-
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	1009-
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	1009-
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	1009-
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	1009-
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-807-2	01	1	1009-1302
455	PROTECTOR; STEP	8-98125-807-2	01	1	1303-
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-808-2	01	1	1009-1302
455	PROTECTOR; STEP	8-98125-808-2	01	1	1303-
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-837-1	01	1	1009-1302
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-838-1	01	1	1009-1302

446 444 161 103 339 103 30 136 291 103 138 285 430 289 447 455 146 404

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-810-4	01	1	1009-1302
30	CLOSING; SIDE STEP	8-98157-935-0	01	1	1303-
30	CLOSING; SIDE STEP HONG KONG EQUIPMENT(PQ1)	8-98125-809-4	01	1	1009-1302
30	CLOSING; SIDE STEP	8-98157-934-0	01	1	1303-
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-848-0	01	1	1009-1302
30	CLOSING; SIDE STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-98156-847-0	01	1	1009-1302
103	PLATE; STEP (A)	1-53414-181-0	01	1	1009-
103	PLATE; STEP (A)	1-53414-180-0	01	1	1009-
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	02	1	1009-1302
103	PLATE; STEP (B)	1-71907-249-1	02	1	1303-
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	02	1	1009-1302
103	PLATE; STEP (B)	1-71907-174-1	02	1	1303-
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-249-1	01	1	1009-1302
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-71907-174-1	01	1	1009-1302
136	BOLT; OVER FENDER FRONT SPOILER<VP1> EXC. NEW ZEALAND EQUIPMENT(PK5) M5X22	8-97029-303-1	06	1	1303-
138	FENDER; OVER FRONT SPOILER<VP1> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-79931-263-0	01	1	1303-
138	FENDER; OVER FRONT SPOILER<VP1> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-79931-264-0	01	1	1303-
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	02	1	1009-1302
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	08	1	1303-1504
146	BOLT; STEP BRKT (A) M12X40 FLANGE	0-28051-240-0	08	1	1505-
146	BOLT; STEP BRKT (B) M12X70 FLANGE	0-28051-270-0	02	1	1009-1302
146	BOLT; STEP BRKT FRONT SPOILER<VP1> (C) M12X35 FLANGE	0-28651-235-0	02	1	1009-1302
146	BOLT; STEP BRKT EXC. MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (C) M12X35 FLANGE	0-28651-235-0	02	1	1009-1302
146	BOLT; STEP BRKT MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (C) M12X35 FLANGE	0-28651-235-0	03	1	1009-1302
161	BOLT; FIX HONG KONG EQUIPMENT(PQ1) M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1009-1302
161	BOLT; FIX M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1303-
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-091-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP	8-98227-947-1	01	1	1303-
285	PLATE; STEP,1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98160-094-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP	8-98227-948-1	01	1	1303-
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-528-0	01	1	1009-1302
285	PLATE; STEP,1ST STEP EXC. HONG KONG EQUIPMENT(PQ1)	8-97619-529-0	01	1	1009-1302
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	08	1	1009-
291	BOLT; STEP PLATE M8X40 FLANGE	0-28050-840-0	08	1	1009-1302
291	BOLT; STEP PLATE M8X50 FLANGE	0-28050-850-0	08	1	1303-
339	FASTENER; SIDE HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	10	1	1009-1302
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	10	1	1303-
339	FASTENER; SIDE EXC. HONG KONG EQUIPMENT(PQ1) ID=6X6 OD=8	1-09987-194-0	12	1	1009-1302
404	BRACKET FRONT SPOILER<VP1> EXC. HONG KONG EQUIPMENT(PQ1) (C)	8-97609-131-3	01	1	1009-1302
404	BRACKET EXC. HONG KONG EQUIPMENT(PQ1),MIXER TRUCK<RA2>, FRONT SPOILER<VP1> (C)	8-97609-131-3	01	1	1009-1302
404	BRACKET HONG KONG EQUIPMENT(PQ1) (A)	1-53414-158-4	01	1	1009-1302
404	BRACKET NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) FRONT UNDER SPOILER DELETE<SGA> (D)	8-98227-951-0	01	1	1303-1411
404	BRACKET NEW ZEALAND EQUIPMENT(PK5) FRONT SPOILER<VP1> (D)	8-98227-951-0	01	1	1303-1411
404	BRACKET NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) FRONT UNDER SPOILER DELETE<SGA> (D)	8-98227-951-0	01	1	1412-
404	BRACKET NEW ZEALAND EQUIPMENT(PK5) FRONT SPOILER<VP1> (D)	8-98227-951-0	01	1	1412-
404	BRACKET HONG KONG EQUIPMENT(PQ1) EXC. MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (C)	8-97629-747-1	01	1	1009-1302
404	BRACKET HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> (C)	8-97629-747-1	01	1	1009-1302
404	BRACKET NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) FRONT UNDER SPOILER DELETE<SGA> (D)	8-98227-952-0	01	1	1303-1411
404	BRACKET NEW ZEALAND EQUIPMENT(PK5) FRONT SPOILER<VP1> (D)	8-98227-952-0	01	1	1303-1411
404	BRACKET NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) FRONT UNDER SPOILER DELETE<SGA> (D)	8-98227-952-0	01	1	1412-
404	BRACKET NEW ZEALAND EQUIPMENT(PK5) FRONT SPOILER<VP1> (D)	8-98227-952-0	01	1	1412-
404	BRACKET EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-53414-159-4	01	1	1009-1302
404	BRACKET MIXER TRUCK<RA2> HONG KONG EQUIPMENT(PQ1) EXC. FRONT SPOILER<VP1> (B)	8-98128-702-1	01	1	1009-1302
404	BRACKET HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> (D)	8-98241-383-0	01	1	1303-1411
404	BRACKET HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) FRONT SPOILER<VP1> (D)	8-98241-383-0	01	1	1412-
404	BRACKET MIXER TRUCK<RA2> EXC. HONG KONG EQUIPMENT(PQ1),FRONT SPOILER<VP1> (B)	8-97609-965-1	01	1	1009-1302
404	BRACKET HONG KONG EQUIPMENT(PQ1) FRONT SPOILER<VP1> (D)	8-98241-384-0	01	1	1303-1411
404	BRACKET HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) FRONT SPOILER<VP1> (D)	8-98241-384-0	01	1	1412-
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	1009-
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	1009-
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	1009-
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	1009-
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-807-2	01	1	1009-1302
455	PROTECTOR; STEP	8-98125-807-2	01	1	1303-
455	PROTECTOR; STEP HONG KONG EQUIPMENT(PQ1)	8-98125-808-2	01	1	1009-1302
455	PROTECTOR; STEP	8-98125-808-2	01	1	1303-
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-837-1	01	1	1009-1302
455	PROTECTOR; STEP EXC. HONG KONG EQUIPMENT(PQ1)	1-71907-838-1	01	1	1009-1302

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
