Sayfa 6-01 - Isuzu EPC

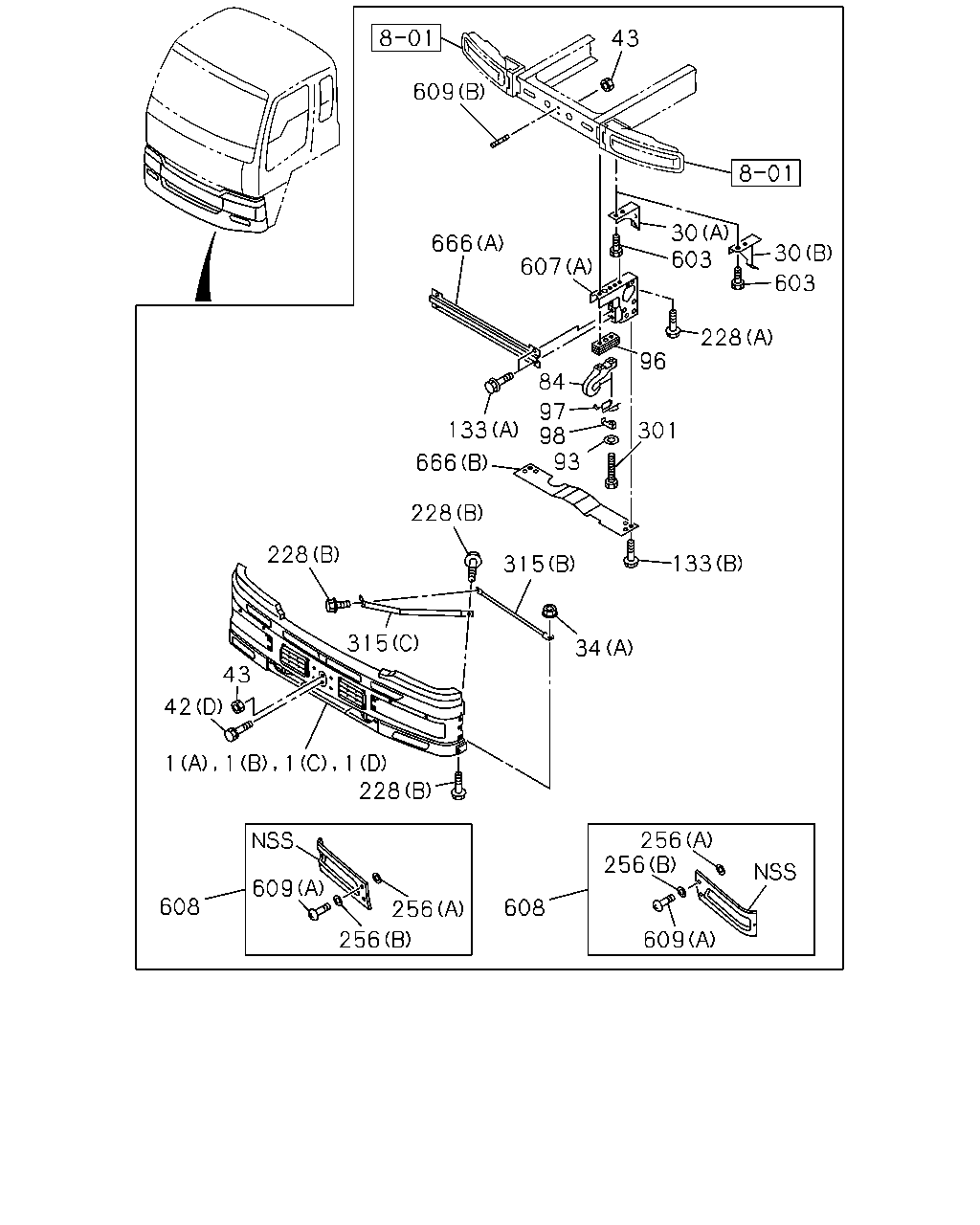

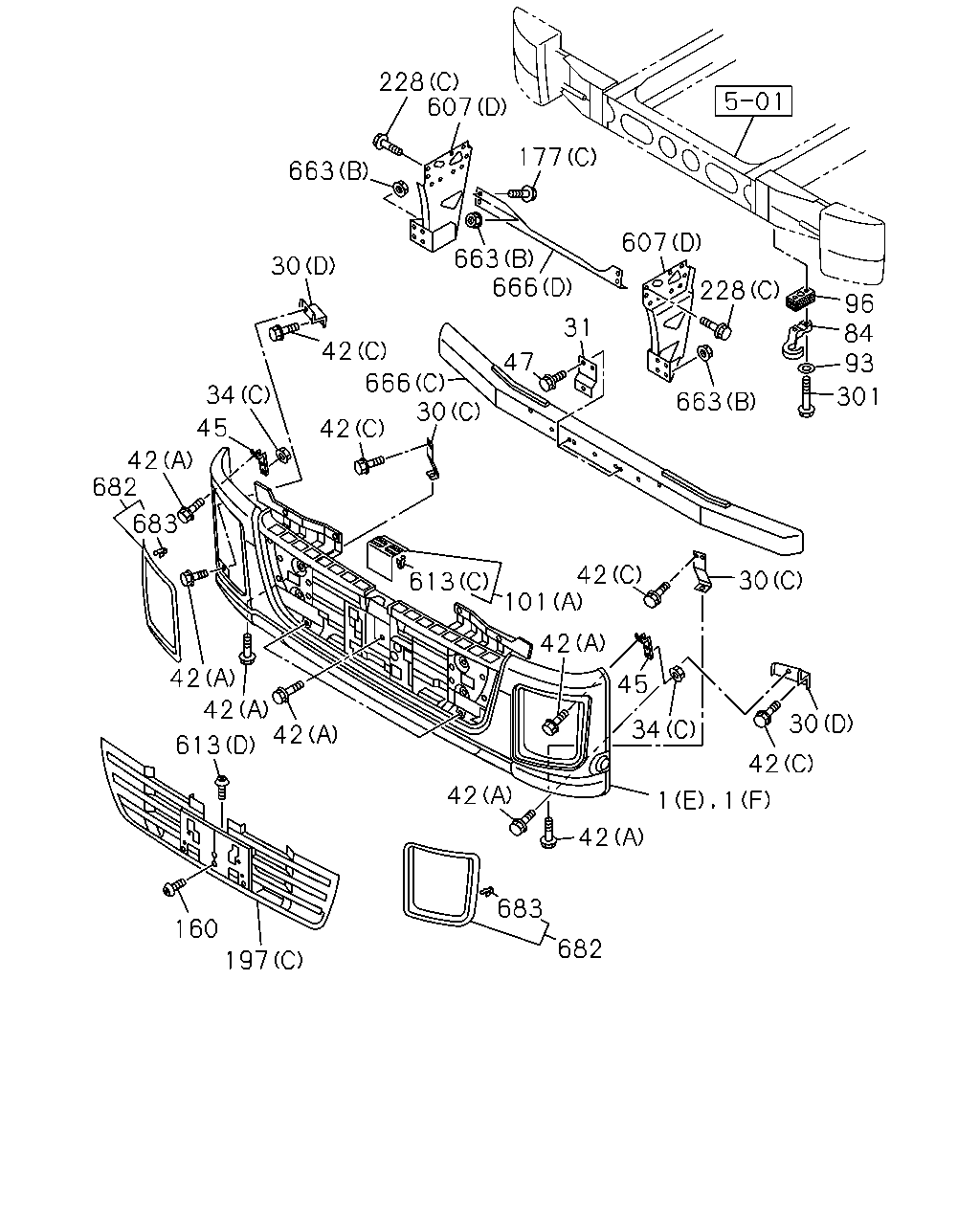

6-01 — FRONT BUMPER (#69978) — 560 parça

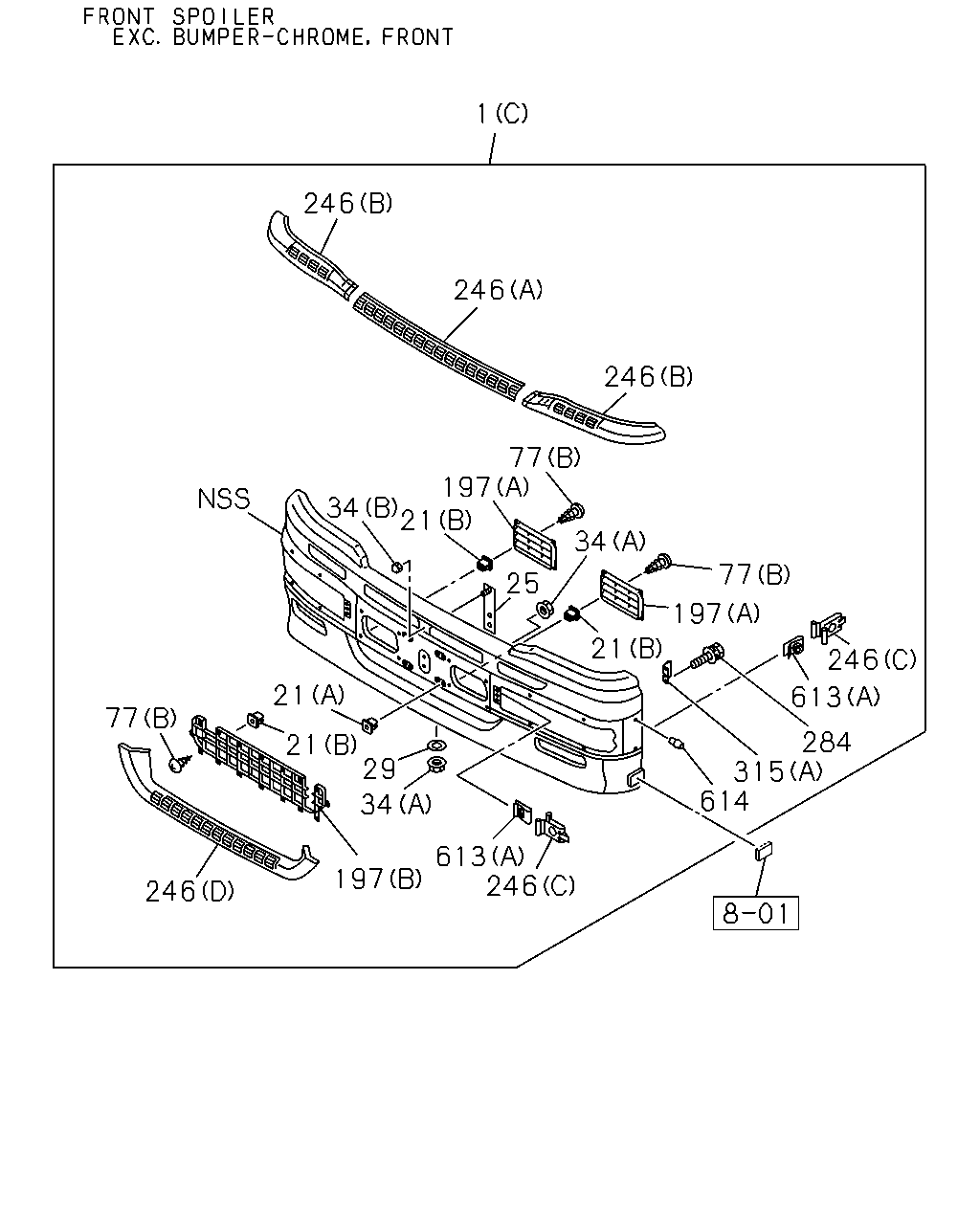

1 246 246 246 77 77 246 613 284 315 614 246 613 197 34 21 21 77 246 29 21 197 34 34 21 25 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

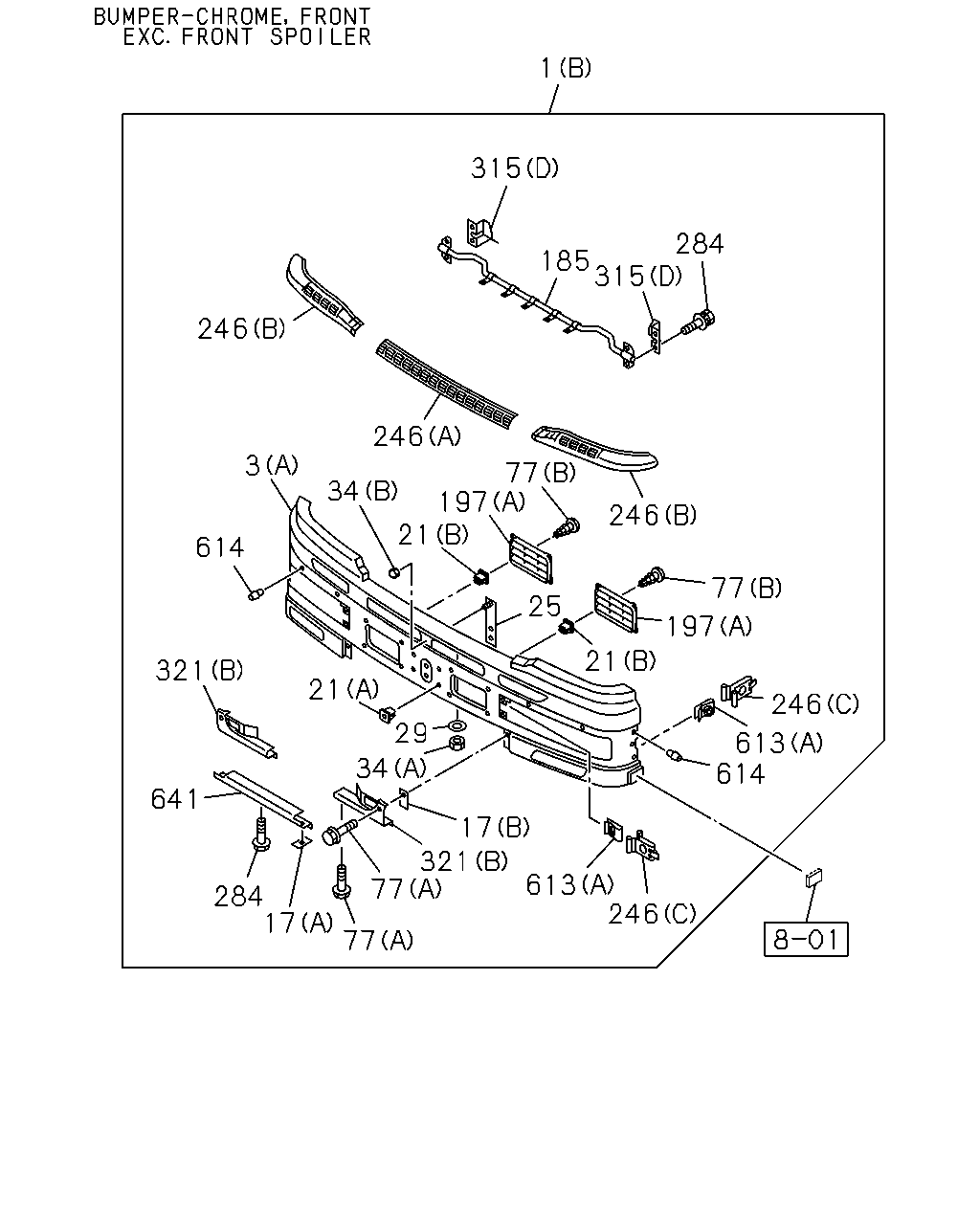

1	BUMPER ASM; FRT BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B) CHROMIUM PLATE	8-98130-331-1	01	1	1009-1302

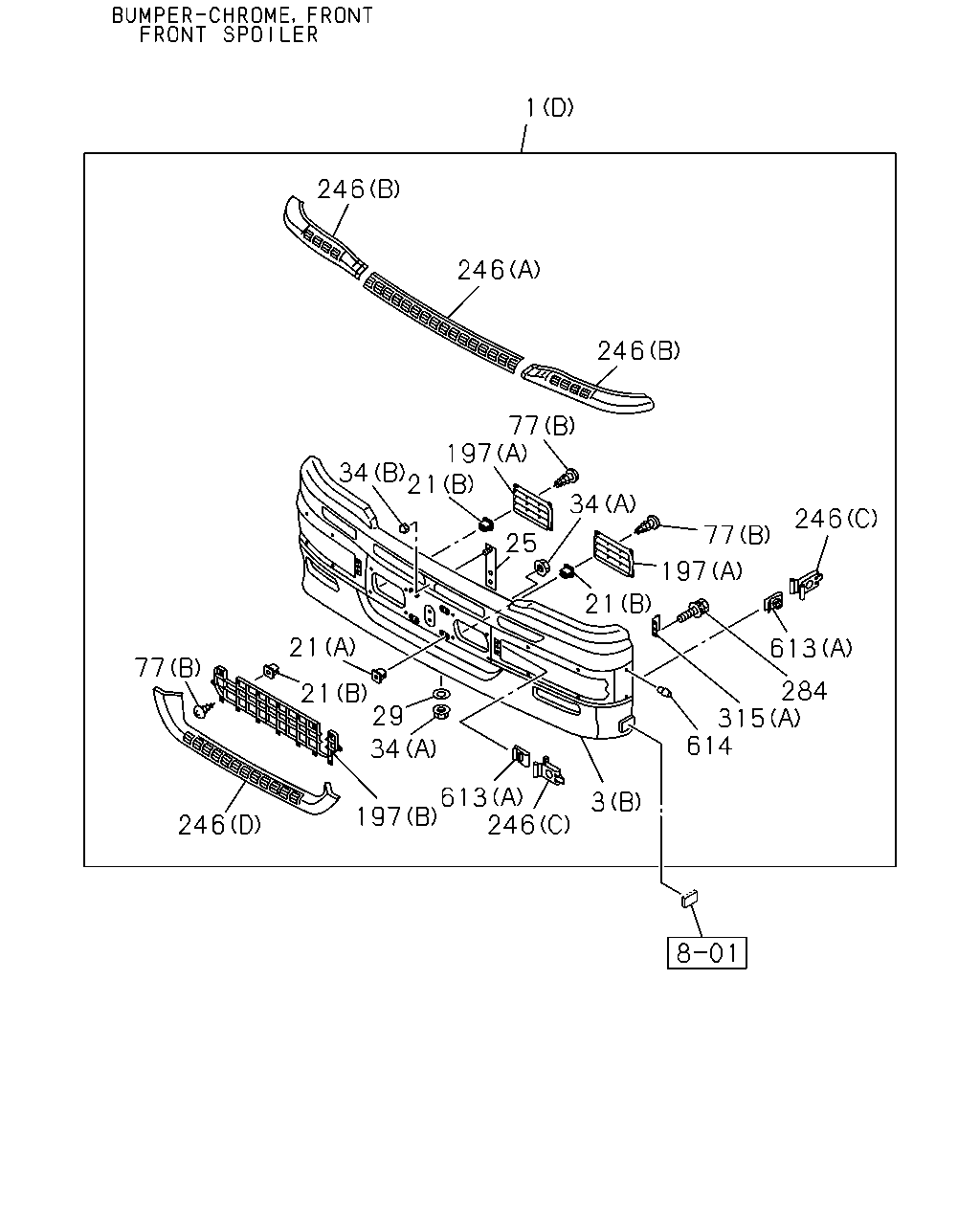

1	BUMPER ASM; FRT FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> (D) CHROMIUM PLATE	8-98130-330-1	01	1	1009-1302
1	BUMPER ASM; FRT FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46> (C) WHITE	8-98098-599-1	01	1	1009-1302

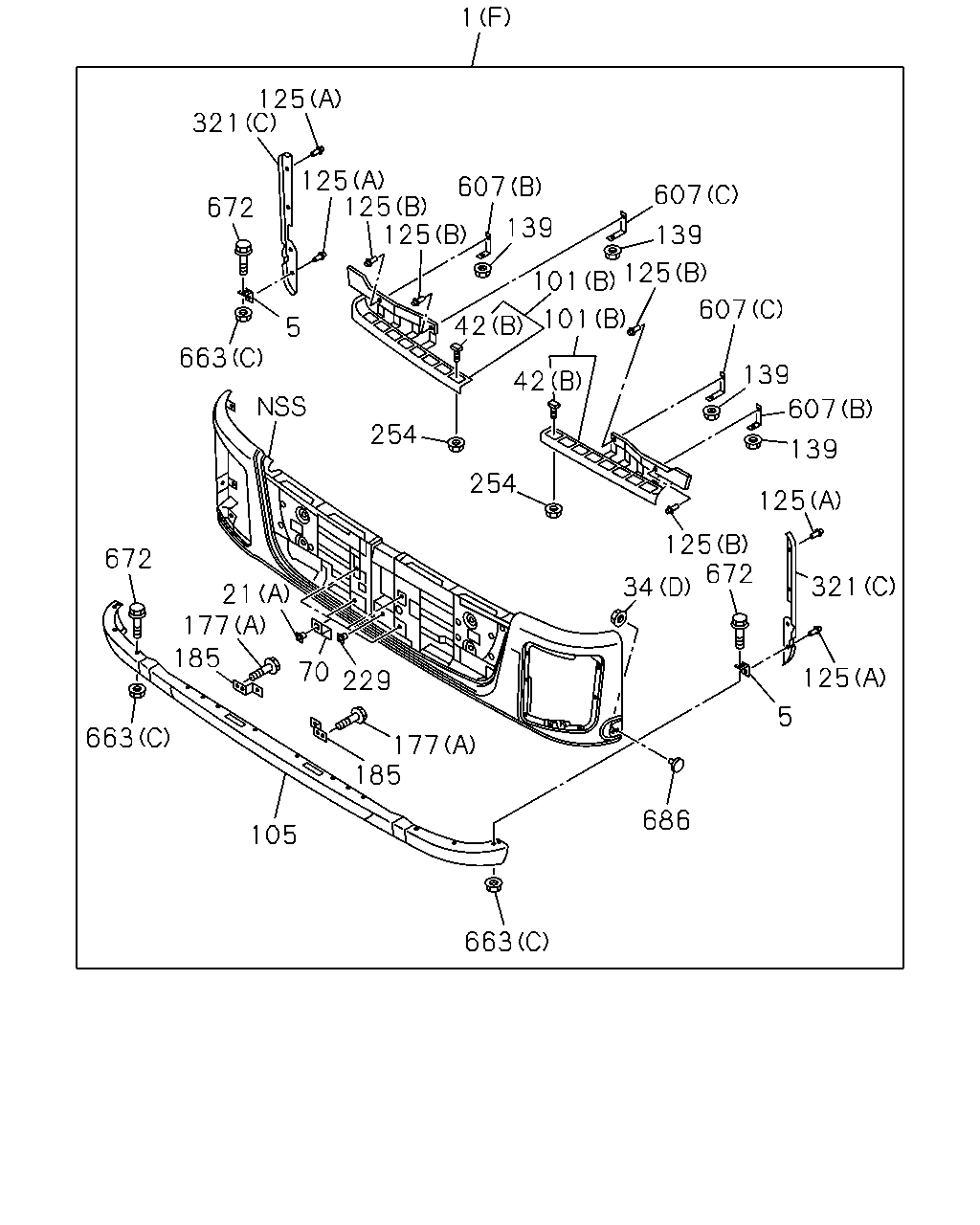

1	BUMPER ASM; FRT FRONT SPOILER<VP1> (F) WHITE	8-97424-794-3	01	1	1303-

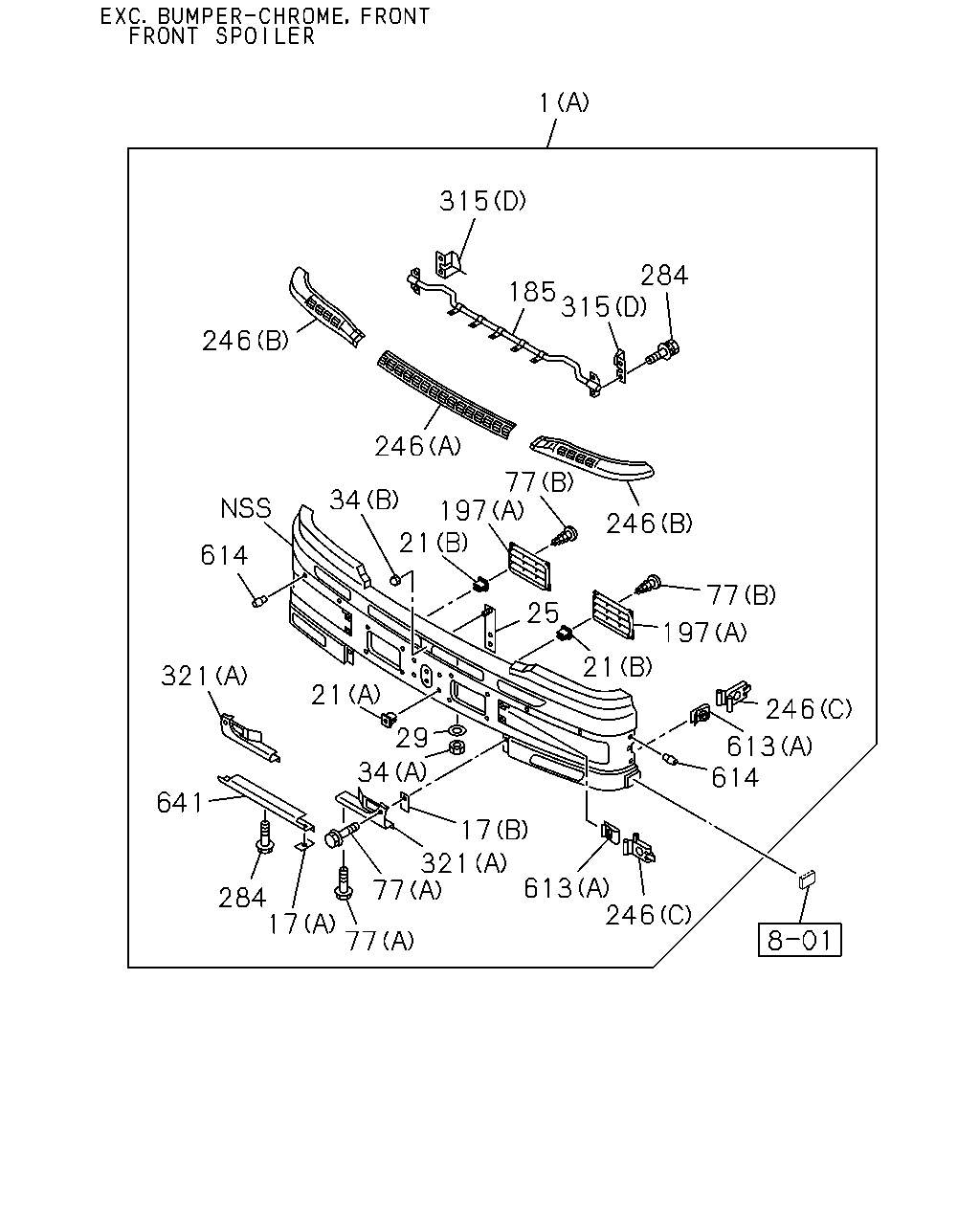

1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A) WHITE	8-98098-600-1	01	1	1009-1302

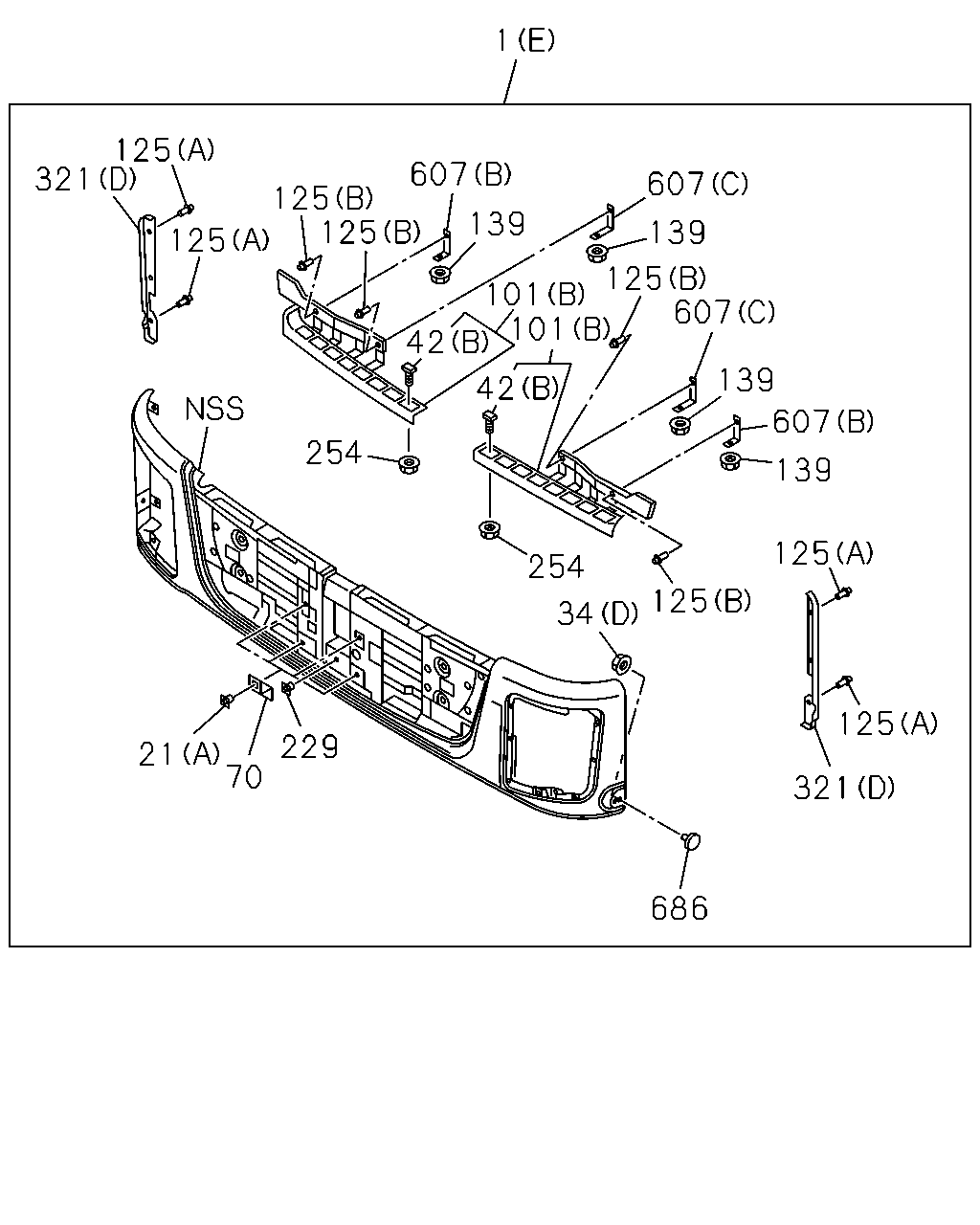

1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (E) WHITE	8-97417-846-3	01	1	1303-
21	GROMMET; SCREW,BUMPER PROTECTOR (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	1009-
21	GROMMET; SCREW,BUMPER PROTECTOR FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	22	1	1009-1302
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	08	1	1009-1302
25	SPACER; PLATFORM	1-71230-640-0	01	1	1009-1302
29	WASHER; FRT BUMPER FRONT SPOILER<VP1> ID=8.4 OD=22	0-91610-708-0	17	1	1009-1302
29	WASHER; FRT BUMPER EXC. FRONT SPOILER<VP1> ID=8.4 OD=22	0-91610-708-0	13	1	1009-1302
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	03	1	1009-1302
34	NUT; BRKT,BUMPER (D) M6 FLANGE	0-91180-106-0	02	1	1303-
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	1009-1302
34	NUT; BRKT,BUMPER (C) M10 FLANGE	0-91180-110-0	04	1	1303-
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	17	1	1009-1302
34	NUT; BRKT,BUMPER EXC. FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	13	1	1009-1302
77	SCREW; BRKT FRONT SPOILER<VP1> (B) M5X16 TAPPING	0-71240-516-0	36	1	1009-1302
77	SCREW; BRKT EXC. FRONT SPOILER<VP1> (B) M5X16 TAPPING	0-71240-516-0	08	1	1009-1302
77	SCREW; BRKT EXC. FRONT SPOILER<VP1> (A) M8X20 W/PL WASHER	1-71260-184-0	06	1	1009-1302
197	GRILLE; BUMPER BUMPER-CHROME,FRONT<V46> (A)	8-97619-505-0	01	1	1009-1302

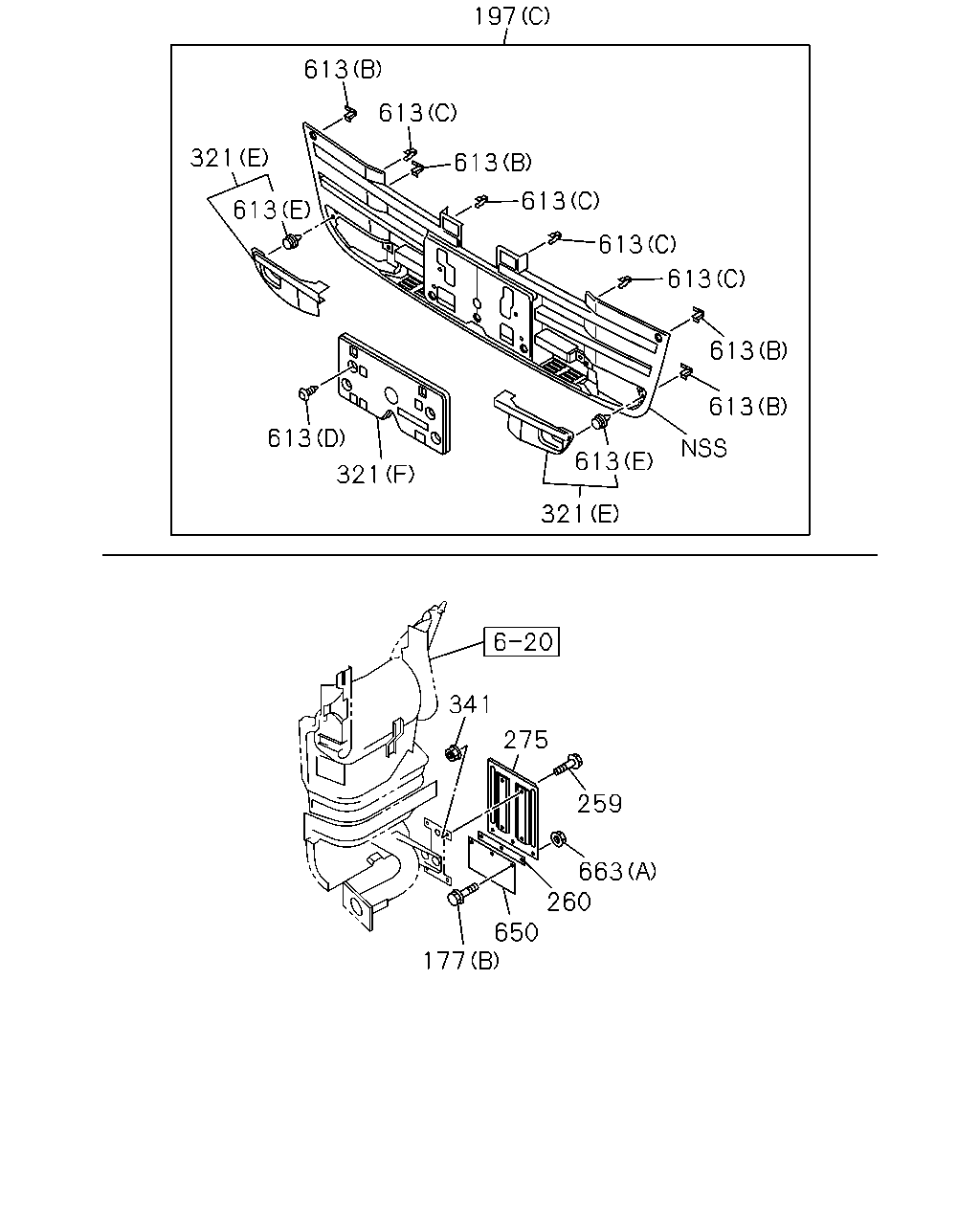

197	GRILLE; BUMPER (C)	8-98144-188-4	01	1	1303-
197	GRILLE; BUMPER BUMPER-CHROME,FRONT<V46> (A)	8-97619-506-0	01	1	1009-1302
197	GRILLE; BUMPER EXC. BUMPER-CHROME,FRONT<V46> (A)	8-97619-503-0	01	1	1009-1302
197	GRILLE; BUMPER EXC. BUMPER-CHROME,FRONT<V46> (A)	8-97619-504-0	01	1	1009-1302
197	GRILLE; BUMPER FRONT SPOILER<VP1> (B)	8-97617-998-0	01	1	1009-1302
246	PROTECTOR; BUMPER (C)	1-71260-162-0	06	1	1009-1302
246	PROTECTOR; BUMPER (A)	8-97619-479-1	01	1	1009-1302
246	PROTECTOR; BUMPER (B)	8-97619-480-1	01	1	1009-1302
246	PROTECTOR; BUMPER (B)	8-97619-481-1	01	1	1009-1302
246	PROTECTOR; BUMPER FRONT SPOILER<VP1> (D)	8-97619-484-0	01	1	1009-1302
284	BOLT; BRKT M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	1009-1302
284	BOLT; BRKT EXC. FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50640-820-0	03	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-346-2	01	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-347-2	01	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-435-0	01	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	8-97608-941-0	01	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-444-0	01	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-447-0	01	1	1009-1302
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (D)	1-71230-636-0	01	1	1009-1302
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (D)	1-71230-637-0	01	1	1009-1302
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (C)	1-71230-434-0	01	1	1009-1302
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-491-0	01	1	1009-1302
315	STAY; BUMPER MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (C)	8-97609-954-0	01	1	1009-1302
315	STAY; BUMPER MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (B)	8-97609-955-0	01	1	1009-1302
315	STAY; BUMPER EXC. MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (B)	1-71230-483-0	01	1	1009-1302
315	STAY; BUMPER EXC. MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (C)	1-71230-493-0	01	1	1009-1302
613	CLIP (E)	8-97581-651-2	04	1	1303-
613	CLIP (B)	8-98025-698-0	08	1	1303-
613	CLIP (C)	8-98144-173-1	06	1	1303-
613	CLIP (A)	1-71260-174-0	06	1	1009-1302
613	CLIP (D) D8X13.5	1-09987-248-1	05	1	1303-
614	STOPPER; LID	1-71260-163-0	12	1	1009-1302

1 246 246 246 246 77 77 197 197 613 284 315 614 3 246 613 197 34 21 21 77 246 21 25 21 34 34 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B) CHROMIUM PLATE	8-98130-331-1	01	1	1009-1302
1	BUMPER ASM; FRT FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> (D) CHROMIUM PLATE	8-98130-330-1	01	1	1009-1302
1	BUMPER ASM; FRT FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46> (C) WHITE	8-98098-599-1	01	1	1009-1302
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (F) WHITE	8-97424-794-3	01	1	1303-
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A) WHITE	8-98098-600-1	01	1	1009-1302
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (E) WHITE	8-97417-846-3	01	1	1303-
3	BUMPER; FRT,SIDE BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (A) CHROMIUM PLATE	1-86712-092-1	01	1	1009-1302
3	BUMPER; FRT,SIDE FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> (B) CHROMIUM PLATE	1-86712-088-3	01	1	1009-1302
21	GROMMET; SCREW,BUMPER PROTECTOR (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	1009-
21	GROMMET; SCREW,BUMPER PROTECTOR FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	22	1	1009-1302
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	08	1	1009-1302
25	SPACER; PLATFORM	1-71230-640-0	01	1	1009-1302
29	WASHER; FRT BUMPER FRONT SPOILER<VP1> ID=8.4 OD=22	0-91610-708-0	17	1	1009-1302
29	WASHER; FRT BUMPER EXC. FRONT SPOILER<VP1> ID=8.4 OD=22	0-91610-708-0	13	1	1009-1302
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	03	1	1009-1302
34	NUT; BRKT,BUMPER (D) M6 FLANGE	0-91180-106-0	02	1	1303-
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	1009-1302
34	NUT; BRKT,BUMPER (C) M10 FLANGE	0-91180-110-0	04	1	1303-
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	17	1	1009-1302
34	NUT; BRKT,BUMPER EXC. FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	13	1	1009-1302
77	SCREW; BRKT FRONT SPOILER<VP1> (B) M5X16 TAPPING	0-71240-516-0	36	1	1009-1302
77	SCREW; BRKT EXC. FRONT SPOILER<VP1> (B) M5X16 TAPPING	0-71240-516-0	08	1	1009-1302
77	SCREW; BRKT EXC. FRONT SPOILER<VP1> (A) M8X20 W/PL WASHER	1-71260-184-0	06	1	1009-1302
197	GRILLE; BUMPER BUMPER-CHROME,FRONT<V46> (A)	8-97619-505-0	01	1	1009-1302
197	GRILLE; BUMPER (C)	8-98144-188-4	01	1	1303-
197	GRILLE; BUMPER BUMPER-CHROME,FRONT<V46> (A)	8-97619-506-0	01	1	1009-1302
197	GRILLE; BUMPER EXC. BUMPER-CHROME,FRONT<V46> (A)	8-97619-503-0	01	1	1009-1302
197	GRILLE; BUMPER EXC. BUMPER-CHROME,FRONT<V46> (A)	8-97619-504-0	01	1	1009-1302
197	GRILLE; BUMPER FRONT SPOILER<VP1> (B)	8-97617-998-0	01	1	1009-1302
246	PROTECTOR; BUMPER (C)	1-71260-162-0	06	1	1009-1302
246	PROTECTOR; BUMPER (A)	8-97619-479-1	01	1	1009-1302
246	PROTECTOR; BUMPER (B)	8-97619-480-1	01	1	1009-1302
246	PROTECTOR; BUMPER (B)	8-97619-481-1	01	1	1009-1302
246	PROTECTOR; BUMPER FRONT SPOILER<VP1> (D)	8-97619-484-0	01	1	1009-1302
284	BOLT; BRKT M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	1009-1302
284	BOLT; BRKT EXC. FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50640-820-0	03	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-346-2	01	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-347-2	01	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-435-0	01	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	8-97608-941-0	01	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-444-0	01	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-447-0	01	1	1009-1302
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (D)	1-71230-636-0	01	1	1009-1302
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (D)	1-71230-637-0	01	1	1009-1302
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (C)	1-71230-434-0	01	1	1009-1302
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-491-0	01	1	1009-1302
315	STAY; BUMPER MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (C)	8-97609-954-0	01	1	1009-1302
315	STAY; BUMPER MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (B)	8-97609-955-0	01	1	1009-1302
315	STAY; BUMPER EXC. MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (B)	1-71230-483-0	01	1	1009-1302
315	STAY; BUMPER EXC. MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (C)	1-71230-493-0	01	1	1009-1302
613	CLIP (E)	8-97581-651-2	04	1	1303-
613	CLIP (B)	8-98025-698-0	08	1	1303-
613	CLIP (C)	8-98144-173-1	06	1	1303-
613	CLIP (A)	1-71260-174-0	06	1	1009-1302
613	CLIP (D) D8X13.5	1-09987-248-1	05	1	1303-
614	STOPPER; LID	1-71260-163-0	12	1	1009-1302

1 315 246 185 315 284 246 34 197 77 246 21 614 321 641 284 17 77 77 321 17 34 29 21 25 21 197 77 246 613 614 613 246

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B) CHROMIUM PLATE	8-98130-331-1	01	1	1009-1302
1	BUMPER ASM; FRT FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> (D) CHROMIUM PLATE	8-98130-330-1	01	1	1009-1302
1	BUMPER ASM; FRT FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46> (C) WHITE	8-98098-599-1	01	1	1009-1302
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (F) WHITE	8-97424-794-3	01	1	1303-
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A) WHITE	8-98098-600-1	01	1	1009-1302
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (E) WHITE	8-97417-846-3	01	1	1303-
17	PROTECTOR; FRT BUMPER EXC. FRONT SPOILER<VP1> (A)	1-71260-185-0	02	1	1009-1302
17	PROTECTOR; FRT BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71260-277-0	02	1	1009-1302
21	GROMMET; SCREW,BUMPER PROTECTOR (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	1009-
21	GROMMET; SCREW,BUMPER PROTECTOR FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	22	1	1009-1302
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	08	1	1009-1302
25	SPACER; PLATFORM	1-71230-640-0	01	1	1009-1302
29	WASHER; FRT BUMPER FRONT SPOILER<VP1> ID=8.4 OD=22	0-91610-708-0	17	1	1009-1302
29	WASHER; FRT BUMPER EXC. FRONT SPOILER<VP1> ID=8.4 OD=22	0-91610-708-0	13	1	1009-1302
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	03	1	1009-1302
34	NUT; BRKT,BUMPER (D) M6 FLANGE	0-91180-106-0	02	1	1303-
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	1009-1302
34	NUT; BRKT,BUMPER (C) M10 FLANGE	0-91180-110-0	04	1	1303-
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	17	1	1009-1302
34	NUT; BRKT,BUMPER EXC. FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	13	1	1009-1302
77	SCREW; BRKT FRONT SPOILER<VP1> (B) M5X16 TAPPING	0-71240-516-0	36	1	1009-1302
77	SCREW; BRKT EXC. FRONT SPOILER<VP1> (B) M5X16 TAPPING	0-71240-516-0	08	1	1009-1302
77	SCREW; BRKT EXC. FRONT SPOILER<VP1> (A) M8X20 W/PL WASHER	1-71260-184-0	06	1	1009-1302
185	BRACKET; BUMPER,INNER EXC. FRONT SPOILER<VP1>	1-71230-610-0	01	1	1009-1302
185	BRACKET; BUMPER,INNER FRONT SPOILER<VP1>	8-98139-739-0	02	1	1303-
197	GRILLE; BUMPER BUMPER-CHROME,FRONT<V46> (A)	8-97619-505-0	01	1	1009-1302
197	GRILLE; BUMPER (C)	8-98144-188-4	01	1	1303-
197	GRILLE; BUMPER BUMPER-CHROME,FRONT<V46> (A)	8-97619-506-0	01	1	1009-1302
197	GRILLE; BUMPER EXC. BUMPER-CHROME,FRONT<V46> (A)	8-97619-503-0	01	1	1009-1302
197	GRILLE; BUMPER EXC. BUMPER-CHROME,FRONT<V46> (A)	8-97619-504-0	01	1	1009-1302
197	GRILLE; BUMPER FRONT SPOILER<VP1> (B)	8-97617-998-0	01	1	1009-1302
246	PROTECTOR; BUMPER (C)	1-71260-162-0	06	1	1009-1302
246	PROTECTOR; BUMPER (A)	8-97619-479-1	01	1	1009-1302
246	PROTECTOR; BUMPER (B)	8-97619-480-1	01	1	1009-1302
246	PROTECTOR; BUMPER (B)	8-97619-481-1	01	1	1009-1302
246	PROTECTOR; BUMPER FRONT SPOILER<VP1> (D)	8-97619-484-0	01	1	1009-1302
284	BOLT; BRKT M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	1009-1302
284	BOLT; BRKT EXC. FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50640-820-0	03	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-346-2	01	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-347-2	01	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-435-0	01	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	8-97608-941-0	01	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-444-0	01	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-447-0	01	1	1009-1302
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (D)	1-71230-636-0	01	1	1009-1302
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (D)	1-71230-637-0	01	1	1009-1302
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (C)	1-71230-434-0	01	1	1009-1302
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-491-0	01	1	1009-1302
315	STAY; BUMPER MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (C)	8-97609-954-0	01	1	1009-1302
315	STAY; BUMPER MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (B)	8-97609-955-0	01	1	1009-1302
315	STAY; BUMPER EXC. MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (B)	1-71230-483-0	01	1	1009-1302
315	STAY; BUMPER EXC. MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (C)	1-71230-493-0	01	1	1009-1302
321	COVER; BUMPER FRT SIDE (E)	8-98123-446-1	01	1	1303-
321	COVER; BUMPER FRT SIDE (E)	8-98123-447-1	01	1	1303-
321	COVER; BUMPER FRT SIDE (F)	8-98132-737-1	01	1	1303-
321	COVER; BUMPER FRT SIDE BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B)	1-86792-071-0	01	1	1009-1302
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (C)	8-98123-455-1	01	1	1303-
321	COVER; BUMPER FRT SIDE BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B)	1-86792-072-0	01	1	1009-1302
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (C)	8-98123-456-1	01	1	1303-
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A)	1-71260-263-1	01	1	1009-1302
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (D)	8-98123-457-1	01	1	1303-
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A)	1-71260-264-1	01	1	1009-1302
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (D)	8-98123-458-1	01	1	1303-
613	CLIP (E)	8-97581-651-2	04	1	1303-
613	CLIP (B)	8-98025-698-0	08	1	1303-
613	CLIP (C)	8-98144-173-1	06	1	1303-
613	CLIP (A)	1-71260-174-0	06	1	1009-1302
613	CLIP (D) D8X13.5	1-09987-248-1	05	1	1303-
614	STOPPER; LID	1-71260-163-0	12	1	1009-1302
641	BUMPER; FRT,LWR BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1>	1-86792-073-0	01	1	1009-1302
641	BUMPER; FRT,LWR EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46>	1-71211-304-1	01	1	1009-1302

43 30 607 666 609 30 603 96 301 133 666 93 98 97 84 133 315 228 228 43 42 315 34 1 1 1 1 228 608 256 608 609 256 256 609 256 228 603

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B) CHROMIUM PLATE	8-98130-331-1	01	1	1009-1302
1	BUMPER ASM; FRT FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> (D) CHROMIUM PLATE	8-98130-330-1	01	1	1009-1302
1	BUMPER ASM; FRT FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46> (C) WHITE	8-98098-599-1	01	1	1009-1302
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (F) WHITE	8-97424-794-3	01	1	1303-
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A) WHITE	8-98098-600-1	01	1	1009-1302
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (E) WHITE	8-97417-846-3	01	1	1303-
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (A)	1-71230-428-0	01	1	1009-1302
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (C)	8-98139-907-0	01	1	1303-
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (A)	1-71230-429-0	01	1	1009-1302
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (C)	8-98139-909-0	01	1	1303-
30	BRACKET; FRT BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-638-0	01	1	1009-1302
30	BRACKET; FRT BUMPER (D)	8-98135-977-1	01	1	1303-
30	BRACKET; FRT BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-639-0	01	1	1009-1302
30	BRACKET; FRT BUMPER (D)	8-98135-978-1	01	1	1303-
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	03	1	1009-1302
34	NUT; BRKT,BUMPER (D) M6 FLANGE	0-91180-106-0	02	1	1303-
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	1009-1302
34	NUT; BRKT,BUMPER (C) M10 FLANGE	0-91180-110-0	04	1	1303-
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	17	1	1009-1302
34	NUT; BRKT,BUMPER EXC. FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	13	1	1009-1302
42	BOLT; BUMPER FRONT SPOILER<VP1> (A) M10X30 FLANGE	8-98055-942-0	14	1	1303-
42	BOLT; BUMPER (C) M10X30 FLANGE	0-28051-030-0	04	1	1303-
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X30 FLANGE	0-28051-030-0	04	1	1303-
42	BOLT; BUMPER EXC. FRONT SPOILER<VP1> (A) M10X30 FLANGE	8-98055-942-0	10	1	1303-
42	BOLT; BUMPER (D) M10X30 W/LK&PL WASHER	8-94279-213-0	09	1	1009-1302
42	BOLT; BUMPER (B) M6X20	8-97611-666-0	06	1	1303-
43	NUT; BRKT TO BUMPER FRONT SPOILER<VP1> M10 FLANGE	0-91180-210-0	01	1	1009-1302
43	NUT; BRKT TO BUMPER EXC. FRONT SPOILER<VP1> M10 FLANGE	0-91180-210-0	03	1	1009-1302
84	HOOK	1-57181-027-1	01	1	1009-1302
84	HOOK	8-98126-930-0	01	1	1303-
93	WASHER; LK,HOOK ID=16.2	0-91510-516-0	02	1	1009-1302
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	1303-
96	PLATE; DIST,HOOK FRONT SPOILER<VP1>	1-53497-473-0	01	1	1009-1302
96	PLATE; DIST,HOOK EXC. MIXER TRUCK<RA2>,FRONT SPOILER<VP1>	1-53497-473-0	01	1	1009-1302
96	PLATE; DIST,HOOK	8-98169-197-0	01	1	1303-
96	PLATE; DIST,HOOK MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1>	1-53497-595-0	01	1	1009-1302
97	SPRING; FRT HOOK	9-53519-003-0	01	1	1009-1302
98	STOPPER; SPR,FRT HOOK	9-53519-006-0	01	1	1009-1302
133	BOLT; PROTECTOR FIX MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (A) M12X60 FLANGE	0-28051-260-0	04	1	1009-1302
133	BOLT; PROTECTOR FIX MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (B) M12X25 FLANGE	0-28661-225-0	06	1	1009-1207
133	BOLT; PROTECTOR FIX MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (B) M12X30 FLANGE	0-28661-230-0	06	1	1208-1302
228	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	06	1	1009-1302
228	BOLT; BRKT (C) M16X35 FLANGE	0-28851-635-0	06	1	1303-
228	BOLT; BRKT MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (A) M16X40	0-20951-640-0	06	1	1009-1302
256	WASHER; PL (A)	1-71260-173-0	06	1	1009-1302
256	WASHER; PL (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	1009-1302
301	BOLT; HOOK TO FRAME M16X95	0-10811-695-0	01	1	1009-1302
301	BOLT; HOOK TO FRAME M16X110	8-98074-591-0	02	1	1303-
301	BOLT; HOOK TO FRAME M16X90	0-10861-690-0	01	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-346-2	01	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-347-2	01	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-435-0	01	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	8-97608-941-0	01	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-444-0	01	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-447-0	01	1	1009-1302
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (D)	1-71230-636-0	01	1	1009-1302
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (D)	1-71230-637-0	01	1	1009-1302
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (C)	1-71230-434-0	01	1	1009-1302
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-491-0	01	1	1009-1302
315	STAY; BUMPER MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (C)	8-97609-954-0	01	1	1009-1302
315	STAY; BUMPER MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (B)	8-97609-955-0	01	1	1009-1302
315	STAY; BUMPER EXC. MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (B)	1-71230-483-0	01	1	1009-1302
315	STAY; BUMPER EXC. MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (C)	1-71230-493-0	01	1	1009-1302
603	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	1009-1302
607	BRACKET (D)	8-98211-758-0	01	1	1303-
607	BRACKET (D)	8-98211-759-0	01	1	1303-
607	BRACKET MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (A)	8-97609-951-2	01	1	1009-1302
607	BRACKET (C)	8-98147-053-0	02	1	1303-
607	BRACKET MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (A)	8-97610-034-2	01	1	1009-1302
607	BRACKET (B)	8-98147-054-0	02	1	1303-
608	LID; BUMPER BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1>	1-86792-076-0	01	1	1009-1302
608	LID; BUMPER BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1>	1-86792-077-0	01	1	1009-1302
608	LID; BUMPER FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46>	1-86792-014-2	01	1	1009-1302
608	LID; BUMPER FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46>	1-86792-013-2	01	1	1009-1302
608	LID; BUMPER FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46>	1-71210-753-6	01	1	1009-1302
608	LID; BUMPER FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46>	1-71210-752-6	01	1	1009-1302
608	LID; BUMPER EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46>	1-71211-285-2	01	1	1009-1302
608	LID; BUMPER EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46>	1-71211-284-2	01	1	1009-1302
609	STUD; BUMPER (A)	1-71260-175-0	06	1	1009-1302
609	STUD; BUMPER (B) M10X28,M10X15 L=50	5-09300-050-0	01	1	1009-1302
666	PROTECTOR; UNDER MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (B)	8-97608-467-1	01	1	1009-1302
666	PROTECTOR; UNDER (C)	8-98198-583-0	01	1	1303-
666	PROTECTOR; UNDER MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (A)	8-97610-033-0	01	1	1009-1302
666	PROTECTOR; UNDER DUMP TRUCK<RA1> (D)	8-98194-529-0	01	1	1303-

1 315 185 315 284 246 246 77 246 77 197 246 613 614 21 25 197 21 34 3 614 321 641 284 17 77 77 321 17 34 29 21 613 246

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B) CHROMIUM PLATE	8-98130-331-1	01	1	1009-1302
1	BUMPER ASM; FRT FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> (D) CHROMIUM PLATE	8-98130-330-1	01	1	1009-1302
1	BUMPER ASM; FRT FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46> (C) WHITE	8-98098-599-1	01	1	1009-1302
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (F) WHITE	8-97424-794-3	01	1	1303-
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A) WHITE	8-98098-600-1	01	1	1009-1302
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (E) WHITE	8-97417-846-3	01	1	1303-
3	BUMPER; FRT,SIDE BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (A) CHROMIUM PLATE	1-86712-092-1	01	1	1009-1302
3	BUMPER; FRT,SIDE FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> (B) CHROMIUM PLATE	1-86712-088-3	01	1	1009-1302
17	PROTECTOR; FRT BUMPER EXC. FRONT SPOILER<VP1> (A)	1-71260-185-0	02	1	1009-1302
17	PROTECTOR; FRT BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71260-277-0	02	1	1009-1302
21	GROMMET; SCREW,BUMPER PROTECTOR (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	1009-
21	GROMMET; SCREW,BUMPER PROTECTOR FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	22	1	1009-1302
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	08	1	1009-1302
25	SPACER; PLATFORM	1-71230-640-0	01	1	1009-1302
29	WASHER; FRT BUMPER FRONT SPOILER<VP1> ID=8.4 OD=22	0-91610-708-0	17	1	1009-1302
29	WASHER; FRT BUMPER EXC. FRONT SPOILER<VP1> ID=8.4 OD=22	0-91610-708-0	13	1	1009-1302
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	03	1	1009-1302
34	NUT; BRKT,BUMPER (D) M6 FLANGE	0-91180-106-0	02	1	1303-
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	1009-1302
34	NUT; BRKT,BUMPER (C) M10 FLANGE	0-91180-110-0	04	1	1303-
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	17	1	1009-1302
34	NUT; BRKT,BUMPER EXC. FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	13	1	1009-1302
77	SCREW; BRKT FRONT SPOILER<VP1> (B) M5X16 TAPPING	0-71240-516-0	36	1	1009-1302
77	SCREW; BRKT EXC. FRONT SPOILER<VP1> (B) M5X16 TAPPING	0-71240-516-0	08	1	1009-1302
77	SCREW; BRKT EXC. FRONT SPOILER<VP1> (A) M8X20 W/PL WASHER	1-71260-184-0	06	1	1009-1302
185	BRACKET; BUMPER,INNER EXC. FRONT SPOILER<VP1>	1-71230-610-0	01	1	1009-1302
185	BRACKET; BUMPER,INNER FRONT SPOILER<VP1>	8-98139-739-0	02	1	1303-
197	GRILLE; BUMPER BUMPER-CHROME,FRONT<V46> (A)	8-97619-505-0	01	1	1009-1302
197	GRILLE; BUMPER (C)	8-98144-188-4	01	1	1303-
197	GRILLE; BUMPER BUMPER-CHROME,FRONT<V46> (A)	8-97619-506-0	01	1	1009-1302
197	GRILLE; BUMPER EXC. BUMPER-CHROME,FRONT<V46> (A)	8-97619-503-0	01	1	1009-1302
197	GRILLE; BUMPER EXC. BUMPER-CHROME,FRONT<V46> (A)	8-97619-504-0	01	1	1009-1302
197	GRILLE; BUMPER FRONT SPOILER<VP1> (B)	8-97617-998-0	01	1	1009-1302
246	PROTECTOR; BUMPER (C)	1-71260-162-0	06	1	1009-1302
246	PROTECTOR; BUMPER (A)	8-97619-479-1	01	1	1009-1302
246	PROTECTOR; BUMPER (B)	8-97619-480-1	01	1	1009-1302
246	PROTECTOR; BUMPER (B)	8-97619-481-1	01	1	1009-1302
246	PROTECTOR; BUMPER FRONT SPOILER<VP1> (D)	8-97619-484-0	01	1	1009-1302
284	BOLT; BRKT M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	1009-1302
284	BOLT; BRKT EXC. FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50640-820-0	03	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-346-2	01	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-347-2	01	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-435-0	01	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	8-97608-941-0	01	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-444-0	01	1	1009-1302
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-447-0	01	1	1009-1302
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (D)	1-71230-636-0	01	1	1009-1302
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (D)	1-71230-637-0	01	1	1009-1302
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (C)	1-71230-434-0	01	1	1009-1302
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-491-0	01	1	1009-1302
315	STAY; BUMPER MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (C)	8-97609-954-0	01	1	1009-1302
315	STAY; BUMPER MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (B)	8-97609-955-0	01	1	1009-1302
315	STAY; BUMPER EXC. MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (B)	1-71230-483-0	01	1	1009-1302
315	STAY; BUMPER EXC. MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (C)	1-71230-493-0	01	1	1009-1302
321	COVER; BUMPER FRT SIDE (E)	8-98123-446-1	01	1	1303-
321	COVER; BUMPER FRT SIDE (E)	8-98123-447-1	01	1	1303-
321	COVER; BUMPER FRT SIDE (F)	8-98132-737-1	01	1	1303-
321	COVER; BUMPER FRT SIDE BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B)	1-86792-071-0	01	1	1009-1302
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (C)	8-98123-455-1	01	1	1303-
321	COVER; BUMPER FRT SIDE BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B)	1-86792-072-0	01	1	1009-1302
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (C)	8-98123-456-1	01	1	1303-
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A)	1-71260-263-1	01	1	1009-1302
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (D)	8-98123-457-1	01	1	1303-
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A)	1-71260-264-1	01	1	1009-1302
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (D)	8-98123-458-1	01	1	1303-
613	CLIP (E)	8-97581-651-2	04	1	1303-
613	CLIP (B)	8-98025-698-0	08	1	1303-
613	CLIP (C)	8-98144-173-1	06	1	1303-
613	CLIP (A)	1-71260-174-0	06	1	1009-1302
613	CLIP (D) D8X13.5	1-09987-248-1	05	1	1303-
614	STOPPER; LID	1-71260-163-0	12	1	1009-1302
641	BUMPER; FRT,LWR BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1>	1-86792-073-0	01	1	1009-1302
641	BUMPER; FRT,LWR EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46>	1-71211-304-1	01	1	1009-1302

197 613 613 613 613 613 613 613 613 613 321 321 613 613 321 341 275 259 663 260 650 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
177	BOLT DUMP TRUCK<RA1> (C) M12X25 FLANGE	0-28051-225-0	04	1	1303-
177	BOLT FRONT SPOILER<VP1> (A) M8X20 FLANGE	0-28050-820-0	04	1	1303-
177	BOLT (B) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1303-
197	GRILLE; BUMPER BUMPER-CHROME,FRONT<V46> (A)	8-97619-505-0	01	1	1009-1302
197	GRILLE; BUMPER (C)	8-98144-188-4	01	1	1303-
197	GRILLE; BUMPER BUMPER-CHROME,FRONT<V46> (A)	8-97619-506-0	01	1	1009-1302
197	GRILLE; BUMPER EXC. BUMPER-CHROME,FRONT<V46> (A)	8-97619-503-0	01	1	1009-1302
197	GRILLE; BUMPER EXC. BUMPER-CHROME,FRONT<V46> (A)	8-97619-504-0	01	1	1009-1302
197	GRILLE; BUMPER FRONT SPOILER<VP1> (B)	8-97617-998-0	01	1	1009-1302
259	BOLT; COVER M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1303-
260	RETAINER; UPR SKIRT	8-98125-829-0	02	1	1303-
275	GUARD; FRT	8-98125-825-0	02	1	1303-
321	COVER; BUMPER FRT SIDE (E)	8-98123-446-1	01	1	1303-
321	COVER; BUMPER FRT SIDE (E)	8-98123-447-1	01	1	1303-
321	COVER; BUMPER FRT SIDE (F)	8-98132-737-1	01	1	1303-
321	COVER; BUMPER FRT SIDE BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B)	1-86792-071-0	01	1	1009-1302
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (C)	8-98123-455-1	01	1	1303-
321	COVER; BUMPER FRT SIDE BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B)	1-86792-072-0	01	1	1009-1302
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (C)	8-98123-456-1	01	1	1303-
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A)	1-71260-263-1	01	1	1009-1302
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (D)	8-98123-457-1	01	1	1303-
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A)	1-71260-264-1	01	1	1009-1302
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (D)	8-98123-458-1	01	1	1303-
341	NUT; COVER M8 FLANGE	0-91180-108-0	08	1	1303-
613	CLIP (E)	8-97581-651-2	04	1	1303-
613	CLIP (B)	8-98025-698-0	08	1	1303-
613	CLIP (C)	8-98144-173-1	06	1	1303-
613	CLIP (A)	1-71260-174-0	06	1	1009-1302
613	CLIP (D) D8X13.5	1-09987-248-1	05	1	1303-
650	RUBBER; MUD COVER	8-98125-828-0	02	1	1303-
663	NUT DUMP TRUCK<RA1> (B) M12 FLANGE	0-91180-212-0	04	1	1303-
663	NUT FRONT SPOILER<VP1> (C) M6 FLANGE	0-91180-106-0	13	1	1303-
663	NUT (A) M8 FLANGE	0-91180-108-0	06	1	1303-
663	NUT (B) M12 FLANGE	0-91180-212-0	08	1	1303-

607 607 607 125 125 321 125 34 686 70 229 21 254 125 125 321 125 607 101 125 139 139 139 254 42 42 101 125 139 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B) CHROMIUM PLATE	8-98130-331-1	01	1	1009-1302
1	BUMPER ASM; FRT FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> (D) CHROMIUM PLATE	8-98130-330-1	01	1	1009-1302
1	BUMPER ASM; FRT FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46> (C) WHITE	8-98098-599-1	01	1	1009-1302
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (F) WHITE	8-97424-794-3	01	1	1303-
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A) WHITE	8-98098-600-1	01	1	1009-1302
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (E) WHITE	8-97417-846-3	01	1	1303-
21	GROMMET; SCREW,BUMPER PROTECTOR (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	1009-
21	GROMMET; SCREW,BUMPER PROTECTOR FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	22	1	1009-1302
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	08	1	1009-1302
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	03	1	1009-1302
34	NUT; BRKT,BUMPER (D) M6 FLANGE	0-91180-106-0	02	1	1303-
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	1009-1302
34	NUT; BRKT,BUMPER (C) M10 FLANGE	0-91180-110-0	04	1	1303-
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	17	1	1009-1302
34	NUT; BRKT,BUMPER EXC. FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	13	1	1009-1302
42	BOLT; BUMPER FRONT SPOILER<VP1> (A) M10X30 FLANGE	8-98055-942-0	14	1	1303-
42	BOLT; BUMPER (C) M10X30 FLANGE	0-28051-030-0	04	1	1303-
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X30 FLANGE	0-28051-030-0	04	1	1303-
42	BOLT; BUMPER EXC. FRONT SPOILER<VP1> (A) M10X30 FLANGE	8-98055-942-0	10	1	1303-
42	BOLT; BUMPER (D) M10X30 W/LK&PL WASHER	8-94279-213-0	09	1	1009-1302
42	BOLT; BUMPER (B) M6X20	8-97611-666-0	06	1	1303-
70	BRACKET; LICENSE PLATE,FRT	8-98128-625-0	04	1	1303-
101	STEP; BUMPER (A)	8-98123-450-2	01	1	1303-
101	STEP; BUMPER (B)	8-98123-452-1	01	1	1303-
101	STEP; BUMPER (B)	8-98123-453-1	01	1	1303-
125	CLIP; STEP FRONT SPOILER<VP1> (A)	8-98157-186-0	08	1	1303-
125	CLIP; STEP (B)	8-98157-167-0	04	1	1303-
125	CLIP; STEP EXC. FRONT SPOILER<VP1> (A)	8-98157-186-0	06	1	1303-
139	NUT; BRKT FIX M8 FLANGE	0-91180-208-0	04	1	1303-
229	GROMMET D=7X7 L=7.5	8-94291-927-0	01	1	1303-
254	NUT; STEP M6 FLANGE	0-91180-106-0	06	1	1303-
321	COVER; BUMPER FRT SIDE (E)	8-98123-446-1	01	1	1303-
321	COVER; BUMPER FRT SIDE (E)	8-98123-447-1	01	1	1303-
321	COVER; BUMPER FRT SIDE (F)	8-98132-737-1	01	1	1303-
321	COVER; BUMPER FRT SIDE BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B)	1-86792-071-0	01	1	1009-1302
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (C)	8-98123-455-1	01	1	1303-
321	COVER; BUMPER FRT SIDE BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B)	1-86792-072-0	01	1	1009-1302
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (C)	8-98123-456-1	01	1	1303-
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A)	1-71260-263-1	01	1	1009-1302
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (D)	8-98123-457-1	01	1	1303-
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A)	1-71260-264-1	01	1	1009-1302
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (D)	8-98123-458-1	01	1	1303-
607	BRACKET (D)	8-98211-758-0	01	1	1303-
607	BRACKET (D)	8-98211-759-0	01	1	1303-
607	BRACKET MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (A)	8-97609-951-2	01	1	1009-1302
607	BRACKET (C)	8-98147-053-0	02	1	1303-
607	BRACKET MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (A)	8-97610-034-2	01	1	1009-1302
607	BRACKET (B)	8-98147-054-0	02	1	1303-
686	REFLECTOR; REFLEX	8-98121-023-0	02	1	1303-

1 125 321 672 125 607 101 607 125 139 607 139 139 125 321 125 686 5 672 125 34 663 177 185 105 663 185 21 70 229 177 672 663 5 254 254 42 42 101 607 139 125 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B) CHROMIUM PLATE	8-98130-331-1	01	1	1009-1302
1	BUMPER ASM; FRT FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> (D) CHROMIUM PLATE	8-98130-330-1	01	1	1009-1302
1	BUMPER ASM; FRT FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46> (C) WHITE	8-98098-599-1	01	1	1009-1302
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (F) WHITE	8-97424-794-3	01	1	1303-
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A) WHITE	8-98098-600-1	01	1	1009-1302
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (E) WHITE	8-97417-846-3	01	1	1303-
5	BRACKET; AIR DAM FRONT SPOILER<VP1>	8-98154-762-0	02	1	1303-
21	GROMMET; SCREW,BUMPER PROTECTOR (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	1009-
21	GROMMET; SCREW,BUMPER PROTECTOR FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	22	1	1009-1302
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	08	1	1009-1302
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	03	1	1009-1302
34	NUT; BRKT,BUMPER (D) M6 FLANGE	0-91180-106-0	02	1	1303-
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	1009-1302
34	NUT; BRKT,BUMPER (C) M10 FLANGE	0-91180-110-0	04	1	1303-
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	17	1	1009-1302
34	NUT; BRKT,BUMPER EXC. FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	13	1	1009-1302
42	BOLT; BUMPER FRONT SPOILER<VP1> (A) M10X30 FLANGE	8-98055-942-0	14	1	1303-
42	BOLT; BUMPER (C) M10X30 FLANGE	0-28051-030-0	04	1	1303-
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X30 FLANGE	0-28051-030-0	04	1	1303-
42	BOLT; BUMPER EXC. FRONT SPOILER<VP1> (A) M10X30 FLANGE	8-98055-942-0	10	1	1303-
42	BOLT; BUMPER (D) M10X30 W/LK&PL WASHER	8-94279-213-0	09	1	1009-1302
42	BOLT; BUMPER (B) M6X20	8-97611-666-0	06	1	1303-
70	BRACKET; LICENSE PLATE,FRT	8-98128-625-0	04	1	1303-
101	STEP; BUMPER (A)	8-98123-450-2	01	1	1303-
101	STEP; BUMPER (B)	8-98123-452-1	01	1	1303-
101	STEP; BUMPER (B)	8-98123-453-1	01	1	1303-
105	AIR DAM FRONT SPOILER<VP1> WHITE	8-97417-859-4	01	1	1303-
125	CLIP; STEP FRONT SPOILER<VP1> (A)	8-98157-186-0	08	1	1303-
125	CLIP; STEP (B)	8-98157-167-0	04	1	1303-
125	CLIP; STEP EXC. FRONT SPOILER<VP1> (A)	8-98157-186-0	06	1	1303-
139	NUT; BRKT FIX M8 FLANGE	0-91180-208-0	04	1	1303-
177	BOLT DUMP TRUCK<RA1> (C) M12X25 FLANGE	0-28051-225-0	04	1	1303-
177	BOLT FRONT SPOILER<VP1> (A) M8X20 FLANGE	0-28050-820-0	04	1	1303-
177	BOLT (B) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1303-
185	BRACKET; BUMPER,INNER EXC. FRONT SPOILER<VP1>	1-71230-610-0	01	1	1009-1302
185	BRACKET; BUMPER,INNER FRONT SPOILER<VP1>	8-98139-739-0	02	1	1303-
229	GROMMET D=7X7 L=7.5	8-94291-927-0	01	1	1303-
254	NUT; STEP M6 FLANGE	0-91180-106-0	06	1	1303-
321	COVER; BUMPER FRT SIDE (E)	8-98123-446-1	01	1	1303-
321	COVER; BUMPER FRT SIDE (E)	8-98123-447-1	01	1	1303-
321	COVER; BUMPER FRT SIDE (F)	8-98132-737-1	01	1	1303-
321	COVER; BUMPER FRT SIDE BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B)	1-86792-071-0	01	1	1009-1302
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (C)	8-98123-455-1	01	1	1303-
321	COVER; BUMPER FRT SIDE BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B)	1-86792-072-0	01	1	1009-1302
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (C)	8-98123-456-1	01	1	1303-
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A)	1-71260-263-1	01	1	1009-1302
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (D)	8-98123-457-1	01	1	1303-
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A)	1-71260-264-1	01	1	1009-1302
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (D)	8-98123-458-1	01	1	1303-
607	BRACKET (D)	8-98211-758-0	01	1	1303-
607	BRACKET (D)	8-98211-759-0	01	1	1303-
607	BRACKET MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (A)	8-97609-951-2	01	1	1009-1302
607	BRACKET (C)	8-98147-053-0	02	1	1303-
607	BRACKET MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (A)	8-97610-034-2	01	1	1009-1302
607	BRACKET (B)	8-98147-054-0	02	1	1303-
663	NUT DUMP TRUCK<RA1> (B) M12 FLANGE	0-91180-212-0	04	1	1303-
663	NUT FRONT SPOILER<VP1> (C) M6 FLANGE	0-91180-106-0	13	1	1303-
663	NUT (A) M8 FLANGE	0-91180-108-0	06	1	1303-
663	NUT (B) M12 FLANGE	0-91180-212-0	08	1	1303-
672	STUD; STEP FRONT SPOILER<VP1> M6X16 FLANGE	0-28050-616-0	13	1	1303-
686	REFLECTOR; REFLEX	8-98121-023-0	02	1	1303-

42 682 683 42 1 1 30 42 30 34 45 42 42 101 613 42 666 30 47 31 663 301 93 84 96 177 607 228 607 228 663 30 42 666 663 34 45 42 682 42 42 42 613 160 197 683

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT BUMPER-CHROME,FRONT<V46> EXC. FRONT SPOILER<VP1> (B) CHROMIUM PLATE	8-98130-331-1	01	1	1009-1302
1	BUMPER ASM; FRT FRONT SPOILER<VP1> BUMPER-CHROME,FRONT<V46> (D) CHROMIUM PLATE	8-98130-330-1	01	1	1009-1302
1	BUMPER ASM; FRT FRONT SPOILER<VP1> EXC. BUMPER-CHROME,FRONT<V46> (C) WHITE	8-98098-599-1	01	1	1009-1302
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (F) WHITE	8-97424-794-3	01	1	1303-
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1>,BUMPER-CHROME,FRONT<V46> (A) WHITE	8-98098-600-1	01	1	1009-1302
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (E) WHITE	8-97417-846-3	01	1	1303-
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (A)	1-71230-428-0	01	1	1009-1302
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (C)	8-98139-907-0	01	1	1303-
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (A)	1-71230-429-0	01	1	1009-1302
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (C)	8-98139-909-0	01	1	1303-
30	BRACKET; FRT BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-638-0	01	1	1009-1302
30	BRACKET; FRT BUMPER (D)	8-98135-977-1	01	1	1303-
30	BRACKET; FRT BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-639-0	01	1	1009-1302
30	BRACKET; FRT BUMPER (D)	8-98135-978-1	01	1	1303-
31	SUPPORT; FRT BUMPER,LWR FRONT SPOILER<VP1>	8-98139-742-0	02	1	1303-
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	03	1	1009-1302
34	NUT; BRKT,BUMPER (D) M6 FLANGE	0-91180-106-0	02	1	1303-
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	1009-1302
34	NUT; BRKT,BUMPER (C) M10 FLANGE	0-91180-110-0	04	1	1303-
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	17	1	1009-1302
34	NUT; BRKT,BUMPER EXC. FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	13	1	1009-1302
42	BOLT; BUMPER FRONT SPOILER<VP1> (A) M10X30 FLANGE	8-98055-942-0	14	1	1303-
42	BOLT; BUMPER (C) M10X30 FLANGE	0-28051-030-0	04	1	1303-
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X30 FLANGE	0-28051-030-0	04	1	1303-
42	BOLT; BUMPER EXC. FRONT SPOILER<VP1> (A) M10X30 FLANGE	8-98055-942-0	10	1	1303-
42	BOLT; BUMPER (D) M10X30 W/LK&PL WASHER	8-94279-213-0	09	1	1009-1302
42	BOLT; BUMPER (B) M6X20	8-97611-666-0	06	1	1303-
45	BRACKET; BRKT TO BUMPER	8-98126-935-2	02	1	1303-
47	BOLT; SUPPORT TO BODY FRONT SPOILER<VP1> M10X30 FLANGE	0-28051-030-0	04	1	1303-
84	HOOK	1-57181-027-1	01	1	1009-1302
84	HOOK	8-98126-930-0	01	1	1303-
93	WASHER; LK,HOOK ID=16.2	0-91510-516-0	02	1	1009-1302
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	1303-
96	PLATE; DIST,HOOK FRONT SPOILER<VP1>	1-53497-473-0	01	1	1009-1302
96	PLATE; DIST,HOOK EXC. MIXER TRUCK<RA2>,FRONT SPOILER<VP1>	1-53497-473-0	01	1	1009-1302
96	PLATE; DIST,HOOK	8-98169-197-0	01	1	1303-
96	PLATE; DIST,HOOK MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1>	1-53497-595-0	01	1	1009-1302
101	STEP; BUMPER (A)	8-98123-450-2	01	1	1303-
101	STEP; BUMPER (B)	8-98123-452-1	01	1	1303-
101	STEP; BUMPER (B)	8-98123-453-1	01	1	1303-
160	SCREW M5X16	8-94380-268-0	01	1	1303-
177	BOLT DUMP TRUCK<RA1> (C) M12X25 FLANGE	0-28051-225-0	04	1	1303-
177	BOLT FRONT SPOILER<VP1> (A) M8X20 FLANGE	0-28050-820-0	04	1	1303-
177	BOLT (B) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1303-
197	GRILLE; BUMPER BUMPER-CHROME,FRONT<V46> (A)	8-97619-505-0	01	1	1009-1302
197	GRILLE; BUMPER (C)	8-98144-188-4	01	1	1303-
197	GRILLE; BUMPER BUMPER-CHROME,FRONT<V46> (A)	8-97619-506-0	01	1	1009-1302
197	GRILLE; BUMPER EXC. BUMPER-CHROME,FRONT<V46> (A)	8-97619-503-0	01	1	1009-1302
197	GRILLE; BUMPER EXC. BUMPER-CHROME,FRONT<V46> (A)	8-97619-504-0	01	1	1009-1302
197	GRILLE; BUMPER FRONT SPOILER<VP1> (B)	8-97617-998-0	01	1	1009-1302
228	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	06	1	1009-1302
228	BOLT; BRKT (C) M16X35 FLANGE	0-28851-635-0	06	1	1303-
228	BOLT; BRKT MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (A) M16X40	0-20951-640-0	06	1	1009-1302
301	BOLT; HOOK TO FRAME M16X95	0-10811-695-0	01	1	1009-1302
301	BOLT; HOOK TO FRAME M16X110	8-98074-591-0	02	1	1303-
301	BOLT; HOOK TO FRAME M16X90	0-10861-690-0	01	1	1009-1302
607	BRACKET (D)	8-98211-758-0	01	1	1303-
607	BRACKET (D)	8-98211-759-0	01	1	1303-
607	BRACKET MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (A)	8-97609-951-2	01	1	1009-1302
607	BRACKET (C)	8-98147-053-0	02	1	1303-
607	BRACKET MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (A)	8-97610-034-2	01	1	1009-1302
607	BRACKET (B)	8-98147-054-0	02	1	1303-
613	CLIP (E)	8-97581-651-2	04	1	1303-
613	CLIP (B)	8-98025-698-0	08	1	1303-
613	CLIP (C)	8-98144-173-1	06	1	1303-
613	CLIP (A)	1-71260-174-0	06	1	1009-1302
613	CLIP (D) D8X13.5	1-09987-248-1	05	1	1303-
663	NUT DUMP TRUCK<RA1> (B) M12 FLANGE	0-91180-212-0	04	1	1303-
663	NUT FRONT SPOILER<VP1> (C) M6 FLANGE	0-91180-106-0	13	1	1303-
663	NUT (A) M8 FLANGE	0-91180-108-0	06	1	1303-
663	NUT (B) M12 FLANGE	0-91180-212-0	08	1	1303-
666	PROTECTOR; UNDER MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (B)	8-97608-467-1	01	1	1009-1302
666	PROTECTOR; UNDER (C)	8-98198-583-0	01	1	1303-
666	PROTECTOR; UNDER MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (A)	8-97610-033-0	01	1	1009-1302
666	PROTECTOR; UNDER DUMP TRUCK<RA1> (D)	8-98194-529-0	01	1	1303-
682	BEZEL; BUMPER	8-98123-444-2	01	1	1303-
682	BEZEL; BUMPER	8-98123-445-2	01	1	1303-
683	CLIP; BEZEL,BUMPER	8-98144-173-1	16	1	1303-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
