Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#69972) — 392 parça

202 202 203 204 205 65 204 203 70 72 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-604-1	02	1	1009-
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	1009-
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	1009-
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-492-1	01	1	1009-
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-493-1	01	1	1009-
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	23	1	1009-1302
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	22	1	1303-
202	NUT; S/ABS (C) M10 FLANGE	0-91180-110-0	02	1	1009-
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	1009-
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	1009-
203	WASHER; RUBBER,SHOCK (A) ID=10.8 OD=38 T=6	1-51631-005-0	10	1	1009-
203	WASHER; RUBBER,SHOCK (B) ID=10 OD=38 T=5	1-51631-104-0	02	1	1009-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	1009-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	1009-

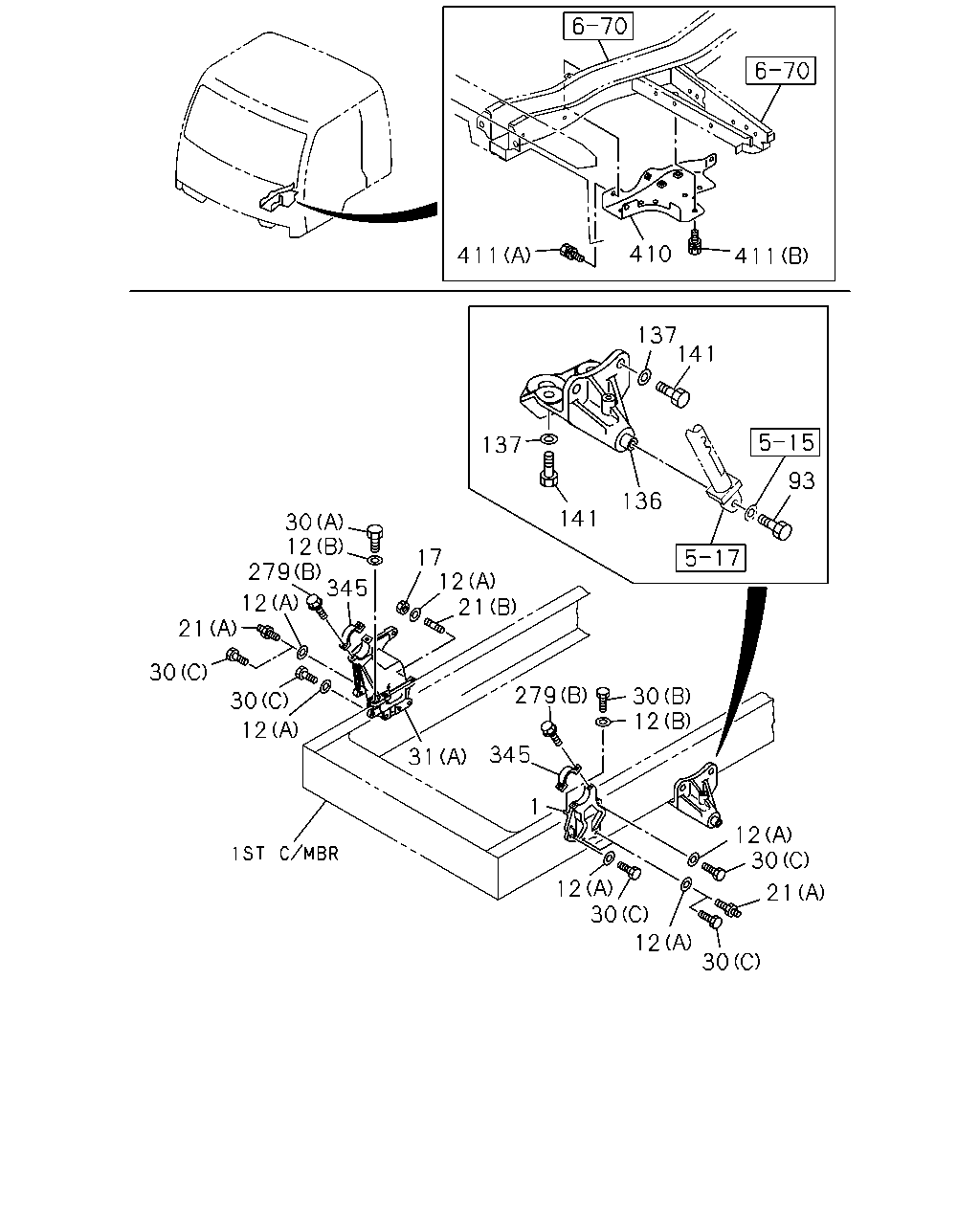

411 410 411 137 93 141 136 141 137 17 12 21 30 12 279 12 21 30 30 12 31 279 30 12 1 345 345 12 30 21 12 30 12 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG	8-98094-536-0	01	1	1009-1302
1	BRACKET; CAB MTG	8-98120-797-0	01	1	1303-
12	WASHER; LK,BRKT (A) ID=16.2	1-09503-316-0	11	1	1009-
12	WASHER; LK,BRKT (B) ID=15	8-98010-627-1	04	1	1009-
17	NUT; BRKT,CAB TILT M16	0-91110-516-0	01	1	1009-
21	STUD; BRKT,CAB TILT (A) M12X20,M16X45 L=76	1-09029-090-0	02	1	1009-1302
21	STUD; BRKT,CAB TILT FRONT SPOILER<VP1> (A) M12X20,M16X45 L=76	1-09029-090-0	02	1	1009-1302
21	STUD; BRKT,CAB TILT EXC. MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (A) M12X20,M16X45 L=76	1-09029-090-0	02	1	1009-1302
21	STUD; BRKT,CAB TILT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) M16X55 L=79	8-98200-993-0	01	1	1303-1411
21	STUD; BRKT,CAB TILT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M16X55 L=79	8-98200-993-0	01	1	1412-
21	STUD; BRKT,CAB TILT (B) M16X50 L=74	1-09300-117-0	01	1	1009-1302
21	STUD; BRKT,CAB TILT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) M16X50 L=74	1-09300-117-0	01	1	1303-1411
21	STUD; BRKT,CAB TILT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (B) M16X50 L=74	1-09300-117-0	01	1	1412-
30	BOLT; CAB FRT FOOT (A) M14X60	0-20951-460-0	02	1	1009-
30	BOLT; CAB FRT FOOT (B) M14X45	9-92061-445-0	02	1	1009-1302
30	BOLT; CAB FRT FOOT (B) M14X50	0-20951-450-0	02	1	1303-
30	BOLT; CAB FRT FOOT (C) M16X45	9-92061-645-0	03	1	1009-1302
30	BOLT; CAB FRT FOOT FRONT SPOILER<VP1> (C) M16X45	9-92061-645-0	03	1	1009-1302
30	BOLT; CAB FRT FOOT EXC. MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (C) M16X45	9-92061-645-0	03	1	1009-1302
30	BOLT; CAB FRT FOOT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) M16X60	0-20951-660-0	05	1	1303-1411
30	BOLT; CAB FRT FOOT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) M16X60	0-20951-660-0	05	1	1303-1411
30	BOLT; CAB FRT FOOT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) M16X60	0-20951-660-0	05	1	1412-
30	BOLT; CAB FRT FOOT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) M16X60	0-20951-660-0	05	1	1412-
30	BOLT; CAB FRT FOOT MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (C) M16X45	9-92061-645-0	05	1	1009-1302
30	BOLT; CAB FRT FOOT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) M16X50	0-20951-650-0	10	1	1303-1411
30	BOLT; CAB FRT FOOT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (C) M16X50	0-20951-650-0	10	1	1412-
31	BRACKET; CAB CAB SUSPENSION-FULL FLOATING(SMK) (D)	1-53453-273-2	01	1	1303-
31	BRACKET; CAB CAB SUSPENSION-FULL FLOATING(SMK) (D)	1-53453-274-1	01	1	1303-
31	BRACKET; CAB (A)	1-44226-178-1	01	1	1009-1302
31	BRACKET; CAB (A)	8-98152-139-0	01	1	1303-
31	BRACKET; CAB (D)	1-53453-224-5	01	1	1009-1302
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-4	01	1	1303-
31	BRACKET; CAB (D)	1-53453-225-3	01	1	1009-1302
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	1303-
31	BRACKET; CAB (B)	1-53458-374-1	01	1	1009-1302
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	1303-
31	BRACKET; CAB (C)	8-97619-220-1	01	1	1009-1302
31	BRACKET; CAB FULL FLOATING CAB(W16) (E)	8-98131-521-2	01	1	1303-
93	BOLT; PIN M10X30	1-09000-283-0	01	1	1009-
136	BRACKET; OIL CYL	1-53458-829-0	01	1	1009-
137	WASHER; PL,BRKT ID=15	8-98010-627-1	04	1	1009-
141	BOLT; BRKT M14X50	0-20951-450-0	04	1	1009-
279	BOLT (C) M8X16 FLANGE	0-28050-816-0	04	1	1009-1302
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	1303-
279	BOLT (E) M8X60 FLANGE	0-28050-860-0	02	1	1009-1302
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	1303-
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	1009-1510
279	BOLT (B) M12X40 FLANGE	8-98270-173-0	04	1	1511-
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	04	1	1009-1302
279	BOLT (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	1009-1302
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	1303-1303
279	BOLT FULL FLOATING CAB(W16) EXC. NEW ZEALAND EQUIPMENT(PK5) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	1304-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	01	1	1009-1302
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	05	1	1303-
279	BOLT HONG KONG EQUIPMENT(PQ1) (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-
345	CAP; CAB	1-53458-336-3	02	1	1009-
410	REINFORCEMENT; CAB TILT	1-62570-864-0	01	1	1009-
411	BOLT; REINFORCEMENT (B) M10X20 W/LK&PL WASHER	8-94279-211-0	01	1	1009-
411	BOLT; REINFORCEMENT (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1009-

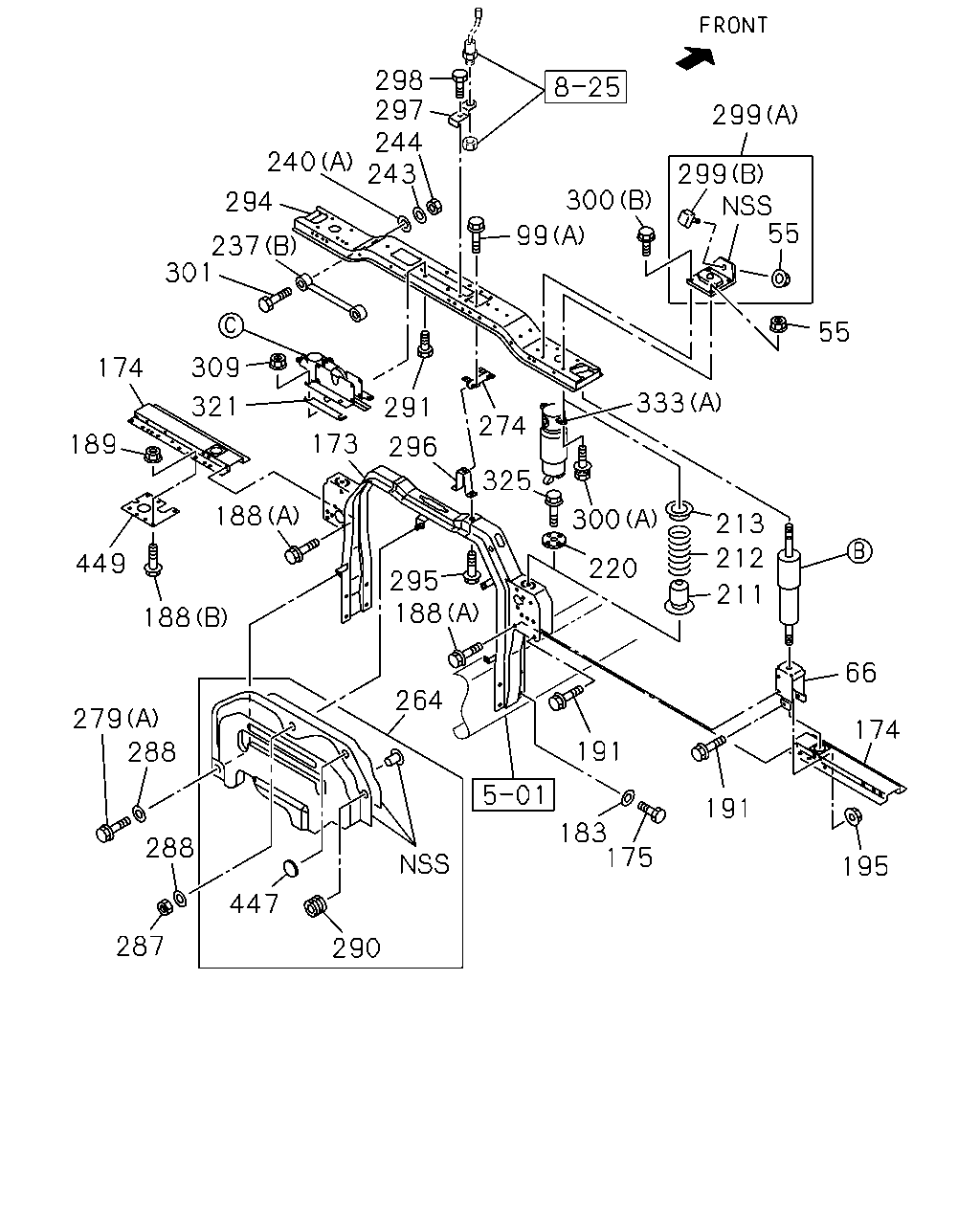

294 202 202 203 204 205 204 203 173 203 201 204 205 66 174 205 204 203 202 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
66	BRACKET; S/ABS	1-53458-755-1	01	1	1009-1204
66	BRACKET; S/ABS	8-98214-572-0	01	1	1205-
66	BRACKET; S/ABS	1-53458-786-0	01	1	1009-
173	MEMBER; CAB MTG RR SINGAPORE EQUIPMENT(WQ3) FULL FLOATING CAB(W16)	8-98171-658-0	01	1	1412-
173	MEMBER; CAB MTG RR CAB SUSPENSION-FULL FLOATING(SMK) EXC. NEW ZEALAND EQUIPMENT(PK5)	8-98240-971-0	01	1	1303-
173	MEMBER; CAB MTG RR HONG KONG EQUIPMENT(PQ1)	8-97619-389-0	01	1	1009-1010
173	MEMBER; CAB MTG RR HONG KONG EQUIPMENT(PQ1)	8-98171-654-0	01	1	1011-1302
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. NEW ZEALAND EQUIPMENT(PK5)	8-98171-654-0	01	1	1303-1411
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. NEW ZEALAND EQUIPMENT(PK5),SINGAPORE EQUIPMENT(WQ3)	8-98171-654-0	01	1	1412-
173	MEMBER; CAB MTG RR EXC. HONG KONG EQUIPMENT(PQ1)	8-98166-349-0	01	1	1009-1010
173	MEMBER; CAB MTG RR EXC. HONG KONG EQUIPMENT(PQ1)	8-98171-658-0	01	1	1011-1302
173	MEMBER; CAB MTG RR NEW ZEALAND EQUIPMENT(PK5) FULL FLOATING CAB(W16)	8-98166-139-0	01	1	1303-
174	OUTRIGGER	1-53456-418-3	01	1	1009-
174	OUTRIGGER	8-98158-646-0	01	1	1009-
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-728-1	02	1	1009-
202	NUT; S/ABS (C) M10 FLANGE	0-91180-110-0	02	1	1009-
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	1009-
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	1009-
203	WASHER; RUBBER,SHOCK (A) ID=10.8 OD=38 T=6	1-51631-005-0	10	1	1009-
203	WASHER; RUBBER,SHOCK (B) ID=10 OD=38 T=5	1-51631-104-0	02	1	1009-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	1009-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	1009-
294	MEMBER; FLOATING CAB SUSPENSION-FULL FLOATING(SMK)	1-53454-950-3	01	1	1303-
294	MEMBER; FLOATING	1-53454-949-2	01	1	1009-1302
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-949-2	01	1	1303-

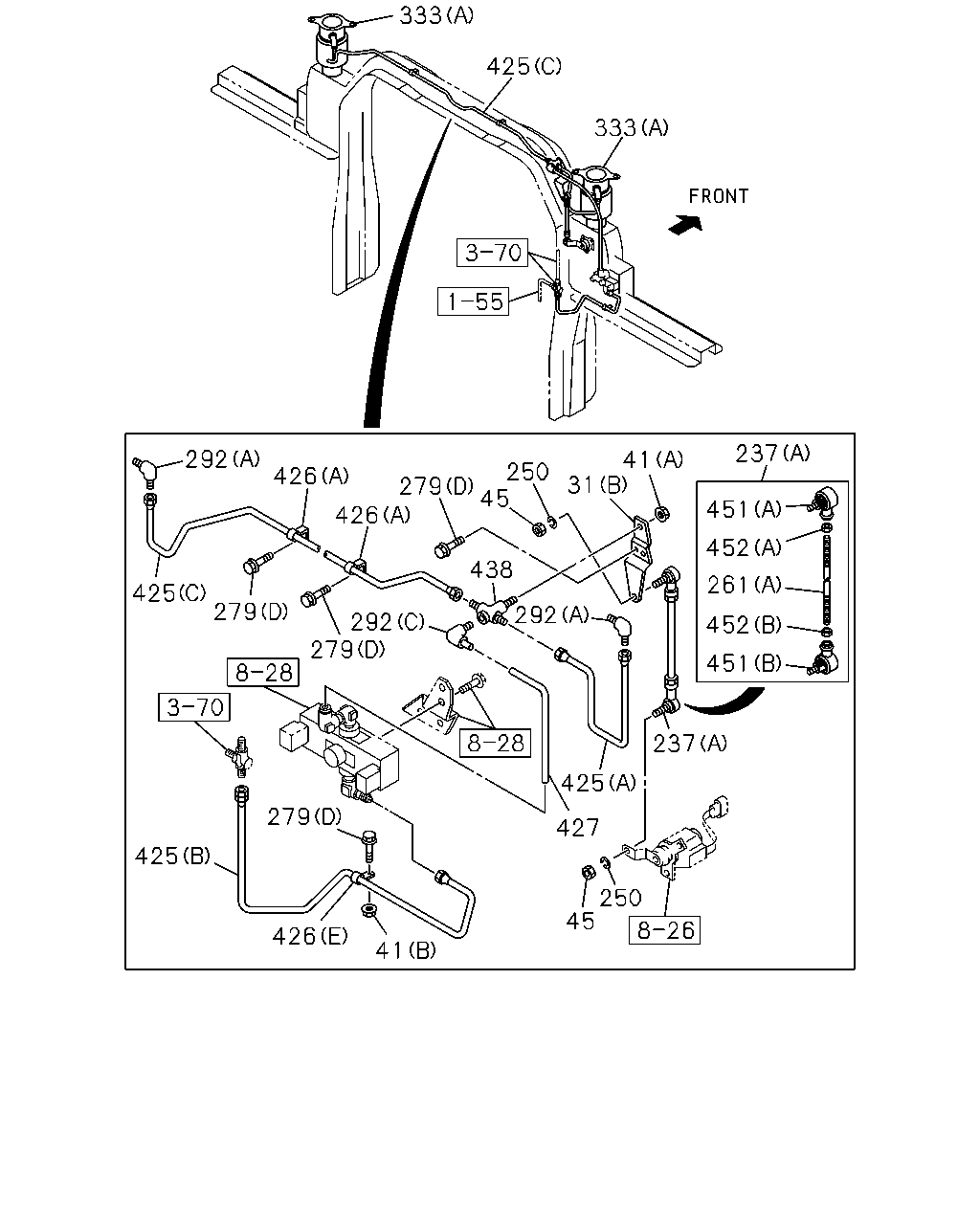

333 425 333 237 451 452 452 451 261 41 31 250 45 279 426 426 292 425 279 292 279 438 292 425 237 427 250 45 41 426 279 425

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	BRACKET; CAB CAB SUSPENSION-FULL FLOATING(SMK) (D)	1-53453-273-2	01	1	1303-
31	BRACKET; CAB CAB SUSPENSION-FULL FLOATING(SMK) (D)	1-53453-274-1	01	1	1303-
31	BRACKET; CAB (A)	1-44226-178-1	01	1	1009-1302
31	BRACKET; CAB (A)	8-98152-139-0	01	1	1303-
31	BRACKET; CAB (D)	1-53453-224-5	01	1	1009-1302
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-4	01	1	1303-
31	BRACKET; CAB (D)	1-53453-225-3	01	1	1009-1302
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	1303-
31	BRACKET; CAB (B)	1-53458-374-1	01	1	1009-1302
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	1303-
31	BRACKET; CAB (C)	8-97619-220-1	01	1	1009-1302
31	BRACKET; CAB FULL FLOATING CAB(W16) (E)	8-98131-521-2	01	1	1303-
41	NUT (A) M12 FLANGE	0-91180-212-0	01	1	1009-1302
41	NUT FULL FLOATING CAB(W16) (A) M12 FLANGE	0-91180-212-0	01	1	1303-
41	NUT FULL FLOATING CAB(W16) (B) M8 FLANGE	0-91180-108-0	01	1	1009-
45	NUT M5	0-91110-505-0	04	1	1009-1302
45	NUT FULL FLOATING CAB(W16) M5	0-91110-505-0	04	1	1303-
237	ROD ASM; LATERAL (A)	1-33670-407-0	01	1	1009-1302
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	1303-
237	ROD ASM; LATERAL (C)	1-33671-987-0	01	1	1009-1302
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33671-987-0	01	1	1303-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	1009-
250	WASHER; LK ID=5.1	0-91510-505-0	04	1	1009-1302
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	0-91510-505-0	04	1	1303-
261	ROD; LINK (B)	0-84100-506-0	01	1	1009-1302
261	ROD; LINK FULL FLOATING CAB(W16) (B)	0-84100-506-0	01	1	1303-
261	ROD; LINK (A)	9-08410-514-0	01	1	1009-1302
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-514-0	01	1	1303-
279	BOLT (C) M8X16 FLANGE	0-28050-816-0	04	1	1009-1302
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	1303-
279	BOLT (E) M8X60 FLANGE	0-28050-860-0	02	1	1009-1302
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	1303-
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	1009-1510
279	BOLT (B) M12X40 FLANGE	8-98270-173-0	04	1	1511-
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	04	1	1009-1302
279	BOLT (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	1009-1302
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	1303-1303
279	BOLT FULL FLOATING CAB(W16) EXC. NEW ZEALAND EQUIPMENT(PK5) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	1304-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	01	1	1009-1302
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	05	1	1303-
279	BOLT HONG KONG EQUIPMENT(PQ1) (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-
292	CONNECTOR; CAB SUSPENSION (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1009-1302
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1303-
292	CONNECTOR; CAB SUSPENSION (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	02	1	1009-1302
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (G) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	1303-
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1009-1302
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1303-
292	CONNECTOR; CAB SUSPENSION (D)	1-09661-577-0	01	1	1009-1302
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	1009-
292	CONNECTOR; CAB SUSPENSION (F) PT1/8 ELBOW	8-94338-418-1	01	1	1009-1302
333	SPRING (B)	1-52110-142-3	02	1	1009-1302
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-4	02	1	1303-
333	SPRING (A)	1-52110-143-3	02	1	1009-1302
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-4	02	1	1303-
425	PIPE ASM; AIR (C) L=1149 SERVICED BY L=1200	1-47428-816-0	01	1	1009-1302
425	PIPE ASM; AIR HONG KONG EQUIPMENT(PQ1) FULL FLOATING CAB(W16) (B) L=566 SERVICED BY L=600	1-47428-809-0	01	1	1303-1411
425	PIPE ASM; AIR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) FULL FLOATING CAB(W16) (B) L=566 SERVICED BY L=600	1-47428-809-0	01	1	1412-
425	PIPE ASM; AIR (A) L=291	8-98095-656-0	01	1	1009-1302
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (A) L=291	8-98095-656-0	01	1	1303-
425	PIPE ASM; AIR FULL FLOATING CAB(W16) EXC. MIXER TRUCK<RA2> (B) L=566 SERVICED BY L=600	1-47428-809-0	01	1	1009-1302
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (C) L=1149 SERVICED BY L=1200	1-47428-816-0	01	1	1303-
425	PIPE ASM; AIR MIXER TRUCK<RA2> FULL FLOATING CAB(W16) (B) L=367	1-49124-343-0	01	1	1009-1302
425	PIPE ASM; AIR NEW ZEALAND EQUIPMENT(PK5) FULL FLOATING CAB(W16) (B)	1-49122-659-0	01	1	1303-
426	CLIP NEW ZEALAND EQUIPMENT(PK5) FULL FLOATING CAB(W16) (F) ID=5.8 L=8	8-94155-681-0	02	1	1304-
426	CLIP (A) ID=6 H=20 L=20	1-09700-603-0	02	1	1009-1302
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	1303-
426	CLIP (D) ID=5-12 L=14.5	1-09987-221-0	01	1	1009-1302
426	CLIP FULL FLOATING CAB(W16) (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1303-
426	CLIP (B) ID=9.5	5-09709-020-0	01	1	1009-1302
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	1303-
426	CLIP (C) ID=11 H=20 L=20	8-98033-780-0	01	1	1009-1302
426	CLIP FULL FLOATING CAB(W16) (C) ID=11 H=20 L=20	8-98033-780-0	01	1	1303-1303
426	CLIP FULL FLOATING CAB(W16) EXC. NEW ZEALAND EQUIPMENT(PK5) (C) ID=11 H=20 L=20	8-98033-780-0	01	1	1304-
426	CLIP FULL FLOATING CAB(W16) (E) ID=7 L=32	0-95234-665-0	01	1	1009-
427	TUBE SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1009-1302
427	TUBE FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1009-1302
427	TUBE FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87411-001-0	03	1	1303-
438	UNION M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	1009-1302
438	UNION FULL FLOATING CAB(W16) M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	1303-
451	JOINT; BALL (B)	1-09760-103-2	02	1	1009-1302
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-103-2	02	1	1303-
451	JOINT; BALL (A)	1-09760-104-2	02	1	1009-1302
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-104-2	02	1	1303-
452	NUT; BALL JOINT (A) M5	0-91110-505-0	02	1	1009-1302
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	0-91110-505-0	02	1	1303-
452	NUT; BALL JOINT (B) M5 LH THREAD	9-09840-277-0	02	1	1009-1302
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	02	1	1303-

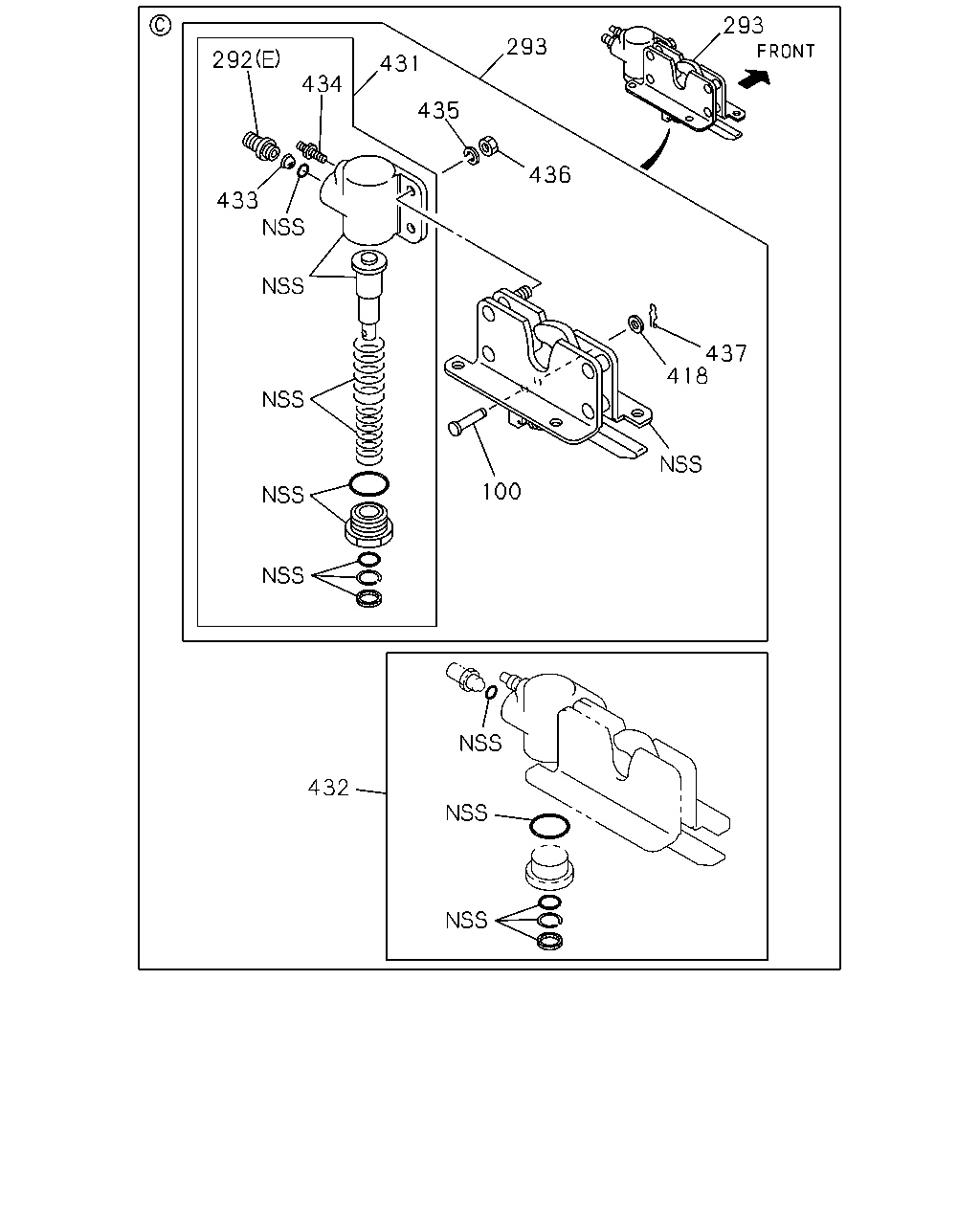

293 293 435 431 436 292 433 434 100 418 437 432

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	PIN; JOINT	1-53458-831-0	01	1	1009-
292	CONNECTOR; CAB SUSPENSION (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1009-1302
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1303-
292	CONNECTOR; CAB SUSPENSION (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	02	1	1009-1302
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (G) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	1303-
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1009-1302
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1303-
292	CONNECTOR; CAB SUSPENSION (D)	1-09661-577-0	01	1	1009-1302
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	1009-
292	CONNECTOR; CAB SUSPENSION (F) PT1/8 ELBOW	8-94338-418-1	01	1	1009-1302
293	RATCH; CAB SUSP,RR	1-53458-918-0	01	1	1009-
418	WASHER; PL,PIN	1-53458-059-0	01	1	1009-
431	CYLINDER; AIR,RATCH	1-53457-013-0	01	1	1009-
432	REPAIR KIT; AIR CYL	1-85579-052-0	01	1	1009-
433	FILTER; AIR CYL	1-53458-048-0	01	1	1009-
434	SCREW; AIR BLEEDER	1-53458-529-0	01	1	1009-
435	WASHER; LK,AIR CYL ID=10.2	9-09150-510-0	02	1	1009-
436	NUT; AIR CYL	1-53458-528-0	02	1	1009-
437	PIN; SNAP	1-53458-526-0	01	1	1009-

298 297 244 243 240 294 237 301 300 99 299 299 55 55 333 174 309 321 173 291 296 274 325 300 220 213 212 211 66 174 195 191 191 183 175 290 447 287 288 288 279 188 449 188 189 295 188 264

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
55	NUT; RUBBER M8 FLANGE	0-91180-108-0	06	1	1009-
66	BRACKET; S/ABS	1-53458-755-1	01	1	1009-1204
66	BRACKET; S/ABS	8-98214-572-0	01	1	1205-
66	BRACKET; S/ABS	1-53458-786-0	01	1	1009-
99	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	04	1	1009-
99	BOLT; BRKT (B) M10X30 W/SP WASHER	1-09980-546-0	01	1	1009-
173	MEMBER; CAB MTG RR SINGAPORE EQUIPMENT(WQ3) FULL FLOATING CAB(W16)	8-98171-658-0	01	1	1412-
173	MEMBER; CAB MTG RR CAB SUSPENSION-FULL FLOATING(SMK) EXC. NEW ZEALAND EQUIPMENT(PK5)	8-98240-971-0	01	1	1303-
173	MEMBER; CAB MTG RR HONG KONG EQUIPMENT(PQ1)	8-97619-389-0	01	1	1009-1010
173	MEMBER; CAB MTG RR HONG KONG EQUIPMENT(PQ1)	8-98171-654-0	01	1	1011-1302
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. NEW ZEALAND EQUIPMENT(PK5)	8-98171-654-0	01	1	1303-1411
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. NEW ZEALAND EQUIPMENT(PK5),SINGAPORE EQUIPMENT(WQ3)	8-98171-654-0	01	1	1412-
173	MEMBER; CAB MTG RR EXC. HONG KONG EQUIPMENT(PQ1)	8-98166-349-0	01	1	1009-1010
173	MEMBER; CAB MTG RR EXC. HONG KONG EQUIPMENT(PQ1)	8-98171-658-0	01	1	1011-1302
173	MEMBER; CAB MTG RR NEW ZEALAND EQUIPMENT(PK5) FULL FLOATING CAB(W16)	8-98166-139-0	01	1	1303-
174	OUTRIGGER	1-53456-418-3	01	1	1009-
174	OUTRIGGER	8-98158-646-0	01	1	1009-
175	BOLT; MEMBER TO FRAME NEW ZEALAND EQUIPMENT(PK5) M14X40	0-20951-440-0	08	1	1303-
175	BOLT; MEMBER TO FRAME M14X35	0-20951-435-0	08	1	1009-1302
175	BOLT; MEMBER TO FRAME EXC. NEW ZEALAND EQUIPMENT(PK5) M14X35	0-20951-435-0	08	1	1303-
183	WASHER; PL,MEMBER ID=15	8-98010-627-1	08	1	1009-
188	BOLT; OUTRIGGER (B) M10X20 FLANGE	0-28651-020-0	04	1	1009-
188	BOLT; OUTRIGGER (A) M10X25 FLANGE	0-28651-025-0	08	1	1009-
189	NUT; OUTRIGGER M10 FLANGE	0-91180-210-0	04	1	1009-
191	BOLT; BRKT FIX M10X25 FLANGE	0-28651-025-0	07	1	1009-
195	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	04	1	1009-
211	RUBBER; CUSHION,S/ABS CAB SUSPENSION-FULL FLOATING(SMK)	1-53366-128-0	02	1	1303-
212	SPRING; COIL CAB SUSPENSION-FULL FLOATING(SMK)	1-09580-515-0	02	1	1303-
213	SEAT; SPR,S/ABS CAB SUSPENSION-FULL FLOATING(SMK)	1-53366-132-1	02	1	1303-
220	GUIDE; SPR	1-53458-648-1	02	1	1009-1302
220	GUIDE; SPR FULL FLOATING CAB(W16)	1-53458-648-1	02	1	1303-
237	ROD ASM; LATERAL (A)	1-33670-407-0	01	1	1009-1302
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	1303-
237	ROD ASM; LATERAL (C)	1-33671-987-0	01	1	1009-1302
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33671-987-0	01	1	1303-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	1009-
240	WASHER; PL,BRKT (A) ID=12.5 OD=22	0-91610-512-0	02	1	1009-
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	1009-
243	WASHER; LK,LATERAL ROD ID=12.2	0-91510-512-0	02	1	1009-
244	NUT; LATERAL ROD M12	0-91110-512-0	02	1	1009-
264	PANEL; BACK HONG KONG EQUIPMENT(PQ1)	8-98063-674-0	01	1	1009-
274	PIN	1-53458-996-0	01	1	1009-
279	BOLT (C) M8X16 FLANGE	0-28050-816-0	04	1	1009-1302
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	1303-
279	BOLT (E) M8X60 FLANGE	0-28050-860-0	02	1	1009-1302
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	1303-
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	1009-1510
279	BOLT (B) M12X40 FLANGE	8-98270-173-0	04	1	1511-
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	04	1	1009-1302
279	BOLT (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	1009-1302
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	1303-1303
279	BOLT FULL FLOATING CAB(W16) EXC. NEW ZEALAND EQUIPMENT(PK5) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	1304-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	01	1	1009-1302
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	05	1	1303-
279	BOLT HONG KONG EQUIPMENT(PQ1) (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-
287	NUT HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91180-108-0	01	1	1009-
288	WASHER; PL HONG KONG EQUIPMENT(PQ1) ID=8.4 OD=26	0-91614-808-0	03	1	1009-
290	RUBBER; MTG HONG KONG EQUIPMENT(PQ1)	1-53459-702-1	03	1	1009-
291	BOLT; RATCH M10X25 FLANGE	0-28651-025-0	04	1	1009-
294	MEMBER; FLOATING CAB SUSPENSION-FULL FLOATING(SMK)	1-53454-950-3	01	1	1303-
294	MEMBER; FLOATING	1-53454-949-2	01	1	1009-1302
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-949-2	01	1	1303-
295	BOLT; STOPPER,UPR M10X20 FLANGE	0-28651-020-0	02	1	1009-
296	STOPPER; UPR	1-53458-973-1	01	1	1009-
297	BRACKET; LIMIT SW	1-53458-782-0	01	1	1009-
298	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	1009-
299	RUBBER; MTG (B)	1-53366-155-0	02	1	1009-
299	RUBBER; MTG (A)	1-53366-194-0	02	1	1009-
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) (A) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	1303-
300	BOLT; MTG RUBBER (B) M8X16 FLANGE	0-28050-816-0	04	1	1009-1302
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) (B) M8X16 FLANGE	0-28050-816-0	04	1	1303-
300	BOLT; MTG RUBBER (A) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	1009-1302
300	BOLT; MTG RUBBER CAB SUSPENSION-FULL FLOATING(SMK) (A) M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	1303-
301	PIN; LATERAL ROD M12X57.5	1-53459-498-1	02	1	1009-
309	NUT M10 FLANGE	0-91180-210-0	04	1	1009-
321	SHIM; FRT CAB MTG	1-53458-629-1	04	1	1009-
325	BOLT; GUIDE NUT M8X20 FLANGE	0-28650-820-0	02	1	1009-1302
325	BOLT; GUIDE NUT FULL FLOATING CAB(W16) M8X20 FLANGE	0-28650-820-0	02	1	1303-
333	SPRING (B)	1-52110-142-3	02	1	1009-1302
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-4	02	1	1303-
333	SPRING (A)	1-52110-143-3	02	1	1009-1302
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-4	02	1	1303-
447	SEAL HONG KONG EQUIPMENT(PQ1) OD=45 BLACK	1-76798-017-0	02	1	1009-
449	BRACKET; OUTRIGGER	1-53456-279-0	01	1	1009-

426 427 278 451 452 261 452 451 237 45 250 31 426 72 426 192 240 98 192 292 292 292 292 279 333 71 73 426 426 426 279 279 250 45 237 278 427 292 292 333 279 31 250 45 192 146 144 145 72 73 71 99 105 69 72 72 112 72 105 67 279 69 112 120 31 118 27 31 315 113 118 113 27 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	BOLT; BUSHING (B) M18X120	1-09000-442-1	02	1	1009-
27	BOLT; BUSHING (A) M18X90	9-91066-890-0	02	1	1009-
31	BRACKET; CAB CAB SUSPENSION-FULL FLOATING(SMK) (D)	1-53453-273-2	01	1	1303-
31	BRACKET; CAB CAB SUSPENSION-FULL FLOATING(SMK) (D)	1-53453-274-1	01	1	1303-
31	BRACKET; CAB (A)	1-44226-178-1	01	1	1009-1302
31	BRACKET; CAB (A)	8-98152-139-0	01	1	1303-
31	BRACKET; CAB (D)	1-53453-224-5	01	1	1009-1302
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-4	01	1	1303-
31	BRACKET; CAB (D)	1-53453-225-3	01	1	1009-1302
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	1303-
31	BRACKET; CAB (B)	1-53458-374-1	01	1	1009-1302
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	1303-
31	BRACKET; CAB (C)	8-97619-220-1	01	1	1009-1302
31	BRACKET; CAB FULL FLOATING CAB(W16) (E)	8-98131-521-2	01	1	1303-
45	NUT M5	0-91110-505-0	04	1	1009-1302
45	NUT FULL FLOATING CAB(W16) M5	0-91110-505-0	04	1	1303-
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91180-212-0	02	1	1009-
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	1009-
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	1009-
71	NUT; BRKT TO CAB FRAME M10	1-09984-142-0	06	1	1009-
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	23	1	1009-1302
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	22	1	1303-
73	WASHER; LK,BRKT TO CAB FRAME ID=10	1-09985-185-0	12	1	1009-
98	WASHER; LK,BRKT ID=10	1-09985-185-0	04	1	1009-
99	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	04	1	1009-
99	BOLT; BRKT (B) M10X30 W/SP WASHER	1-09980-546-0	01	1	1009-
105	BOLT; BRKT TO CAB FRAME M10X30 W/SP WASHER	1-09980-546-0	08	1	1009-
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB(W16)	8-98127-505-1	01	1	1303-
112	ARM ASM; LINK,CAB FRT SUSP	8-98077-409-1	01	1	1009-1302
112	ARM ASM; LINK,CAB FRT SUSP CAB SUSPENSION-FULL FLOATING(SMK)	1-53450-565-7	01	1	1303-
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI	1-53458-714-0	04	1	1009-
118	WASHER; PL,STOPPER RUBBER,LINK ARM ID=19 OD=30	1-09503-279-0	04	1	1009-
120	NUT; STOPPER RUBBER,LINK ARM M18	0-91110-518-0	02	1	1009-
144	SPRING; COIL,CAB FRT SUSPENSION CAB SUSPENSION-FULL FLOATING(SMK)	1-09580-537-0	02	1	1303-
145	RUBBER; CUSHION,CAB FRT SUSPENSION CAB SUSPENSION-FULL FLOATING(SMK)	1-53366-139-0	02	1	1303-
146	SEAT; SPRING,CAB FRT SUSPENSION CAB SUSPENSION-FULL FLOATING(SMK)	1-53366-138-0	02	1	1303-
192	NUT; BRKT FIX M10	1-09984-142-0	05	1	1009-
237	ROD ASM; LATERAL (A)	1-33670-407-0	01	1	1009-1302
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	1303-
237	ROD ASM; LATERAL (C)	1-33671-987-0	01	1	1009-1302
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33671-987-0	01	1	1303-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	1009-
240	WASHER; PL,BRKT (A) ID=12.5 OD=22	0-91610-512-0	02	1	1009-
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	1009-
250	WASHER; LK ID=5.1	0-91510-505-0	04	1	1009-1302
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	0-91510-505-0	04	1	1303-
261	ROD; LINK (B)	0-84100-506-0	01	1	1009-1302
261	ROD; LINK FULL FLOATING CAB(W16) (B)	0-84100-506-0	01	1	1303-
261	ROD; LINK (A)	9-08410-514-0	01	1	1009-1302
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-514-0	01	1	1303-
278	COVER NEW ZEALAND EQUIPMENT(PK5) FULL FLOATING CAB(W16) (A) L=750 ID=7 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1304-
278	COVER FULL FLOATING CAB(W16) (B) L=400 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1303-
278	COVER (A) L=1200 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	1009-1302
278	COVER FULL FLOATING CAB(W16) (A) L=1200 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	1303-1303
278	COVER FULL FLOATING CAB(W16) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) L=1200 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	1304-
279	BOLT (C) M8X16 FLANGE	0-28050-816-0	04	1	1009-1302
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	1303-
279	BOLT (E) M8X60 FLANGE	0-28050-860-0	02	1	1009-1302
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	1303-
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	1009-1510
279	BOLT (B) M12X40 FLANGE	8-98270-173-0	04	1	1511-
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	04	1	1009-1302
279	BOLT (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	1009-1302
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	1303-1303
279	BOLT FULL FLOATING CAB(W16) EXC. NEW ZEALAND EQUIPMENT(PK5) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	1304-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	01	1	1009-1302
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	05	1	1303-
279	BOLT HONG KONG EQUIPMENT(PQ1) (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-
292	CONNECTOR; CAB SUSPENSION (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1009-1302
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1303-
292	CONNECTOR; CAB SUSPENSION (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	02	1	1009-1302
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (G) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	1303-
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1009-1302
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1303-
292	CONNECTOR; CAB SUSPENSION (D)	1-09661-577-0	01	1	1009-1302
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	1009-
292	CONNECTOR; CAB SUSPENSION (F) PT1/8 ELBOW	8-94338-418-1	01	1	1009-1302
315	WASHER; CAB MTG ID=34.5	1-53458-281-1	04	1	1009-
333	SPRING (B)	1-52110-142-3	02	1	1009-1302
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-4	02	1	1303-
333	SPRING (A)	1-52110-143-3	02	1	1009-1302
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-4	02	1	1303-
426	CLIP NEW ZEALAND EQUIPMENT(PK5) FULL FLOATING CAB(W16) (F) ID=5.8 L=8	8-94155-681-0	02	1	1304-
426	CLIP (A) ID=6 H=20 L=20	1-09700-603-0	02	1	1009-1302
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	1303-
426	CLIP (D) ID=5-12 L=14.5	1-09987-221-0	01	1	1009-1302
426	CLIP FULL FLOATING CAB(W16) (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1303-
426	CLIP (B) ID=9.5	5-09709-020-0	01	1	1009-1302
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	1303-
426	CLIP (C) ID=11 H=20 L=20	8-98033-780-0	01	1	1009-1302
426	CLIP FULL FLOATING CAB(W16) (C) ID=11 H=20 L=20	8-98033-780-0	01	1	1303-1303
426	CLIP FULL FLOATING CAB(W16) EXC. NEW ZEALAND EQUIPMENT(PK5) (C) ID=11 H=20 L=20	8-98033-780-0	01	1	1304-
426	CLIP FULL FLOATING CAB(W16) (E) ID=7 L=32	0-95234-665-0	01	1	1009-
427	TUBE SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1009-1302
427	TUBE FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1009-1302
427	TUBE FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87411-001-0	03	1	1303-
451	JOINT; BALL (B)	1-09760-103-2	02	1	1009-1302
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-103-2	02	1	1303-
451	JOINT; BALL (A)	1-09760-104-2	02	1	1009-1302
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-104-2	02	1	1303-
452	NUT; BALL JOINT (A) M5	0-91110-505-0	02	1	1009-1302
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	0-91110-505-0	02	1	1303-
452	NUT; BALL JOINT (B) M5 LH THREAD	9-09840-277-0	02	1	1009-1302
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	02	1	1303-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
