Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#69971) — 245 parça

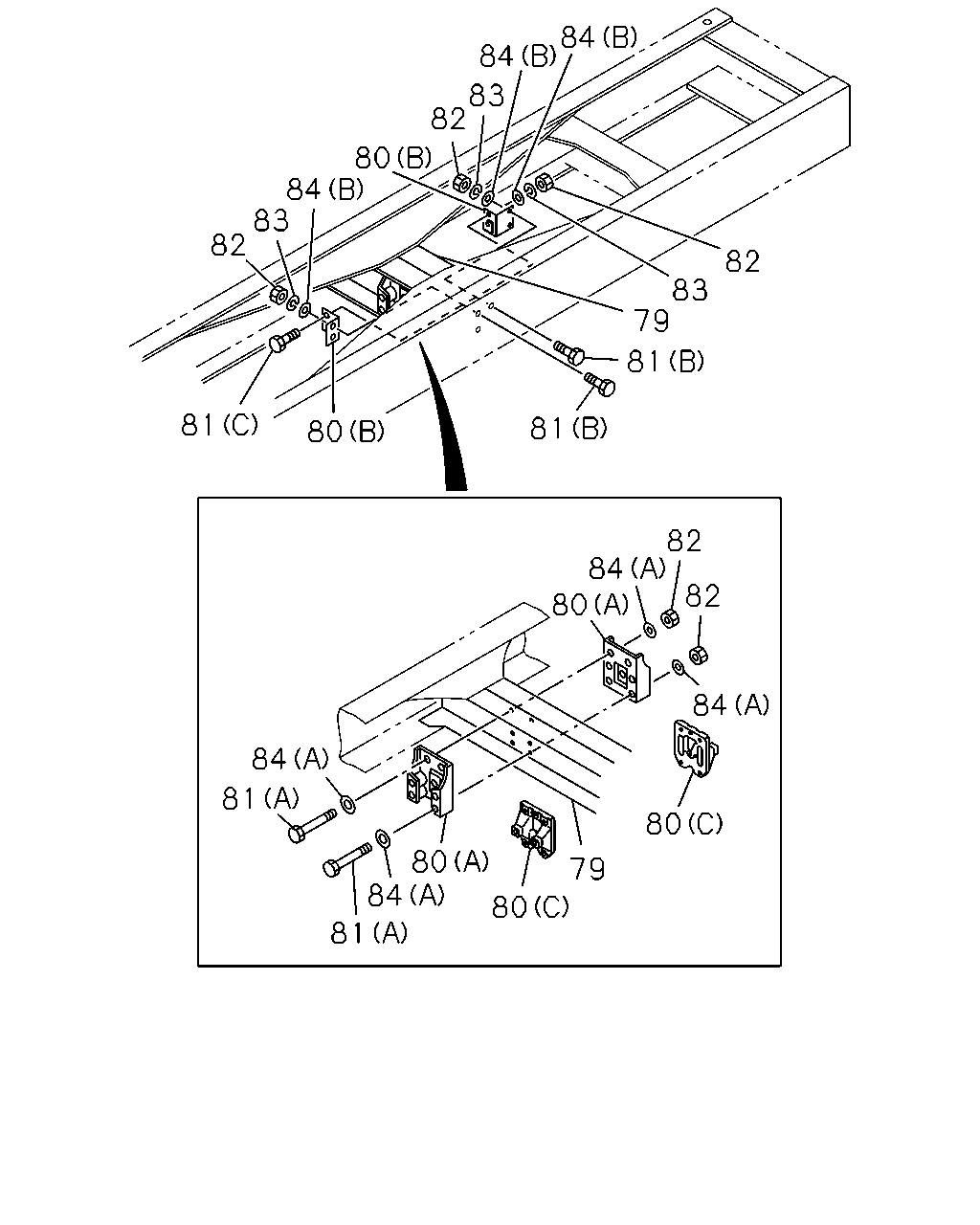

84 84 83 82 80 84 83 82 81 80 81 81 79 83 82 82 84 80 82 84 80 79 80 80 84 81 81 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
79	MEMBER; CROSS,TRUNNION ASM TRANSMISSION-FULLER RTLO169 18(Y3S)	8-98191-629-0	01	1	1303-	●
79	MEMBER; CROSS,TRUNNION ASM	1-53182-054-1	01	1	1009-1302	●	●
79	MEMBER; CROSS,TRUNNION ASM	8-98224-537-0	01	1	1303-1411		●
79	MEMBER; CROSS,TRUNNION ASM HONG KONG EQUIPMENT(PQ1)	8-98224-537-0	01	1	1303-1411	●
79	MEMBER; CROSS,TRUNNION ASM	8-98224-537-0	01	1	1412-		●
79	MEMBER; CROSS,TRUNNION ASM HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98224-537-0	01	1	1412-	●
80	BRACKET; C/MBR TRANSMISSION-FULLER RTLO169 18(Y3S) (B)	1-53167-610-0	04	1	1303-	●
80	BRACKET; C/MBR (A)	1-53363-031-2	02	1	1009-1302		●
80	BRACKET; C/MBR MJT7S M/T(Y3E) (A)	1-53363-031-2	02	1	1009-1302	●
80	BRACKET; C/MBR (A)	1-53363-031-2	02	1	1303-		●
80	BRACKET; C/MBR MJT7S M/T(Y3E),TRANSMISSION-FULLER RTLO169 18(Y3S) (A)	1-53363-031-2	02	1	1303-	●
80	BRACKET; C/MBR (B)	1-53167-665-1	02	1	1009-1302	●	●
80	BRACKET; C/MBR (B)	1-53167-665-1	02	1	1303-		●
80	BRACKET; C/MBR MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) (B)	1-53167-665-1	02	1	1303-	●
80	BRACKET; C/MBR (B)	1-53167-666-1	02	1	1009-1302	●	●
80	BRACKET; C/MBR (B)	1-53167-666-1	02	1	1303-		●
80	BRACKET; C/MBR MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) (B)	1-53167-666-1	02	1	1303-	●
80	BRACKET; C/MBR MJX12P M/T SMOOTHER-G(Y4S) (C)	1-53363-076-0	02	1	1009-	●
81	BOLT; BRKT (C) M14X60	0-20951-460-0	04	1	1303-	●	●
81	BOLT; BRKT MJT7S M/T(Y3E) (A) M14X50	0-20951-450-0	02	1	1303-	●
81	BOLT; BRKT TRANSMISSION-FULLER RTLO169 18(Y3S) (B) M14X40	0-20951-440-0	08	1	1303-	●
81	BOLT; BRKT (A) M14X100	9-91066-400-0	04	1	1009-1302		●
81	BOLT; BRKT MJT7S M/T(Y3E) (A) M14X100	9-91066-400-0	04	1	1009-1302	●
81	BOLT; BRKT (A) M14X50	0-20951-450-0	07	1	1303-		●
81	BOLT; BRKT TRANSMISSION-FULLER RTLO169 18(Y3S) (A) M14X50	0-20951-450-0	07	1	1303-	●
81	BOLT; BRKT (C) M14X50	0-10956-450-0	04	1	1009-1009	●	●
81	BOLT; BRKT (C) M14X55	9-91066-455-0	04	1	1009-1302	●	●
81	BOLT; BRKT (A) M14X205	1-09000-147-0	02	1	1303-		●
81	BOLT; BRKT MJT7S M/T(Y3E),TRANSMISSION-FULLER RTLO169 18(Y3S) (A) M14X205	1-09000-147-0	02	1	1303-	●
81	BOLT; BRKT (B) M14X45	9-92061-445-0	08	1	1009-1302	●	●
81	BOLT; BRKT (B) M14X45	0-20951-445-0	08	1	1303-		●
81	BOLT; BRKT MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) (B) M14X45	0-20951-445-0	08	1	1303-	●
81	BOLT; BRKT MJX12P M/T SMOOTHER-G(Y4S) (A) M14X100	0-10956-400-0	04	1	1009-	●
82	NUT; BRKT HONG KONG EQUIPMENT(PQ1) M14	0-91110-514-0	08	1	1303-1411	●
82	NUT; BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M14	0-91110-514-0	08	1	1412-	●
82	NUT; BRKT M14	0-91110-514-0	08	1	1009-1302	●	●
82	NUT; BRKT M14	0-91110-514-0	12	1	1303-	●	●
82	NUT; BRKT M14	0-91110-514-0	12	1	1009-1302	●	●
82	NUT; BRKT M14	0-91110-514-0	13	1	1303-		●
82	NUT; BRKT TRANSMISSION-FULLER RTLO169 18(Y3S) M14	0-91110-514-0	13	1	1303-	●
83	WASHER; LK,BRKT ID=14.2	0-91510-614-0	12	1	1009-1302	●	●
83	WASHER; LK,BRKT ID=14.2	0-91510-814-0	12	1	1303-	●	●
84	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	04	1	1009-1302		●
84	WASHER; PL,BRKT MJT7S M/T(Y3E) (A) ID=15	8-98010-627-1	04	1	1009-1302	●
84	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	08	1	1303-	●	●
84	WASHER; PL,BRKT (B) ID=15 OD=26	9-09164-514-0	16	1	1009-1104	●	●
84	WASHER; PL,BRKT (B) ID=15 OD=26	0-91614-514-0	16	1	1105-	●	●
84	WASHER; PL,BRKT MJX12P M/T SMOOTHER-G(Y4S) (A) ID=15	8-98010-627-1	08	1	1009-1302	●

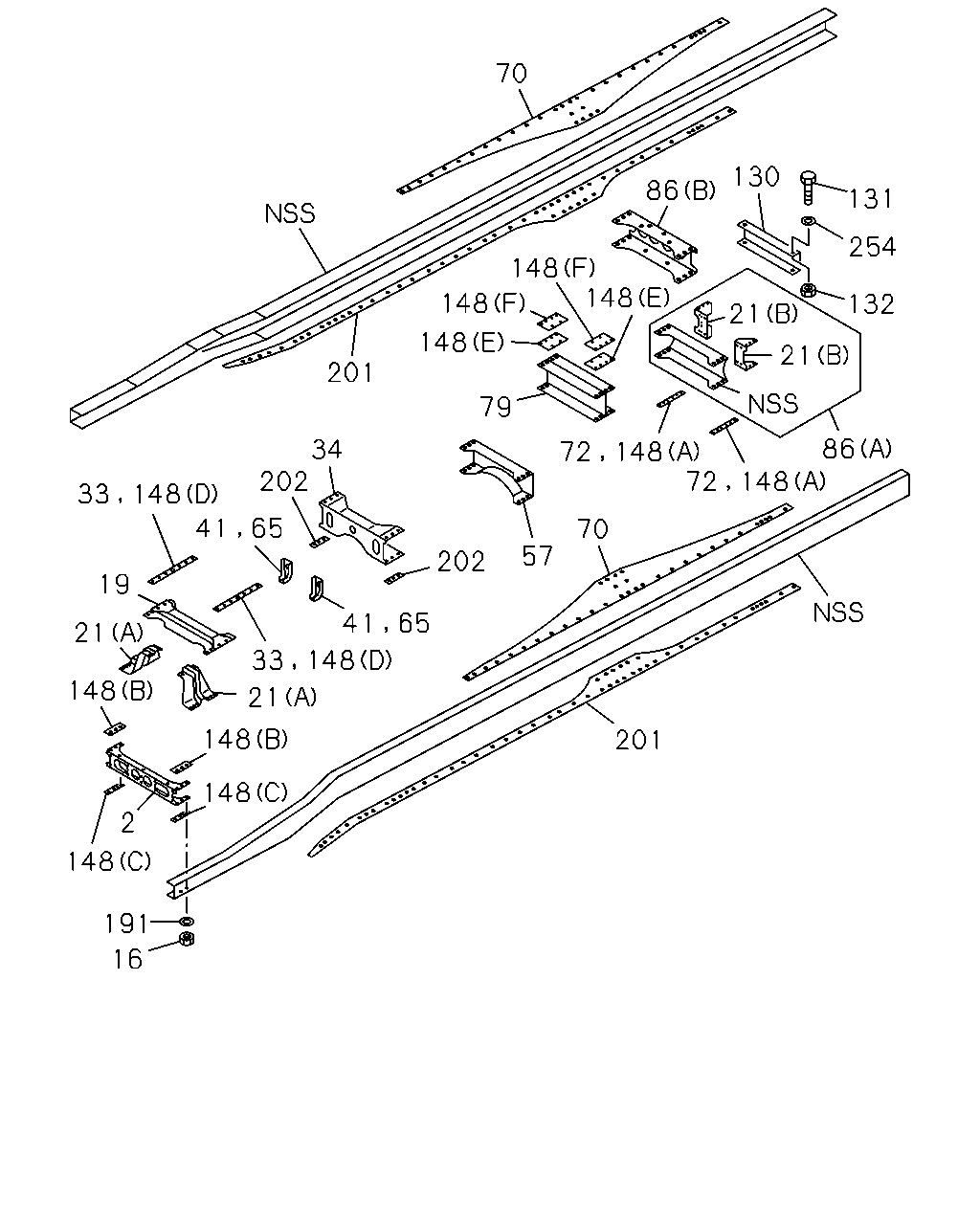

201 16 70 191 148 2 148 148 148 21 19 33 148 21 33 148 41 65 41 65 202 202 34 201 57 70 148 148 148 148 79 72 148 148 21 86 21 86 130 132 254 131 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MEMBER; CROSS,1ST	8-97604-959-3	01	1	1009-1302	●	●
2	MEMBER; CROSS,1ST	8-98232-274-1	01	1	1303-	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20951-640-0	02	1	1009-1302	●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20951-640-0	02	1	1303-	●	●
19	MEMBER; CROSS,2ND TRANSMISSION-FULLER RTLO169 18(Y3S)	8-98098-303-0	01	1	1303-	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1009-1302	●	●
19	MEMBER; CROSS,2ND	8-98098-302-0	01	1	1303-1411		●
19	MEMBER; CROSS,2ND HONG KONG EQUIPMENT(PQ1)	8-98098-302-0	01	1	1303-1411	●
19	MEMBER; CROSS,2ND	8-98098-302-0	01	1	1412-		●
19	MEMBER; CROSS,2ND HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98098-302-0	01	1	1412-	●
21	GUSSET; 2ND CROSS (A)	1-53164-225-0	02	1	1009-1302	●	●
21	GUSSET; 2ND CROSS (A)	8-98098-309-0	02	1	1303-1411		●
21	GUSSET; 2ND CROSS HONG KONG EQUIPMENT(PQ1) (A)	8-98098-309-0	02	1	1303-1411	●
21	GUSSET; 2ND CROSS (A)	8-98098-309-0	02	1	1412-		●
21	GUSSET; 2ND CROSS HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	8-98098-309-0	02	1	1412-	●
21	GUSSET; 2ND CROSS (B)	1-53167-287-3	02	1	1009-1302	●	●
21	GUSSET; 2ND CROSS TRANSMISSION-FULLER RTLO169 18(Y3S) (A)	8-98098-306-0	02	1	1303-	●
33	SPACER; 2ND C/MBR,UPR	8-98098-110-0	02	1	1303-		●
33	SPACER; 2ND C/MBR,UPR TRANSMISSION-FULLER RTLO169 18(Y3S)	8-98226-916-0	02	1	1303-	●
34	MEMBER; CROSS,3RD TRANSMISSION-FULLER RTLO169 18(Y3S)	8-98191-627-0	01	1	1303-	●
34	MEMBER; CROSS,3RD	8-98154-174-1	01	1	1009-1302	●	●
34	MEMBER; CROSS,3RD	8-98154-174-1	01	1	1303-1411		●
34	MEMBER; CROSS,3RD HONG KONG EQUIPMENT(PQ1)	8-98154-174-1	01	1	1303-1411	●
34	MEMBER; CROSS,3RD	8-98154-174-1	01	1	1412-		●
34	MEMBER; CROSS,3RD HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98154-174-1	01	1	1412-	●
41	BRACKET; CENTER BRG,FRAME SIDE L=330	1-53271-263-2	02	1	1009-1302		●
41	BRACKET; CENTER BRG,FRAME SIDE MJT7S M/T(Y3E) L=330	1-53271-263-2	02	1	1009-1302	●
41	BRACKET; CENTER BRG,FRAME SIDE MJT7S M/T(Y3E)	8-97614-139-0	02	1	1303-	●
41	BRACKET; CENTER BRG,FRAME SIDE MJX12P M/T SMOOTHER-G(Y4S) L=325	1-53271-341-0	02	1	1009-1302	●
41	BRACKET; CENTER BRG,FRAME SIDE MJX12P M/T SMOOTHER-G(Y4S)	8-97614-134-0	02	1	1303-	●
57	MEMBER; CROSS,RR SUSP FRT TRANSMISSION-FULLER RTLO169 18(Y3S)	8-98100-869-0	01	1	1303-	●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-994-1	01	1	1009-1302	●	●
57	MEMBER; CROSS,RR SUSP FRT	8-98101-103-0	01	1	1303-1411		●
57	MEMBER; CROSS,RR SUSP FRT HONG KONG EQUIPMENT(PQ1)	8-98101-103-0	01	1	1303-1411	●
57	MEMBER; CROSS,RR SUSP FRT	8-98101-103-0	01	1	1412-		●
57	MEMBER; CROSS,RR SUSP FRT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98101-103-0	01	1	1412-	●
65	BRACKET; CENTER BRG	8-97614-139-0	02	1	1303-		●
65	BRACKET; CENTER BRG TRANSMISSION-FULLER RTLO169 18(Y3S)	8-97614-134-0	02	1	1303-	●
70	GUSSET; TRUNNION,UPR TRANSMISSION-FULLER RTLO169 18(Y3S)	8-98191-623-0	02	1	1303-	●
70	GUSSET; TRUNNION,UPR	8-98164-593-0	02	1	1009-		●
70	GUSSET; TRUNNION,UPR	1-53182-058-2	02	1	1009-1302	●
70	GUSSET; TRUNNION,UPR HONG KONG EQUIPMENT(PQ1)	8-98226-956-0	02	1	1303-1411	●
70	GUSSET; TRUNNION,UPR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98226-956-0	02	1	1412-	●
72	SPACER; TRUNNION	8-98226-914-0	02	1	1303-		●
79	MEMBER; CROSS,TRUNNION ASM TRANSMISSION-FULLER RTLO169 18(Y3S)	8-98191-629-0	01	1	1303-	●
79	MEMBER; CROSS,TRUNNION ASM	1-53182-054-1	01	1	1009-1302	●	●
79	MEMBER; CROSS,TRUNNION ASM	8-98224-537-0	01	1	1303-1411		●
79	MEMBER; CROSS,TRUNNION ASM HONG KONG EQUIPMENT(PQ1)	8-98224-537-0	01	1	1303-1411	●
79	MEMBER; CROSS,TRUNNION ASM	8-98224-537-0	01	1	1412-		●
79	MEMBER; CROSS,TRUNNION ASM HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98224-537-0	01	1	1412-	●
86	MEMBER; CROSS,RR SUSP RR TRANSMISSION-FULLER RTLO169 18(Y3S) (B)	8-98105-054-1	01	1	1303-	●
86	MEMBER; CROSS,RR SUSP RR (A)	1-53181-134-2	01	1	1009-1302	●	●
86	MEMBER; CROSS,RR SUSP RR (A)	8-98224-542-0	01	1	1303-1411		●
86	MEMBER; CROSS,RR SUSP RR HONG KONG EQUIPMENT(PQ1) (A)	8-98224-542-0	01	1	1303-1411	●
86	MEMBER; CROSS,RR SUSP RR (A)	8-98224-542-0	01	1	1412-		●
86	MEMBER; CROSS,RR SUSP RR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	8-98224-542-0	01	1	1412-	●
130	MEMBER; CROSS,END TRANSMISSION-FULLER RTLO169 18(Y3S)	8-98105-203-0	01	1	1303-	●
130	MEMBER; CROSS,END	1-53181-537-2	01	1	1009-1302	●
130	MEMBER; CROSS,END HONG KONG EQUIPMENT(PQ1)	8-98103-326-1	01	1	1303-1411	●
130	MEMBER; CROSS,END HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98103-326-1	01	1	1412-	●
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	1009-1302	●
131	BOLT; END C/MBR HONG KONG EQUIPMENT(PQ1) M14X40	0-20951-440-0	04	1	1303-1411	●
131	BOLT; END C/MBR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M14X40	0-20951-440-0	04	1	1412-	●
132	NUT; END C/MBR M14	0-91110-514-0	04	1	1009-1302	●
132	NUT; END C/MBR HONG KONG EQUIPMENT(PQ1) M14	0-91110-514-0	04	1	1303-1411	●
132	NUT; END C/MBR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M14	0-91110-514-0	04	1	1412-	●
148	SPACER; C/MBR TRANSMISSION-FULLER RTLO169 18(Y3S) (E)	8-97623-189-0	02	1	1303-	●
148	SPACER; C/MBR (A)	1-53168-493-0	02	1	1009-1302		●
148	SPACER; C/MBR HONG KONG EQUIPMENT(PQ1) (E)	8-98226-910-0	02	1	1303-1411	●
148	SPACER; C/MBR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E)	8-98226-910-0	02	1	1412-	●
148	SPACER; C/MBR (B)	1-53168-400-1	02	1	1009-1302	●	●
148	SPACER; C/MBR (B)	8-98118-884-2	02	1	1303-	●	●
148	SPACER; C/MBR (C)	1-53168-403-1	02	1	1009-1302	●	●
148	SPACER; C/MBR (C)	8-98118-885-0	02	1	1303-	●	●
148	SPACER; C/MBR (D)	1-53168-443-0	02	1	1009-1302	●	●
148	SPACER; C/MBR (E) T=7.0	1-53168-486-0	02	1	1009-1302	●	●
148	SPACER; C/MBR HONG KONG EQUIPMENT(PQ1) (D)	8-98098-110-0	02	1	1303-1411	●
148	SPACER; C/MBR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D)	8-98098-110-0	02	1	1412-	●
148	SPACER; C/MBR (F) T=7.5	1-53168-487-0	02	1	1009-1302	●	●
148	SPACER; C/MBR HONG KONG EQUIPMENT(PQ1) (F)	8-98224-539-0	02	1	1303-1411	●
148	SPACER; C/MBR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (F)	8-98224-539-0	02	1	1412-	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-316-0	02	1	1009-1302	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-316-0	02	1	1303-	●	●
201	GUSSET; C/MBR TRANSMISSION-FULLER RTLO169 18(Y3S)	8-98236-964-0	02	1	1303-	●
201	GUSSET; C/MBR	1-53182-057-1	02	1	1009-1302		●
201	GUSSET; C/MBR	8-98226-963-0	02	1	1303-		●
201	GUSSET; C/MBR	1-53182-059-3	02	1	1009-1302	●
201	GUSSET; C/MBR HONG KONG EQUIPMENT(PQ1)	8-98226-964-0	02	1	1303-1411	●
201	GUSSET; C/MBR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98226-964-0	02	1	1412-	●
202	SPACER; 3RD C/MBR	1-53168-506-0	02	1	1009-1302	●	●
202	SPACER; 3RD C/MBR	8-98226-911-0	02	1	1303-1411		●
202	SPACER; 3RD C/MBR HONG KONG EQUIPMENT(PQ1)	8-98226-911-0	02	1	1303-1411	●
202	SPACER; 3RD C/MBR	8-98226-911-0	02	1	1412-		●
202	SPACER; 3RD C/MBR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98226-911-0	02	1	1412-	●
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	04	1	1009-1302	●
254	WASHER; PL,C/MBR HONG KONG EQUIPMENT(PQ1) ID=15	8-98010-627-1	04	1	1303-1411	●
254	WASHER; PL,C/MBR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=15	8-98010-627-1	04	1	1412-	●

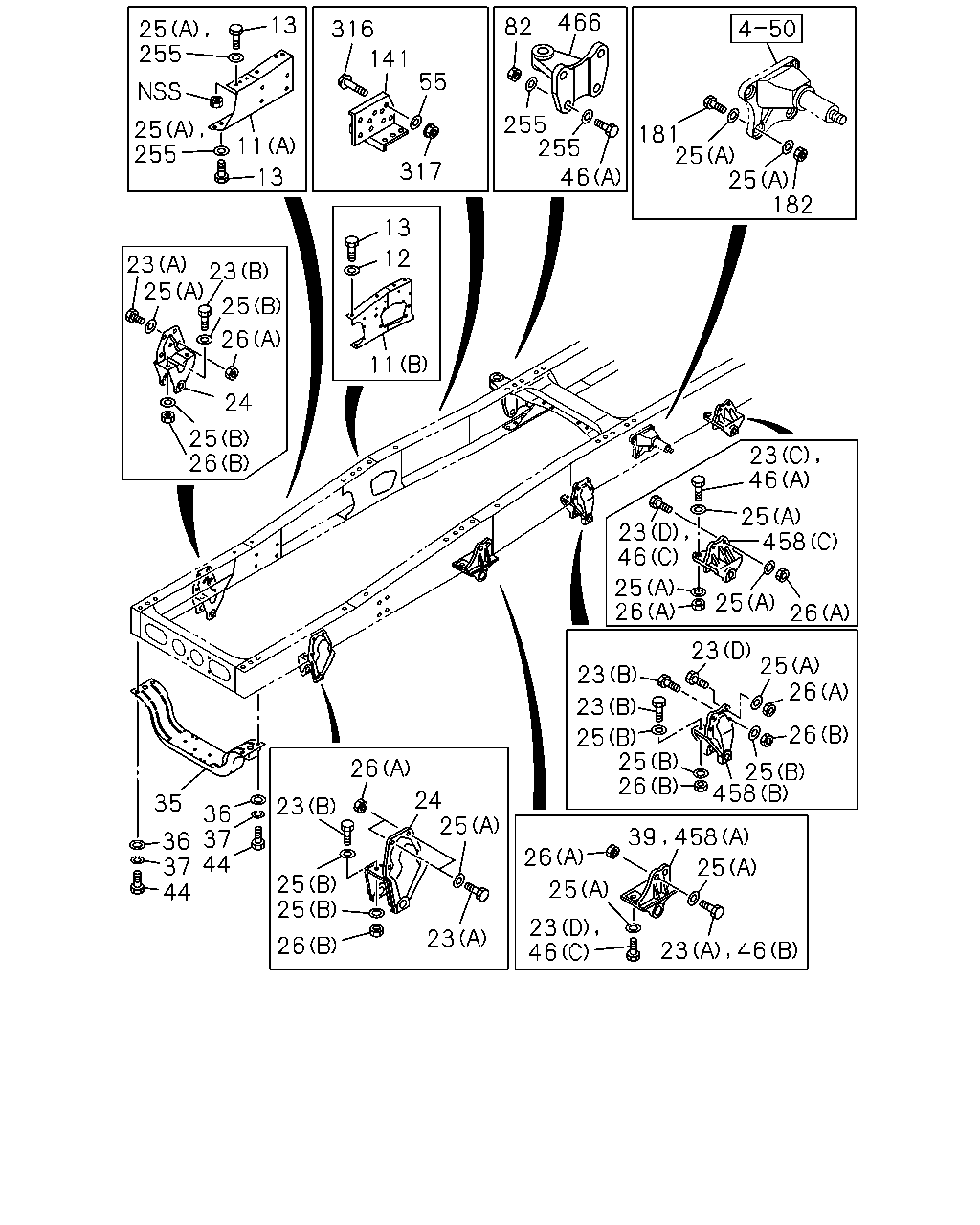

25 25 255 255 13 11 141 316 13 317 55 13 11 12 23 26 25 24 25 25 23 26 466 82 255 181 46 255 25 182 25 23 25 46 458 26 25 26 23 25 25 46 26 26 25 458 26 25 25 23 23 26 458 25 46 23 25 23 46 23 25 24 26 23 25 25 26 44 36 35 36 37 44 37 23 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BRACKET; ENG MTG (B)	1-53221-238-0	01	1	1009-1302		●
11	BRACKET; ENG MTG TRANSMISSION-FULLER RTLO169 18(Y3S) (B)	8-98056-611-1	01	1	1303-	●
11	BRACKET; ENG MTG (B)	1-53221-239-2	01	1	1009-1302		●
11	BRACKET; ENG MTG TRANSMISSION-FULLER RTLO169 18(Y3S) (B)	8-98056-612-0	01	1	1303-	●
11	BRACKET; ENG MTG (A)	1-53211-367-1	01	1	1009-	●	●
11	BRACKET; ENG MTG (A)	1-53211-368-1	01	1	1009-	●	●
11	BRACKET; ENG MTG (B)	1-53221-226-4	01	1	1009-1302	●
11	BRACKET; ENG MTG (B)	1-53221-226-4	01	1	1303-1411		●
11	BRACKET; ENG MTG HONG KONG EQUIPMENT(PQ1) (B)	1-53221-226-4	01	1	1303-1411	●
11	BRACKET; ENG MTG (B)	1-53221-226-4	01	1	1412-		●
11	BRACKET; ENG MTG HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-53221-226-4	01	1	1412-	●
11	BRACKET; ENG MTG (B)	1-53221-227-4	01	1	1009-1302	●
11	BRACKET; ENG MTG (B)	1-53221-227-4	01	1	1303-1411		●
11	BRACKET; ENG MTG HONG KONG EQUIPMENT(PQ1) (B)	1-53221-227-4	01	1	1303-1411	●
11	BRACKET; ENG MTG (B)	1-53221-227-4	01	1	1412-		●
11	BRACKET; ENG MTG HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-53221-227-4	01	1	1412-	●
12	WASHER; PL,BRKT,ENG MTG ID=15	8-98010-627-1	02	1	1009-1302	●	●
12	WASHER; PL,BRKT,ENG MTG HONG KONG EQUIPMENT(PQ1) ID=15	8-98010-627-1	02	1	1303-1411	●
12	WASHER; PL,BRKT,ENG MTG HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=15	8-98010-627-1	02	1	1412-	●
13	BOLT; BRKT,ENG MTG TRANSMISSION-FULLER RTLO169 18(Y3S) M14X40	0-20951-440-0	04	1	1303-	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	06	1	1009-1302	●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	06	1	1303-1411		●
13	BOLT; BRKT,ENG MTG HONG KONG EQUIPMENT(PQ1) M14X40	0-20951-440-0	06	1	1303-1411	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	06	1	1412-		●
13	BOLT; BRKT,ENG MTG HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M14X40	0-20951-440-0	06	1	1412-	●
23	BOLT; BRKT,SPR HONG KONG EQUIPMENT(PQ1) (A) M14X40	0-20951-440-0	12	1	1303-1411	●
23	BOLT; BRKT,SPR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M14X40	0-20951-440-0	12	1	1412-	●
23	BOLT; BRKT,SPR HONG KONG EQUIPMENT(PQ1) (D) M14X50	0-20951-450-0	12	1	1303-1411	●
23	BOLT; BRKT,SPR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) M14X50	0-20951-450-0	12	1	1412-	●
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	12	1	1009-1302	●	●
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	08	1	1303-		●
23	BOLT; BRKT,SPR TRANSMISSION-FULLER RTLO169 18(Y3S) (A) M14X40	0-20951-440-0	08	1	1303-	●
23	BOLT; BRKT,SPR (D) M14X50	0-20951-450-0	12	1	1009-1302	●	●
23	BOLT; BRKT,SPR (D) M14X50	0-20951-450-0	04	1	1303-		●
23	BOLT; BRKT,SPR TRANSMISSION-FULLER RTLO169 18(Y3S) (D) M14X50	0-20951-450-0	04	1	1303-	●
23	BOLT; BRKT,SPR (C) M14X60	0-20951-460-0	04	1	1009-1302	●	●
23	BOLT; BRKT,SPR HONG KONG EQUIPMENT(PQ1) (C) M14X60	0-20951-460-0	04	1	1303-1411	●
23	BOLT; BRKT,SPR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) M14X60	0-20951-460-0	04	1	1412-	●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	12	1	1009-	●	●
24	BRACKET; FRT SPR,FRT	1-53351-237-1	01	1	1009-1411	●	●
24	BRACKET; FRT SPR,FRT	1-53351-237-1	01	1	1412-	●	●
24	BRACKET; FRT SPR,FRT	1-53351-238-1	01	1	1009-1411	●	●
24	BRACKET; FRT SPR,FRT	1-53351-238-1	01	1	1412-	●	●
25	WASHER; PL,BRKT HONG KONG EQUIPMENT(PQ1) (A) ID=15	8-98010-627-1	52	1	1303-1411	●
25	WASHER; PL,BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=15	8-98010-627-1	52	1	1412-	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	20	1	1009-	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	52	1	1009-1302	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	48	1	1303-		●
25	WASHER; PL,BRKT TRANSMISSION-FULLER RTLO169 18(Y3S) (A) ID=15	8-98010-627-1	48	1	1303-	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	24	1	1009-	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	12	1	1009-	●	●
35	MEMBER; UNDER	1-53174-263-2	01	1	1009-	●	●
36	WASHER; PL,UNDER MBR ID=17	9-09164-516-0	04	1	1009-1302	●	●
36	WASHER; PL,UNDER MBR ID=17	0-91614-516-0	04	1	1303-	●	●
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	1009-	●	●
39	BRACKET; FRT SPR,RR	1-53352-179-0	01	1	1303-		●
39	BRACKET; FRT SPR,RR TRANSMISSION-FULLER RTLO169 18(Y3S)	1-53352-179-0	01	1	1303-	●
39	BRACKET; FRT SPR,RR	1-53352-180-0	01	1	1303-		●
39	BRACKET; FRT SPR,RR TRANSMISSION-FULLER RTLO169 18(Y3S)	1-53352-180-0	01	1	1303-	●
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	1009-	●	●
46	BOLT; BRKT FIX (C) M14X50	0-20951-450-0	08	1	1303-		●
46	BOLT; BRKT FIX (B) M14X40	0-20951-440-0	04	1	1303-		●
46	BOLT; BRKT FIX TRANSMISSION-FULLER RTLO169 18(Y3S) (B) M14X40	0-20951-440-0	04	1	1303-	●
46	BOLT; BRKT FIX (A) M14X60	0-20951-460-0	04	1	1303-	●
46	BOLT; BRKT FIX TRANSMISSION-FULLER RTLO169 18(Y3S) (C) M14X50	0-20951-450-0	12	1	1303-	●
46	BOLT; BRKT FIX (A) M14X60	0-20951-460-0	04	1	1009-1302	●	●
46	BOLT; BRKT FIX (A) M14X60	0-20951-460-0	08	1	1303-		●
55	WASHER; PL ID=15	8-98010-627-1	10	1	1009-	●	●
82	NUT; BRKT HONG KONG EQUIPMENT(PQ1) M14	0-91110-514-0	08	1	1303-1411	●
82	NUT; BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M14	0-91110-514-0	08	1	1412-	●
82	NUT; BRKT M14	0-91110-514-0	08	1	1009-1302	●	●
82	NUT; BRKT M14	0-91110-514-0	12	1	1303-	●	●
82	NUT; BRKT M14	0-91110-514-0	12	1	1009-1302	●	●
82	NUT; BRKT M14	0-91110-514-0	13	1	1303-		●
82	NUT; BRKT TRANSMISSION-FULLER RTLO169 18(Y3S) M14	0-91110-514-0	13	1	1303-	●
141	STIFFENER	1-53151-833-1	01	1	1009-1302	●	●
141	STIFFENER	8-98100-160-0	01	1	1303-	●	●
181	BOLT; S/ABS BRKT TO FRAME M14X50	0-20951-450-0	08	1	1009-	●	●
182	NUT; S/ABS BRKT TO FRAME M14	0-91110-514-0	08	1	1009-	●	●
255	WASHER; PL,BRKT HONG KONG EQUIPMENT(PQ1) ID=15	8-98010-627-1	08	1	1303-1411	●
255	WASHER; PL,BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=15	8-98010-627-1	08	1	1412-	●
255	WASHER; PL,BRKT TRANSMISSION-FULLER RTLO169 18(Y3S) ID=15	8-98010-627-1	16	1	1303-	●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	08	1	1009-1302	●	●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	14	1	1303-		●
316	BOLT; STIFFENER M14X50	0-20951-450-0	05	1	1009-1302	●	●
316	BOLT; STIFFENER HONG KONG EQUIPMENT(PQ1) M14X50	0-20951-450-0	05	1	1303-1411	●
316	BOLT; STIFFENER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M14X50	0-20951-450-0	05	1	1412-	●
317	NUT; STIFFENER M14	0-91110-514-0	05	1	1009-1302	●	●
317	NUT; STIFFENER HONG KONG EQUIPMENT(PQ1) M14	0-91110-514-0	05	1	1303-1411	●
317	NUT; STIFFENER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M14	0-91110-514-0	05	1	1412-	●
458	BRACKET; LEAF SPRING (B)	1-53351-217-0	01	1	1009-	●	●
458	BRACKET; LEAF SPRING (B)	1-53351-218-0	01	1	1009-	●	●
458	BRACKET; LEAF SPRING (C)	1-53352-067-3	02	1	1009-	●	●
458	BRACKET; LEAF SPRING (A)	1-53352-179-0	01	1	1009-1302	●	●
458	BRACKET; LEAF SPRING HONG KONG EQUIPMENT(PQ1) (A)	1-53352-179-0	01	1	1303-1411	●
458	BRACKET; LEAF SPRING HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-53352-179-0	01	1	1412-	●
458	BRACKET; LEAF SPRING (A)	1-53352-180-0	01	1	1009-1302	●	●
458	BRACKET; LEAF SPRING HONG KONG EQUIPMENT(PQ1) (A)	1-53352-180-0	01	1	1303-1411	●
458	BRACKET; LEAF SPRING HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-53352-180-0	01	1	1412-	●
466	BRACKET; BOOSTER	1-44515-073-0	01	1	1009-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
