3-46 — AIR DRYER
(#6997) — 35 parça
◀

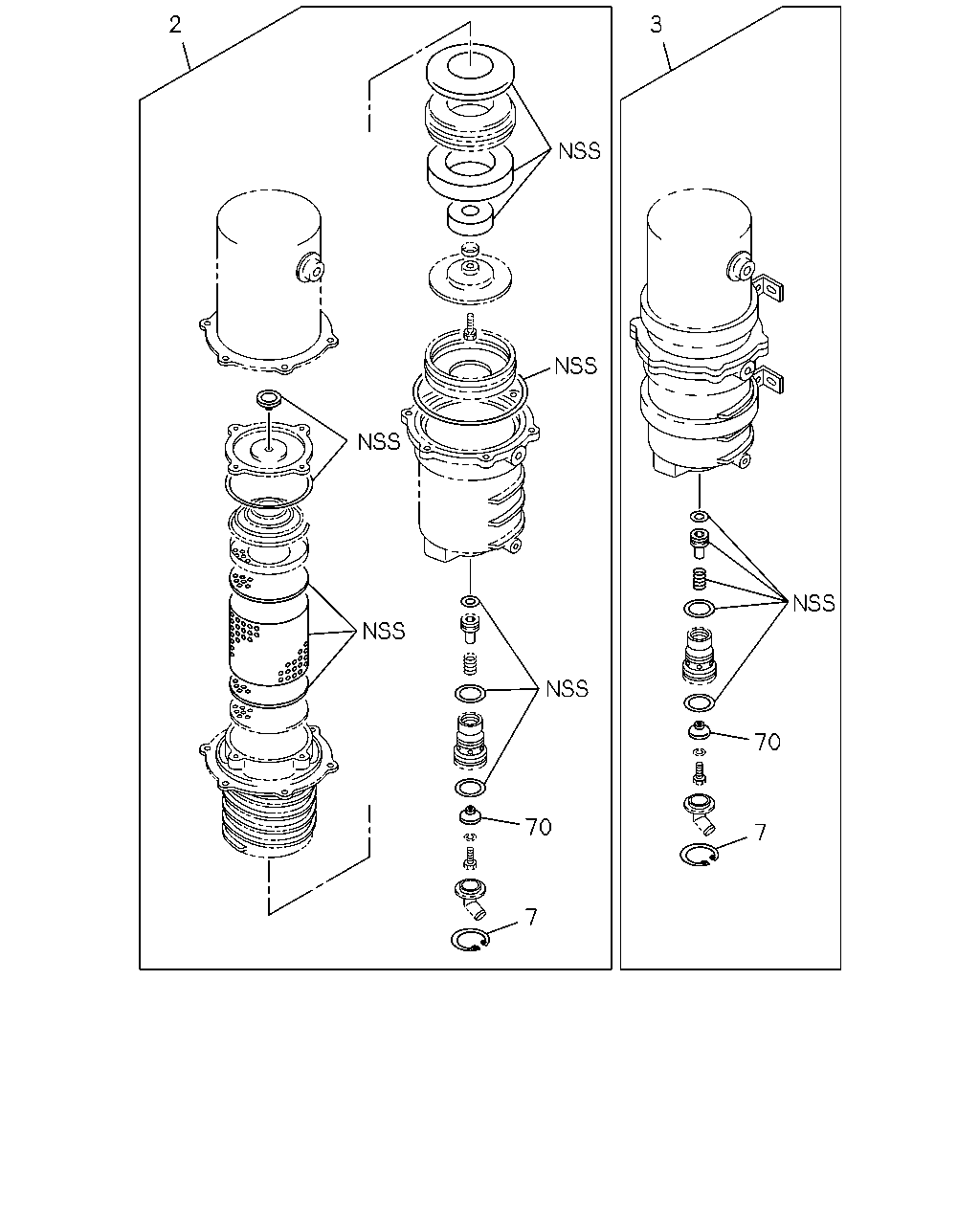

[346A] REPAIR KIT AND PISTON KIT (4 parça)

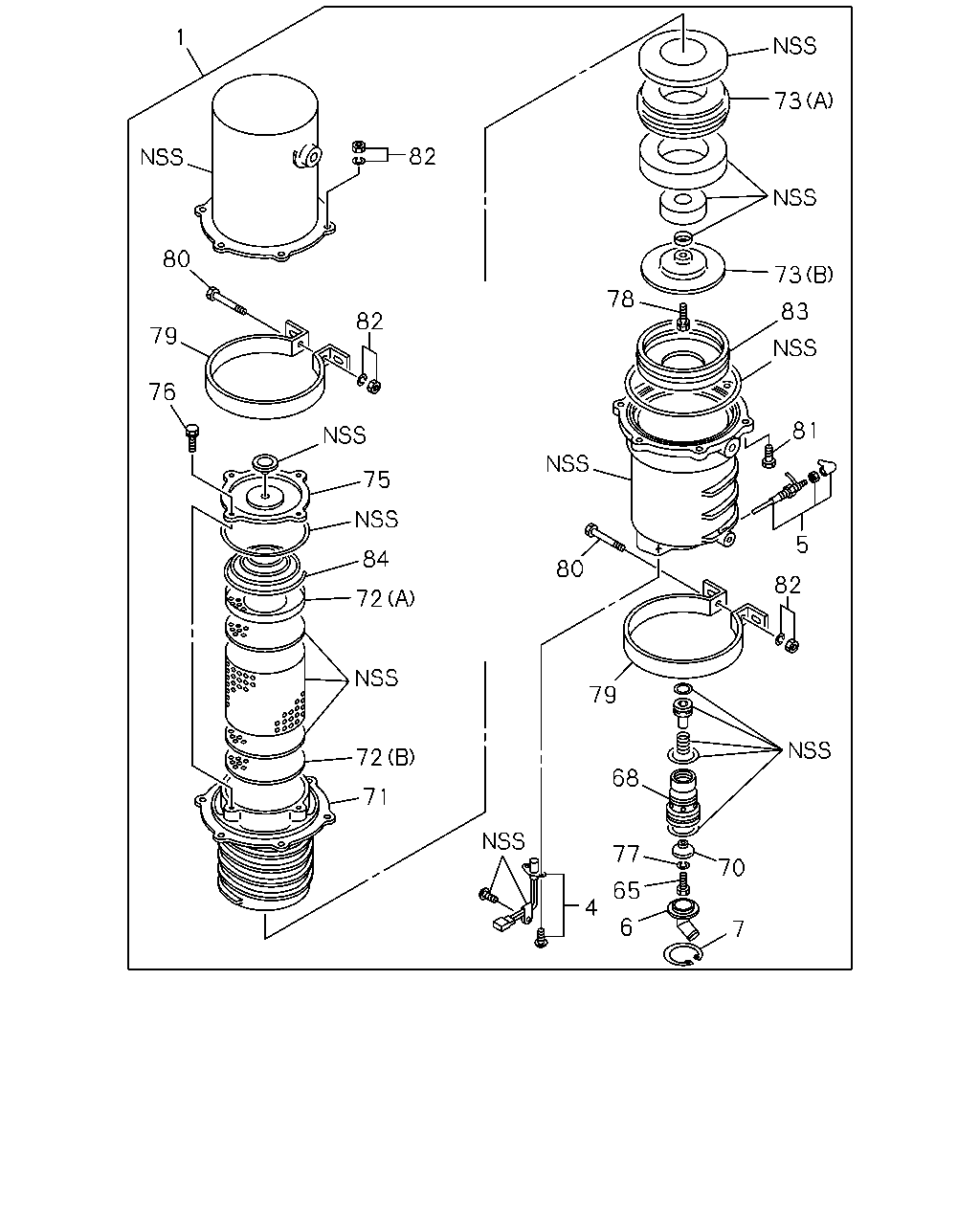

[346A] COMPONENT (23 parça)
[346A] BRACKET AND CONNECTOR FIXING (8 parça)
▶
2
3
70
70
7
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-161-0
01
1
9908-
3
PISTON KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-084-0
01
1
9908-
7
RING; SNAP,AIR DRYER
AIR DRYER<PS7>
1-48199-100-0
01
1
9908-
70
VALVE; AIR DRYER
AIR DRYER<PS7>
1-48199-105-0
01
1
9908-
1
73
82
80
73
78
83
82
79
76
81
75
5
84
80
82
72
79
72
68
71
77
70
65
4
6
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
AIR DRYER<PS7>
1-48190-168-1
01
1
9908-
4
THERMOSTAT KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-121-0
01
1
9908-
5
HEATER ASM; AIR DRYER
AIR DRYER<PS7>
1-48199-200-0
01
1
9908-
6
COVER; EXH,AIR DRYER
AIR DRYER<PS7>
1-48199-132-0
01
1
9908-
7
RING; SNAP,AIR DRYER
AIR DRYER<PS7>
1-48199-100-0
01
1
9908-
65
BOLT; PURGE VLV
AIR DRYER<PS7>
1-48199-102-0
01
1
9908-
68
BODY; VALVE
AIR DRYER<PS7>
1-48199-216-0
01
1
9908-
70
VALVE; AIR DRYER
AIR DRYER<PS7>
1-48199-105-0
01
1
9908-
71
CASE; INNER,AIR DRYER
AIR DRYER<PS7>
1-48199-374-0
01
1
9908-
72
PLATE; FILTER,AIR DRYER
AIR DRYER<PS7> (A)
1-48199-097-0
01
1
9908-
72
PLATE; FILTER,AIR DRYER
AIR DRYER<PS7> (B)
1-48199-382-0
01
1
9908-
73
COVER; FILTER,AIR DRYER
AIR DRYER<PS7> (A)
1-48199-377-0
01
1
9908-
73
COVER; FILTER,AIR DRYER
AIR DRYER<PS7> (B)
1-48199-379-0
01
1
9908-
75
COVER; CASE,AIR DRYER
AIR DRYER<PS7>
1-48199-383-0
01
1
9908-
76
BOLT; COVER,AIR DRYER
AIR DRYER<PS7>
1-48199-385-0
04
1
9908-
77
WASHER; LK,VALVE
AIR DRYER<PS7>
1-48199-103-0
01
1
9908-
78
BOLT; OIL FILTER,AIR DRYER
AIR DRYER<PS7>
1-48199-380-0
01
1
9908-
79
BRACKET; AIR DRYER
AIR DRYER<PS7>
1-48199-209-0
02
1
9908-
80
BOLT; BRKT
AIR DRYER<PS7>
1-48199-212-0
02
1
9908-
81
BOLT; CASE,AIR DRYER
AIR DRYER<PS7>
1-48199-208-0
06
1
9908-
82
NUT; CASE,AIR DRYER
AIR DRYER<PS7>
1-48199-320-0
08
1
9908-
83
BAFFLE; AIR DRYER
AIR DRYER<PS7>
1-48199-381-0
01
1
9908-
84
SPRING; AIR DRYER
AIR DRYER<PS7>
1-48199-092-0
01
1
9908-
13
13
11
12
10
1
8
9
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
AIR DRYER<PS7>
1-48190-168-1
01
1
9908-
8
CONNECTOR; OUT,AIR DRYER
AIR DRYER<PS7> M20 & PT1/2 ELBOW
1-09650-443-0
01
1
9908-
9
CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (A) M22 & PT1/2 ELBOW
1-09650-444-0
01
1
9908-
9
CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (B) M12X2 & PT1/4 3WAY
1-09656-229-1
01
1
9908-
10
BOLT; AIR DRYER
AIR DRYER<PS7> M10X30 FLANGE
0-28681-030-0
04
1
9908-
11
BRACKET; AIR DRYER
AIR DRYER<PS7>
1-48317-713-0
01
1
9908-
12
BOLT; BRKT
AIR DRYER<PS7> M10X35 FLANGE
0-28681-035-0
04
1
9908-
13
NUT; AIR DRYER
AIR DRYER<PS7> M10 FLANGE
0-91150-210-0
06
1
9908-
