◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11289 - CYH RHD EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65 - REAR LEAF SPRING ▶
4-65 — REAR LEAF SPRING (#69969) — 58 parça

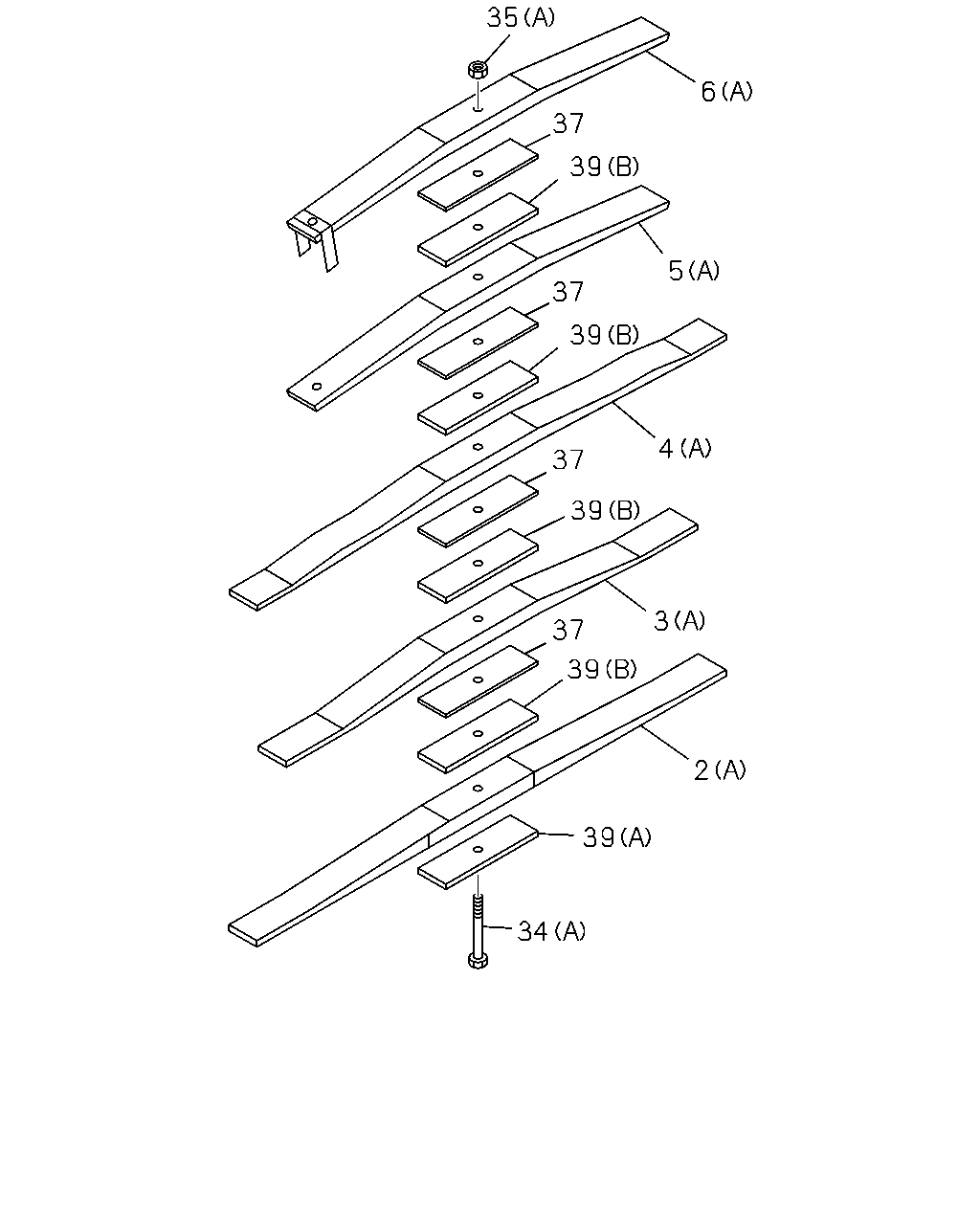

çizim 125029
35 37 6 39 37 5 39 4 37 3 39 37 39 2 39 34
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
(B) ASM PART: A = 1-51410-294-0 		1-51411-294-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
(A) ASM PART: B = 8-98101-101-1 		8-98105-240-0 01 1 -1109
2 SPRING; LEAF,NO 1,RR MAIN
(A) ASM PART: C = 8-98102-211-1 		8-98105-245-0 01 1 -1109
2 SPRING; LEAF,NO 1,RR MAIN
(A) ASM PART: B = 8-98101-101-1 		8-98199-311-0 01 1 1110-
2 SPRING; LEAF,NO 1,RR MAIN
(A) ASM PART: C = 8-98102-211-1 		8-98199-314-0 01 1 1110-
3 SPRING; LEAF,NO 2,RR MAIN
(B) ASM PART: A = 1-51410-294-0 		1-51412-294-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
(A) ASM PART: B = 8-98101-101-1 		8-98105-241-0 01 1 -1109
3 SPRING; LEAF,NO 2,RR MAIN
(A) ASM PART: C = 8-98102-211-1 		8-98105-246-0 01 1 -1109
3 SPRING; LEAF,NO 2,RR MAIN
(A) ASM PART: B = 8-98101-101-1 		8-98199-312-0 01 1 1110-
3 SPRING; LEAF,NO 2,RR MAIN
(A) ASM PART: C = 8-98102-211-1 		8-98199-315-0 01 1 1110-
4 SPRING; LEAF,NO 3,RR MAIN
(B) ASM PART: A = 1-51410-294-0 		1-51413-294-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
(A) ASM PART: B = 8-98101-101-1 		8-98105-242-0 01 1 -1109
4 SPRING; LEAF,NO 3,RR MAIN
(A) ASM PART: C = 8-98102-211-1 		8-98105-247-0 01 1 -1109
4 SPRING; LEAF,NO 3,RR MAIN
(A) ASM PART: B = 8-98101-101-1 		8-98199-313-0 01 1 1110-
4 SPRING; LEAF,NO 3,RR MAIN
(A) ASM PART: C = 8-98102-211-1 		8-98199-316-0 01 1 1110-
5 SPRING; LEAF,NO 4,RR MAIN
(B) ASM PART: A = 1-51410-294-0 		1-51414-294-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
(A) ASM PART: B = 8-98101-101-1 		8-98105-243-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
(A) ASM PART: C = 8-98102-211-1 		8-98105-248-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
(B) ASM PART: A = 1-51410-294-0 		1-51415-294-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
(A) ASM PART: B = 8-98101-101-1 		8-98105-244-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
(A) ASM PART: C = 8-98102-211-1 		8-98105-249-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
(B), L=205 ASM PART: A = 1-51410-294-0 		1-51356-120-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
(A), L=210 ASM PART: B = 8-98101-101-1, C = 8-98102-211-1 		1-51356-364-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
(B), M16 ASM PART: A = 1-51410-294-0 		1-09400-054-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
(A), M16 ASM PART: B = 8-98101-101-1, C = 8-98102-211-1 		1-09400-061-0 01 1 -
37 SPACER; CENTER,LEAF SPR,RR
T=1.2 ASM PART: B = 8-98101-101-1, C = 8-98102-211-1 		1-51359-037-0 04 1 -
39 SEAT; LEAF SPR,RR MAIN
(B), T=6 ASM PART: B = 8-98101-101-1, C = 8-98102-211-1 		1-51377-399-0 04 1 -
39 SEAT; LEAF SPR,RR MAIN
(A), T=3.2 ASM PART: B = 8-98101-101-1, C = 8-98102-211-1 		8-97615-292-0 01 1 -
çizim 188439
34 2 3 4 5 6 36 7 8 9 10 35
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
(B) ASM PART: A = 1-51410-294-0 		1-51411-294-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
(A) ASM PART: B = 8-98101-101-1 		8-98105-240-0 01 1 -1109
2 SPRING; LEAF,NO 1,RR MAIN
(A) ASM PART: C = 8-98102-211-1 		8-98105-245-0 01 1 -1109
2 SPRING; LEAF,NO 1,RR MAIN
(A) ASM PART: B = 8-98101-101-1 		8-98199-311-0 01 1 1110-
2 SPRING; LEAF,NO 1,RR MAIN
(A) ASM PART: C = 8-98102-211-1 		8-98199-314-0 01 1 1110-
3 SPRING; LEAF,NO 2,RR MAIN
(B) ASM PART: A = 1-51410-294-0 		1-51412-294-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
(A) ASM PART: B = 8-98101-101-1 		8-98105-241-0 01 1 -1109
3 SPRING; LEAF,NO 2,RR MAIN
(A) ASM PART: C = 8-98102-211-1 		8-98105-246-0 01 1 -1109
3 SPRING; LEAF,NO 2,RR MAIN
(A) ASM PART: B = 8-98101-101-1 		8-98199-312-0 01 1 1110-
3 SPRING; LEAF,NO 2,RR MAIN
(A) ASM PART: C = 8-98102-211-1 		8-98199-315-0 01 1 1110-
4 SPRING; LEAF,NO 3,RR MAIN
(B) ASM PART: A = 1-51410-294-0 		1-51413-294-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
(A) ASM PART: B = 8-98101-101-1 		8-98105-242-0 01 1 -1109
4 SPRING; LEAF,NO 3,RR MAIN
(A) ASM PART: C = 8-98102-211-1 		8-98105-247-0 01 1 -1109
4 SPRING; LEAF,NO 3,RR MAIN
(A) ASM PART: B = 8-98101-101-1 		8-98199-313-0 01 1 1110-
4 SPRING; LEAF,NO 3,RR MAIN
(A) ASM PART: C = 8-98102-211-1 		8-98199-316-0 01 1 1110-
5 SPRING; LEAF,NO 4,RR MAIN
(B) ASM PART: A = 1-51410-294-0 		1-51414-294-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
(A) ASM PART: B = 8-98101-101-1 		8-98105-243-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
(A) ASM PART: C = 8-98102-211-1 		8-98105-248-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
(B) ASM PART: A = 1-51410-294-0 		1-51415-294-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
(A) ASM PART: B = 8-98101-101-1 		8-98105-244-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
(A) ASM PART: C = 8-98102-211-1 		8-98105-249-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 1-51410-294-0 		1-51416-294-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: A = 1-51410-294-0 		1-51417-294-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
ASM PART: A = 1-51410-294-0 		1-51418-294-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
ASM PART: A = 1-51410-294-0 		1-51419-294-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
(B), L=205 ASM PART: A = 1-51410-294-0 		1-51356-120-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
(A), L=210 ASM PART: B = 8-98101-101-1, C = 8-98102-211-1 		1-51356-364-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
(B), M16 ASM PART: A = 1-51410-294-0 		1-09400-054-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
(A), M16 ASM PART: B = 8-98101-101-1, C = 8-98102-211-1 		1-09400-061-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: A = 1-51410-294-0 		1-09000-326-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
